Full Modular 80 PLUS Platinum ARGB Power Supply with Digital Options

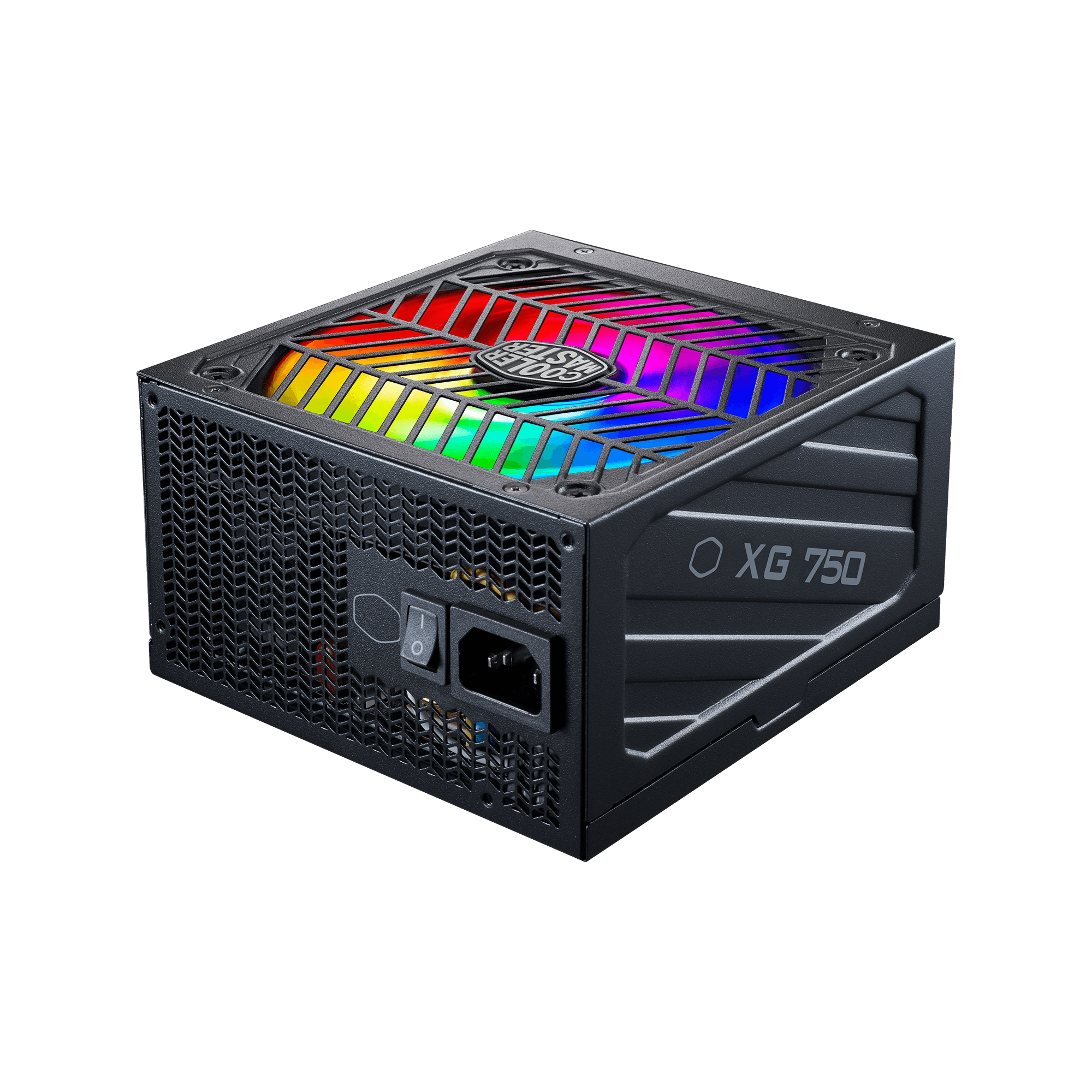

XG750 Plus Platinum
• Intel ATX 12V Version 2.53
• 80 PLUS Platinum Certified
• Quiet ARGB 135mm silent Fan
• Built-in Information Display Panel
• Full-Modular Cabling with 100% Japanese In-Line Capacitors
• 10-Year Warranty
XG750 PLUS PLATINUM
FULL MODULAR 80 PLUS PLATINUM ARGB POWER SUPPLY WITH DIGITAL OPTIONS
• Intel ATX 12V Version 2.53
• 80 PLUS Platinum Certified
• Quiet ARGB 135mm silent Fan
• Built-in Information Display Panel
• Full-Modular Cabling with 100% Japanese In-Line Capacitors
• 10-Year Warranty
Powered By Cooler Master
The XG Plus Platinum marks the culmination of many years of effort and the beginning of a new era for Cooler Master power supply units. This product line debuts the first generation of power supply platform created by Cooler Master in-house. This platform allows Cooler Master to offer an entirely new class of high efficiency products. The use of 100% Japanese capacitors allows this power supply unit to deliver top-shelf performance with reduced ripple noise.
Silence is Platinum
Some power supply units offer great cooling performance. And some offer quiet operation. The XG Plus Platinum offers both. The in-house designed was created so that we could deliver a high quality PSU that could power gaming builds at top of the line performance levels while remaining relatively cool.

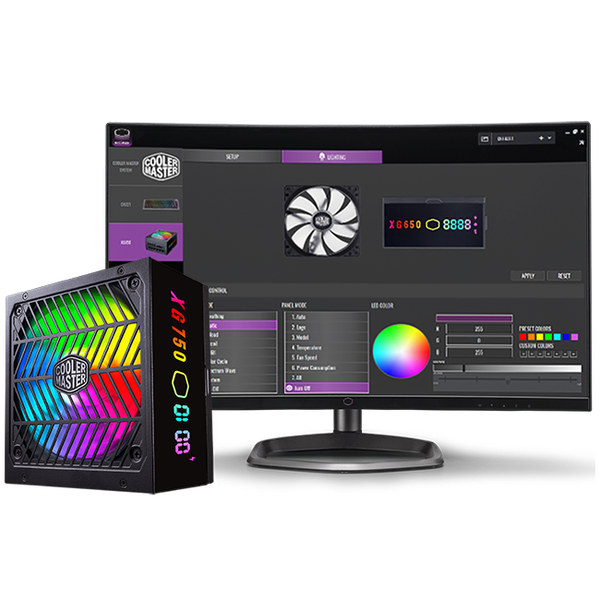

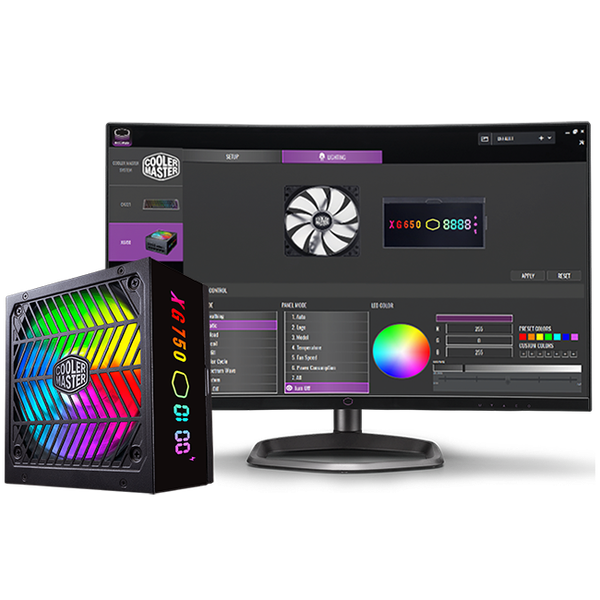

ARGB Fans with Digital Side Panel

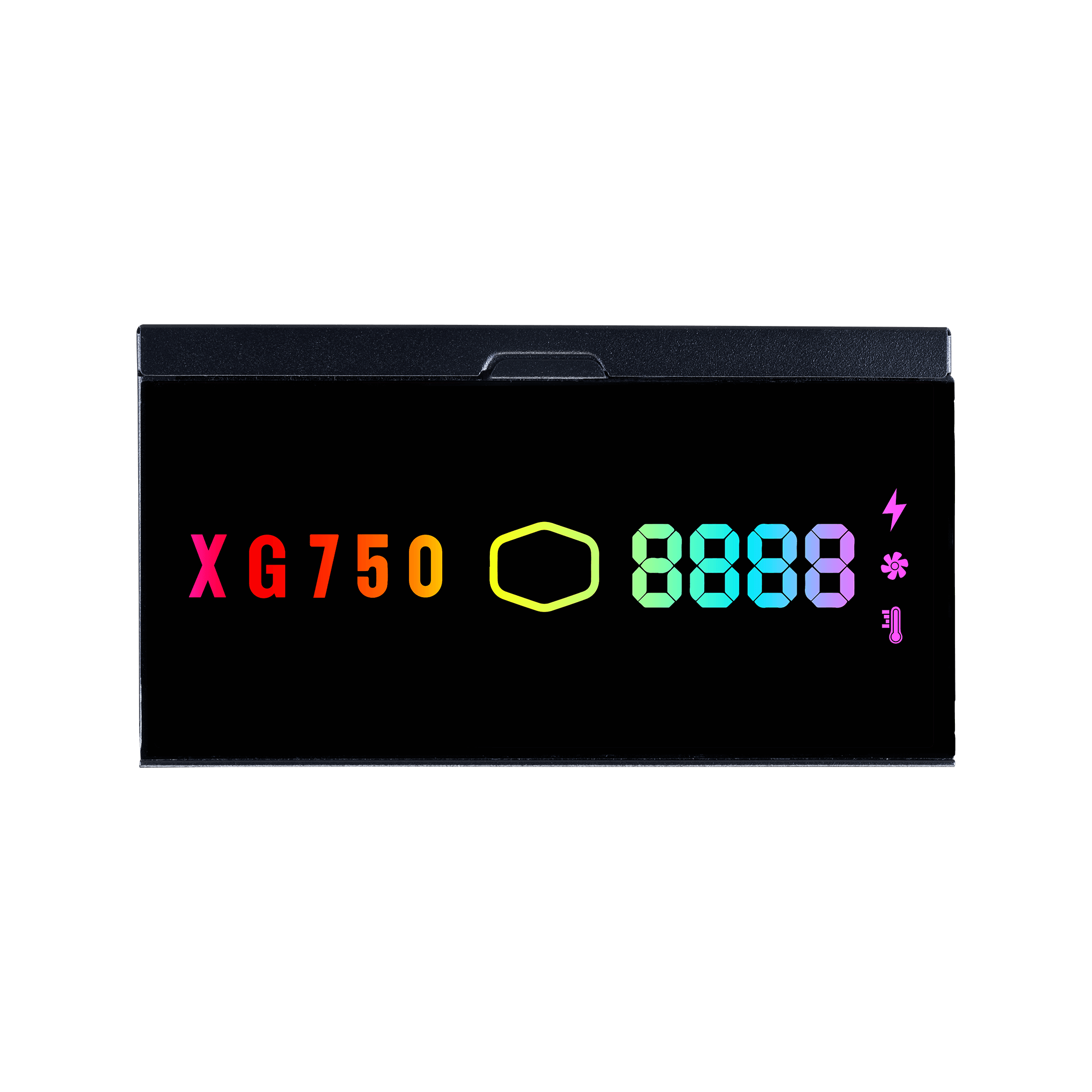

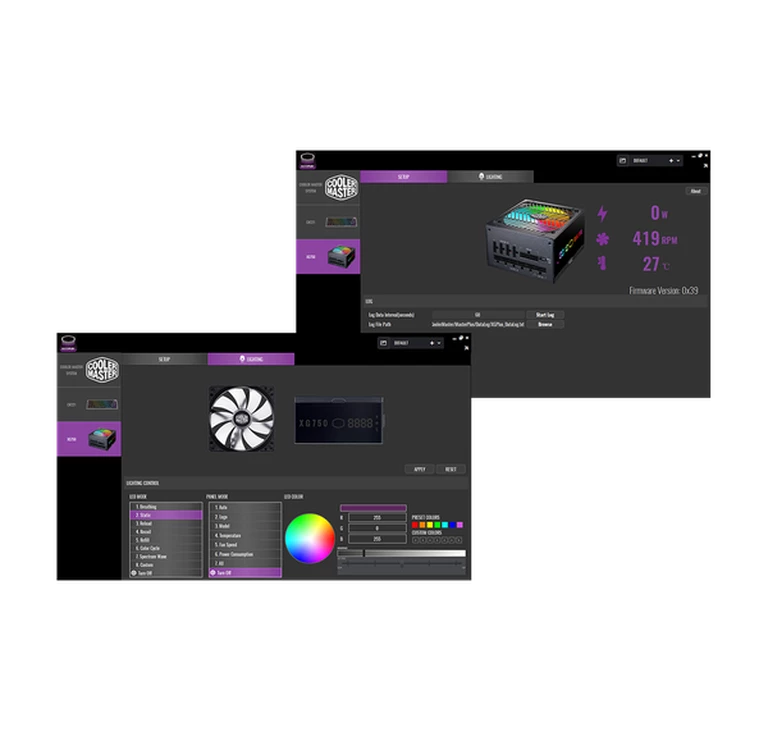

The XG Plus Platinum ARGB fan with digital display panel can monitor real time performance data, showing fan speed, temperature, power load, and customized ARGB lighting.

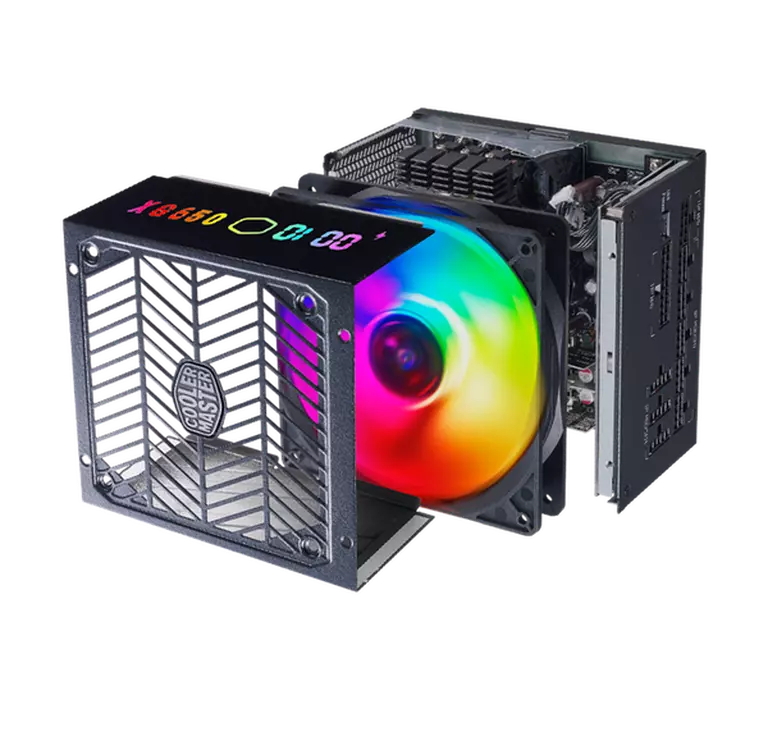

Crafted For Excellence

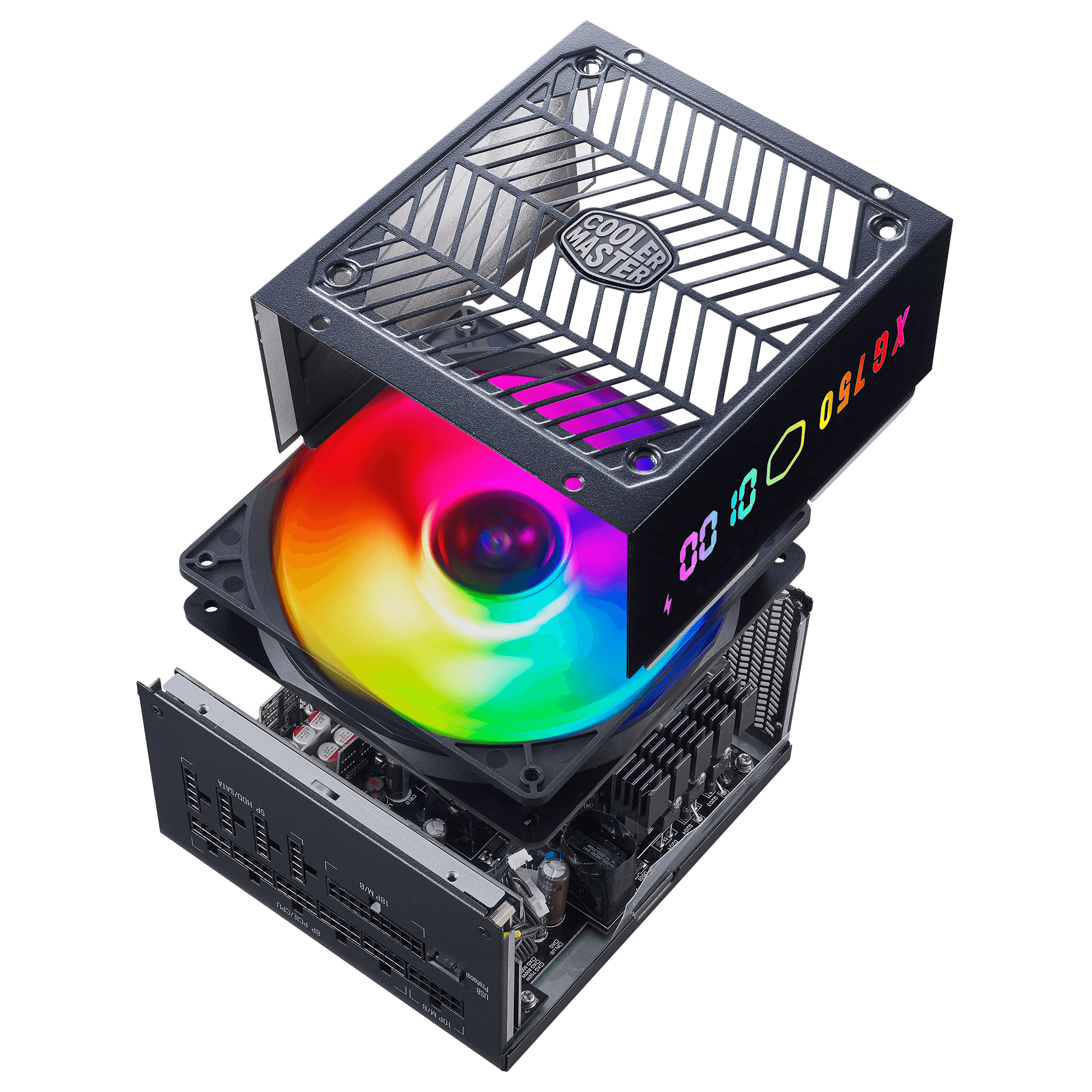

The XG Plus Platinum is created and designed for performance, stability, reliability, lifespan, and so much more. That quality starts with the technology used on the inside. The full-bridge LLC resonant converter and DC-DC technology, made with 100% Japanese capacitors, work together to create a PSU that offers reliable and stable voltage outputs for safer, more reliable performance and higher efficiency while creating minimal noise pollution.
Specifications
- Modular Fully Modular
- PFC Active PFC
- Input Frequency 50-60Hz
- ErP 2014 Lot 3 Yes

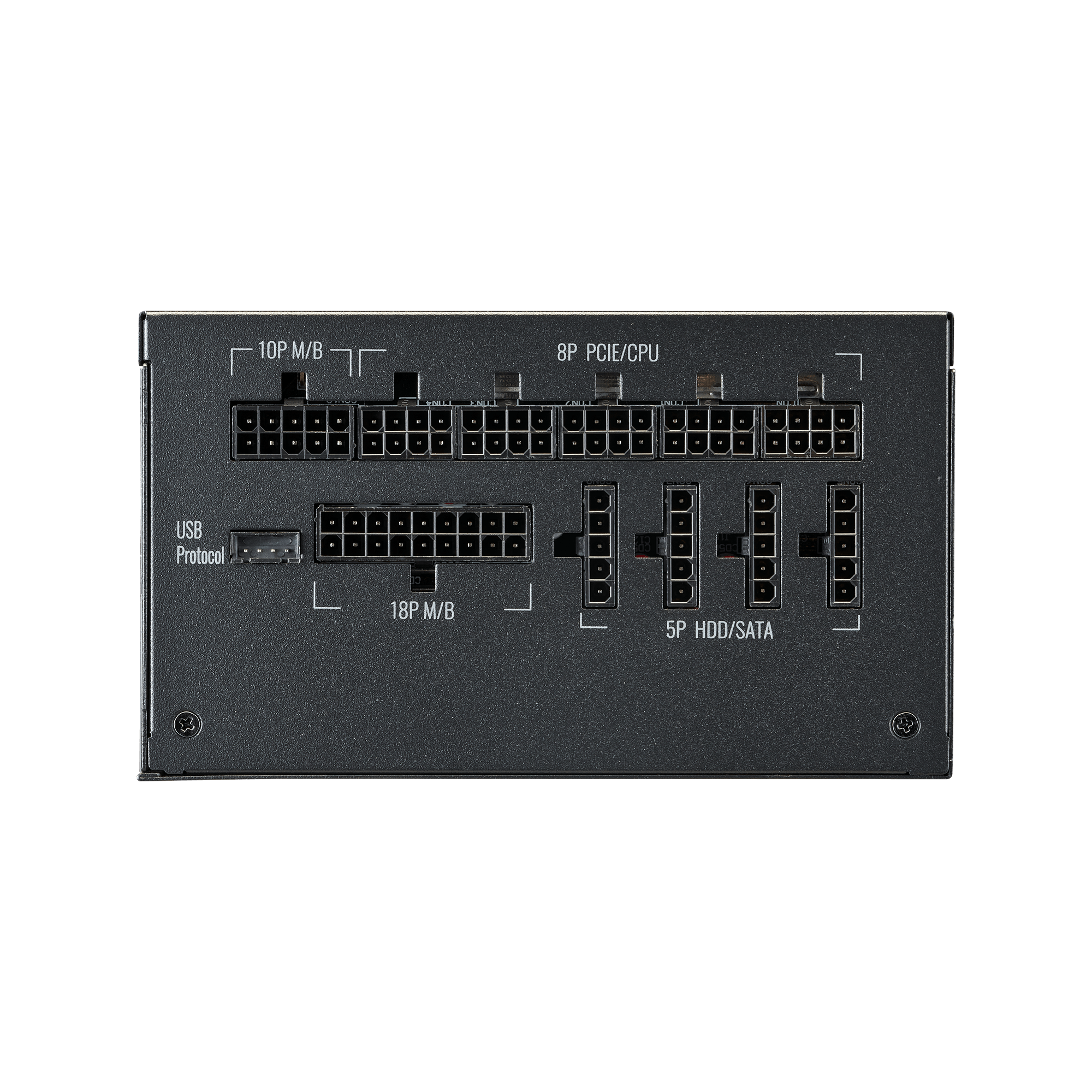

- ATX 24 Pin Connectors 1
- EPS 4+4 Pin Connectors 1
- 80 PLUS Rating 80 PLUS Platinum
- EPS 8 Pin Connector 1
- Power Good Signal 100 - 150 ms
- USB Protocol 10P 1
- MTBF >100,000 Hours
- Category 500 to 750W
- 80 Plus Efficiency Platinum
- Operating Temperature 0-50°C
- SATA Connectors 12
- Fan Size 135mm
- PCI-e 6+2 Pin Connectors 4

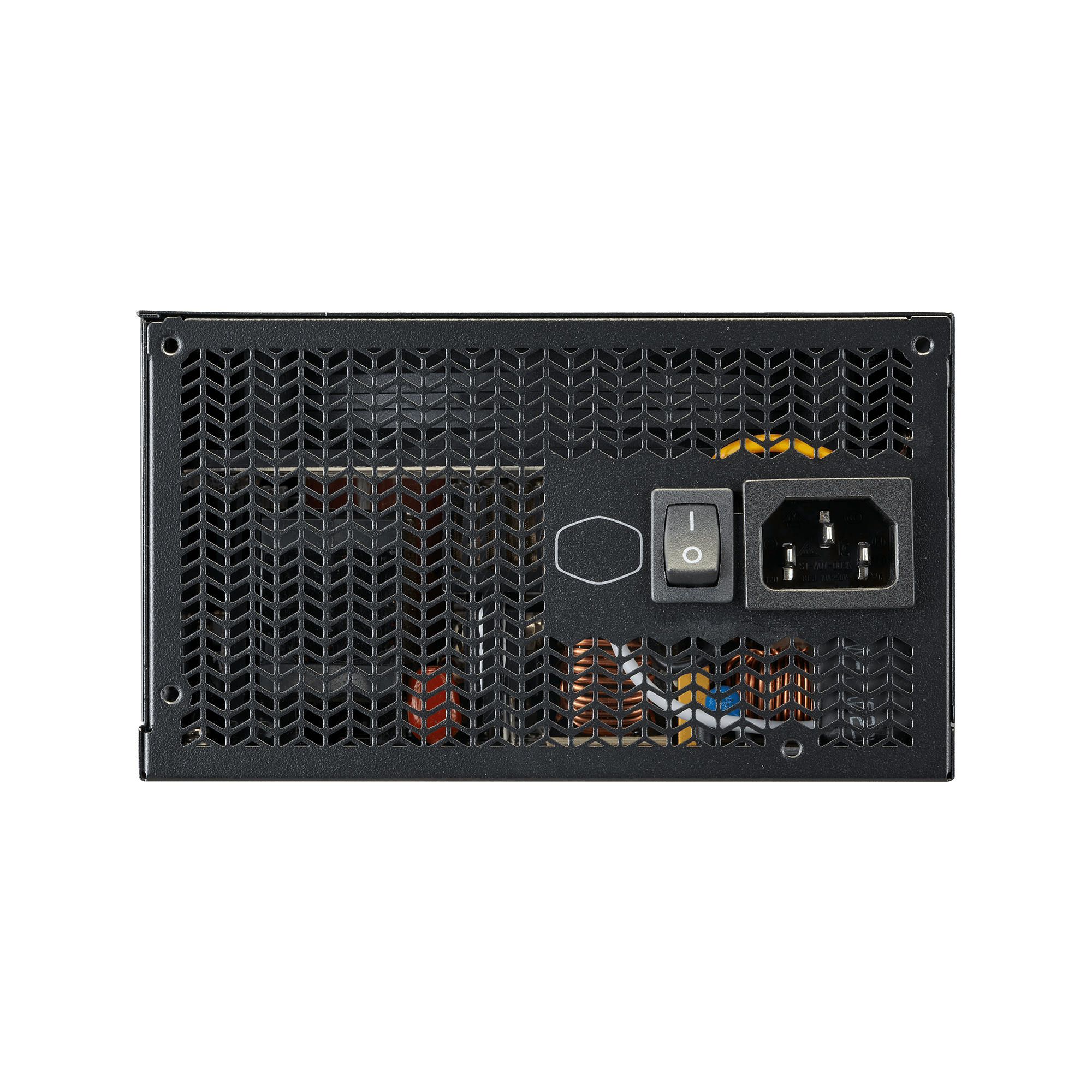

- Input Voltage 100-240V
- Peripheral 4 Pin Connectors 4
- Protections OVP
- Protections OPP
- Protections SCP
- Protections UVP
- ATX Version Intel ATX 12V Ver. 2.53
- Protections OTP
- Protections OCP
- Fan Speed 1800 RPM
- Dimensions (L x W x H) 160 x 150 x 86 mm
- Protections Surge and Inrush Protection
- Regulatory CCC
- Input Current 10-5A
- Regulatory CE
- Series XG Series
- Regulatory EAC
- Regulatory cTUVus
- Regulatory FCC
- Efficiency ≥ 92% @ Typical Load
- Regulatory BSMI
- Hold Up Time ≥ 16ms
- Regulatory TUV
- Noise Level @ 100% ≤ 25 dBA
- Regulatory UKCA
- Model MPG-7501-AFBAP-X**
