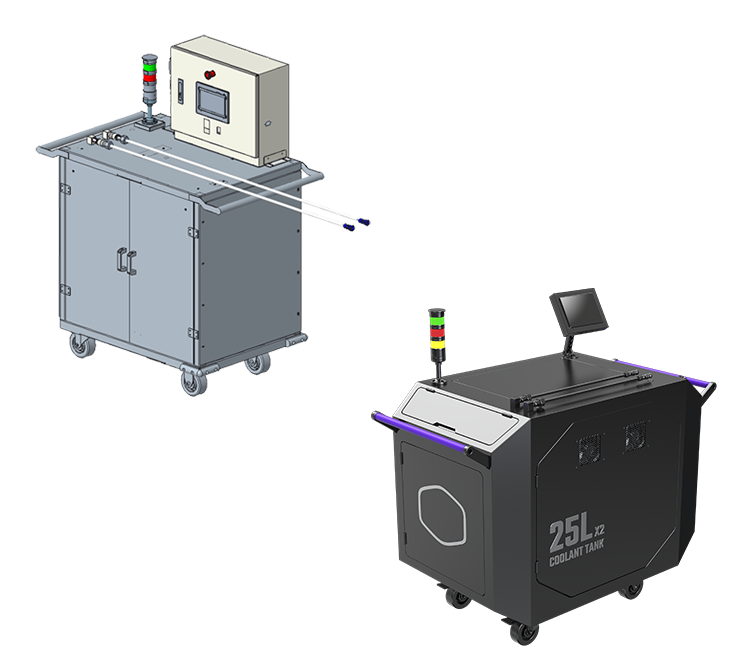

Loop Charge Kit image number 0

Fill, Flush, Filter—Fast. With Pressure You Can Count On.

Loop Charge Kit

Overview The Cooler Master Loop Charge Kit is engineered for coolant management in secondary loop systems within data center IT server racks. The unit comprises a 25-liter coolant tank, circulating pump, DC tank-type air compressor, and hose assembly. It delivers 5-micron filtered coolant at a flow rate of up to 10 LPM (2.6 GPM), with a maximum pressure of 70 psi and a nominal operating pressure of 40 psi. The integrated air compressor provides up to 80 psi at a maximum airflow of 36.5 LPM (9.64 GPM). A 25-liter drain tank is included for fluid recovery.

Features and Benefits

Features:

  • 25 L Coolant Supply Tank
  • 25 L Waste Coolant Drain Tank
  • Liquid Pressure up to 70 psi
  • Air Pressure up to 80 psi
  • Dual Coolant Filtration (Inlet & Outlet)
  • Air Flow up to 36.5 LPM

Benefits:

  • Coolant Charging Pressure Regulation
  • End-to-End Coolant Purity Control



Smooth Maintenance Starts Here

Boost your data center's efficiency with the Cooler Master Loop Charge Kit—your all-in-one solution for fast, clean, and reliable coolant handling. Designed for secondary-loop components, this compact system includes a high-capacity tank, a precision pump, and a powerful air compressor. Enjoy 5-micron filtration, up to 70 psi of coolant pressure, and 80 psi of air pressure—all from a sleek 25-liter setup. Maintenance has never been this smooth.

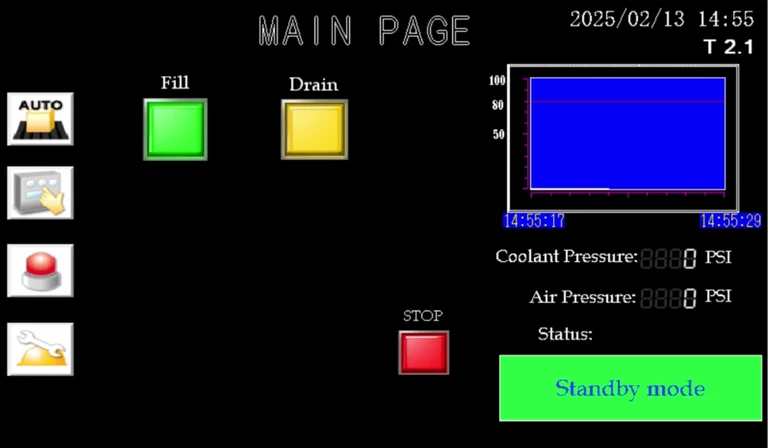

Loop Charge Kit Control Panel Interface
