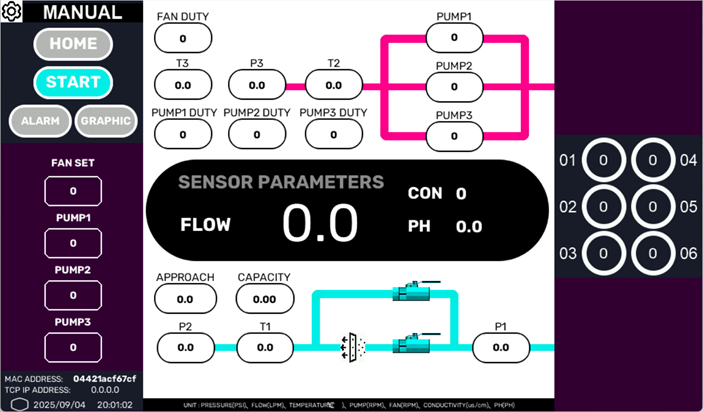

25 kW CDU Control Panel Interface
The Ultimate 2-in-1 Cooling Solution

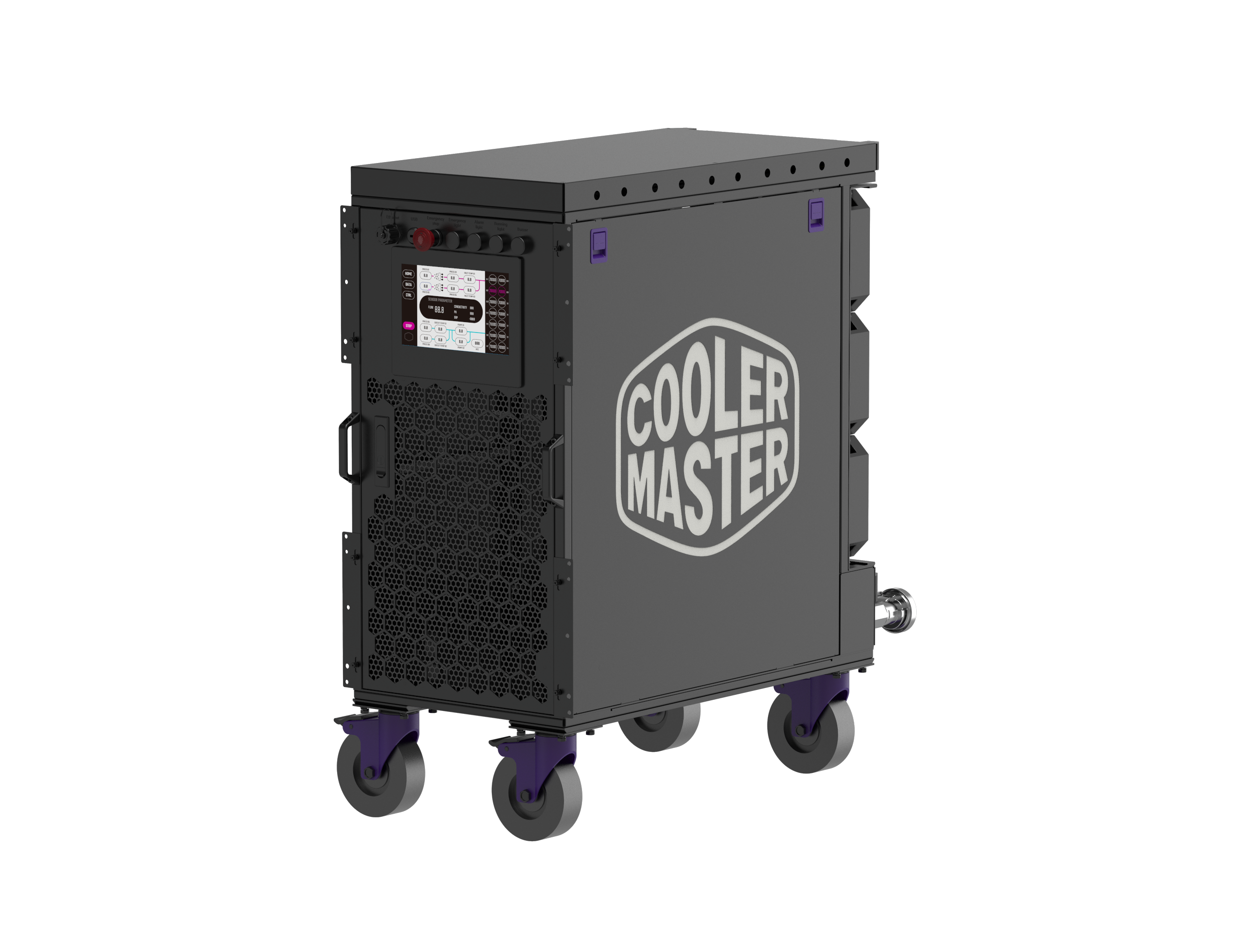

25 kW Liquid-to-Air CDU
Overview
The Cooler Master 20U 25 kW liquid-to-air CDU improves the efficiency of the heat load from IT hardware in hot/cold aisle data center configurations, dissipating 25 kW of heat. The combination of the radiator and 6 fans facilitates heat exchange with an approach temperature difference of 13°C.
Features and Benefits
Features:
- 2+1 pump redundancy.
- 4+1 power supply redundancy.
- 6 replaceable fans.
- Multiple sensor detection, including temperature, pressure, and flow rate.
- Coolant quality control, pH, and conductivity detection.
Benefits:
- High-performance efficiency.
- Danfoss FD83 quick disconnector for quick connection.
- Material compatibility with PG25 coolant.
- A bypass fluid channel for quick filter replacement.
- Pressure relief valve for safety.
- Large reservoir for a high volume of coolant reserve.
- In-rack and in-row installation.
- Compatible with mini-manifold.
Total Cooling Solution
The Cooler Master 25 kW CDU features numerous sensors that measure flow, pressure, pH, ORP, conductivity, temperature, and leakage, enabling accurate monitoring of fluid conditions.
Operators can use CDU performance data to make actionable decisions about preventive maintenance, address potential errors or malfunctions, and receive alerts from the CDU's integrated alarm system.
The 1-inch FD83 quick-disconnect valve connects the CDU to the server liquid loop system. An optional mini-manifold can be connected for commissioning purposes.
