75 kW Liquid-to-Air In-Row CDU image number 0

Reliable cooling. Efficient by design.

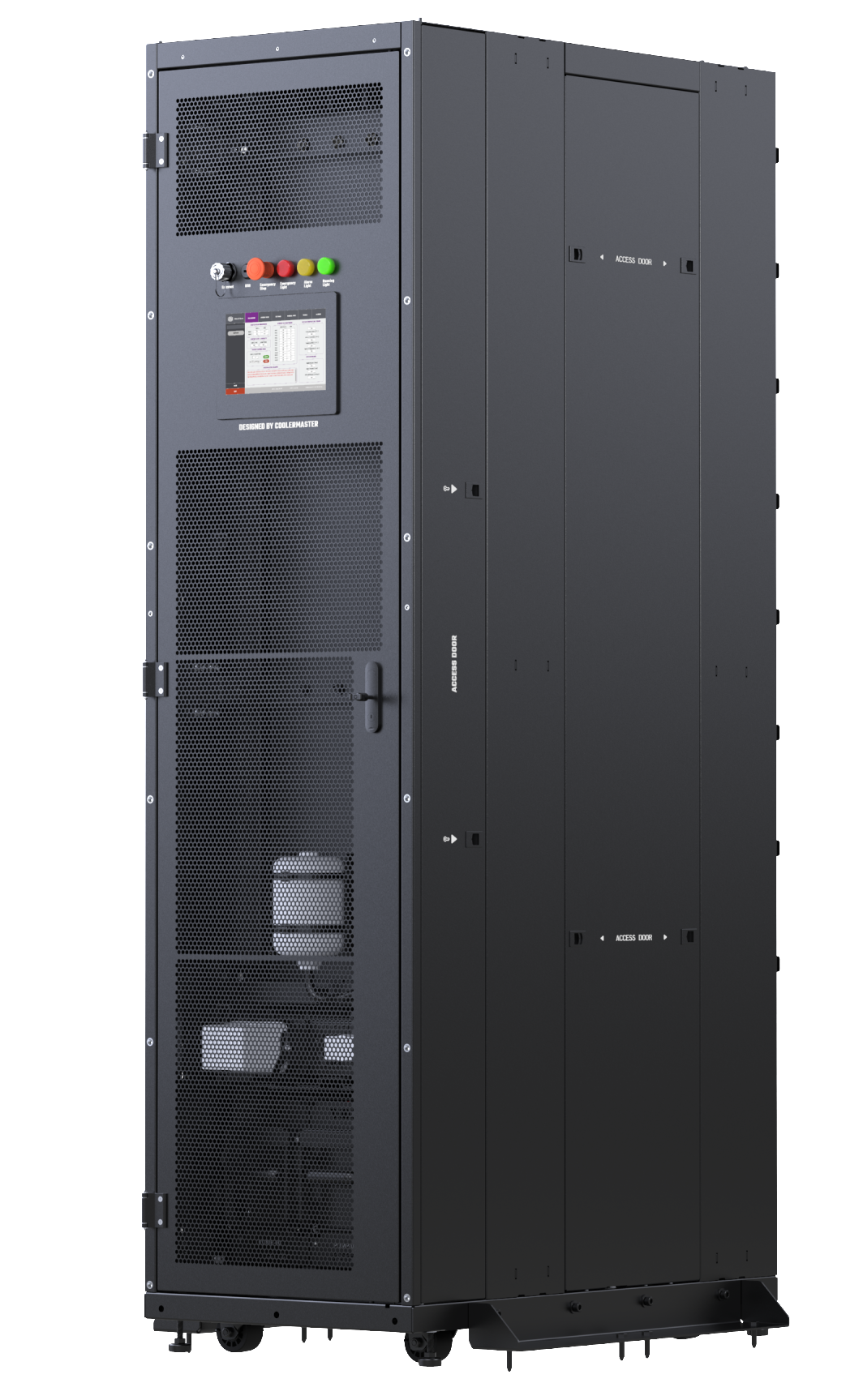

75 kW Liquid-to-Air In-Row CDU

Overview The Cooler Master 75 kW Liquid-to-Air CDU is a breakthrough cooling solution engineered for high-density IT environments. Designed to fit seamlessly into hot/cold aisle configurations, it delivers up to 75 kW of thermal dissipation with an approach temperature difference of 12.2°C at 50 LPM using dual V-pattern radiators and 16 hot-swappable fans, all within a 44U rack footprint. Built for reliability and scalability, the CDU features redundant dual-pump modules, modular power supplies, and intelligent sensor arrays for real-time monitoring. Whether deployed in AI clusters, HPC racks, or retrofitted into existing infrastructure, this CDU offers a powerful, space-efficient answer to modern data center cooling demands. The Cooler Master Liquid-to-Air CDU features numerous sensors that measure flow, pressure, pH, turbidity, conductivity, temperature, relative humidity, and leakage, enabling accurate monitoring of fluid conditions. Operators can use CDU performance data to support actionable decision-making on preventive maintenance, address potential errors or malfunctions, and respond to alarms from the CDU's integrated alarm system.

Features and Benefits

Features:

  • Dual V-pattern radiators with 15+1 hot-swappable fans
  • One-Touch Pump Module Replacement
  • Serial Dual Pump Module for Higher Pressure Head
  • Hot-Swappable, Dual Pump Modules with 2+1 Parallel Redundancy
  • 6 Hot-Swappable Power Supply Units, ORv3 5.5 kW Power Supply Units
  • Top and Bottom-of-Rack Secondary Loop Fittings
  • Intuitive User Interface for System Management
  • Redfish API for Remote Management

Benefits:

Faster, Easier Module Replacement

  • Pump Modules
  • Power Supply Units
  • Fan Modules

Built-In Redundancy + Uninterrupted Power

  • 2+1 Pump Redundancy
  • 15+1 Fan Redundancy
  • 2+1 Filter Redundancy
  • 3+3 Power Supply Unit

Future-Ready Design, Fully ORv3 Compliant PDU/PSU Power Shelf

  • Rack Monitor Controller
  • Built-In Power Distribution Unit
  • Bus Bar Design for Optional Tethering
  • Top-of-Rack Installation
  • Bottom-of-Rack Installation (Optional)

Flexible to Meet Power Source Requirements

  • AC: 200 to 480 volts
  • DC: 240 to 380 volts
  • IEC or NEMA Standard, 3-Phase

Touch, Monitor, Manage — All in One Place

  • Menu-driven interface with status, diagnostics, and configuration controls
  • 10.1-inch touchscreen interface with real-time monitoring

Connected. Intelligence. Reliable System

  • Standardized remote access and control capabilities with Modbus RTU
  • Multi-Link Intelligence for Maximum Uptime.



Take Cooling to the Next Level

Leveraging the superior efficiency of liquid cooling, the Cooler Master 75 kW Liquid-to-Air CDU redefines thermal management for high-performance compute environments. It outperforms traditional air cooling by delivering precise, scalable heat dissipation—up to 75 kW—with advanced control of overflow, pressure, and temperature.

Designed for AI, HPC, and next-gen server deployments, this CDU bridges the gap between conventional cooling and the demands of modern workloads. With hot-swappable components, remote access capabilities, and multi-mode control logic, it offers a flexible, intelligent solution that adapts to diverse operational needs—without the complexity of full-scale facility upgrades.

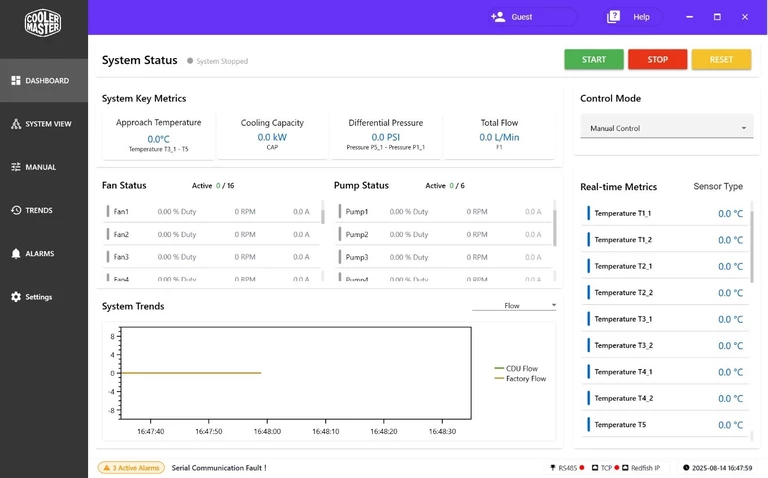

75 kW CDU v3 Control Panel Interface
