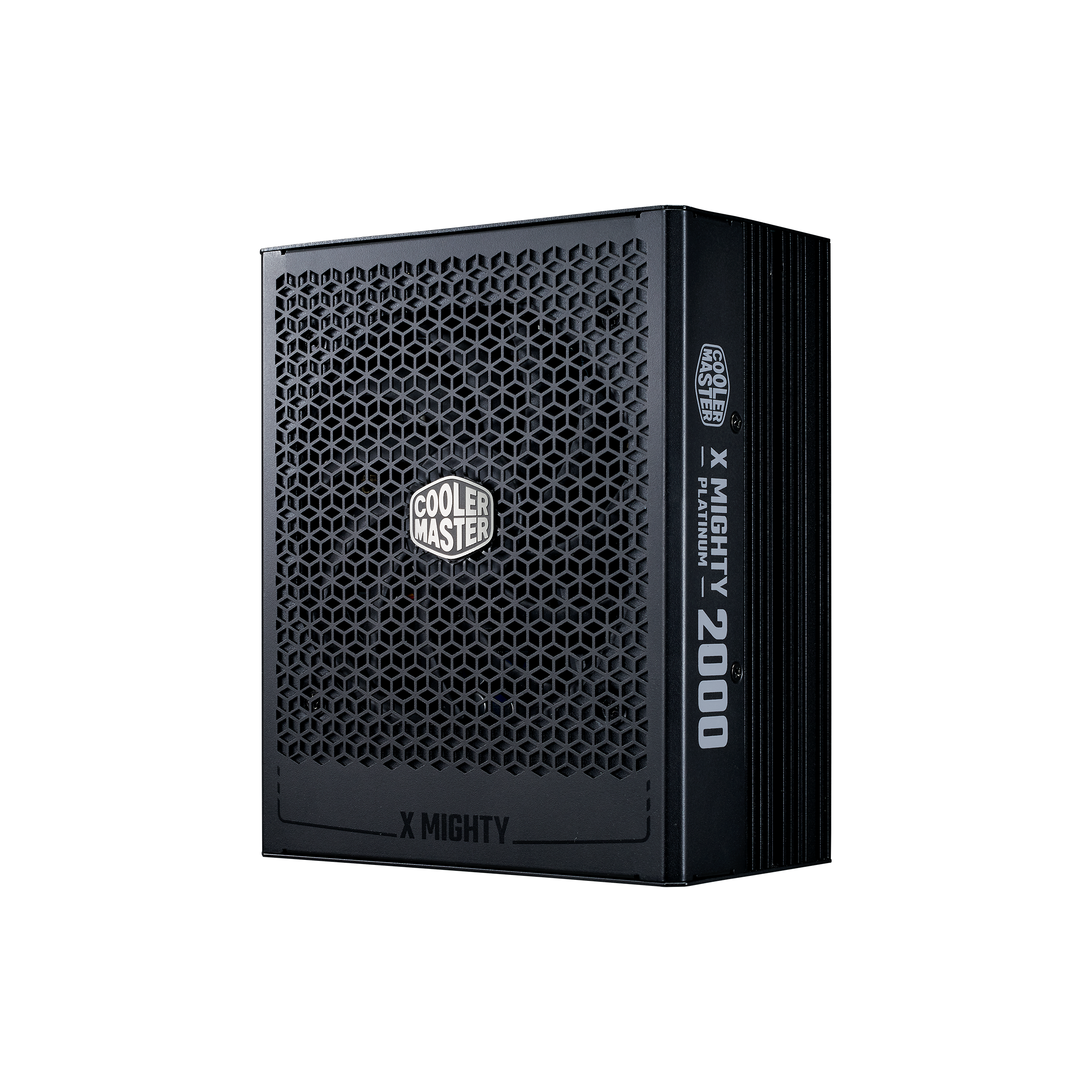

X Mighty 2000 image number 0

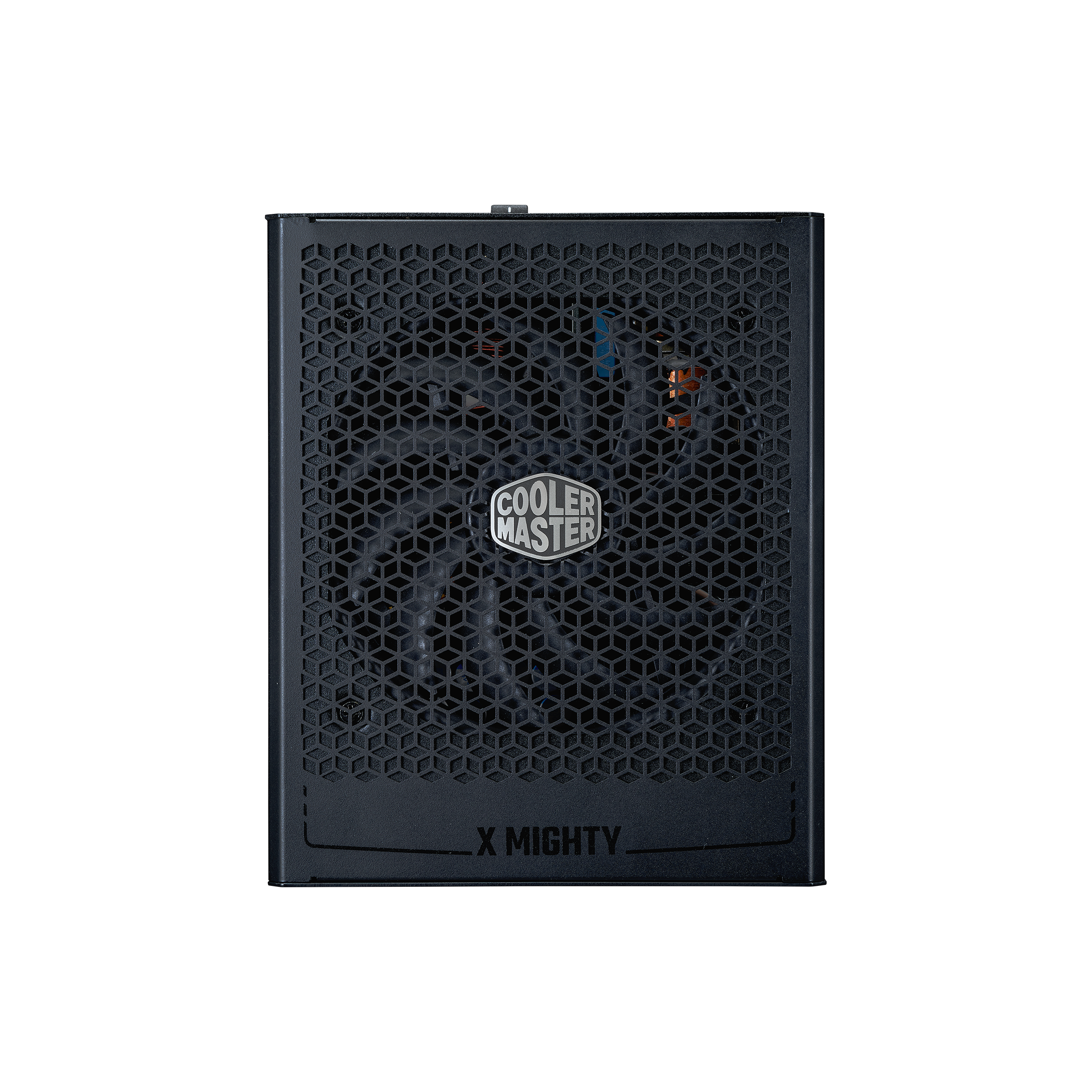

X Mighty 2000 image number 1

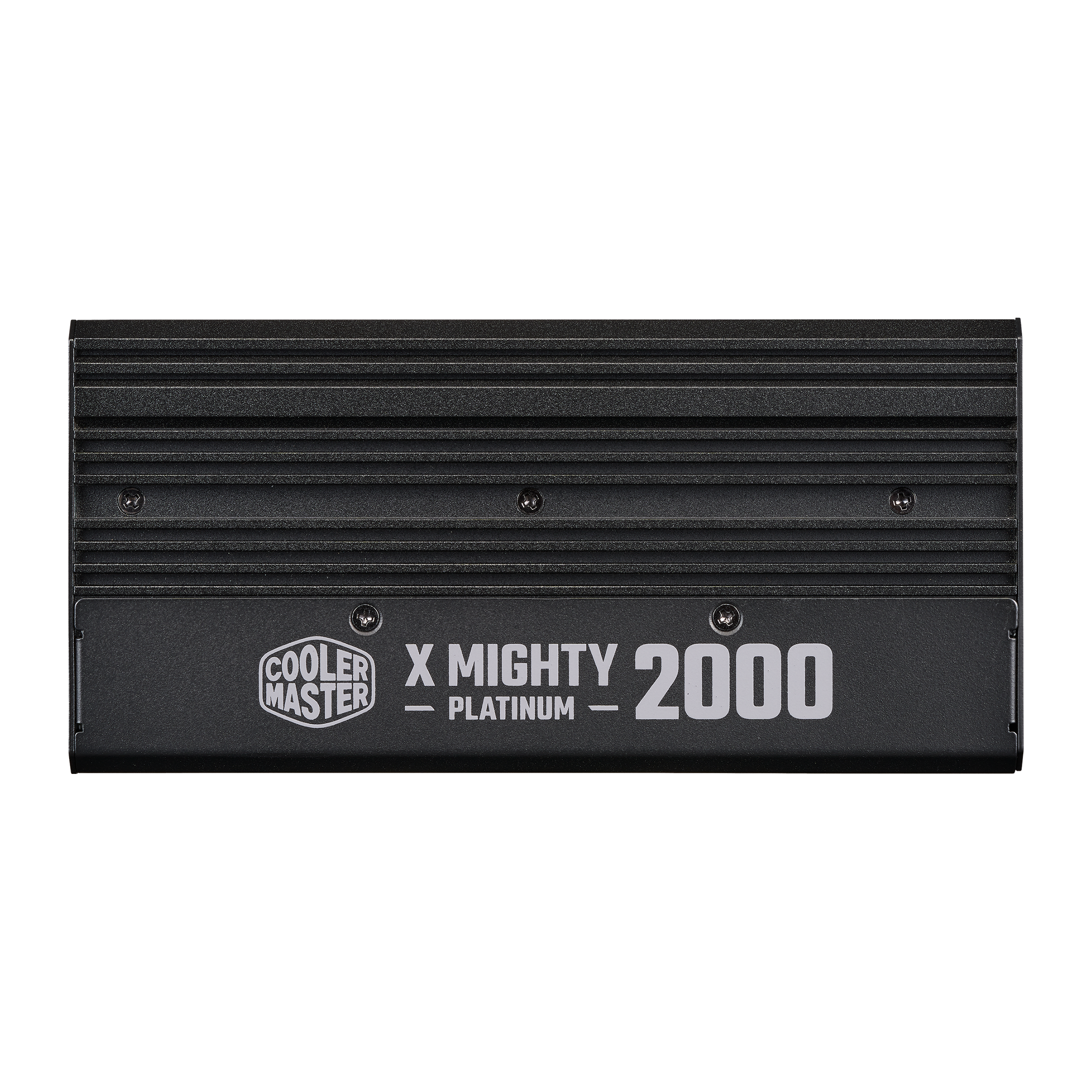

X Mighty 2000 image number 2

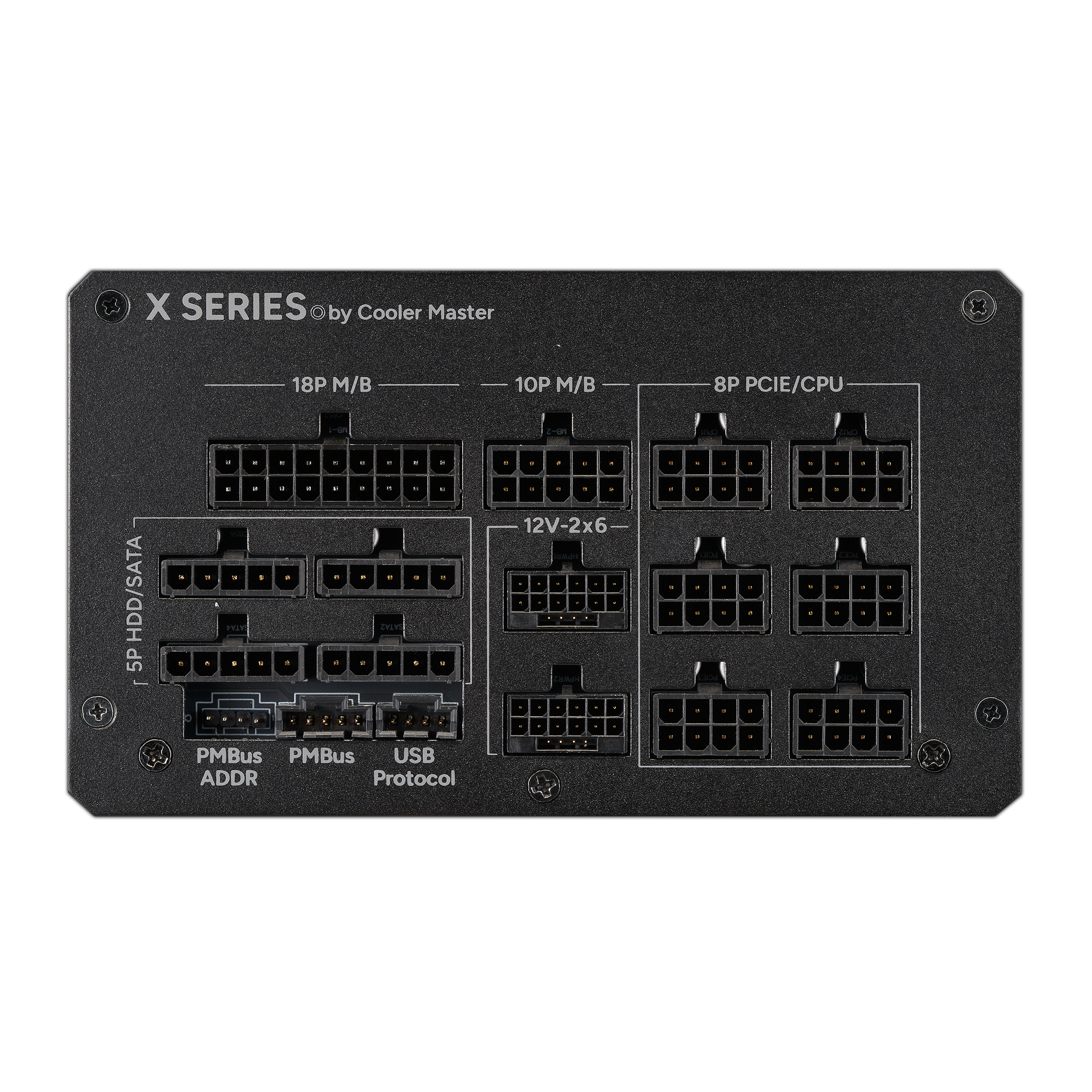

X Mighty 2000 image number 3
X Mighty 2000
X Mighty 2000
X Mighty 2000
X Mighty 2000

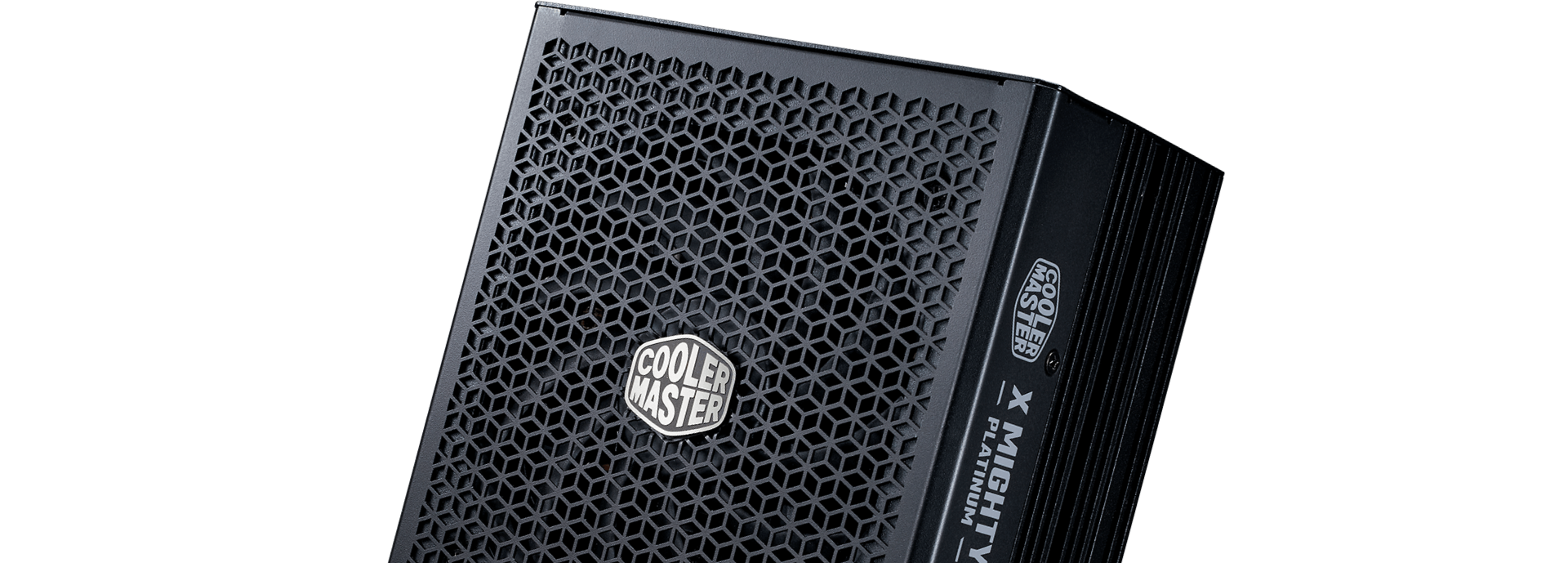

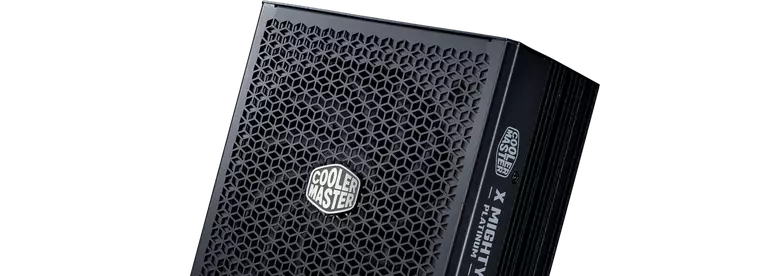

UNLEASH NEXT-GEN MIGHT

X Mighty 2000

• Advanced aluminum thermal structure

• 80 Plus Platinum efficiency certification

• ATX 3.1 support & two durable 12V-2x6 cables

• Dual 40 series GPU support

• Digital Power Management System

• 10-year warranty

region

AI-Ready Dual GPU Support with Color-Coded Precision

Supports dual 12V-2x6 connectors for dual GPU configurations, ideal for AI and machine learning workloads. Features dual-color connects (black and purple) to ensure correct installation.

Infineon Industrial-Grade Chipset for Enduring Reliability

Infineon industrial-grade chipset ensures long-lasting reliability

Active Bridge Rectifier for Boosted Efficiency and Stability

Active bridge rectifier for enhanced power efficiency and stability

Advanced Aluminum Design for Superior Cooling and Durability

Advanced aluminum thermal structure ensures excellent heat dissipation and durability

Premium Japanese Capacitors for Silent, Long-Lasting Performance

High-quality Japanese capacitors improve longevity and reduce electrical noise

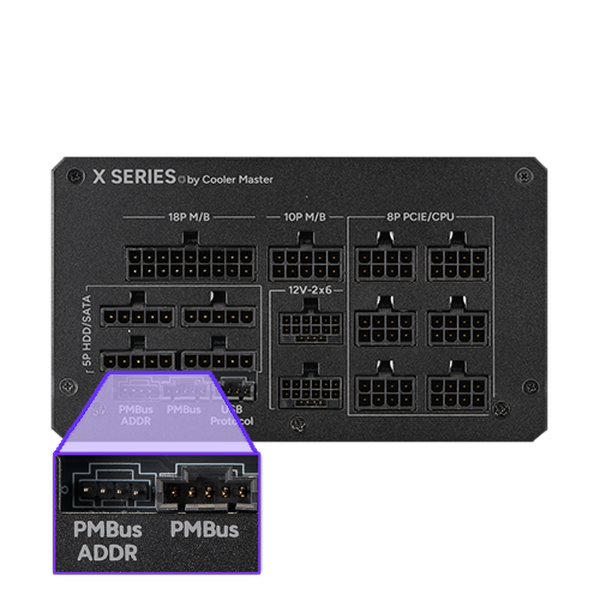

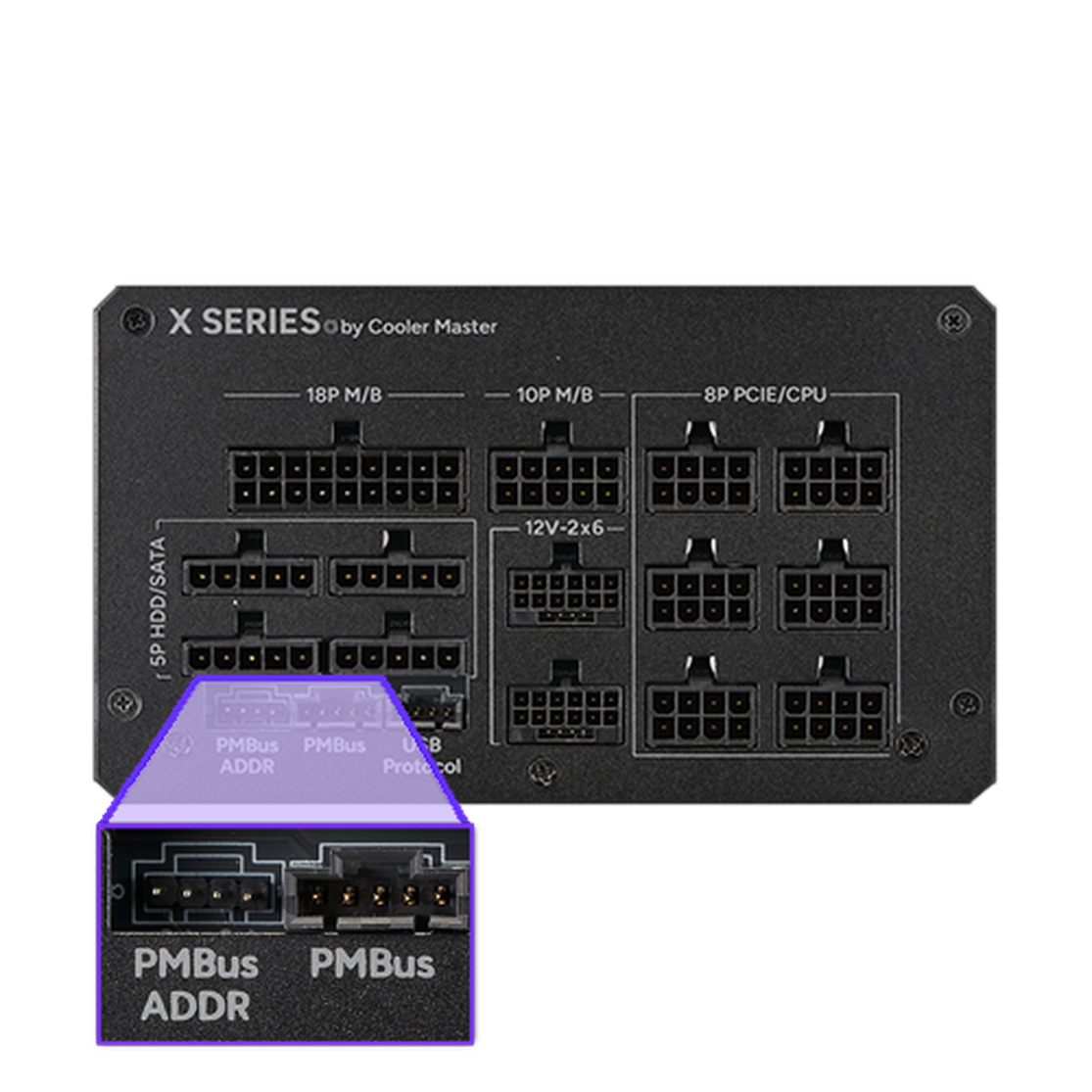

PMBus Support for Enterprise-Grade Performance Monitors

PMBus port support offers enterprise-grade performance monitoring capability

Specifications

  • Model MPS-K001-AFBP
  • ATX Version ATX 12V Ver. 3.1
  • PFC Active PFC
  • Input Voltage 115 - 240V (115 - 240V for 1600W / 200 - 240V for 2000W)
  • Input Current 16A (Max)
  • Input Frequency 50-60Hz
  • Dimensions (L x W x H) 180 x 150 x 86 mm
  • Fan Size 120mm
  • Fan Bearing FDB
  • Fan Speed 2500 RPM
  • Efficiency ≥ 94% @ Typical Load
  • 80 PLUS Rating 80 PLUS Platinum of EU Internal
  • ErP 2014 Lot 3 Yes
  • Operating Temperature 0-50°C
  • Power Good Signal 100 - 150 ms
  • Hold Up Time ≥ 16ms
  • MTBF >100,000 Hours
  • Protections OPP/ OVP/ OTP/ OCP/ SCP/ UVP/ Surge & Inrush Protection
  • Regulatory cUL, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA/BIS, KC (based on region's request.)
  • ATX 24 Pin Connectors 1
  • EPS 4+4 Pin Connectors 1
  • EPS 8 Pin Connector 1
  • SATA Connectors 12
  • Peripheral 4 Pin Connectors 4
  • PCI-e 6+2 Pin Connectors 4
  • 12V-2x6 Connectors 2
  • USB 10P Connector 1
  • PMBus 5 Pin Connector 1
  • Series X Series
  • 80 Plus Efficiency Platinum
  • Modular Fully Modular
  • Category Above 750W
  • Form Factor ATX
  • Watts 2000W
