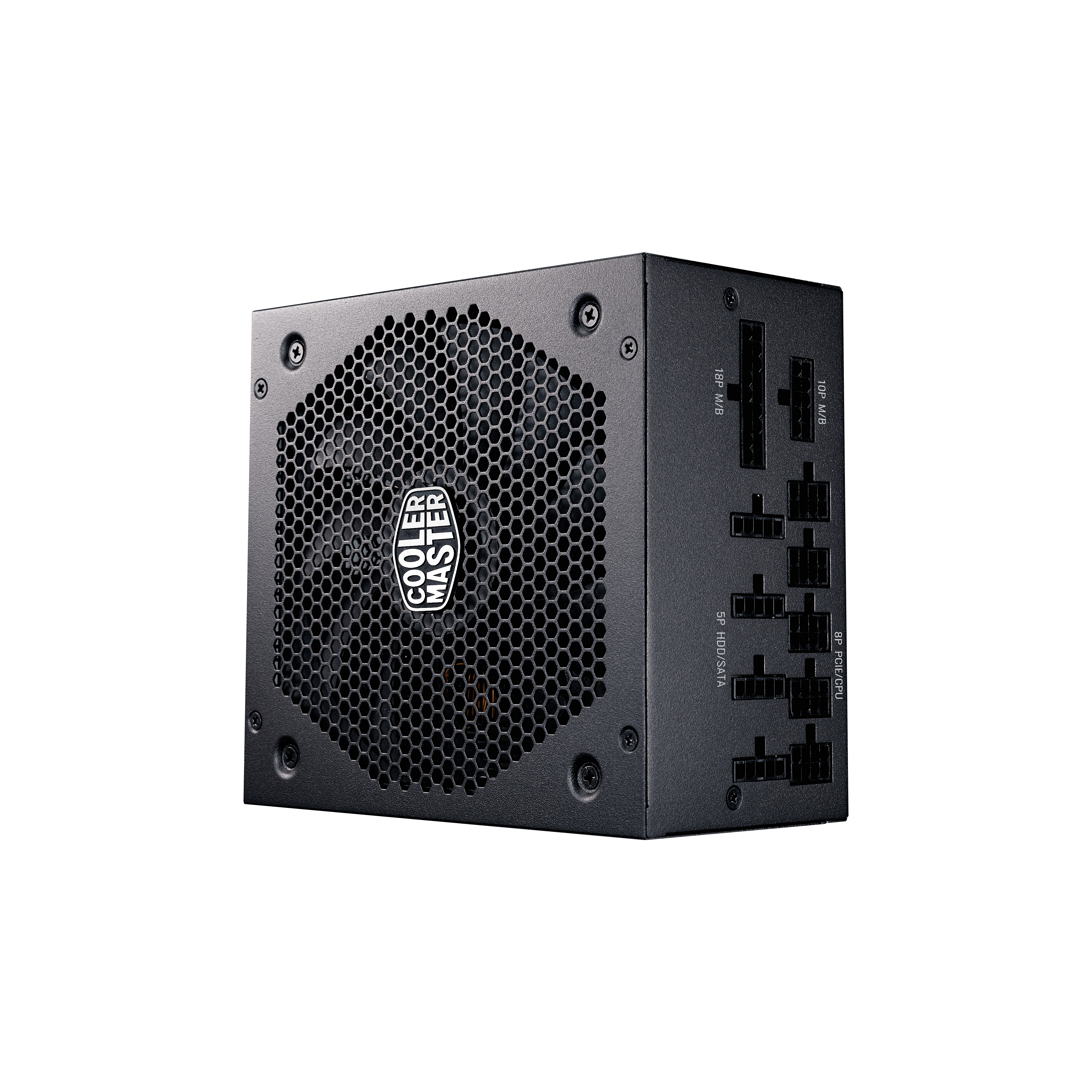

V850 Gold image number 5
V850 Gold image number 6
V850 Gold image number 7
V850 Gold image number 8
V850 Gold
V850 Gold
V850 Gold
V850 Gold
V850 Gold
V850 Gold
V850 Gold
V850 Gold
V850 Gold

Full-modular Semi-fanless 80 Plus Gold Certified Power Supply

V850 Gold

80 Plus Gold Certified

Half-bridge LLC Resonant Converter and DC-DC Technology

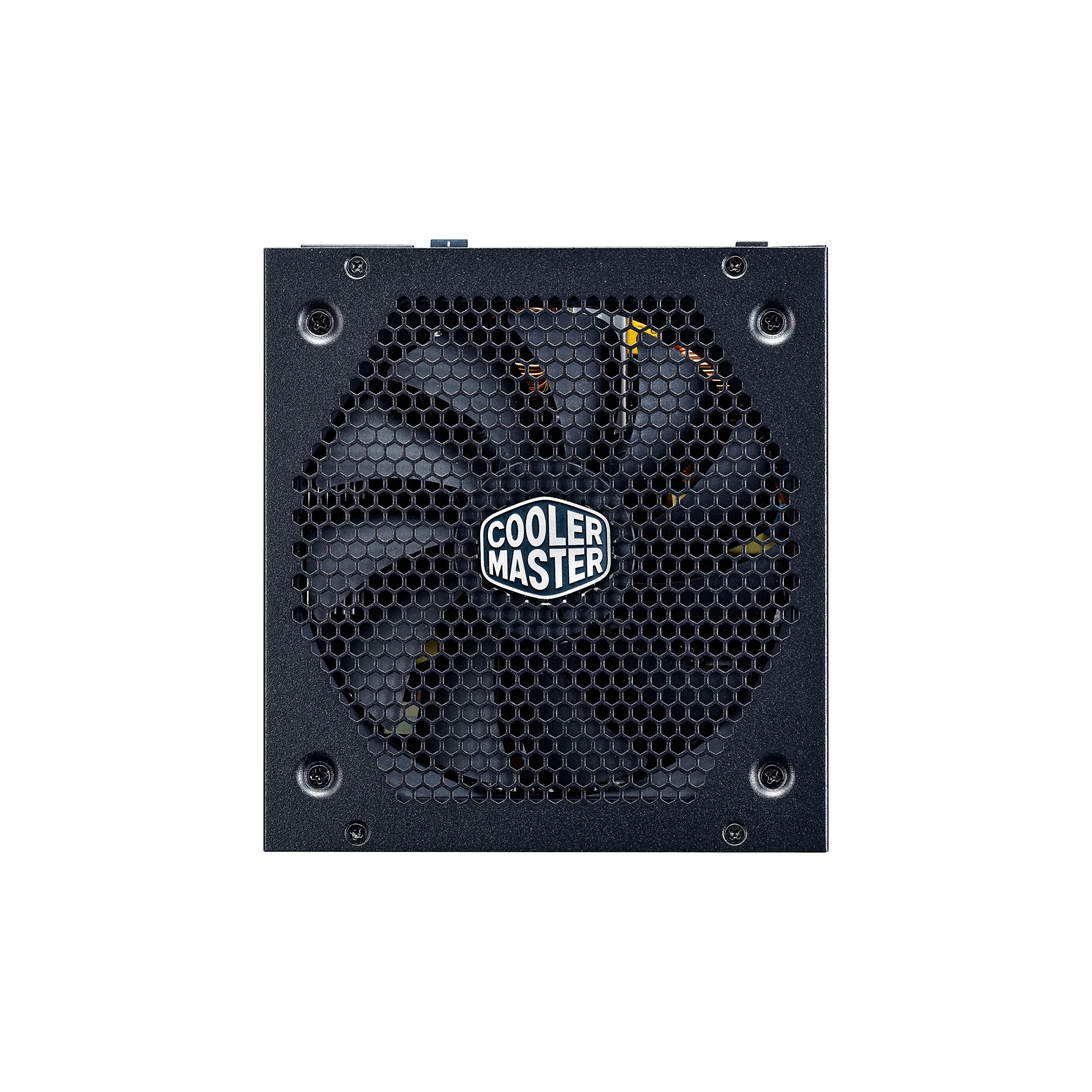

Silent 135mm FDB Fan

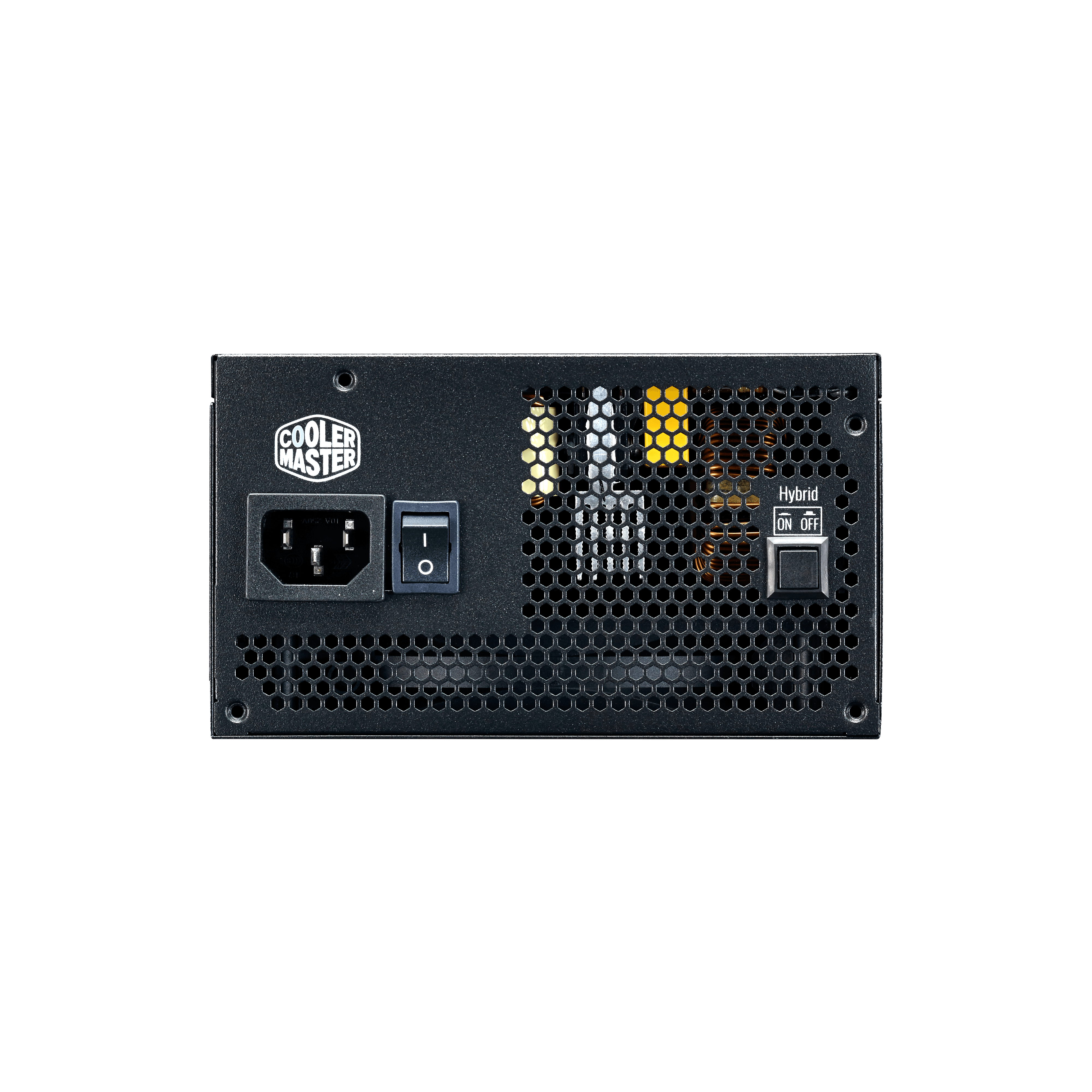

40% Semi-fanless Mode with Hybrid Switch

16AWG PCI-E Cables

10 Year Warranty

Specifications

  • Modular Fully Modular
  • ATX Version ATX 12V
  • PFC Active PFC
  • Input Frequency 50-60Hz
  • ErP 2014 Lot 3 Yes
  • Category Above 750W
  • FDD Cable 4 Pin Connectors 1
  • ATX 24 Pin Connectors 1
  • EPS 4+4 Pin Connectors x1 = 1x (700mm)1
  • EPS 8 Pin Connector x1 = 1x (700mm)
  • Fan Bearing FDB
  • Noise Level @ 20% 0 dBA
  • 80 PLUS Rating 80 PLUS Gold
  • Power Good Signal 100 - 500 ms
  • MTBF >100,000 hours @ 25℃ ambient
  • 80 Plus Efficiency Gold
  • SATA Connectors 12
  • Operating Temperature 0-50°C
  • PCI-e 6+2 Pin Connectors 6
  • Fan Size 135mm
  • Input Voltage 100-240V
  • Peripheral 4 Pin Connectors 4
  • Noise Level @ 50% 15.4 dBA
  • Fan Speed 1545 RPM
  • Efficiency 90% @ Typical Load
  • Protections OVP
  • Protections OPP
  • Protections SCP
  • Protections UVP
  • Series V Gold Series
  • Protections OTP
  • Protections OCP
  • Dimensions (L x W x H) 140 x 150 x 86 mm
  • Hold Up Time 17ms
  • Regulatory CCC
  • Regulatory CE
  • Noise Level @ 100% 32.5 dBA
  • Regulatory TUV-RH
  • Regulatory RCM
  • Regulatory EAC
  • Regulatory cTUVus
  • Input Current 13-6A
  • Regulatory FCC
  • Regulatory BSMI
  • Regulatory KC
  • Regulatory CB

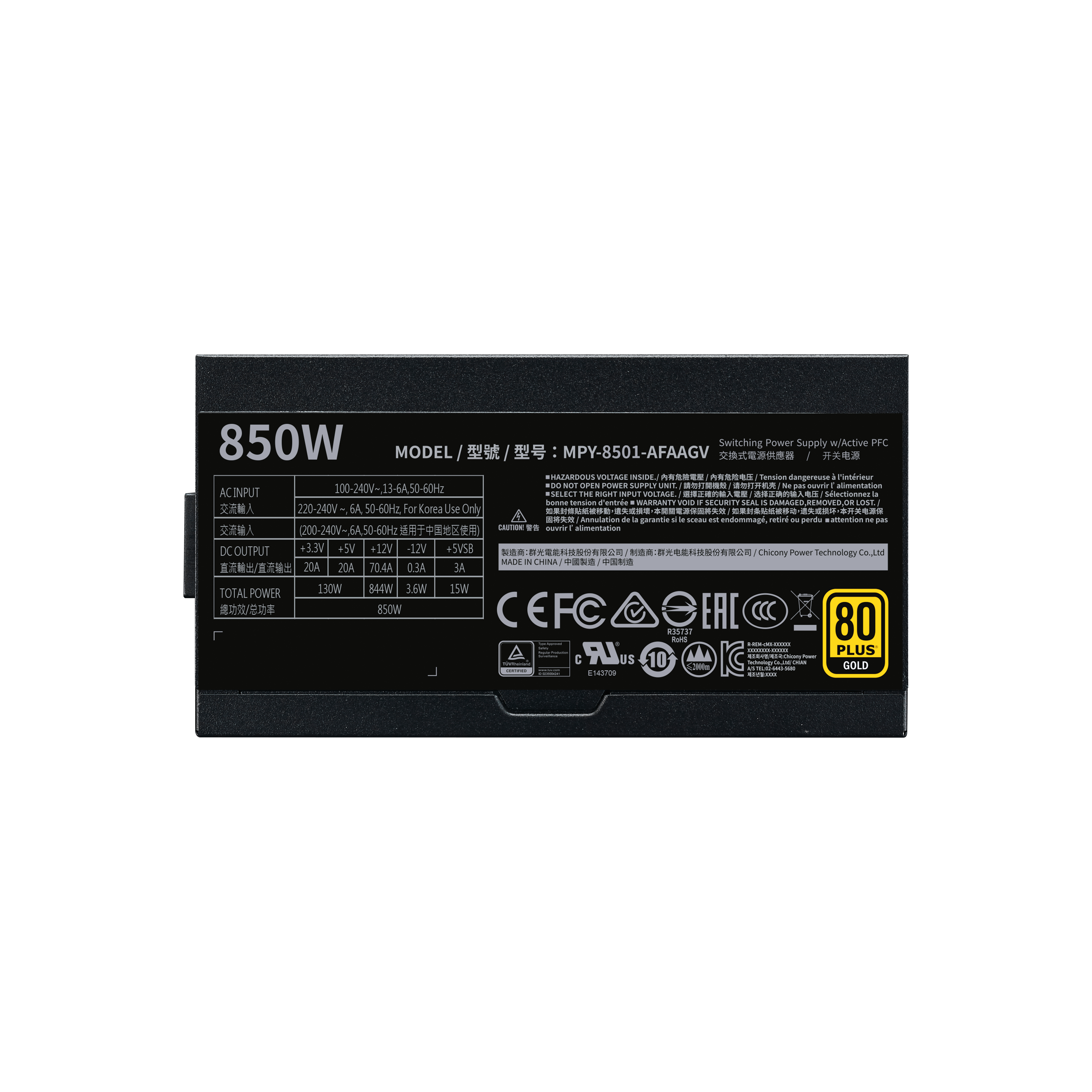

  • Model MPY-8501-AFAAGV
