Semi-fanless Full-modular 80 Plus Gold Power Supply

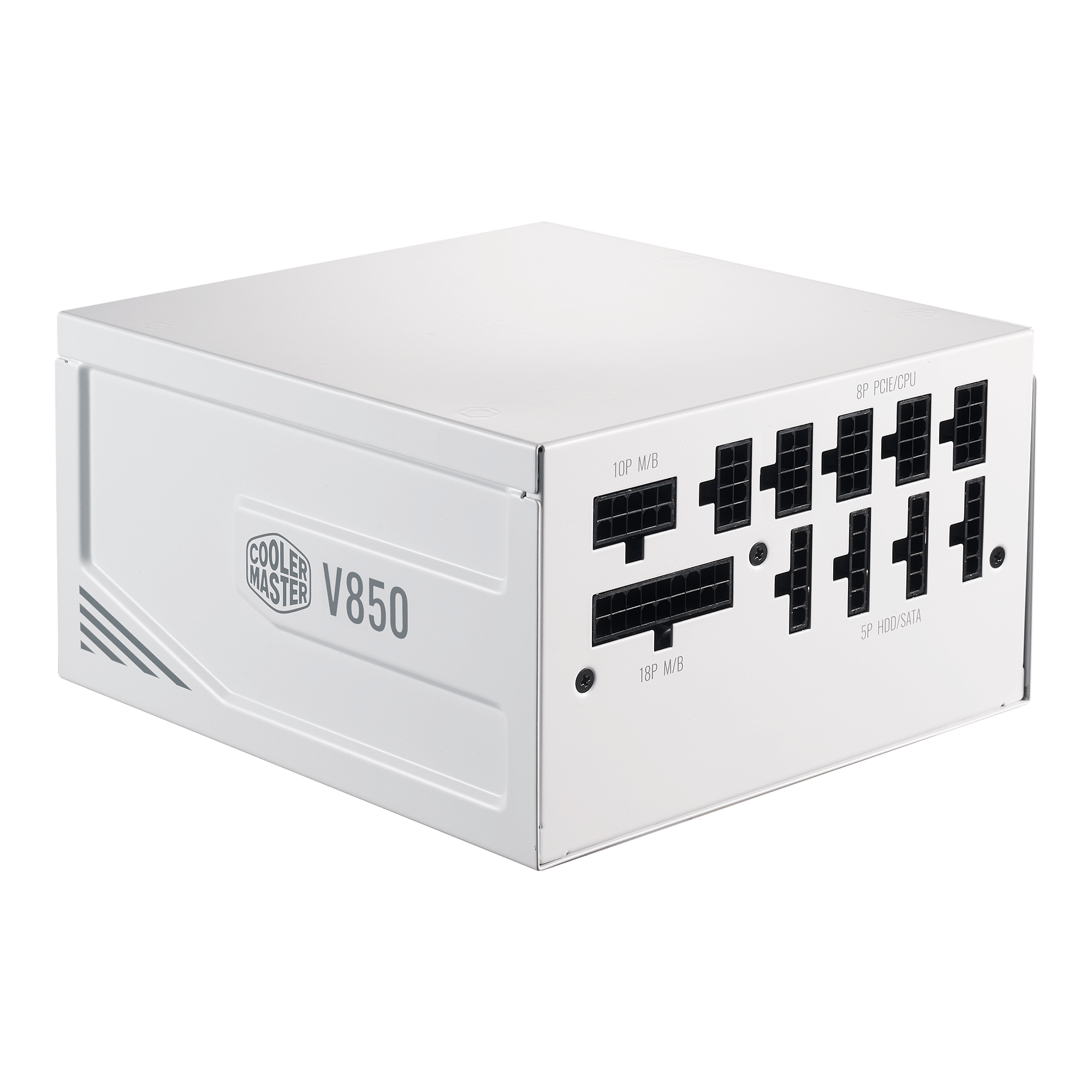

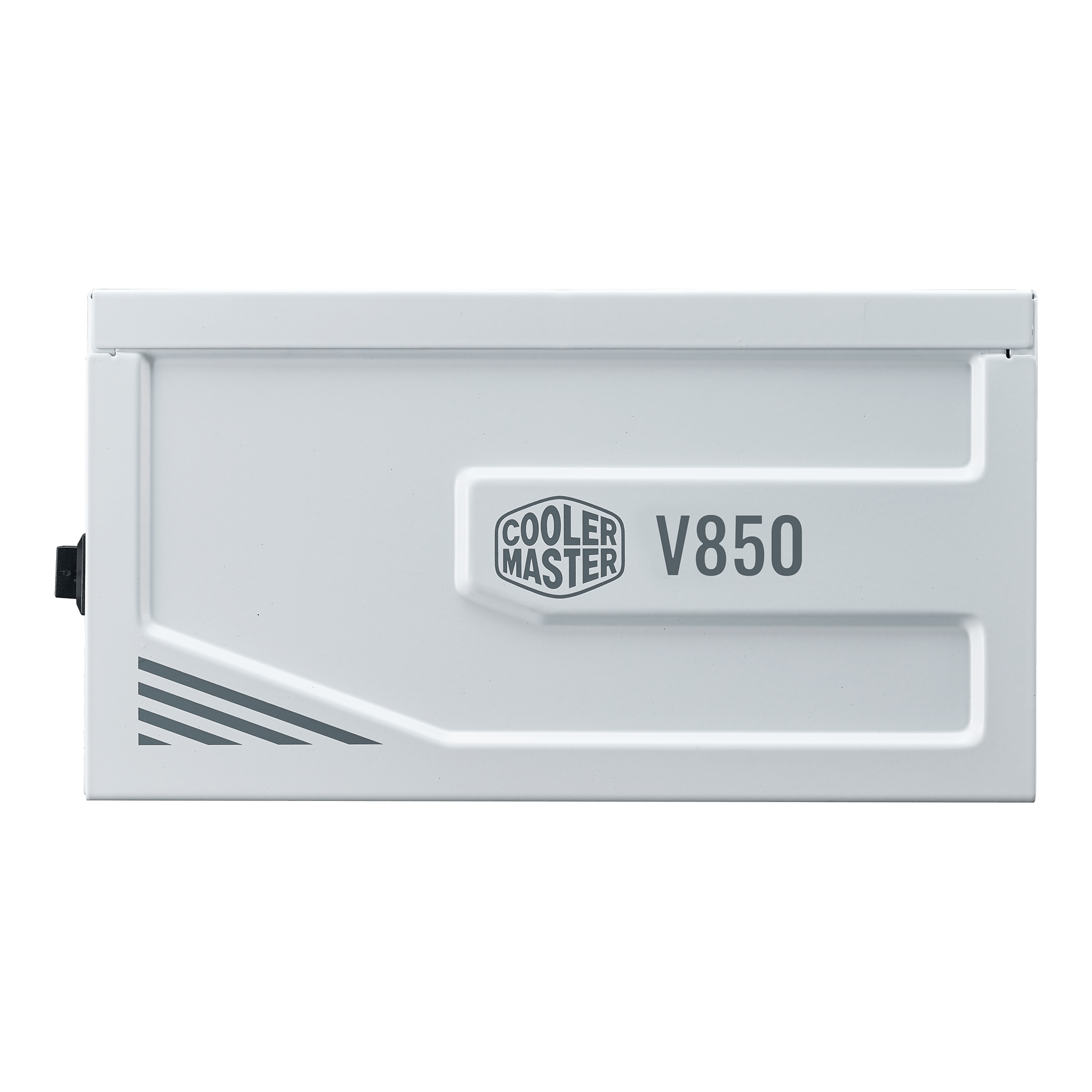

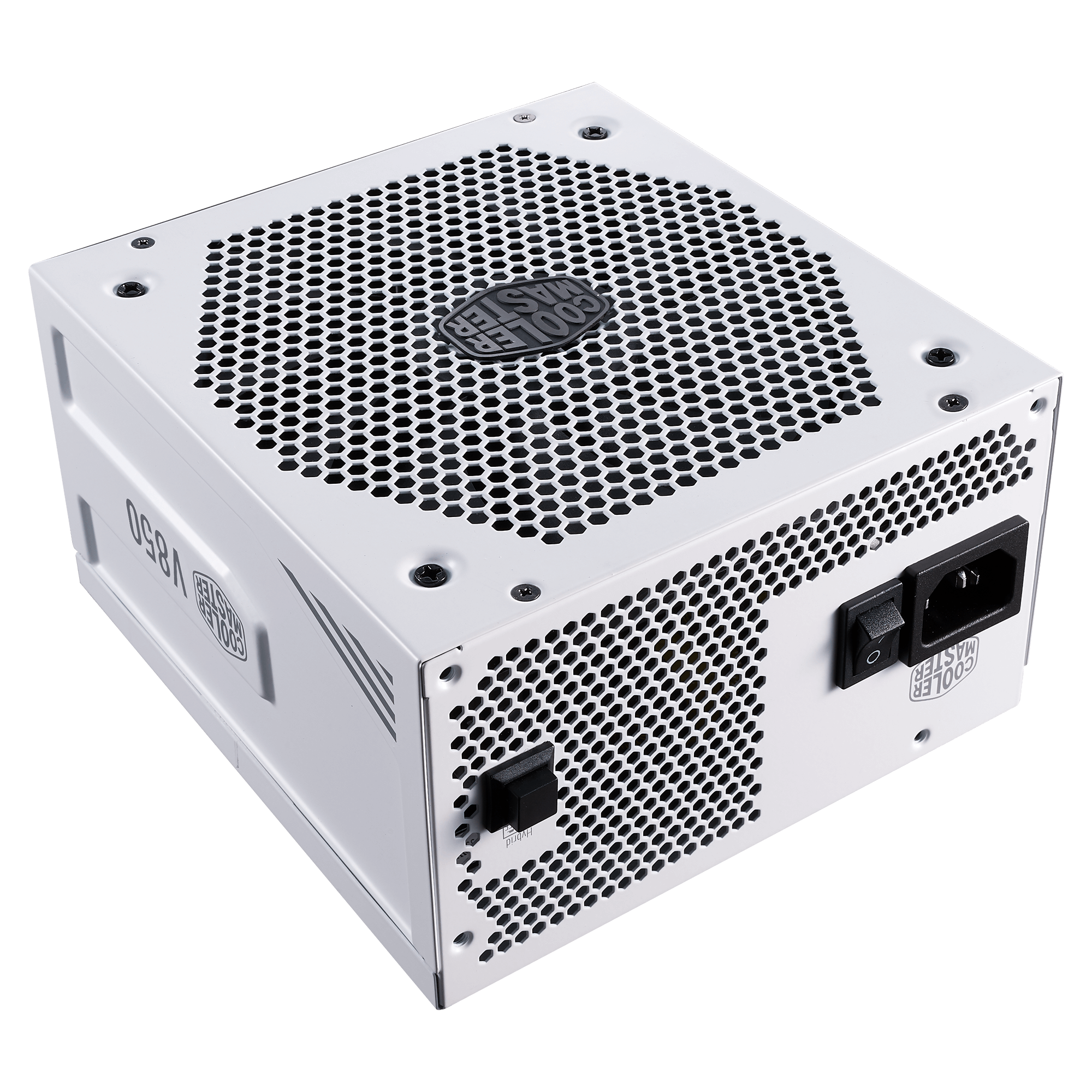

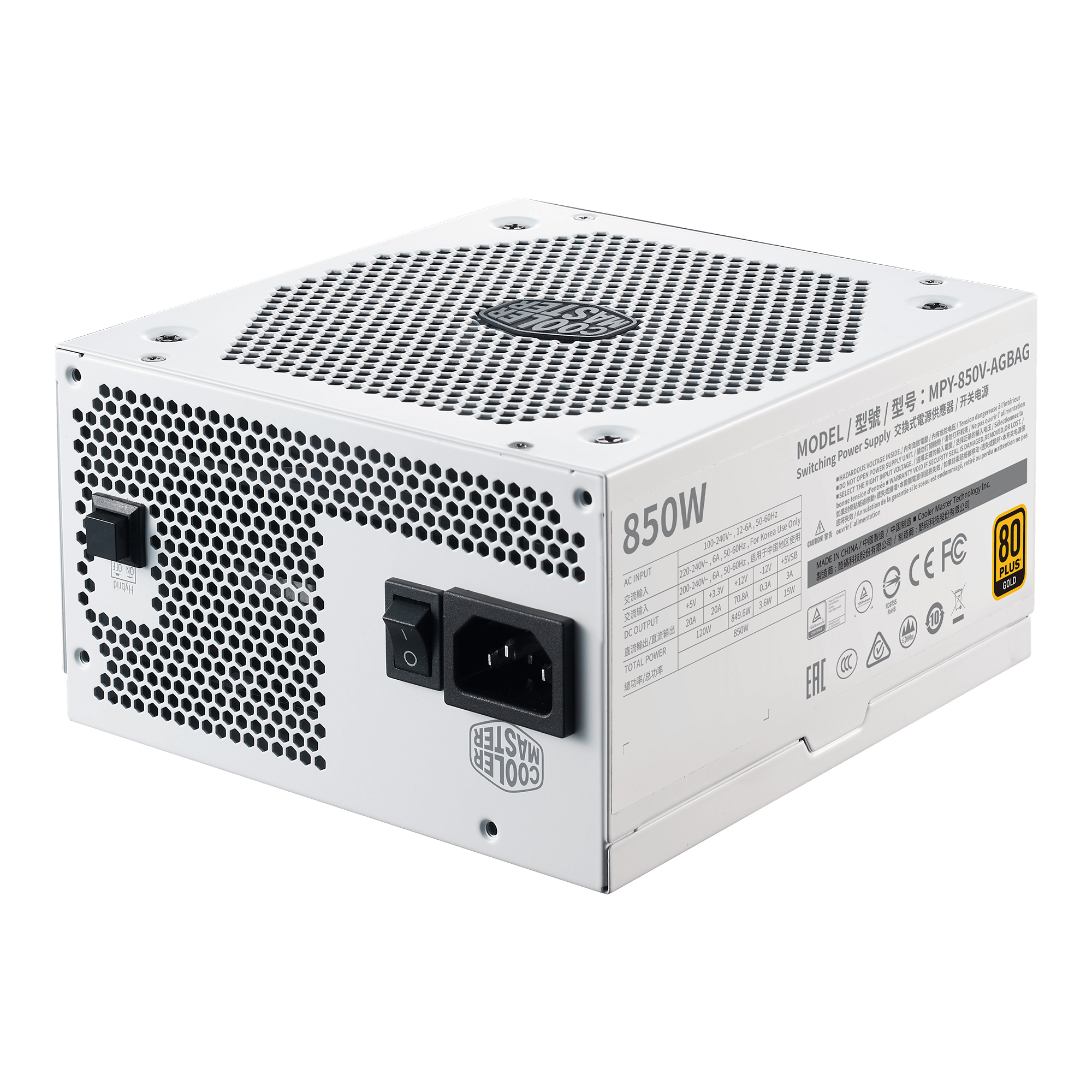

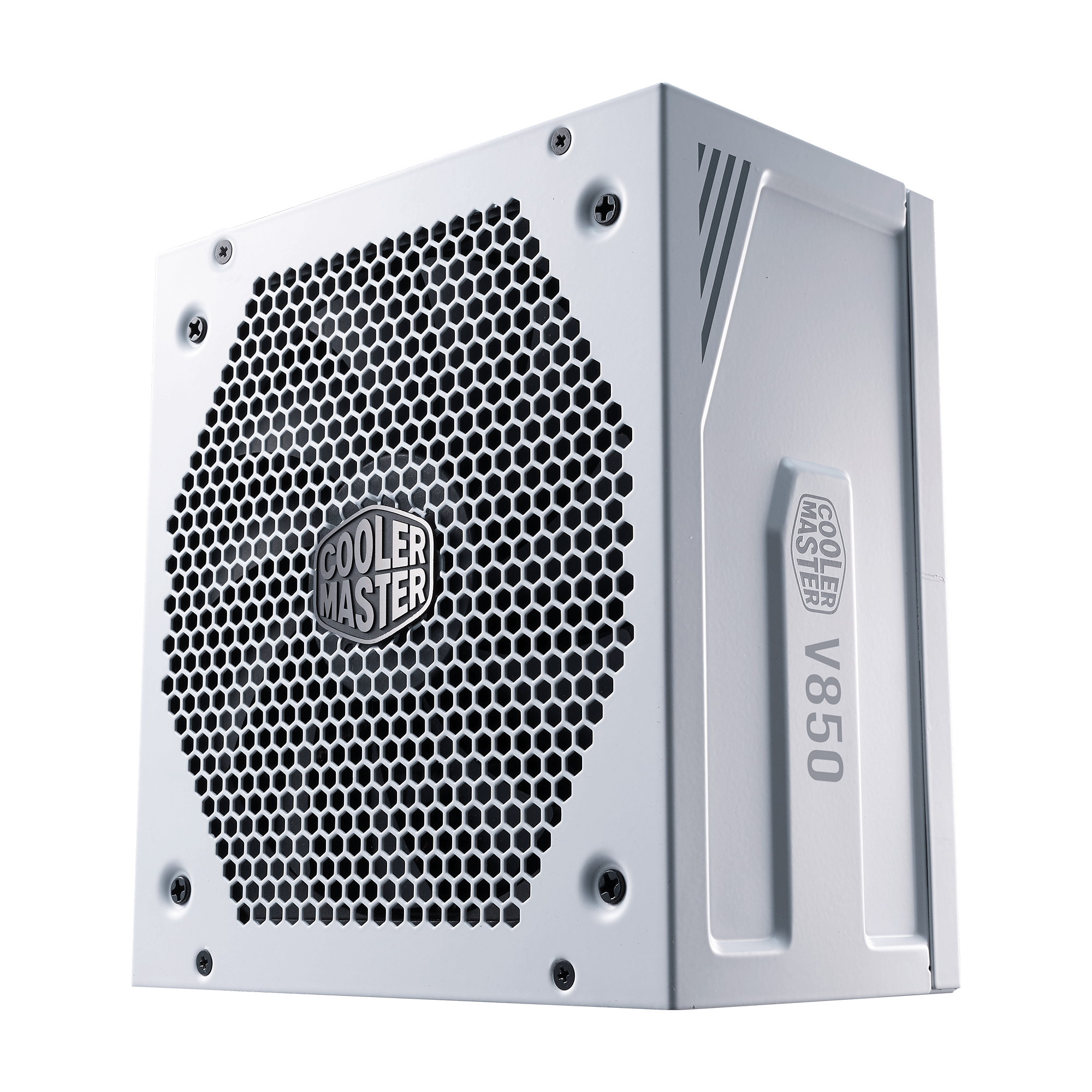

V850 Gold-V2 White Edition
80 Plus Gold Certified

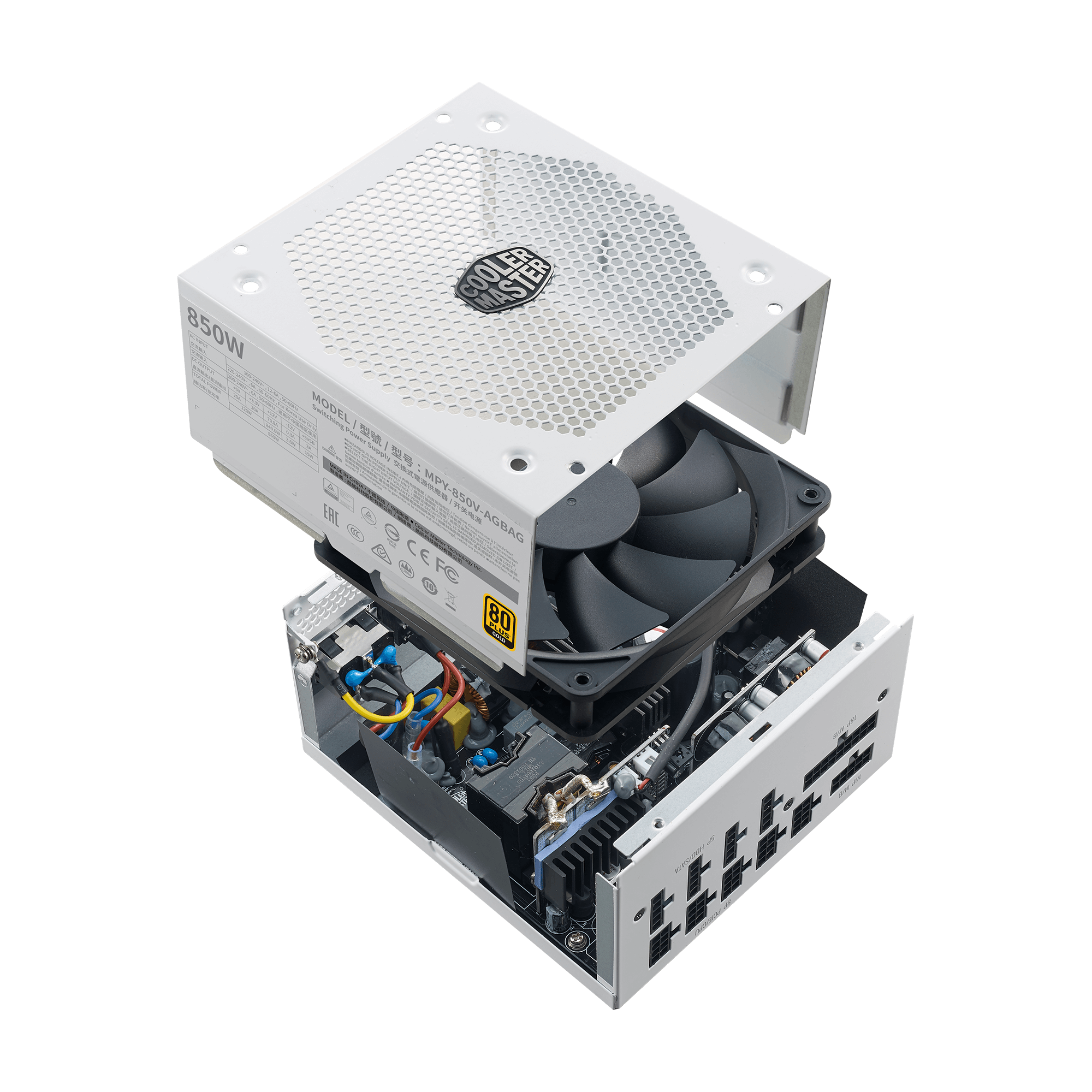

Half-bridge LLC Resonant Converter And DC-DC Technology
Silent 135mm FDB Fan

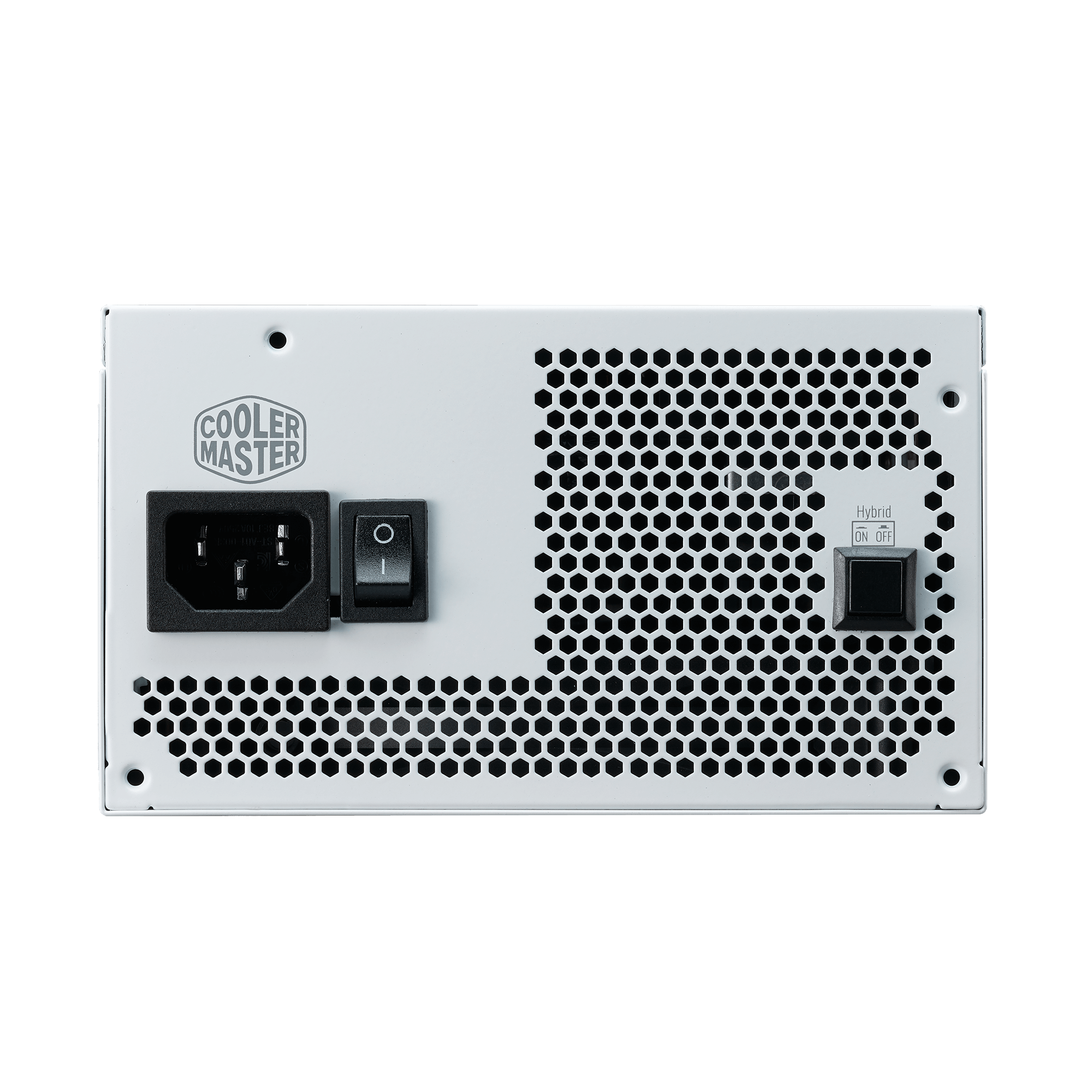

40% Semi-fanless Mode With Hybrid Switch

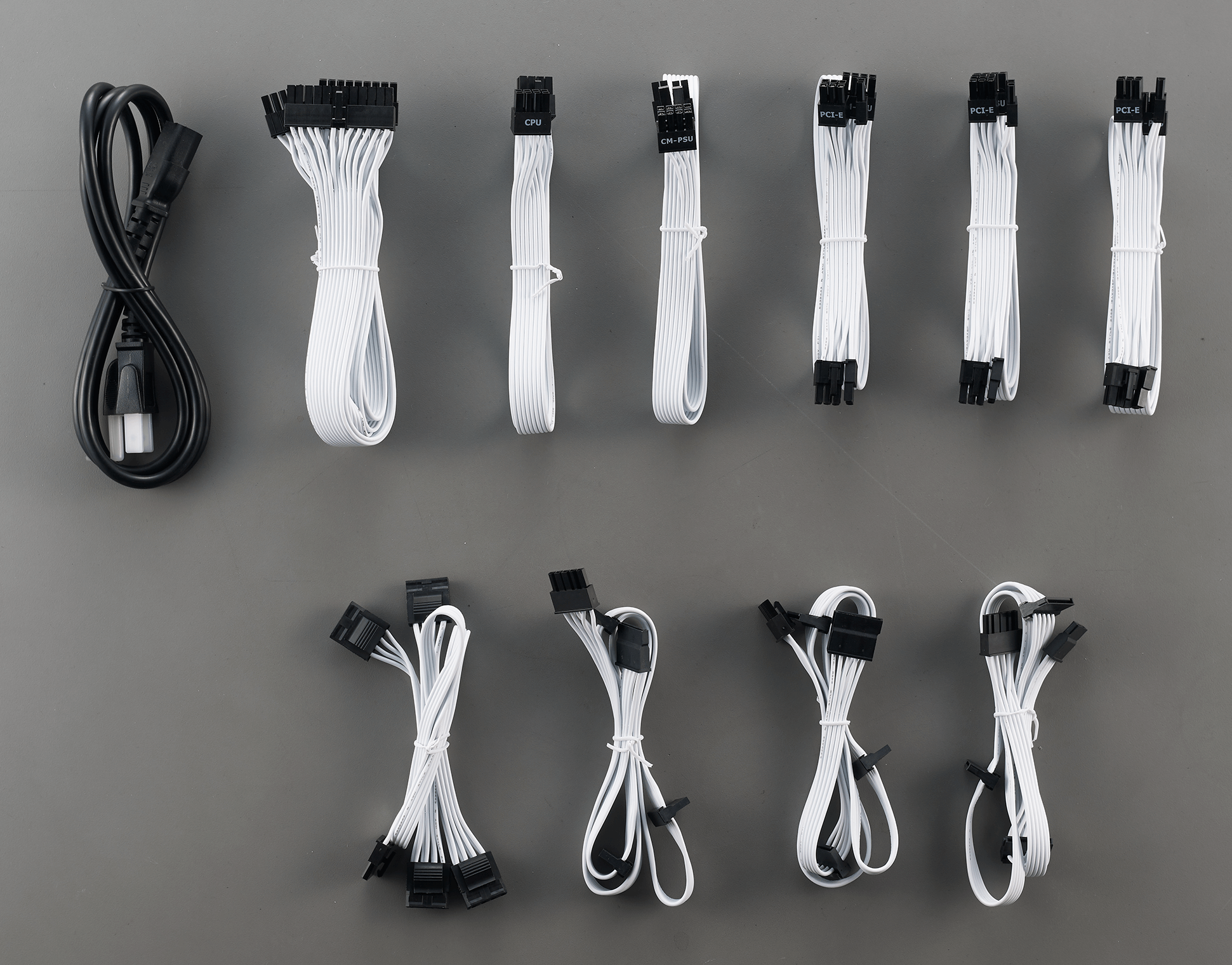

16AWG PCIE Cables
10 Year Warranty
Specifications
- Category Above 750W

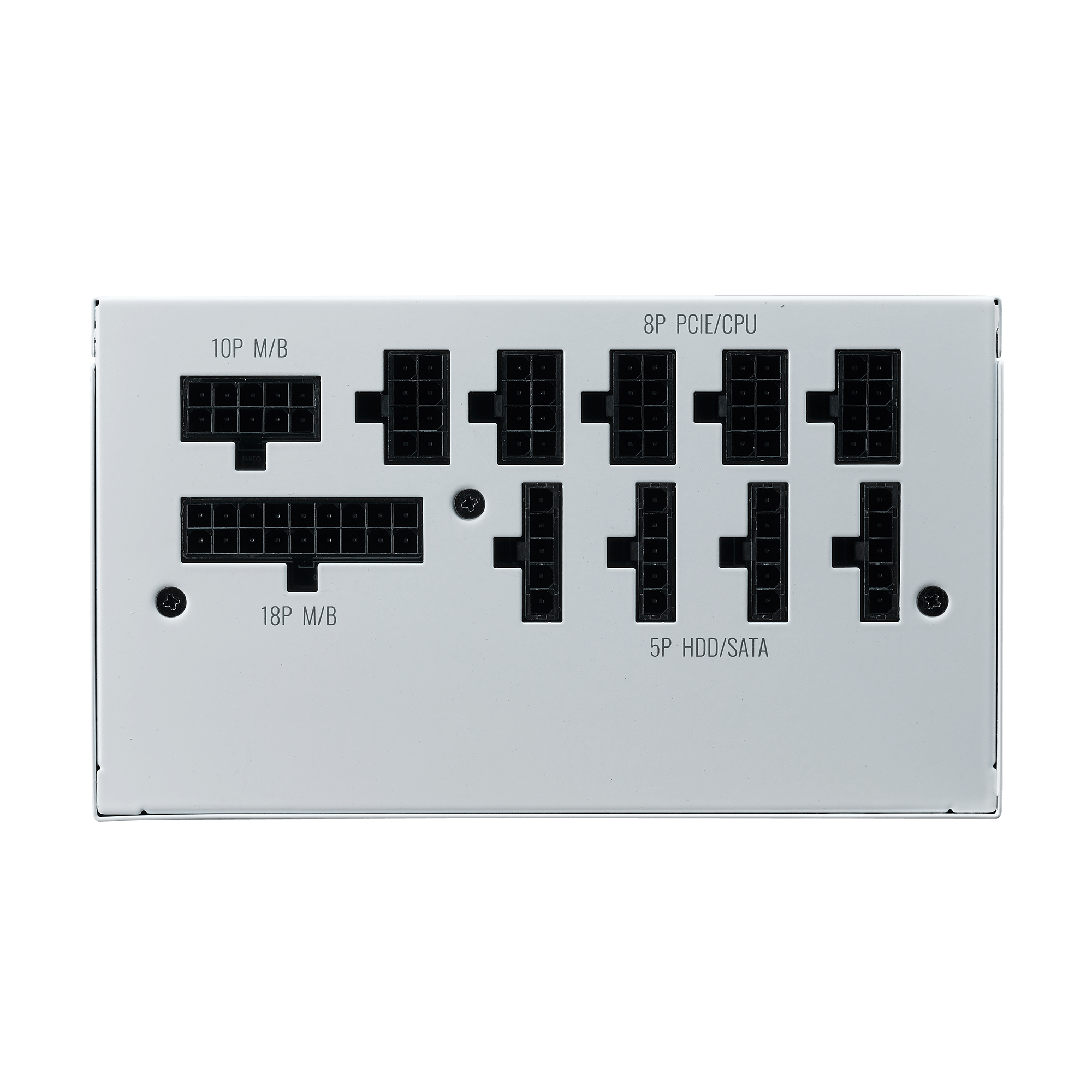

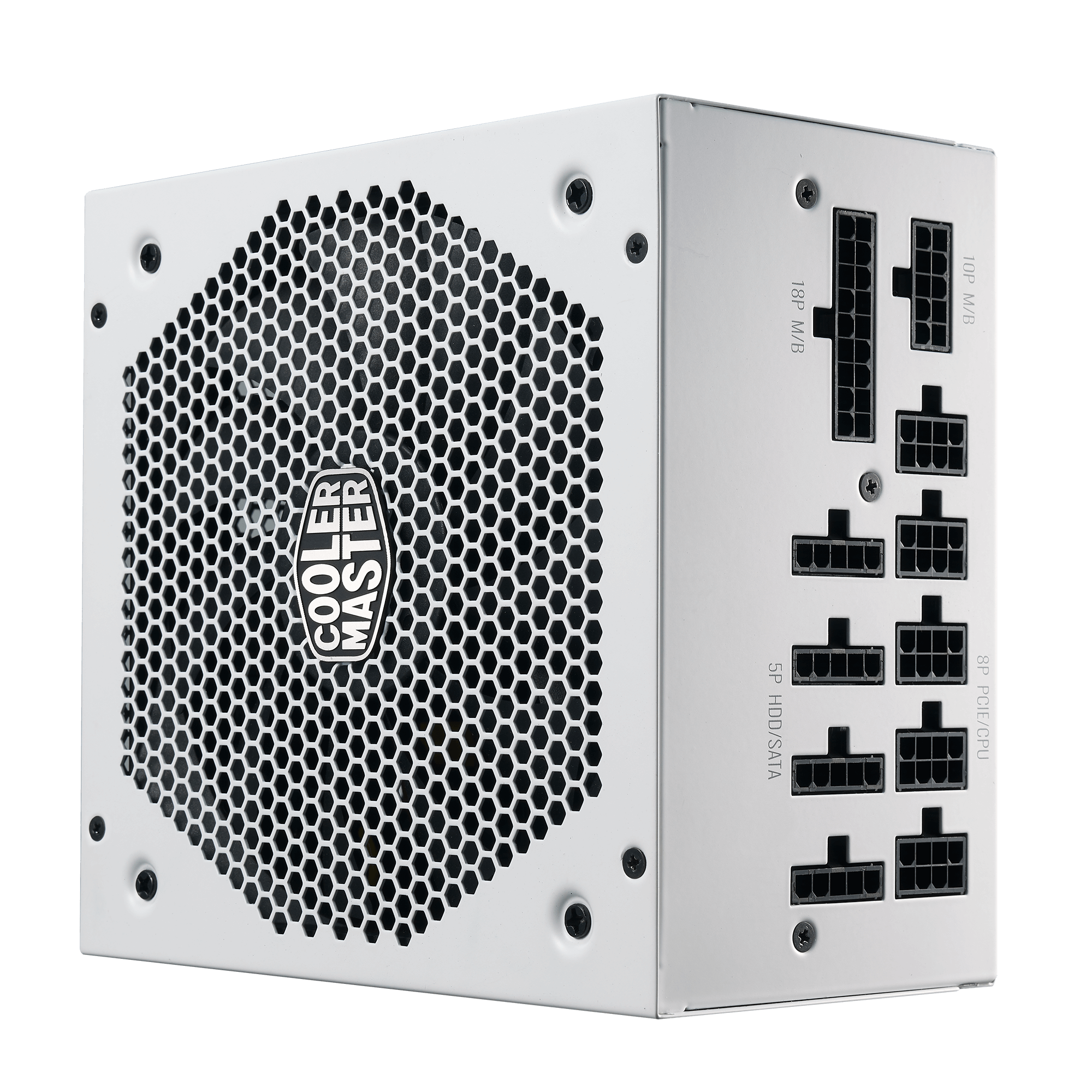

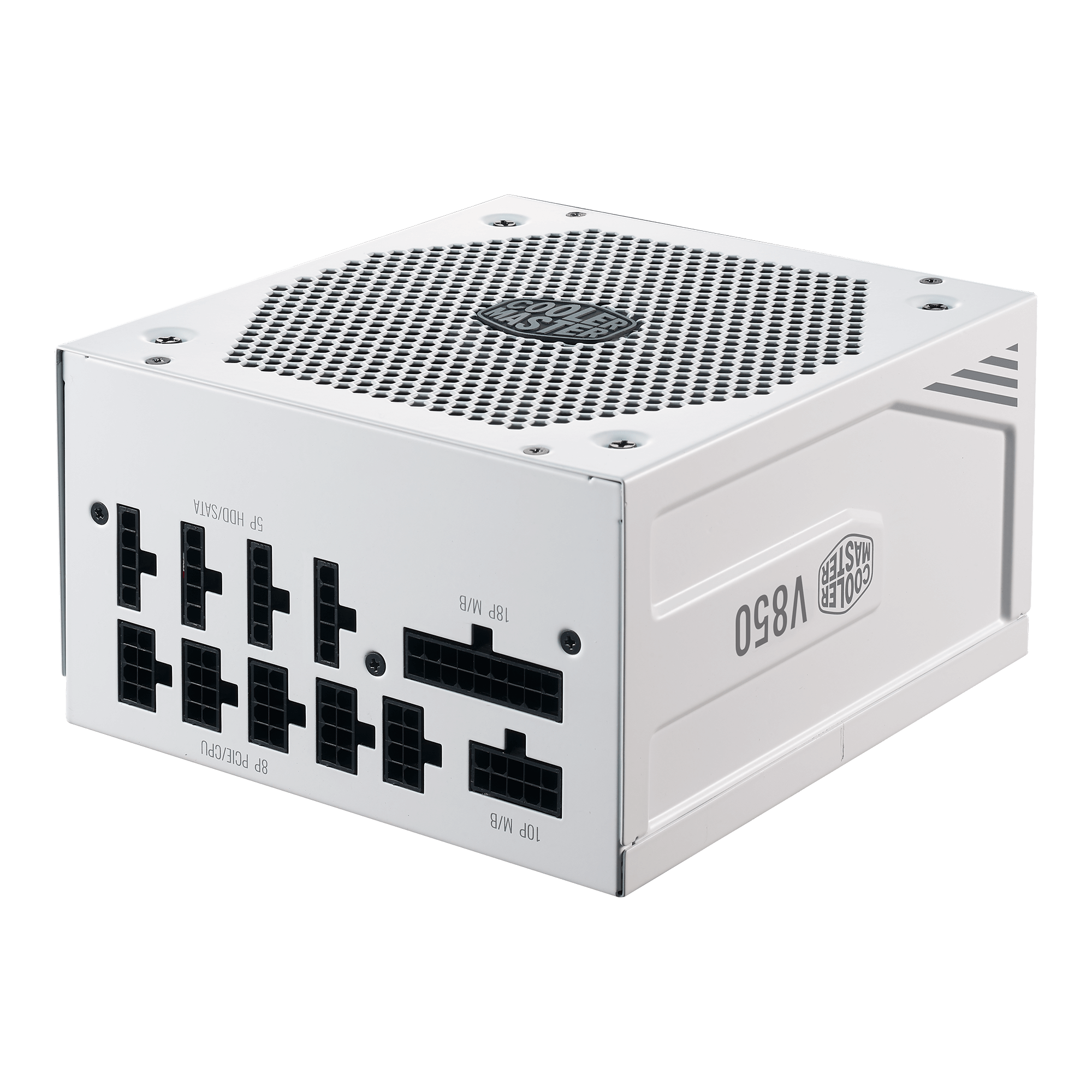

- Modular Fully Modular
- PFC Active PFC
- Input Frequency 50-60Hz
- ErP 2014 Lot 3 Yes
- ATX 24 Pin Connectors 1
- EPS 4+4 Pin Connectors x1 = 1x (700mm)1
- EPS 8 Pin Connector x1 = 1x (700mm)
- Fan Bearing FDB
- Noise Level @ 20% 0 dBA
- Power Good Signal 100 - 500 ms
- MTBF >100,000 hours @ 25℃ ambient
- 80 PLUS Rating 80 PLUS Gold
- 80 Plus Efficiency Gold
- SATA Connectors 12
- PCI-e 6+2 Pin Connectors 6

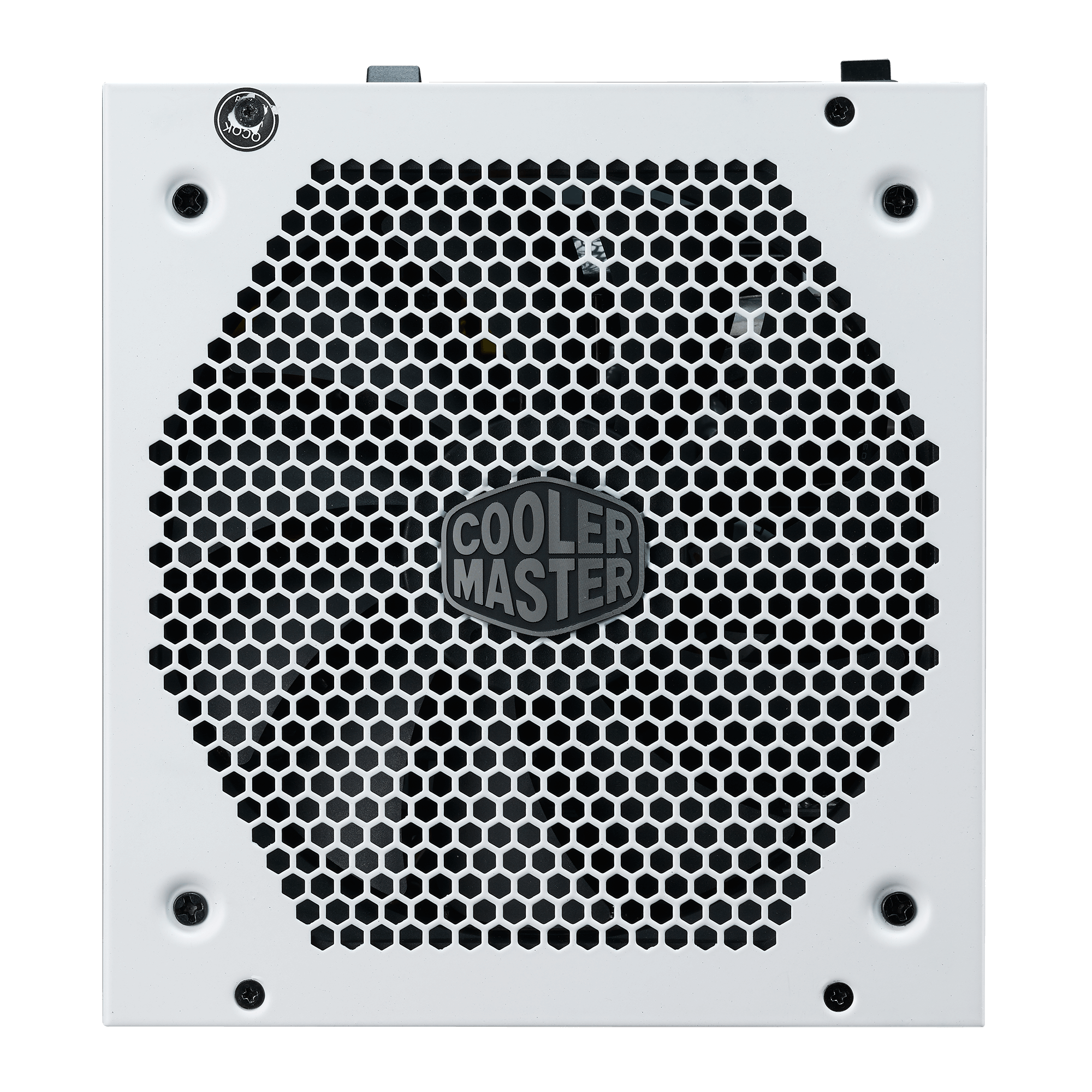

- Fan Size 135mm
- Input Voltage 100-240V
- Peripheral 4 Pin Connectors 4
- Noise Level @ 50% 15.4 dBA
- ATX Version ATX 12V V2.52
- Efficiency 90% @ Typical Load
- Protections OVP
- Fan Speed 1545 RPM
- Protections OPP
- Protections SCP
- Protections UVP
- Series V Gold Series
- Protections OTP
- Protections OCP
- Dimensions (L x W x H) 140 x 150 x 86 mm
- Hold Up Time 17ms
- Regulatory CCC
- Regulatory CE
- Noise Level @ 100% 32.5 dBA
- Regulatory TUV-RH
- Regulatory RCM
- Regulatory EAC
- Input Current 13-6A
- Regulatory cTUVus
- Regulatory FCC
- Regulatory BSMI
- Regulatory KC
- Regulatory CB

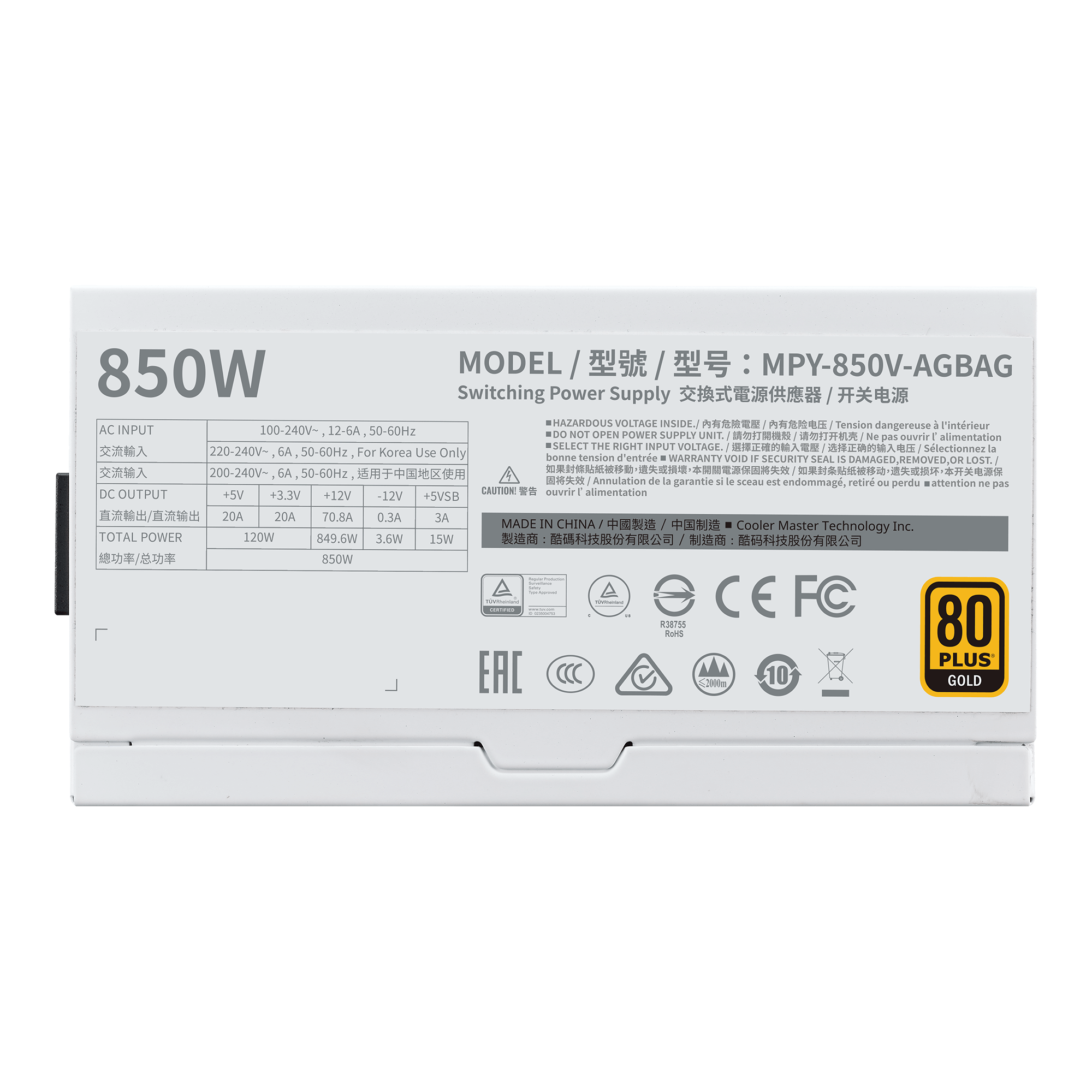

- Model MPY-850V-AGBAG
