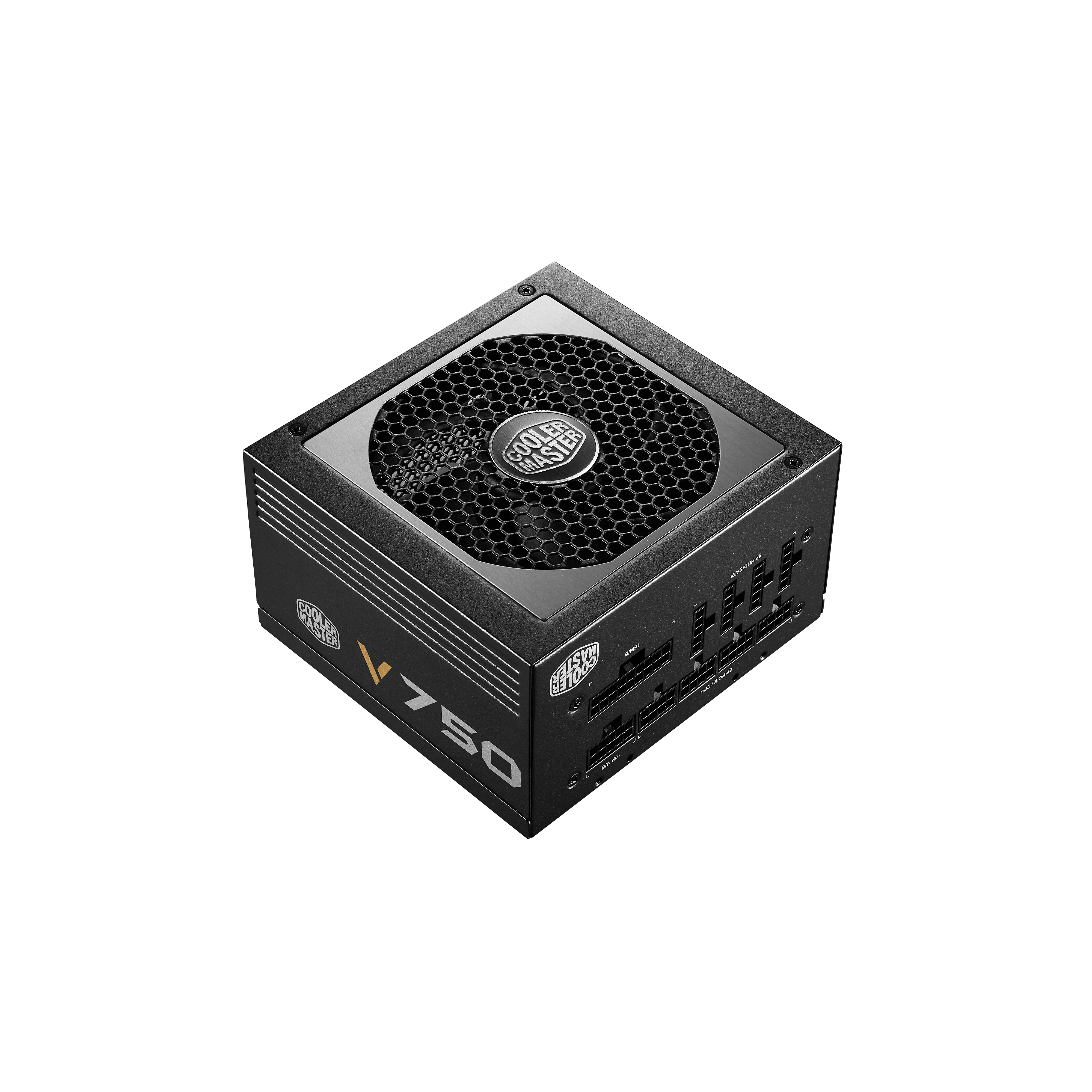

V750

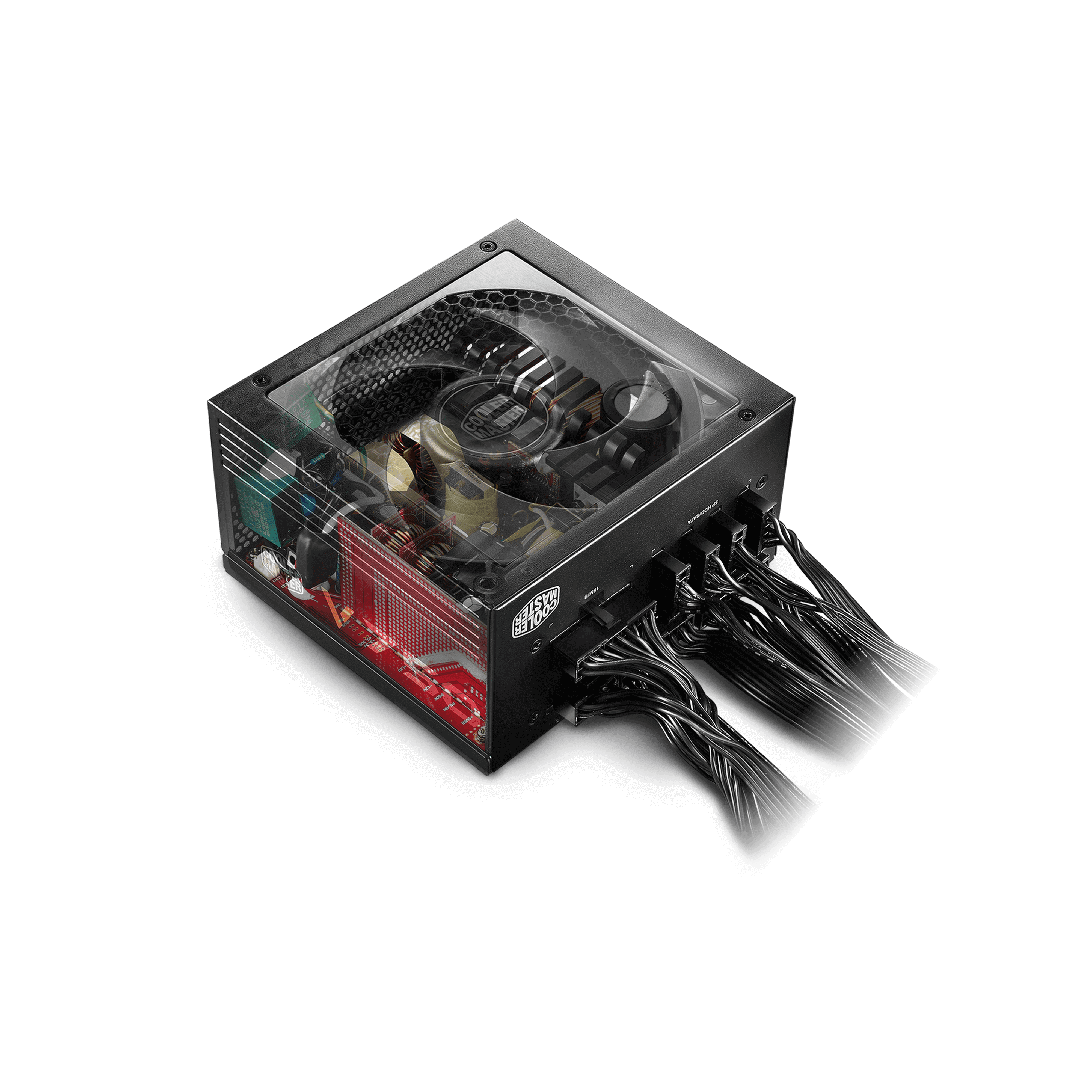

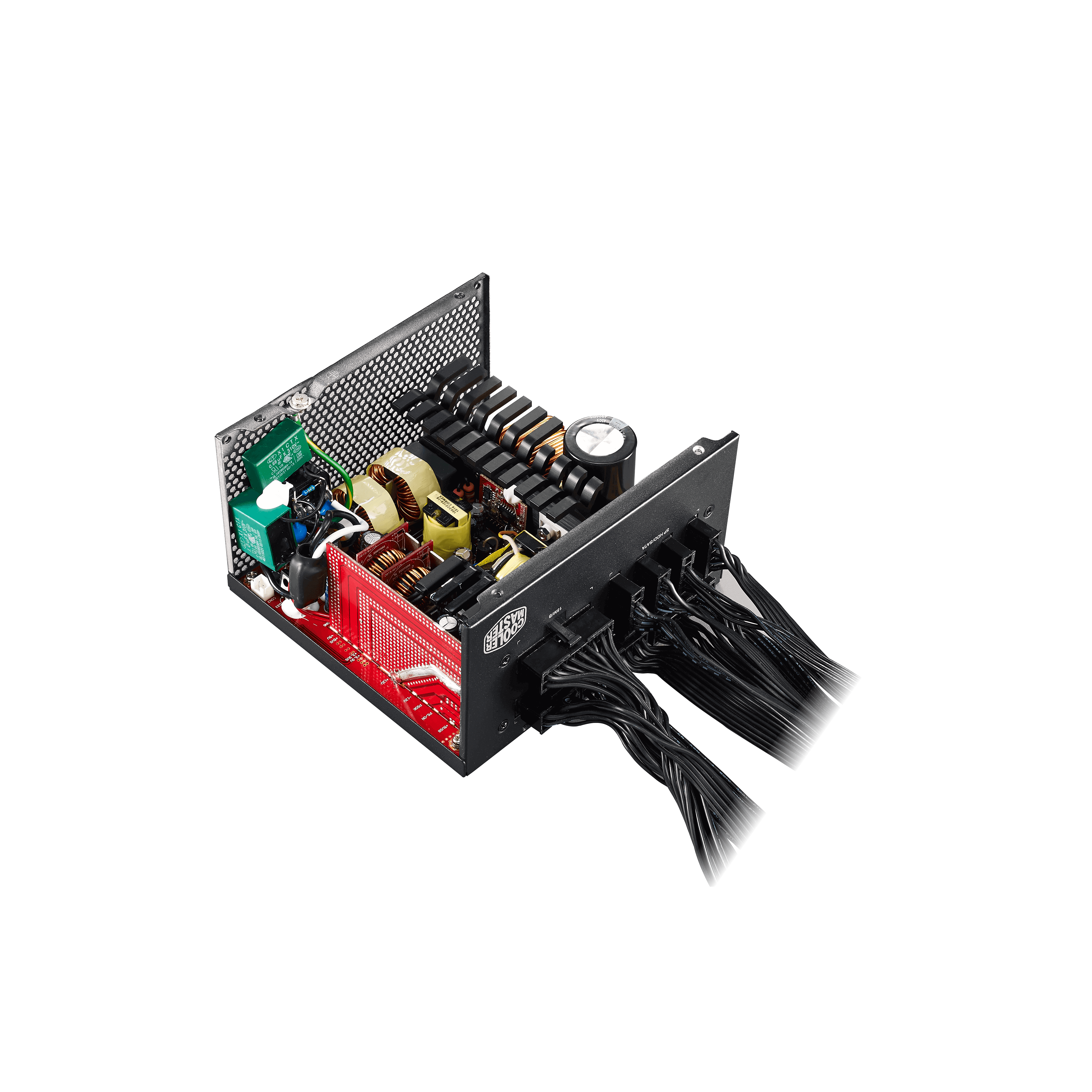

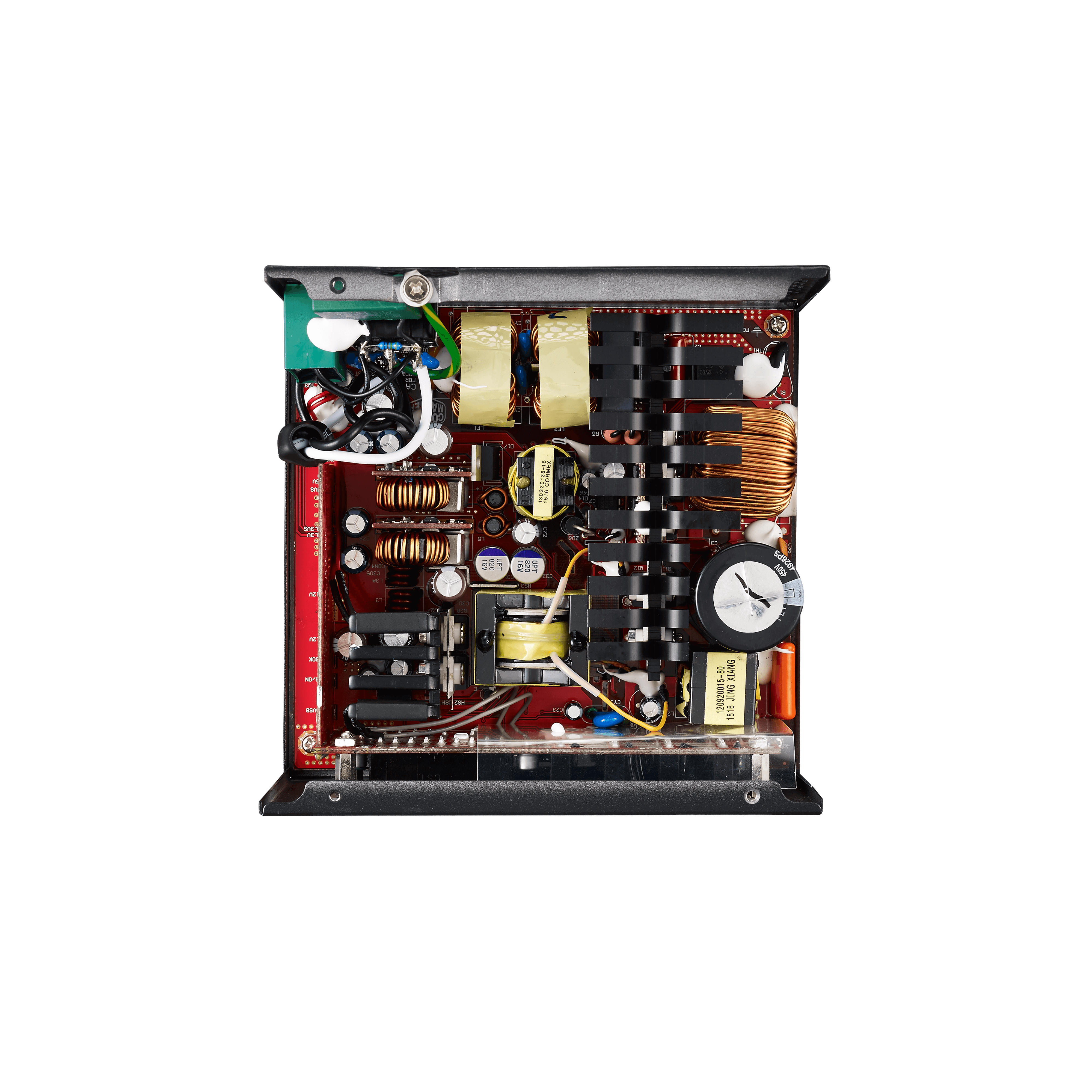

Unique 3D circuit design offers higher efficiency and improves the heat dissipation

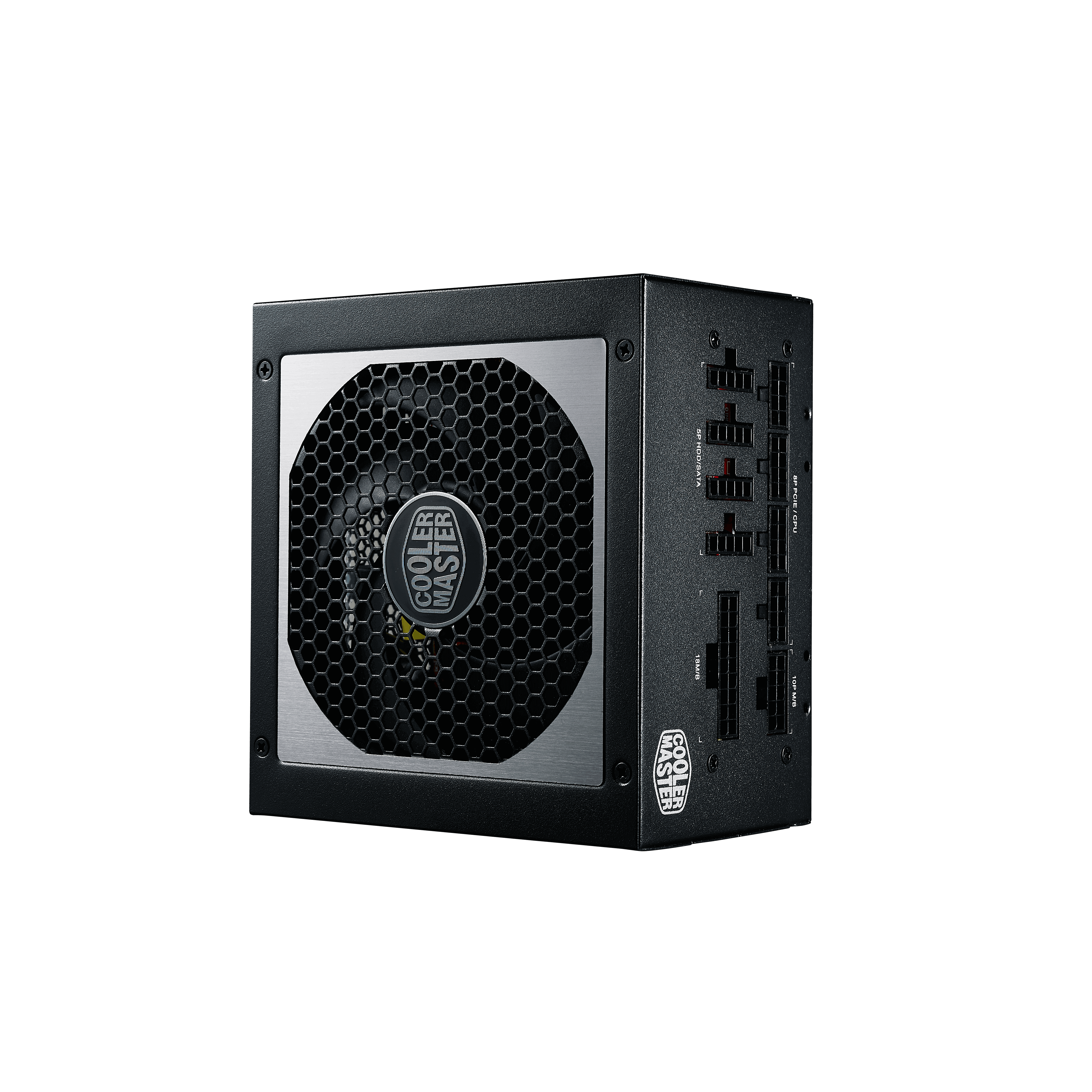

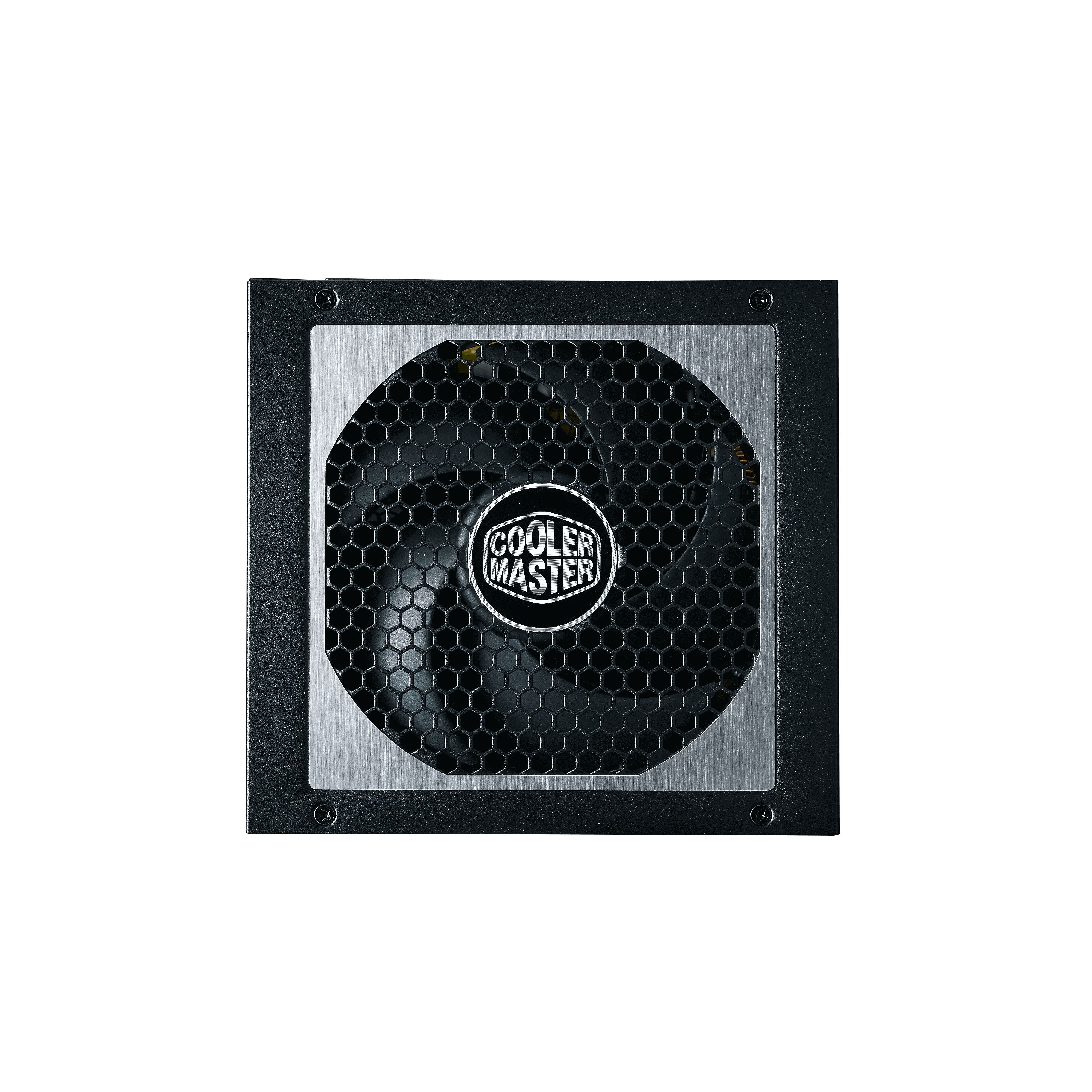

Cooler Master's exclusive Silencio FP fan technology enhances airflow, reduces vibration and provides the best thermal performance

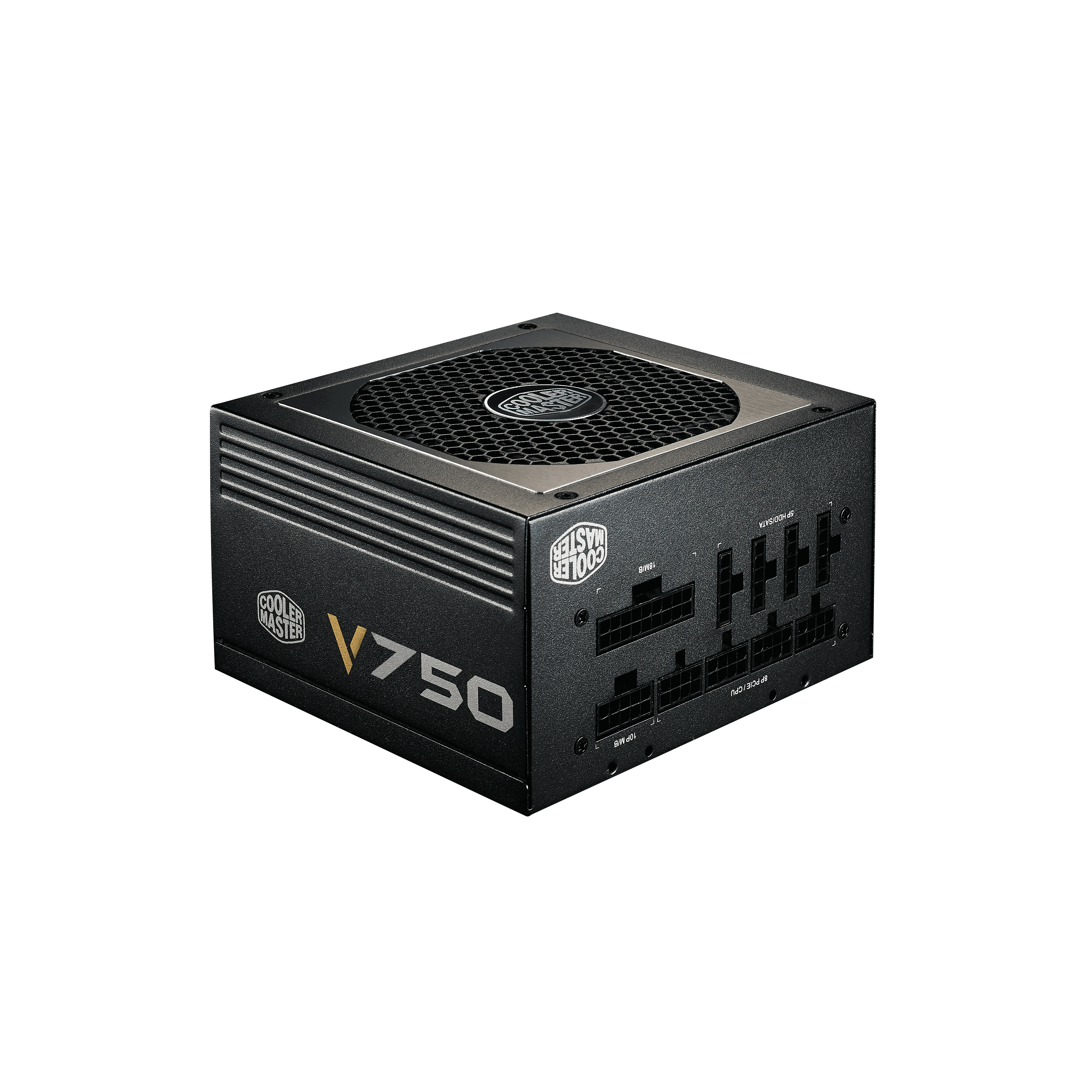

Fully modular, flat cable design for better cable management
100% Japanese capacitors ensures an extended lifetime and minimizes power fluctuations
Compact design 6.8W/inch3 fits perfectly with small form factor systems
80 PLUS Gold certified: up to 92% efficiency on typical load
- Modular Fully Modular
- Operation Voltage 100-240Vac
- CPU 12V 4+4 Pin Connectors 2
- FDD Cable 4 Pin Connectors 1
- MB 24 Pin Connectors 1
- Input Range Full Range
- Input Frequency 47-63Hz
- Power Good Signal 100 - 500 ms
- MTBF >100,000 Hours
- Category 500 to 750W
- 80 Plus Efficiency Gold
- Fan Type 120mm Silecnio FP Fan
- EAN Code 4719512048276
- UPC Code 884102027239
- PFC Active PFC (>0.9 Typical)
- SATA Connectors 8
- Peripheral 4 Pin Connectors 6
- PCI-e 6+2 Pin Connectors 4
- ATX Version Intel Form Factor ATX 12V V2.31
- Efficiency 90% @ Typical Load
- Protections OVP
- Protections OPP
- Protections SCP
- Protections UVP
- Dimensions (L x W x H) 140 x 150 x 86 mm / 5.5 x 5.9 x 3.4 inch
- Series V Gold Series
- Hold Up Time >16ms
- Regulatory CCC
- Regulatory CE
- Regulatory RCM
- Regulatory EAC
- Regulatory FCC
- Regulatory BSMI
- Regulatory UL
- Regulatory TUV
- Model RS750-AFBAG1-XX
- Product Name V750
