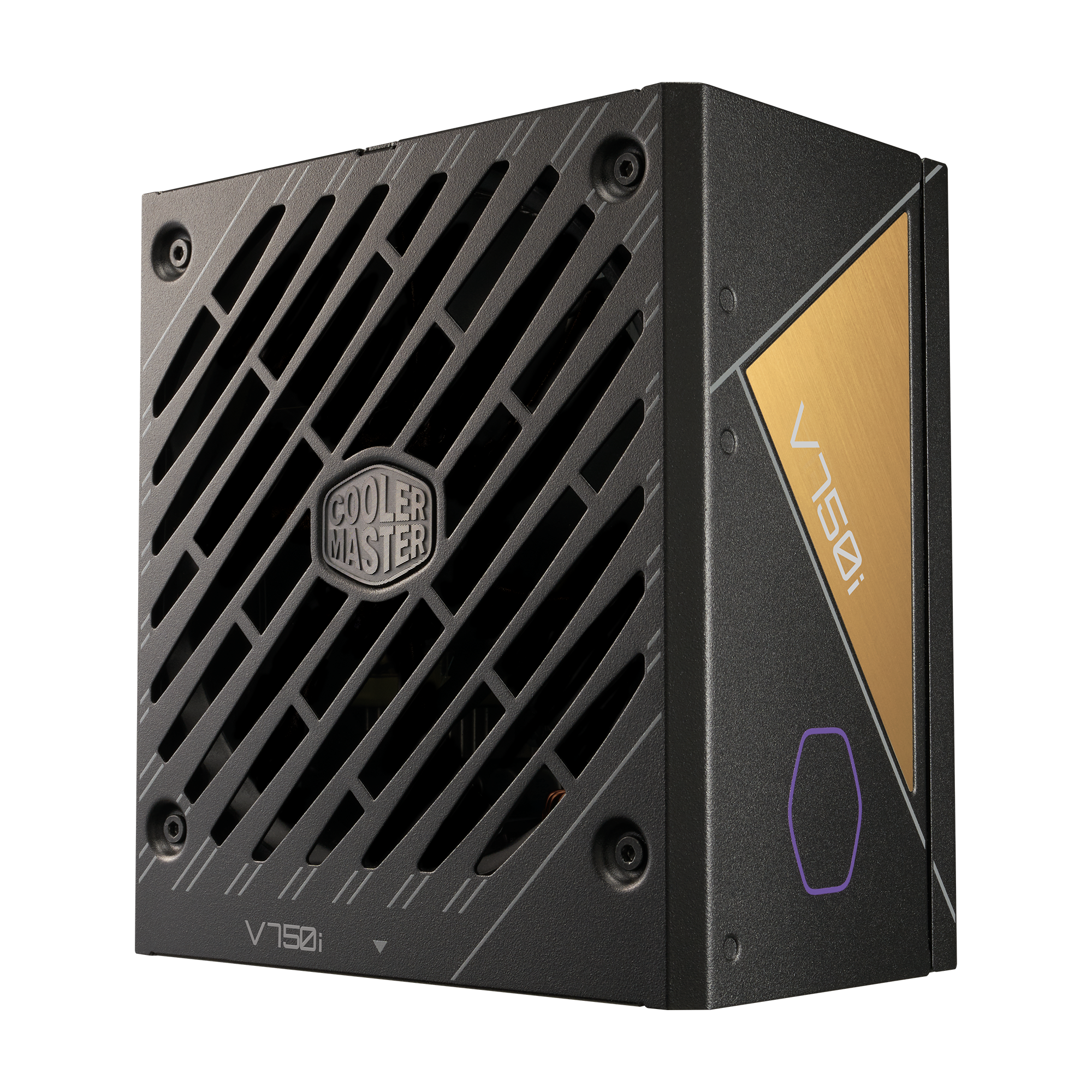

Fully Modular 80 PLUS Gold Digital Power Supply
V750 Gold i multi
Semi-Digital Platform
80 PLUS Gold Certified
Fully support ATX3.0
STCM (Smart Thermal Control Mode)

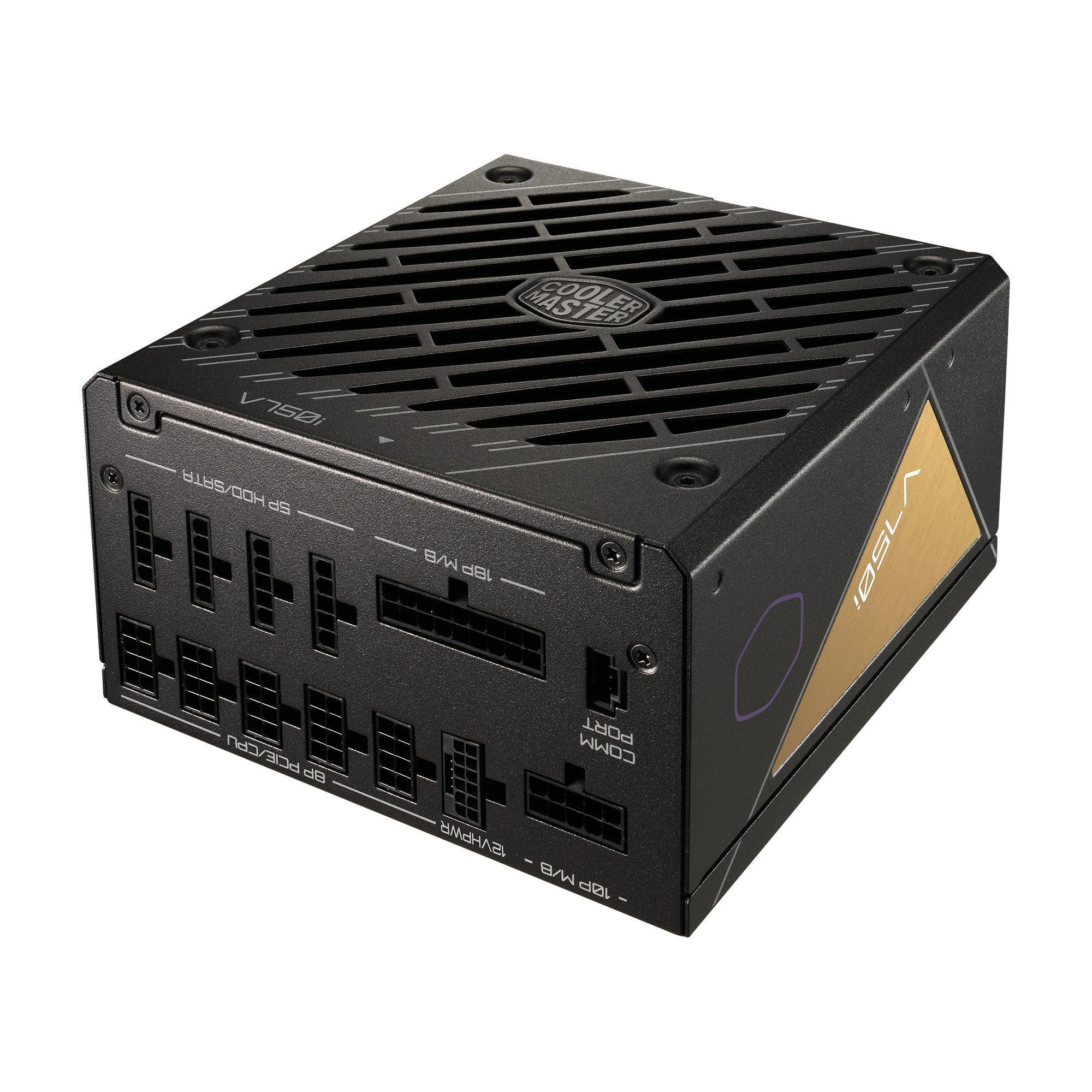

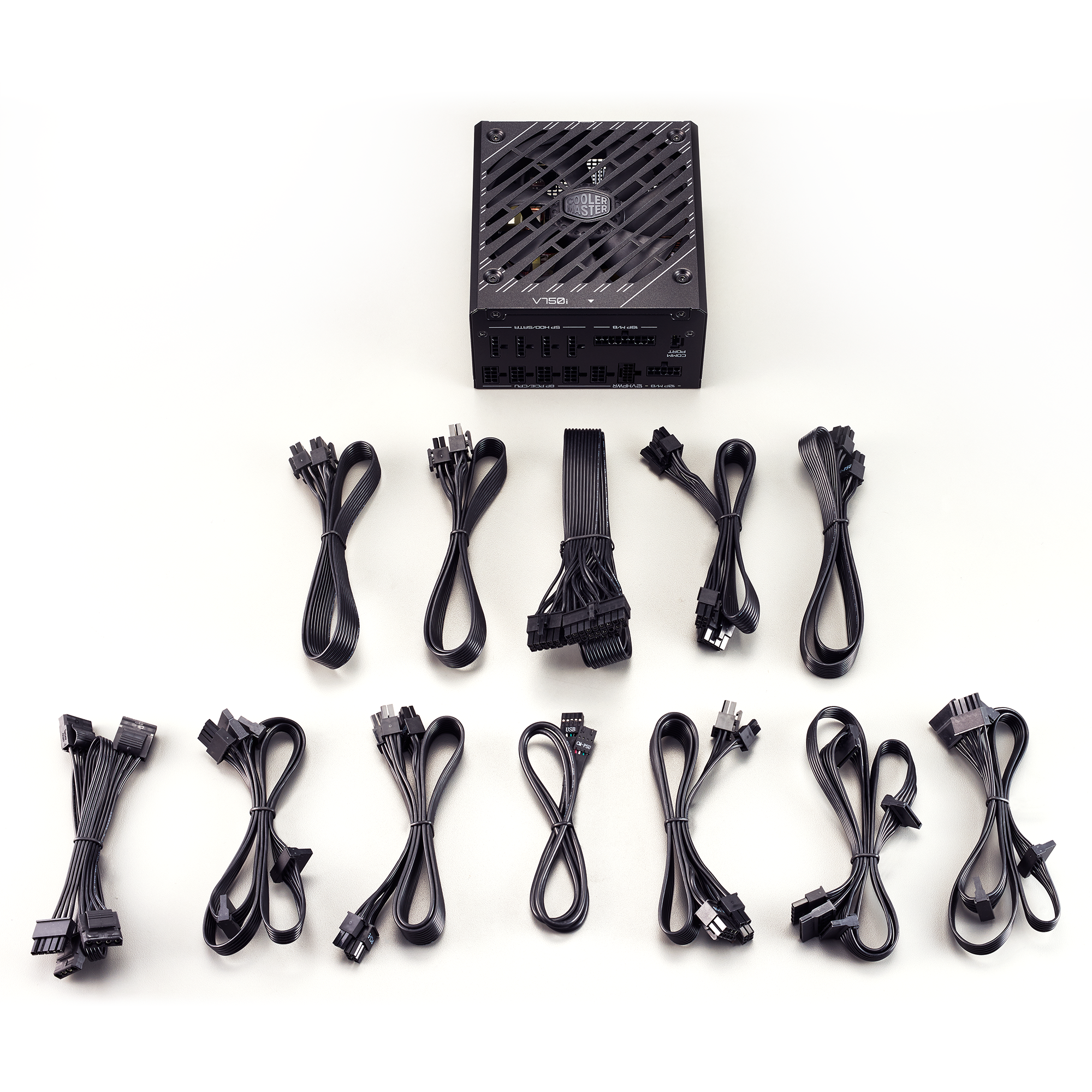

Fully Modular Cable Management
10 Year Warranty
- Category Above 750W
- Modular Fully Modular
- PFC Active PFC
- Input Frequency 50-60Hz
- ErP 2014 Lot 3 Yes
- ATX 24 Pin Connectors 1
- EPS 4+4 Pin Connectors 1
- EPS 8 Pin Connector 1
- Fan Bearing FDB
- Power Good Signal 100 - 150 ms
- 12VHPWR Connector 1
- USB Connectors 1
- 80 PLUS Rating 80 PLUS Gold
- MTBF >100,000 Hours
- 80 Plus Efficiency Gold
- SATA Connectors 12
- Operating Temperature 0-50°C

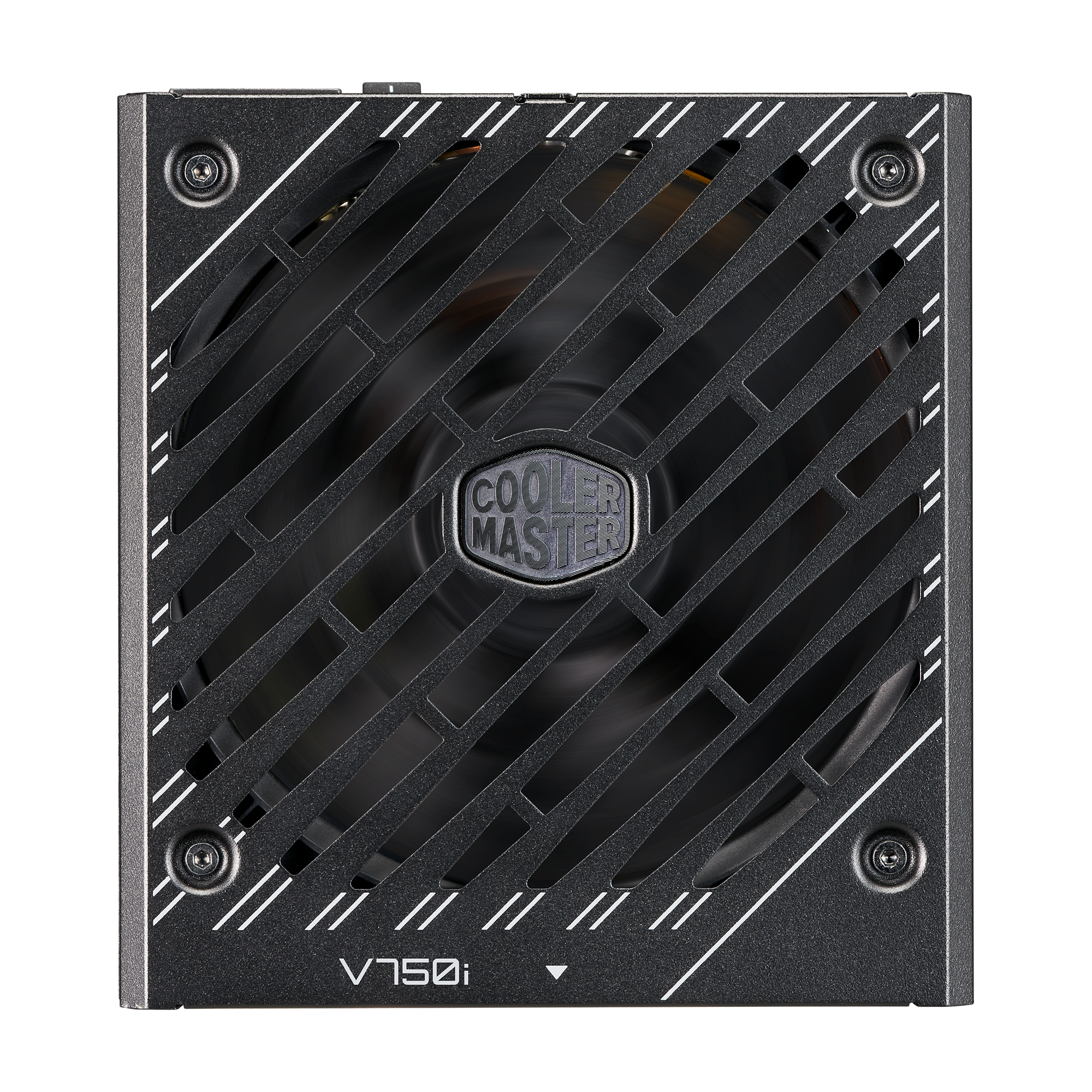

- Fan Size 135mm
- Input Voltage 100-240V
- Peripheral 4 Pin Connectors 4
- Protections OVP
- Protections OPP
- Protections SCP
- PCI-e 6+2 Pin Connectors 3
- Protections UVP
- Series V Gold Series
- Protections OTP
- Protections OCP
- Dimensions (L x W x H) 160 x 150 x 86 mm
- Protections Surge and Inrush Protection
- ATX Version ATX 12V Ver. 3.0
- Regulatory CCC
- Regulatory CE
- Input Current 10-6A
- Efficiency ≥90% @ Typical Load
- Regulatory EAC
- Regulatory FCC
- Regulatory BSMI
- Regulatory KC
- Hold Up Time ≥ 20ms
- Regulatory UL
- Regulatory TUV
- Regulatory KCC
- Regulatory RoHS2.0
- Regulatory BIS
- Regulatory UKCA

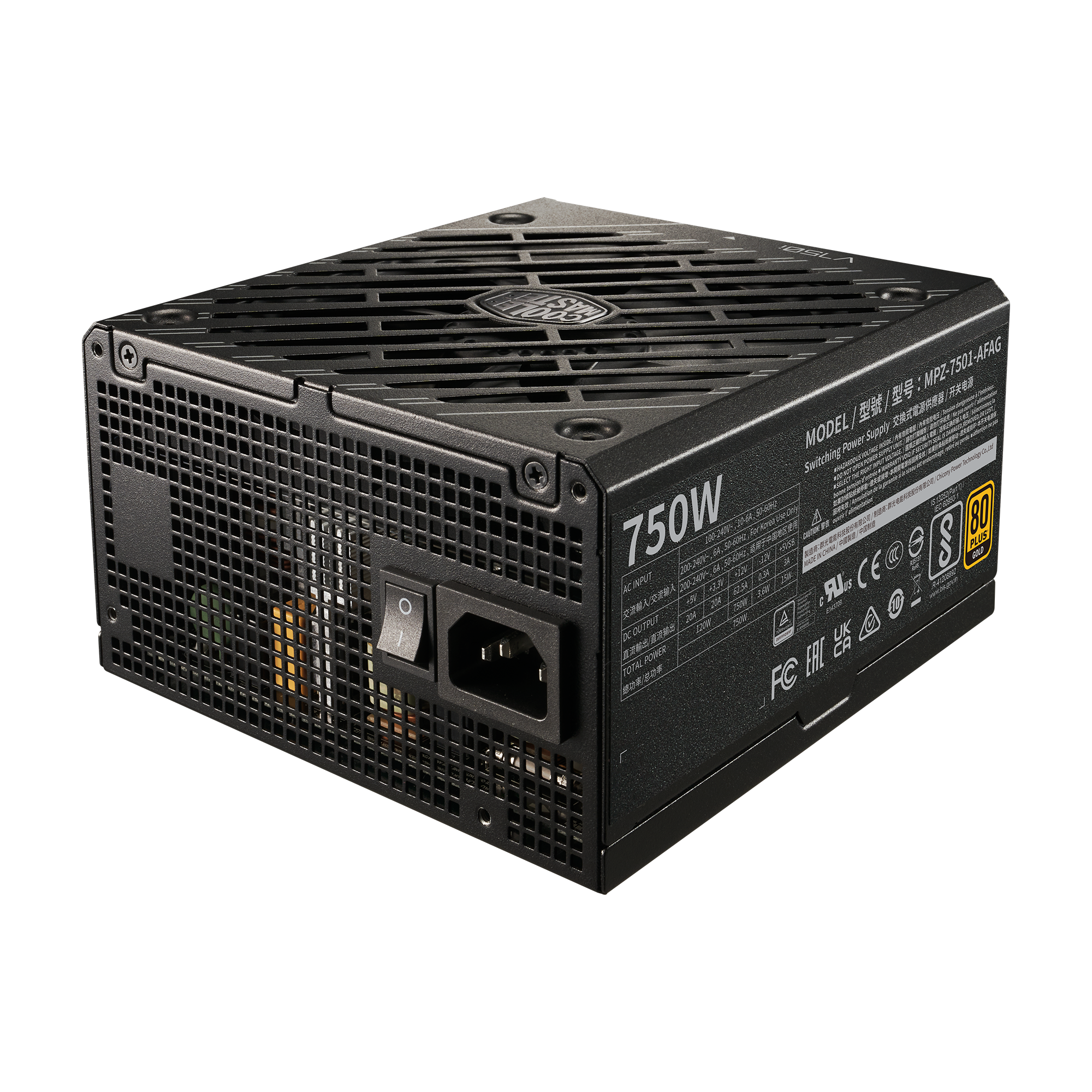

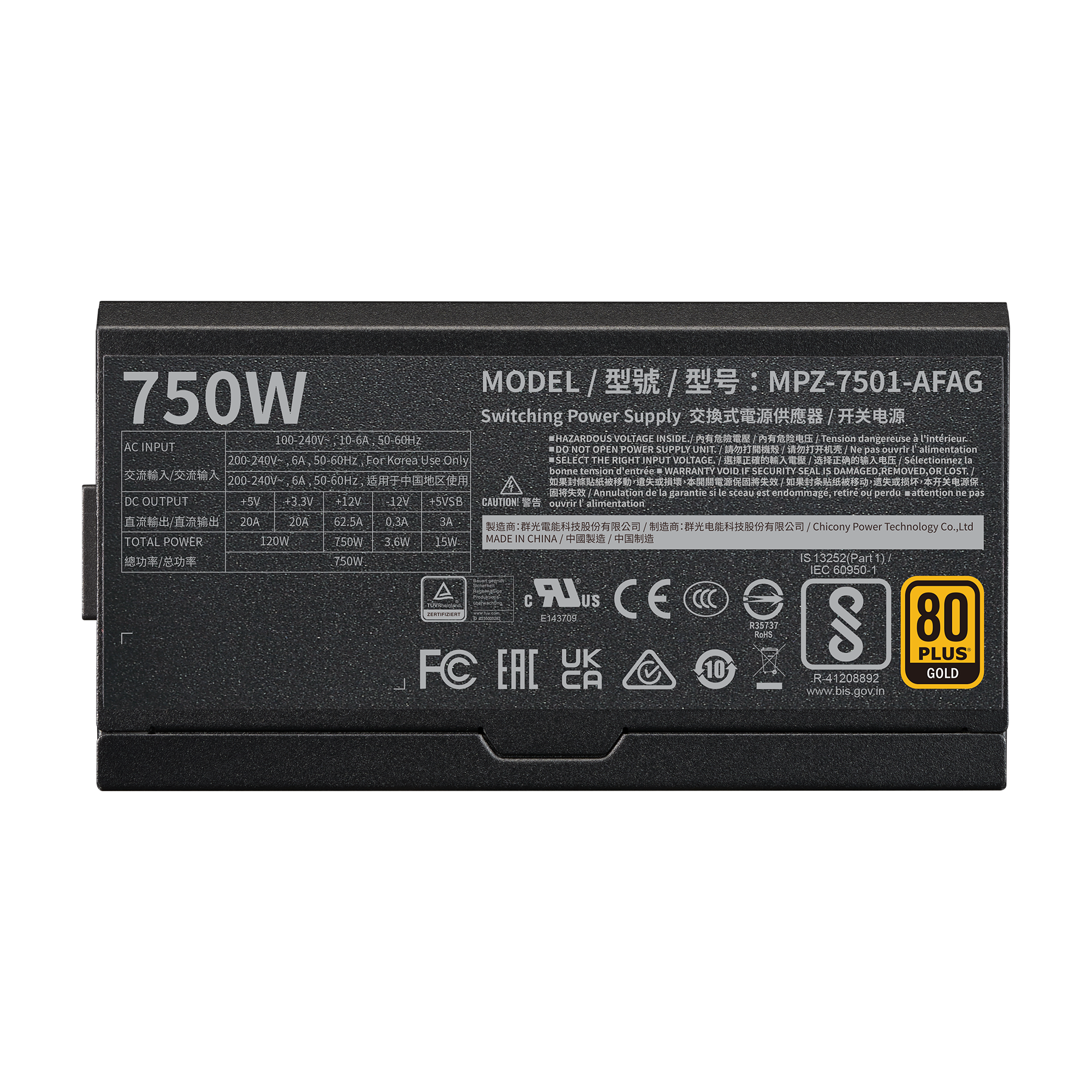

- Model MPZ-7501-AFAG
