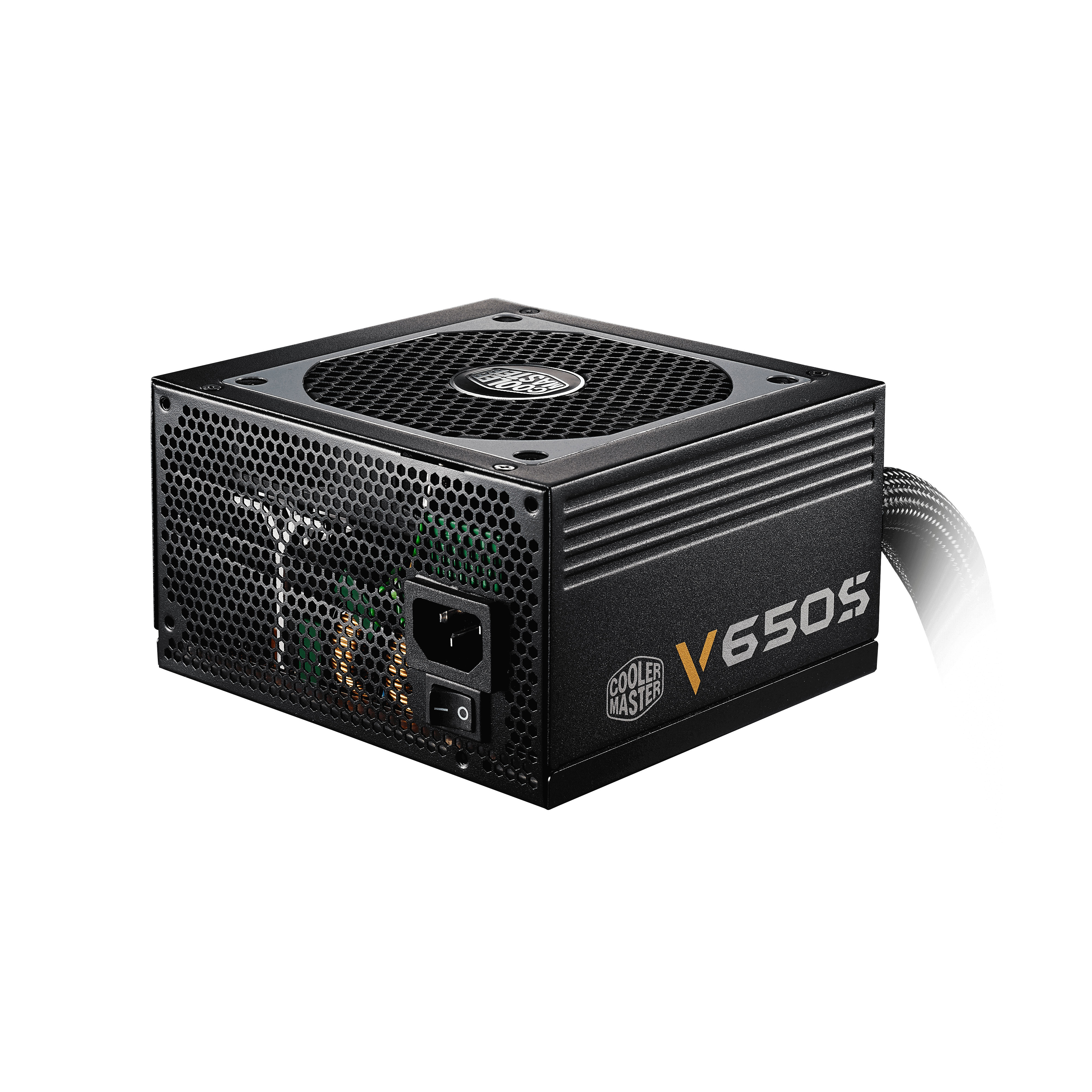

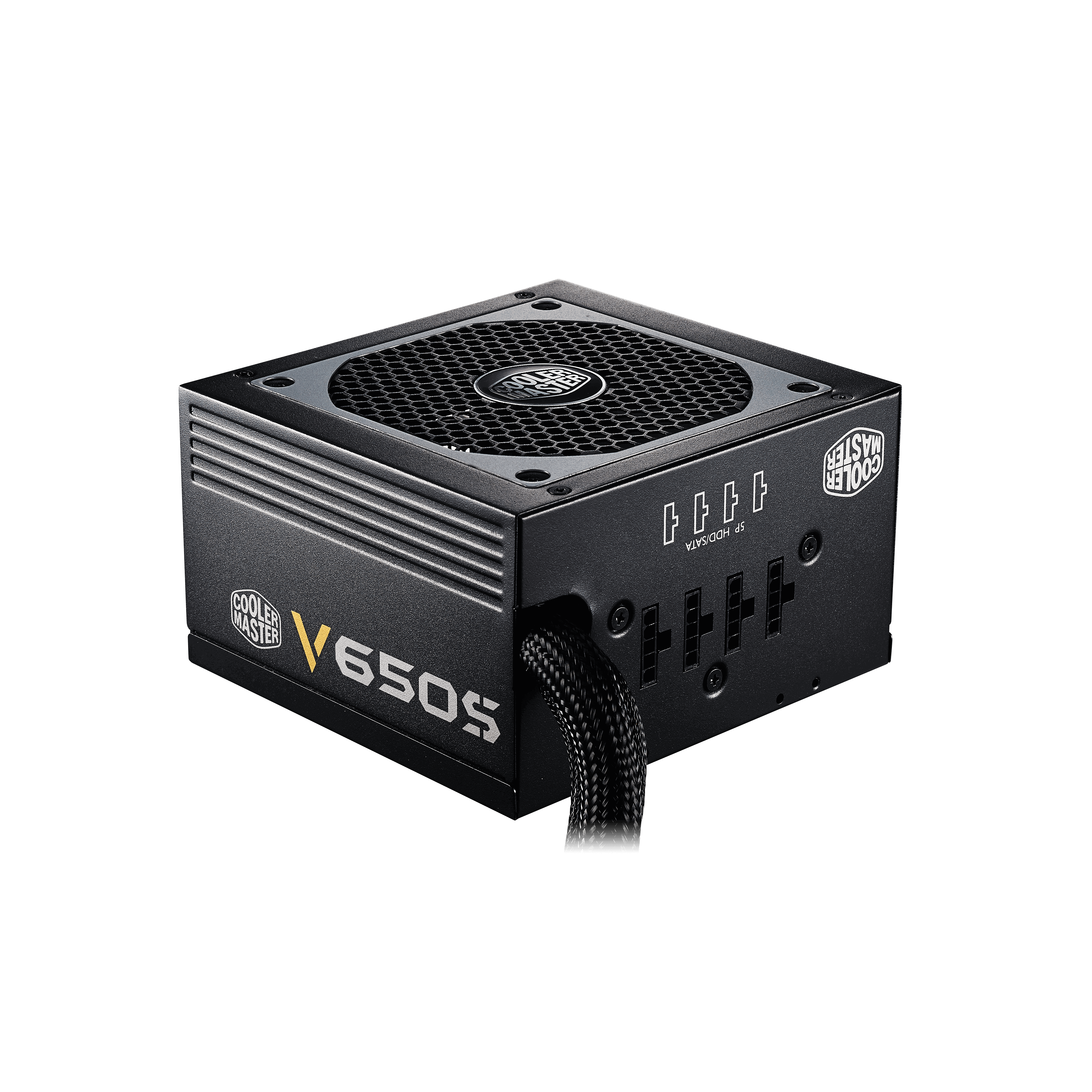

V650 Semi-Modular
The V650 Semi-modular power supply features 80 PLUS Gold certification and powerful single rail configurations.
- Operating Temperature 0-40°C
- MB 20+4 Pin Connectors 1
- FDD Cable 4 Pin Connectors 1
- Power Good Signal 100 - 500 ms
- MTBF >100,000 Hours
- CPU 12V 4+4 Pin Connectors 1
- Modular Semi Modular
- Certification 80 Plus Gold
- Legacy Power Supplies
- Input Voltage 90-264Vac (Full Range)
- Input Frequency 60-50Hz
- Fan Type 120mm Intelligent Fan
- PFC Active PFC (>0.9 Typical)
- SATA Connectors 8
- Peripheral 4 Pin Connectors 6
- ATX Version Intel Form Factor ATX 12V V2.31
- PCI-e 6+2 Pin Connectors 2
- Output Capacity 650W
- Protections OVP
- Protections OPP
- Efficiency 90% Typically
- Protections SCP
- Protections UVP
- Dimensions (L x W x H) 140 x 150 x 86 mm / 5.5 x 5.9 x 3.4 inch
- Protections OTP
- Protections OCP
- Hold Up Time >16ms
- Input Current 9-4.5A
- Regulatory CCC
- Regulatory CE
- Regulatory RCM
- Regulatory EAC
- Regulatory FCC
- Regulatory BSMI
- Regulatory UL
- Regulatory TUV
- Regulatory KCC
- Model RS-650-AMAA-G1
- Product Name V650 Semi-Modular
