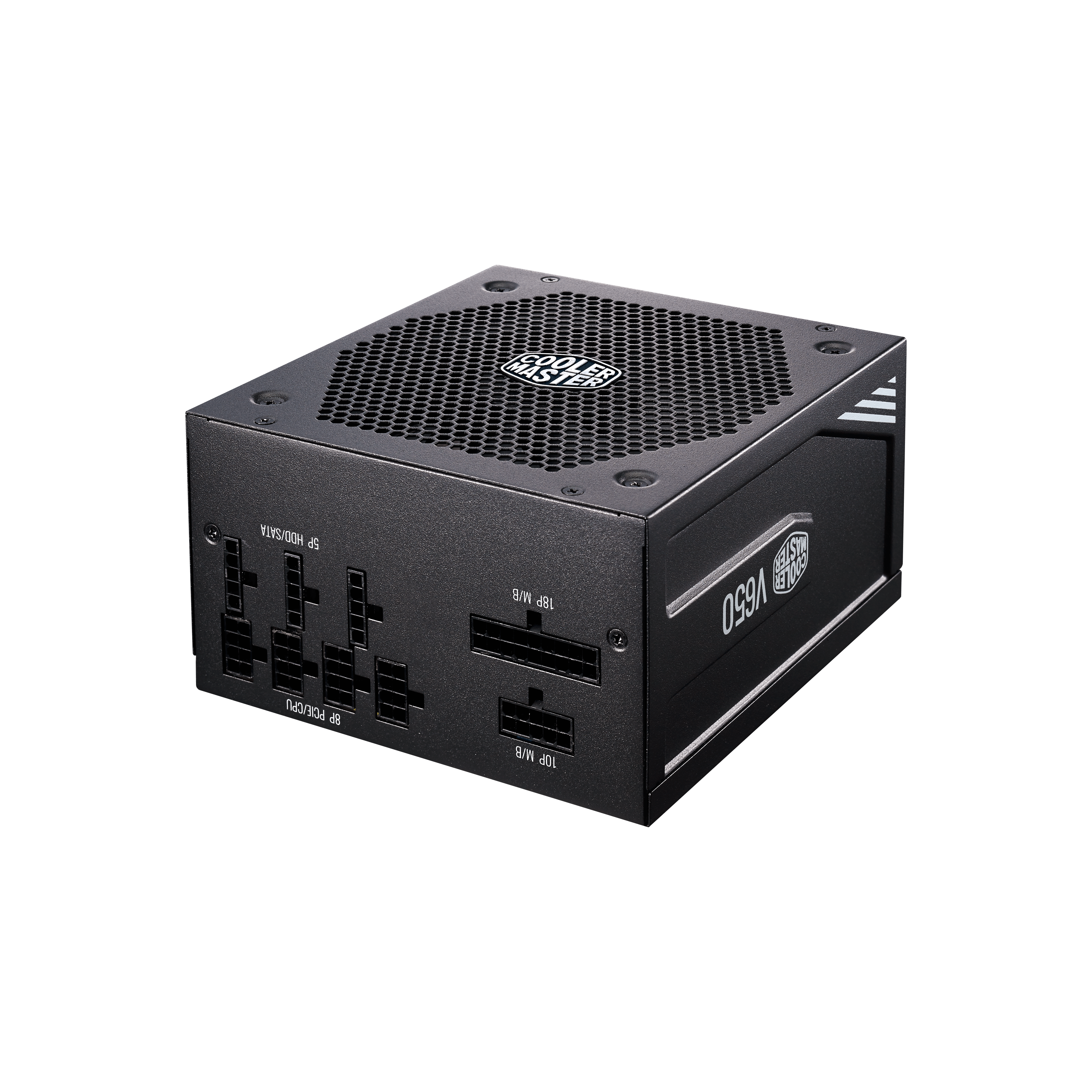

Full-modular Semi-fanless 80 Plus Gold Certified Power Supply

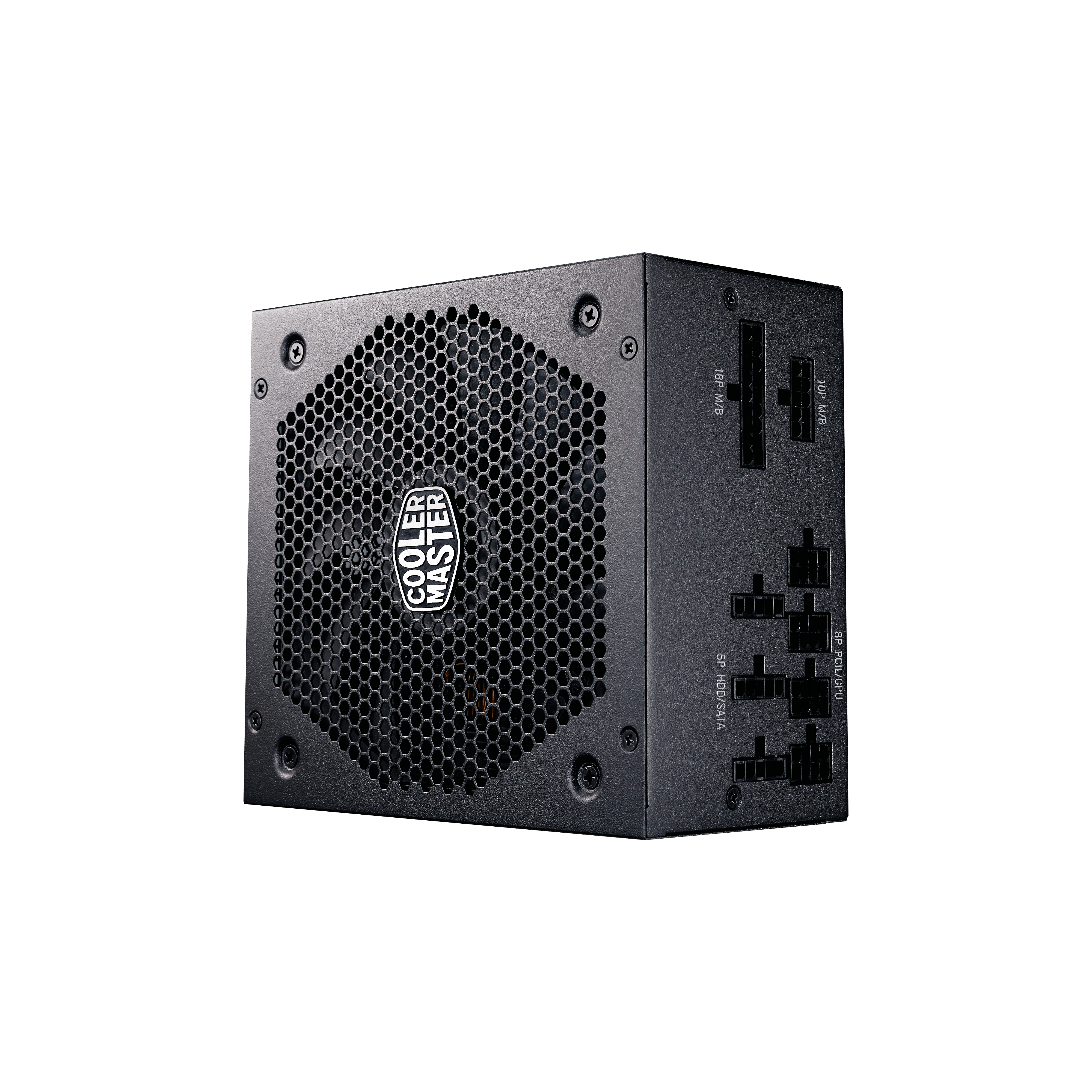

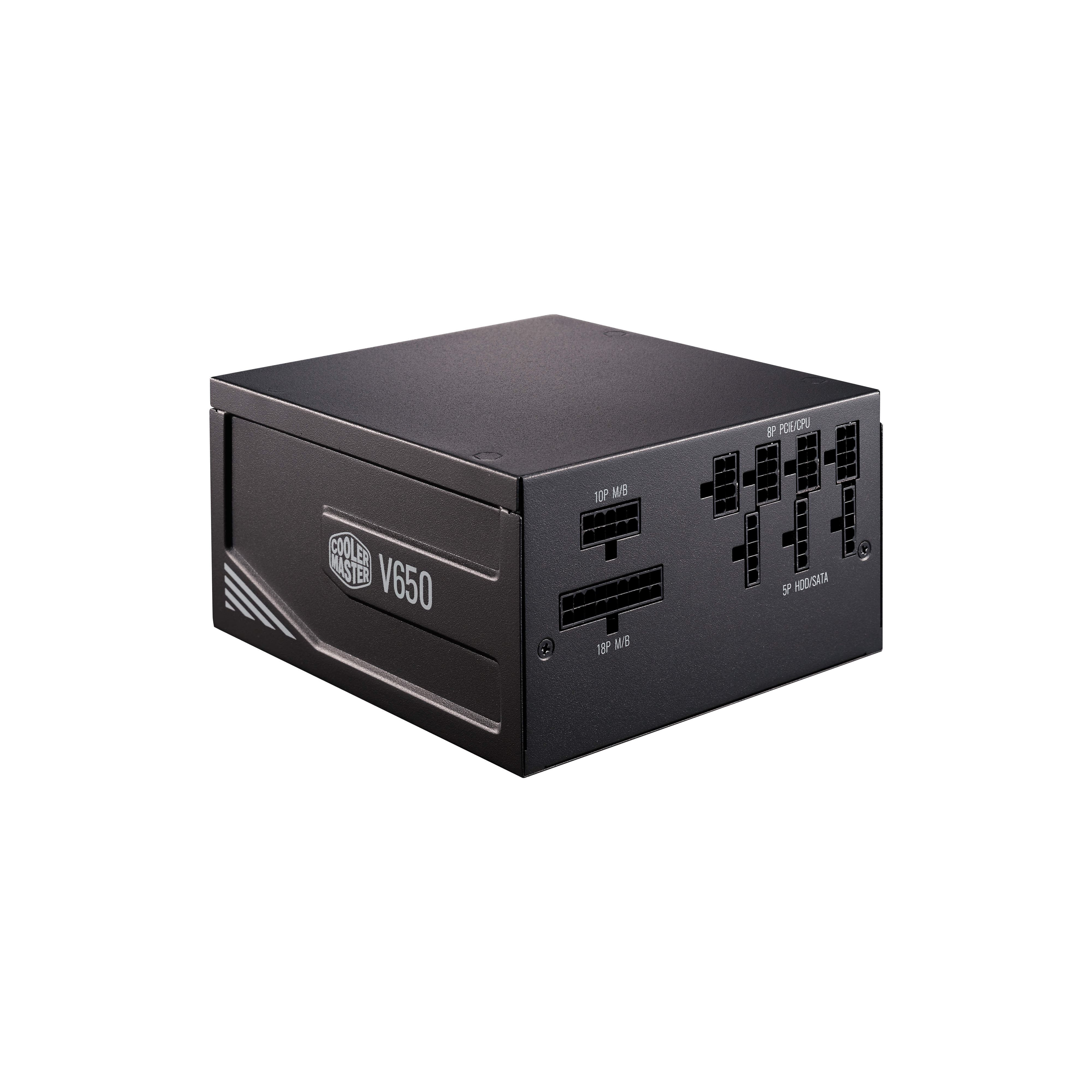

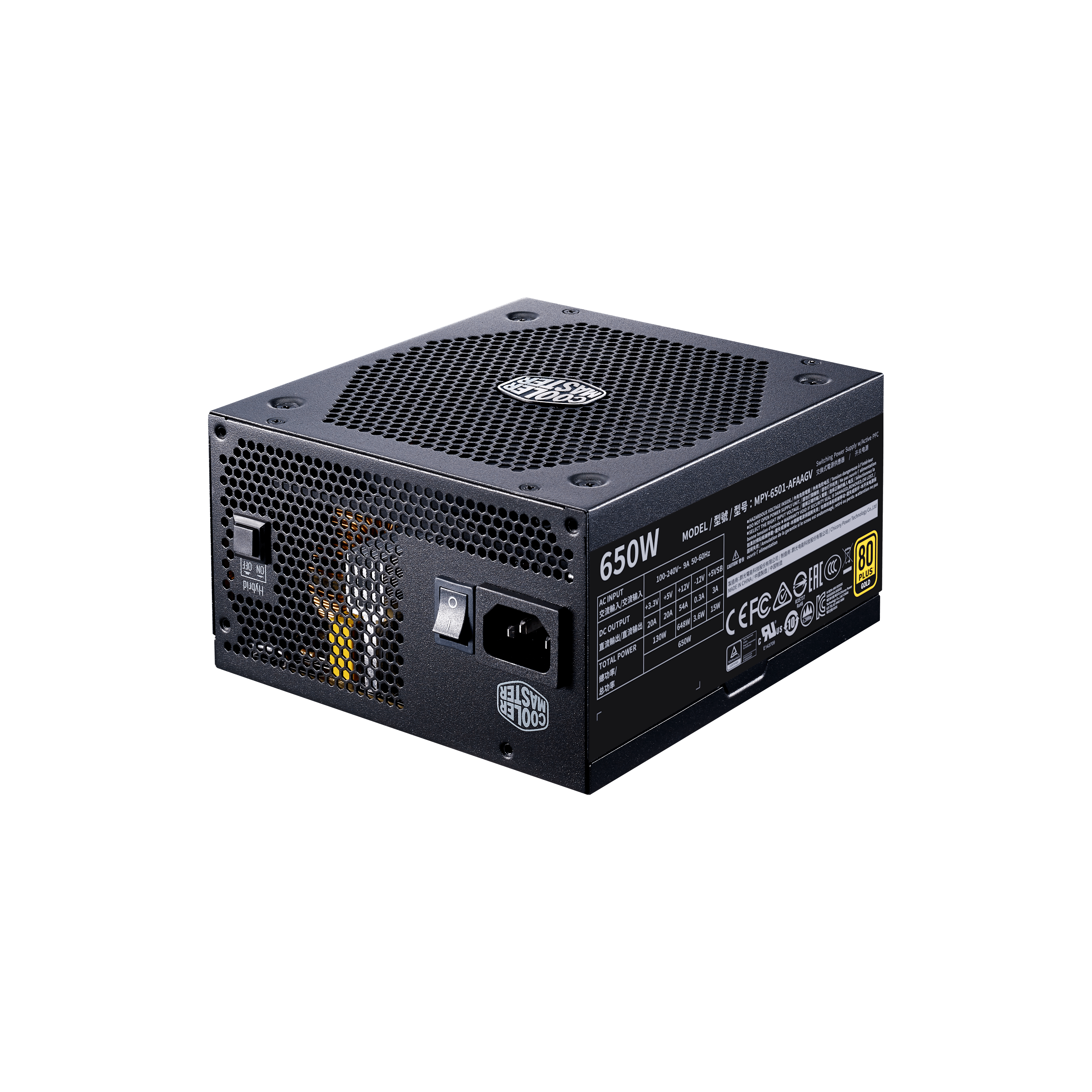

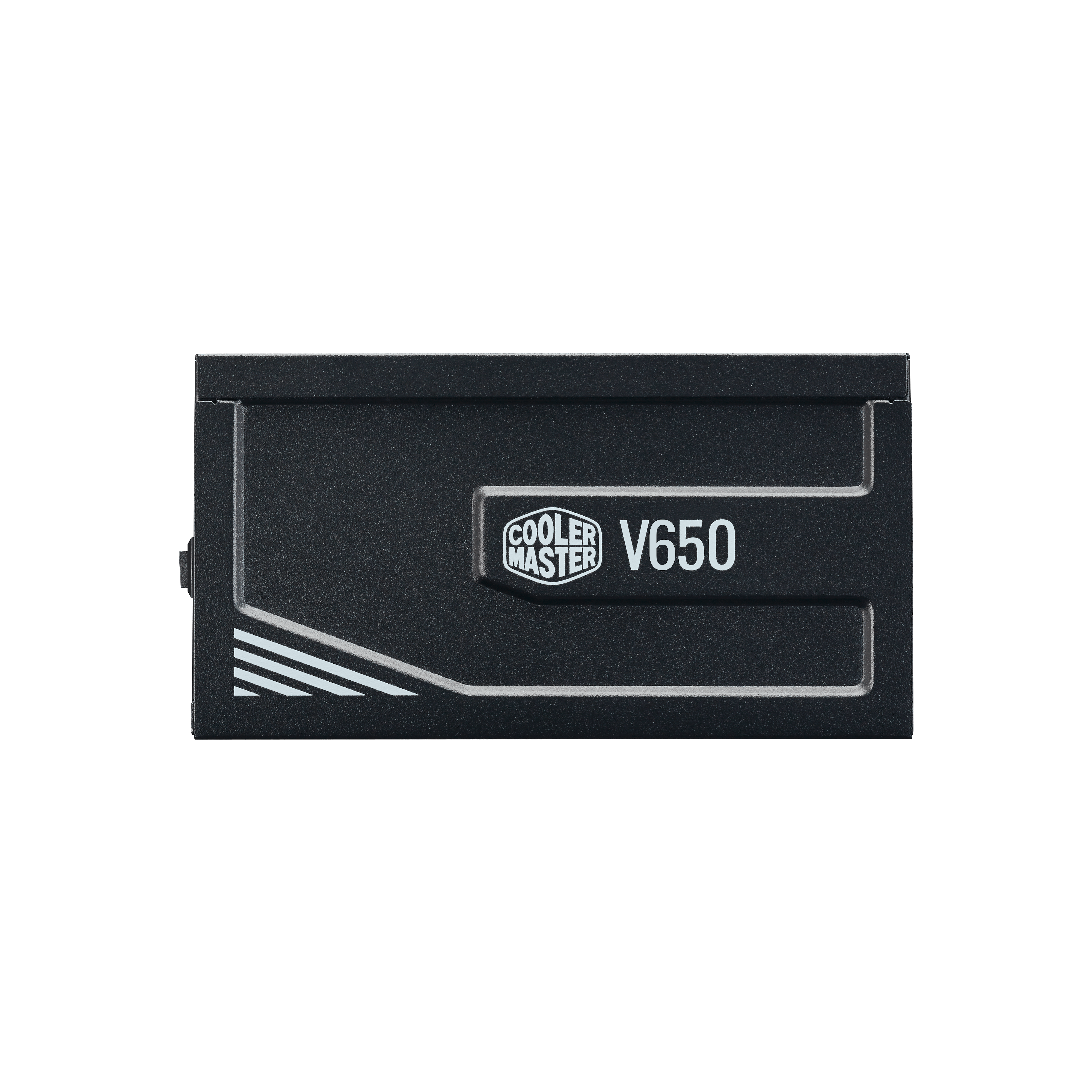

V650 Gold
80 Plus Gold Certified

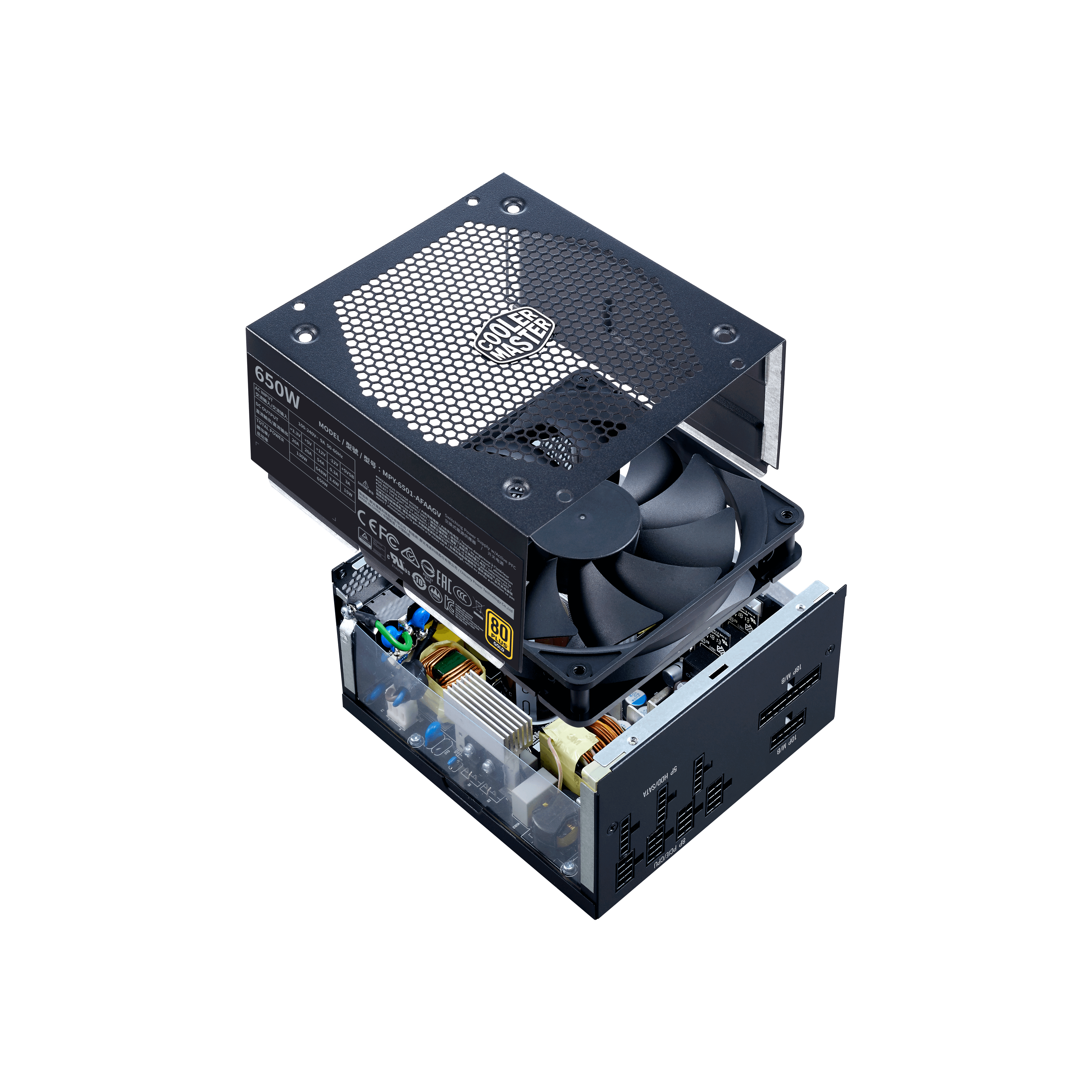

Half-bridge LLC Resonant Converter and DC-DC Technology

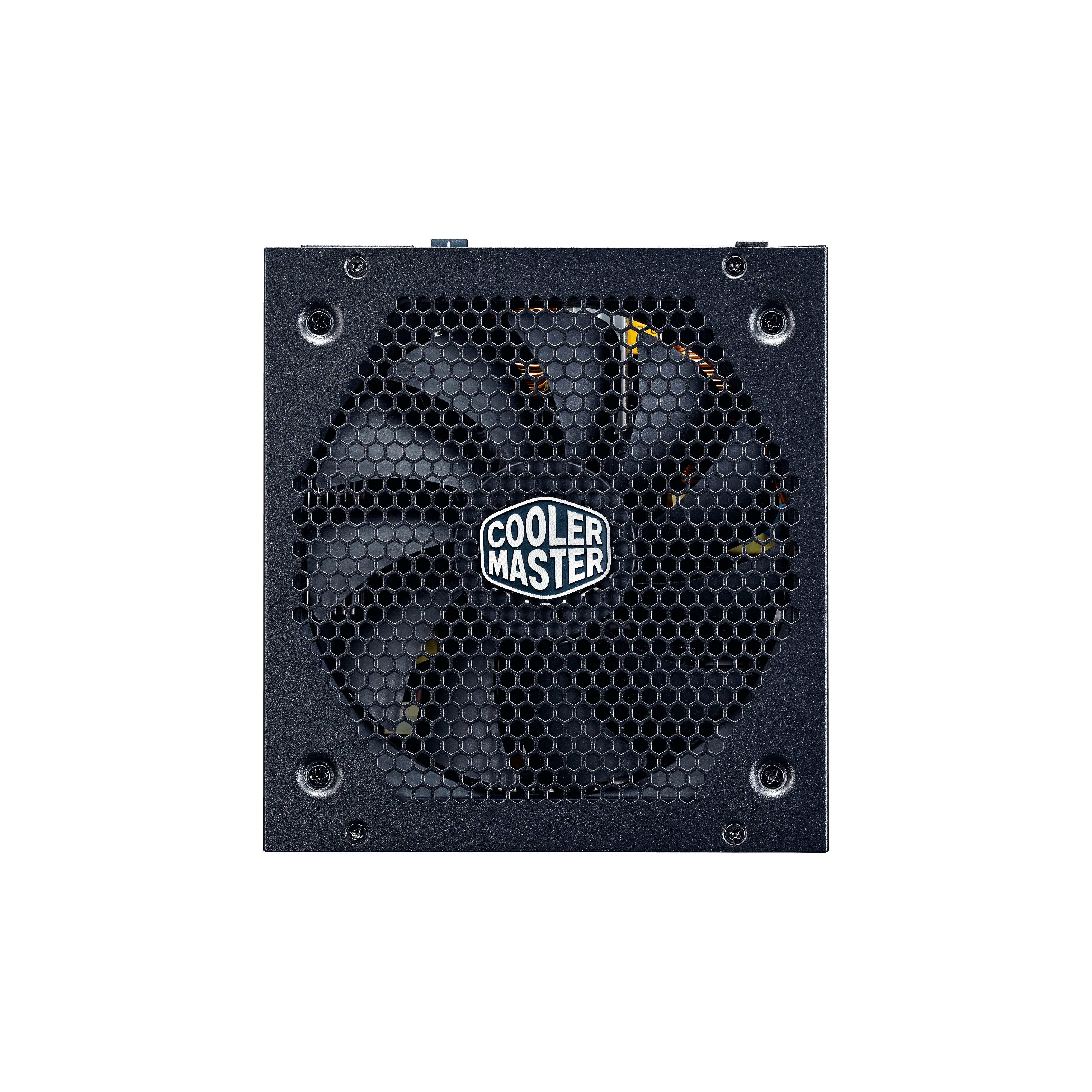

Silent 135mm FDB Fan

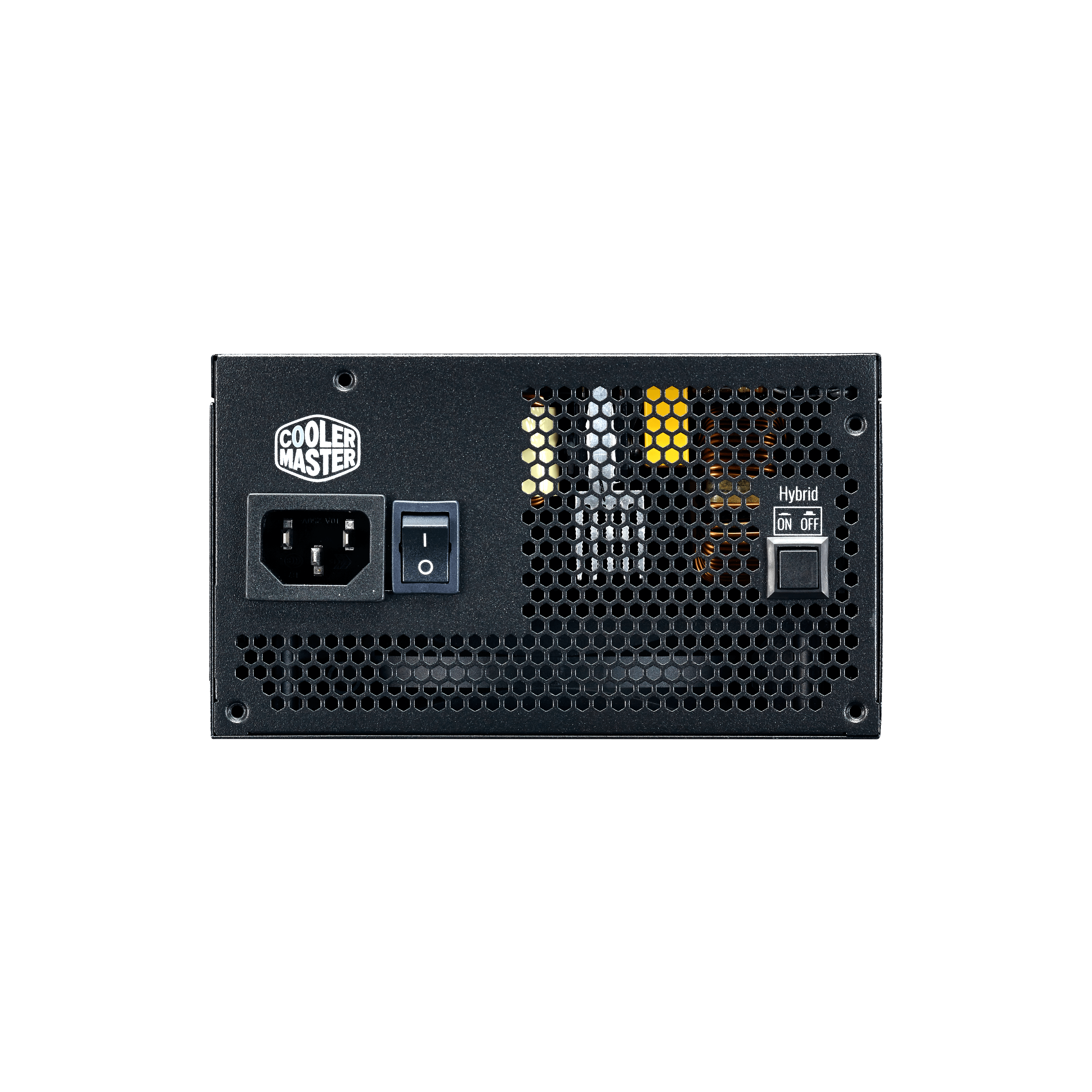

40% Semi-fanless Mode with Hybrid Switch
16AWG PCI-E Cables
10 Year Warranty

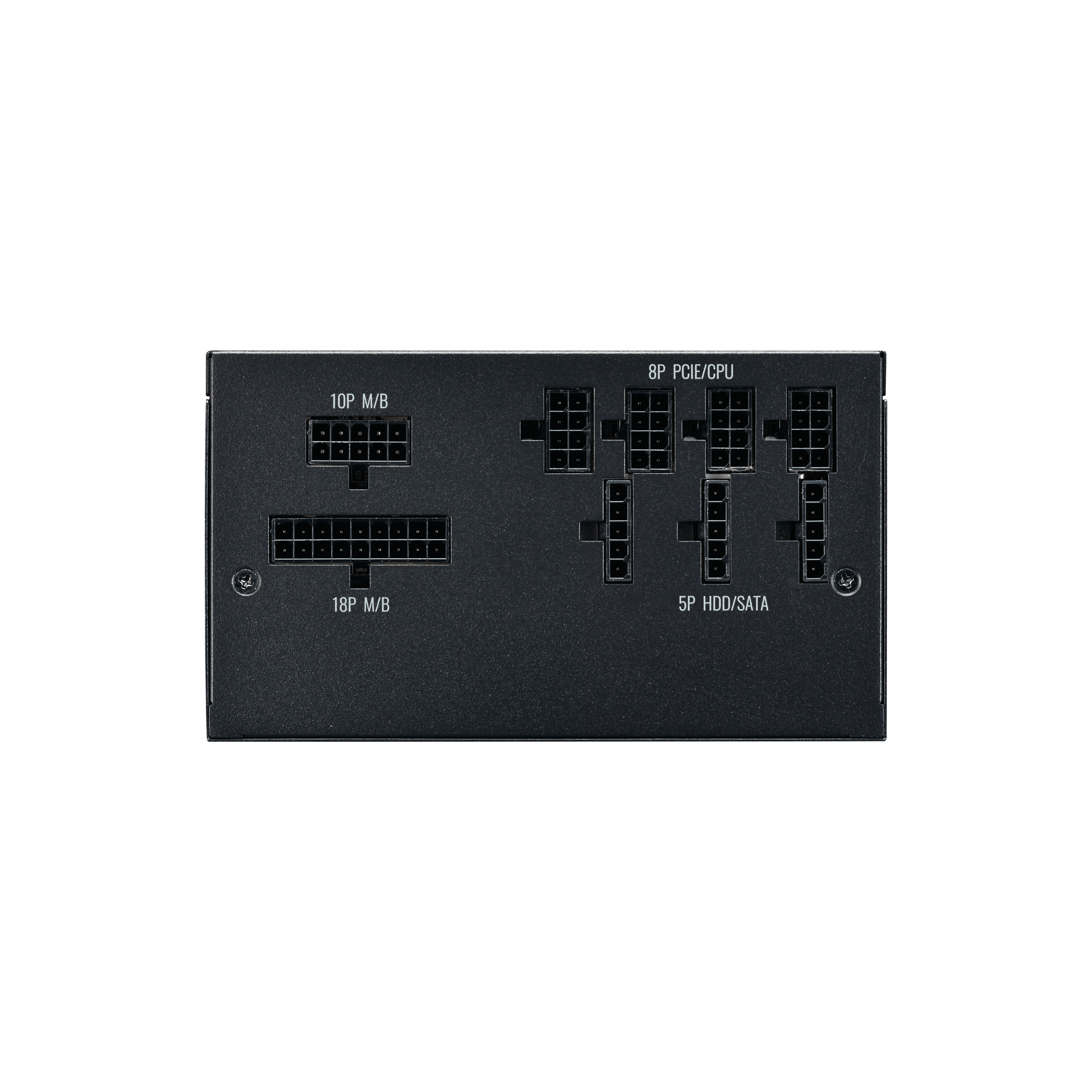

- Modular Fully Modular
- ATX Version ATX 12V
- PFC Active PFC
- Input Frequency 50-60Hz
- ErP 2014 Lot 3 Yes
- FDD Cable 4 Pin Connectors 1
- ATX 24 Pin Connectors 1
- EPS 4+4 Pin Connectors 1
- Fan Bearing FDB
- Noise Level @ 20% 0 dBA
- EPS 8 Pin Connector 1
- 80 PLUS Rating 80 PLUS Gold
- Power Good Signal 100 - 500 ms
- MTBF >100,000 Hours
- Category 500 to 750W
- 80 Plus Efficiency Gold
- Operating Temperature 0-50°C
- Fan Size 135mm
- Input Voltage 100-240V
- SATA Connectors 8
- PCI-e 6+2 Pin Connectors 4
- Peripheral 4 Pin Connectors 4
- Fan Speed 1500 RPM
- Protections OVP
- Efficiency 90% @ Typical Load
- Protections OPP
- Protections SCP
- Protections UVP
- Series V Gold Series
- Protections OTP
- Protections OCP
- Input Current 9-4.5A
- Hold Up Time 17ms
- Dimensions (L x W x H) 160 x 150 x 86 mm
- Noise Level @ 50% 18.3 dBA
- Noise Level @ 100% 32.1 dBA
- Regulatory CCC
- Regulatory CE
- Regulatory TUV-RH
- Regulatory RCM
- Regulatory EAC
- Regulatory cTUVus
- Regulatory FCC
- Regulatory BSMI
- Regulatory KC
- Regulatory CB

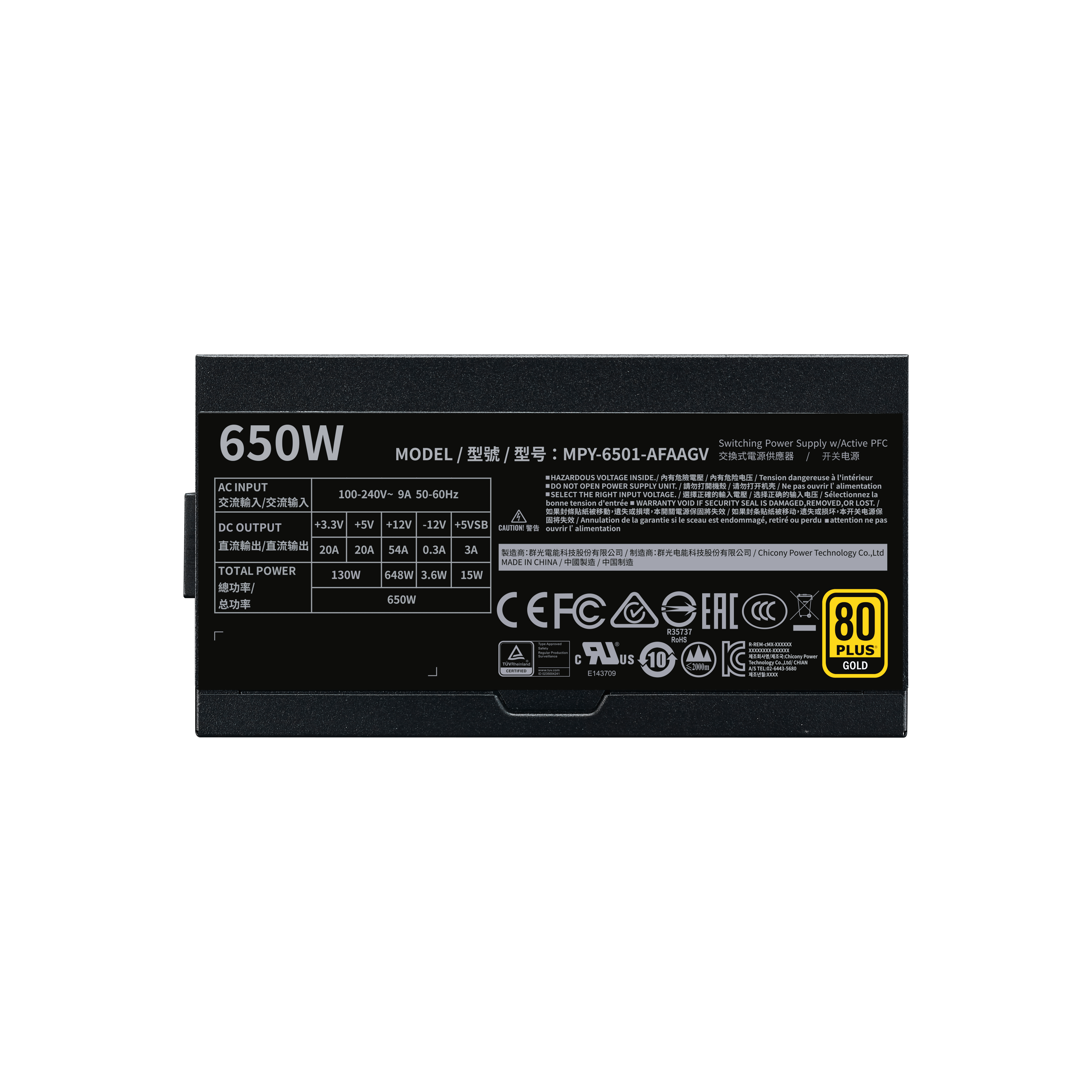

- Model MPY-6501-AFAAGV
