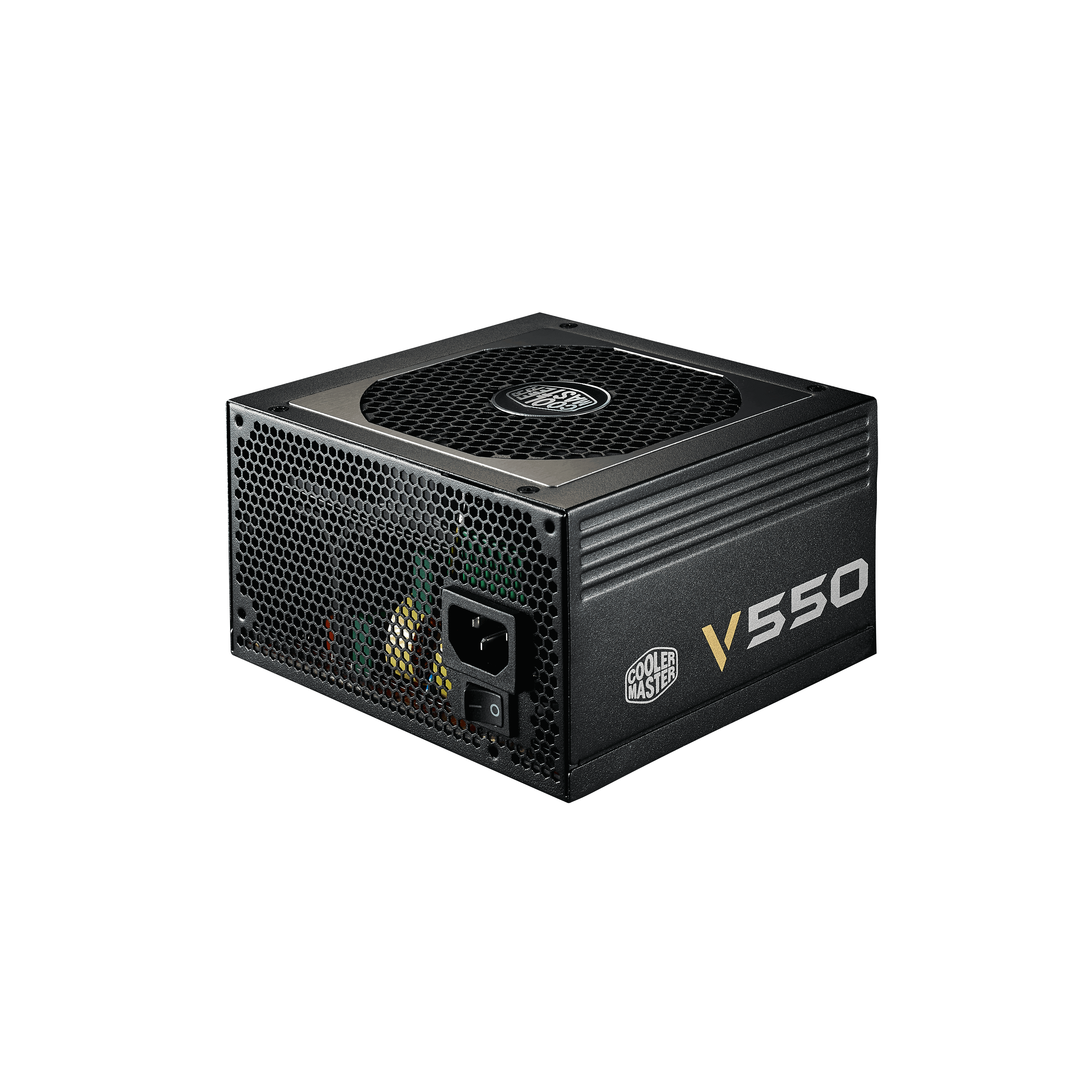

V550 image number 0

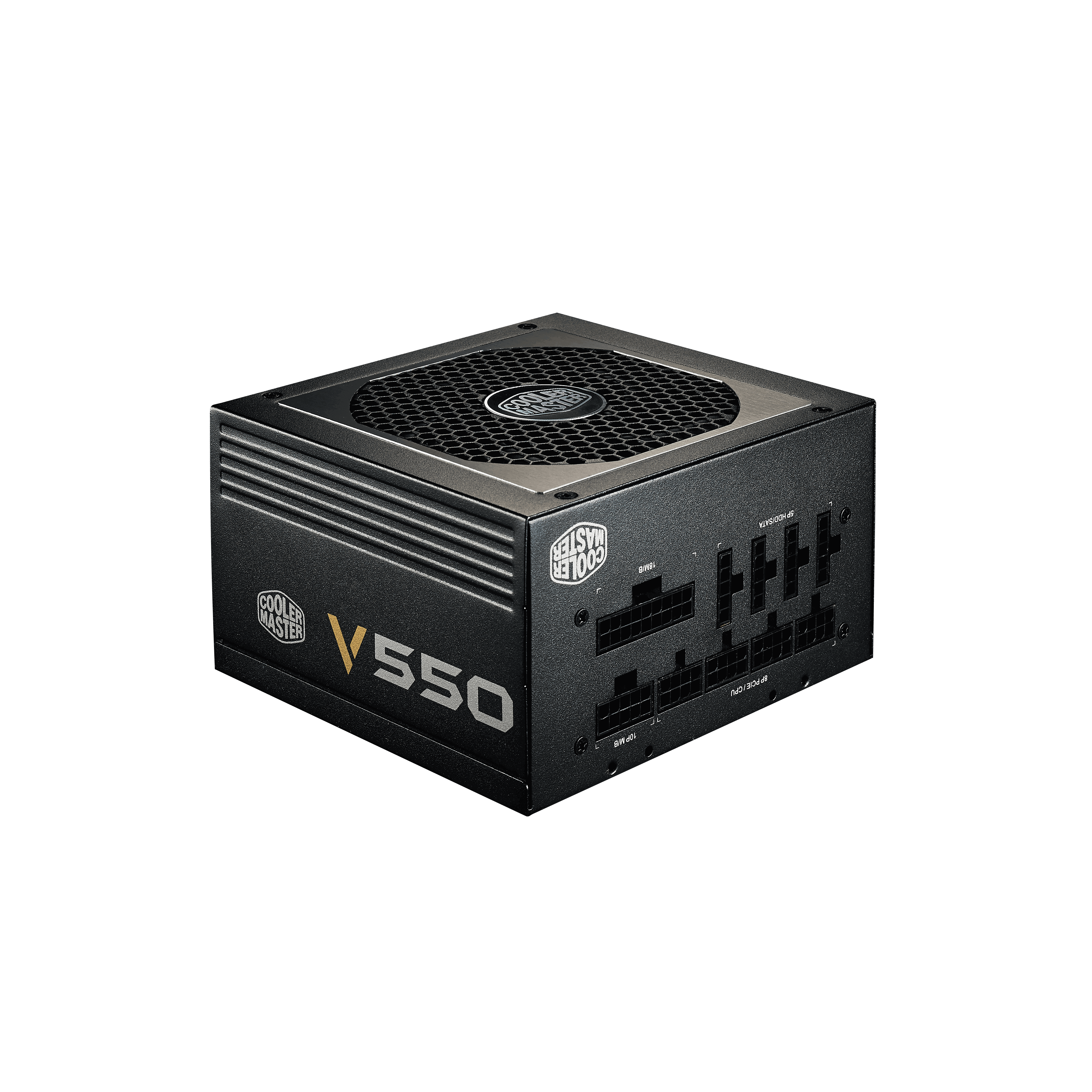

V550 image number 1

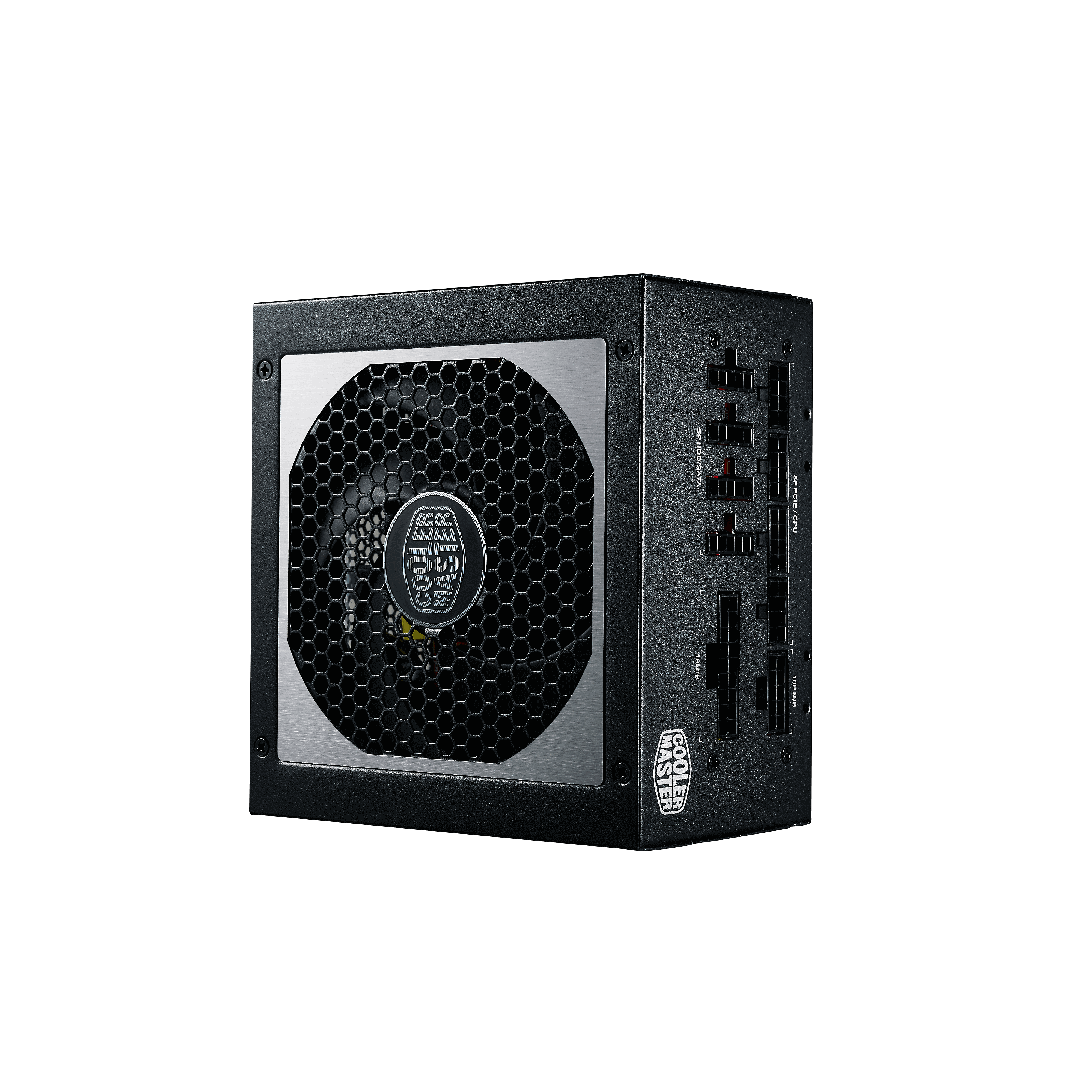

V550 image number 2

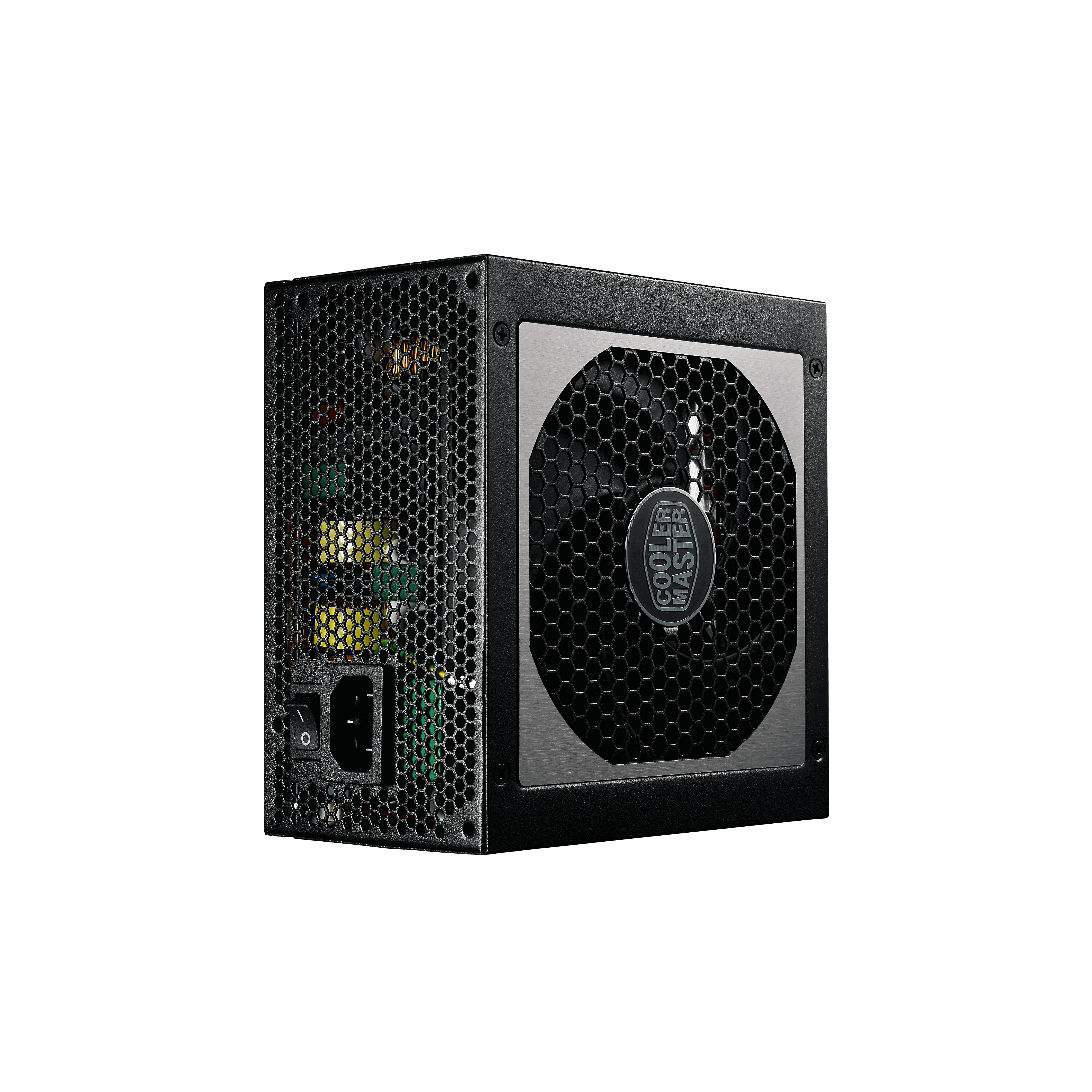

V550 image number 3

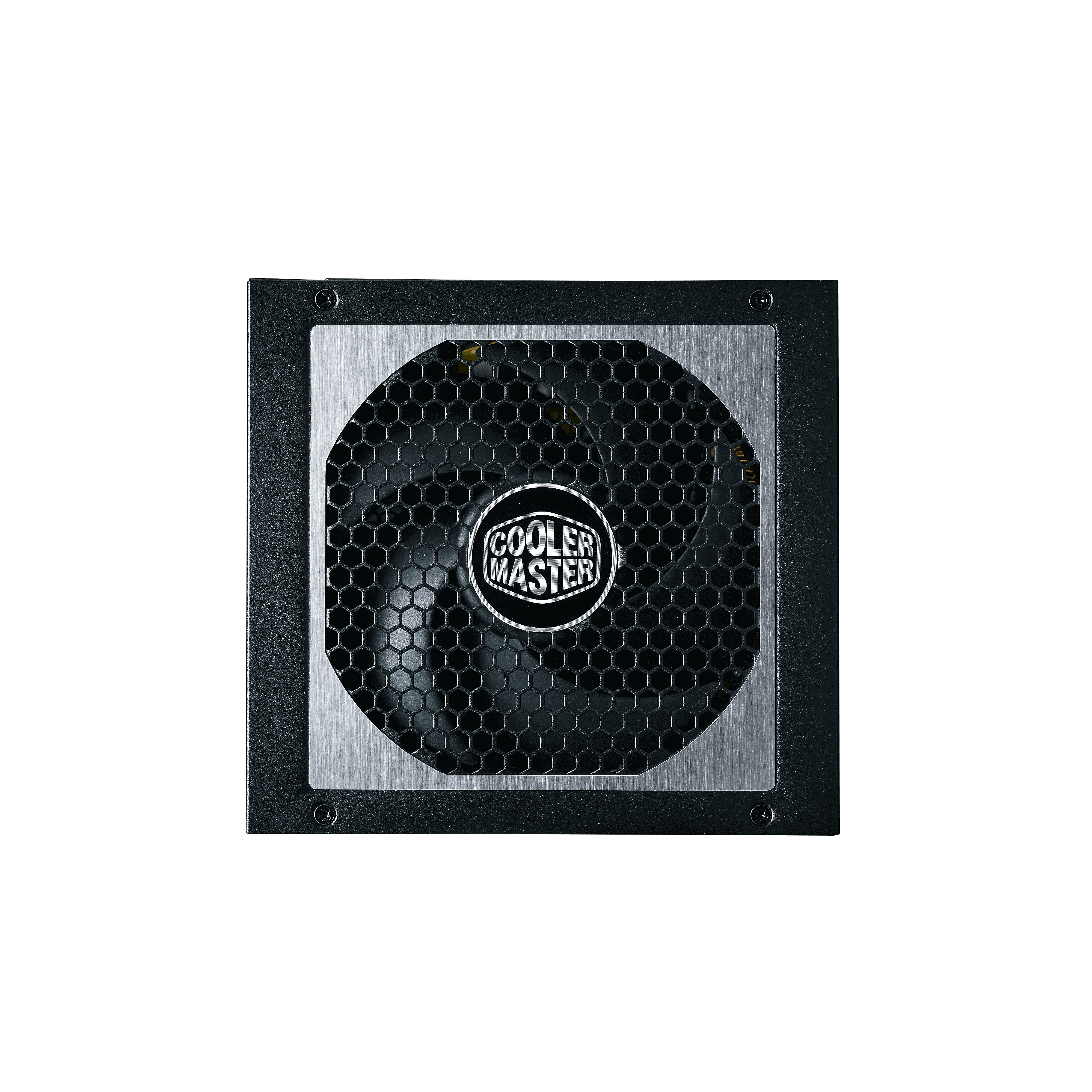

V550 image number 4

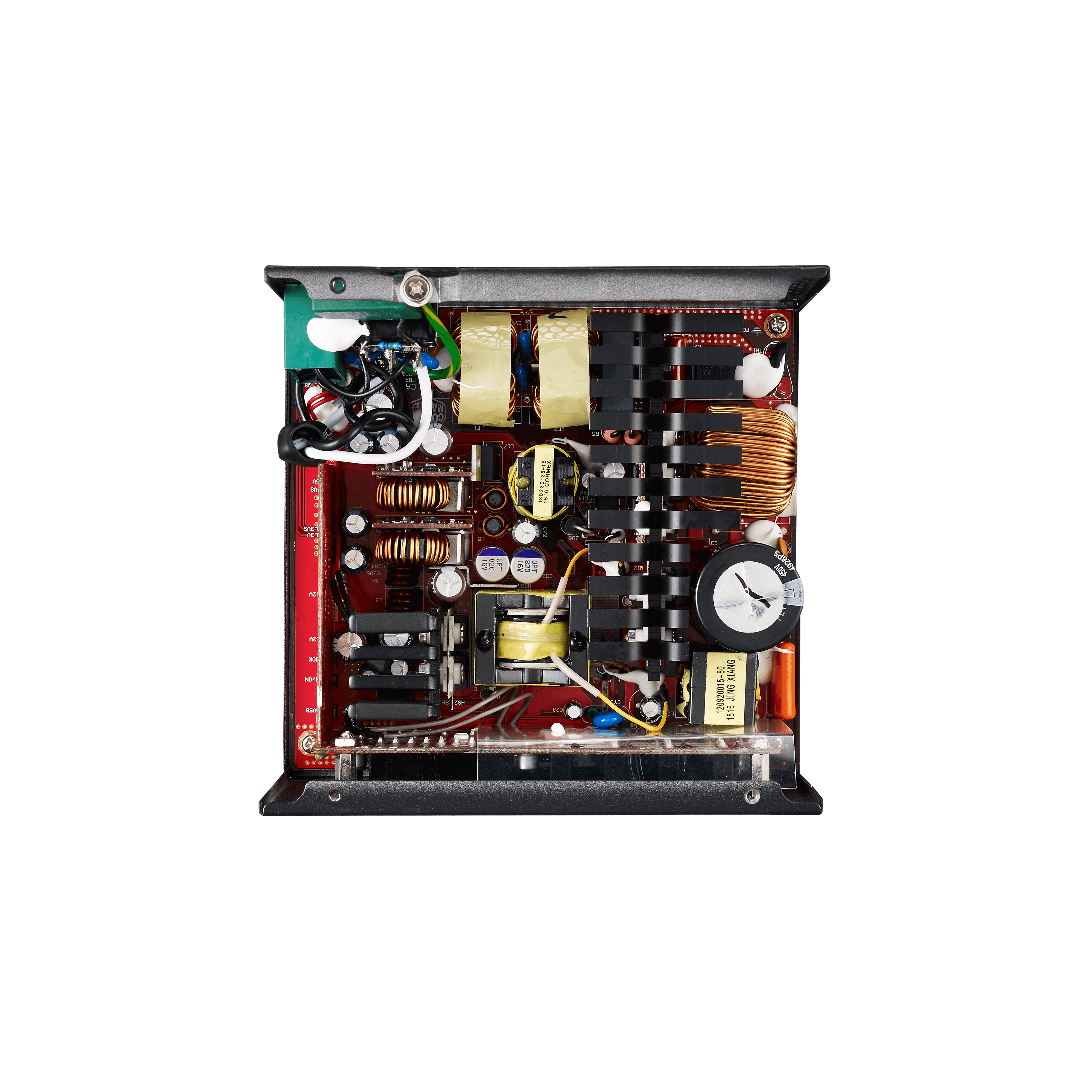

V550 image number 5

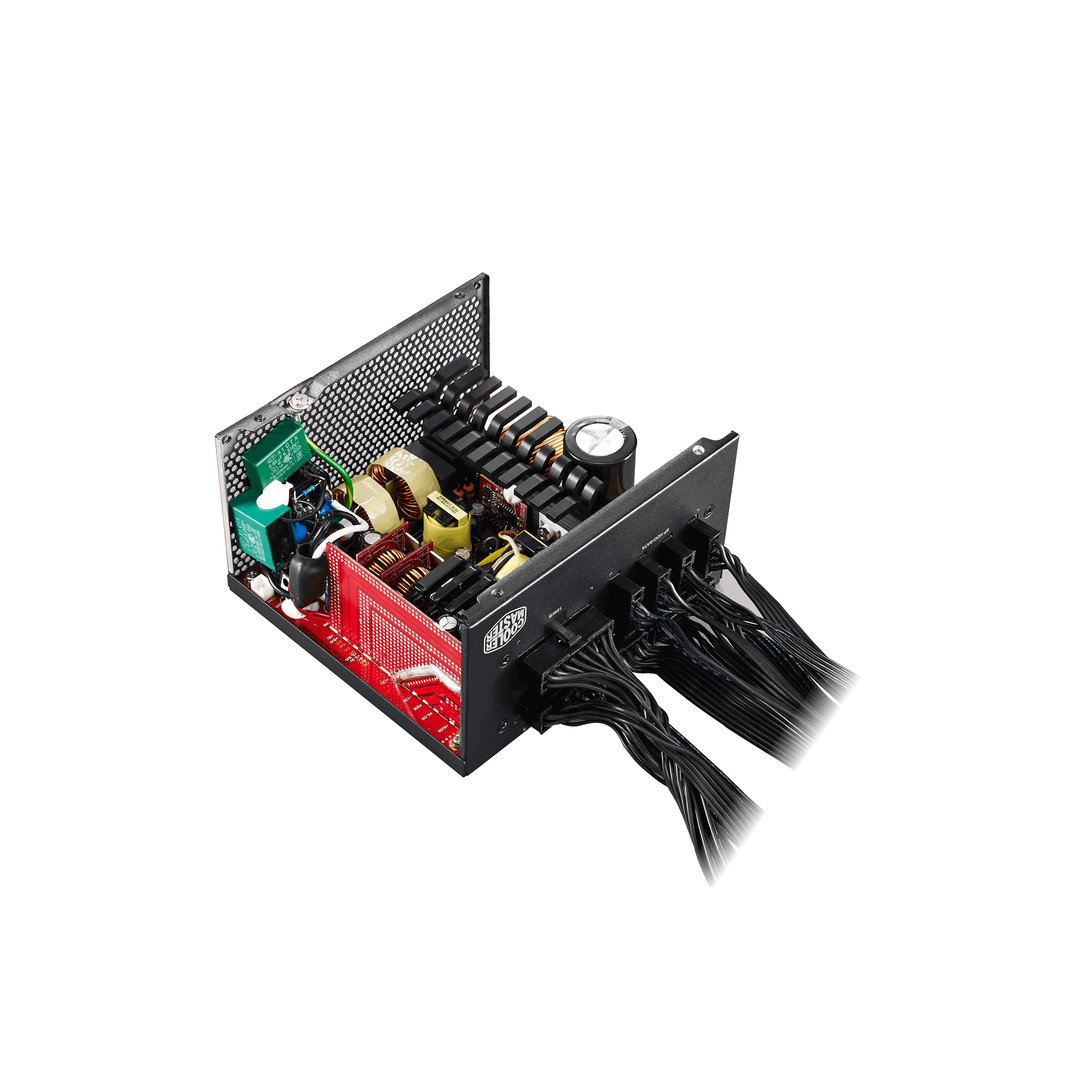

V550 image number 6

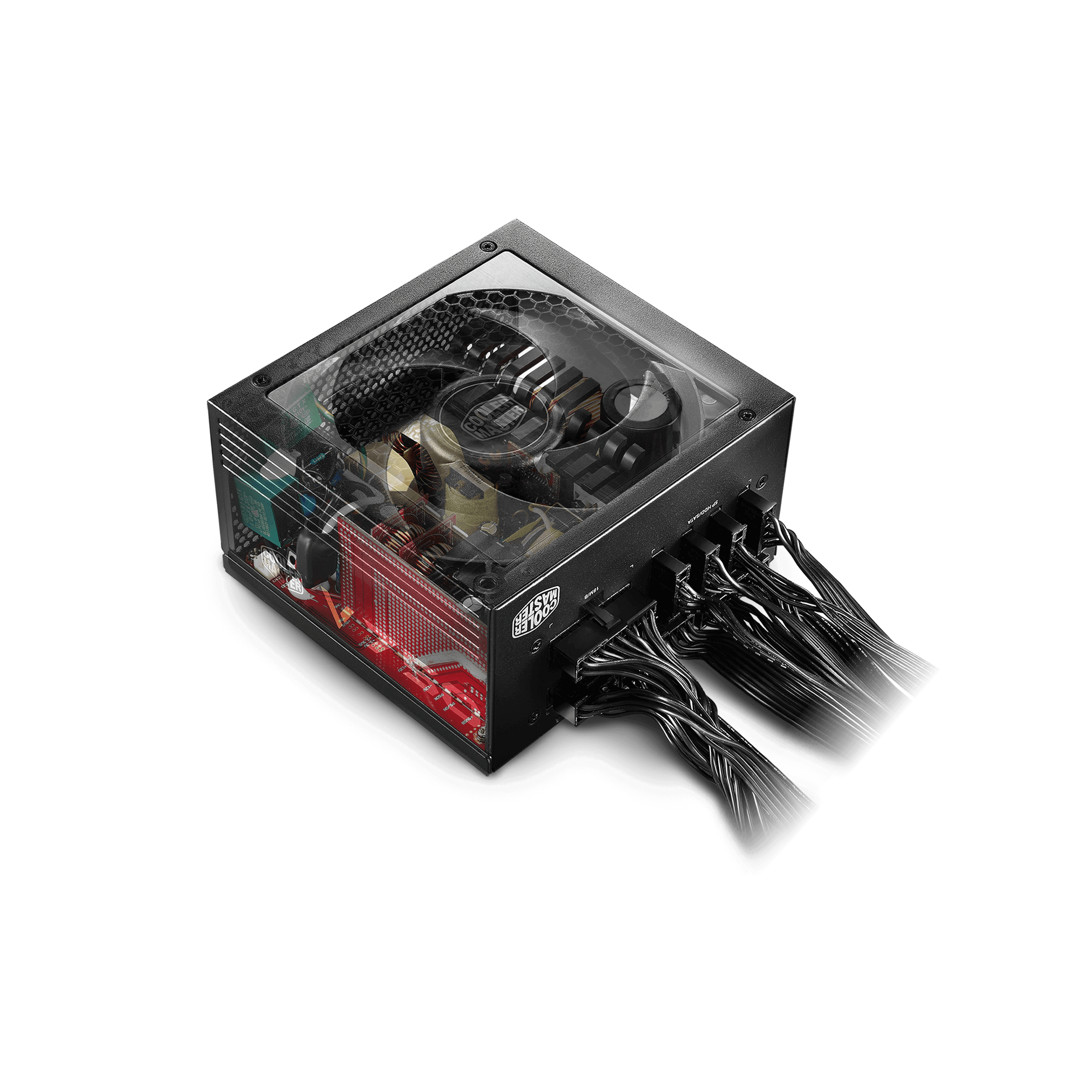

V550 image number 7
V550
V550
V550
V550
V550
V550
V550
V550

V550

  • Unique 3D circuit design offers higher efficiency and improves the heat dissipation

  • Cooler Master's exclusive Silencio FP fan technology enhances airflow, reduces vibration and provides the best thermal performance

  • Fully modular, flat cable design for better cable management

  • 100% Japanese capacitors ensures an extended lifetime and minimizes power fluctuations

  • Compact design 6.8W/inch3 fits perfectly with small form factor systems

  • 80 PLUS Gold certified: up to 92% efficiency on typical load

Specifications

  • Modular Fully Modular
  • Operation Voltage 100-240Vac
  • FDD Cable 4 Pin Connectors 1
  • MB 24 Pin Connectors 1
  • Input Range Full Range
  • CPU 12V 4+4 Pin Connectors 1
  • Input Frequency 47-63Hz
  • Power Good Signal 100 - 500 ms
  • MTBF >100,000 hours @ 25℃ ambient
  • Category 500 to 750W
  • 80 Plus Efficiency Gold
  • Fan Type 120mm Silecnio FP Fan
  • PFC Active PFC (>0.9 Typical)
  • ATX Version Intel Form Factor ATX 12V V2.31
  • EAN Code 4719512048252
  • UPC Code 884102027215
  • PCI-e 6+2 Pin Connectors 2
  • SATA Connectors 6
  • Peripheral 4 Pin Connectors 3
  • Protections OVP
  • Protections OPP
  • Efficiency 90% Typically
  • Protections SCP
  • Series V Gold Series
  • Protections UVP
  • Dimensions (L x W x H) 140 x 150 x 86 mm / 5.5 x 5.9 x 3.4 inch
  • Protections OTP
  • Protections OCP
  • Hold Up Time >16ms
  • Regulatory CCC
  • Regulatory CE
  • Regulatory RCM
  • Regulatory EAC
  • Regulatory FCC
  • Regulatory BSMI
  • Regulatory UL
  • Regulatory TUV
  • Model RS550-AFBAG1-XX
  • Product Name V550
