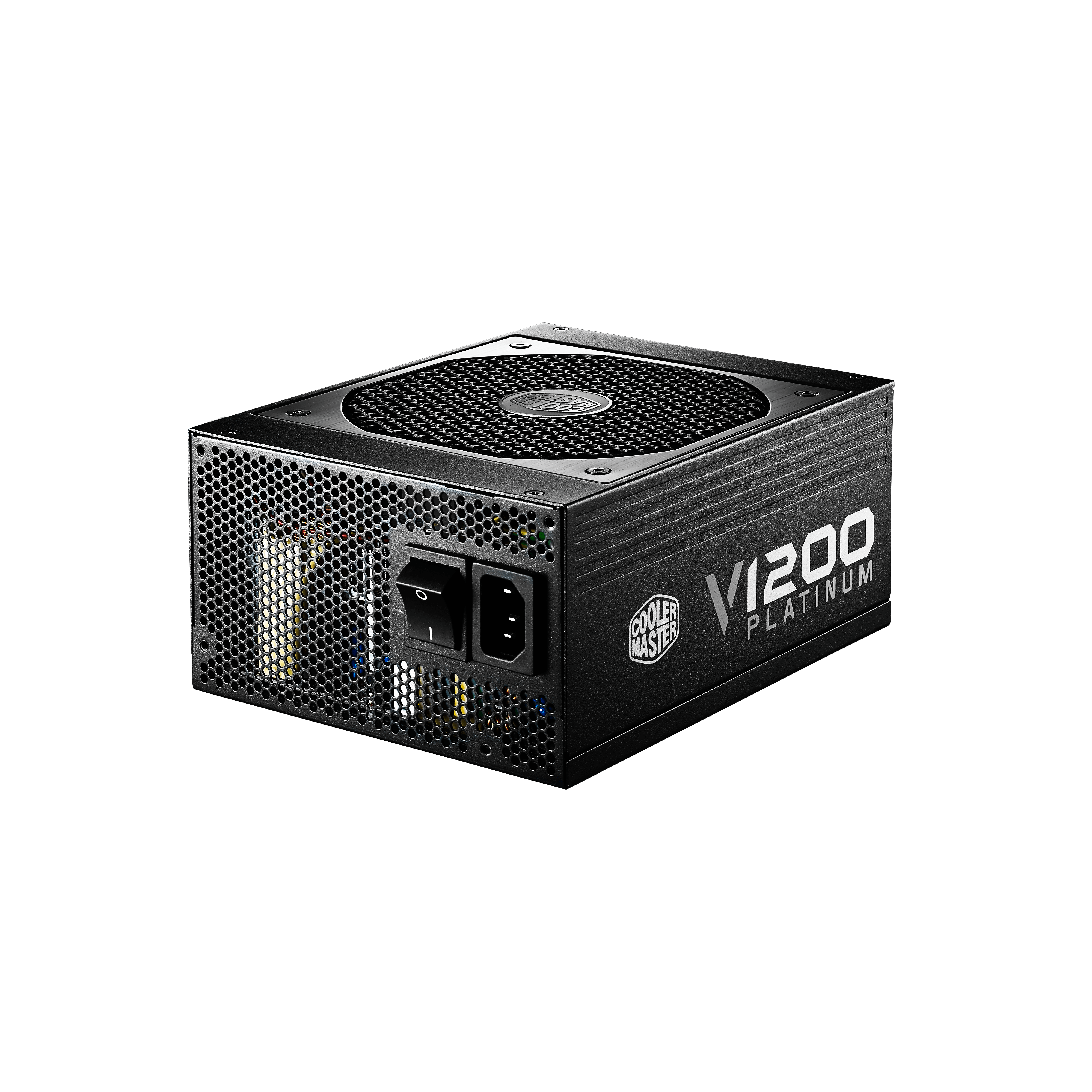

V1200 Platinum image number 0

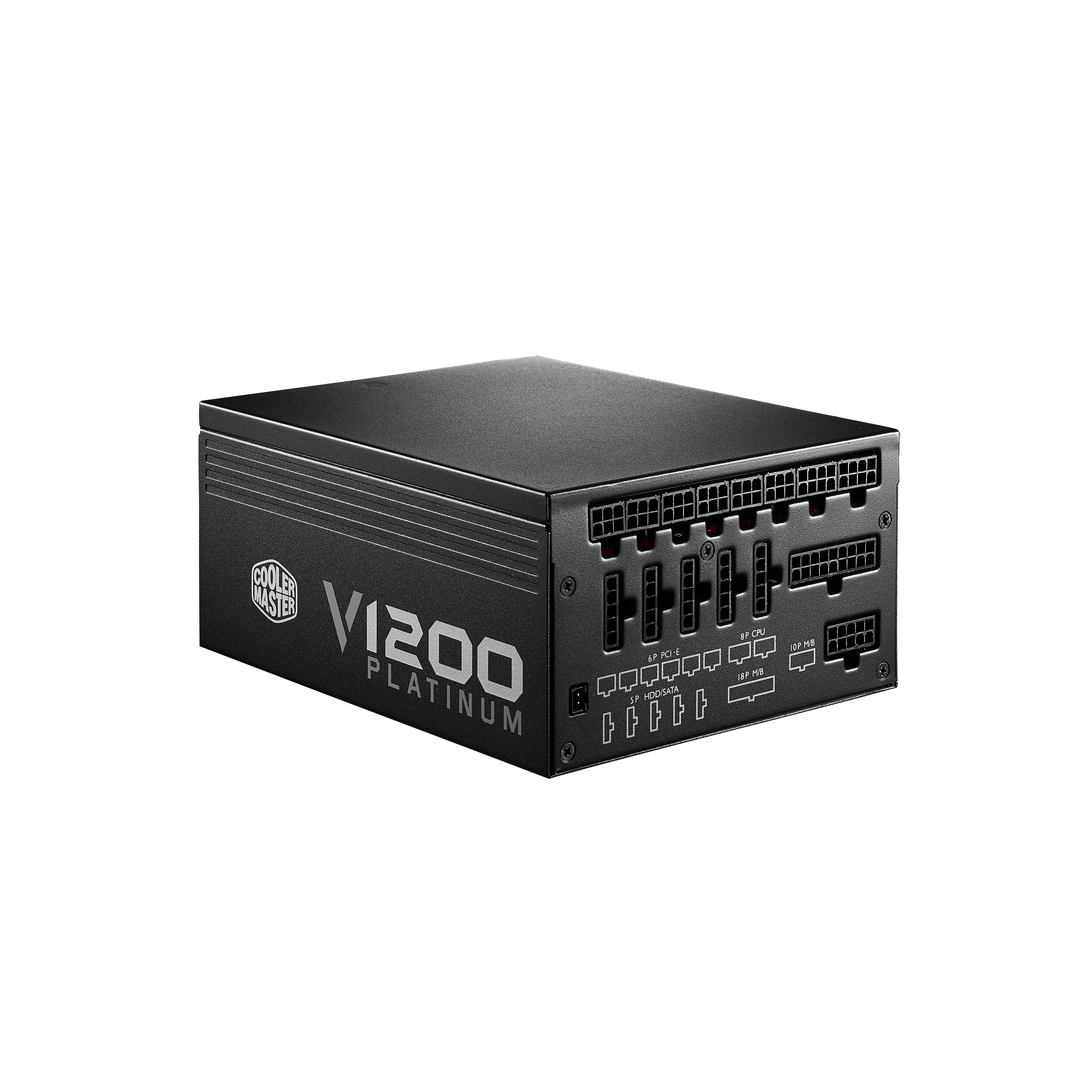

V1200 Platinum image number 1

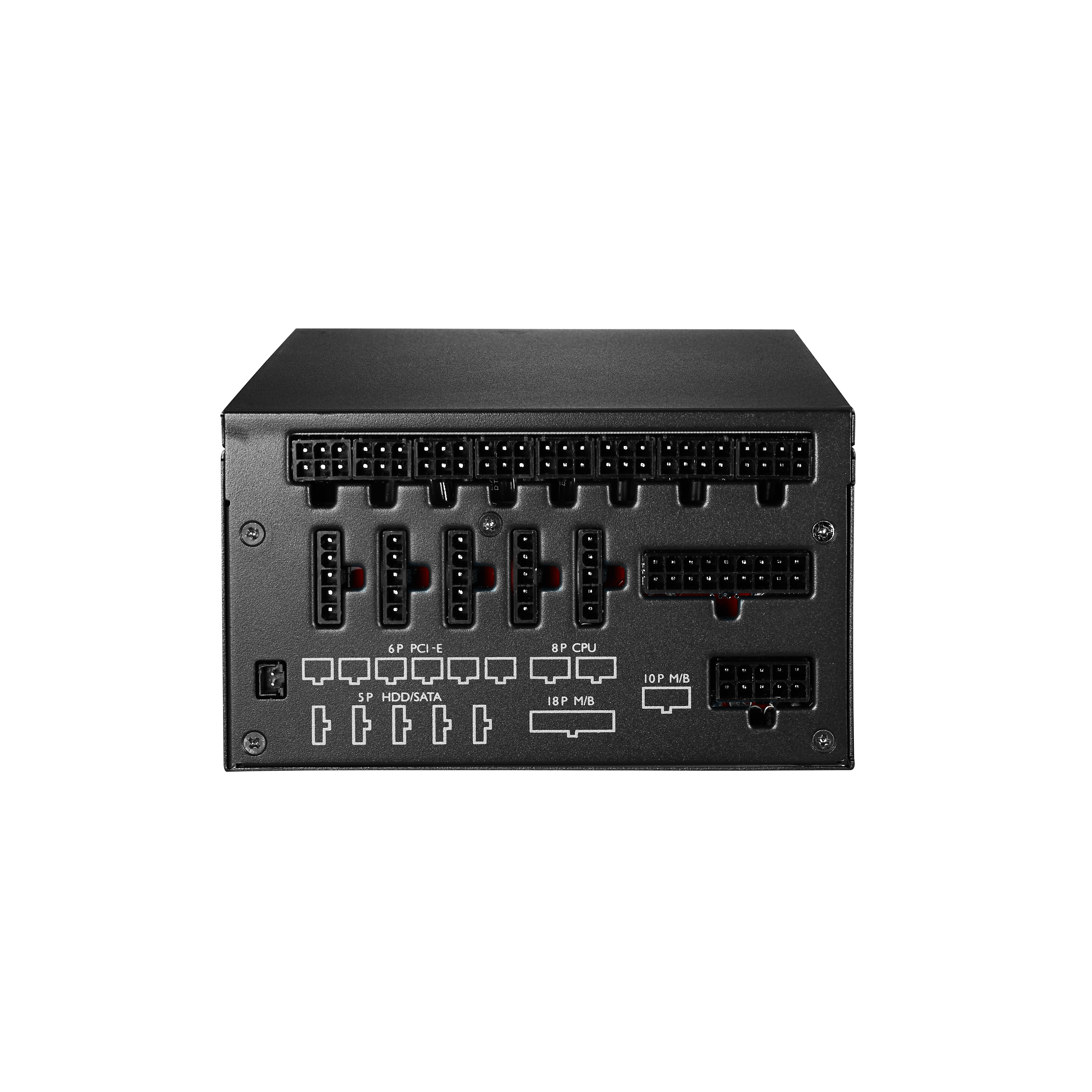

V1200 Platinum image number 2

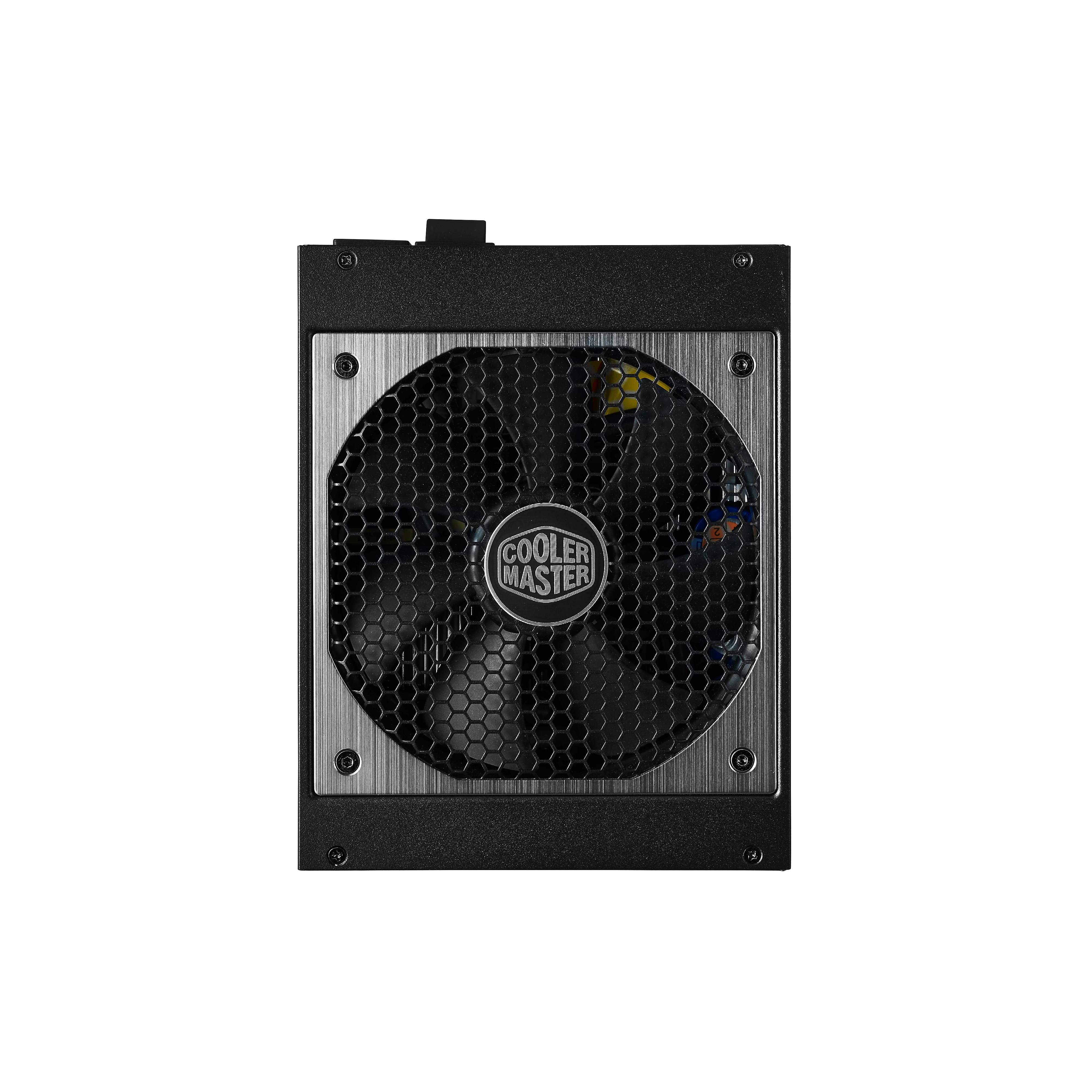

V1200 Platinum image number 3

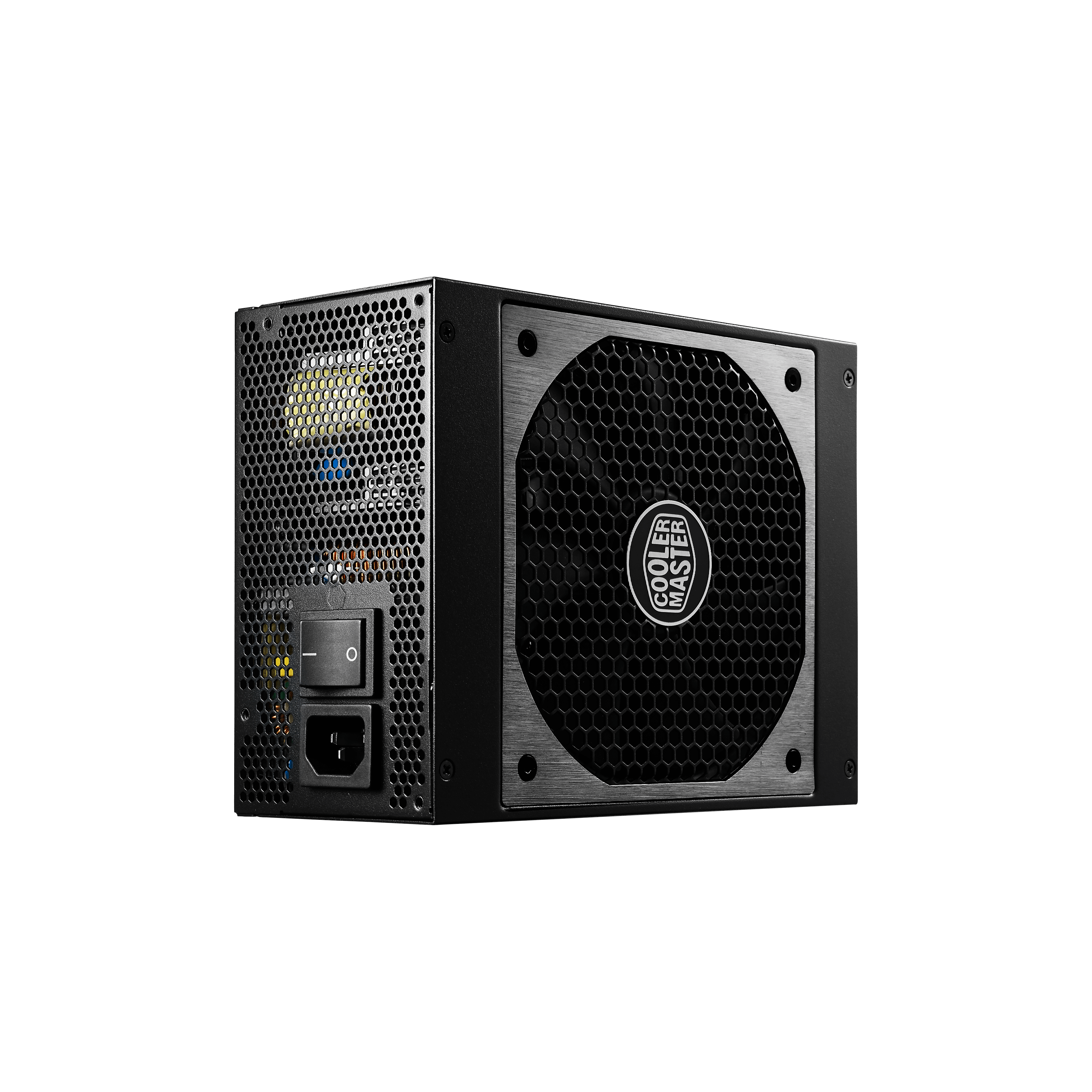

V1200 Platinum image number 4

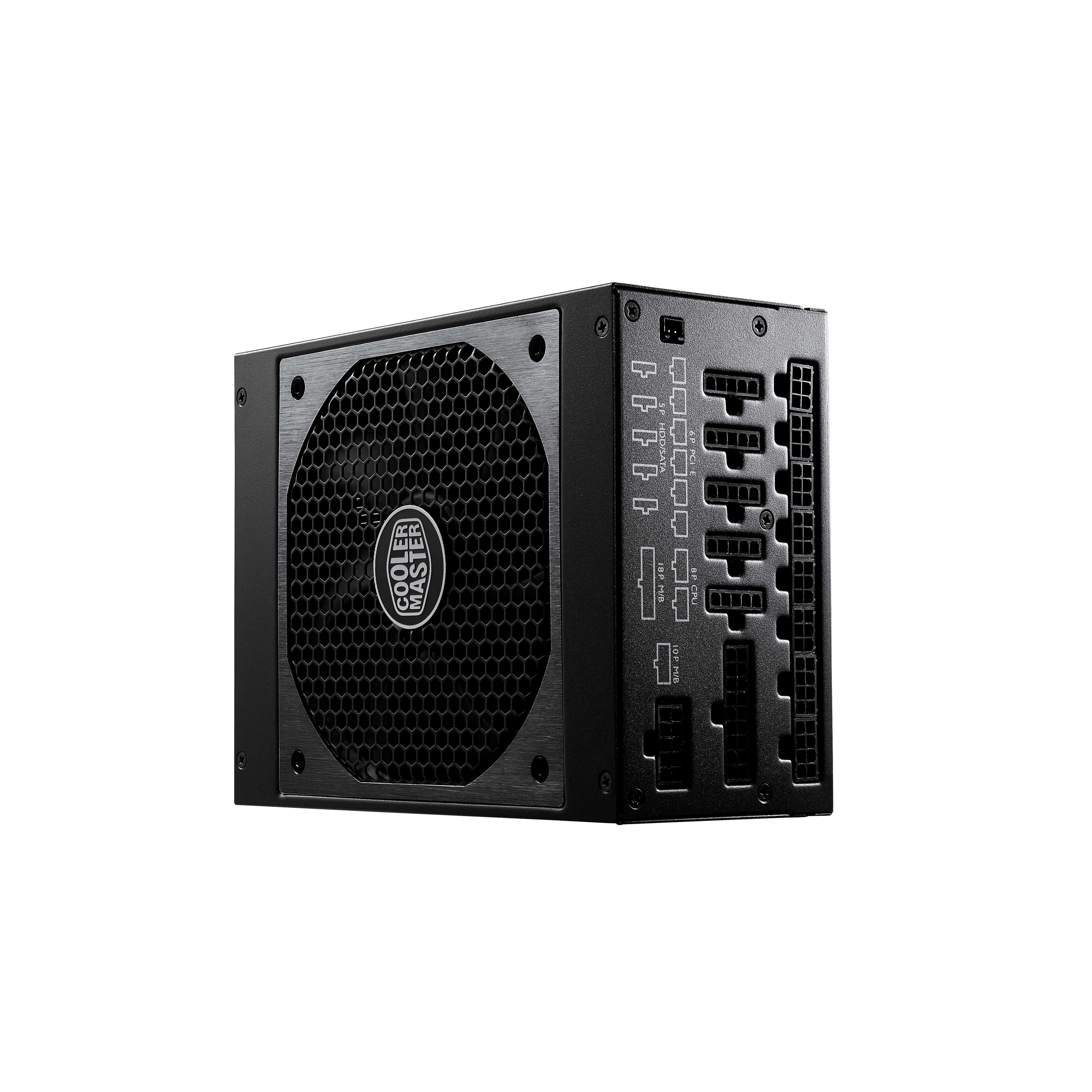

V1200 Platinum image number 5

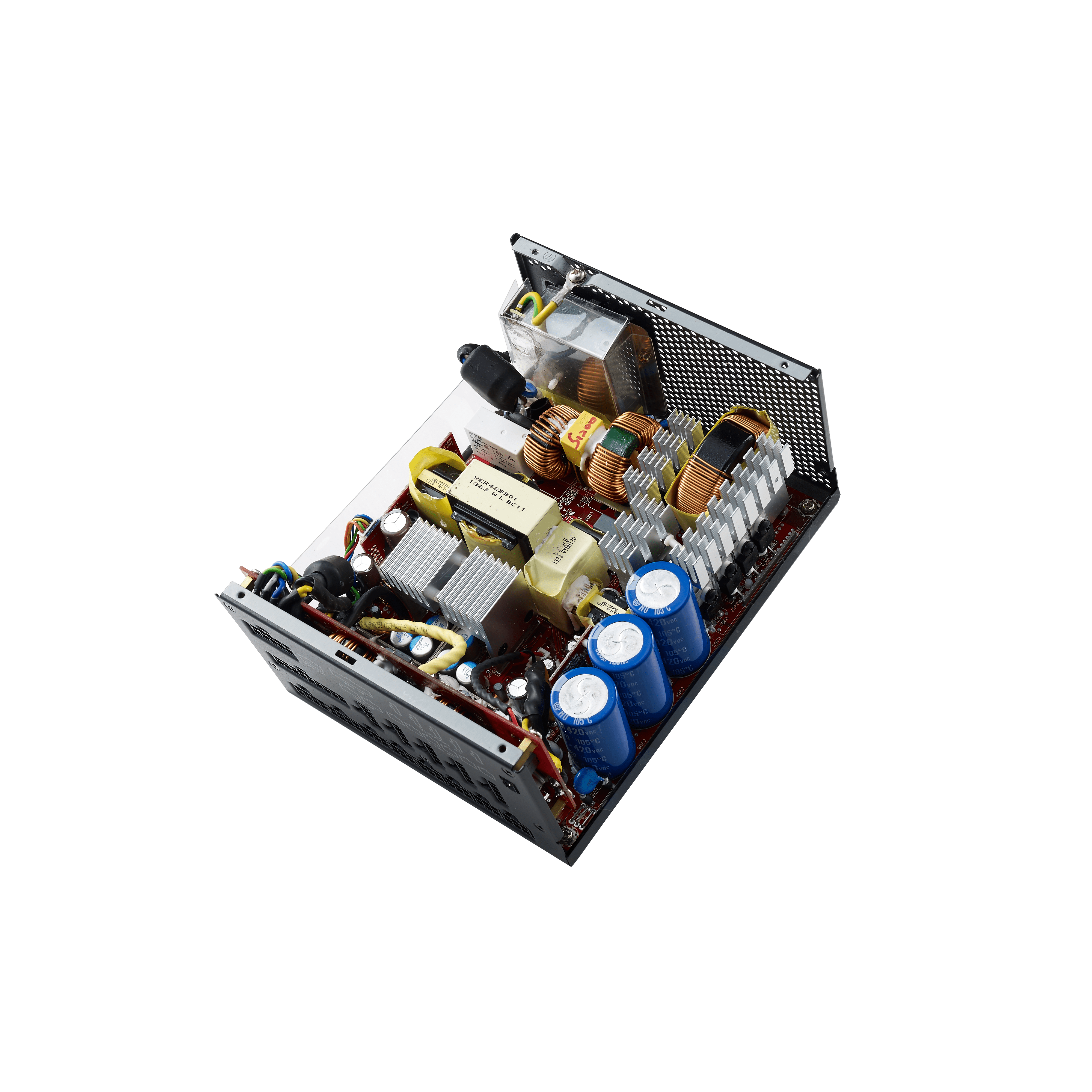

V1200 Platinum image number 6
V1200 Platinum
V1200 Platinum
V1200 Platinum
V1200 Platinum
V1200 Platinum
V1200 Platinum
V1200 Platinum

V1200 Platinum

  • Fully modular cable design for easy installation and cable management

  • 100% high quality Japanese electrolytic & solid capacitors ensure performance and reliability

  • 135mm FDB silent fan default as hybrid mode, equipped with hybrid fan controller, easily switch mode (auto / hybrid) by the controller

  • Zero dBA fanless mode silent operation

  • 80 PLUS Platinum certified: up to 93% efficiency @ 50% load

  • Powerful single +12V rail, capable of delivering up to 100A

  • Excellent output voltage stability ensures total voltage regulation under 1% (even better than DSP)

  • Twelve PCI-E 6+2pin connectors for 4 way SLI & high end solution builds

  • 7-year extended warranty

Specifications

  • Modular Fully Modular
  • Input Frequency 50-60Hz
  • Operating Temperature 0-40°C
  • Category Above 750W
  • Operation Voltage 100-240Vac
  • MB 20+4 Pin Connectors 1
  • CPU 12V 4+4 Pin Connectors 2
  • PCI-e 6+2 Pin Connectors 12
  • FDD Cable 4 Pin Connectors 1
  • Output Capacity 1200W
  • Certification 80 Plus Platinum
  • 80 Plus Efficiency Platinum
  • Power Good Signal 100 - 500 ms
  • MTBF >100,000 hours @ 25℃ ambient
  • SATA Connectors 12
  • Peripheral 4 Pin Connectors 9
  • PFC Active PFC (>0.9 Typical)
  • ATX Version Intel Form Factor ATX 12V V2.31
  • Fan Size Silent FDB 135mm
  • Protections OVP
  • Protections OPP
  • Protections SCP
  • Series V Platinum Series
  • Protections UVP
  • Protections OTP
  • Protections OCP
  • Efficiency 93% Typically
  • Hold Up Time >17ms
  • Regulatory CCC
  • Regulatory CE
  • Dimensions (L x W x H) 190 x 150 x 86 mm
  • Regulatory RCM
  • Regulatory EAC
  • Regulatory FCC
  • Regulatory BSMI
  • Regulatory KC
  • Input Current 15-7.5A
  • Regulatory TUV
  • Regulatory TUV-SUDNRTL
  • Model RSC00-AFBAG1-XX
  • Product Name V1200 Platinum
