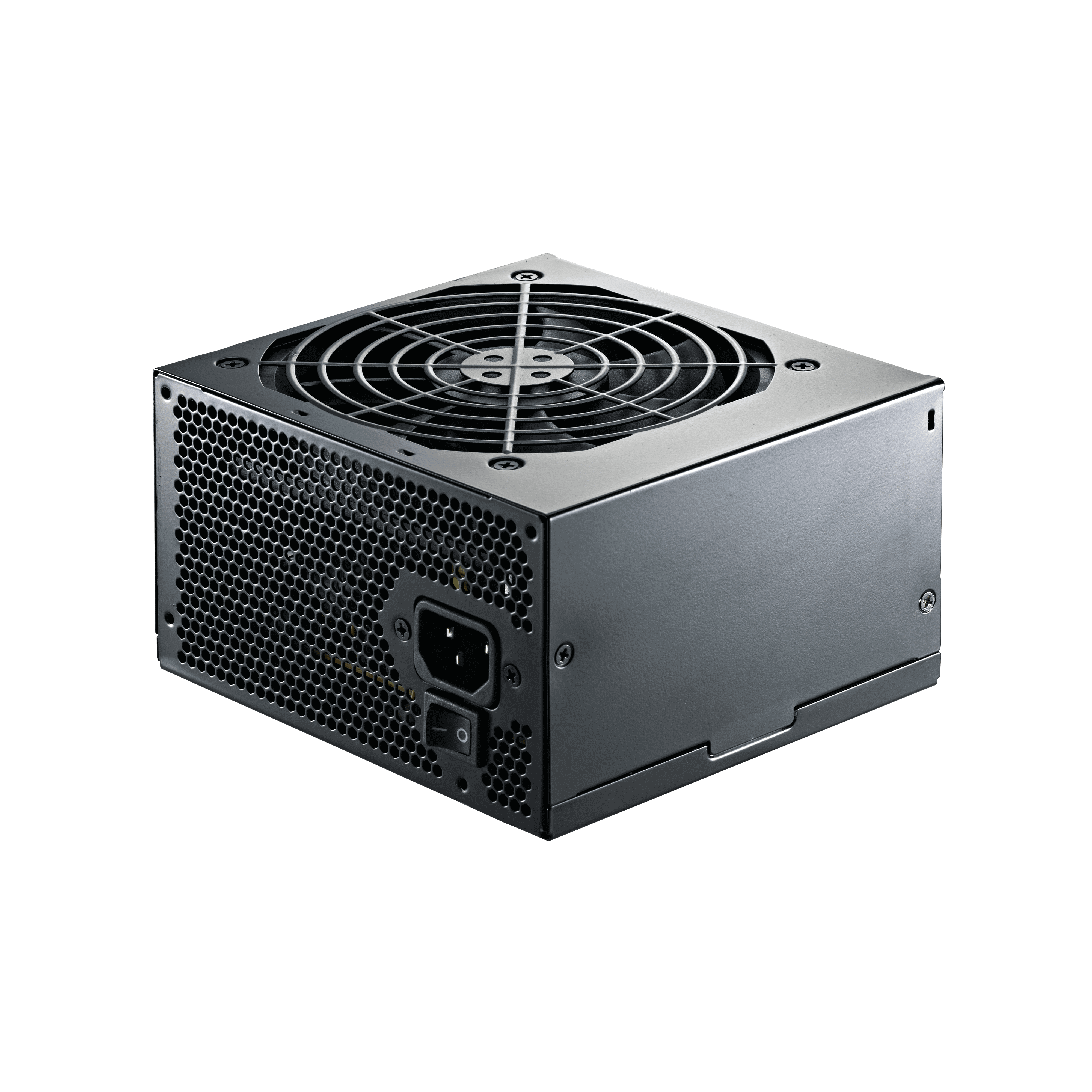

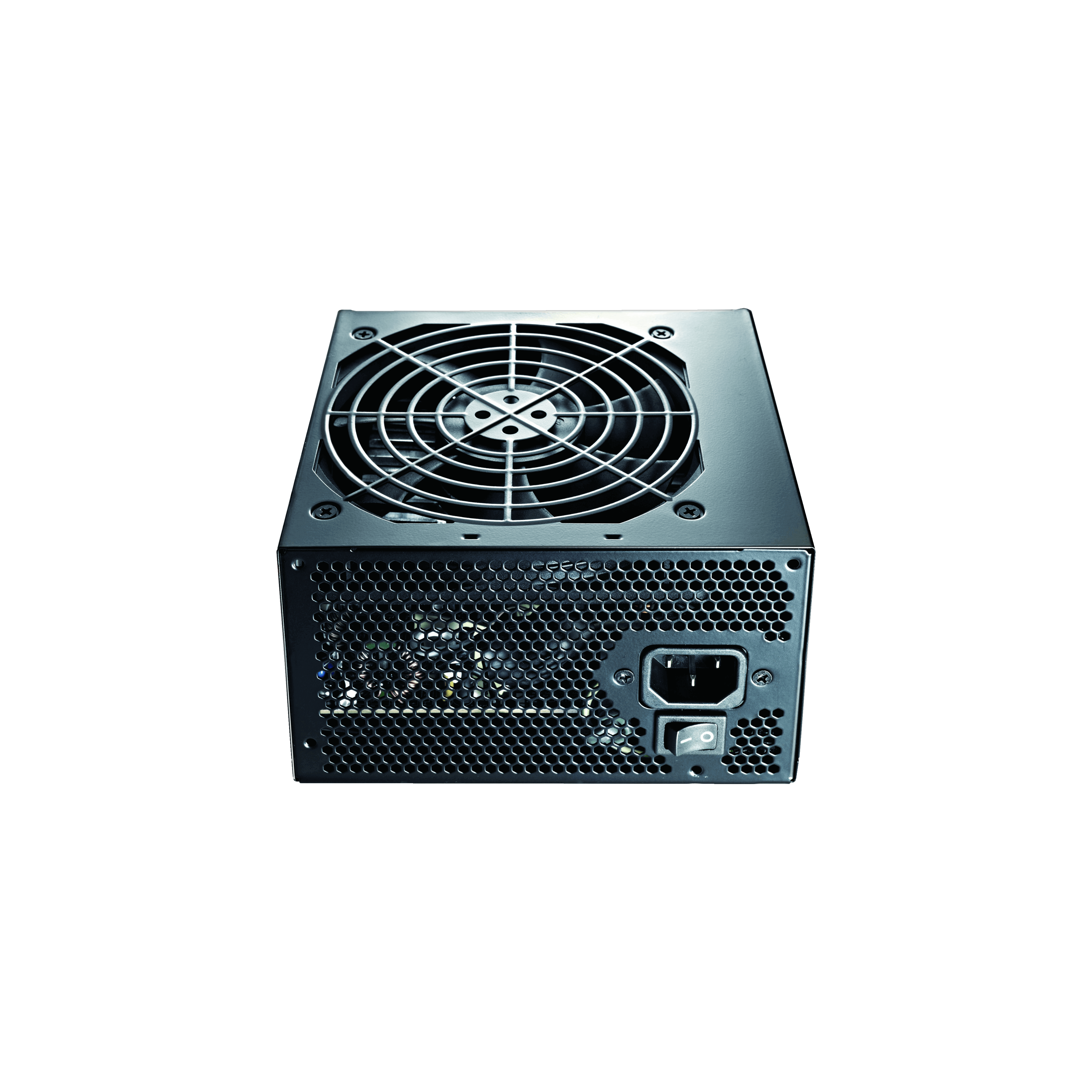

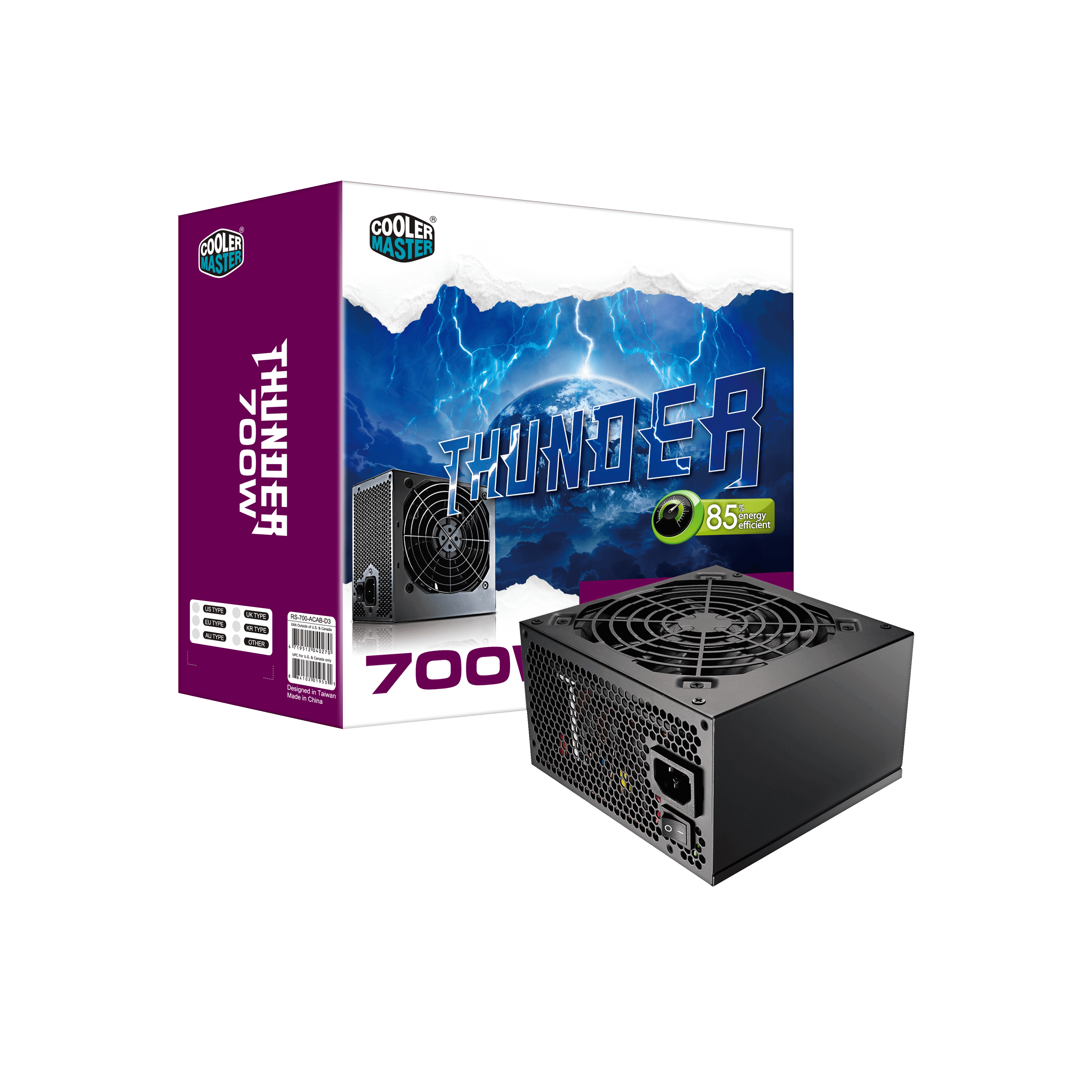

Name: Thunder 700W
SKU: thunder-700w
Availability: InStock

Operating Temperature 0-40°C

MB 20+4 Pin Connectors 1

Floppy 1

CPU 12V 4+4 Pin Connectors 1

Power Good Signal 100 - 500 ms

MTBF >100,000 Hours

Input Frequency 47-63Hz

Category 500 to 750W

Fan Size 120mm

Input Range 180-264Vac

Legacy Power Supplies

Modular Non Modular

PFC Active PFC (>0.9 Typical)

PCI-e 6+2 Pin Connectors 4

Output Capacity 700W

ATX Version lntel ATX 12V V2.3

SATA Connectors 6

Hold Up Time >14ms

80 Plus Efficiency None 80 PLUS

Peripheral 4 Pin Connectors 3

Protections OVP

Protections OPP

Protections SCP

Protections OCP

Dimensions (L x W x H) 150 x 140 x 86 mm / 5.9 x 5.5 x 3.4 inch

Regulatory CE

Efficiency >85% @ Typical Load

Regulatory KC

Input Current 5A@230Vac

Regulatory GOST

Regulatory C-tick

Model RS-700-ACAB-D3

Product Name Thunder 700W

Thunder 700W
