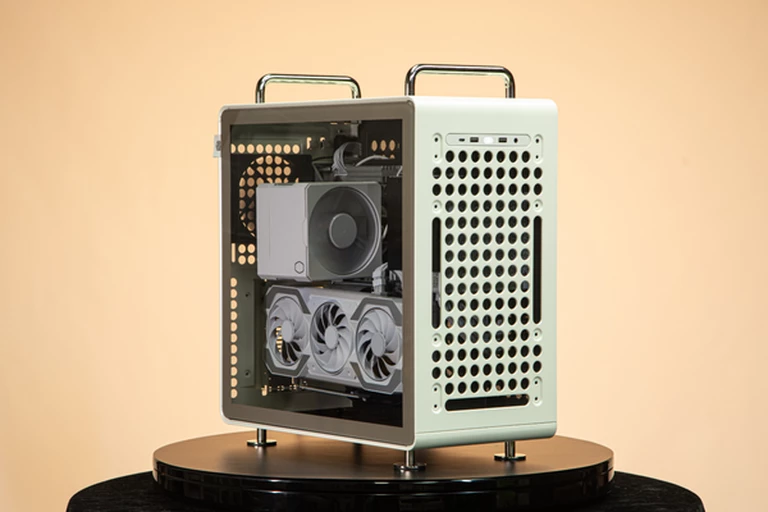

Vertical GPU Ready
Supports vertical GPU installation to highlight premium graphics and aesthetics.
Compact Case, Unlimited Creativity

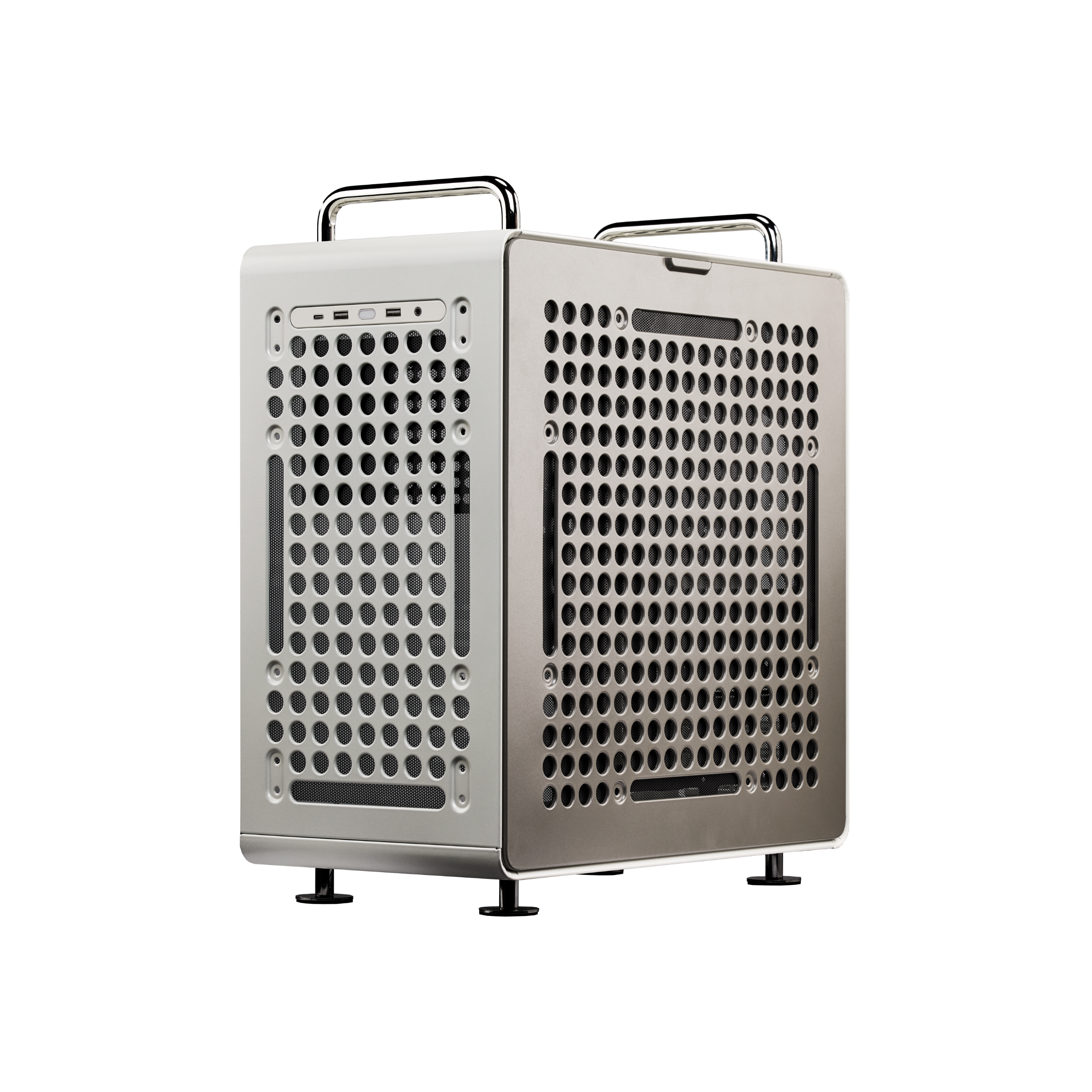

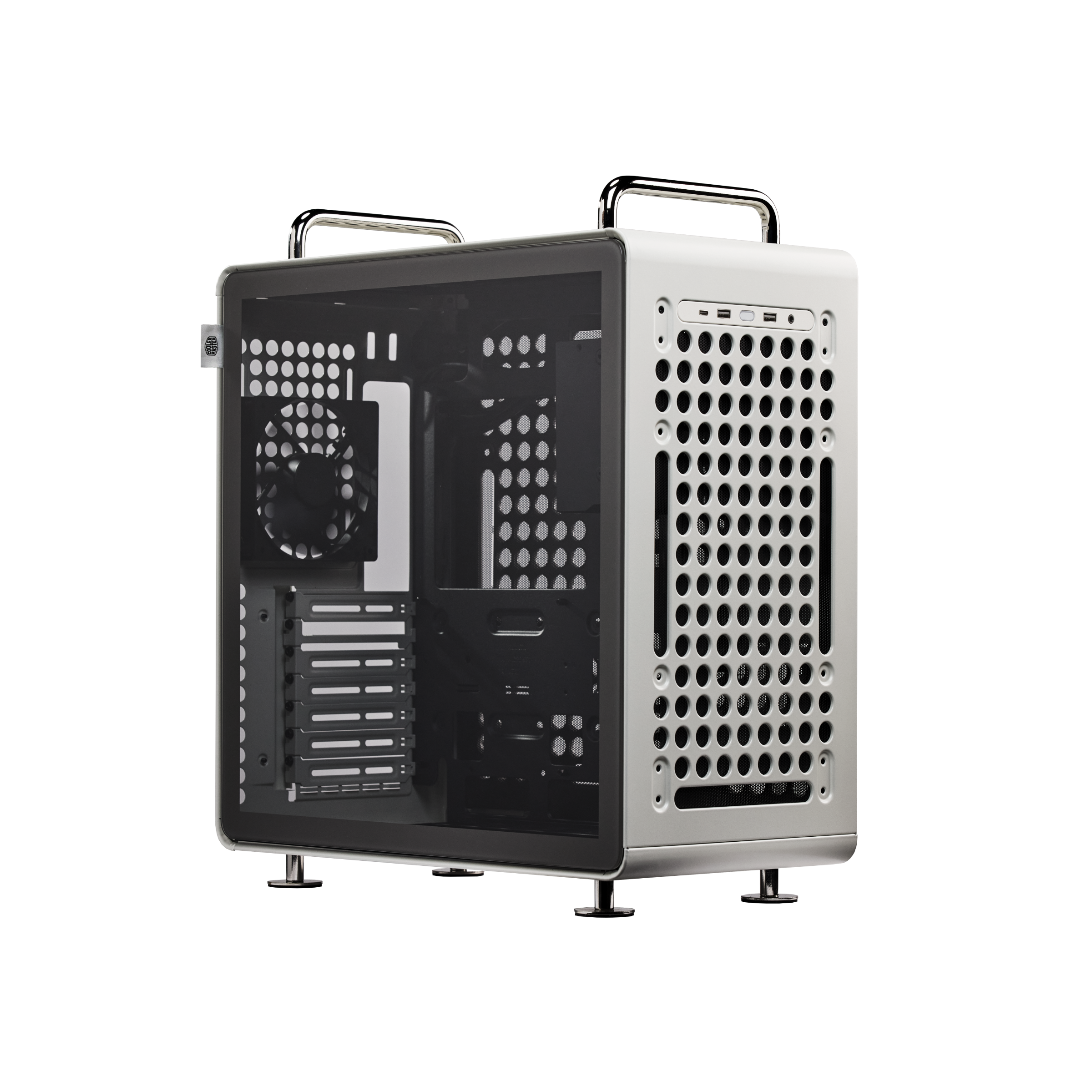

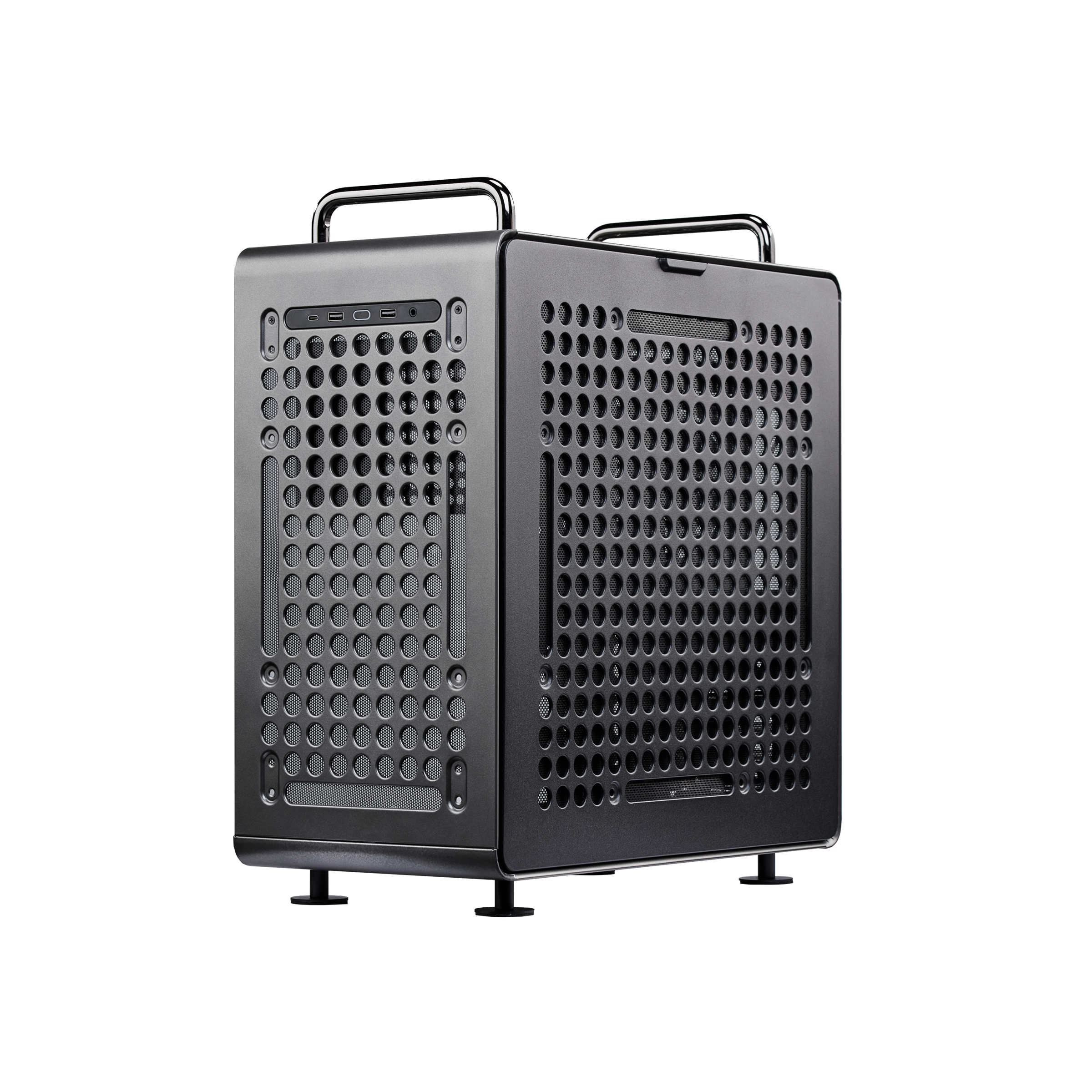

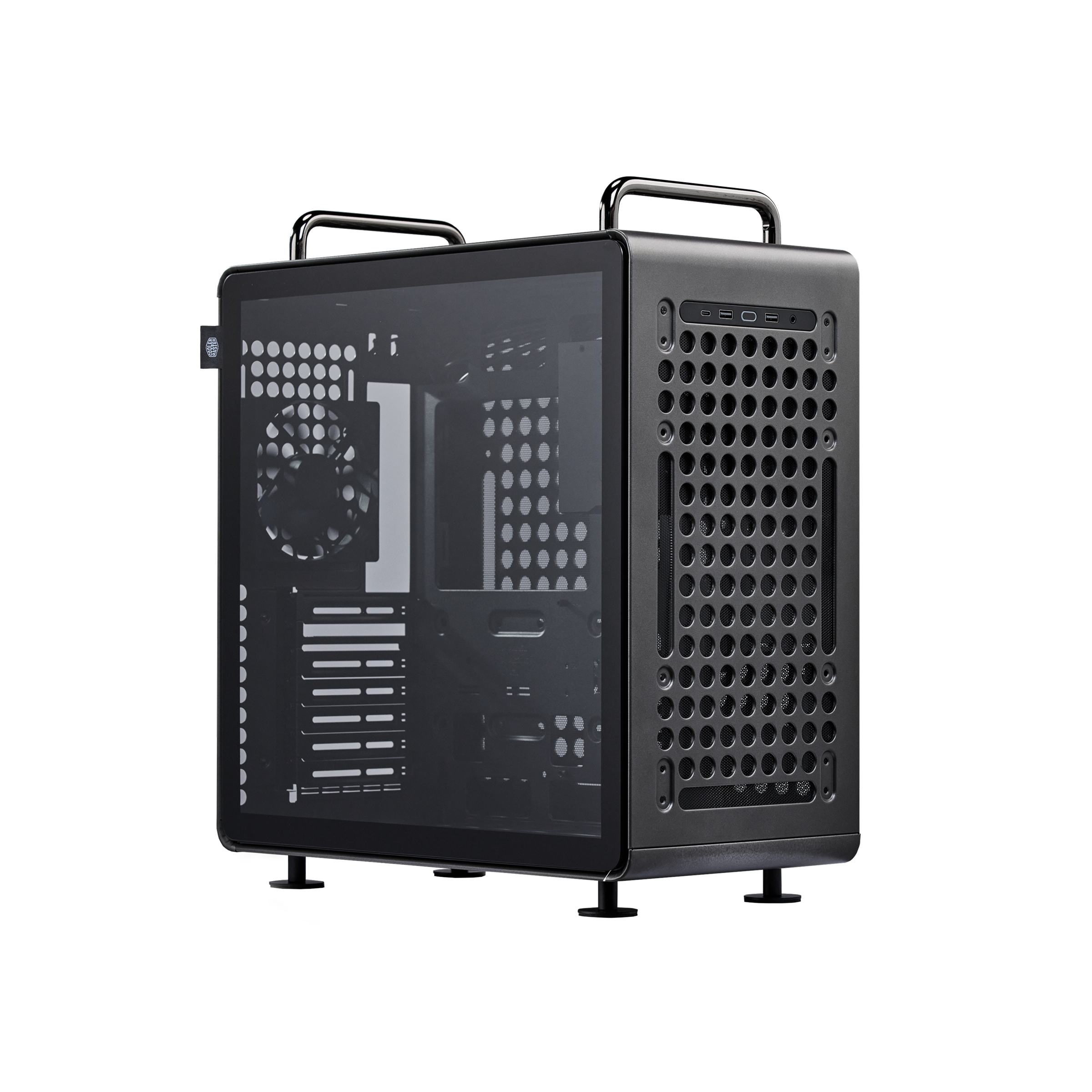

QUBE 540
Designed for creators, gamers, and DIY builders.
Compact Yet Capable
Small size, big performance. The QUBE 540 supports GPUs up to 415 mm, 360 mm liquid coolers, and high-end components.
Flexible Orientation Design
Vertical or horizontal, the QUBE 540 adapts to your space and style. It fits cleanly wherever you place it.
Create Your Own Layout
A modular interior designed for endless creativity, for liquid-cooling setups to compact workstations. Customize it your way.

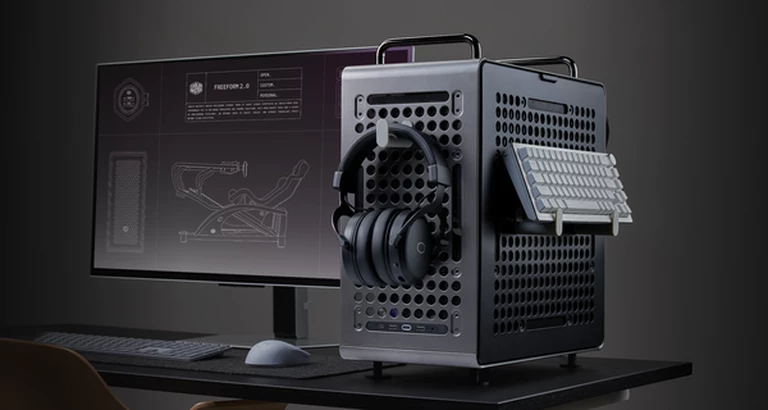

Repositionable I/O Panel and Movable Handles
Mount the I/O panel and handles on the top, bottom, left, or right to keep ports and grips where you need them.
Versatile Modular Layout
Oce case, countless possibilities. Redefine your build anytime with swappable components and flexible layouts.

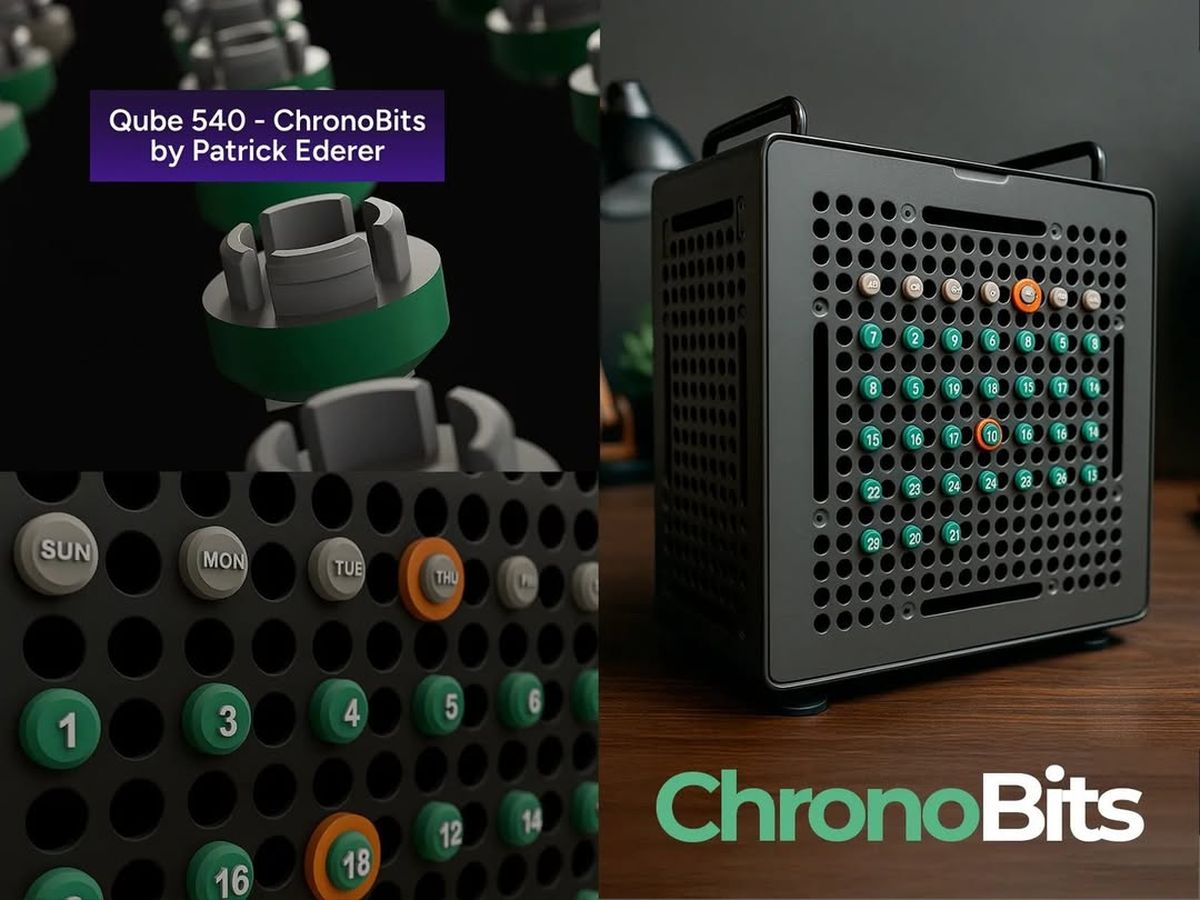

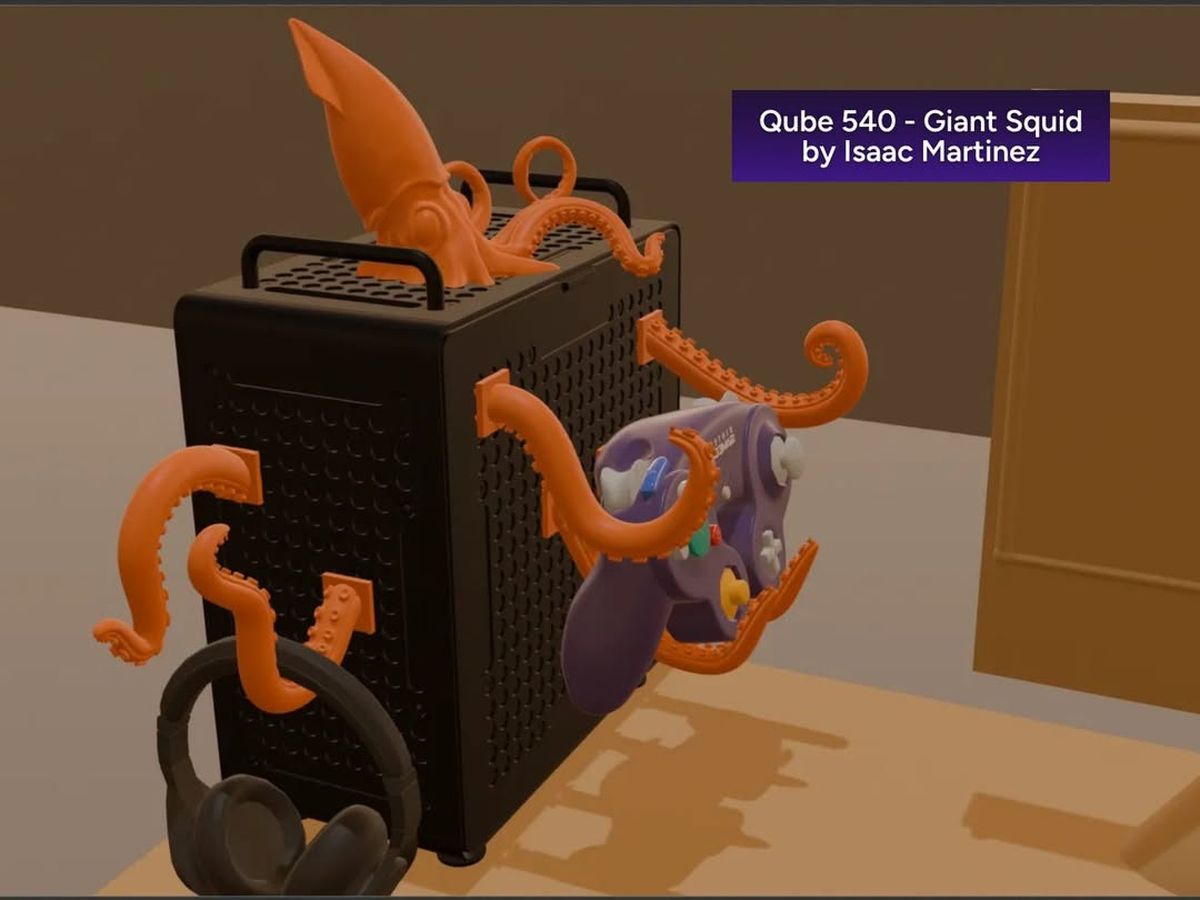

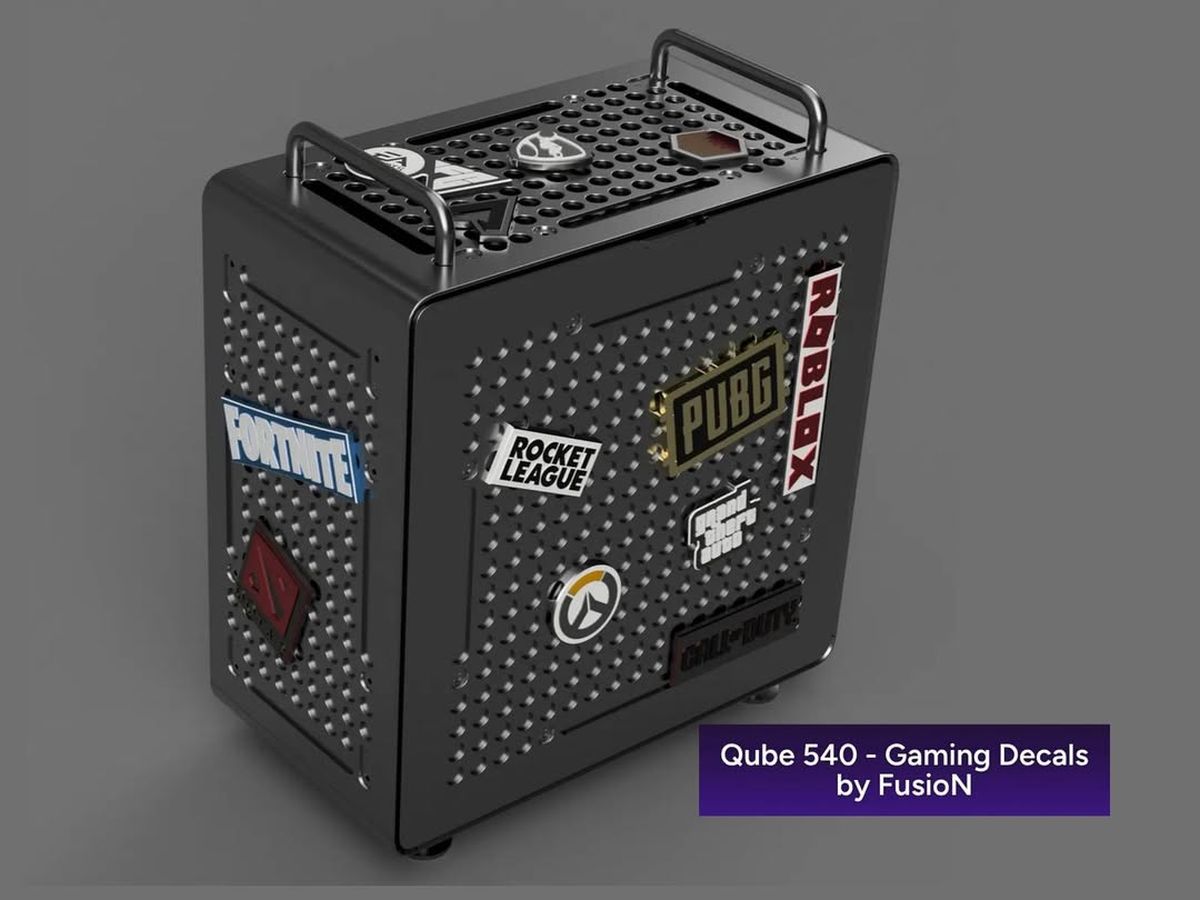

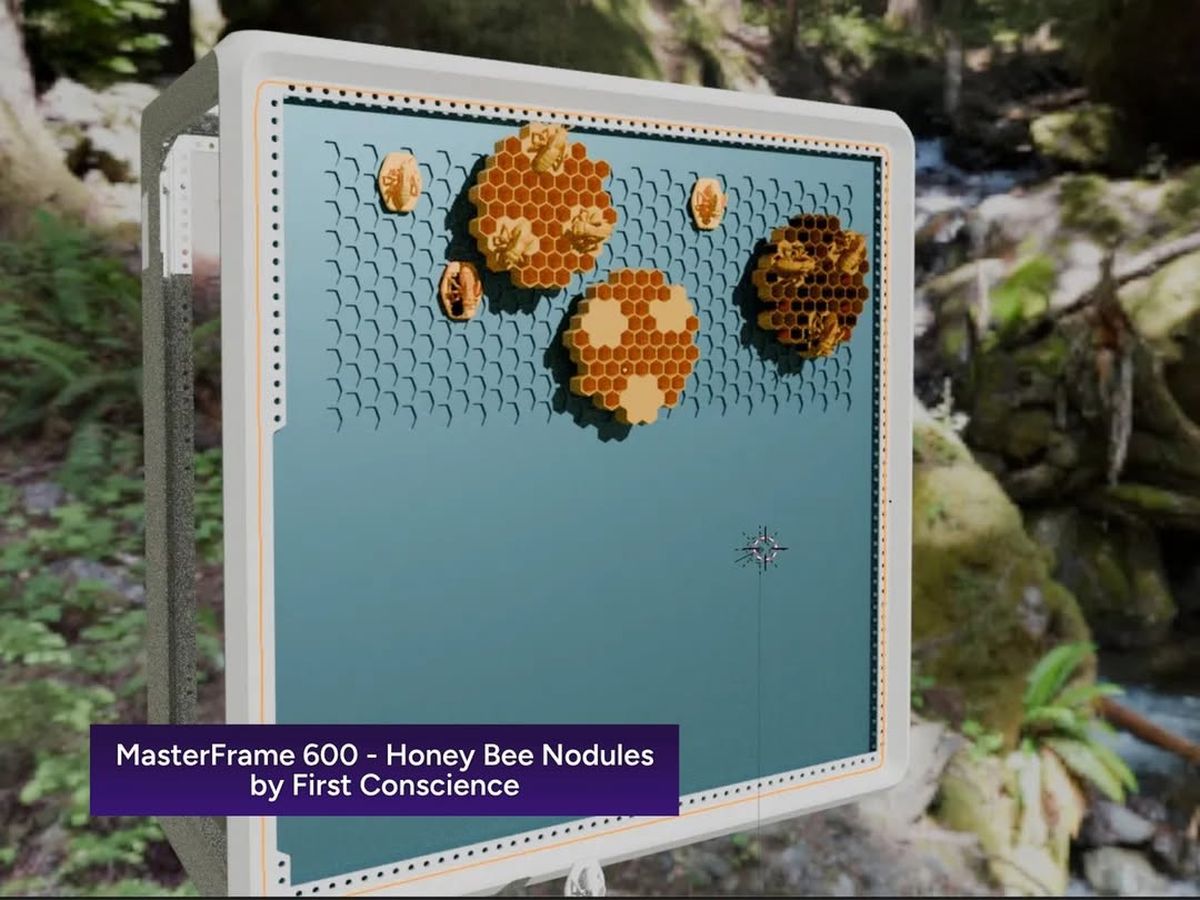

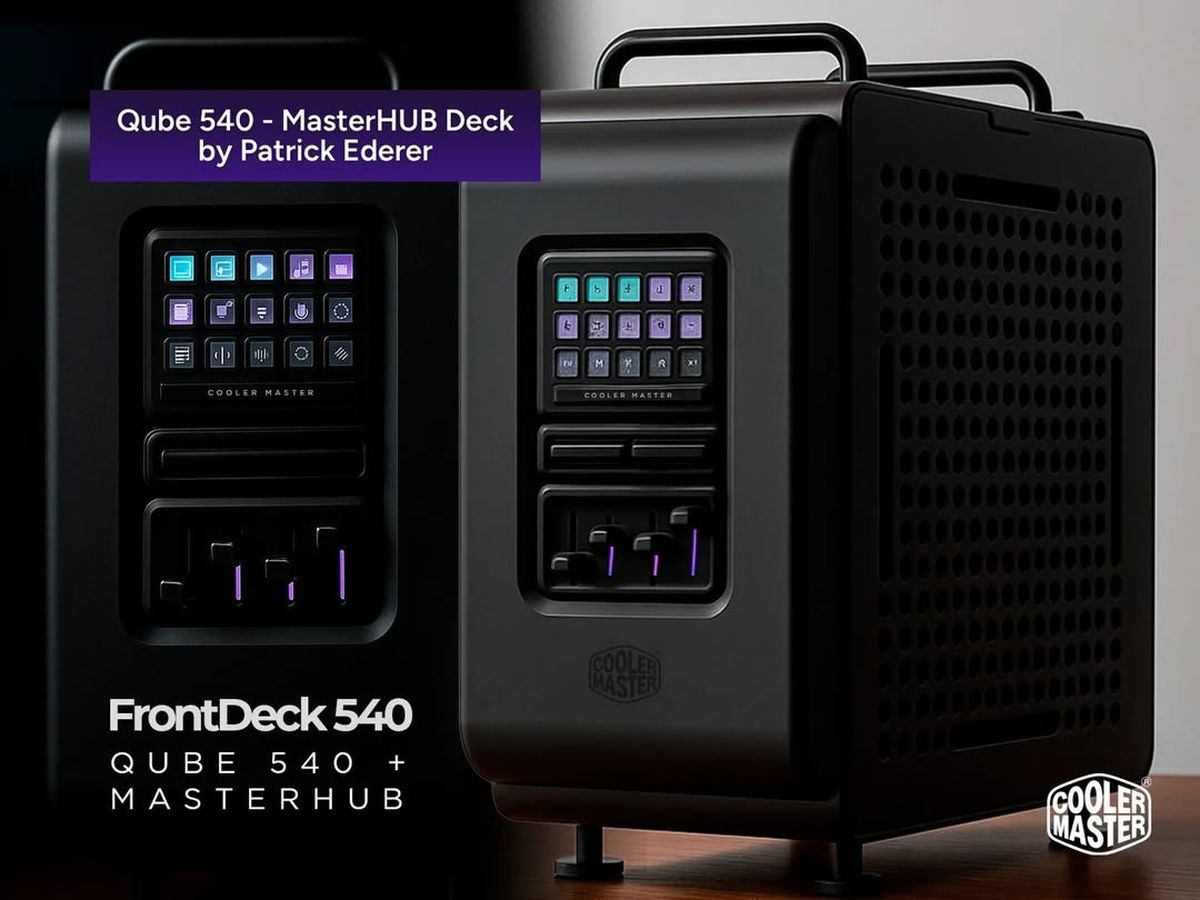

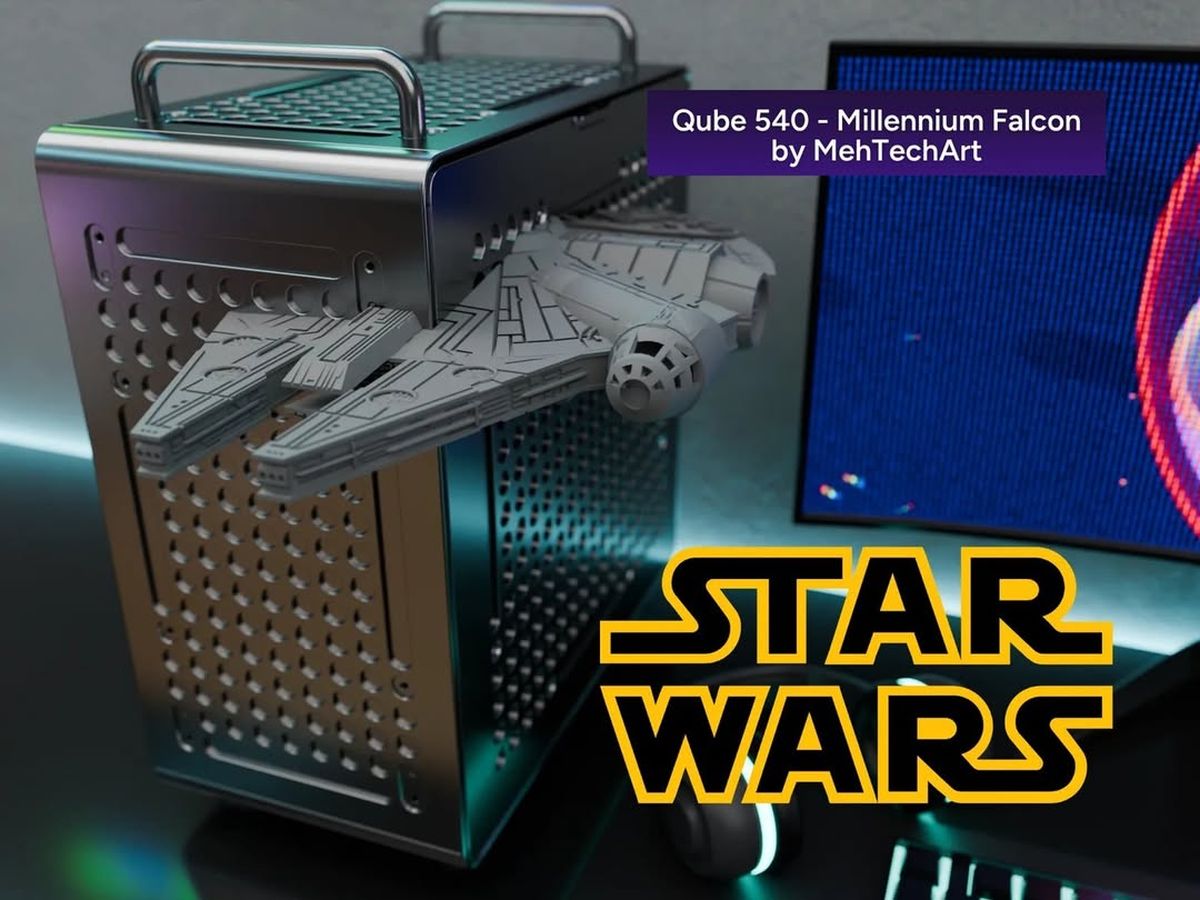

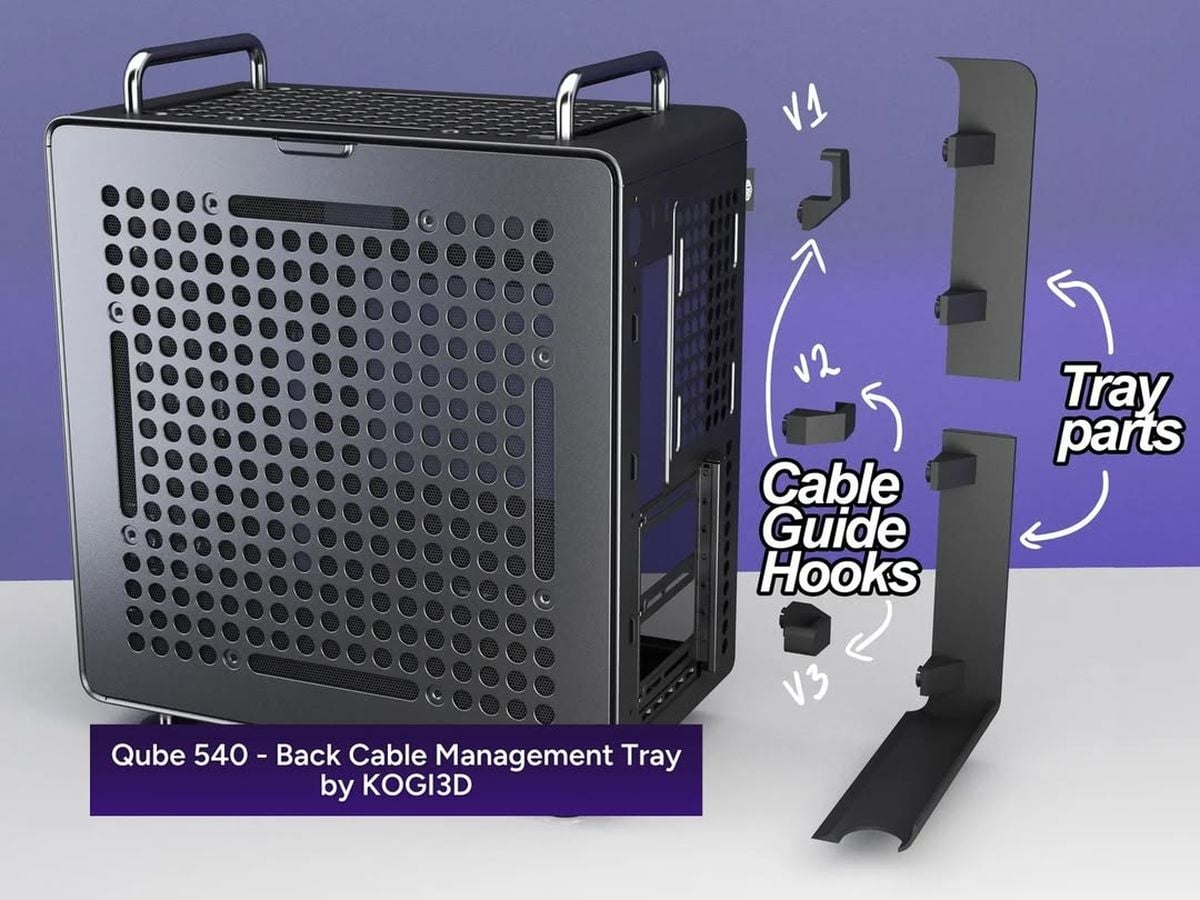

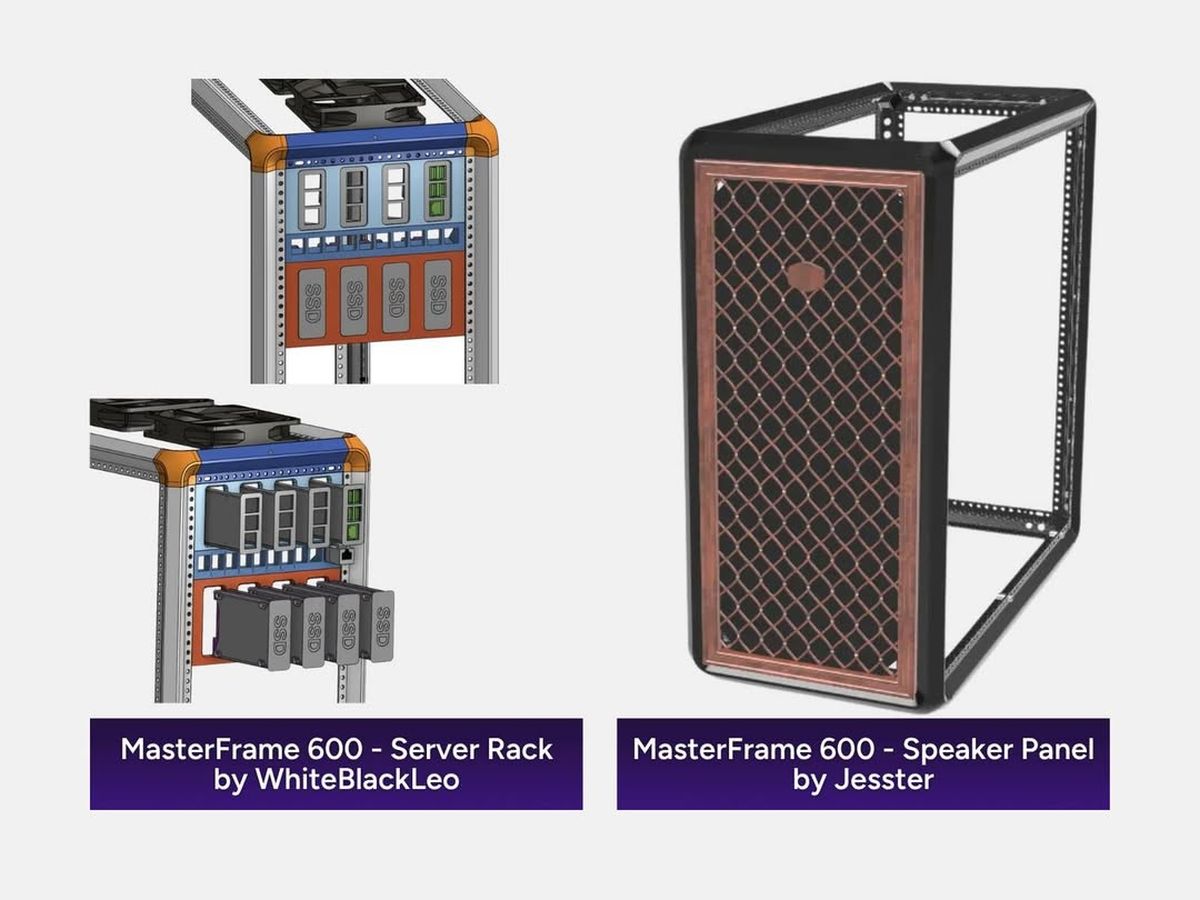

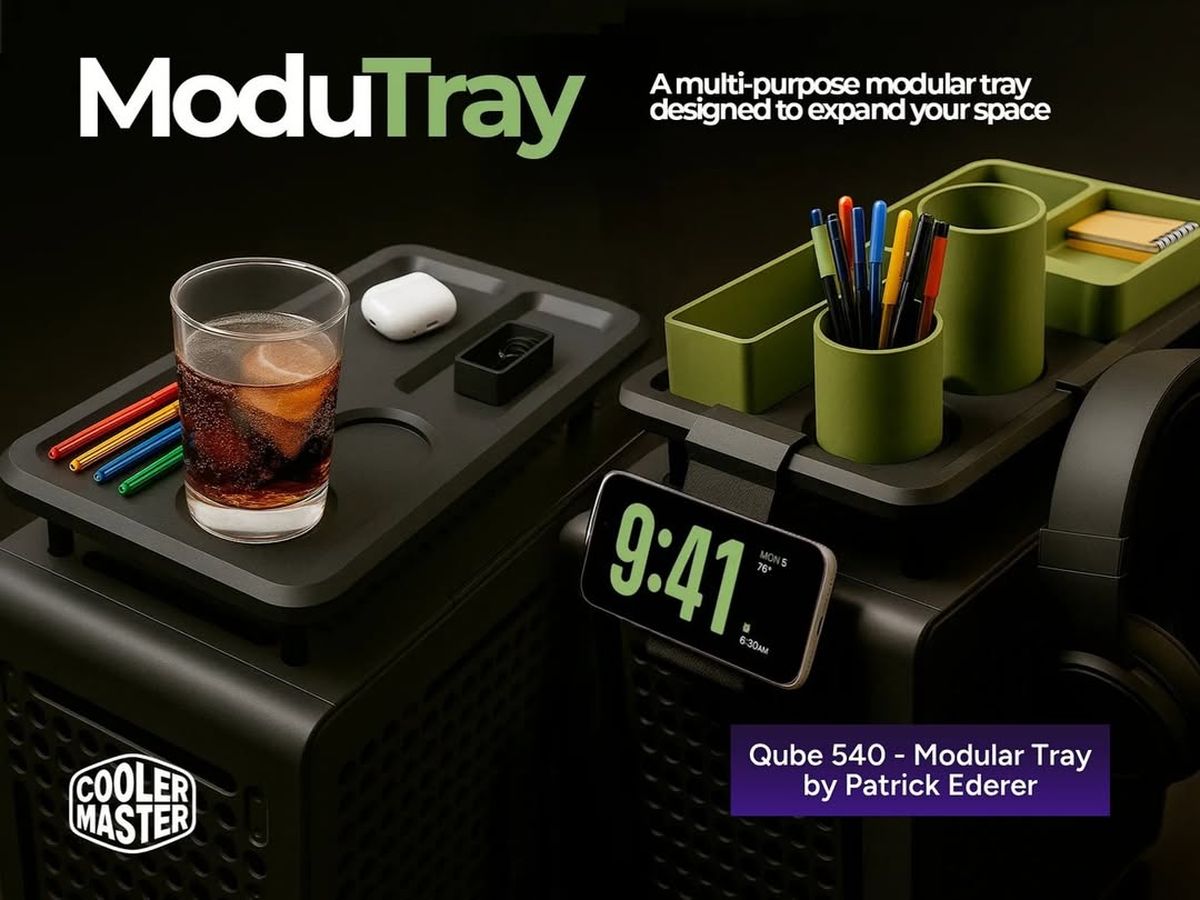

Cooler Master: FreeForm Playground
We’re teaming up with Printables to challenge makers worldwide. Take our modular hardware and make your own Qube 540!
Specifications
- Product Name QUBE 540
- Model Number Stardust Iron: Q540-MGNN-S00
- Model Number Moonstone: Q540-LGNN-S00

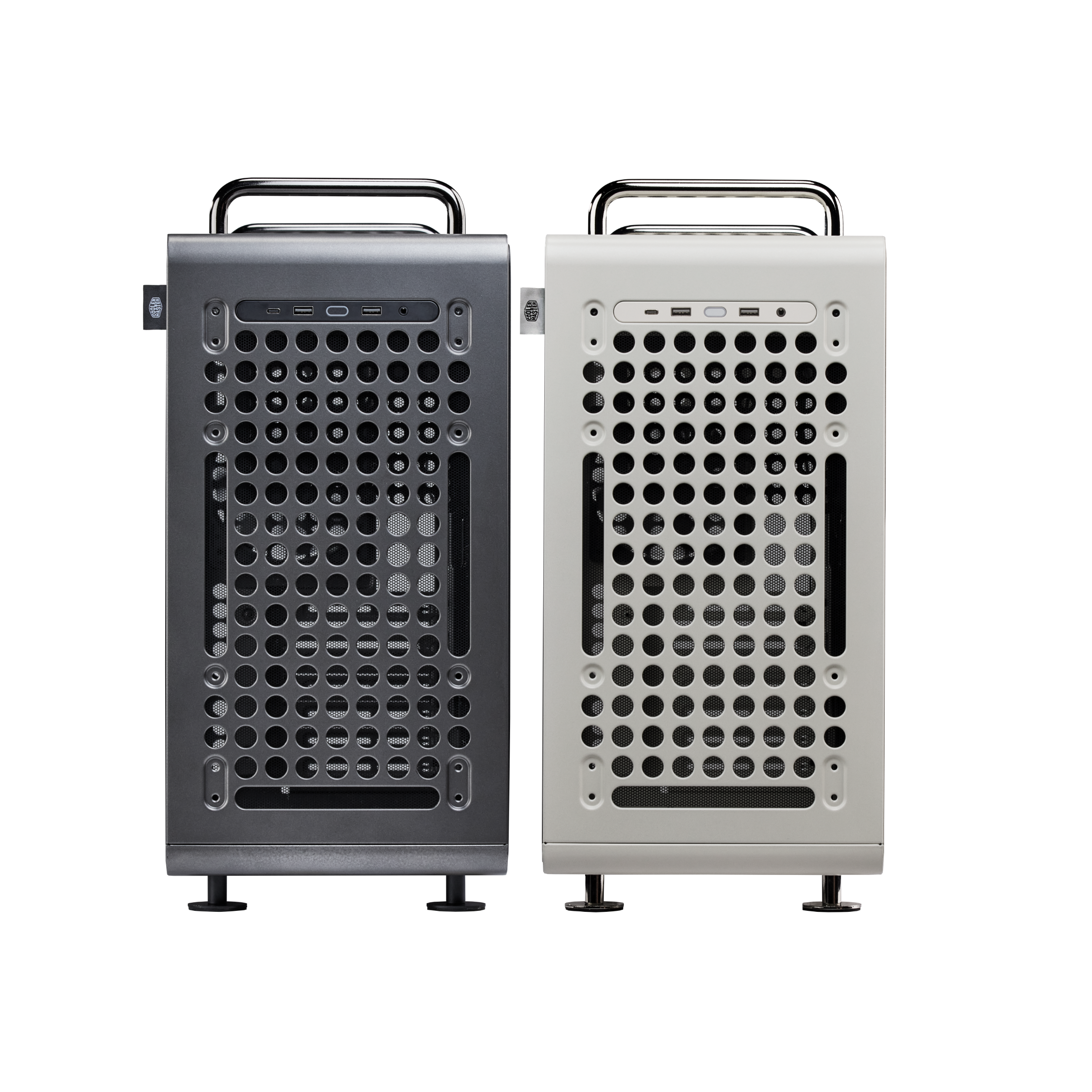

- Color(s) Stardust Iron / Moonstone
- Materials - Exterior Steel
- Material - Side Panel (Right) Steel
- Material - Side Panel (Left) TG
- Dimensions (L x W x H) Incl. Protrusions: 438.5 x 225 x 492.1 mm
- Dimensions (L x W x H) Excl. Protrusions: 425 x 225 x 425 mm
- Volume (w/o protrusions) 40.64 L
- Volume (with panel, protrusions and feet) 48.55 L
- Motherboard Support ITX / M-ATX / ATX / *E-ATX (*Up to 280 mm)
- Expansion Slots 7
- Drive Bays - 5.25" ODD N/A
- Drive Bays - 3.5" HDD 1 (Shared 3.5" and 2.5" mounting on PSU bracket)
- Drive Bays - 2.5" SSD 2 (Max. 5)
- I/O Panel - USB Ports 2 x USB 3.2 Gen 1 Type A / 1 x USB 3.2 Gen 2 x 2 Type C
- I/O Panel - Audio In / Out 1 x 3.5 Mic / Audio Combo Jack
- Fan Support - Front 3 x 120 mm (w/o I/O panel) / 2 x 140 mm
- Fan Support - Top 3 x 120 mm (w/o I/O panel) / 2 x 140 mm
- Fan Support - Rear 1x 120mm
- Fan Support - Bottom 3 x 120 mm / 2 x 140 mm
- Preinstalled Fan(s) - Front N/A
- Preinstalled Fan(s) - Top N/A
- Pre-installed Fans - Rear 1x 120mm Black Fan
- Radiator Support - Front 140 / 280 / 360 mm (w/o I/O panel)
- Radiator Support - Top 140 / 280 / 360 mm (w/o I/O panel)
- Radiator Support - Rear 120 mm
- Radiator Support - Bottom 140 / 280 / 360mm (w/o I/O panel)
- Clearances - CPU Cooler 172 mm
- Clearances - Power Supply 200 mm
- Clearances - Graphics Card 415 mm (w/o Front Fan)
- Cable Routing - Behind Motherboard Tray 27 mm
- Dust Filters Top / Bottom / Front
- Power Supply Support ATX / SFX
- Warranty 2 years
- Note -
- Series QUBE Series
- Size Mid Tower
