Built in Steel. Polished to Perfection.

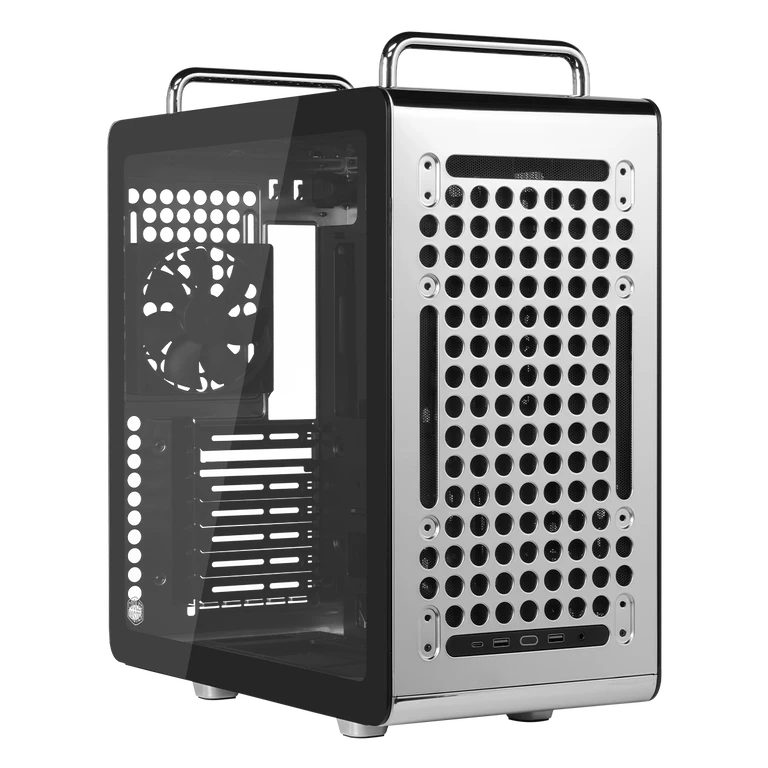

QUBE 540 SPECIAL Stainless Steel
• Precision-Crafted Stainless Steel
• Distinctive Mirror Finish
• Designed for Modern Living
• 8K Surface Treatment
• Scratch-Concealing Hairline Interior
• Premium Gift Box & Care Kit
• Flexible QUBE 540 Design
BUILT IN STEEL. POLISHED TO PERFECTION.
The QUBE 540 SPECIAL Stainless Steel elevates the original QUBE design with precision-formed SUS304 stainless steel and a premium 8K mirror finish.
Its highly polished exterior creates a bold, reflective presence, while the matte hairline interior adds refined contrast and helps everyday surface marks stay less noticeable. Premium craftsmanship meets the flexible design and hardware support of the QUBE 540. The stainless-steel construction and hairline interior remain consistent with the supplied product material.
8K MIRROR-FINISH CRAFTSMANSHIP
Every Reflection Is Unique.
QUBE 540 doesn't just sit in your setup—it becomes part of it. The highly polished stainless-steel surface reflects the lighting, colors, and environment around the system. Keep the build understated for a clean architectural look, or introduce RGB and bold hardware to create dramatic reflections across the chassis.
Your room changes it. Your build defines it.
MIRROR OUTSIDE. REFINED WITHIN.
Two Finishes. One Premium Experience.
The brilliant mirror-polished exterior is paired with a matte hairline interior, creating deliberate contrast between statement-making shine and understated detail.
The interior treatment also helps everyday scratches and surface marks remain less noticeable.
DESIGNED FOR MODERN LIVING
More Than a PC Case.
Furniture-inspired proportions and polished stainless steel move QUBE 540 beyond traditional gaming aesthetics.
Whether placed in a gaming room, studio, workspace, or modern living environment, its clean geometry is designed to complement the space around it while still making a statement.
MODULAR BY DESIGN.
Flexible by Choice.
Handles and I/O panels can be installed in multiple locations, giving you complete freedom to customize access, portability, and system orientation. Whether displayed vertically, horizontally, or somewhere in between, QUBE adapts to the way you build.
Configure. Rotate. Personalize.
AIRFLOW FROM EVERY ANGLE
Built to Breathe.
The QUBE 540's extensively perforated architecture creates a strong visual identity while opening multiple paths for fresh air.
Fan mounting across the front, top, bottom, and rear gives builders the flexibility to tune intake and exhaust around their chosen hardware configuration.
*Without power supply, without I/O panel installed in the designated areas.
TRIPLE 360MM RADIATOR SUPPORT
Cooling Freedom ×3
High-performance cooling doesn't have to follow a single layout. With support for 360mm radiators at the front, top, and bottom, QUBE 540 provides exceptional flexibility for enthusiast liquid-cooling configurations.*
A 120mm radiator is also supported at the rear.
MADE FOR POWERFUL HARDWARE
Performance Without the Oversized Tower.
A graphics card clearance of up to 415mm leaves room for today's large high-performance GPUs, while 172mm CPU cooler clearance supports substantial air-cooling solutions.
ATX and SFX power supplies are supported, with up to 200mm PSU clearance depending on cooling configuration.
HIGH-SPEED MODULAR I/O
Speed Where You Need It.
Connect modern peripherals and high-speed storage through 20Gbps USB Type-C, alongside two 5Gbps USB Type-A ports and a 3.5mm combination audio jack.
The modular approach helps keep connectivity accessible as the chassis configuration changes.
CLEAN BUILDS MADE EASIER
Space Behind the Scenes.
With 30mm of cable-routing space behind the motherboard tray, QUBE 540 gives builders room to organize power and data cables away from the main showcase area.
Dust filters at the top, front, and bottom help protect the system while maintaining airflow.
PREMIUM GIFT BOX & CARE KIT
Special Edition. Special Presentation.
The premium experience continues beyond the chassis itself.
The package includes dedicated accessories for building, configuring, and caring for the Stainless Steel Special Edition, including I/O covers, a removable handle, microfiber cleaning cloth, cleaning solution, screw bag, cable ties, and user manual.
Specifications
- Product Name QUBE 540 SPECIAL Stainless Steel
- Model Number Q540-SGNN-S00
- Color Stainless Steel Mirror Silver
- Material SUS304, SGCC, TG
- Side Panel - Left / Right TG / Steel
- Dimensions (L × W × H) - Incl. Protrusions 438.5 × 225 × 486.25 mm
- Dimensions (L × W × H) - Excl. Protrusions 425 × 225 × 425 mm
- Volume - Incl. Protrusions 47.97 L
- Volume - Excl. Protrusions 40.64 L
- Motherboard Support ATX / Micro-ATX / Mini-ITX
- Expansion Slots 7
- Drive Bays - Combined 3.5"/2.5" 2 × 2.5" or 1 × 3.5"
- Drive Bays - 3.5" Max. 1
- Drive Bays - 2.5" 2 (Max. 4)
- I/O Panel - USB Ports 2 × USB 3.2 Gen 1 Type-A (5 Gbps) / 1 × USB 3.2 Gen 2×2 Type-C (20 Gbps)
- /O Panel - Audio In / Out 1 × 3.5 mm Mic / Audio Combo Jack
- Fan Support - Top 3 × 120 mm (without I/O panel) / 2 × 140 mm
- Fan Support - Front 3 × 120 mm (without I/O panel) / 2 × 140 mm
- Fan Support - Rear 1 × 120 mm
- Fan Support - Bottom 3 × 120 mm (without I/O panel) / 2 × 140 mm
- Pre-installed Fan - Rear 1 × 120 mm Non-ARGB Black
- Radiator Support - Top 360 mm (without I/O panel) / 280 / 240 mm
- Radiator Support - Front 360 mm (without I/O panel) / 280 / 240 mm
- Radiator Support - Rear 120 mm
- Radiator Support - Bottom 360 mm (without I/O panel) / 280 / 240 mm
- Clearances - CPU Cooler 172 mm
- Clearances - Power Supply 200 mm (ATX / SFX) / 140 mm with bottom fan installed
- Clearances - Graphics Card 415 mm (without front fan installed)
- Cable Routing - Behind MB Tray 30 mm
- Dust Filters Top / Front / Bottom
- Warranty 2 Years
- Included Accessories 1 × Headphones Holder
