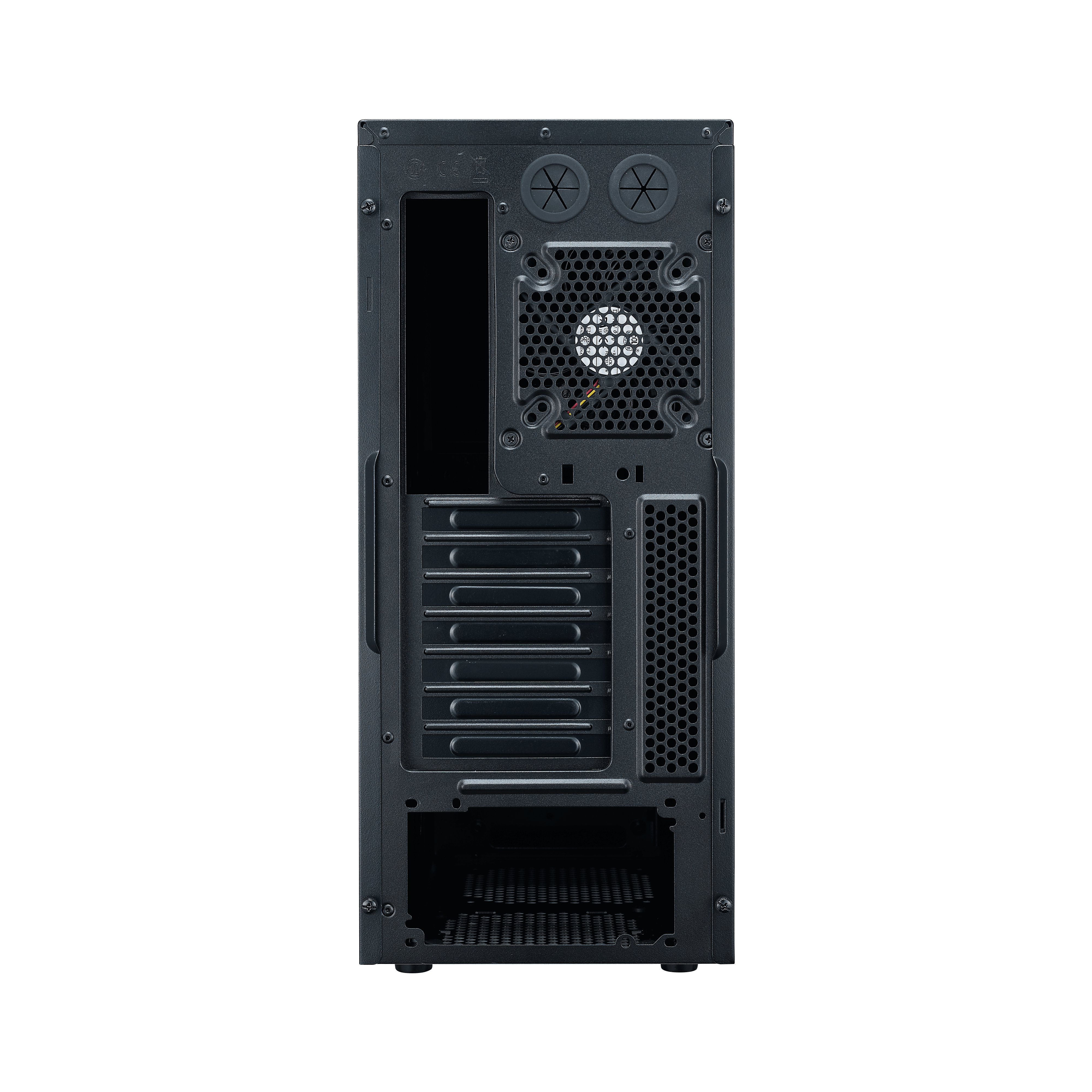

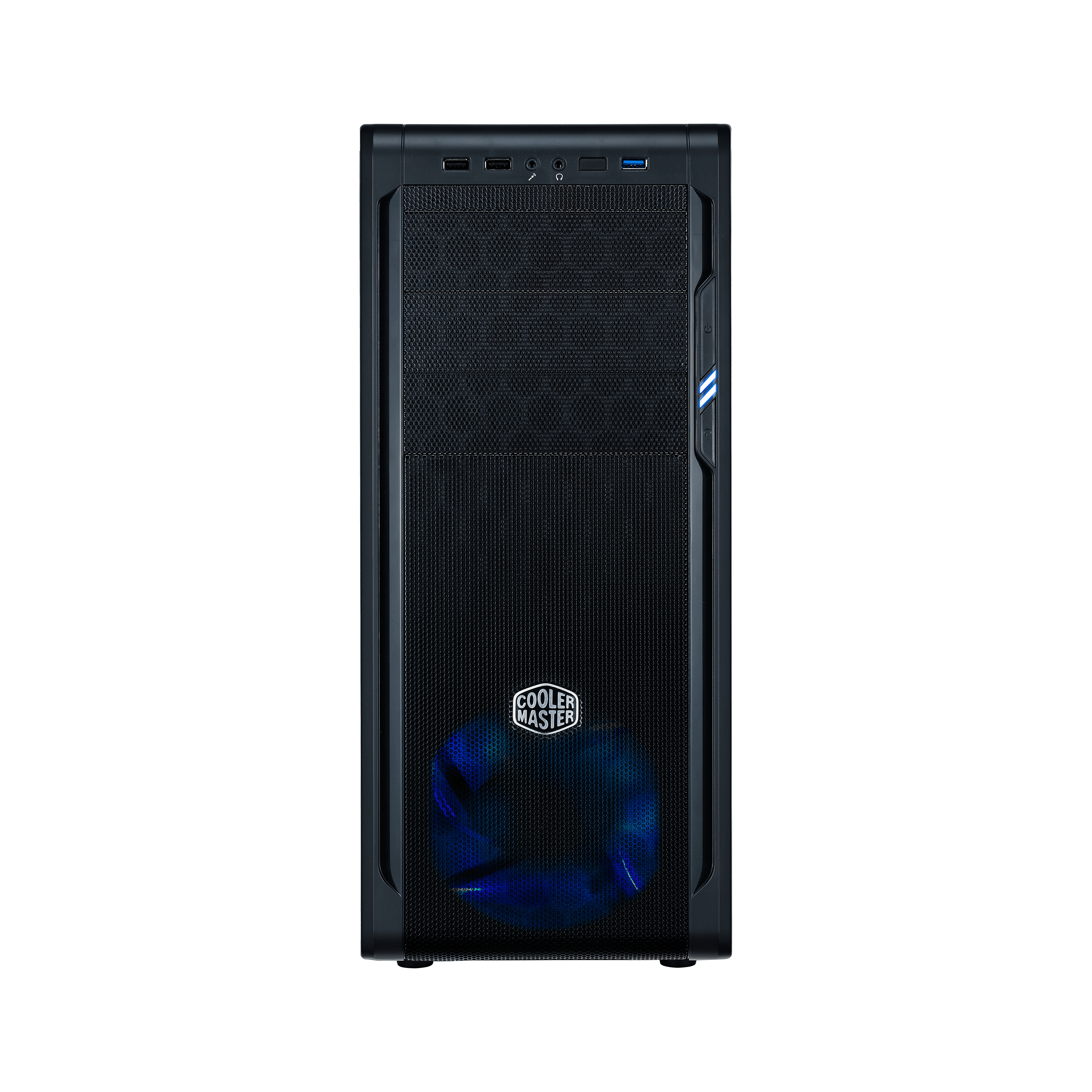

N500
N500
- Cooling System - HDD cage 120mm fan x 1 (optional)
- Cooling System - Side 120mm fan x 2 (optional)
- Size Mid Tower
- Cooling System - Bottom 1x 120mm Fan (Optional)
- Legacy Cases
- Cooling System - Top 120/140mm fan x 2 (optional)
- Series N Series
- Expansion Slots 7
- Color(s) Midnight Black
- Power Supply Support Standard ATX PS2 (optional)
- Motherboard Support ATX
- Motherboard Support Micro ATX
- Materials Polymer
- Cooling System - Rear 120mm SickleFlow fan x 1 (installed)
- Maximum Compatibility - CPU Cooler Height 162mm / 6.4 inch
- Cooling System - Front 120mm fan x 2 (one is optional; can be swapped for one 200mm fan)
- 5.25" Drive Bays 3 (exposed)
- Materials mesh front bezel
- Net Weight 5.9 kg / 13.0 lbs
- 2.5" Drive Bays 4 (hidden)
- Maximum Compatibility - VGA Card Length 405mm / 15.9 inch
- Dimensions (L x W x H) 200 x 464.5 x 481 mm / 7.8 x 18.3 x 18.9 inch
- I/O Panel KKN1 / KWN1: USB 3.0 x 1 (int.), USB 2.0 x 2, Mic x 1, Audio x 1 (supports AC97 / HD Audio)
- I/O Panel KKN2 / KWN2: USB 3.0 x 2 (int.), Mic x 1, Audio x 1 (supports AC97 / HD Audio)
- Model Number NSE-500-KKN1, NSE-500-KWN1, NSE-500-KKN2, NSE-500-KWN2
