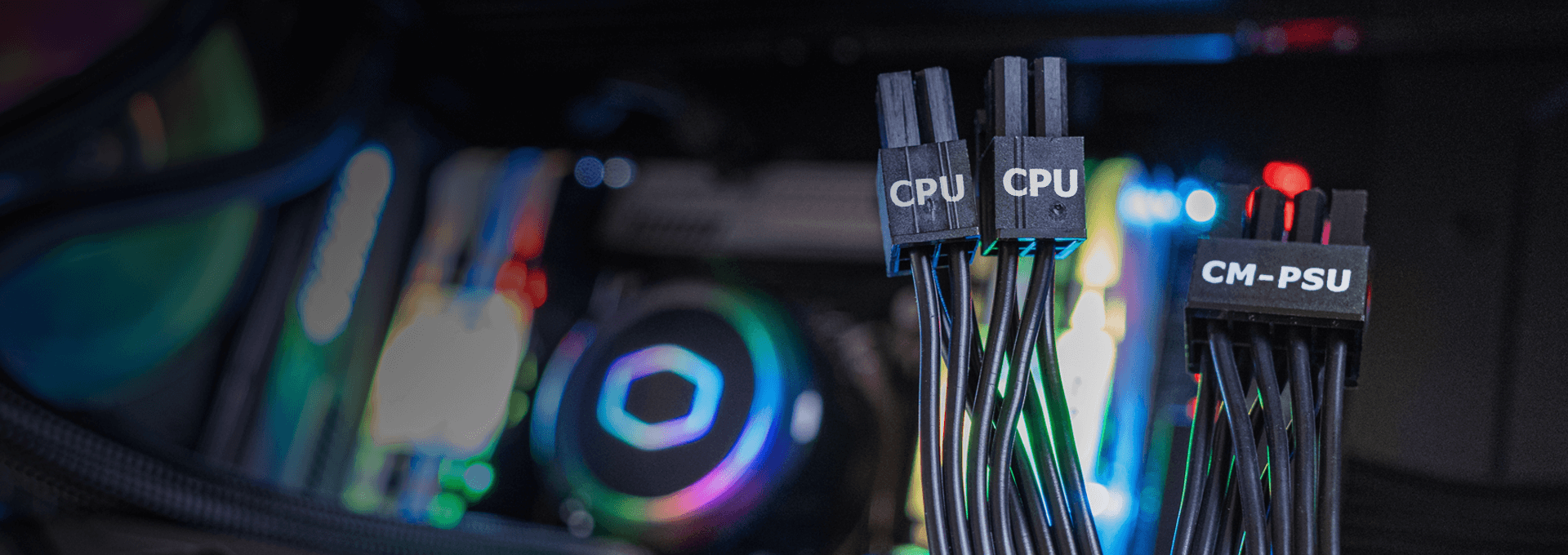

All MWE Gold - V2 models come standard with 2 EPS connectors in order to ensure universal compatibility with all current gen motherboards. Whether you get the minimum wattage level at 550W or the maximum at 850W, you never have to worry if you'll have enough connectors to use your ideal components.
Full Modular 80 Plus Gold ATX Power Supply Unit

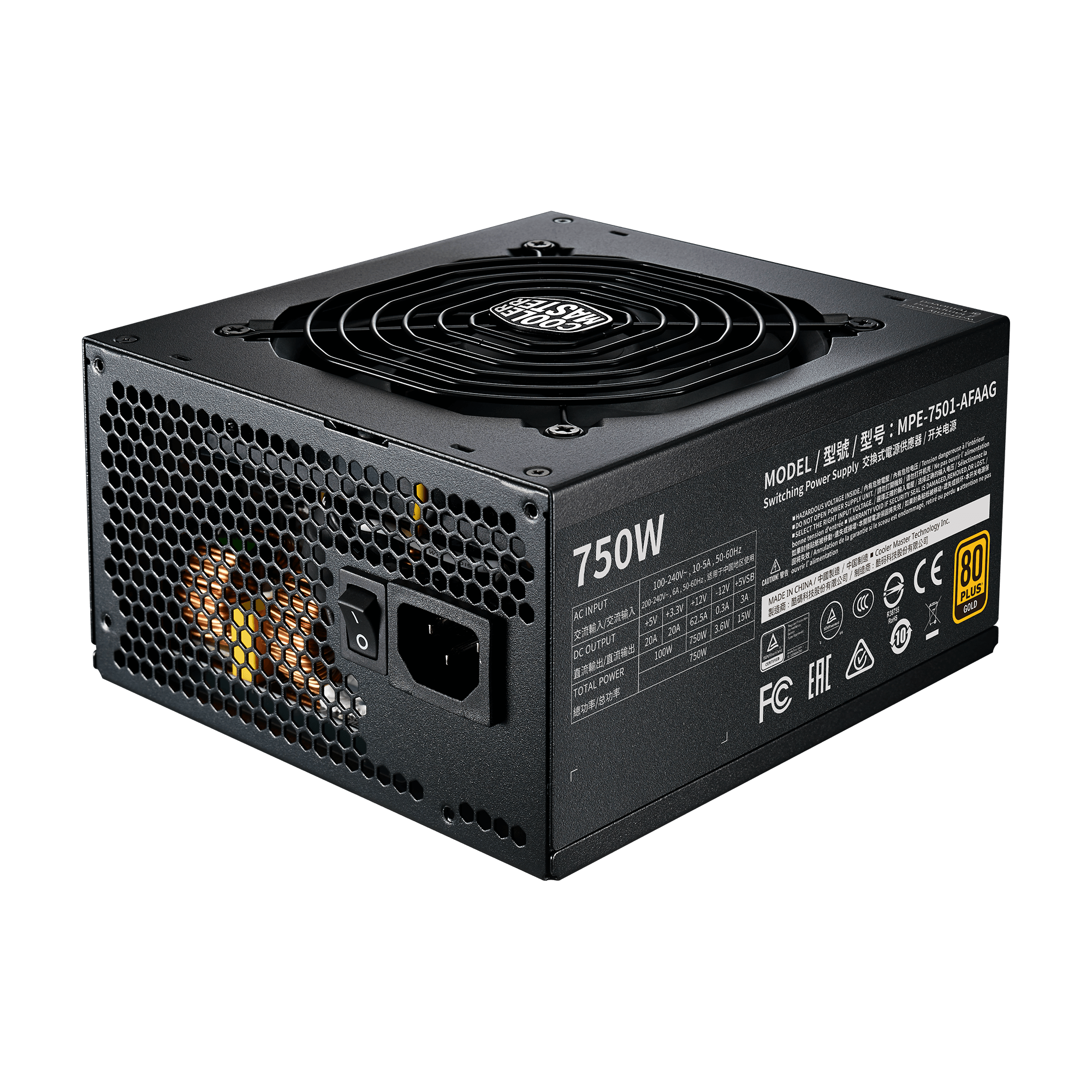

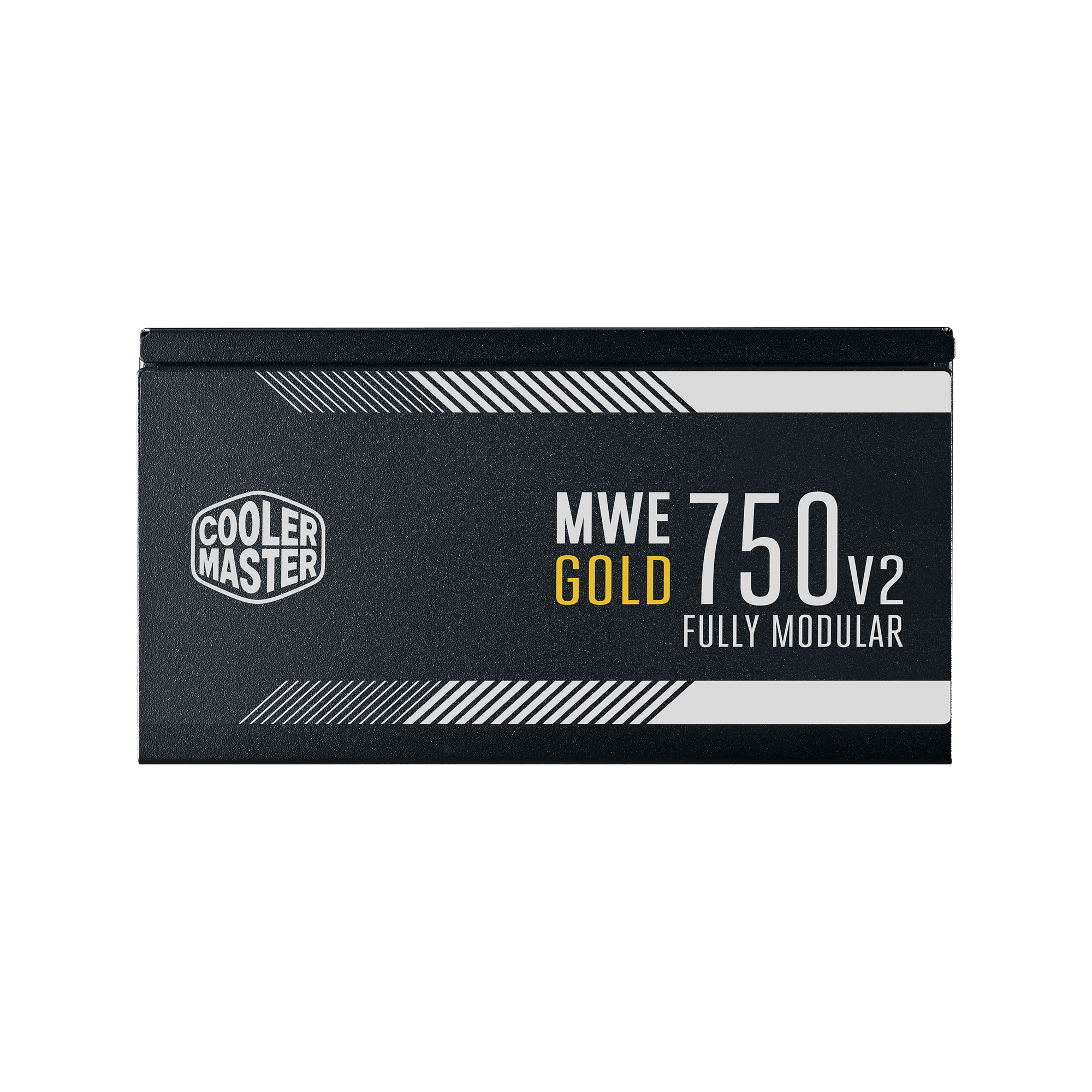

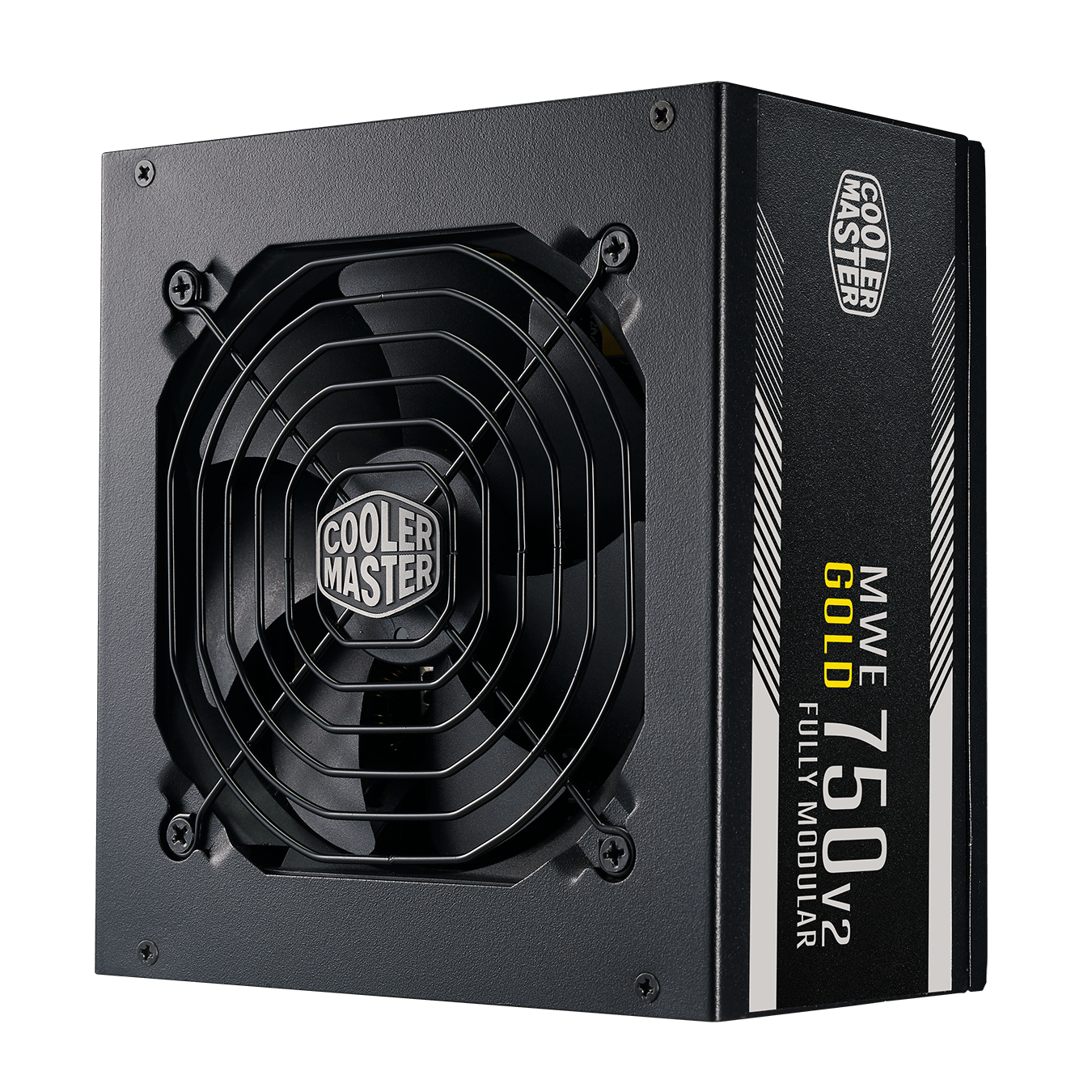

MWE Gold 750 - V2 Full Modular
80 Plus Gold Efficiency
2 EPS Connectors
120mm HDB Fan
High Temperature Resilience
Full Modular Cabling
5 Year Warranty

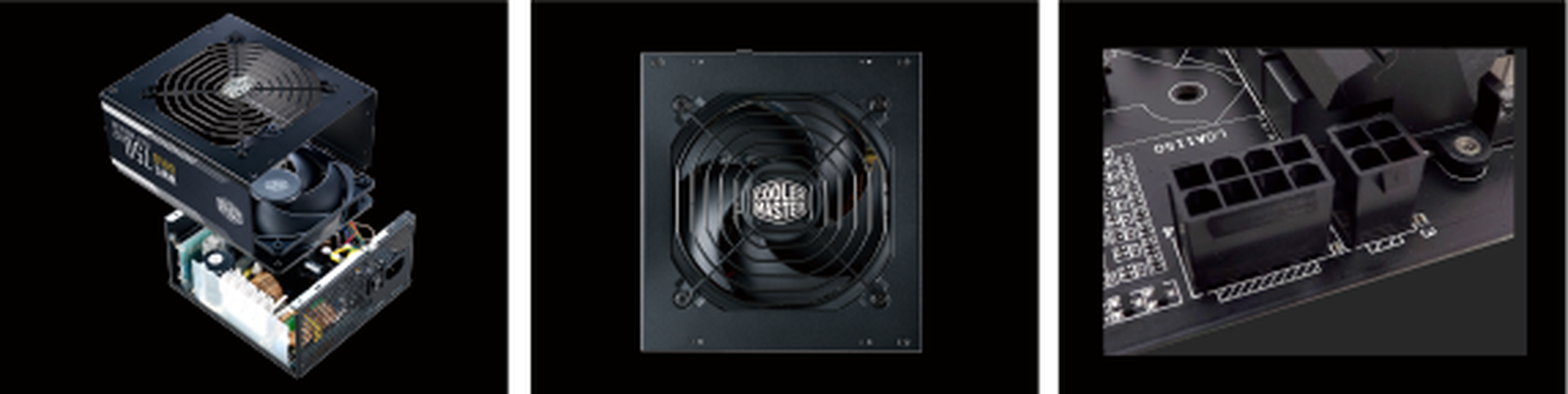

2 EPS Connectors

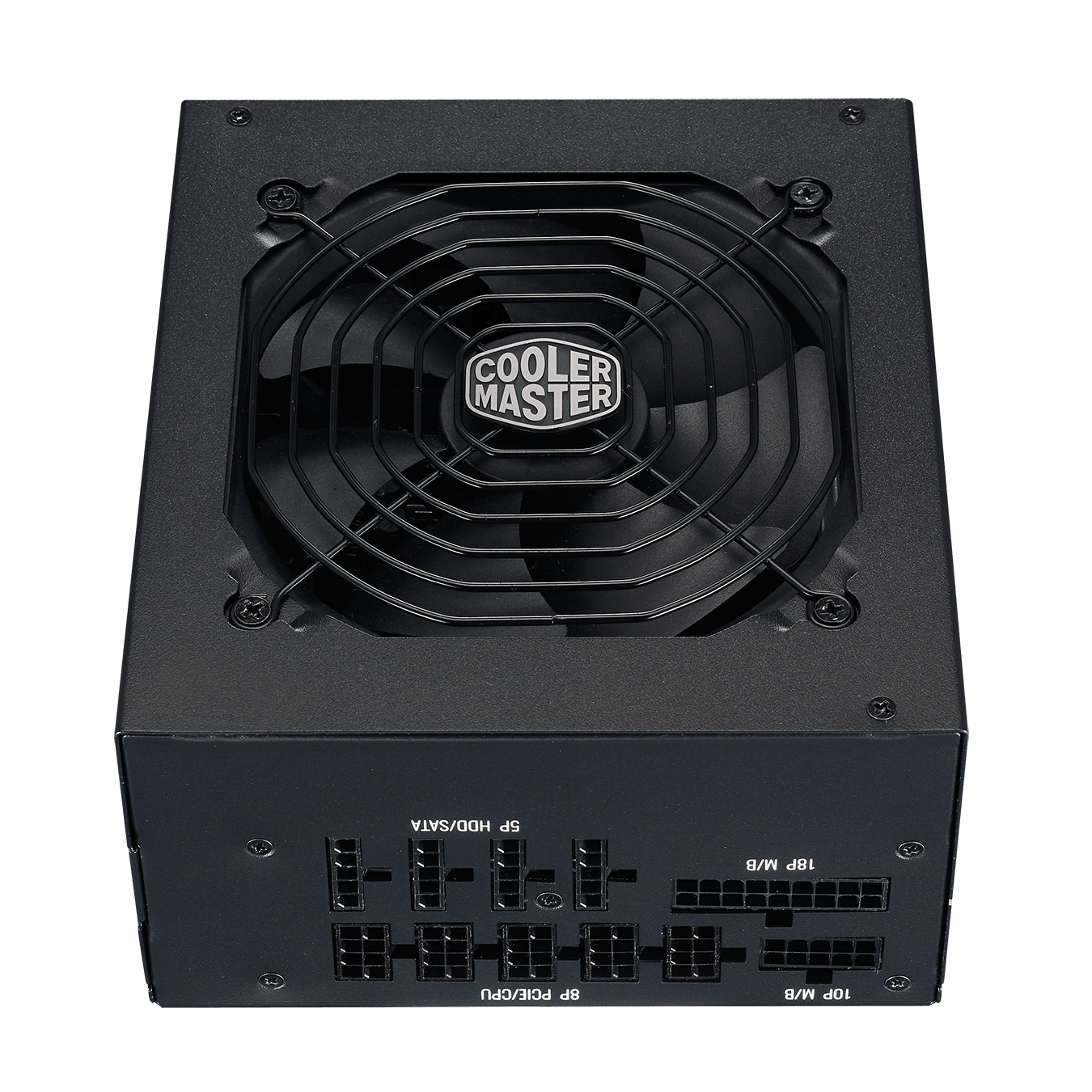

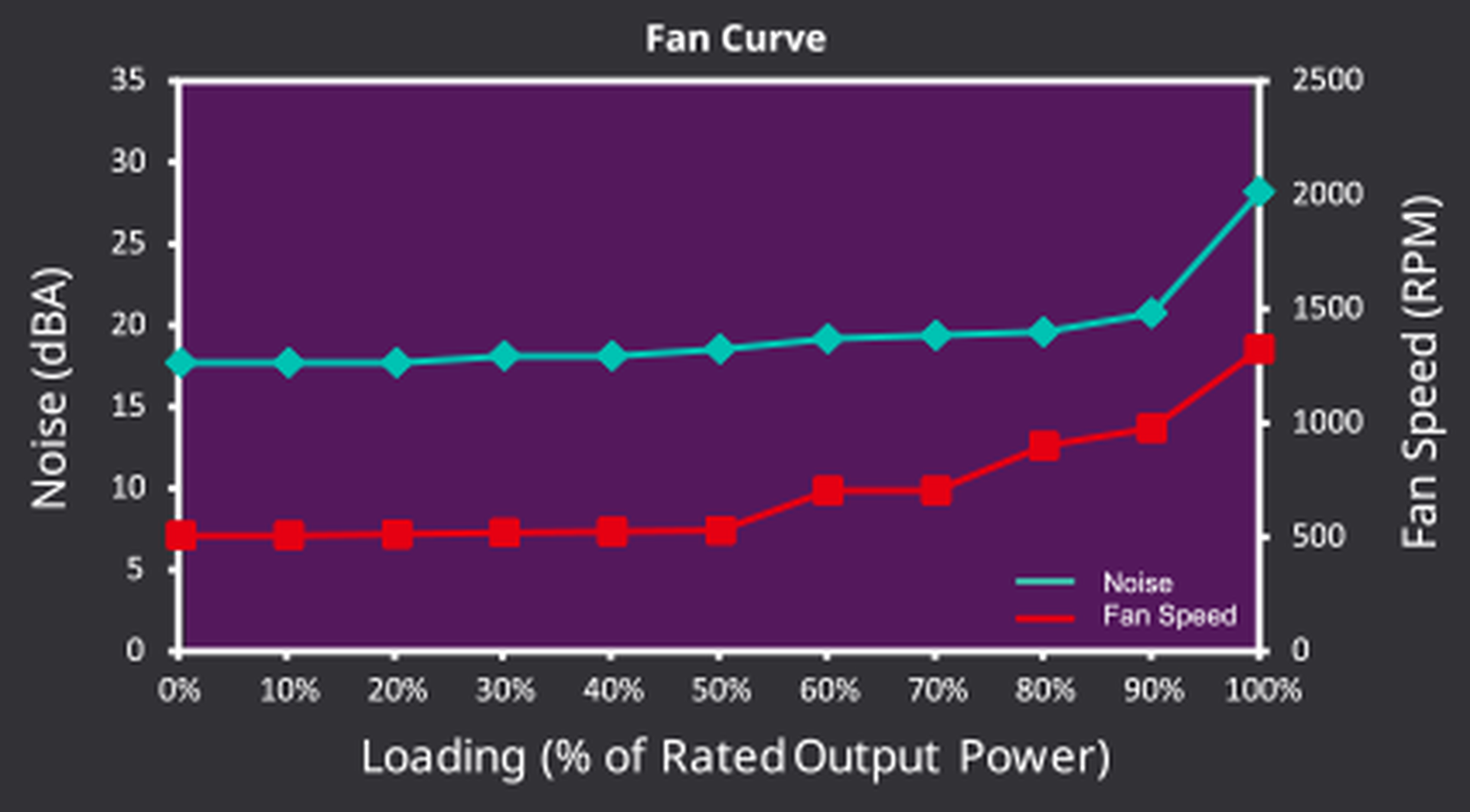

Quiet Cooling

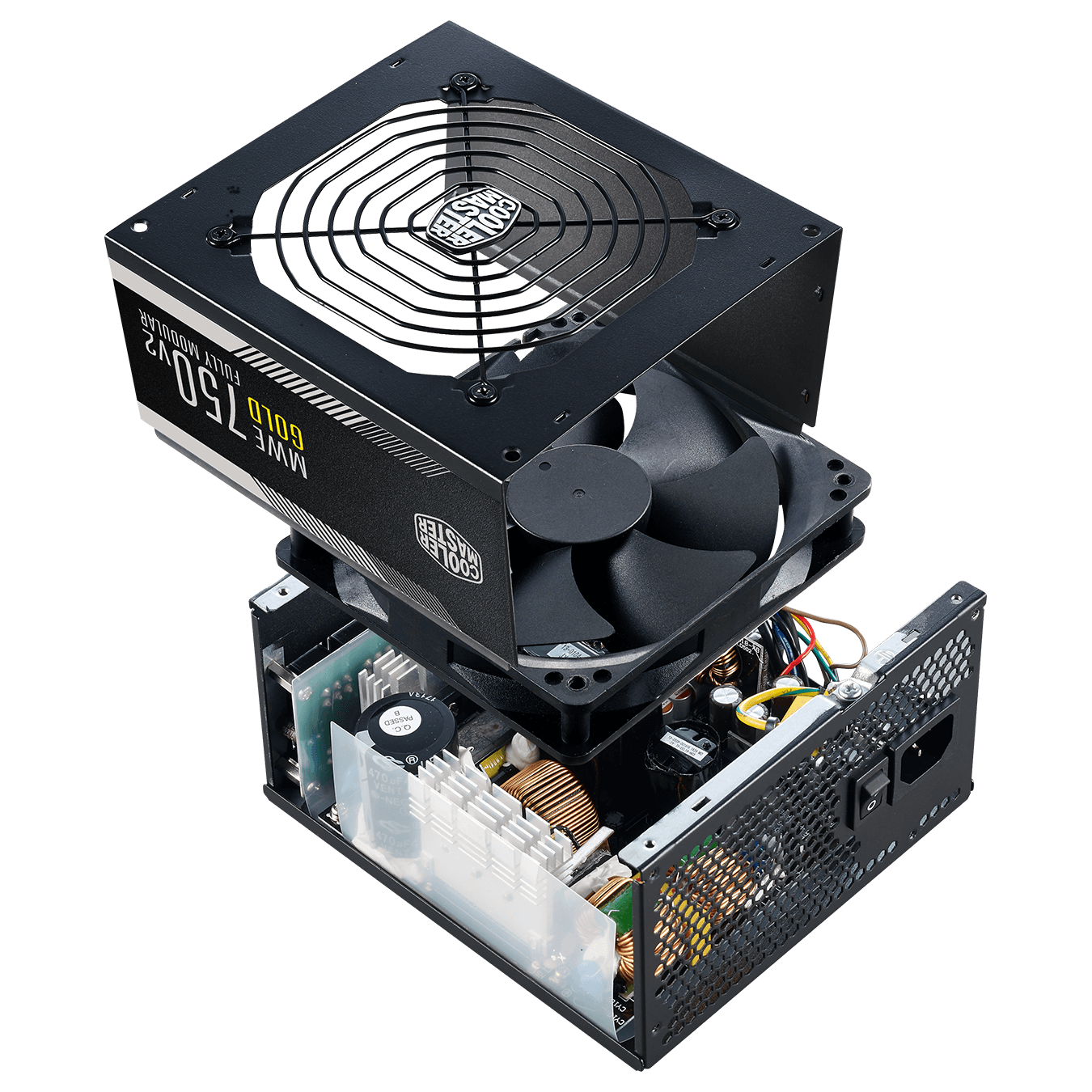

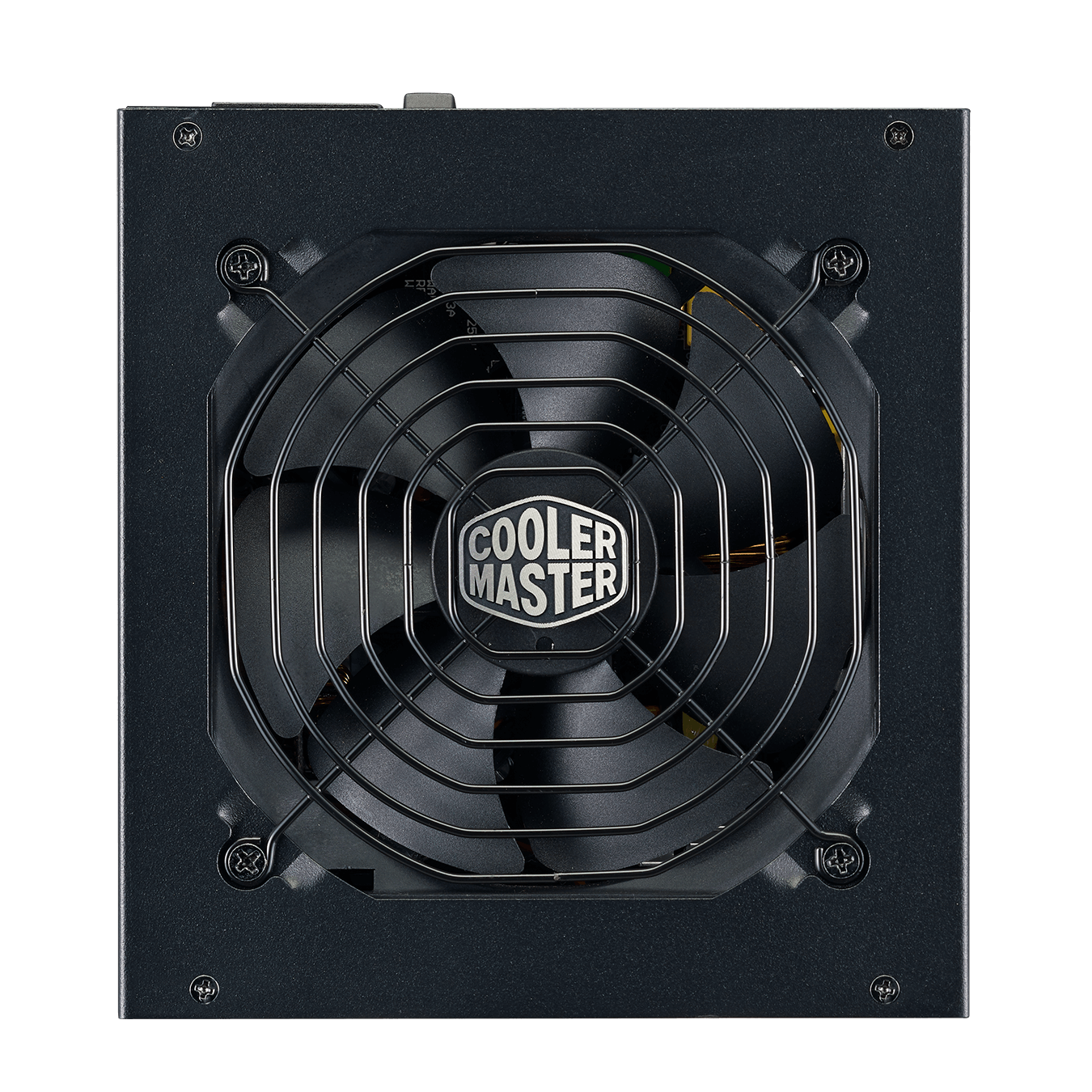

The MWE Gold - V2 has been upgraded with an HDB fan. This fan bearing delivers quiet and effective cooling with a long lifespan, allowing users to get the most out of their PSU for years to come. A number of additional measures have been applied to the original MWE Gold in order to reduce sound output and ripple noise for a demonstrably quieter user experience.

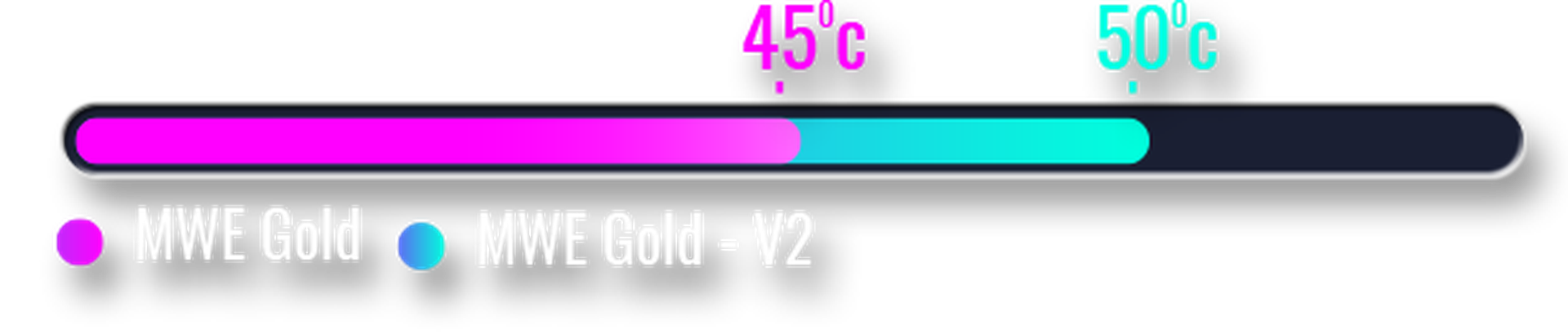

High Temperature Resilience
While the original MWE Gold had a maximum operating temperature of only 45 degrees Celsius, the MWE Gold - V2 has improved upon this by delivering an additional 5 degrees to that limit. With this model, users will be able to push their power supply to 50 degrees Celsius safely. Such a high threshold greatly improves what's possible to accomplish with your PSU and your system in general. Overclocking and other high intensity applications become way more accessible when the system's power supply can take the heat.

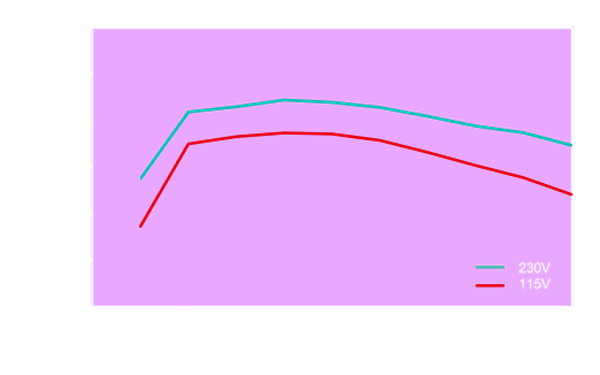

80 Plus Gold Certified

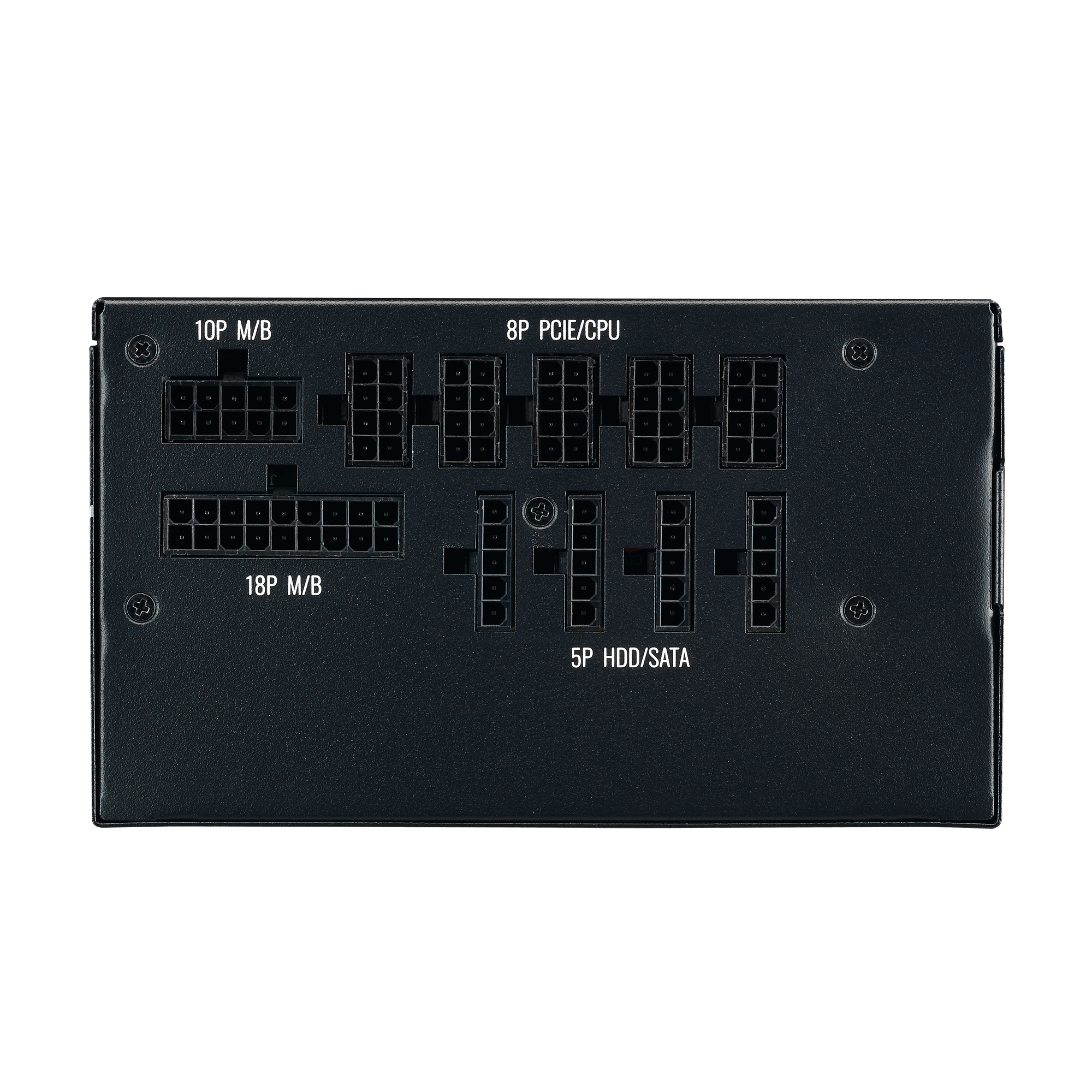

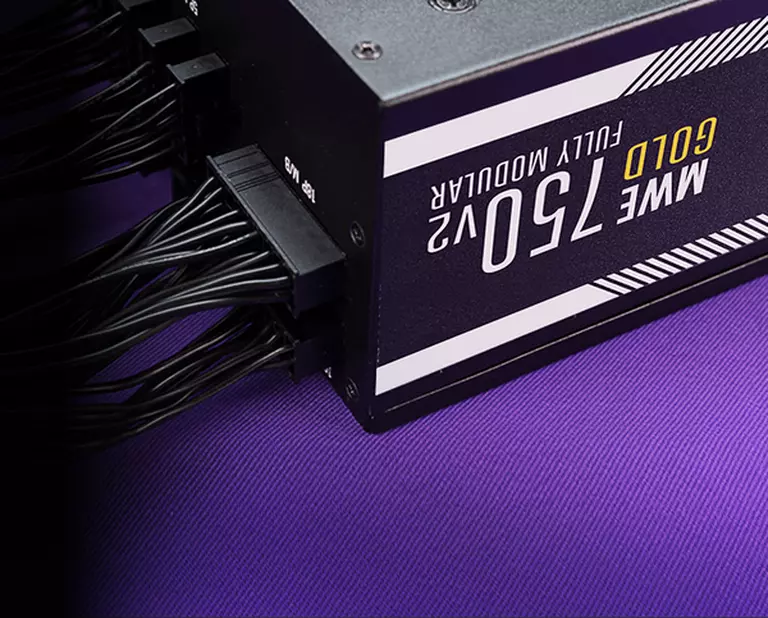

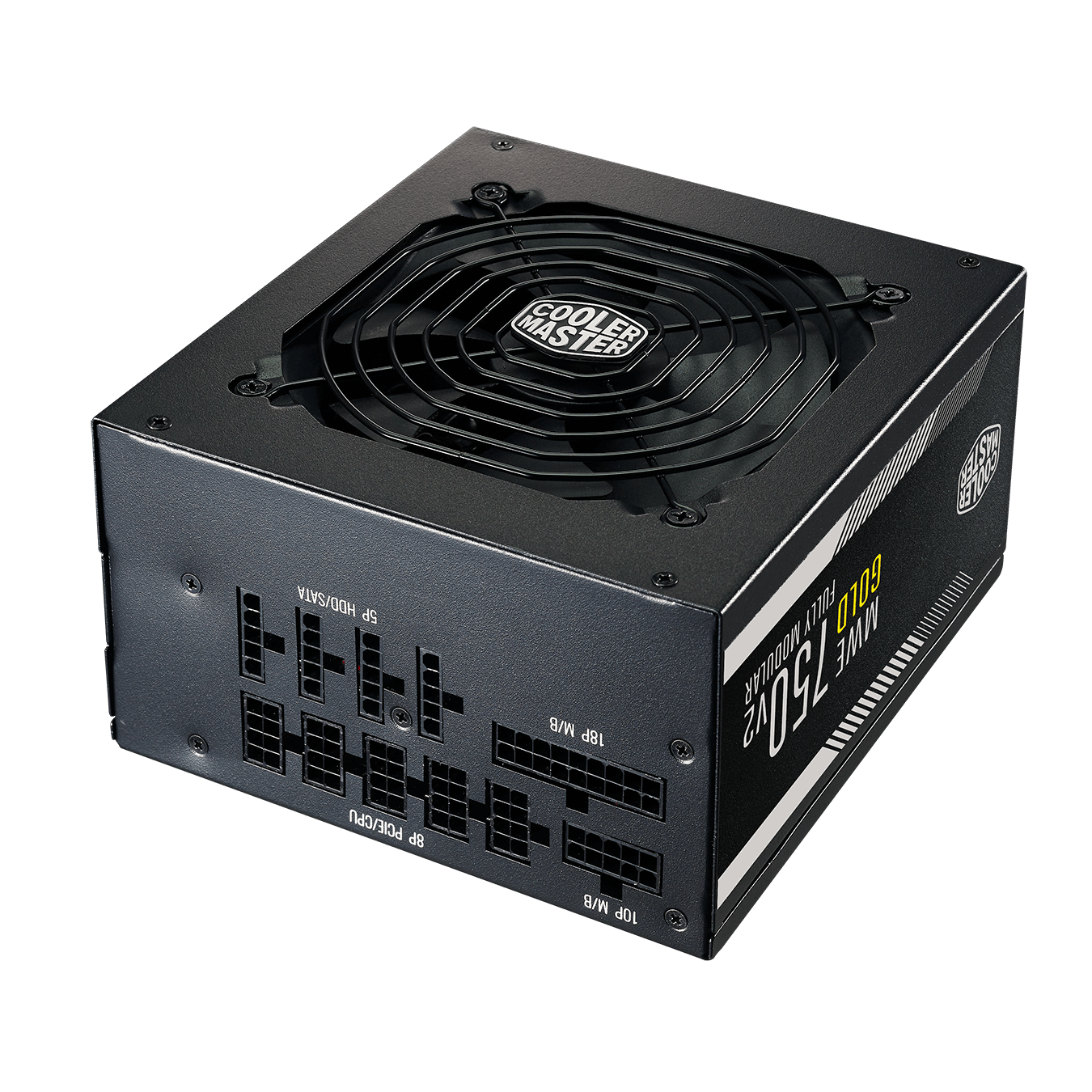

Full Modular Cabling
The full modular version of the MWE Gold - V2 comes with a set of flat black cables that can be customized to each user's individual needs. With a full modular setup, each system only needs to include the cables required for its individual components. The rest of the cables can be put aside for future upgrades and maintenance. This unused space within the chassis allows for reduced clutter and better airflow, thereby improving your system's overall cooling. Full modular cables carry an aesthetic benefit as well by reducing the amount of space needed within the case when powering the system.
Specifications

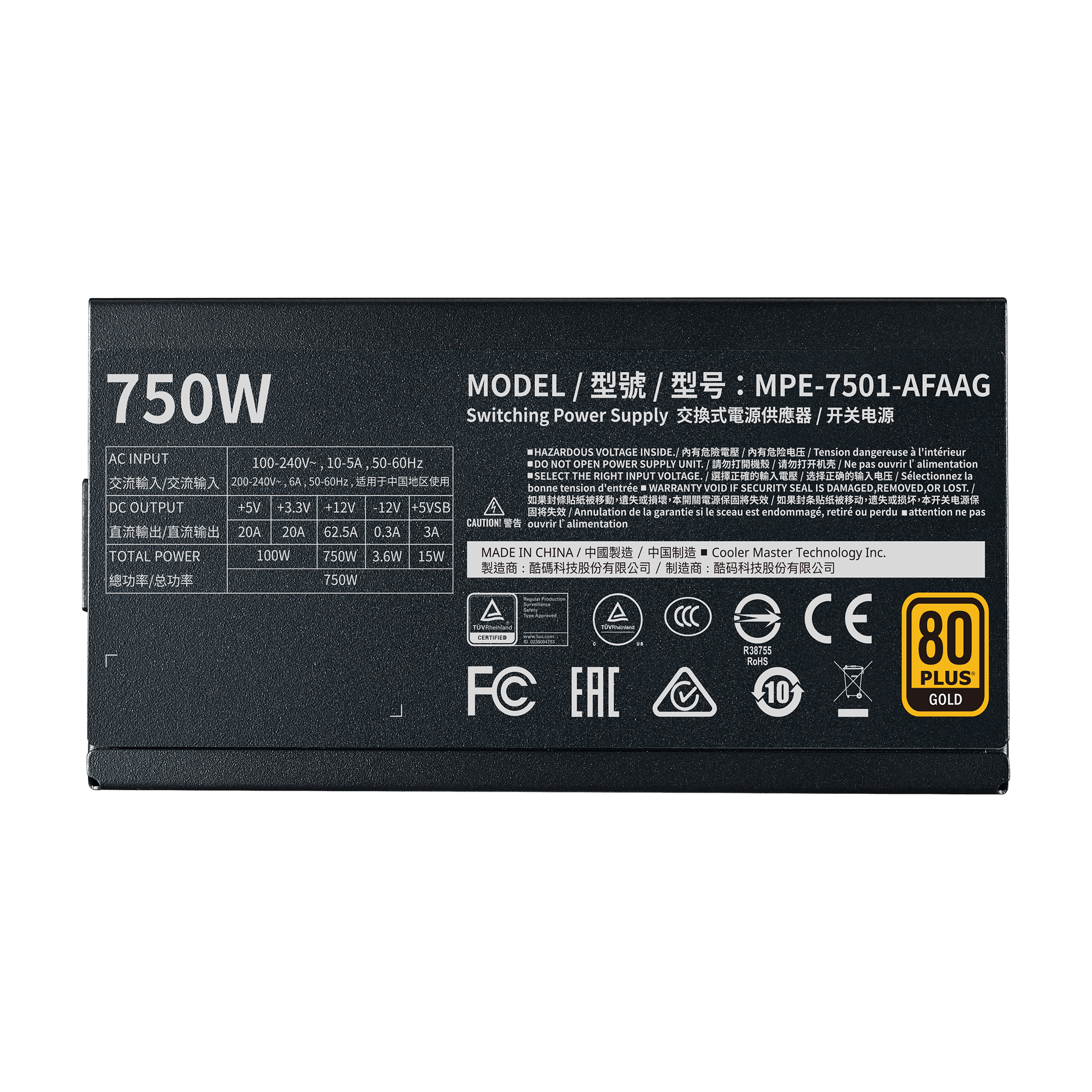

- Model MPE-7501-AFAAG
- ATX Version ATX 12V Ver. 2.41
- PFC Active PFC
- Input Voltage 100-240V
- Input Current 10-5A
- Input Frequency 50-60Hz
- Dimensions (L x W x H) 160 x 150 x 86 mm
- Fan Size 120mm
- Fan Bearing HDB
- Fan Speed 1500 RPM
- Noise Level @ 20% 0 dBA
- Noise Level @ 50% 17.8 dBA
- Noise Level @ 100% 24.9 dBA
- Efficiency 90% @ Typical Load
- 80 PLUS Rating 80 PLUS Gold
- ErP 2014 Lot 3 Yes
- Operating Temperature 0-50°C
- Power Good Signal 100 - 150 ms
- Hold Up Time >16ms at 100% Load
- MTBF >100,000 Hours
- Protections UVP / OVP / OPP / OTP / SCP / OCP
- Regulatory TUV, CE, CCC, EAC, RCM, cTUVus, FCC, BSMI, UKCA
- ATX 24 Pin Connectors 1
- EPS 4+4 Pin Connectors 1
- EPS 8 Pin Connector 1
- SATA Connectors 12
- Peripheral 4 Pin Connectors 4
- PCI-e 6+2 Pin Connectors 4
- Series MWE Gold Series
- Category 500 to 750W
- Modular Fully Modular
- 80 Plus Efficiency Gold
- Form Factor ATX
- Watts 750W
