Be Bold, Power With Gold

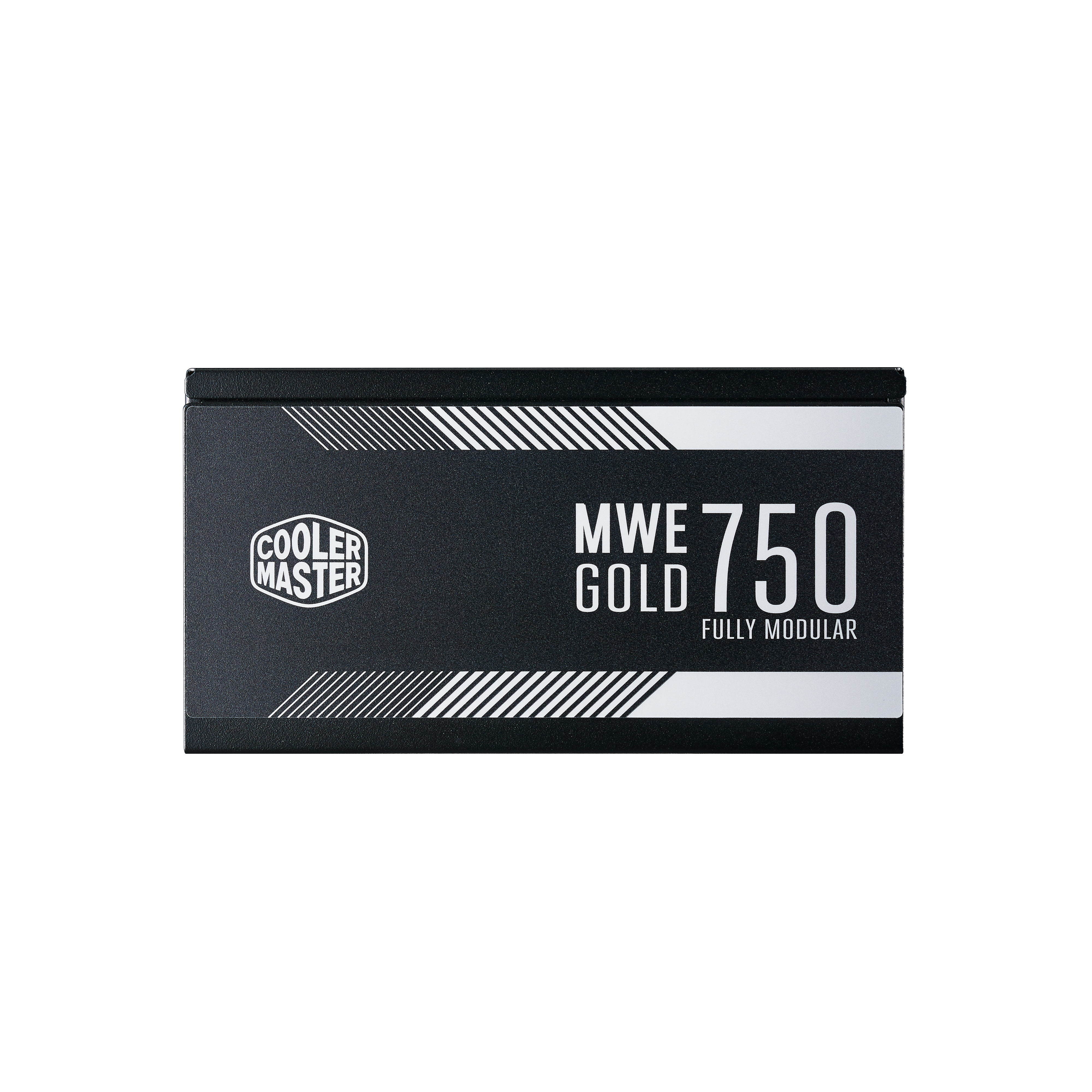

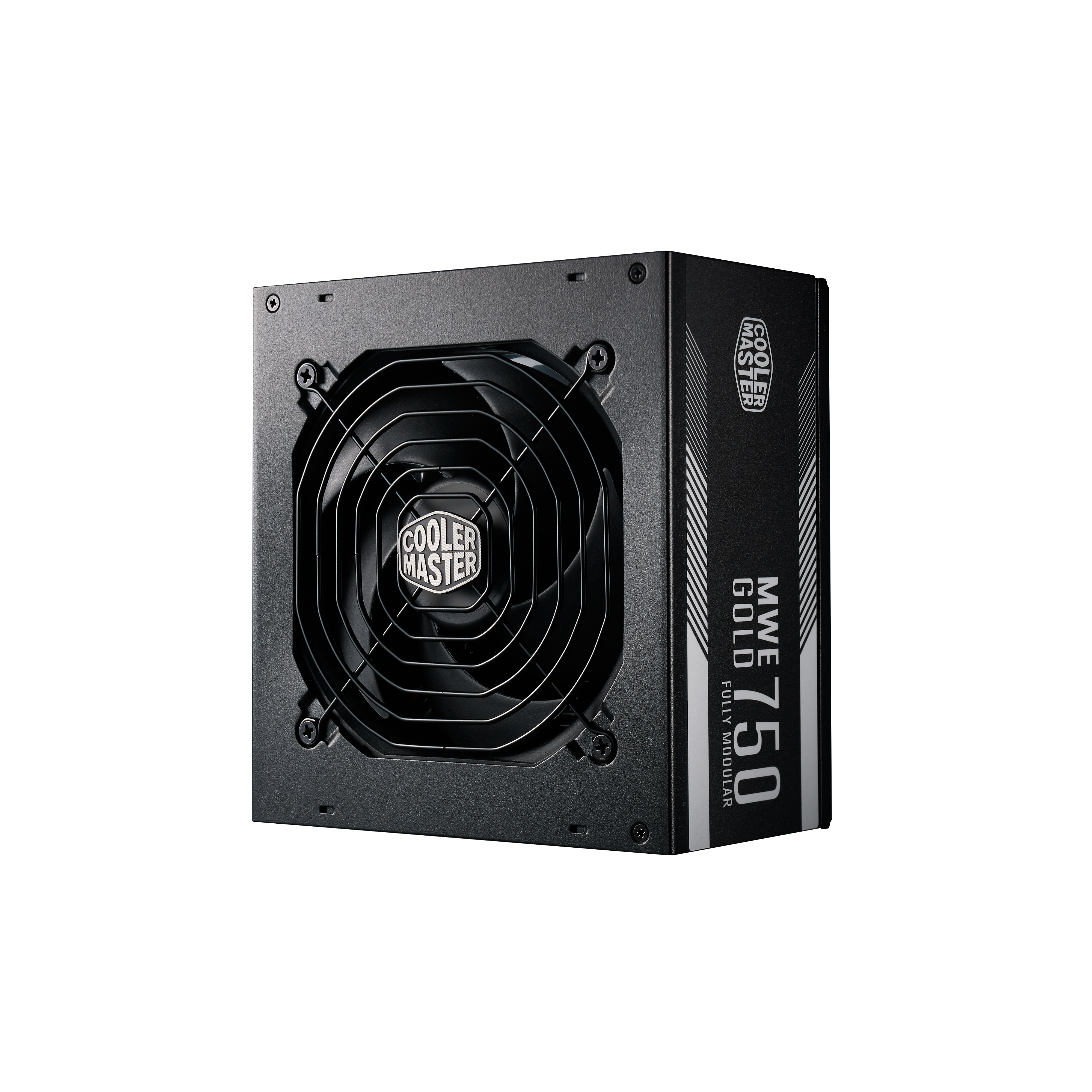

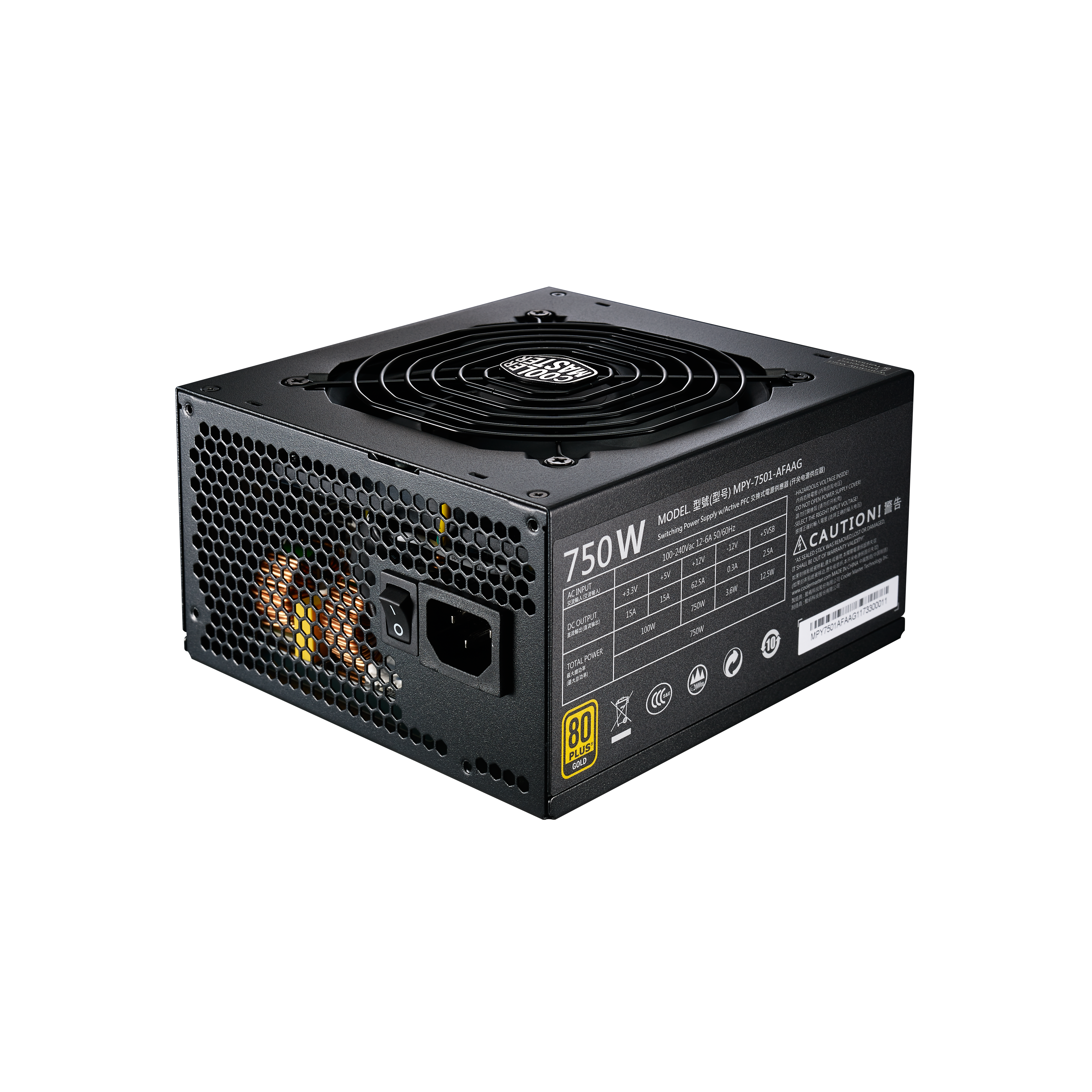

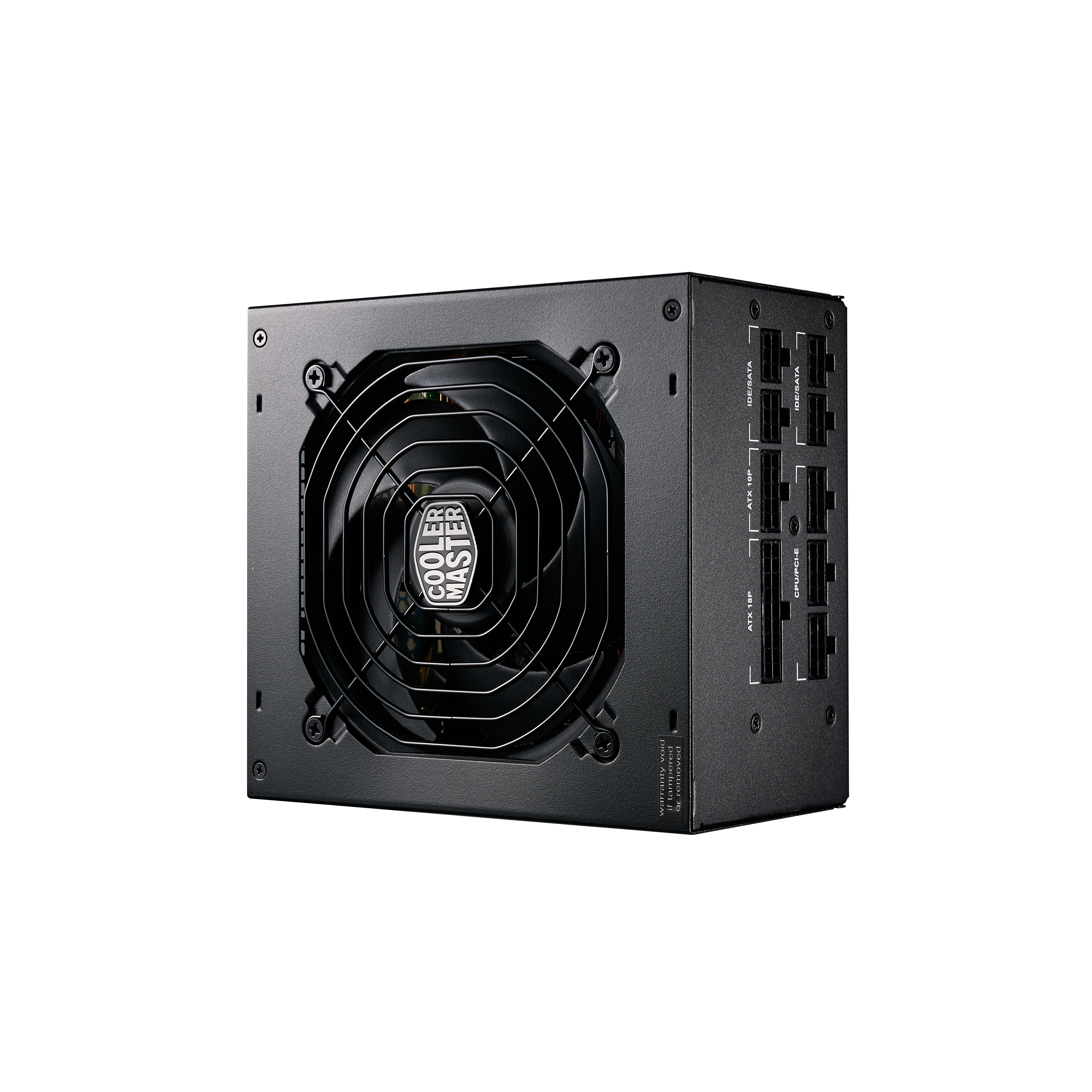

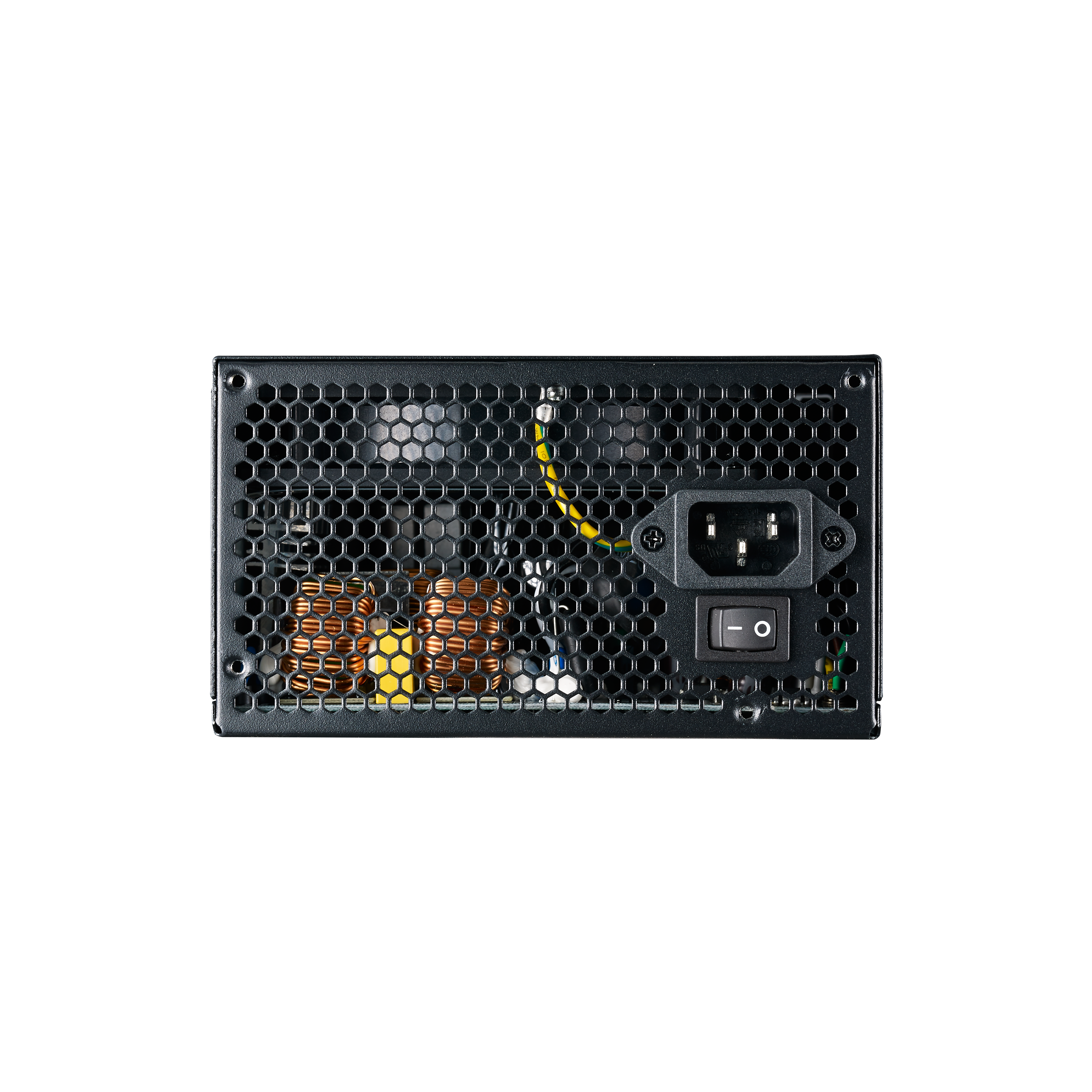

MWE Gold 750 Full Modular
• 80 Plus Gold Certified

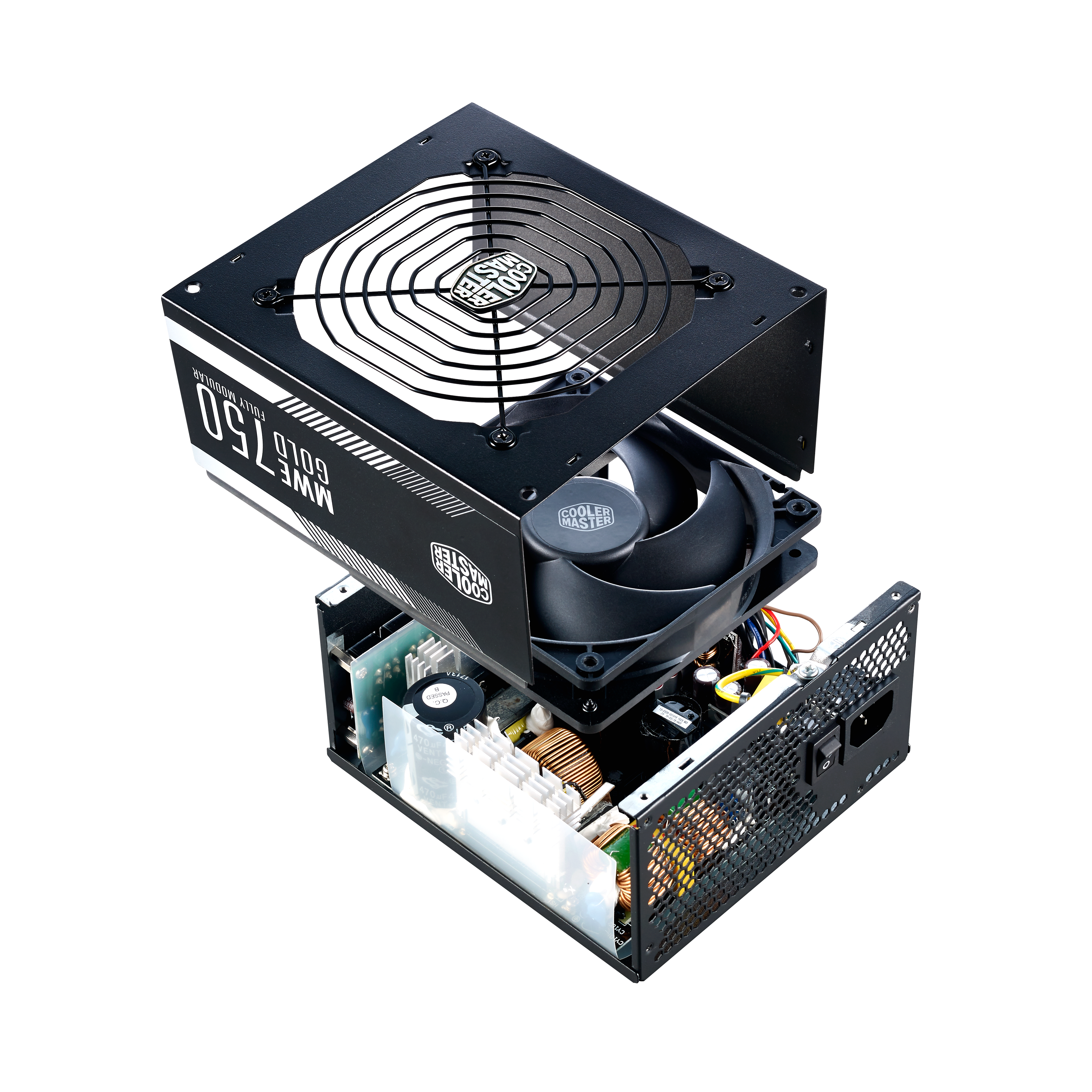

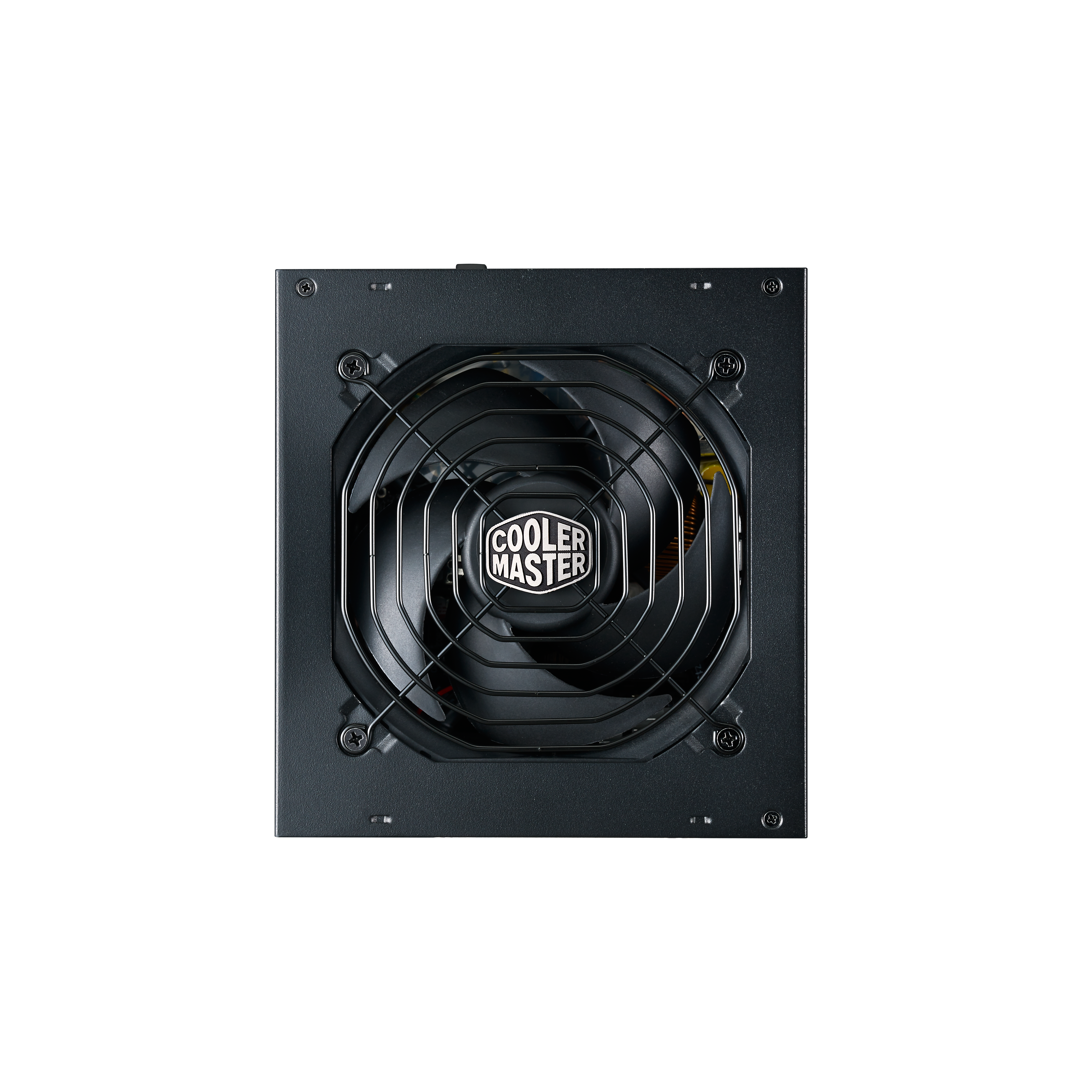

• 120mm LDB Fan
• Advanced Circuitry

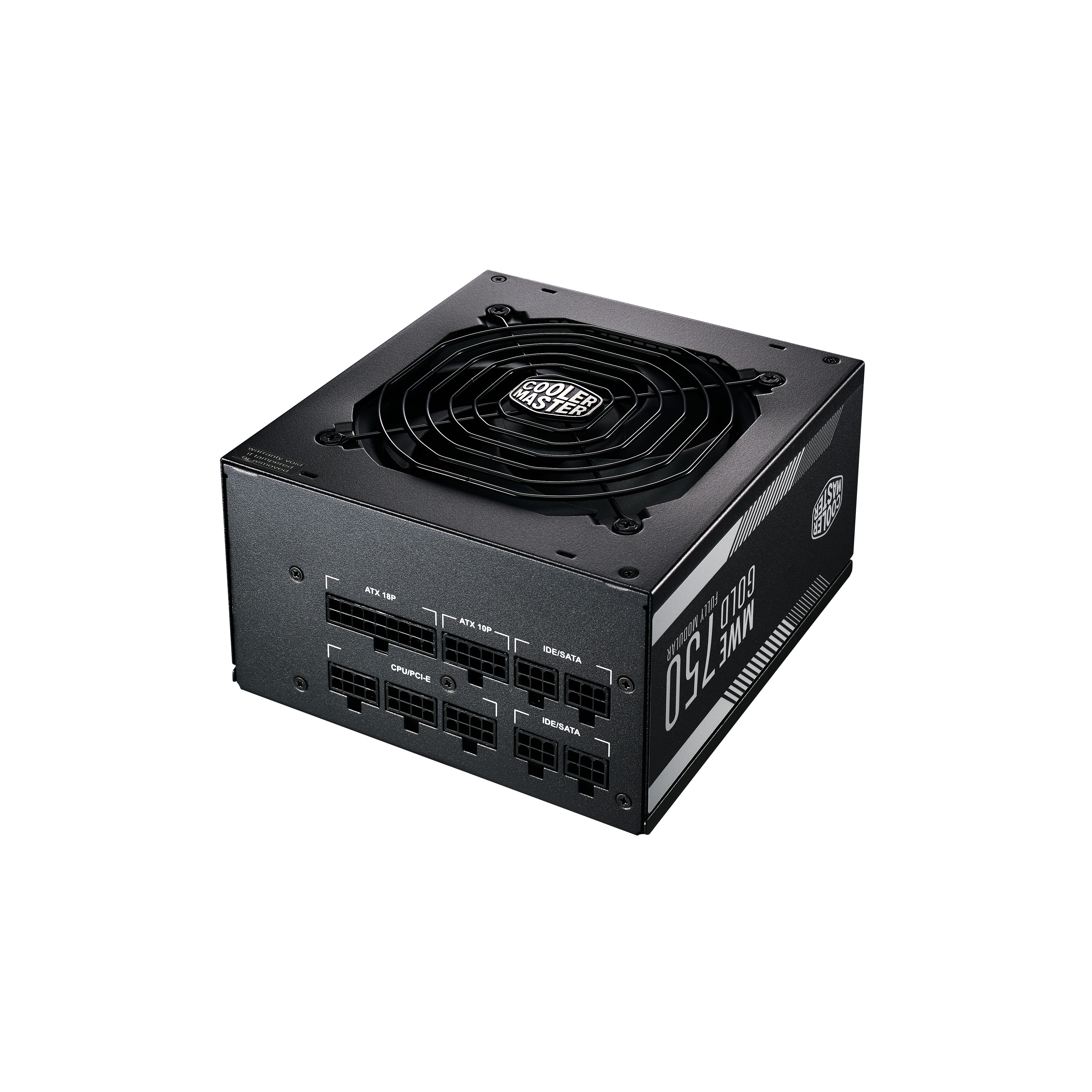

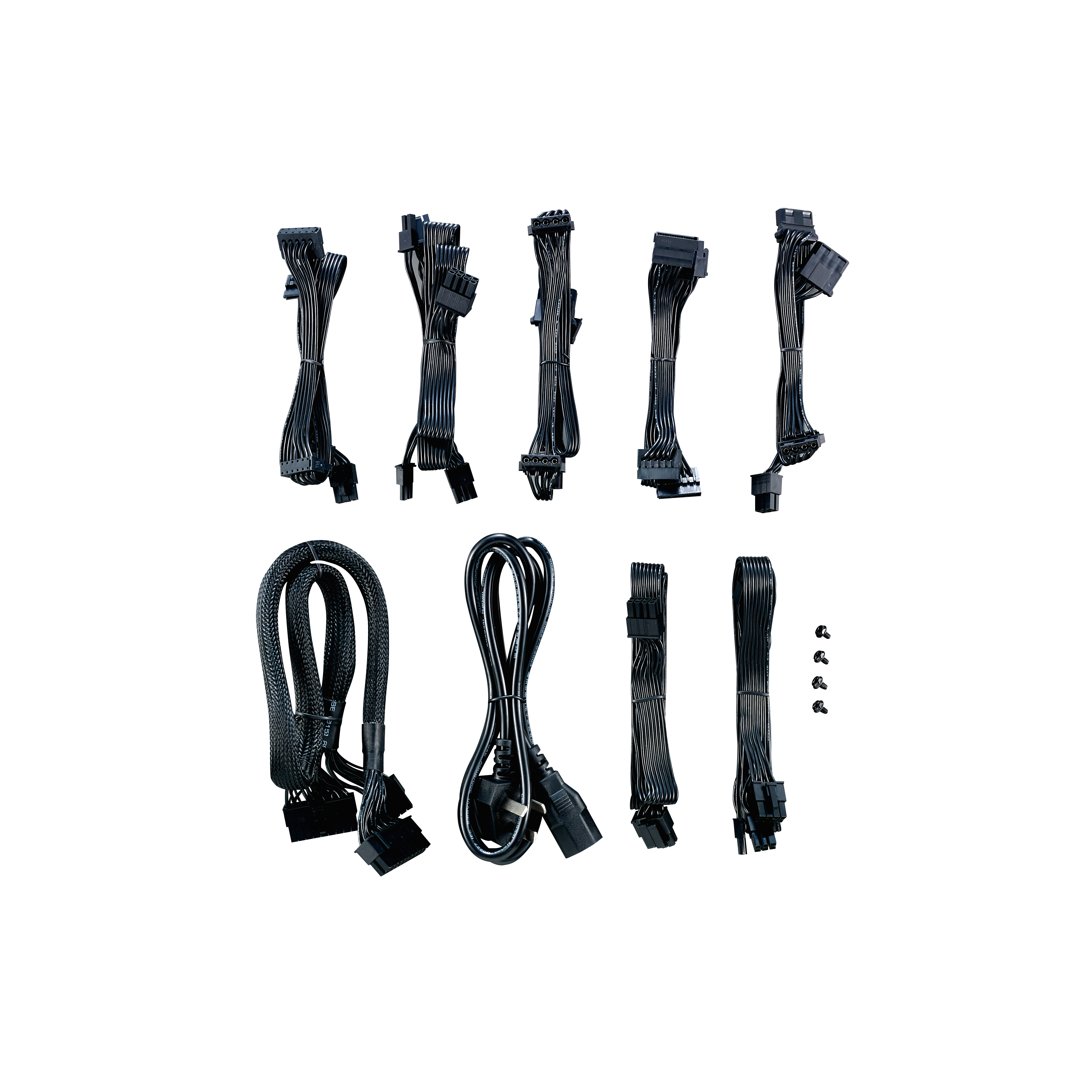

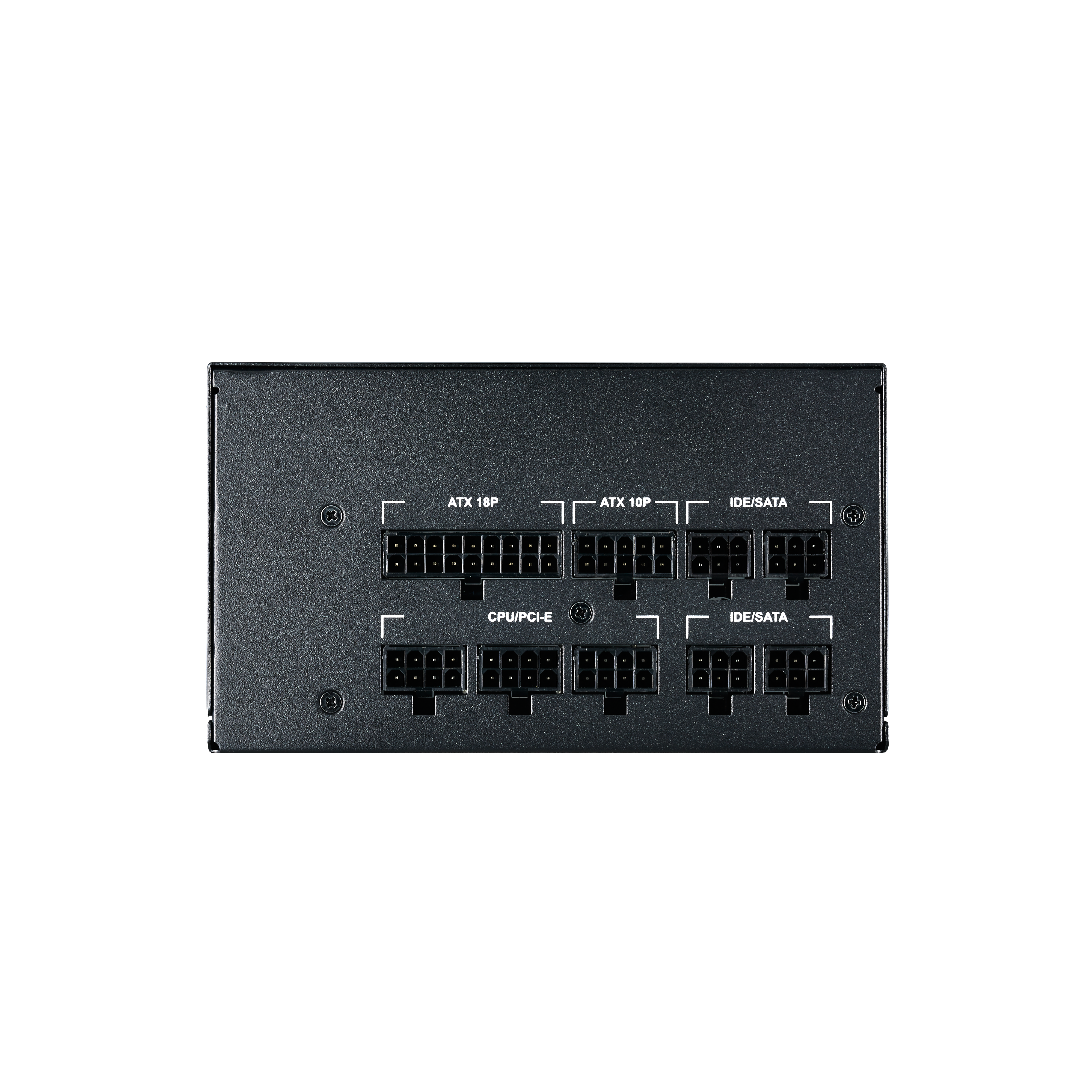

• Fully Modular Cabling
• 5 Year Warranty
Specifications
- Modular Fully Modular
- ErP 2013 Lot 6 Yes
- FDD Cable 4 Pin Connectors 1
- MB 24 Pin Connectors 1
- CPU 12V 4+4 Pin Connectors 1
- Category 500 to 750W
- Fan Size 120mm
- Fan Bearing LDB
- Power Good Signal 100 - 500 ms
- MTBF >100,000 hours @ 25℃ ambient
- PFC Active PFC (>0.95 Typical)
- Operating Temperature 0-45°C
- CPU 12V 8 Pin Connectors 1 (for updated models)
- 80 Plus Efficiency Gold
- Input Frequency 50/60Hz
- ATX Version ATX 12V V2.31
- SATA Connectors 8
- Peripheral 4 Pin Connectors 6
- PCI-e 6+2 Pin Connectors 750W / 850W: x4 = 2x (600+120mm) 1000W: x3 = 3x (600mm)
- Input Voltage 100-240V
- Series MWE Gold Series
- Hold Up Time >14ms at 100% load
- Protections OVP
- Protections OPP
- Efficiency 90% Typically
- Protections SCP
- Protections UVP
- Protections OTP
- Protections OCP
- Dimensions (L x W x H) 140 x 150 x 86 mm
- Regulatory CCC
- Regulatory CE
- Input Current 12-6A
- Regulatory RCM
- Regulatory EAC
- Regulatory cTUVus
- Regulatory FCC
- Regulatory BSMI
- Regulatory KC
- Regulatory CB
- Regulatory TUV-SUD

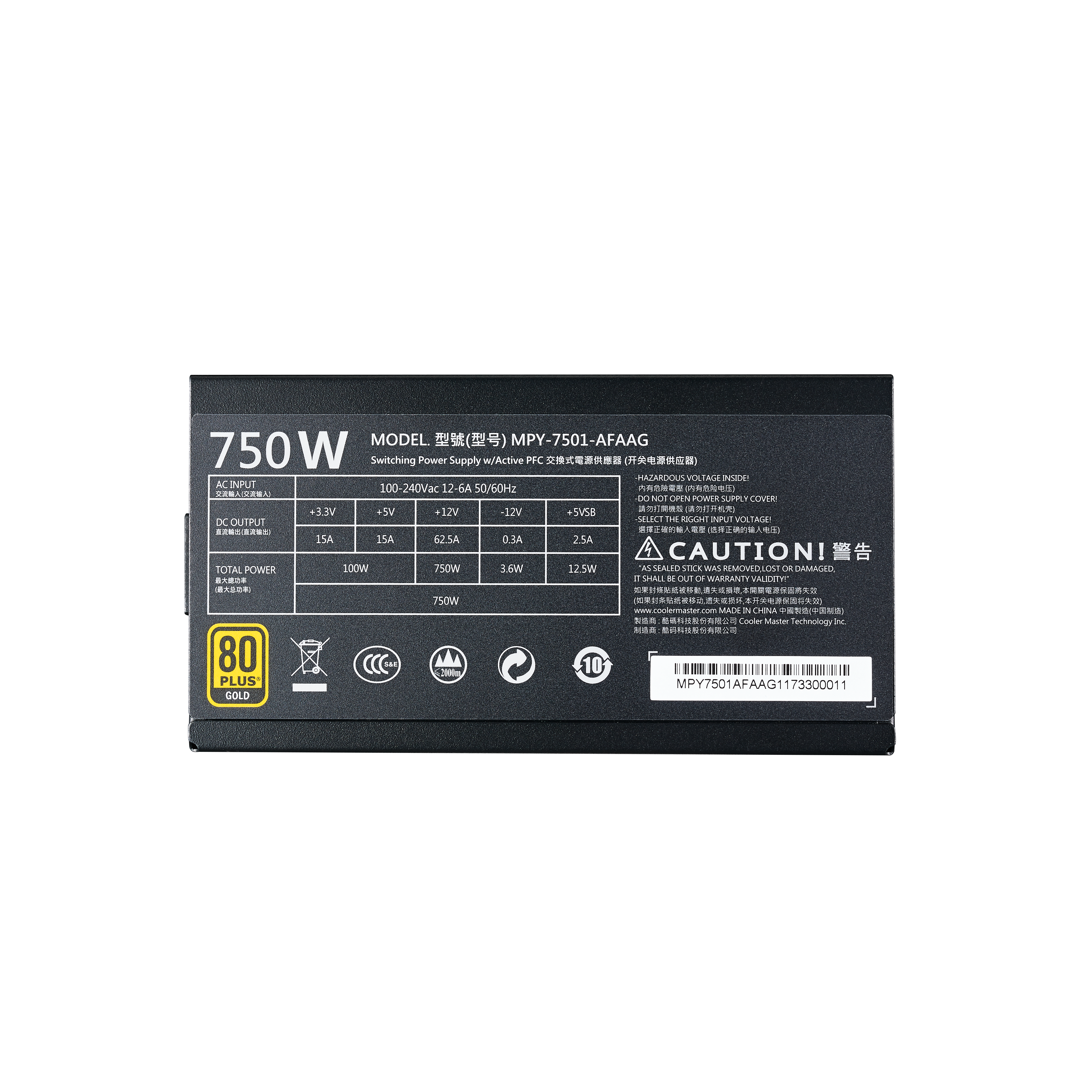

- Model MPY-7501-AFAAG
