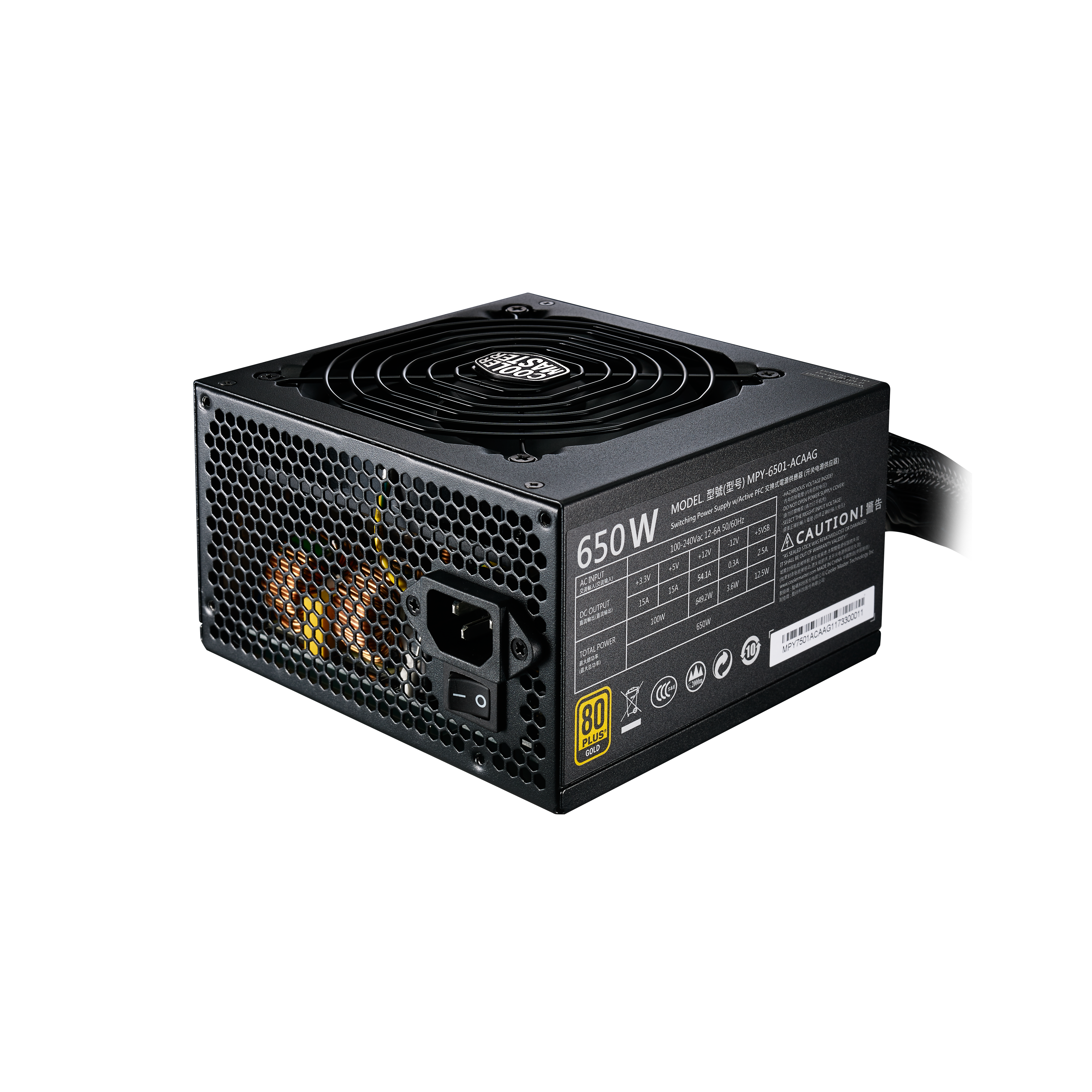

MWE Gold 650 image number 0

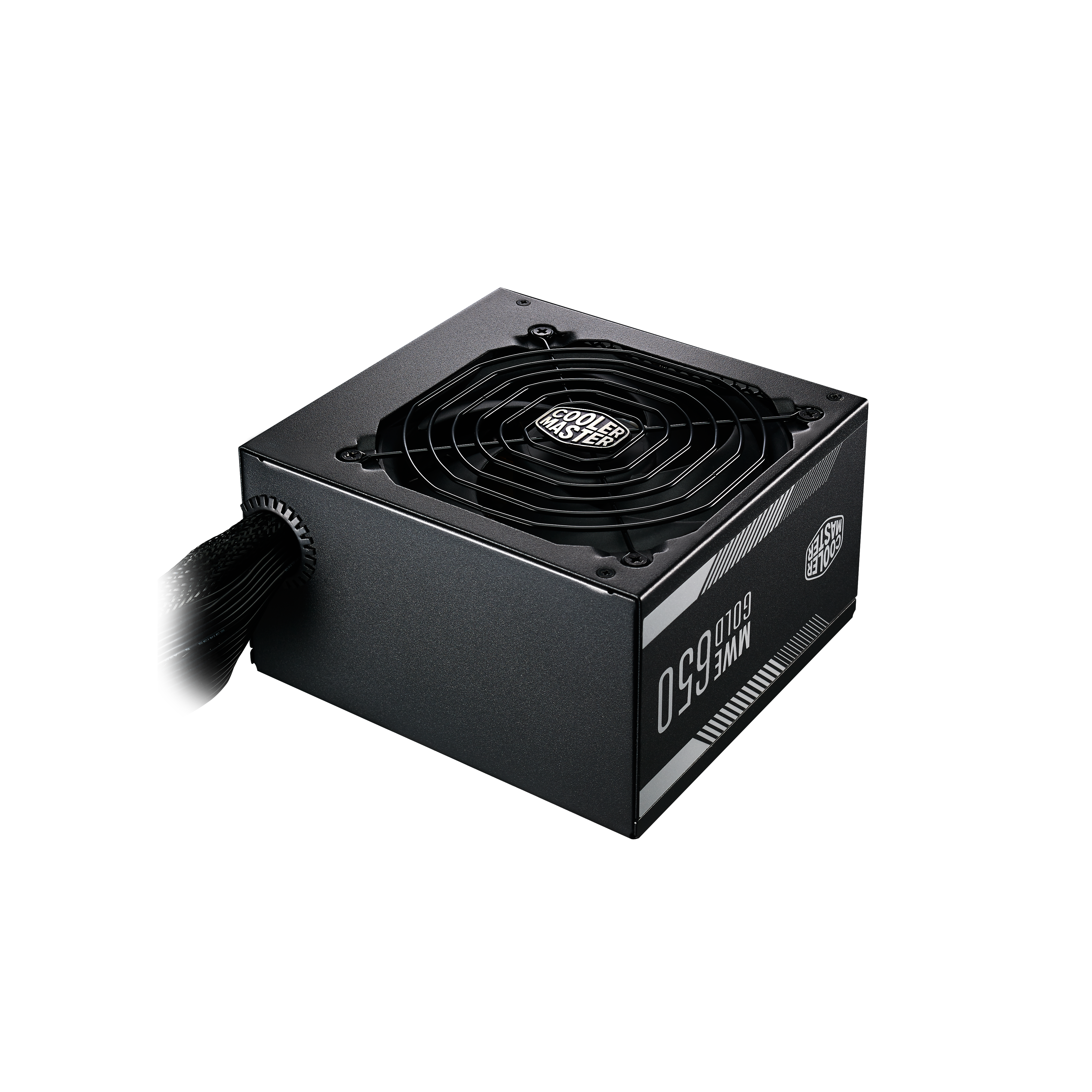

MWE Gold 650 image number 1

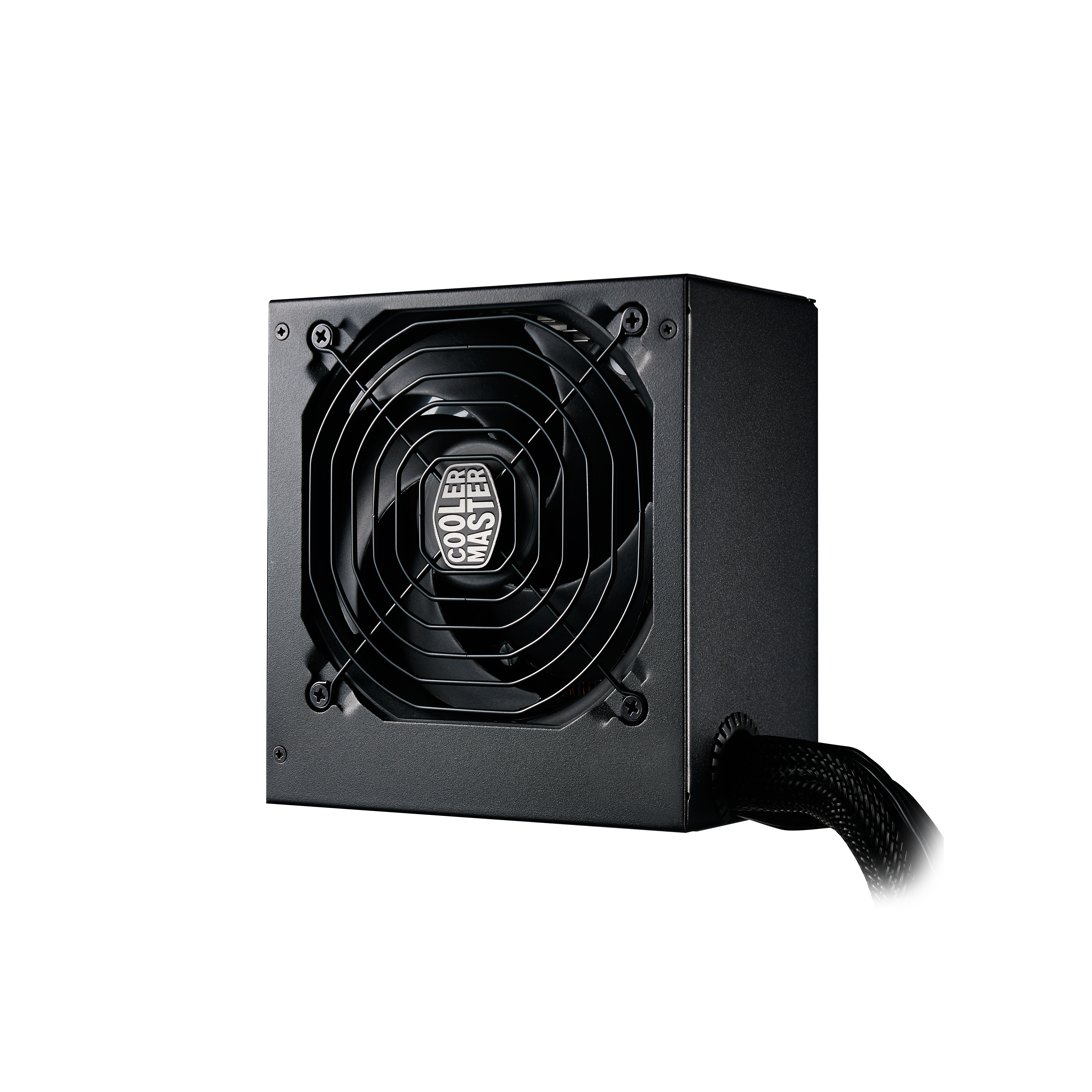

MWE Gold 650 image number 2

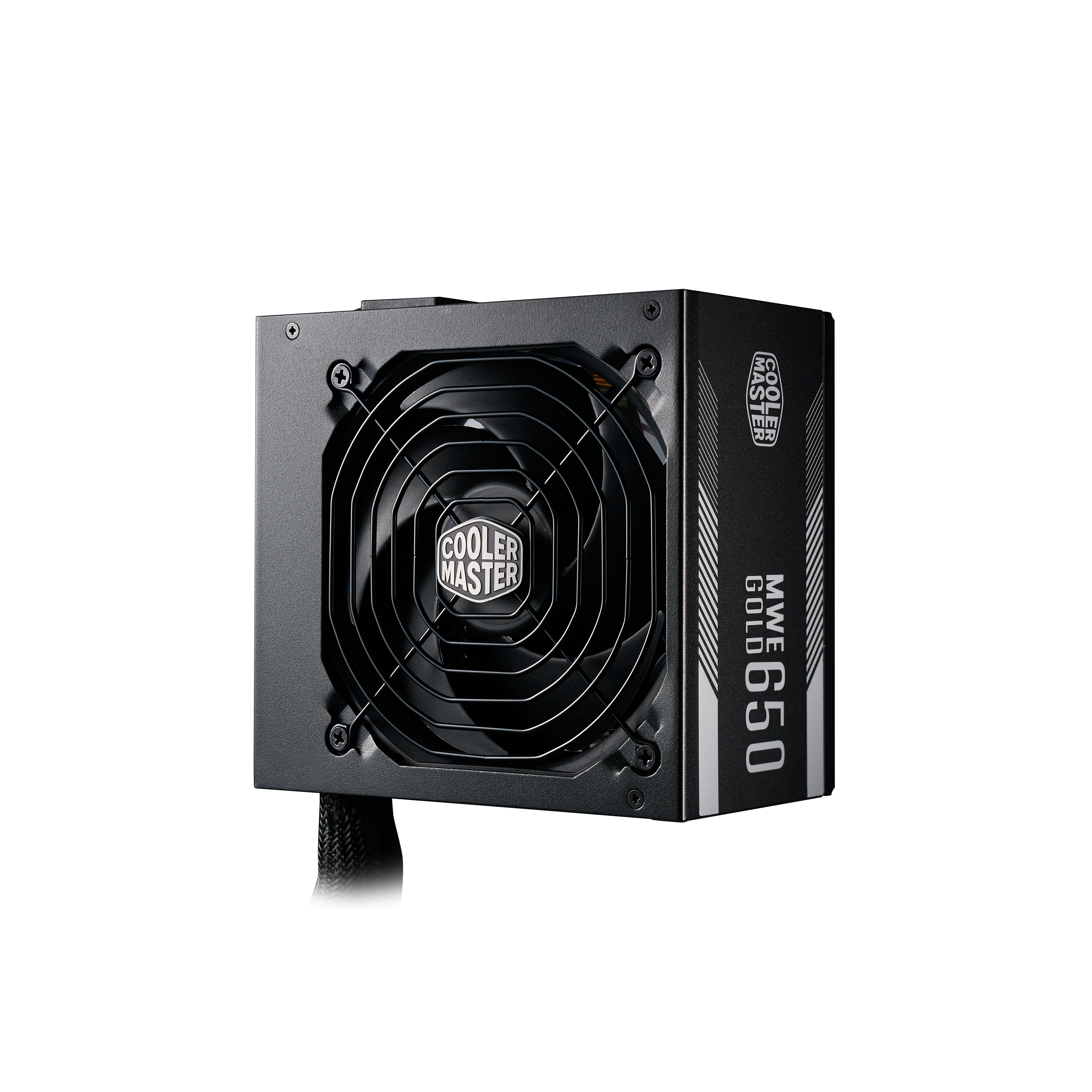

MWE Gold 650 image number 3

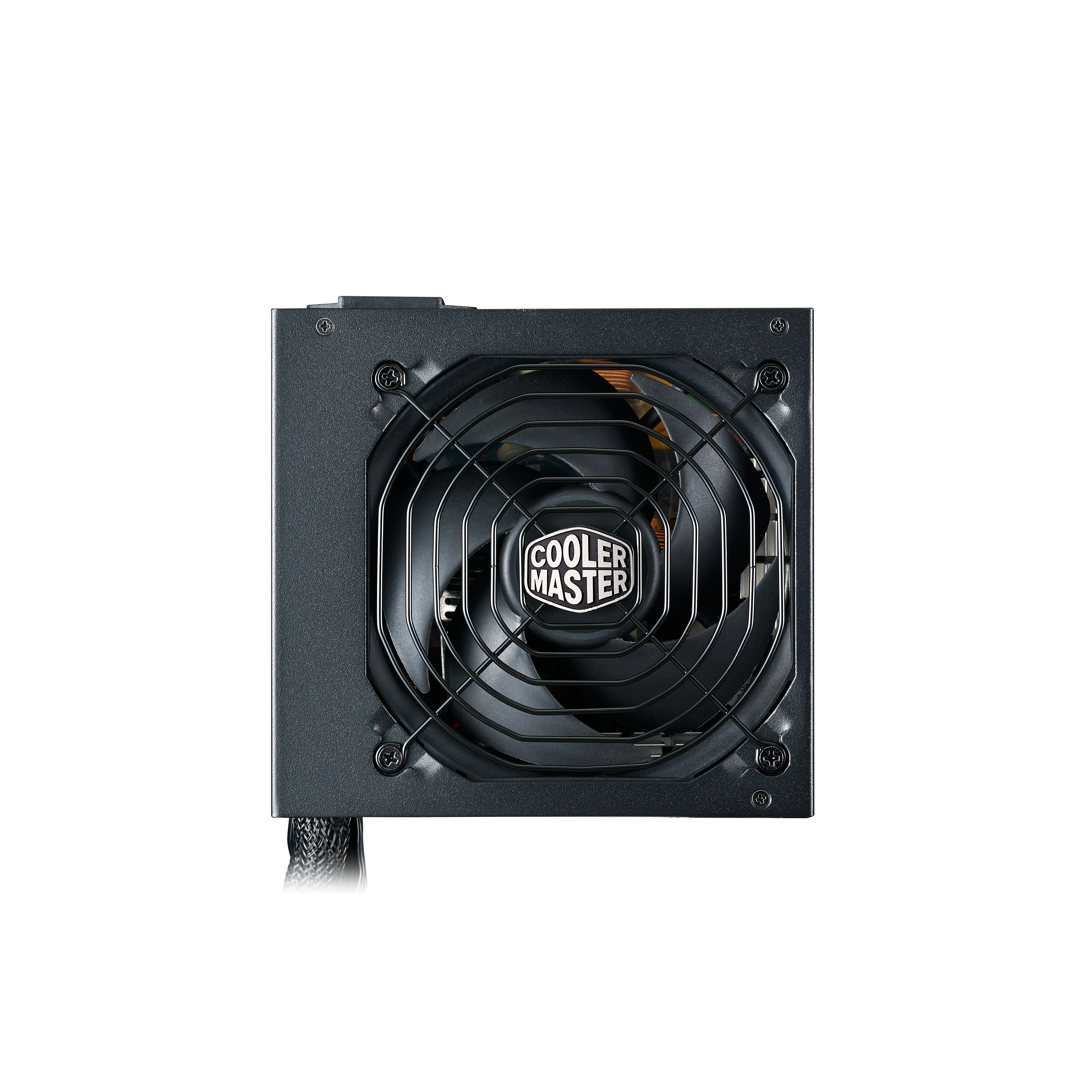

MWE Gold 650 image number 4

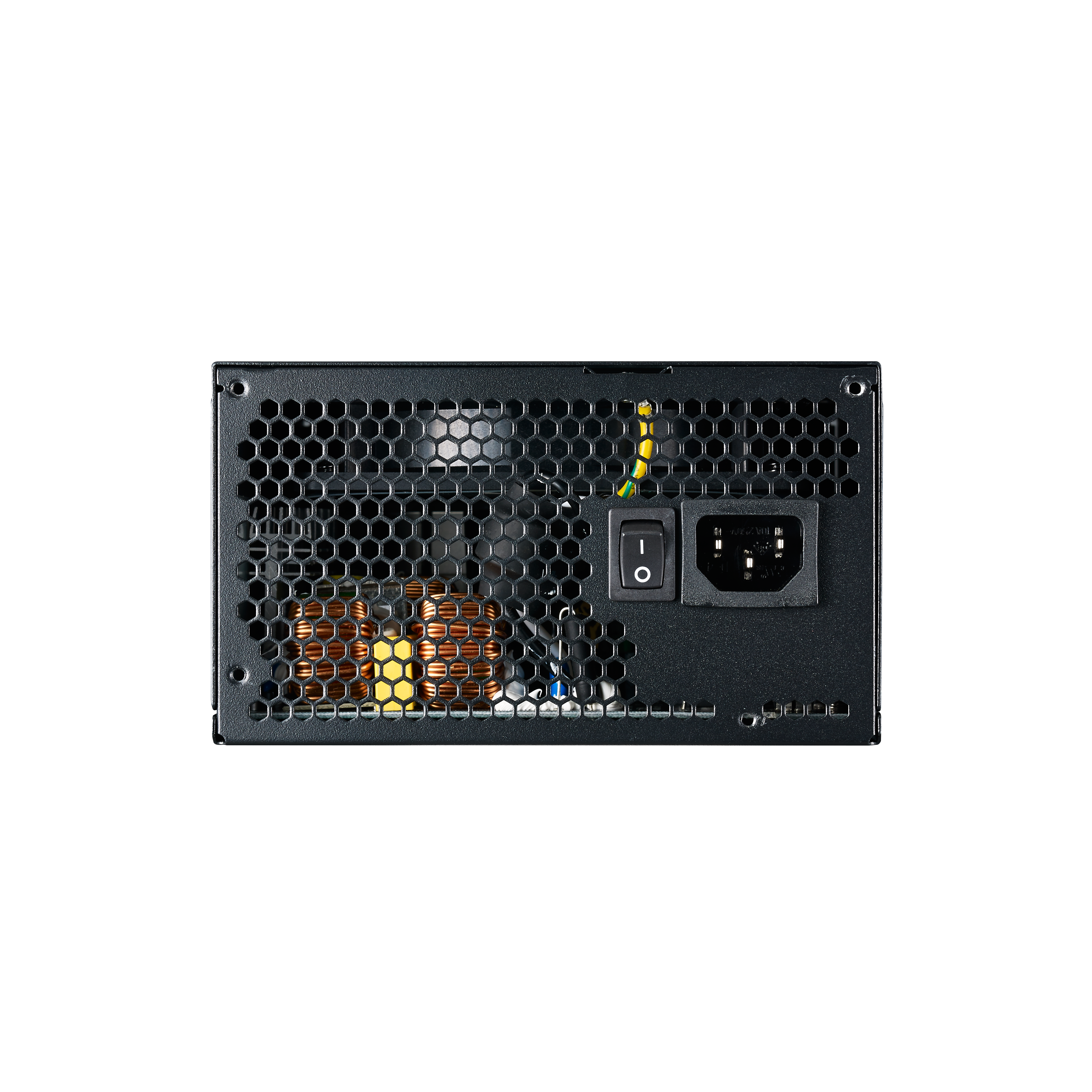

MWE Gold 650 image number 5

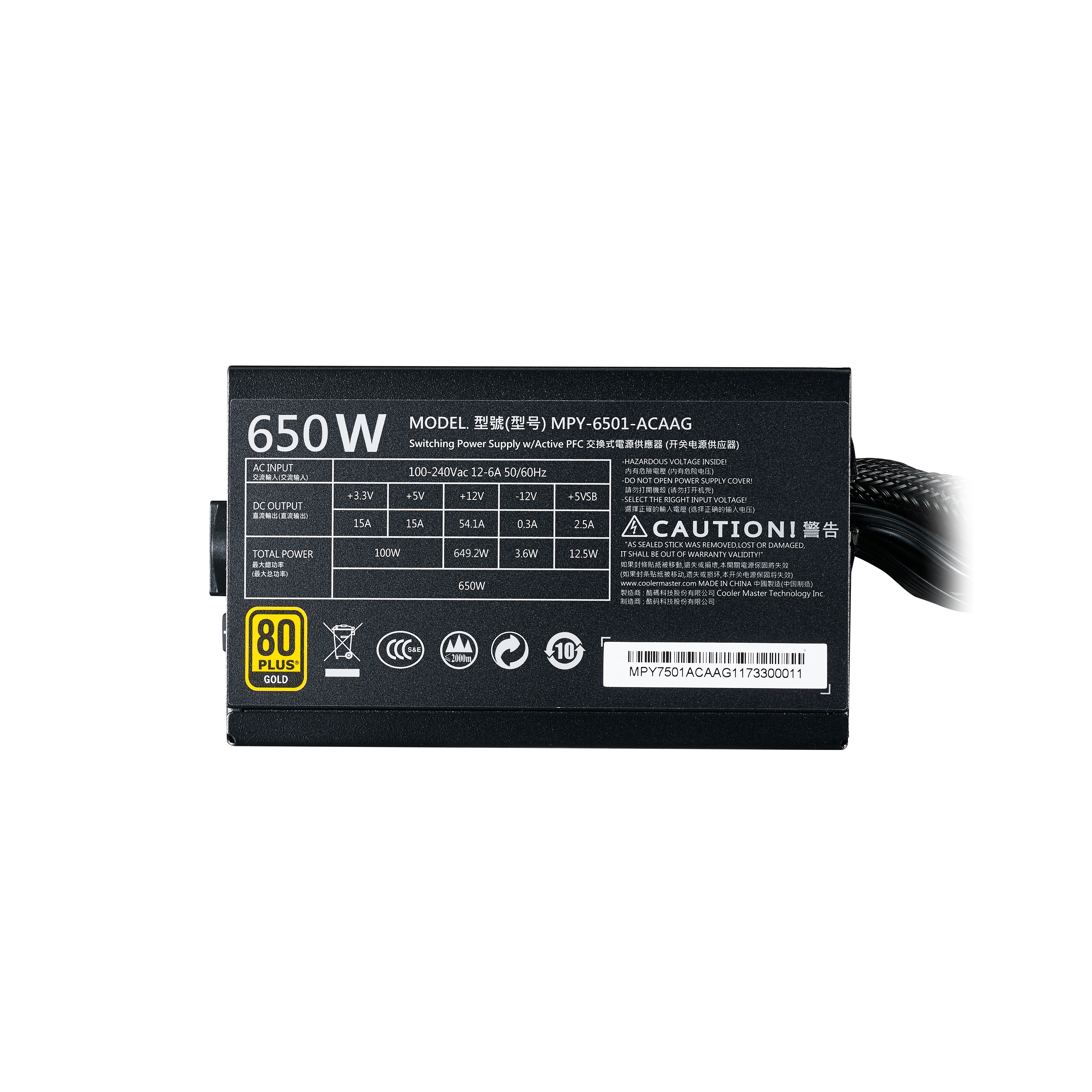

MWE Gold 650 image number 6

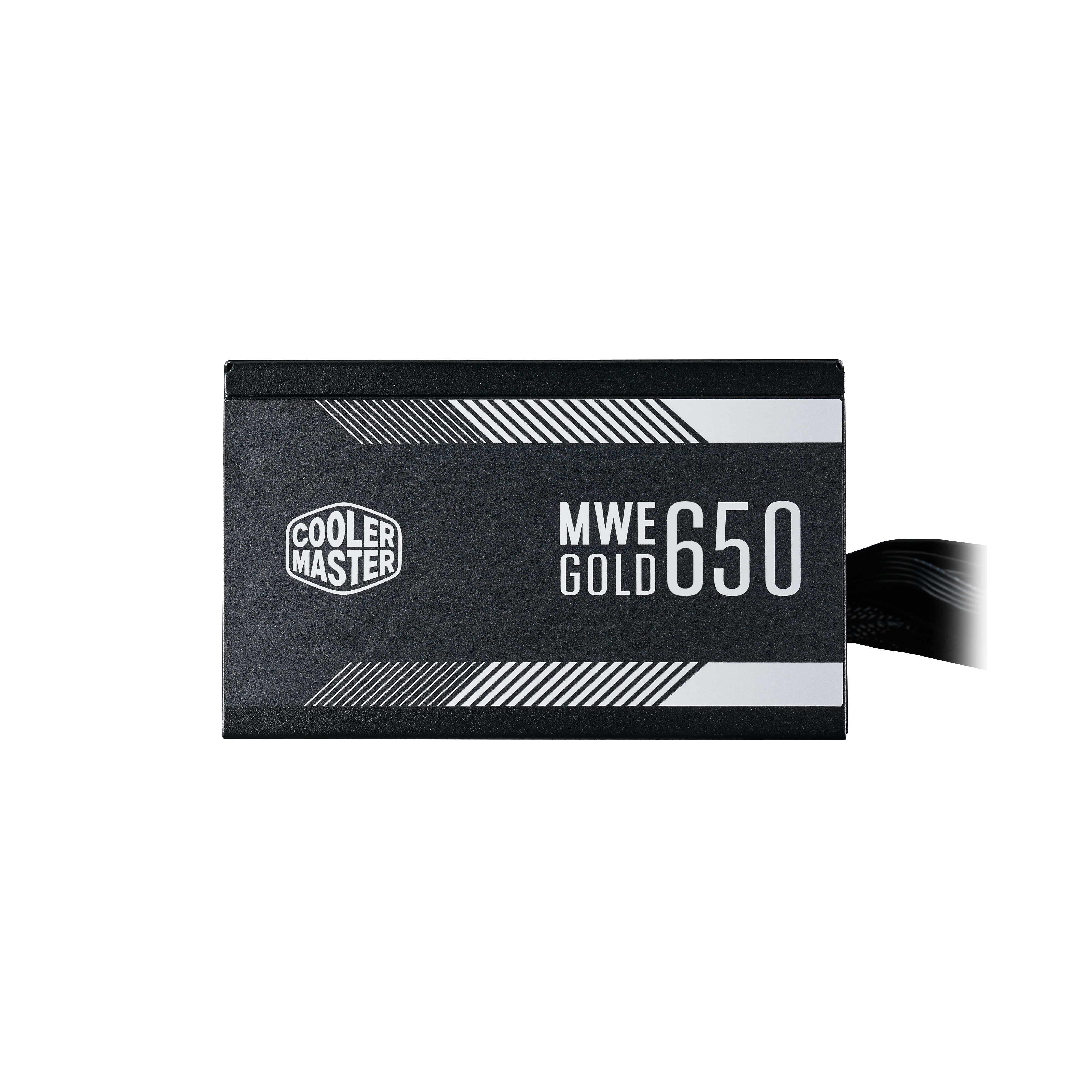

MWE Gold 650 image number 7

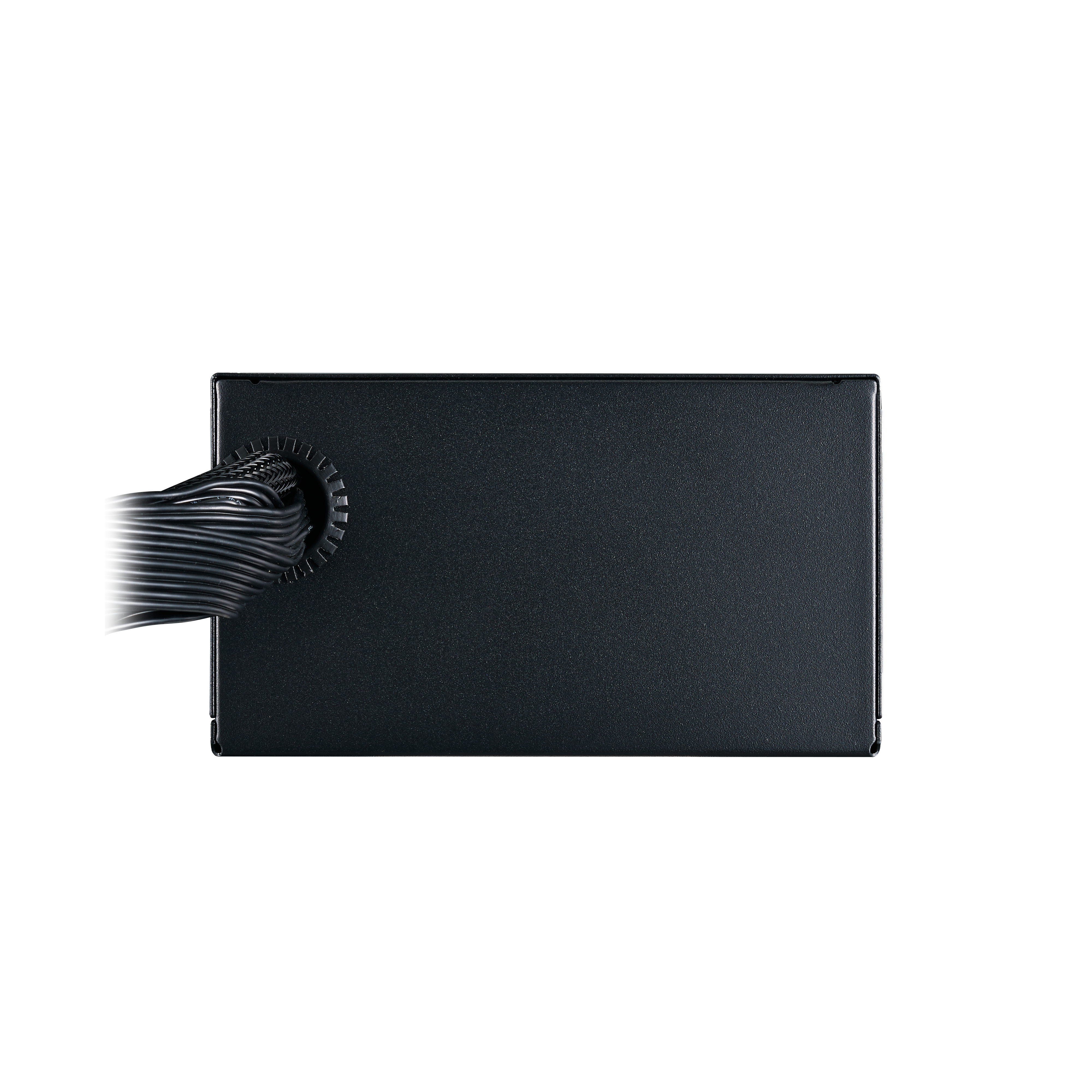

MWE Gold 650 image number 8

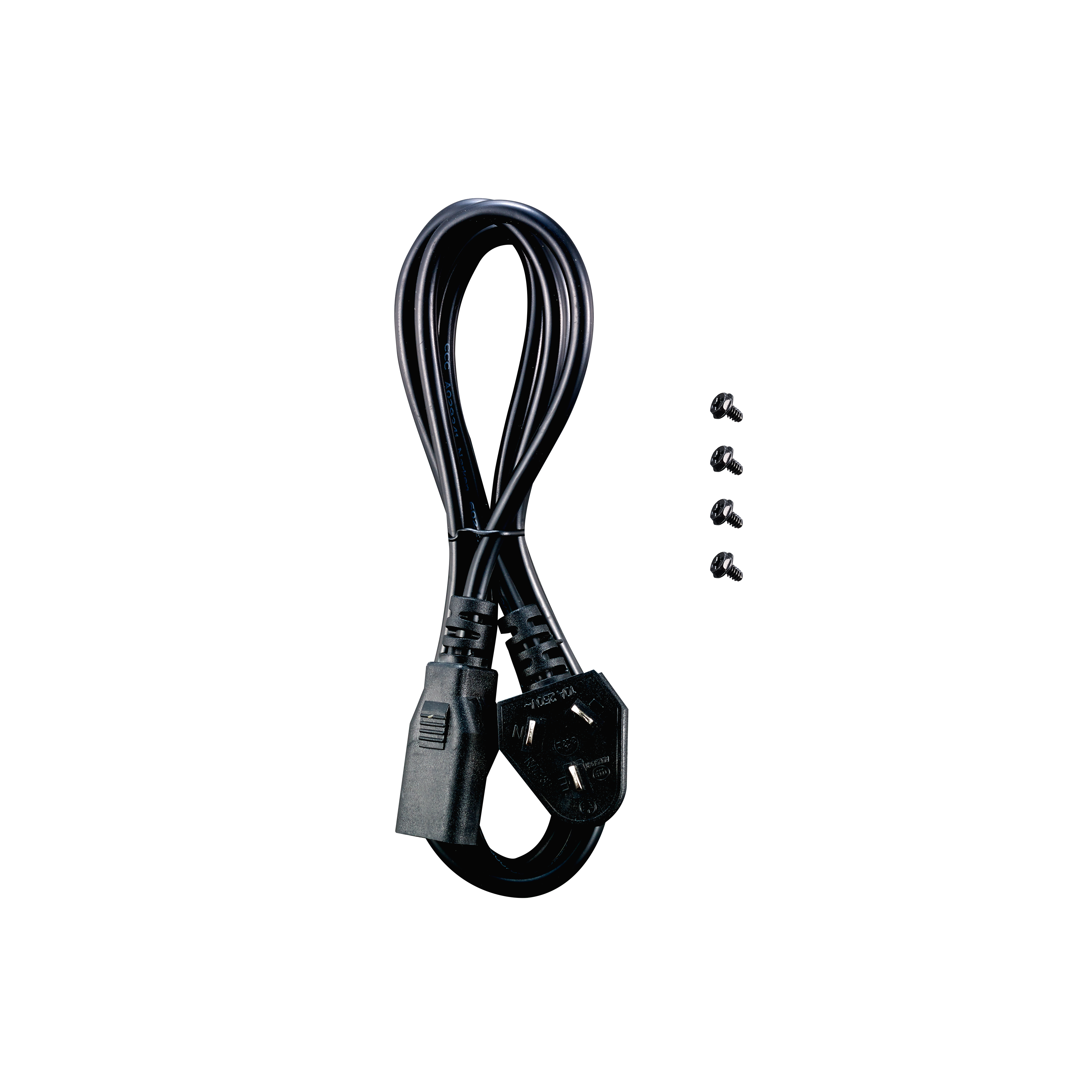

MWE Gold 650 image number 9

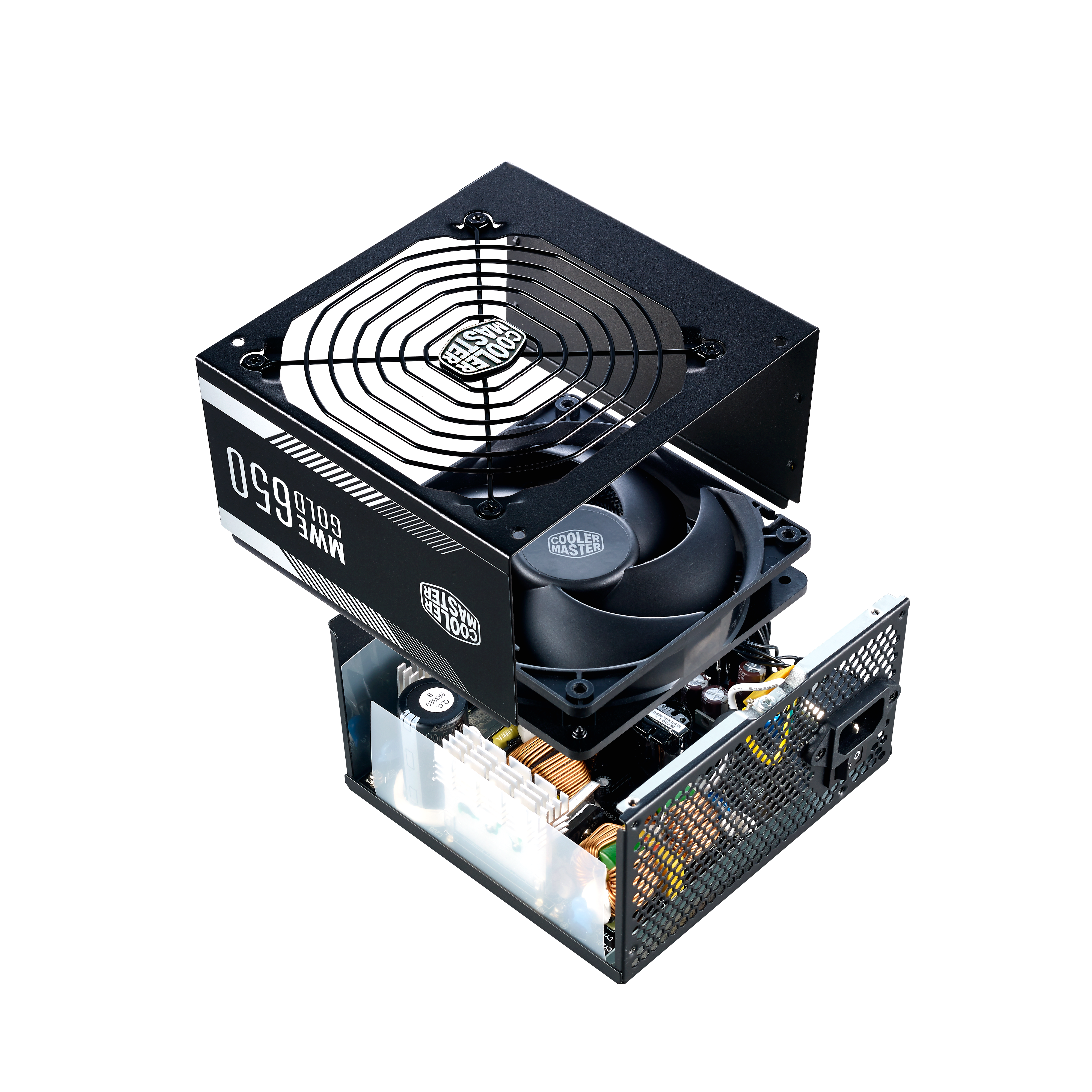

MWE Gold 650 image number 10
MWE Gold 650
MWE Gold 650
MWE Gold 650
MWE Gold 650
MWE Gold 650
MWE Gold 650
MWE Gold 650
MWE Gold 650
MWE Gold 650
MWE Gold 650
MWE Gold 650

Be Bold, Power With Gold

MWE Gold 650

• 80 Plus Gold Certified

• 120mm LDB Fan

• Advanced Circuitry

• Flat & Flexible Cables

• 5 Year Warranty

Specifications

  • Input Frequency 50-60Hz
  • ErP 2013 Lot 6 Yes
  • FDD Cable 4 Pin Connectors 1
  • MB 24 Pin Connectors 1
  • CPU 12V 8 Pin Connectors 1
  • CPU 12V 4+4 Pin Connectors 1
  • Fan Size 120mm
  • Fan Bearing LDB
  • Power Good Signal 100 - 500 ms
  • MTBF >100,000 hours @ 25℃ ambient
  • PFC Active PFC (>0.95 Typical)
  • Category 500 to 750W
  • Operating Temperature 0-45°C
  • 80 Plus Efficiency Gold
  • Modular Non Modular
  • ATX Version ATX 12V V2.31
  • SATA Connectors 8
  • Peripheral 4 Pin Connectors 6
  • PCI-e 6+2 Pin Connectors 750W / 850W: x4 = 2x (600+120mm)​ 1000W: x3 = 3x (600mm)
  • Input Voltage 100-240V
  • Series MWE Gold Series
  • Protections OVP
  • Hold Up Time >14ms at 100% load
  • Efficiency 90% Typically
  • Protections OPP
  • Model MPY-6501-ACAAG
  • Protections SCP
  • Dimensions (L x W x H) 140 x 150 x 86 mm
  • Protections UVP
  • Protections OTP
  • Product Name MWE Gold 650
  • Protections OCP
  • Regulatory CCC
  • Regulatory CE
  • Regulatory RCM
  • Input Current 12-6A
  • Regulatory EAC
  • Regulatory cTUVus
  • Regulatory FCC
  • Regulatory BSMI
  • Regulatory CB
  • Regulatory TUV-SUD
