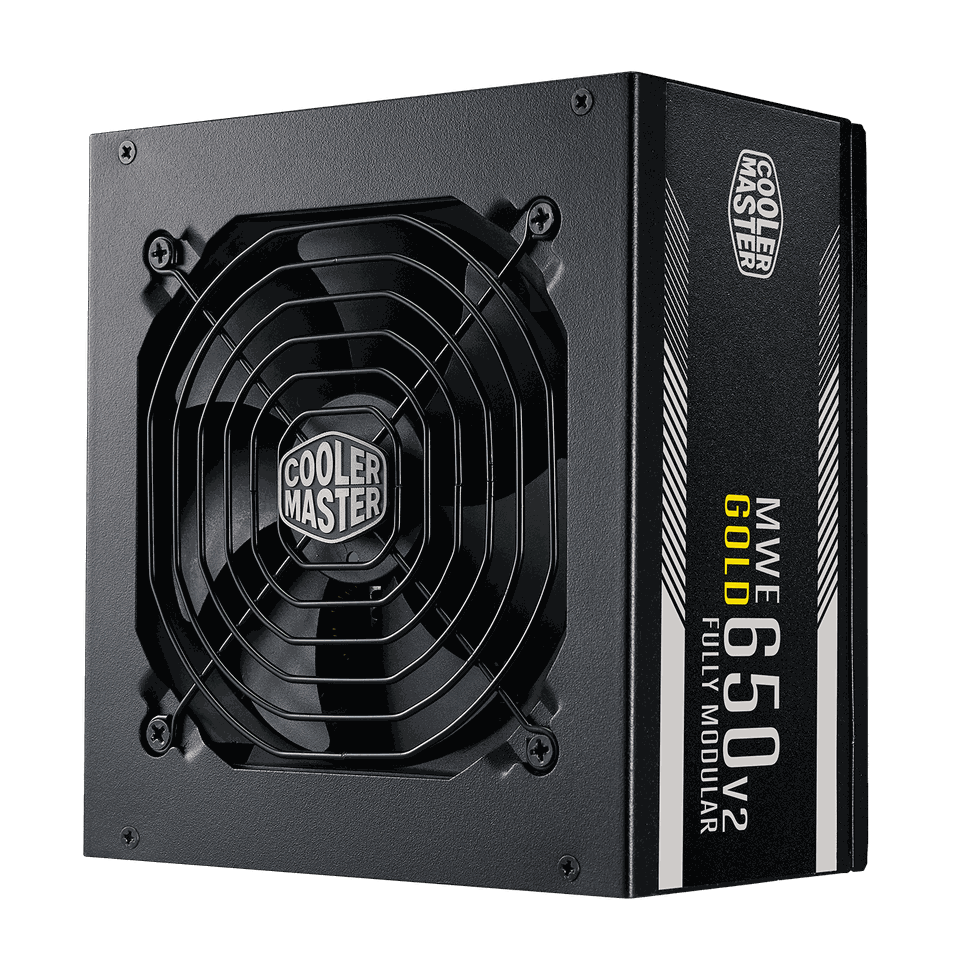

MWE Gold 650 - V2 Full Modular

Specifications

• Modular Fully Modular
• PFC Active PFC
• ErP 2014 Lot 3 Yes
• ATX 24 Pin Connectors 1
• EPS 4+4 Pin Connectors x1 = 1x (700mm)1
• EPS 8 Pin Connector x1 = 1x (700mm)
• Noise Level @ 20% 0 dBA
• Power Good Signal 100 - 150 ms
• 80 PLUS Rating 80 PLUS Gold
• Noise Level @ 100% 23.4 dBA
• Category 500 to 750W
• Fan Size 120mm
• MTBF >100,000 hours @ 25℃ ambient
• Input Frequency 47-63Hz
• Fan Bearing HDB
• 80 Plus Efficiency Gold
• Operating Temperature 0-50°C
• SATA Connectors 8
• PCI-e 6+2 Pin Connectors 750W / 850W: x4 = 2x (600+120mm)​ 1000W: x3 = 3x (600mm)
• Input Voltage 100-240V
• Peripheral 4 Pin Connectors 4
• Fan Speed 1500 RPM
• Series MWE Gold Series
• Protections OVP
• Protections OPP
• ATX Version ATX 12V Ver. 2.41
• Protections SCP
• Protections UVP
• Protections OTP
• Protections OCP
• Input Current 8-4A
• Hold Up Time >16ms at 100% Load
• Noise Level @ 50% 17.9 dBA
• Dimensions (L x W x H) 140 x 150 x 86 mm
• Regulatory CCC
• Regulatory CE
• Regulatory RCM
• Regulatory EAC
• Efficiency ≥90% @ Typical Load
• Regulatory cTUVus
• Regulatory FCC
• Regulatory BSMI
• Regulatory TUV
• Regulatory BIS
• Regulatory UKCA
• Model MPE-6501-AFAAG
