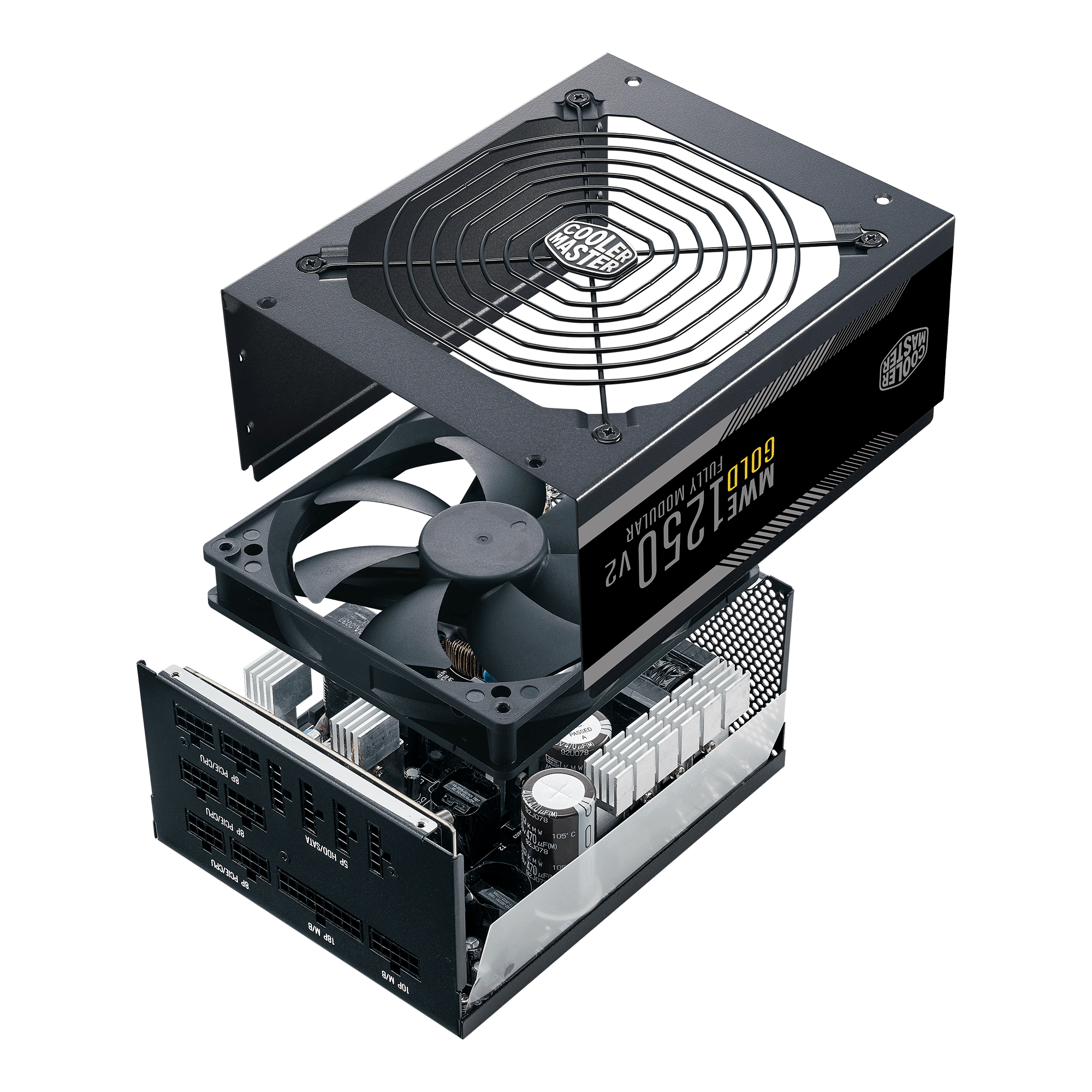

The MWE Gold V2 1250 has been upgraded with a 140mm FDB fan. The fan bearing delivers quiet and effective cooling solutions with longer lifespan.
Full Modular 80 Plus Gold PSU

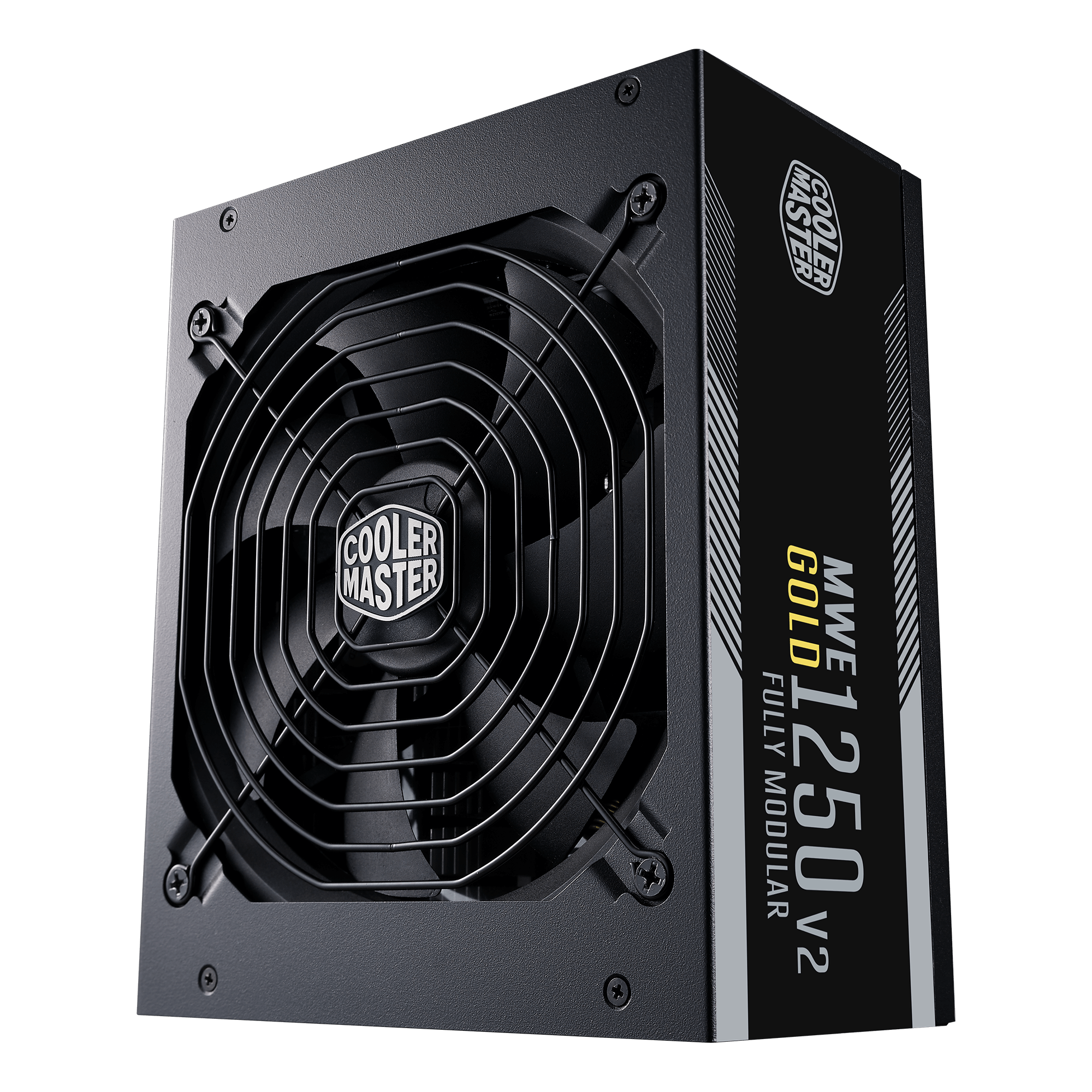

MWE Gold 1250 - V2 Full Modular
80 PLUS Gold Efficiency
RTX Ready
140mm Silent Fan

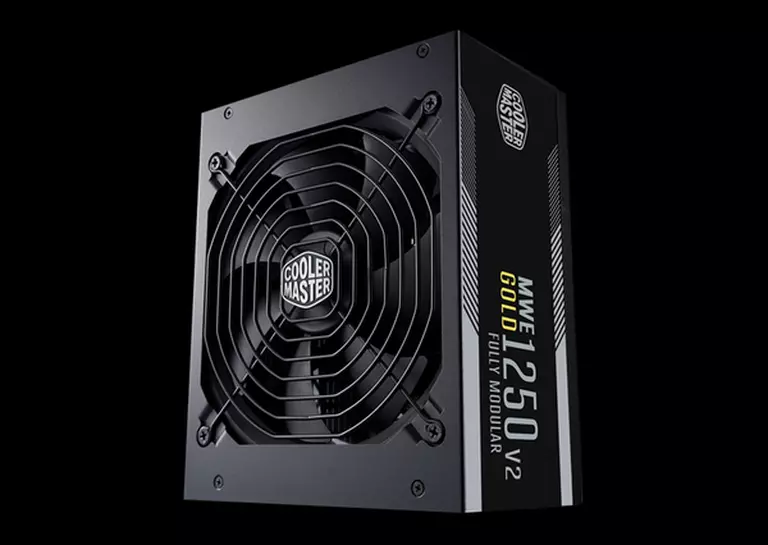

High Temperature Resilience

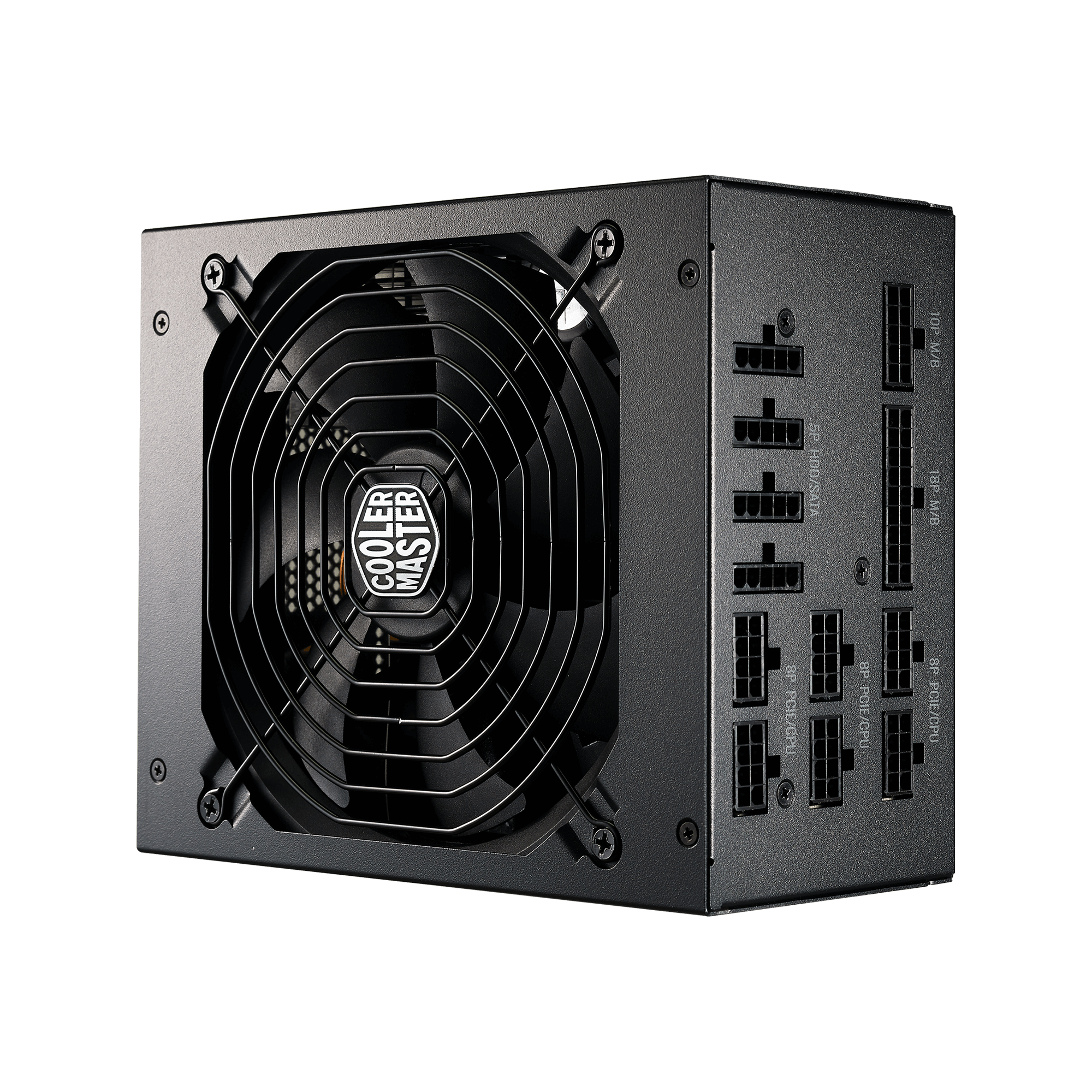

Full Modular Cabling
10 Year Warranty

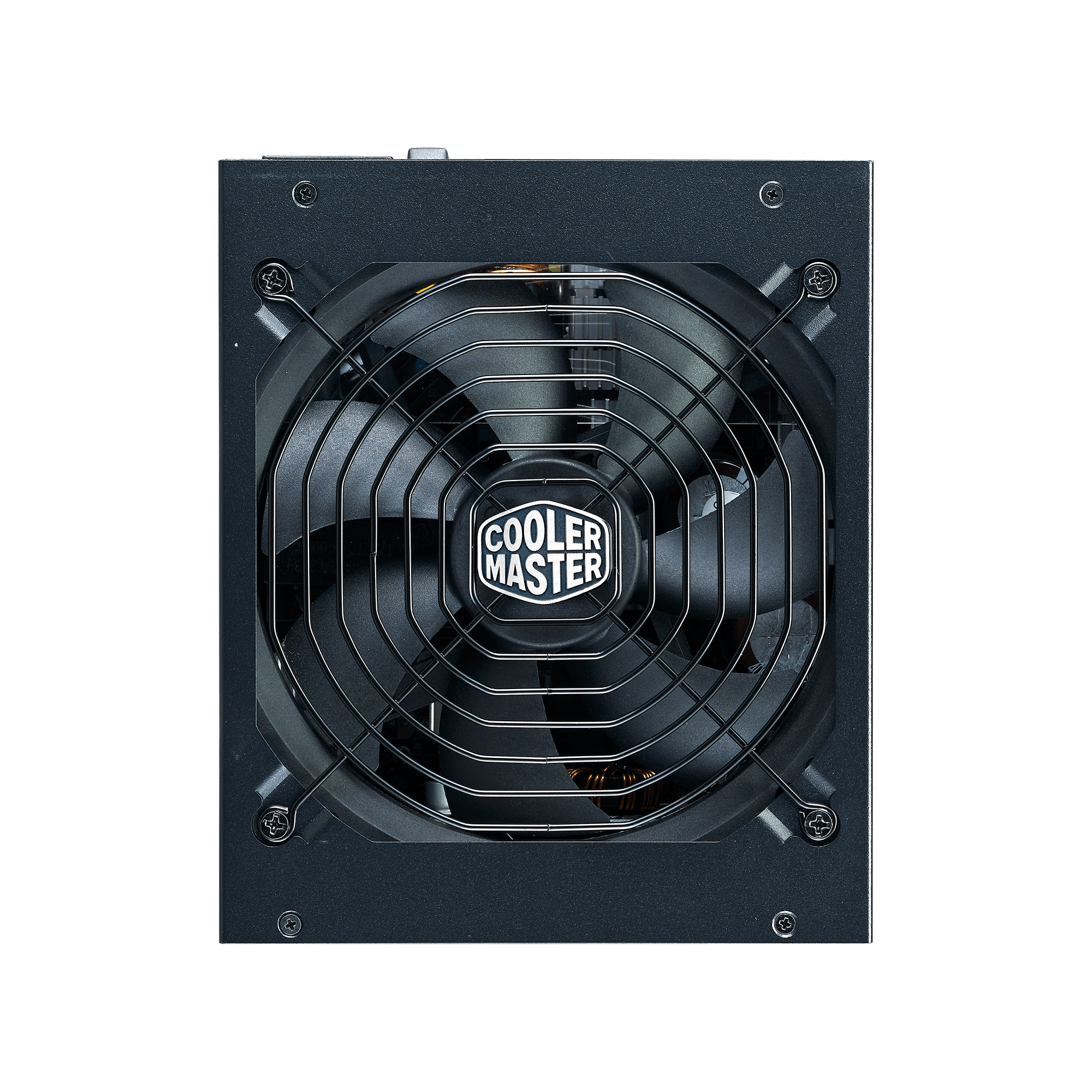

Quiet Cooling

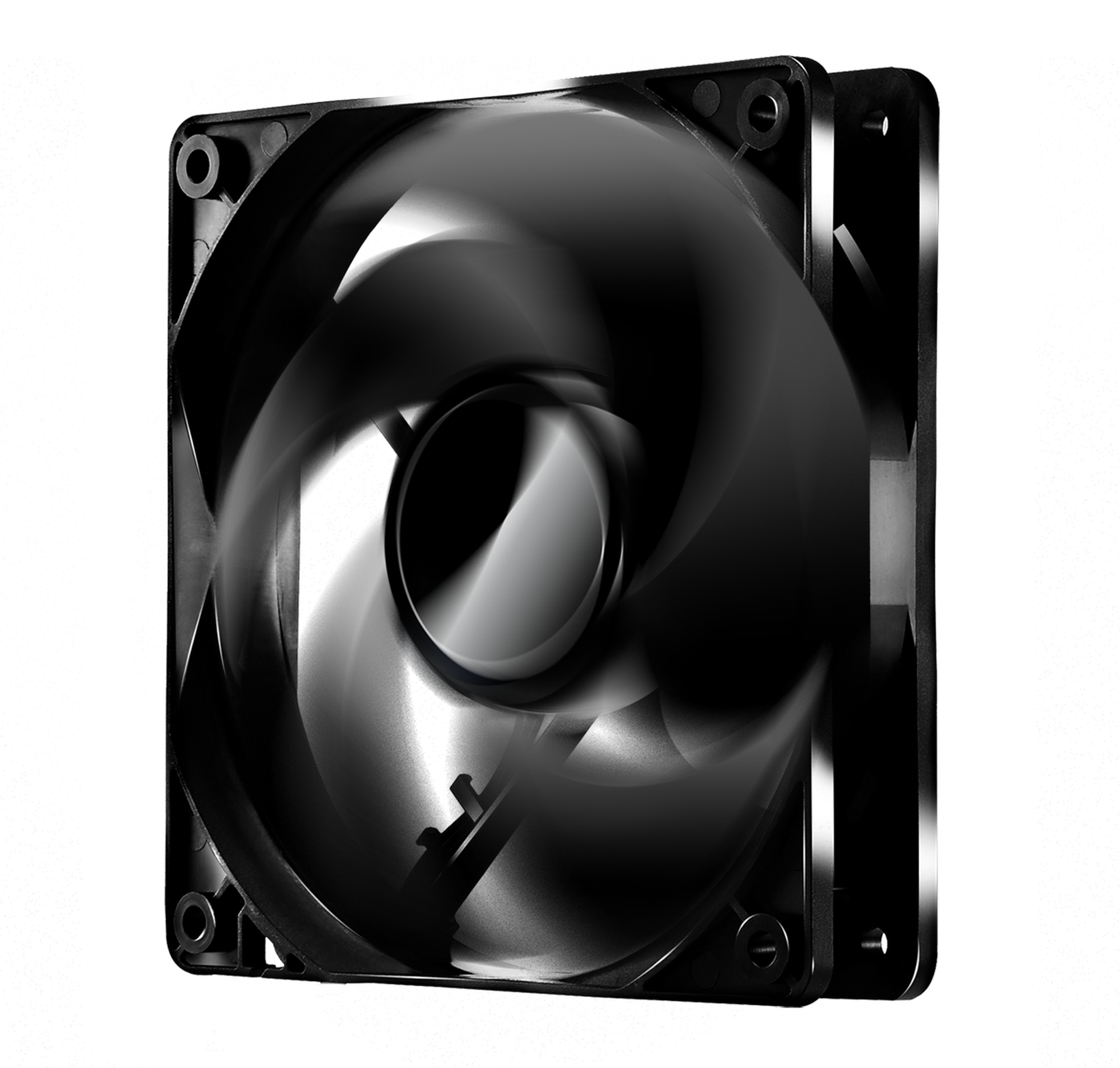

Silence Fan with Smart Temp. Controlling Feature
MWE Gold 1050 & 1250 are equipped with a 140mm silence fan with smart temperature controlling feature. The fan supports 0 RPM to achieve 0 noise based on the scenario.
RTX Ready

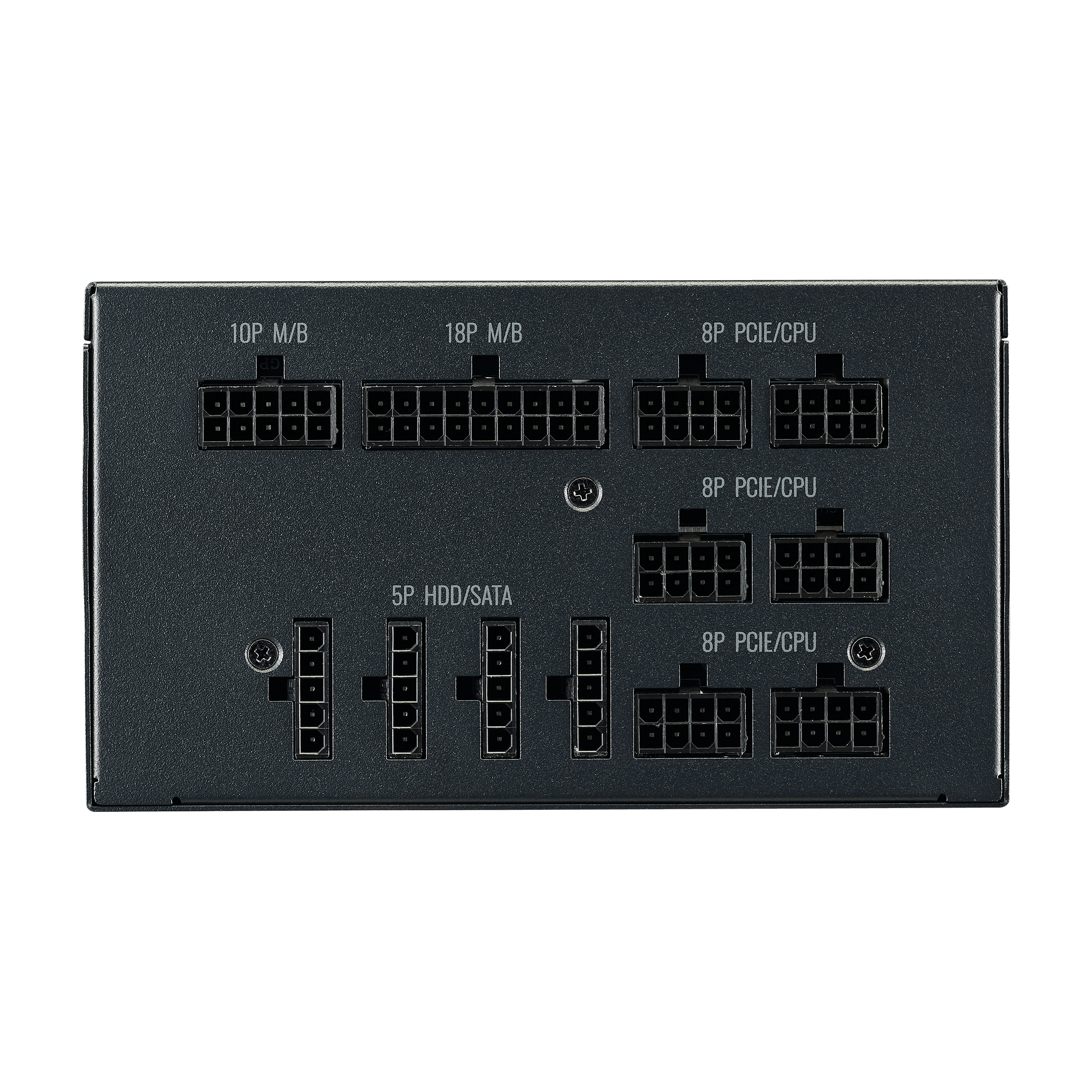

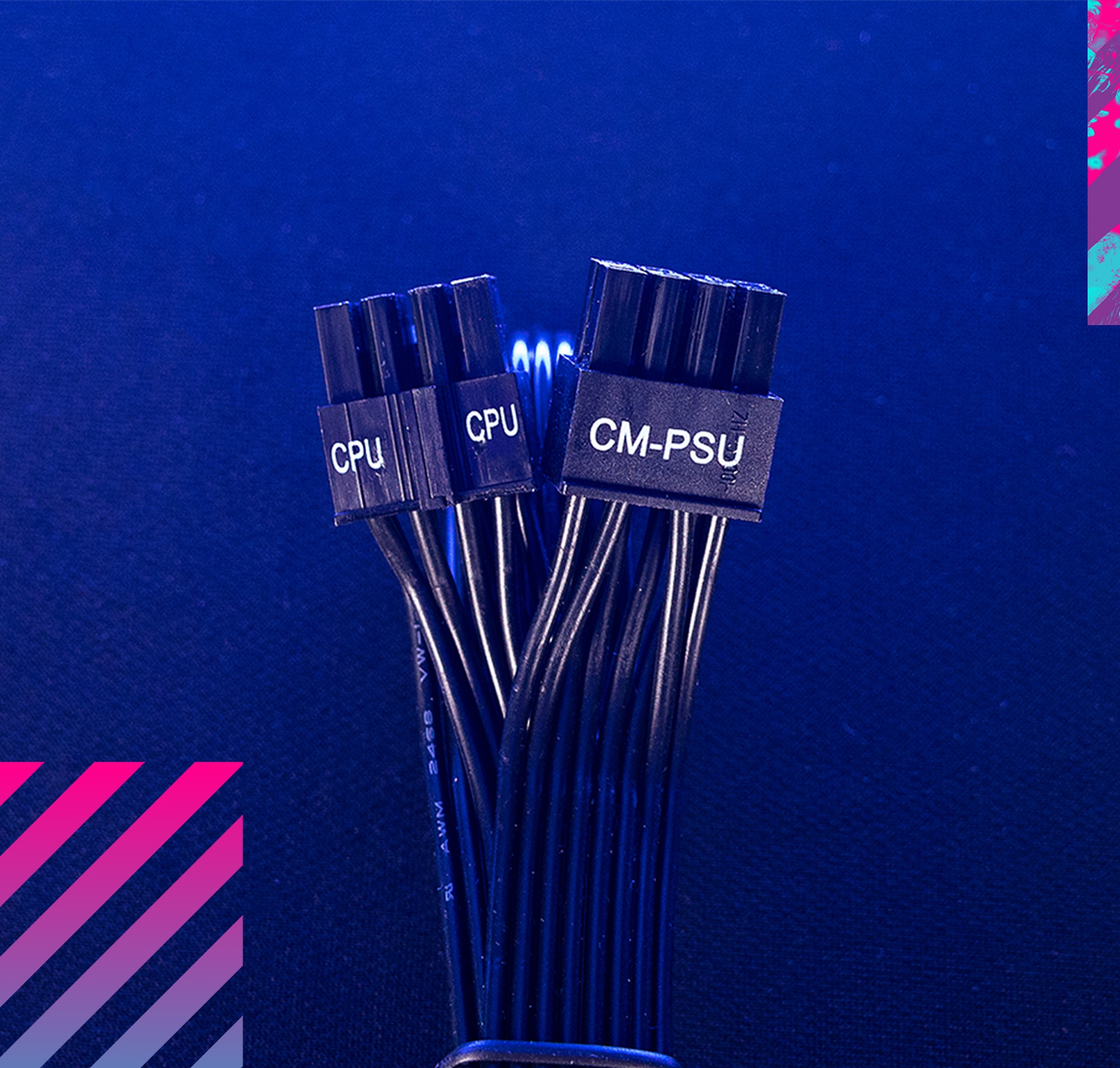

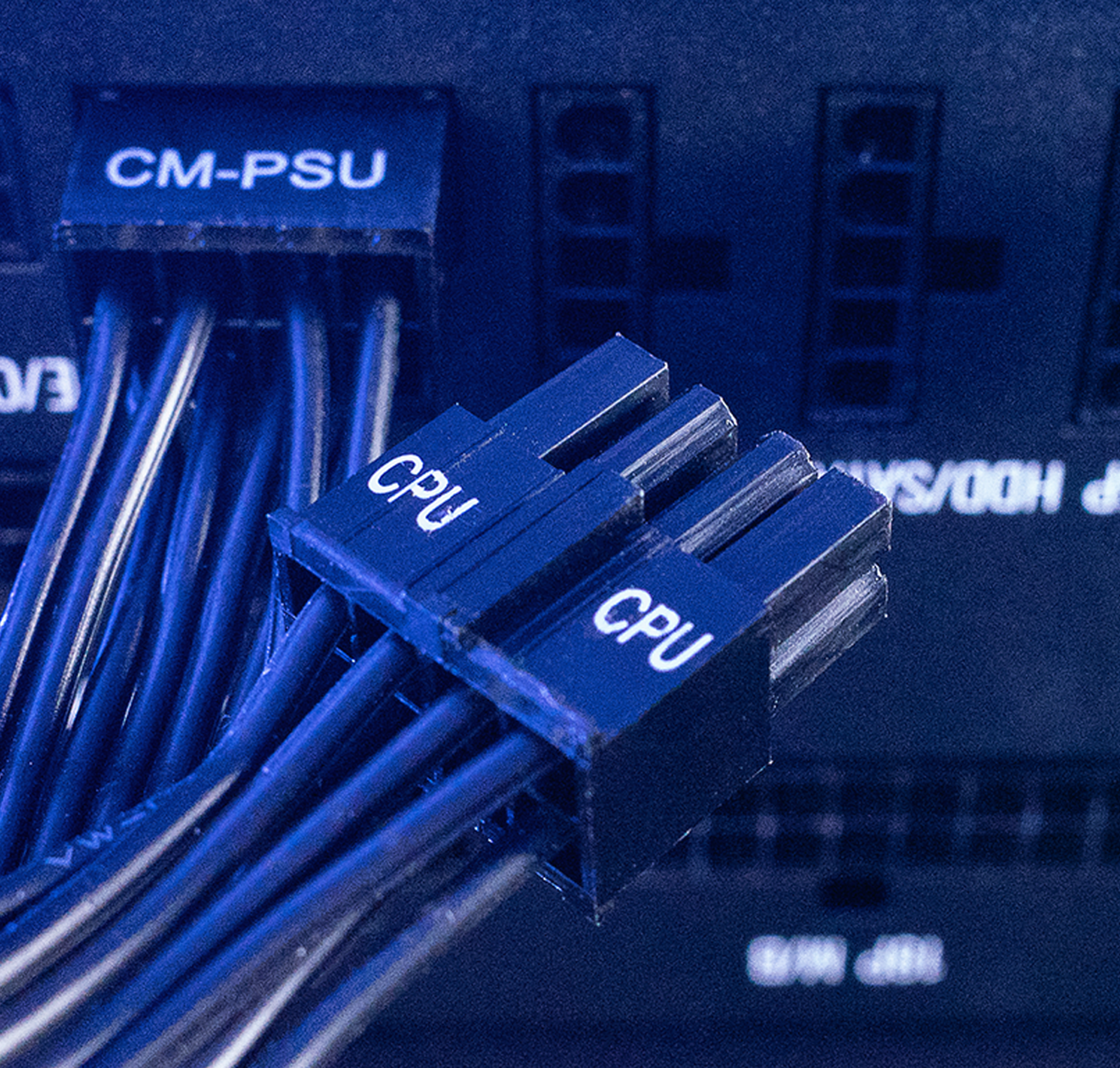

Full Modular Cabling
80 PLUS Gold Certified
Specifications

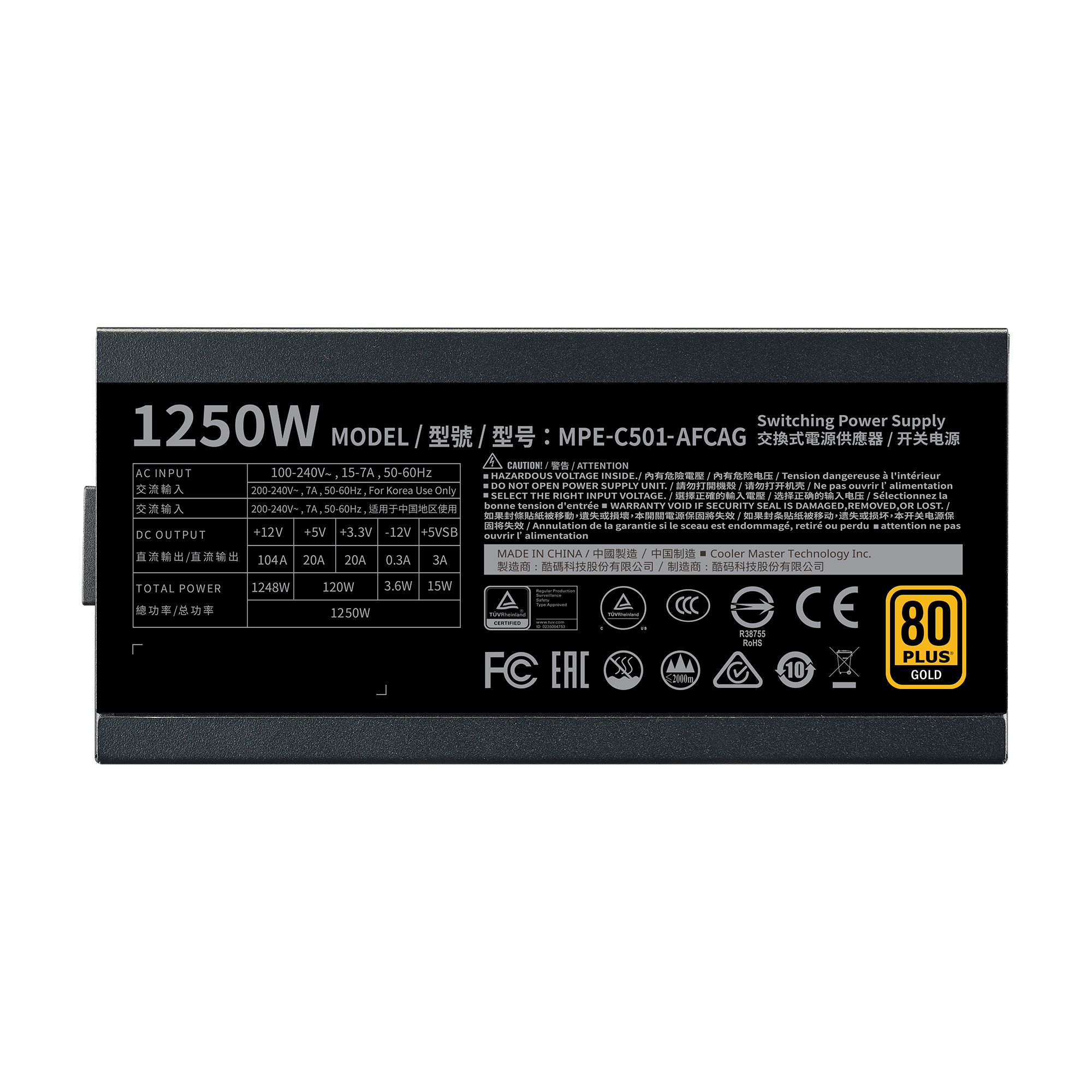

- Model MPE-C501-AFCAG
- ATX Version ATX 12V V2.52
- PFC Active PFC
- Input Voltage 100-240V
- Input Current 15-7A
- Input Frequency 47-63Hz
- Dimensions (L x W x H) 180 x 150 x 86 mm
- Fan Size 140mm
- Fan Bearing FDB
- Fan Speed 2200 RPM
- Noise Level @ 20% 0 dBA
- Noise Level @ 50% 15.8 dBA
- Noise Level @ 100% 30.1 dBA
- Efficiency ≥90% @ Typical Load
- 80 PLUS Rating 80 PLUS Gold
- ErP 2014 Lot 3 Yes
- Operating Temperature 0-50°C
- Power Good Signal 100 - 150 ms
- Hold Up Time >20ms at 100% Load
- MTBF >100,000 Hours
- Protections UVP / OVP / OPP / OTP / SCP / OCP
- Regulatory TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, CB, UKCA
- ATX 24 Pin Connectors 1
- EPS 4+4 Pin Connectors 1
- EPS 8 Pin Connector 1
- SATA Connectors 12
- Peripheral 4 Pin Connectors 4
- PCI-e 6+2 Pin Connectors 8
- Warranty 10 Years
- Series MWE Gold Series
- Category Above 750W
- Modular Fully Modular
- 80 Plus Efficiency Gold
Downloads
- Product Sheet Download
