80 PLUS Bronze Certified Power Supply

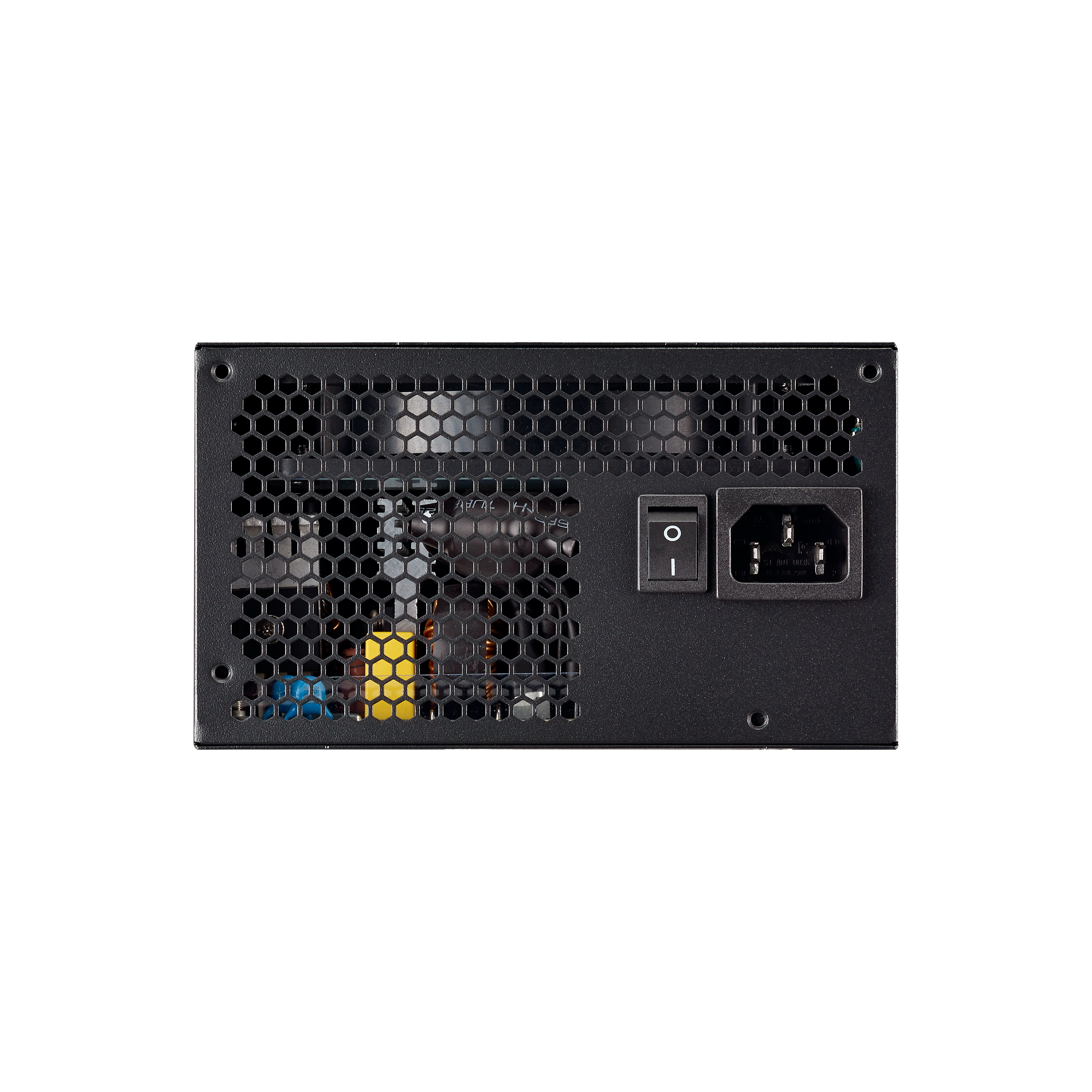

MWE Bronze 550
80 PLUS Bronze
Quality Capacitors
Durable LDB Bearing
Low Standby Power Consumption

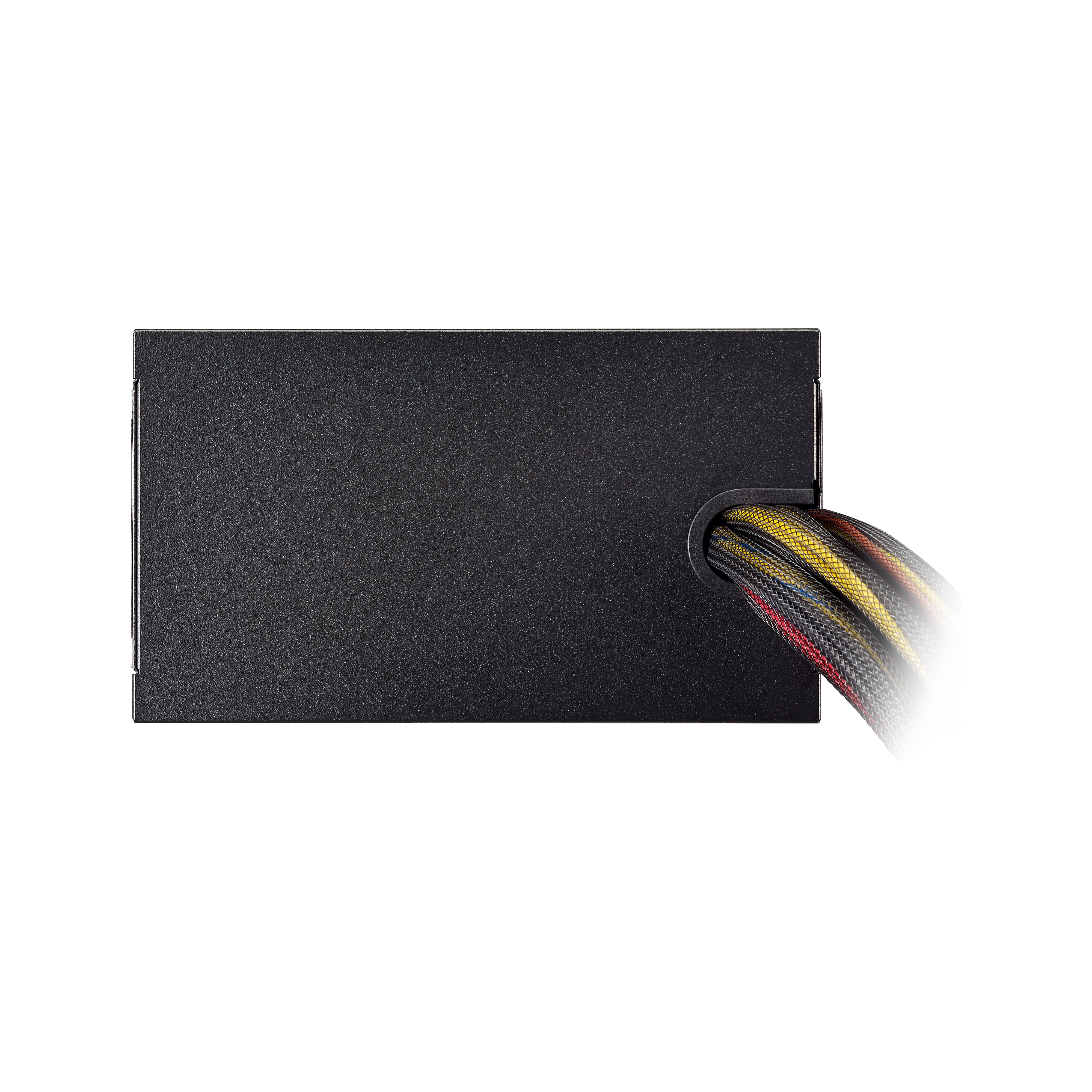

Sleeved Cables
- PFC Active PFC
- Input Frequency 50-60Hz
- Operating Temperature 0-40°C
- Operation Voltage 100-240Vac
- ErP 2013 Lot 6 Yes
- MB 20+4 Pin Connectors 1
- FDD Cable 4 Pin Connectors 1
- MTBF >100,000 Hours
- CPU 12V 4+4 Pin Connectors 1
- Power Good Signal 100 - 500 ms

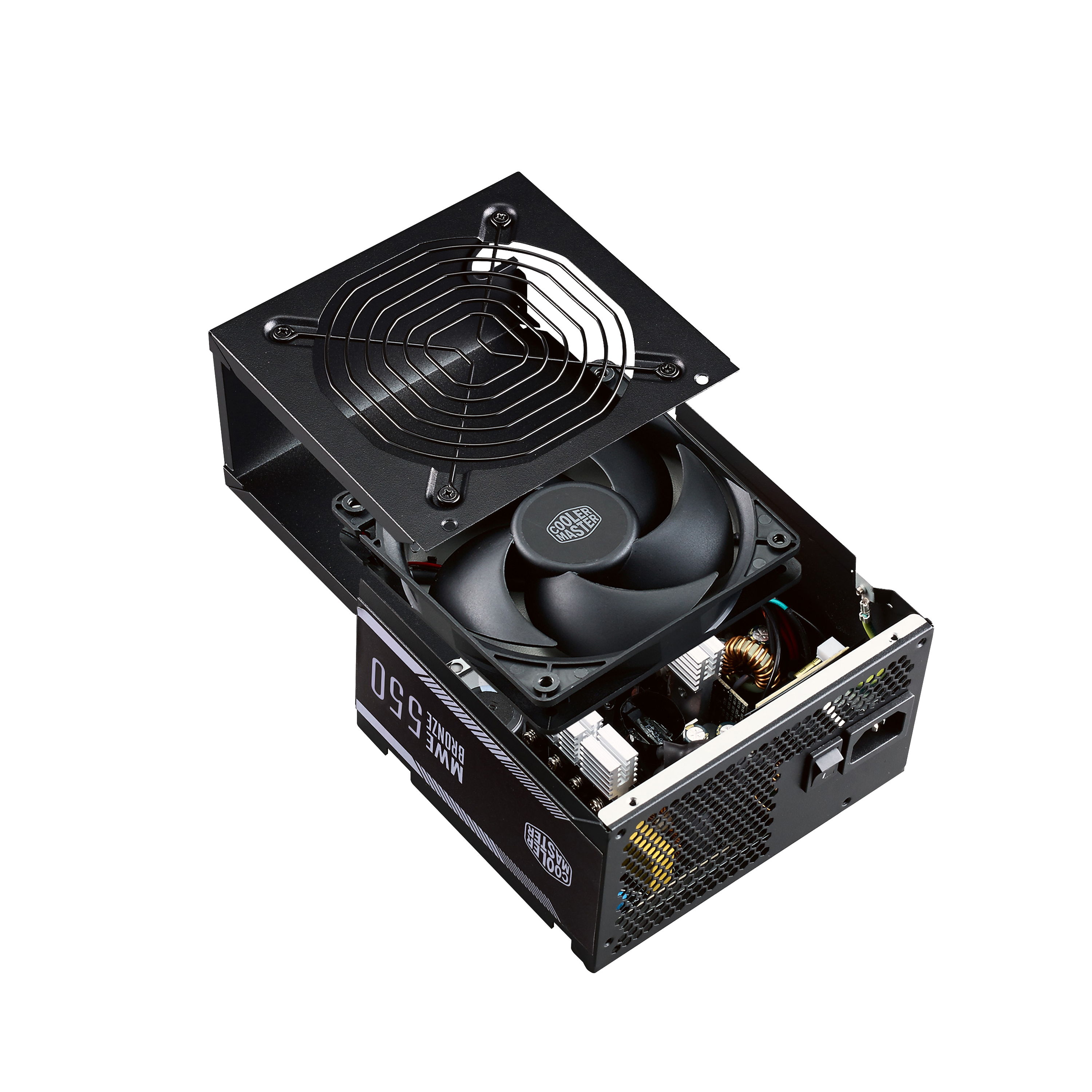

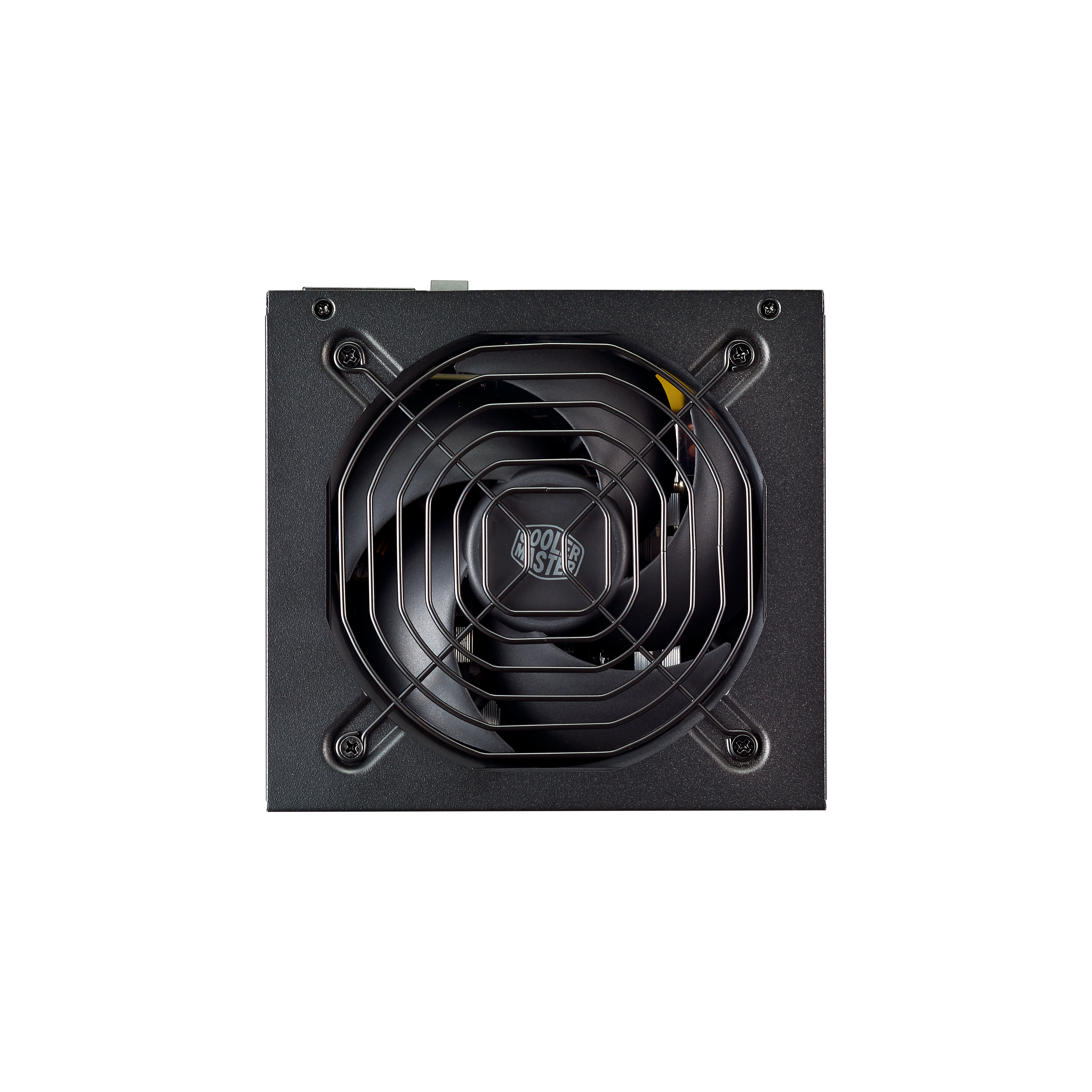

- Fan Size 120mm
- Fan Bearing LDB
- Category 500 to 750W
- Modular Non Modular
- ATX Version ATX 12V V2.31
- 80 Plus Efficiency Bronze
- Efficiency 85% Typically
- Input Voltage 100-240Vac
- PCI-e 6+2 Pin Connectors 2
- Peripheral 4 Pin Connectors 3
- Protections OVP
- Series MWE Bronze Series
- Protections OPP
- SATA Connectors 4
- Dimensions (L x W x H) 140 x 150 x 86 mm
- Protections SCP
- Hold Up Time 16ms at 80% Load
- Protections OTP
- Protections OCP
- Model MPX-5501-ACAAB
- Input Current 8-4A
- Regulatory CCC
- Product Name MWE Bronze 550
- Regulatory CE
- Regulatory TUV-RH
- Regulatory RCM
- Regulatory EAC
- Regulatory cTUVus
- Regulatory FCC
- Regulatory BSMI
- Regulatory KC
