80 Plus Bronze Certified 230V Power Supply Unit
MWE 650 Bronze - V2 230V
DC-to-DC + LLC Circuit Design
High Temperature Resistance
Peak Power Tolerance
80 PLUS Bronze 230V EU Certified
Durable, Reliable, and Safe
5 Year Warranty
Specifications
- ErP 2014 Lot 3 Yes
- PFC Active PFC
- Input Frequency 50-60Hz
- ATX 24 Pin Connectors 1
- EPS 4+4 Pin Connectors x1 = 1x (700mm)1
- EPS 8 Pin Connector x1 = 1x (700mm)
- Fan Size 120mm
- Category 500 to 750W
- Power Good Signal 100 - 500 ms
- MTBF >100,000 hours @ 25℃ ambient
- Modular Non Modular
- Fan Bearing HDB
- 80 Plus Efficiency Bronze
- PCI-e 6+2 Pin Connectors 750W / 850W: x4 = 2x (600+120mm) 1000W: x3 = 3x (600mm)
- SATA Connectors 6
- Efficiency 88% Typically
- 80 PLUS Rating 80 PLUS Bronze EU 230V
- ATX Version ATX 12V V2.52
- Series MWE Bronze Series
- Peripheral 4 Pin Connectors 3
- Protections OVP
- Protections OPP
- Protections SCP
- Dimensions (L x W x H) 140 x 150 x 86 mm
- Hold Up Time >14ms at 100% Full Load@230Vac
- Protections UVP
- Protections OTP
- Fan Speed 2400 RPM
- Regulatory CCC
- Input Current 750W / 850W: 10 – 6 A | 1000W: 15 – 8 A
- Input Voltage 200-240Vac
- Regulatory CE
- Regulatory TUV-RH
- Regulatory RCM
- Noise Level @ 20% 16.54 dBA
- Regulatory EAC
- Regulatory cTUVus
- Regulatory FCC
- Regulatory BSMI
- Regulatory KC
- Regulatory CB
- Noise Level @ 50% 26.5 dBA
- Noise Level @ 100% 42.5 dBA

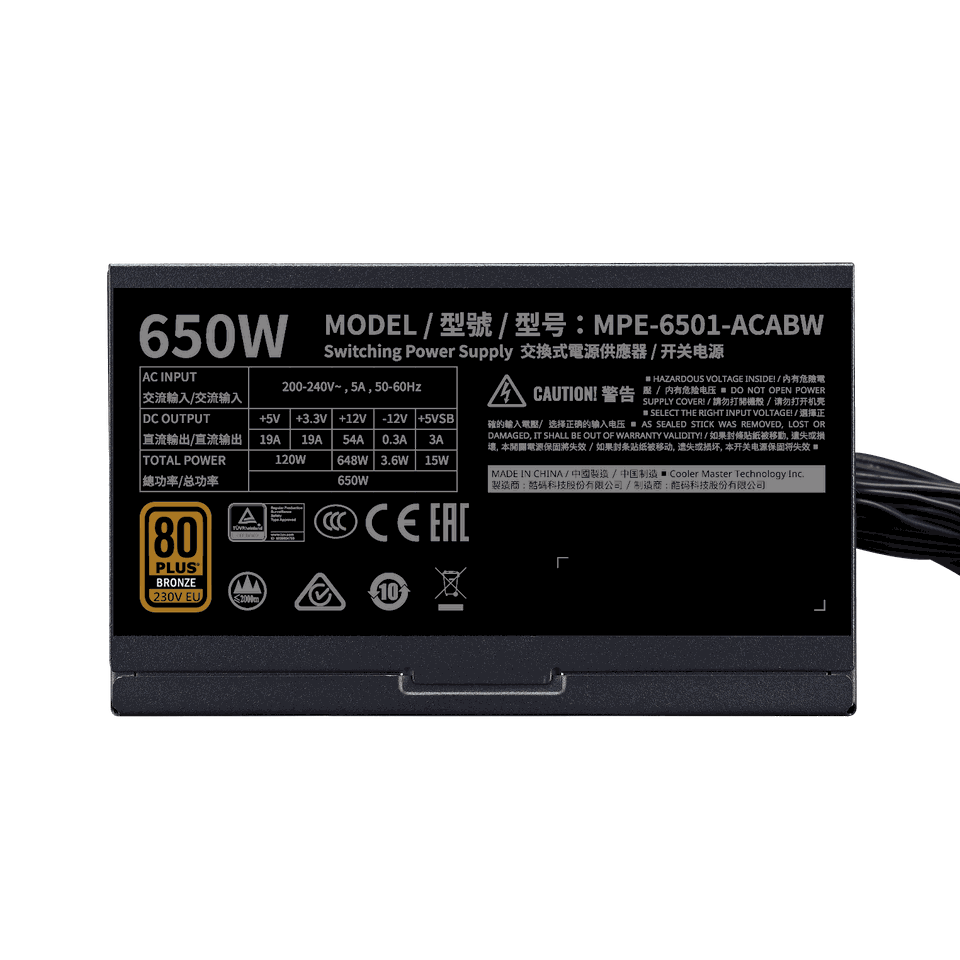

- Model MPE-6501-ACABW-B
