80 Plus Bronze Certified 230V Power Supply Unit

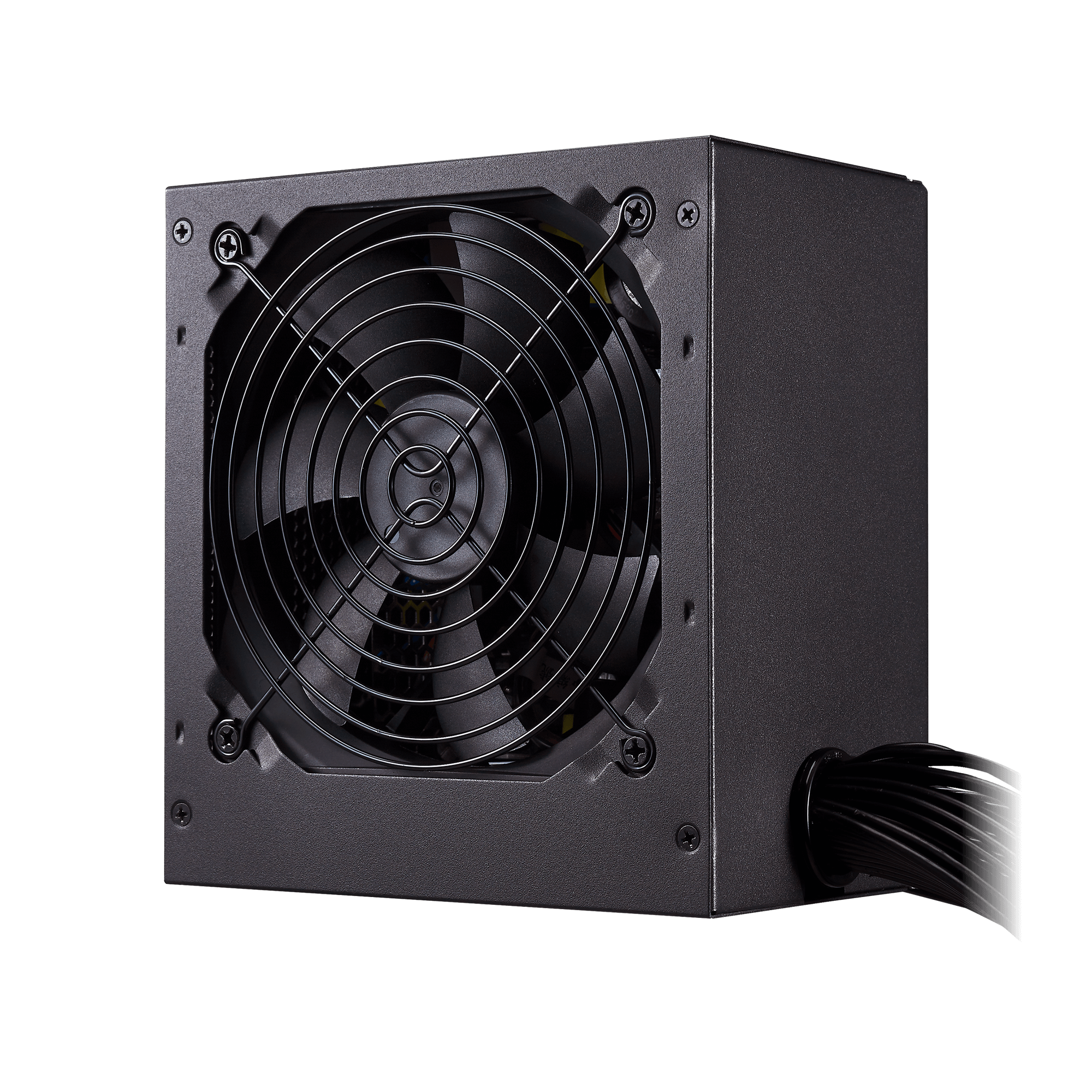

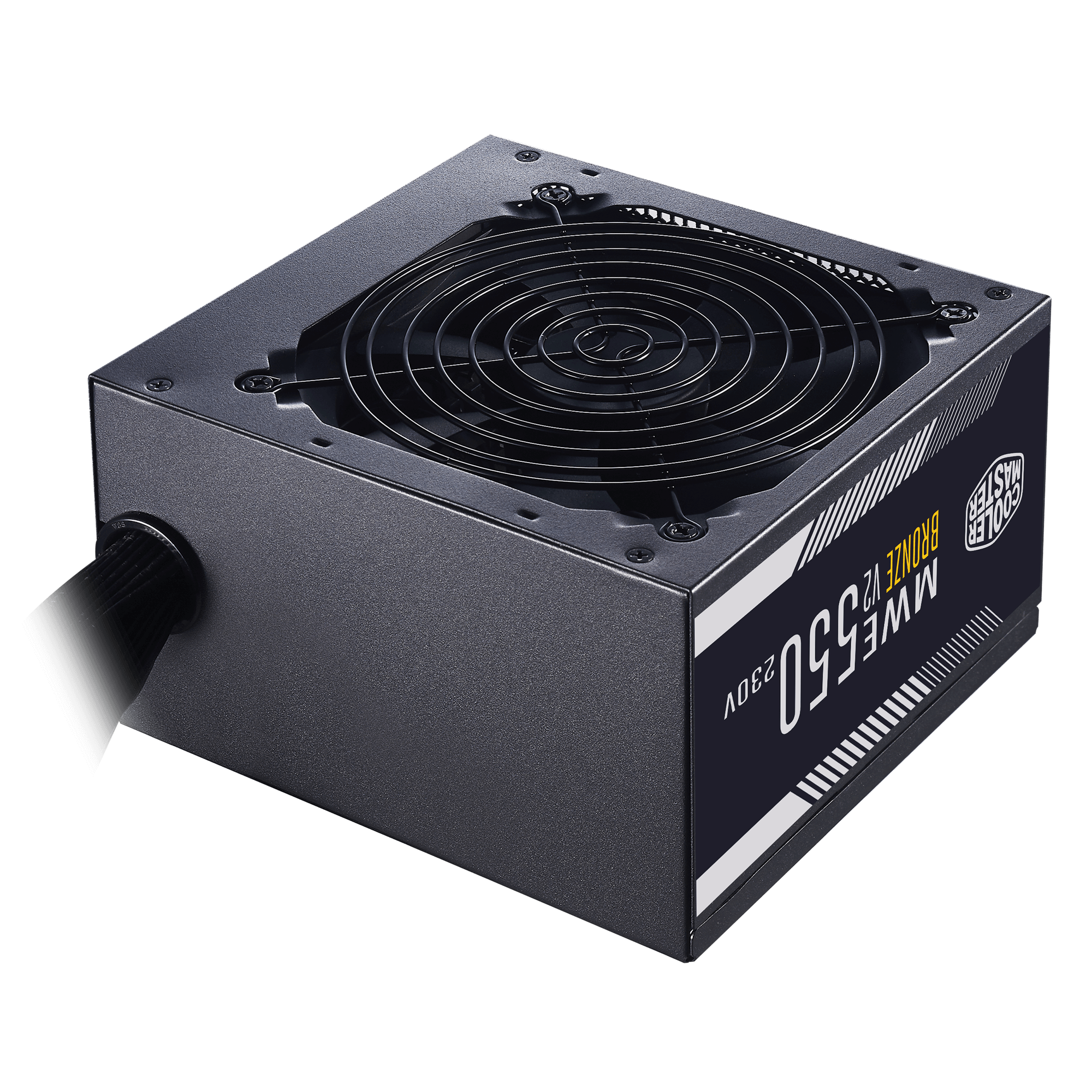

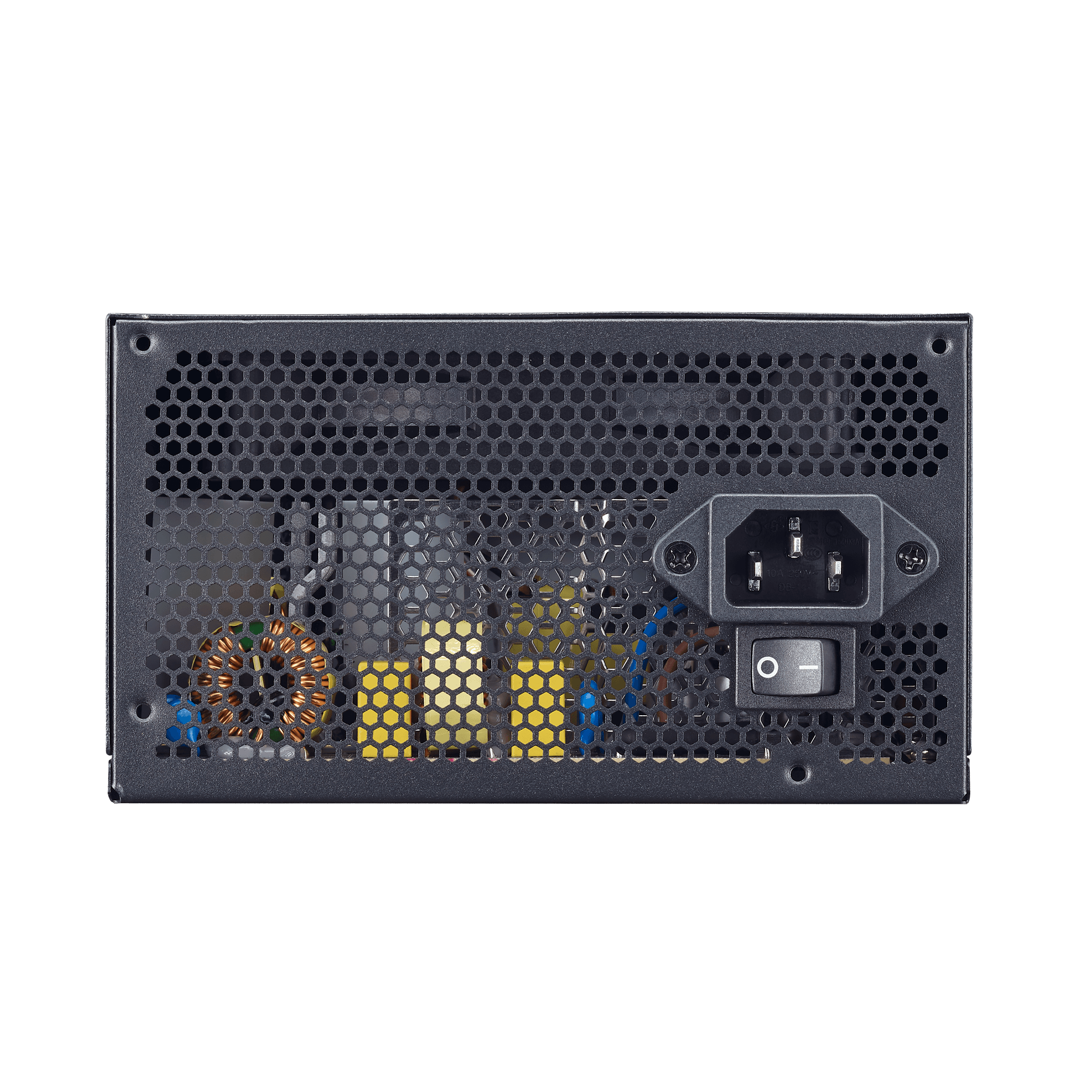

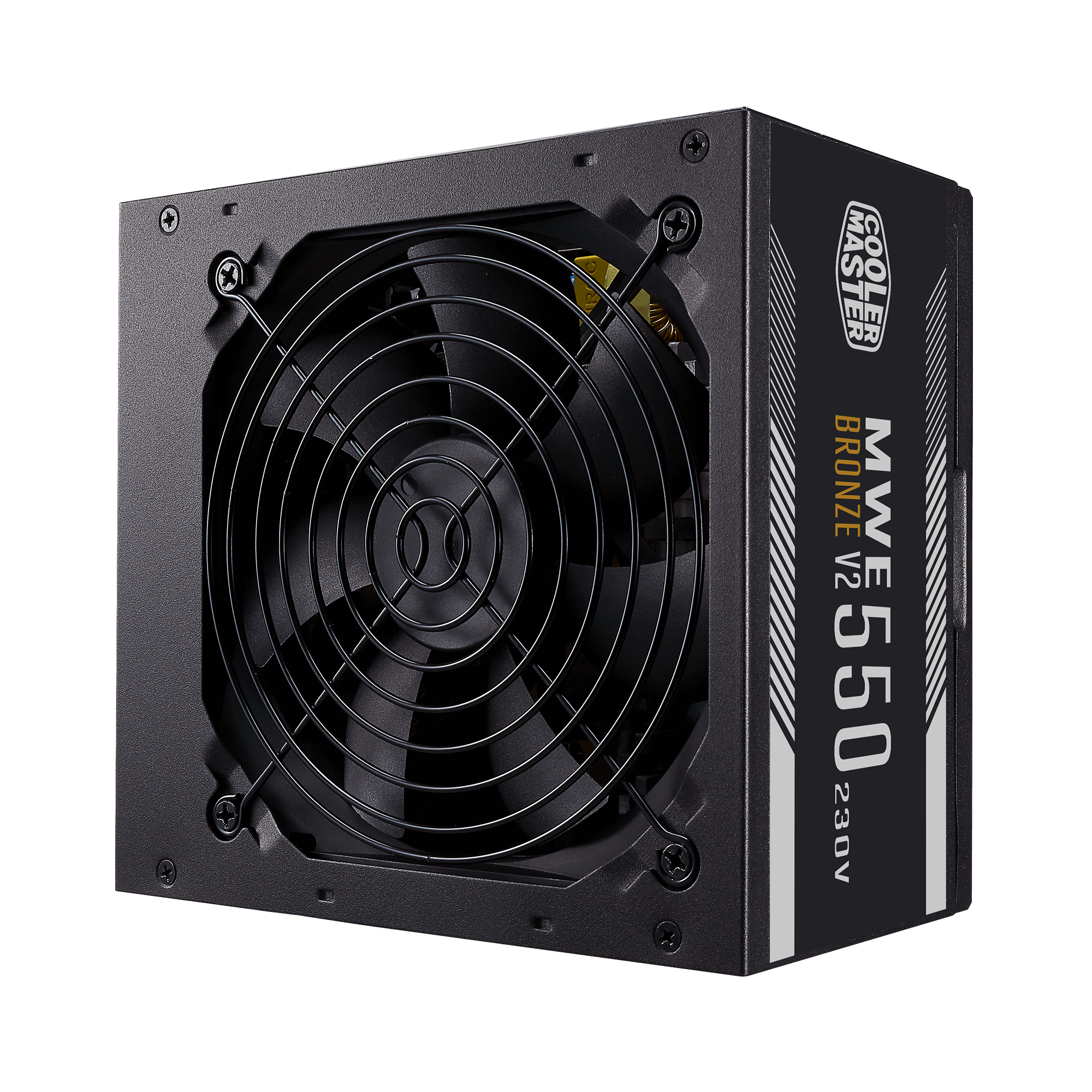

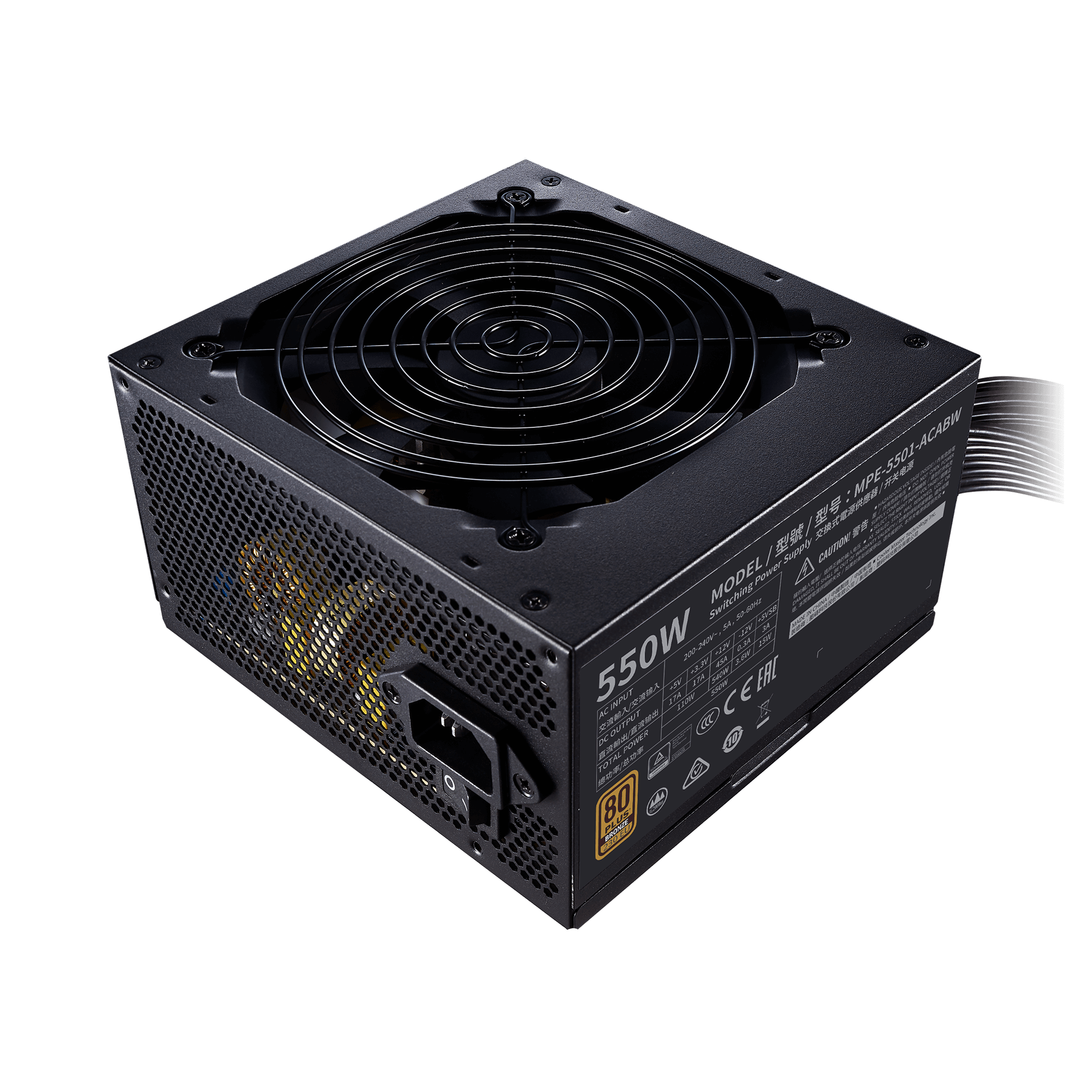

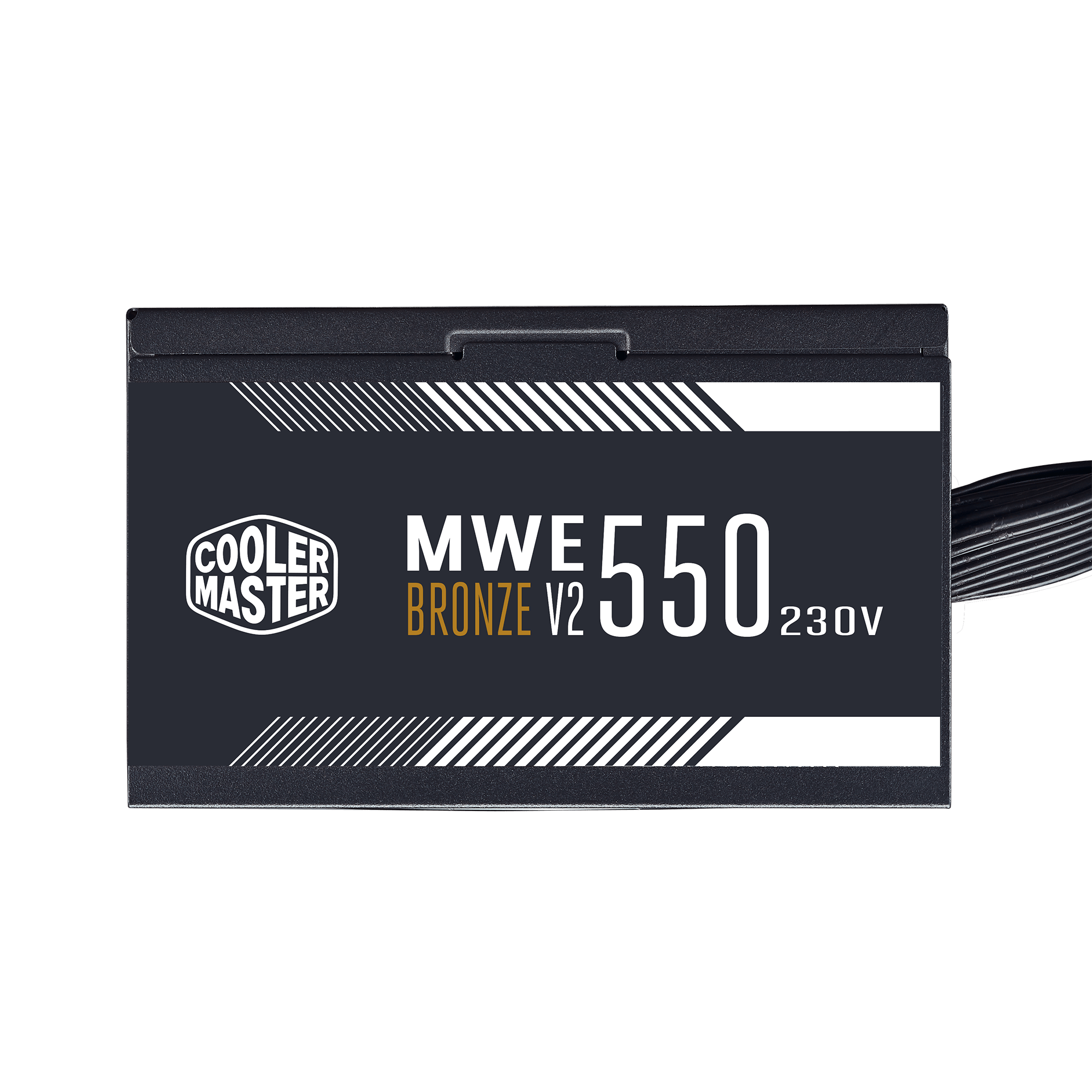

MWE 550 Bronze - V2 230V

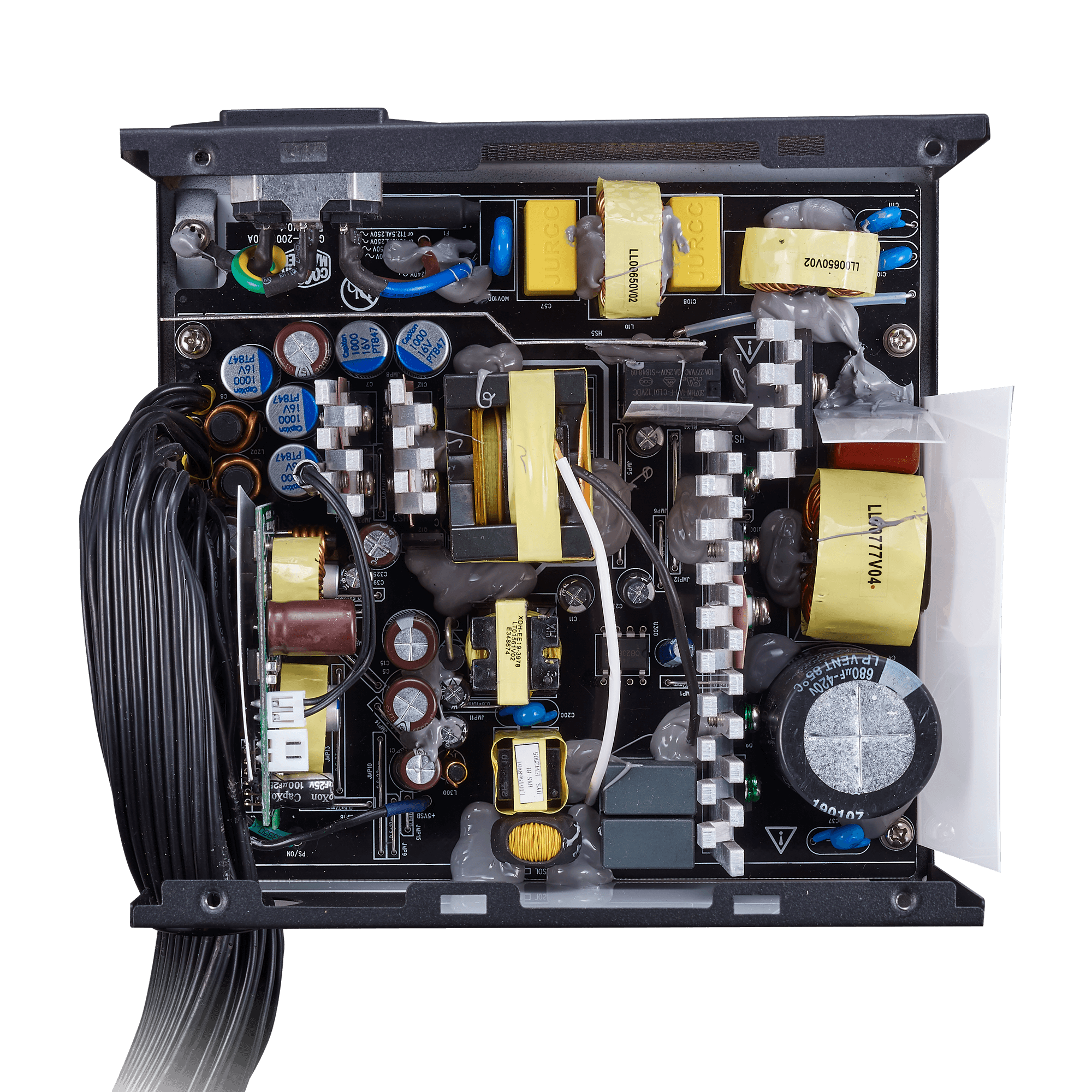

DC-to-DC + LLC Circuit Design
High Temperature Resistance
Peak Power Tolerance
80 PLUS Bronze 230V EU Certified
Durable, Reliable, and Safe
5 Year Warranty
- ErP 2014 Lot 3 Yes
- PFC Active PFC
- Input Frequency 50-60Hz
- ATX 24 Pin Connectors 1
- EPS 4+4 Pin Connectors 1

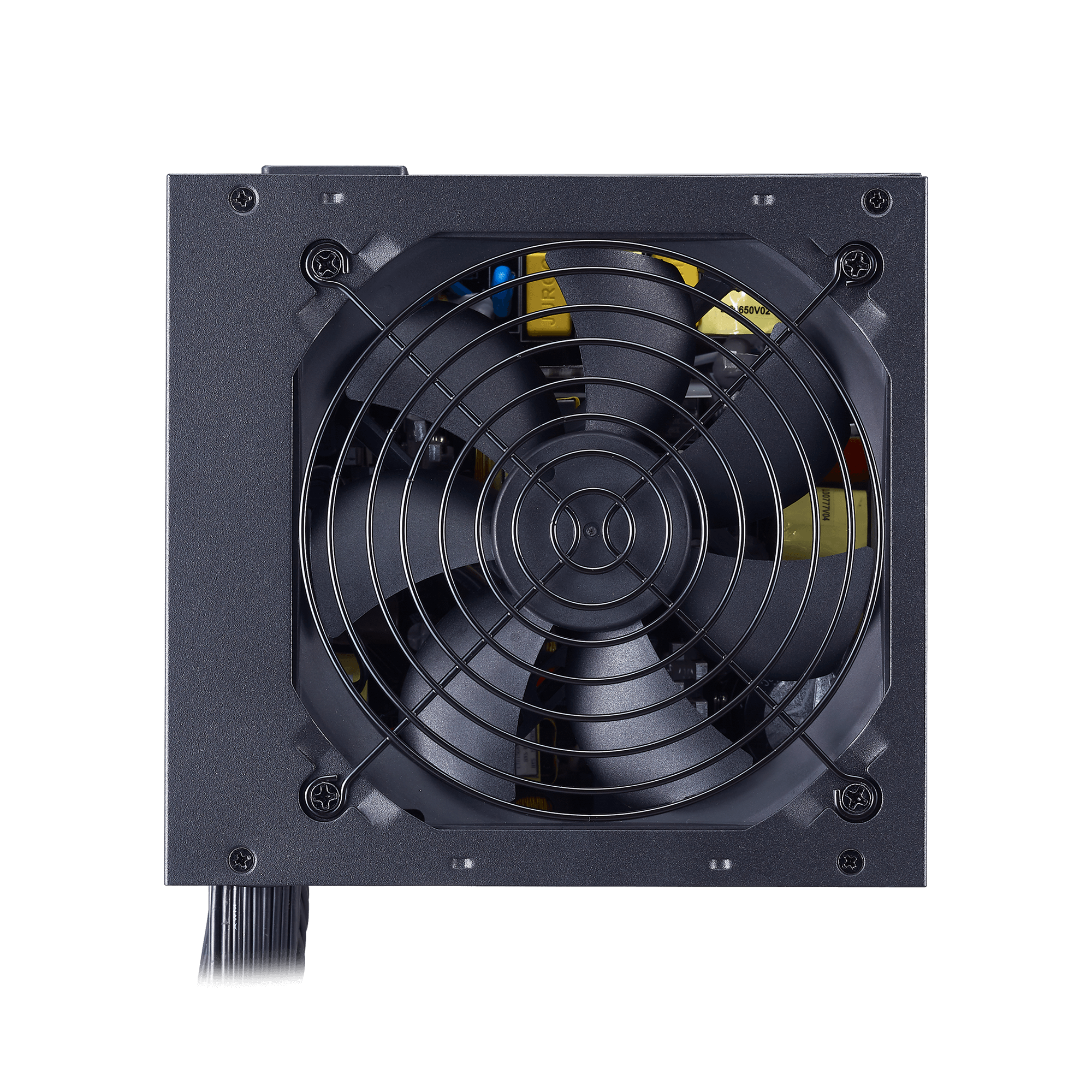

- Fan Size 120mm
- Category 500 to 750W
- Power Good Signal 100 - 500 ms
- MTBF >100,000 Hours
- Modular Non Modular
- Fan Bearing HDB
- 80 Plus Efficiency Bronze
- PCI-e 6+2 Pin Connectors 2
- SATA Connectors 6
- Fan Speed 1500 RPM
- Efficiency 88% Typically
- 80 PLUS Rating 80 PLUS Bronze EU 230V
- ATX Version ATX 12V V2.52
- Series MWE Bronze Series
- Peripheral 4 Pin Connectors 3
- Protections OVP
- Protections OPP
- Protections SCP
- Dimensions (L x W x H) 140 x 150 x 86 mm
- Hold Up Time >14ms at 100% Full Load@230Vac
- Protections UVP
- Protections OTP
- Noise Level @ 100% 31.2 dBA
- Noise Level @ 50% 18.4 dBA
- Regulatory CCC
- Input Current 10-5A
- Input Voltage 200-240Vac
- Regulatory CE
- Regulatory TUV-RH
- Noise Level @ 20% 13.8 dBA
- Regulatory RCM
- Regulatory EAC
- Regulatory cTUVus
- Regulatory FCC
- Regulatory BSMI
- Regulatory KC
- Regulatory CB

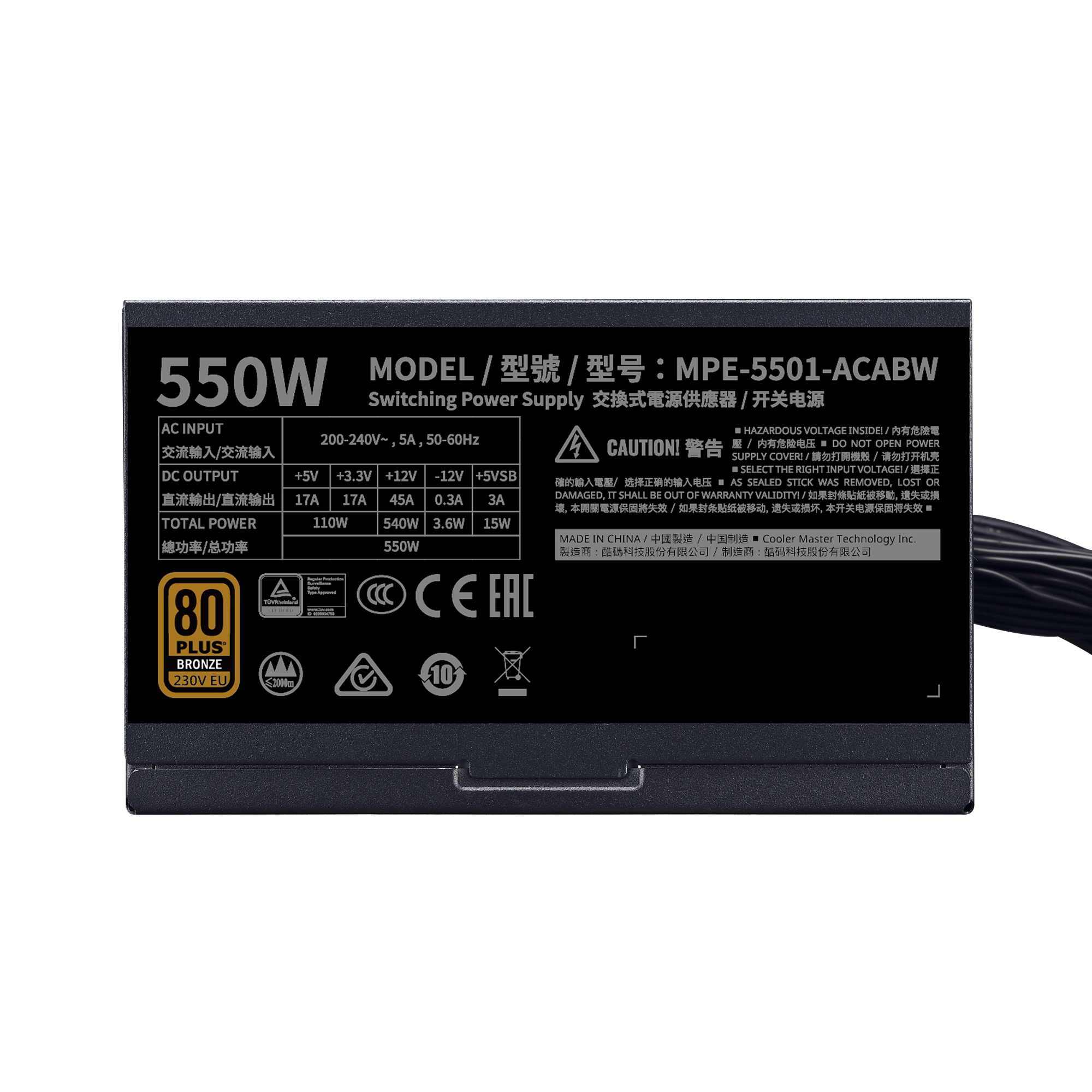

- Model MPE-5501-ACABW-B
