Reliable and Energy Efficient

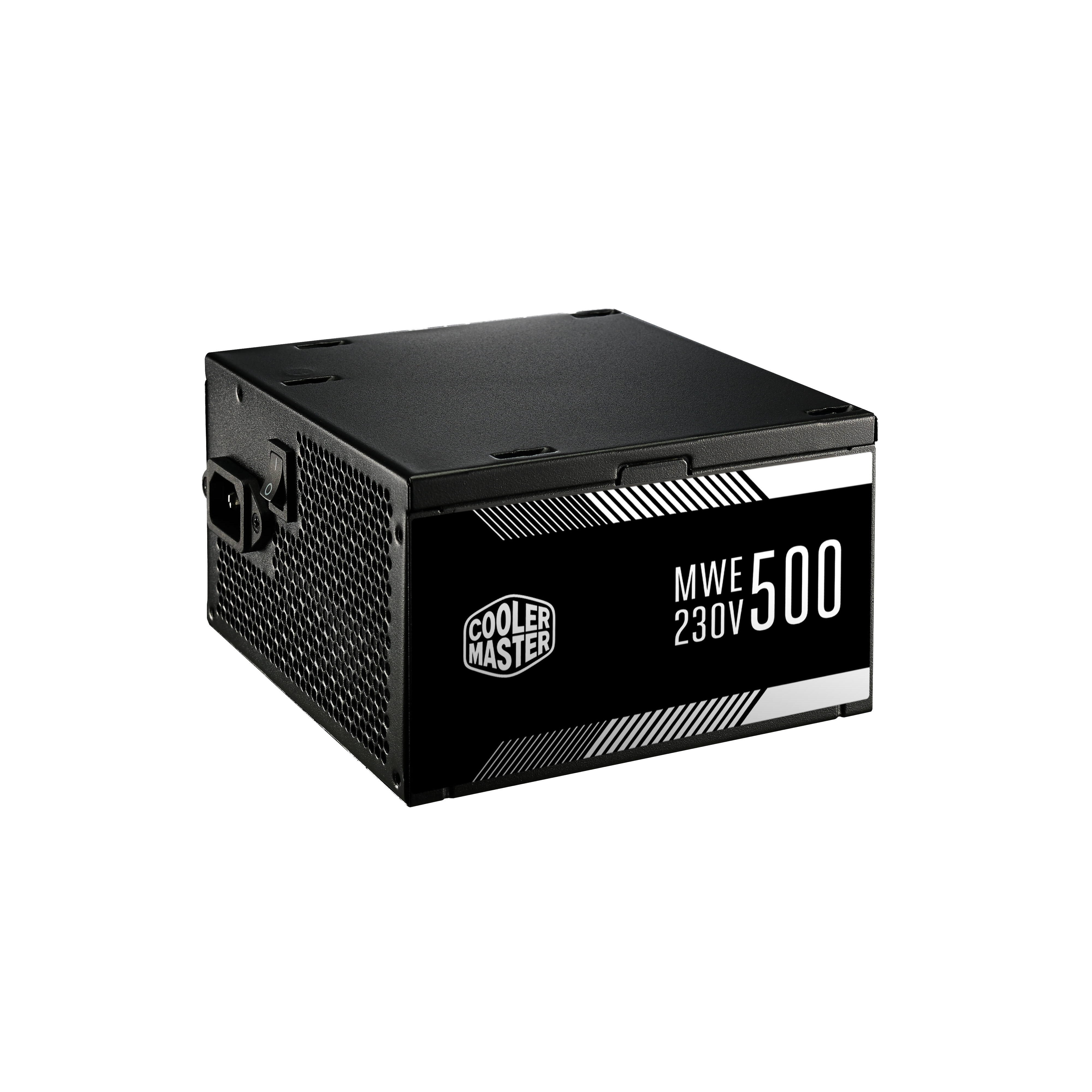

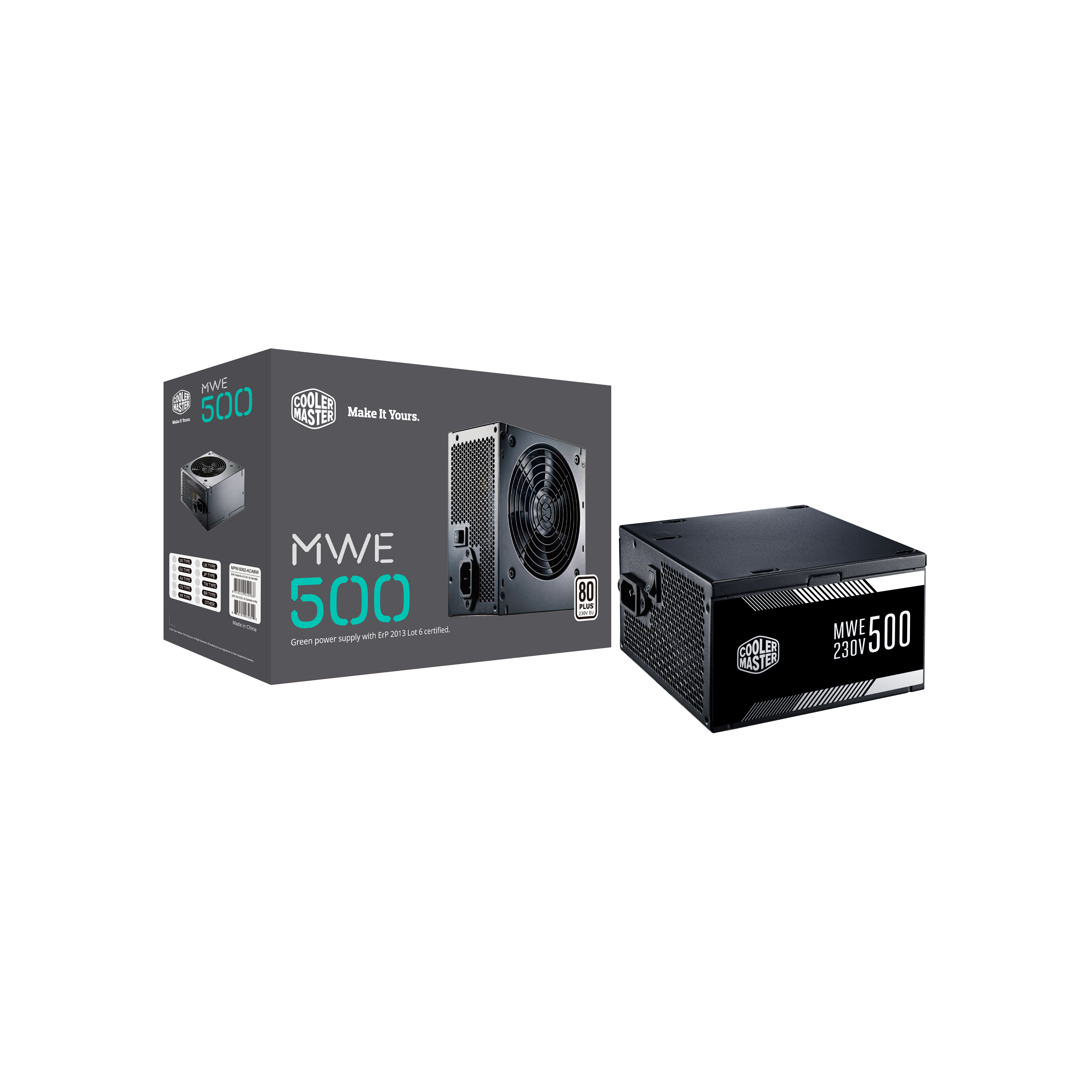

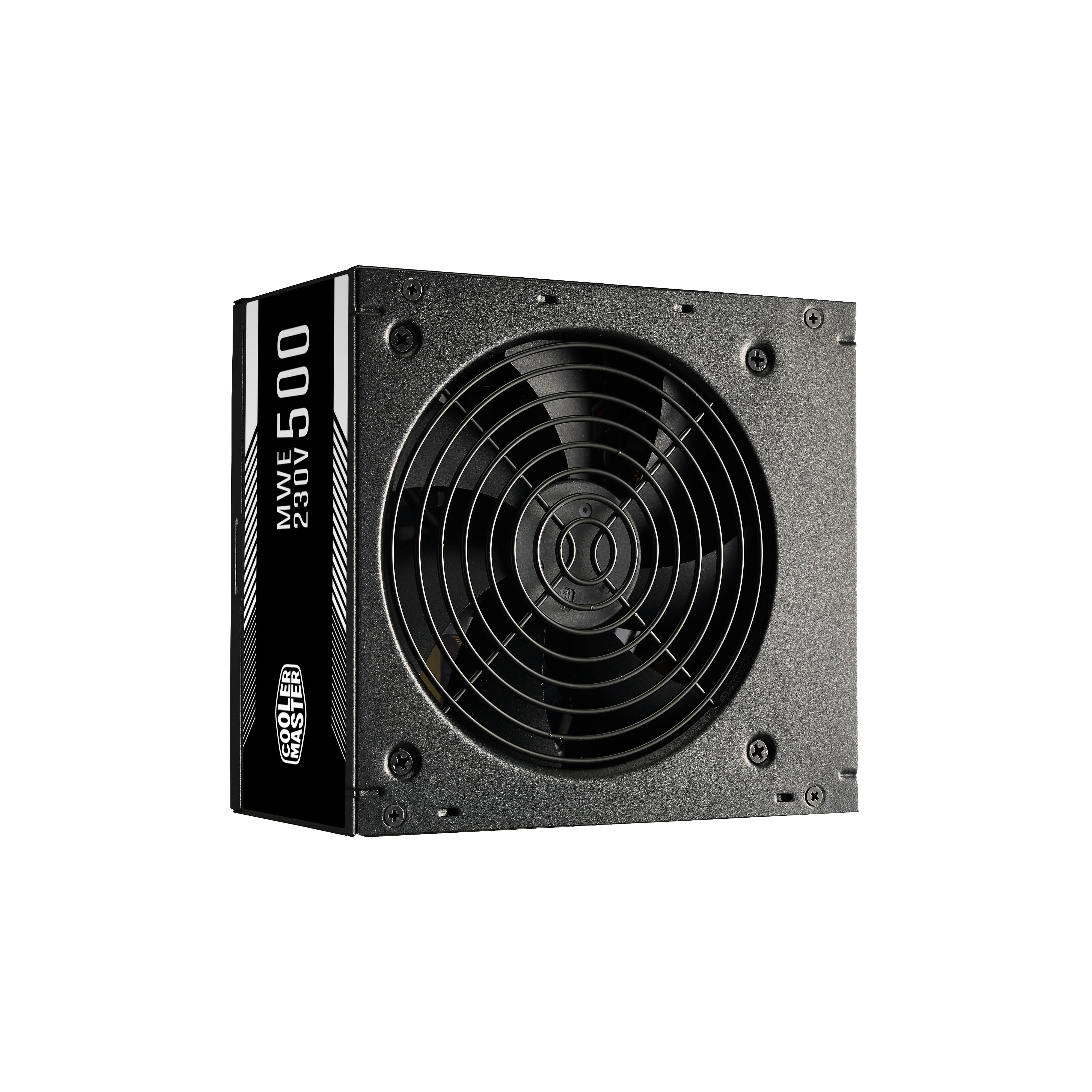

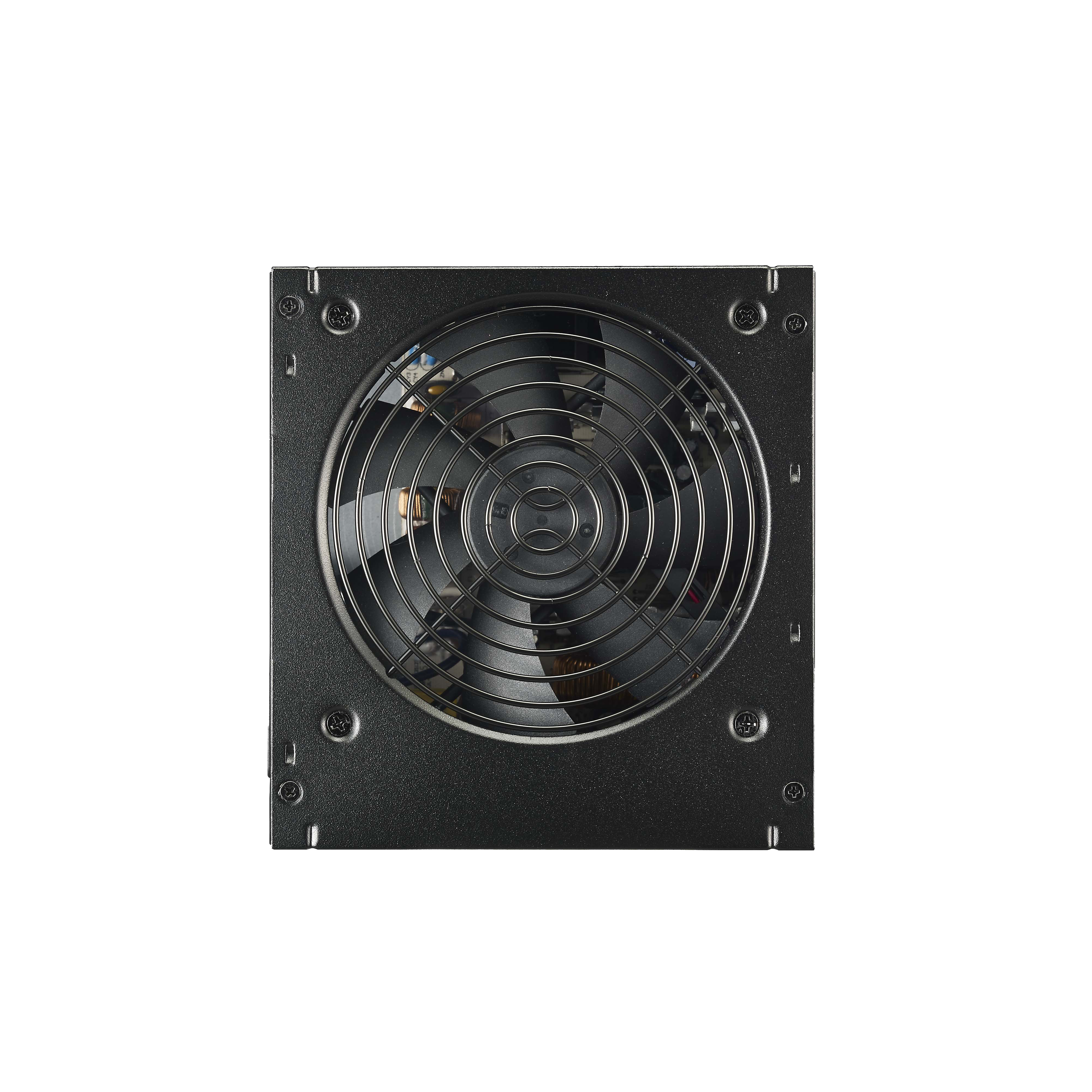

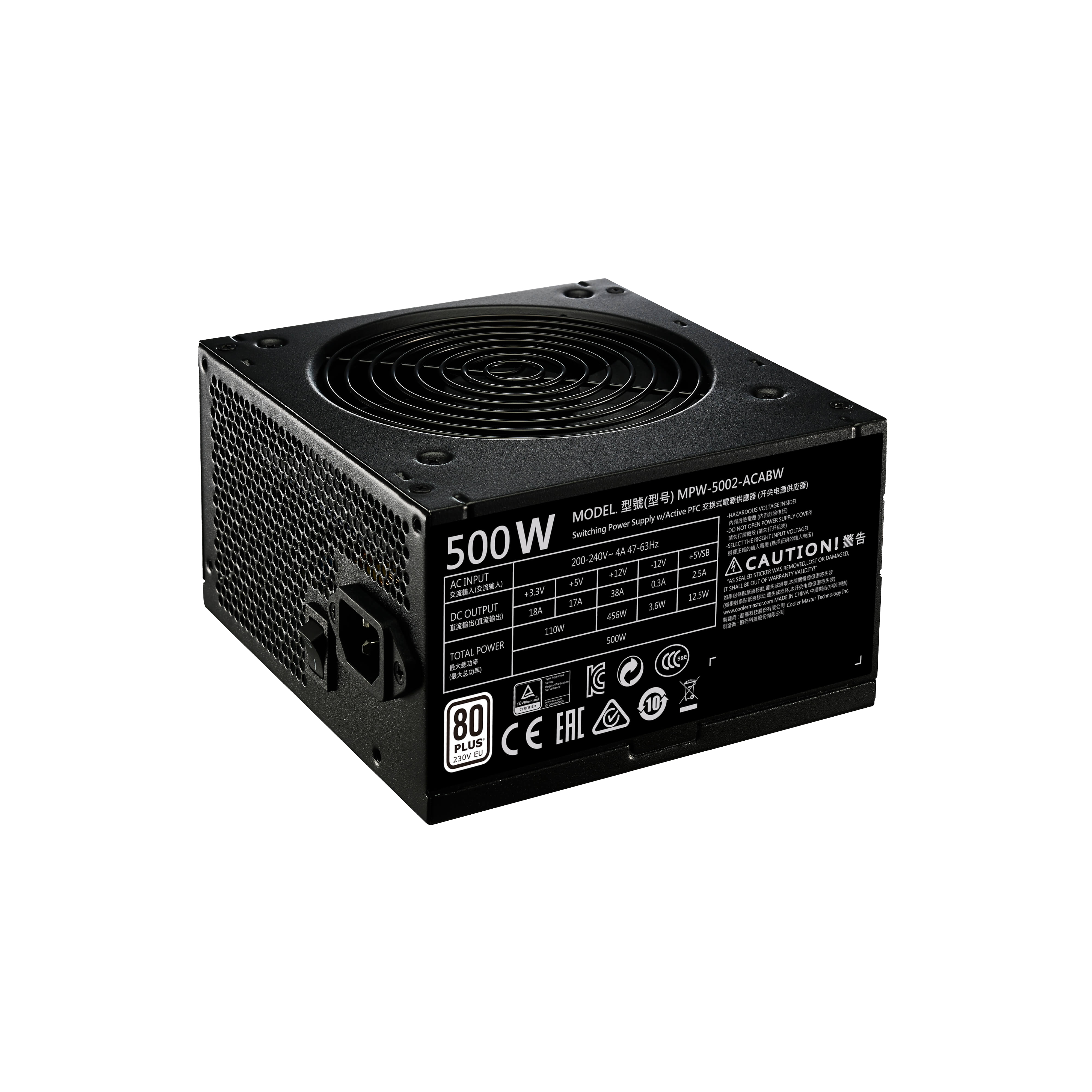

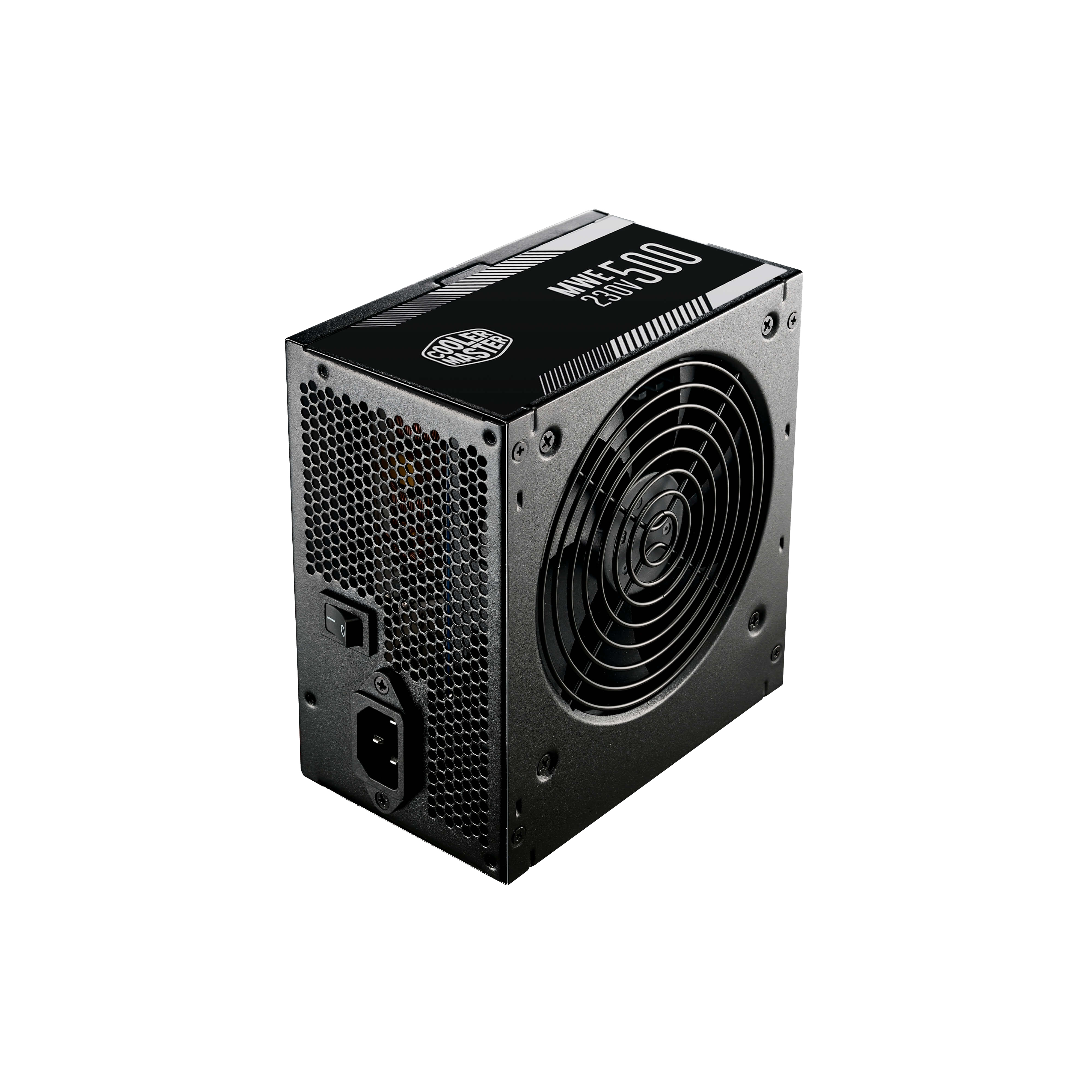

MWE 500
High Efficiency and Low Noise
ErP 2013 Lot 6 Compliant
Proven Thermal Resistance
Quiet and Durable
Damage Resistant
- Operating Temperature 0-40°C
- ErP 2013 Lot 6 Yes
- MB 20+4 Pin Connectors 1
- FDD Cable 4 Pin Connectors 1
- Warranty 3 Years
- CPU 12V 4+4 Pin Connectors 1
- Power Good Signal 100 - 500 ms
- MTBF >100,000 Hours
- Input Frequency 47-63Hz
- Fan Size 120mm
- Fan Speed 800-1744 RPM
- Fan Bearing HDB
- Modular Non Modular
- Efficiency 85% Typically
- PFC Active PFC (>0.9 Typical)
- Input Current 4A
- ATX Version Intel Form Factor ATX 12V V2.31
- PCI-e 6+2 Pin Connectors 2
- SATA Connectors 6
- Hold Up Time >14ms
- Protections OVP
- Peripheral 4 Pin Connectors 3
- Protections OPP
- Series MWE White Series
- Protections SCP
- Dimensions (L x W x H) 140 x 150 x 86 mm
- Protections OTP
- Regulatory CCC
- Input Voltage 200-240Vac
- Regulatory CE
- Model MPW-5002-ACABW
- Regulatory RCM
- Regulatory EAC
- Product Name MWE 500
- Regulatory TUV
