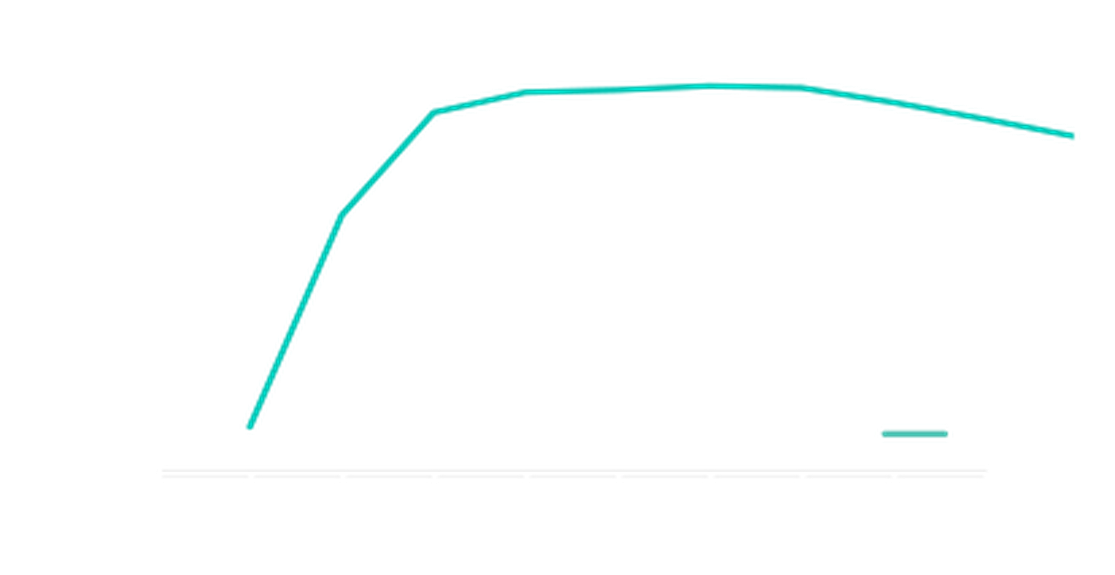

It's important to understand what efficiency is and what the ratings actually mean. The efficiency rating indicates how much power is retained and/or lost when transferring it from the wall to your components. It does not indicate the overall quality of the PSU. A PSU doesn't need an 80 PLUS Gold rating to be safe and reliable. And a PSU with an 80 PLUS Gold rating isn't necessarily either of those things. The MWE Bronze V2 guarantees a typical efficiency of 85% while being both safe and reliable.
80 Plus Bronze Certified Power Supply Unit

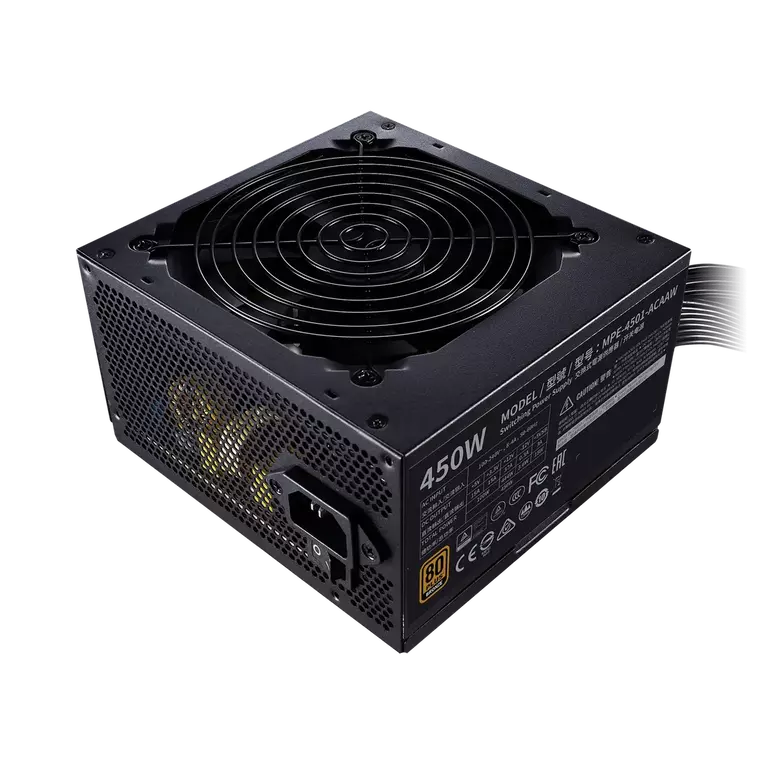

MWE 450 Bronze - V2 Full Range
DC-to-DC + LLC Circuit Design
High Temperature Resistance
Peak Power Tolerance
80 PLUS Bronze Certified
Durable, Reliable, and Safe
5 Year Warranty
80 PLUS BRONZE CERTIFIED
120MM HDB FAN
DC-TO-DC CIRCUIT DESIGN
SINGLE +12V RAIL
FLAT BLACK CABLES
For many PC Builders with aesthetics in mind, cabling can be one of the most troublesome parts of assembling a PC. Cables can be confusing, too short or too long, and they almost never look good. The MWE Bronze - V2 uses flat and flexible black cables to help deal with these problems. These cables are more discrete and flexible, making them easier to implement into your system while taking up less space. This is especially useful for smaller cases and preserving airflow.
TECH SPECS

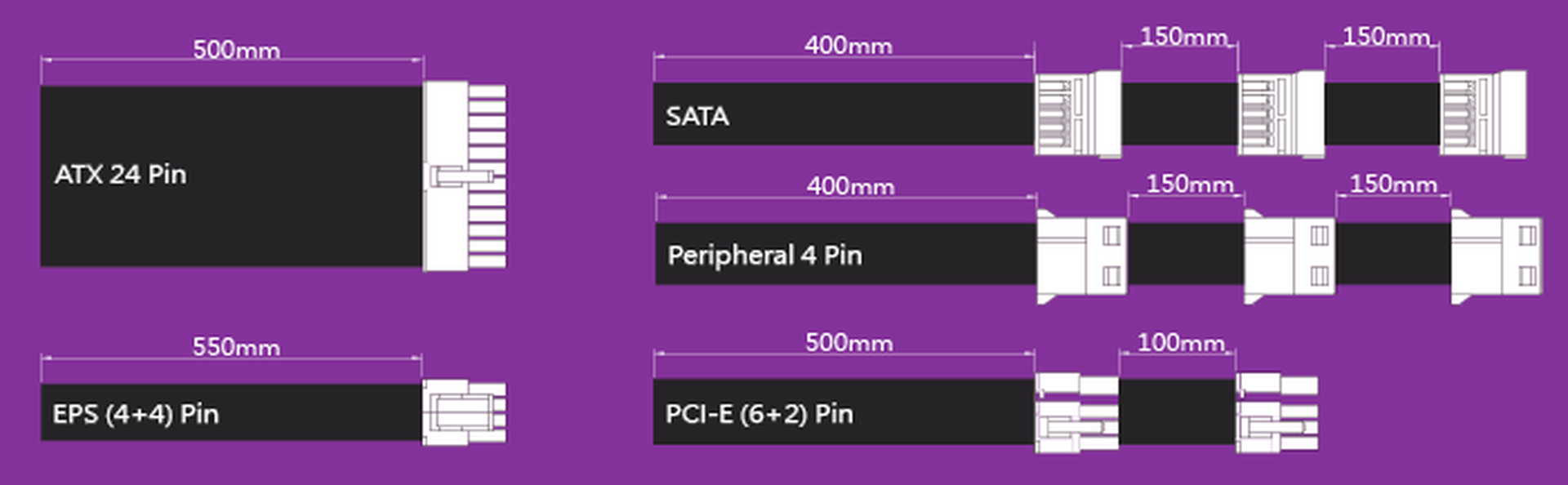

CABLE LENGTH
TECH SPECS

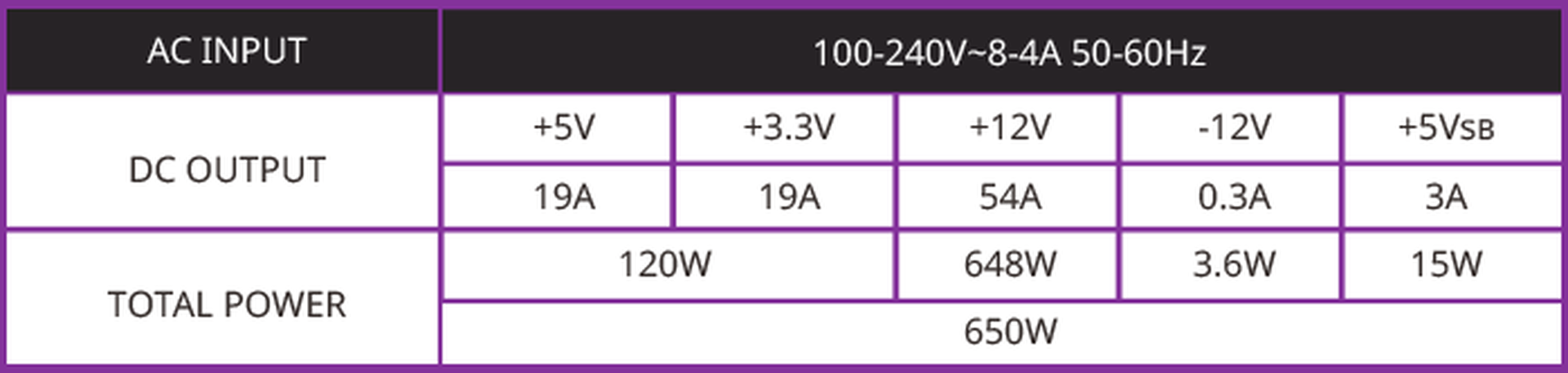

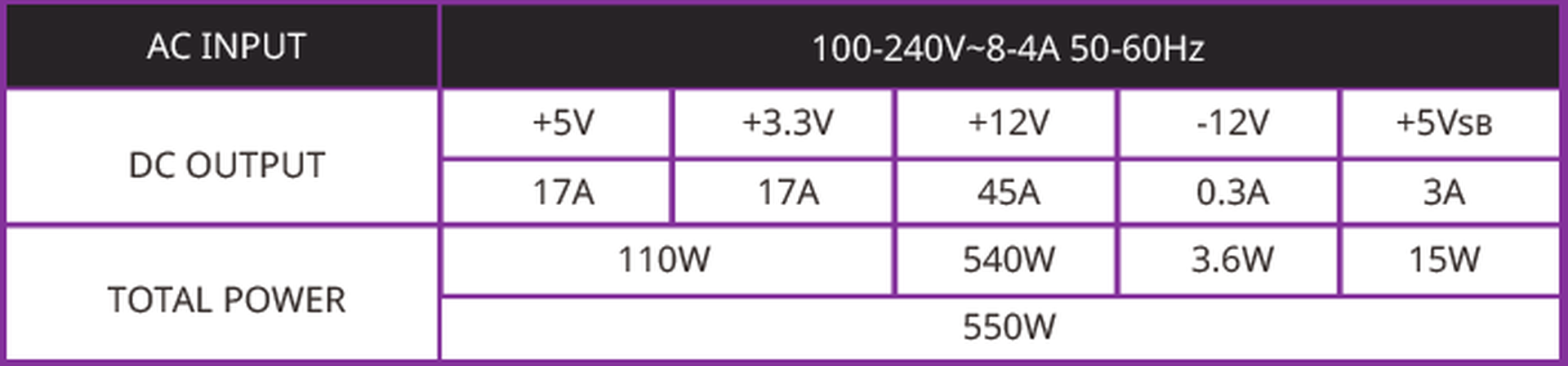

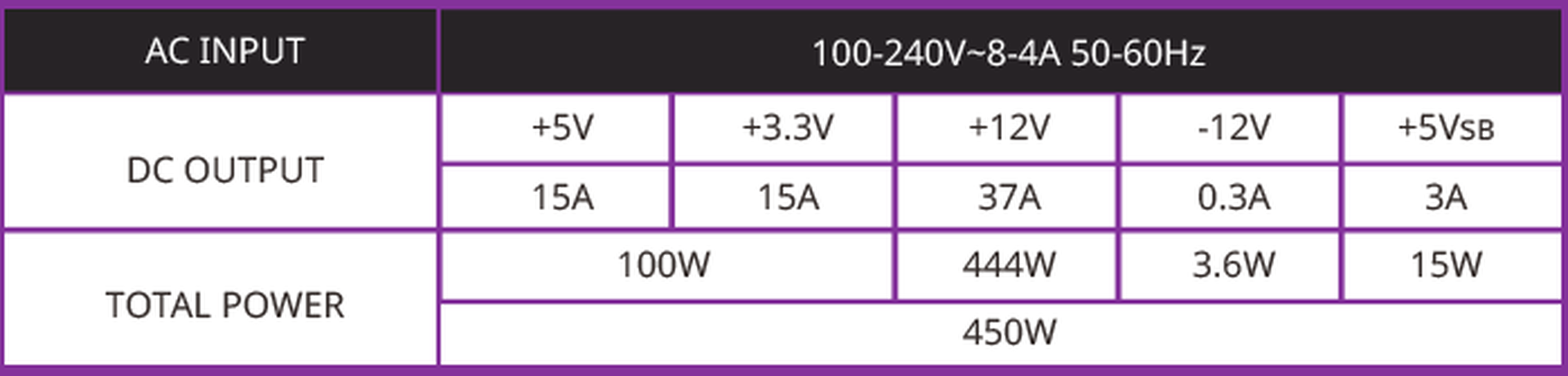

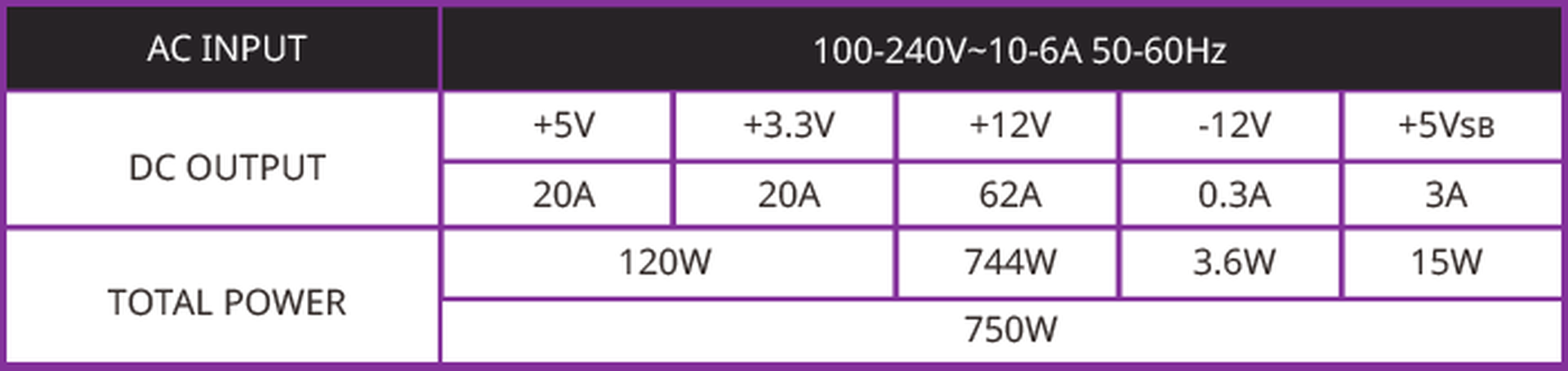

OUTPUT RATING
5 YEAR WARRANTY
The many processes required by a power supply unit in order to take power directly from the wall or other fixed power source, convert it to the correct output required by the connected components, and then distribute that power to said components safely can be full of risks. This is why it's important for a PSU to have the right protections and regulations to ensure this process runs correctly. The MWE Bronze - V2 is a safe, reliable product and as such Cooler Master is happy to offer a standard 5 year manufacturing warranty for all units in the series.
Specifications
- PFC Active PFC
- Input Frequency 50-60Hz
- MB 24 Pin Connectors 1
- ErP 2014 Lot 3 Yes
- EPS 4+4 Pin Connectors 1
- Power Good Signal 100 - 500 ms
- MTBF >100,000 Hours
- Fan Size 120mm
- 80 PLUS Rating 80 PLUS Bronze
- Category Under 500W
- Modular Non Modular
- Fan Bearing HDB
- Efficiency 85% Typically
- 80 Plus Efficiency Bronze
- Input Voltage 100-240V
- PCI-e 6+2 Pin Connectors 2
- SATA Connectors 6
- Fan Speed 1500 RPM
- Operating Temperature 40°C
- Series MWE Bronze Series
- ATX Version ATX 12V V2.52
- Peripheral 4 Pin Connectors 3
- Protections OVP
- Protections OPP
- Hold Up Time >14ms at 100% Full Load
- Noise Level @ 20% 11.18 dBA
- Protections SCP
- Dimensions (L x W x H) 140 x 150 x 86 mm
- Protections UVP
- Noise Level @ 100% 29.5 dBA
- Noise Level @ 50% 17.1 dBA
- Protections OTP
- Input Current 8-4A
- Regulatory CCC
- Regulatory CE
- Regulatory TUV-RH
- Regulatory RCM
- Regulatory EAC
- Regulatory cTUVus
- Regulatory FCC
- Regulatory BSMI
- Regulatory KC
- Regulatory CB
- Model MPE-4501-ACAAW
