It's important to understand what efficiency is and what the ratings actually mean. The efficiency rating indicates how much power is retained and/or lost when transferring it from the wall to your components. It does not indicate the overall quality of the PSU. A PSU doesn't need an 80 PLUS Gold rating to be safe and reliable. And a PSU with an 80 PLUS Gold rating isn't necessarily either of those things. The MWE Bronze V2 guarantees a typical efficiency of 85% while being both safe and reliable.
80 Plus Bronze Certified 230V Power Supply Unit

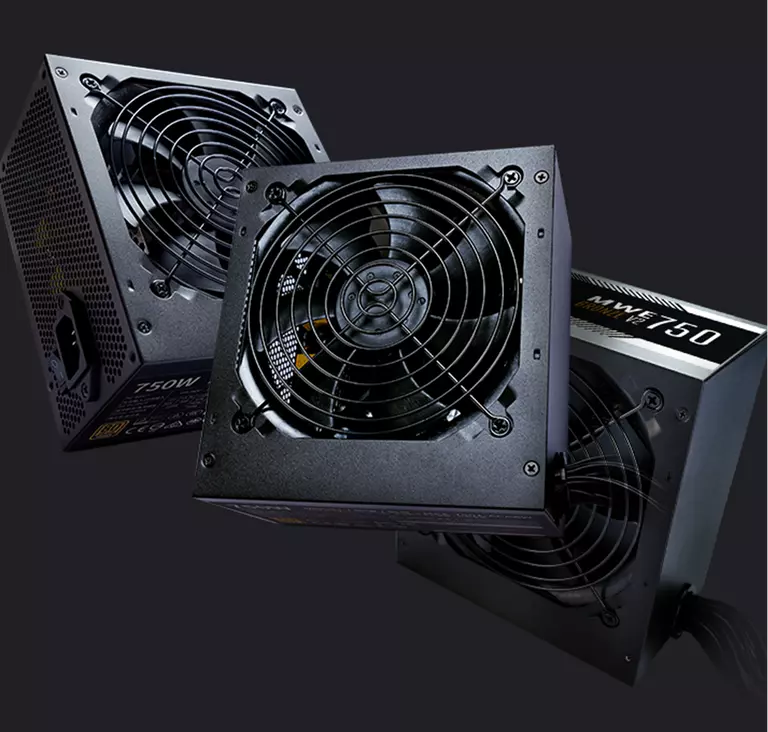

MWE Bronze - V2 230V
DC-to-DC + LLC Circuit Design
High Temperature Resistance
Peak Power Tolerance
80 PLUS Bronze 230V EU Certified
Durable, Reliable, and Safe
5 Year Warranty
80 PLUS BRONZE CERTIFIED
120MM HDB FAN
DC-TO-DC CIRCUIT DESIGN
SINGLE +12V RAIL
FLAT BLACK CABLES
For many PC Builders with aesthetics in mind, cabling can be one of the most troublesome parts of assembling a PC. Cables can be confusing, too short or too long, and they almost never look good. The MWE Bronze - V2 uses flat and flexible black cables to help deal with these problems. These cables are more discrete and flexible, making them easier to implement into your system while taking up less space. This is especially useful for smaller cases and preserving airflow.
TECH SPECS
CABLE LENGTH
TECH SPECS

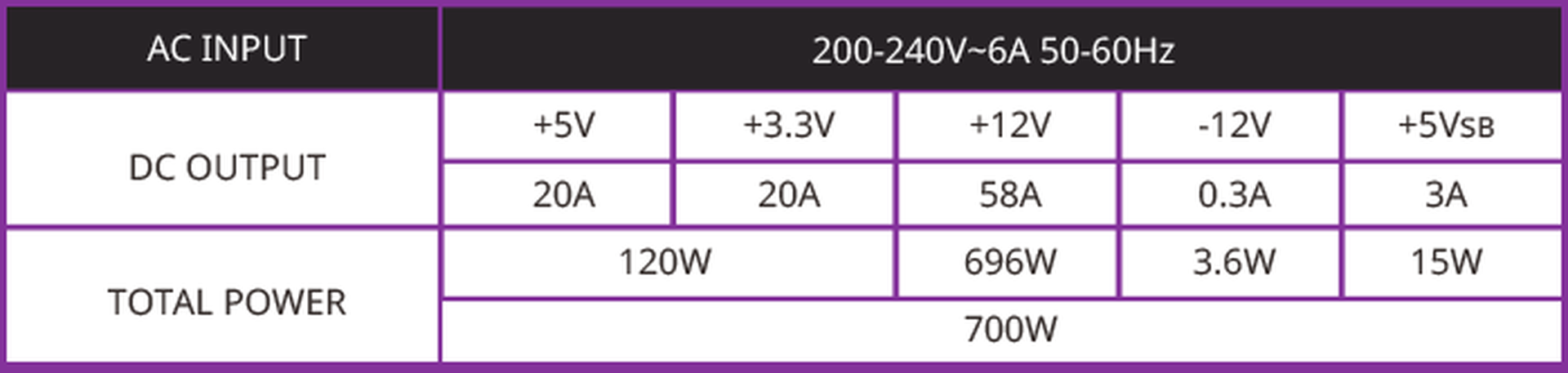

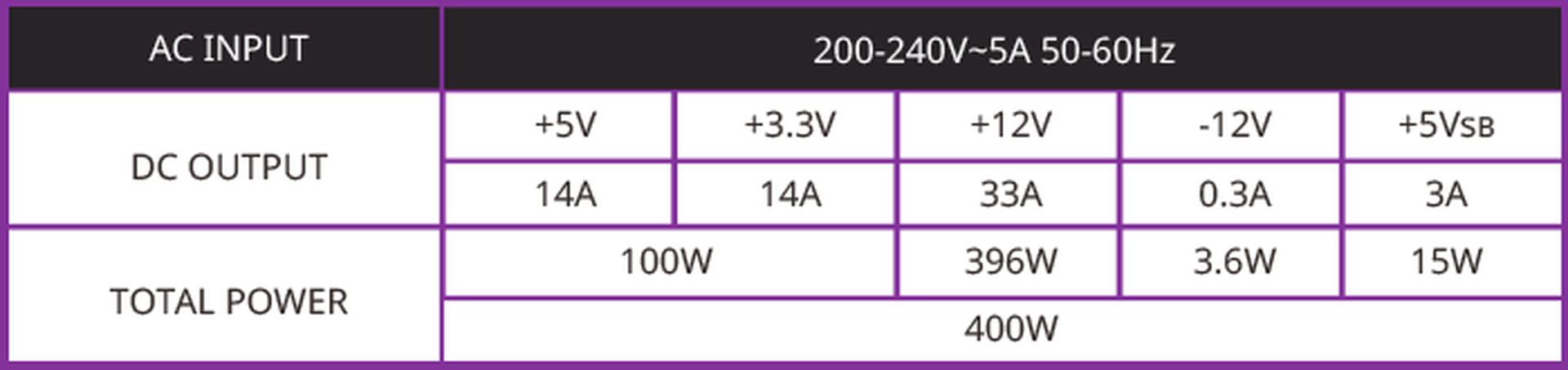

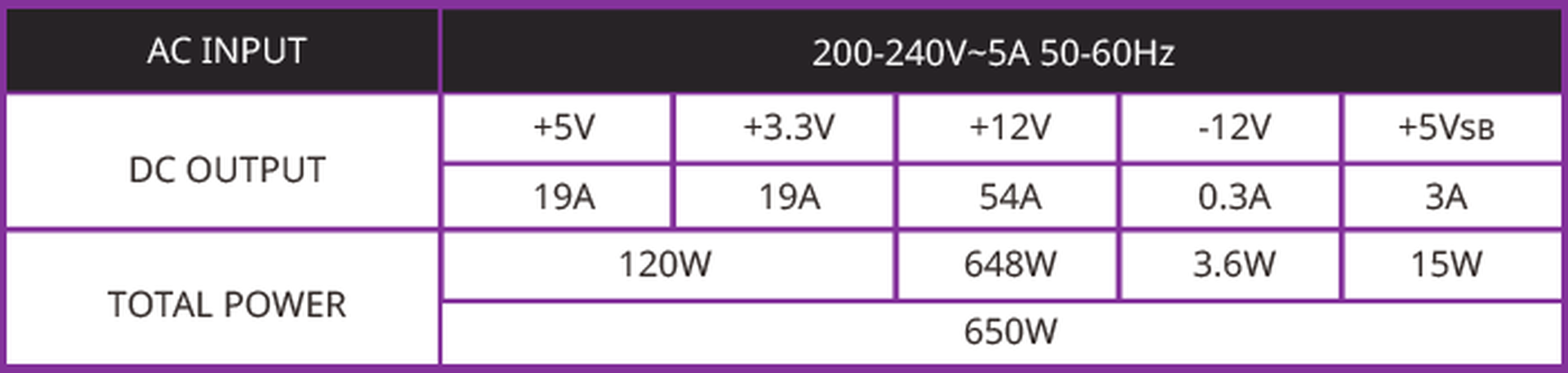

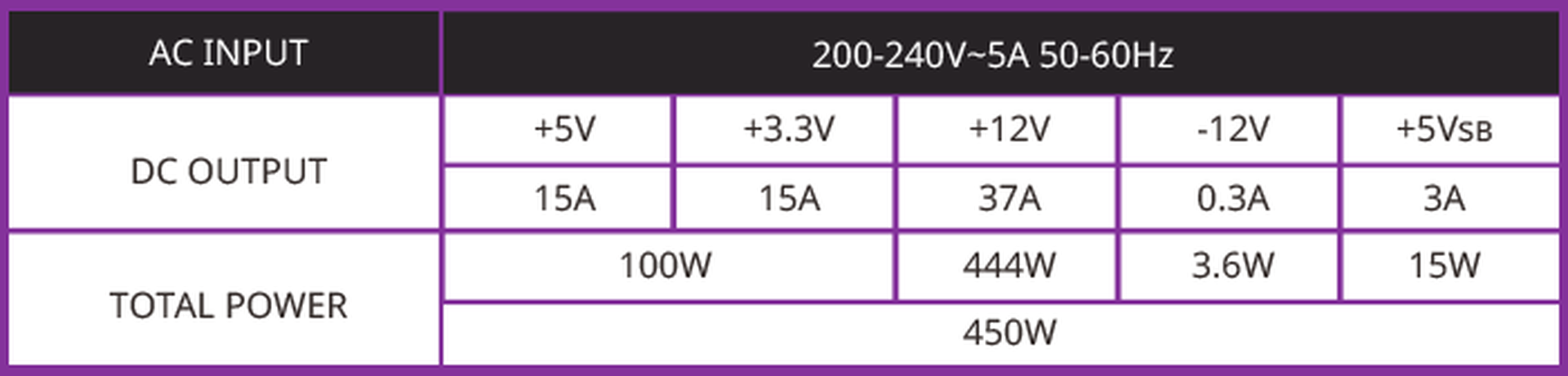

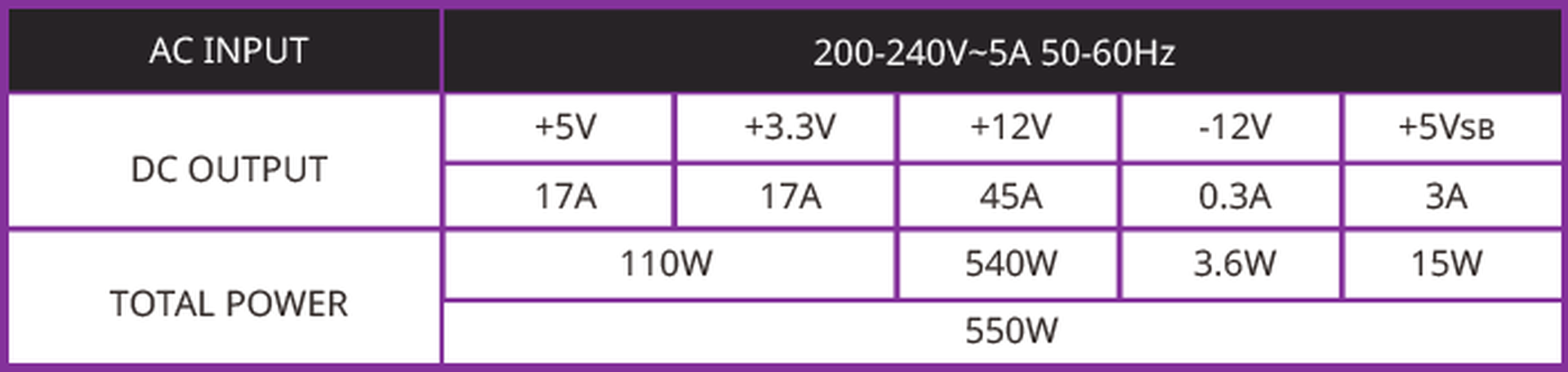

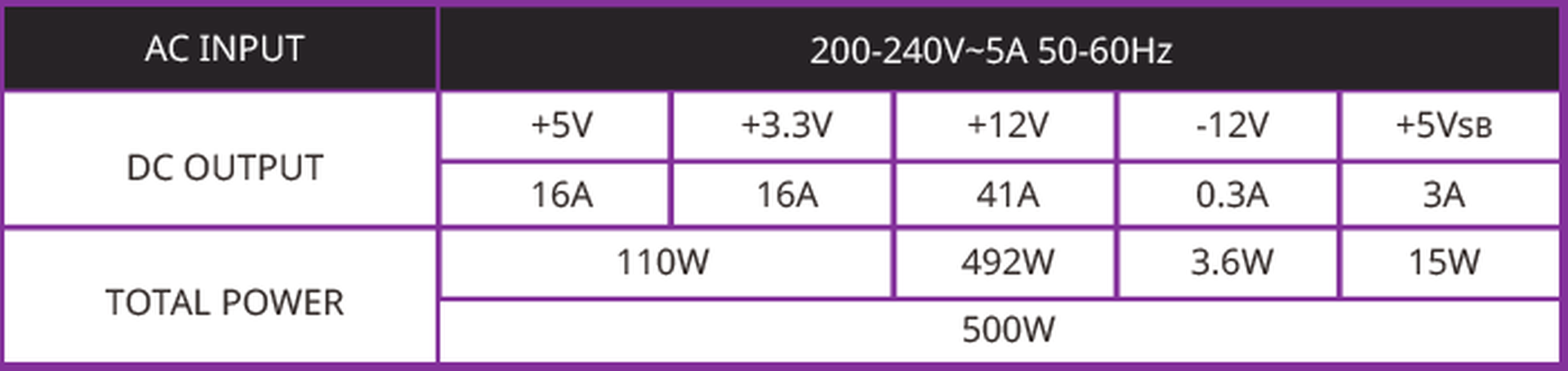

OUTPUT RATING
5 YEAR WARRANTY
The many processes required by a power supply unit in order to take power directly from the wall or other fixed power source, convert it to the correct output required by the connected components, and then distribute that power to said components safely can be full of risks. This is why it's important for a PSU to have the right protections and regulations to ensure this process runs correctly. The MWE Bronze - V2 is a safe, reliable product and as such Cooler Master is happy to offer a standard 5 year manufacturing warranty for all units in the series.
Specifications
- PFC Active PFC
- ErP 2014 Lot 3 Yes
- Input Frequency 50-60Hz
- ATX 24 Pin Connectors 1
- EPS 4+4 Pin Connectors 1
- Fan Size 120mm
- Power Good Signal 100 - 500 ms
- MTBF >100,000 Hours
- Category Under 500W
- Fan Bearing HDB
- Modular Non Modular
- 80 Plus Efficiency Bronze
- SATA Connectors 6
- Fan Speed 1500 RPM
- Efficiency 88% Typically
- 80 PLUS Rating 80 PLUS Bronze EU 230V
- Series MWE Bronze Series
- ATX Version ATX 12V V2.52
- Protections OVP
- Peripheral 4 Pin Connectors 3
- PCI-e 6+2 Pin Connectors 1
- Protections OPP
- Dimensions (L x W x H) 140 x 150 x 86 mm
- Hold Up Time >14ms at 100% Full Load@230Vac
- Protections SCP
- Protections UVP
- Protections OTP
- Noise Level @ 50% 17.7 dBA
- Noise Level @ 100% 30.4 dBA
- Input Current 8-4A
- Input Voltage 200-240Vac
- Regulatory CCC
- Noise Level @ 20% 13.4 dBA
- Regulatory CE
- Regulatory TUV-RH
- Regulatory RCM
- Regulatory EAC
- Regulatory cTUVus
- Regulatory FCC
- Regulatory BSMI
- Regulatory KC
- Regulatory CB

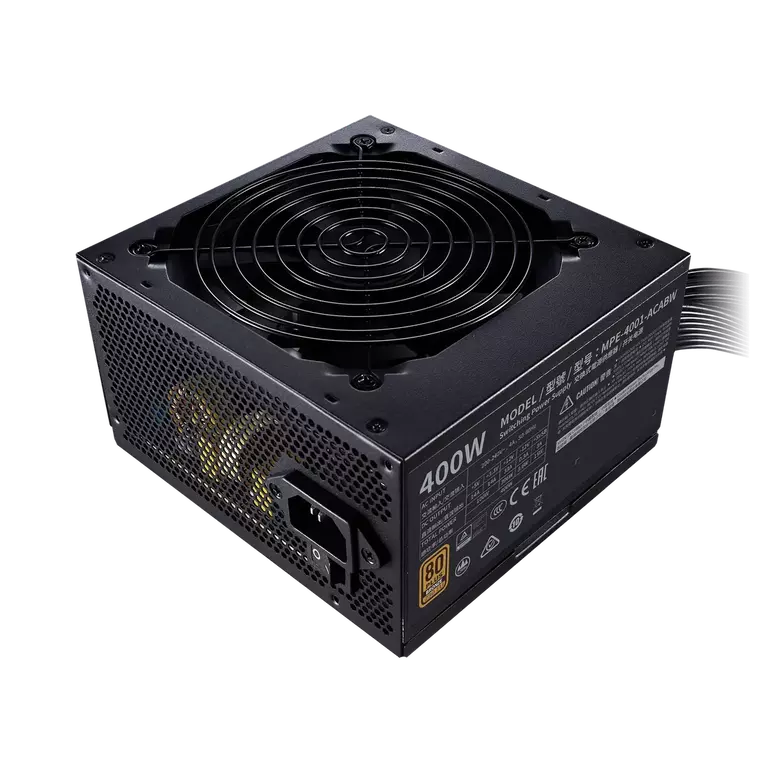

- Model MPE-4001-ACABW-B
MWE 400 Bronze V2 230V
MWE 450 Bronze V2 230V
MWE 500 Bronze V2 230V
MWE 550 Bronze V2 230V
MWE 600 Bronze V2 230V
MWE 650 Bronze V2 230V
MWE 700 Bronze V2 230V
MWE 750 Bronze V2 230V
