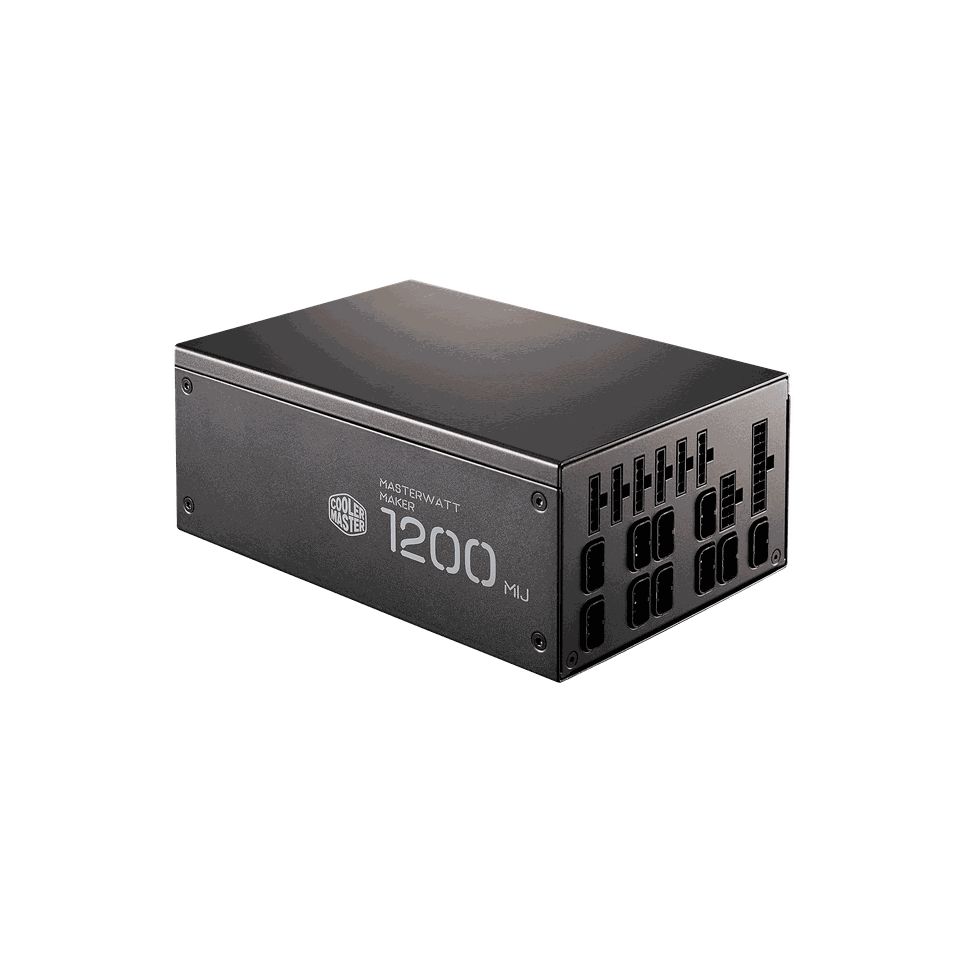

MasterWatt Maker 1200 MIJ

Specifications

• Category Above 750W
• 80 Plus Efficiency Titanium
• Modular Fully Modular
• PFC Active PFC
• Input Frequency 50-60Hz
• MB 20+4 Pin Connectors 1
• CPU 12V 4+4 Pin Connectors 2
• PCI-e 6+2 Pin Connectors 12
• Power 1200 Watts
• Peripheral 4 Pin Connectors 13
• SATA Connectors 16
• Power Good Signal 100 - 500 ms
• MTBF >100,000 hours @ 25℃ ambient
• Series MasterWatt Maker Series
• Legacy Power Supplies
• Model MPZ-C002-AFBAT
• Fan Size 135mm Silencio FP Fan
• Product Name MasterWatt Maker 1200 MIJ
• Input Voltage 100-240Vac (Normal)
• Protections OVP
• Protections OPP
• Protections SCP
• Protections OTP
• Protections OCP
• Hold Up Time >16ms
• Efficiency 94% Typically
• Protections BOP
• Regulatory CCC
• Regulatory CE
• Regulatory RCM
• Regulatory EAC
• Dimensions (L x W x H) 224 x 150 x 86 mm
• Regulatory FCC
• Regulatory BSMI
• Input Current 15-6A
• Regulatory KC
• Regulatory TUV
