ERP2013

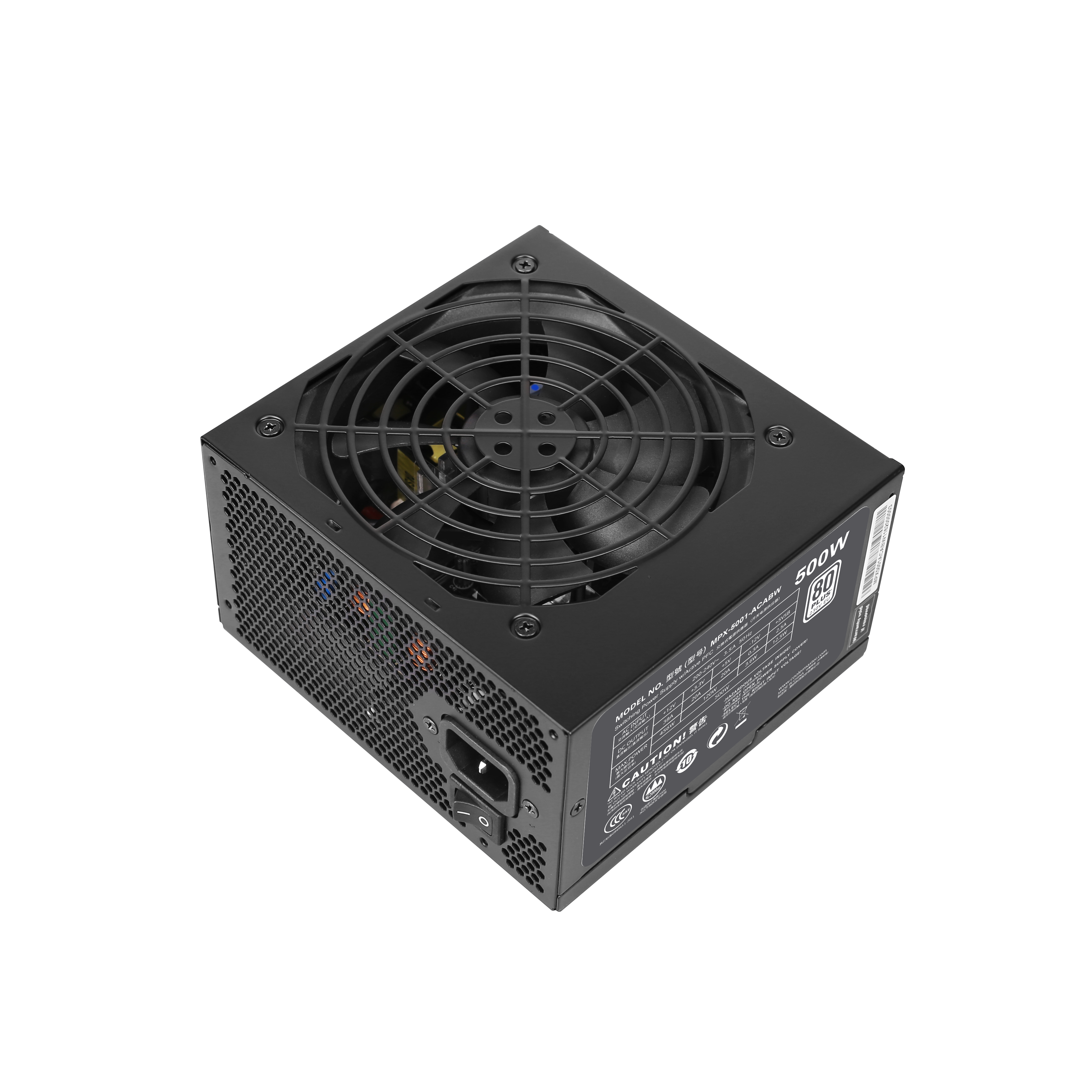

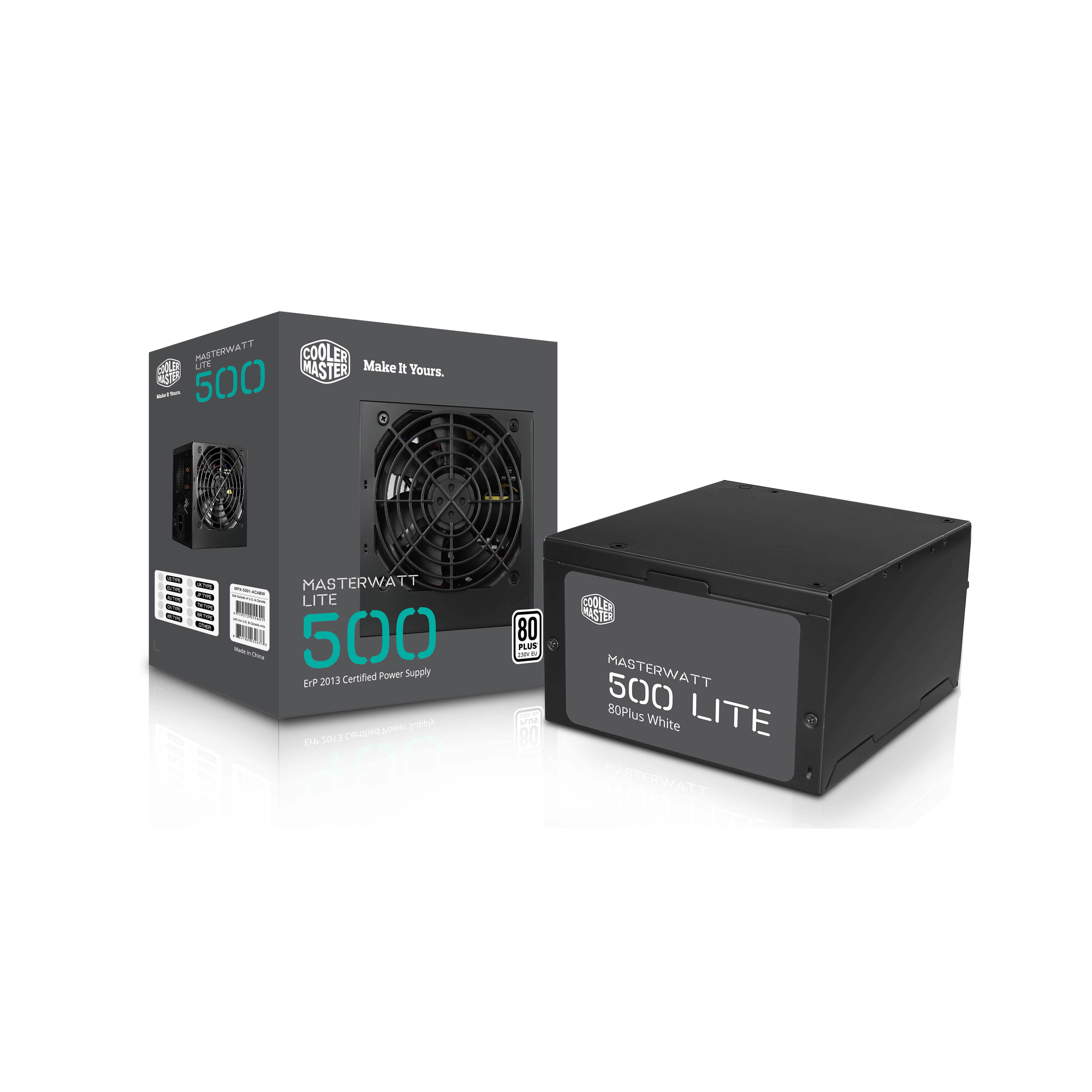

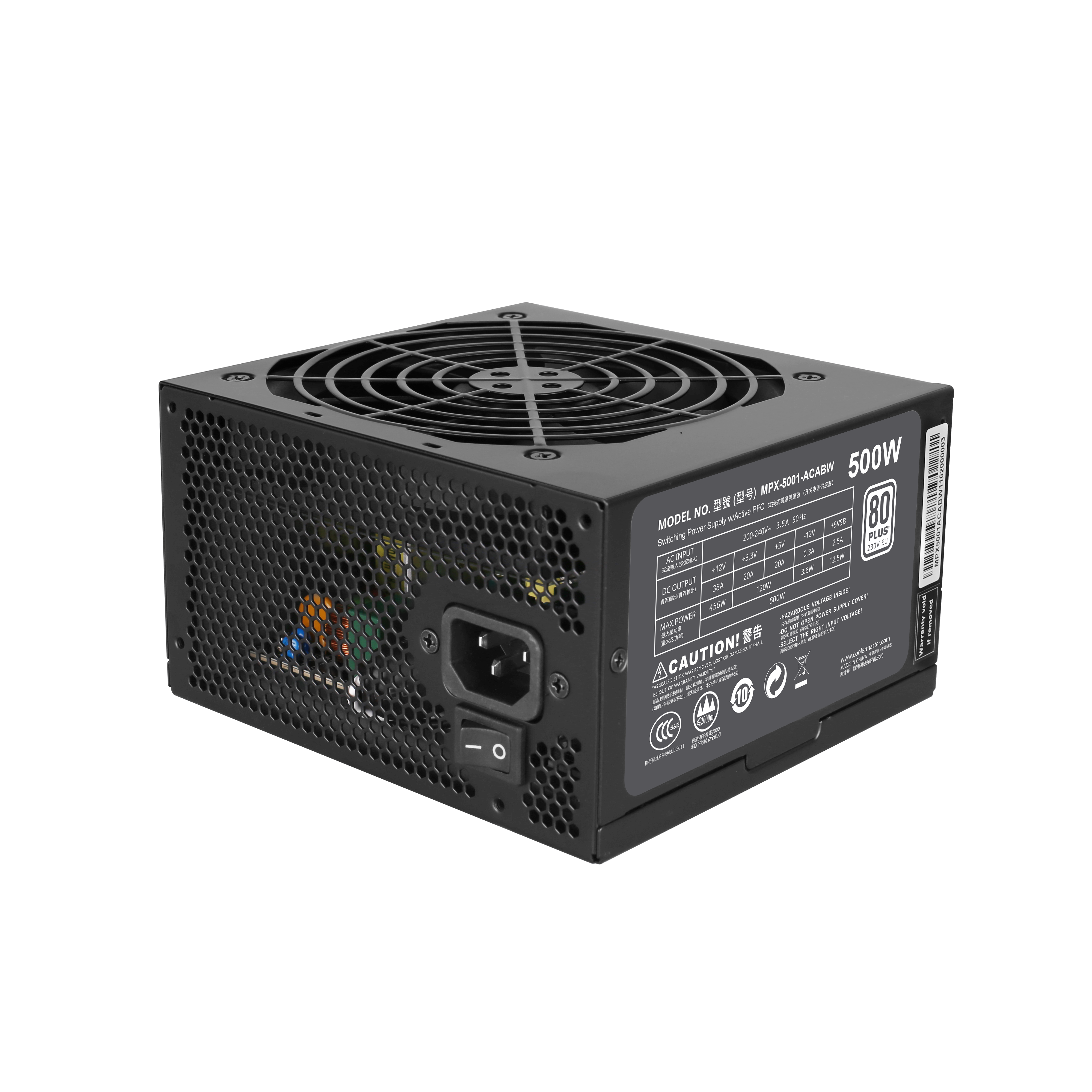

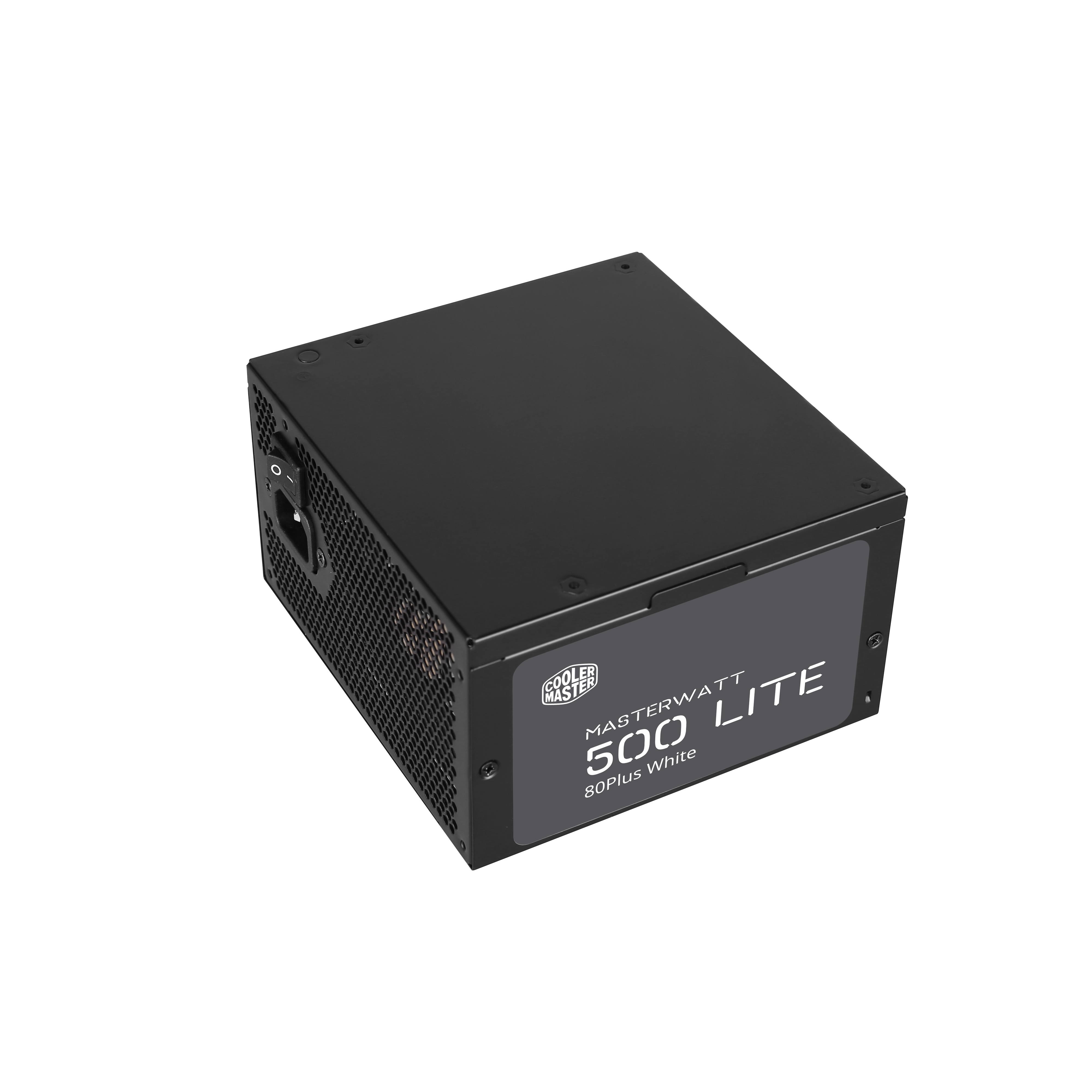

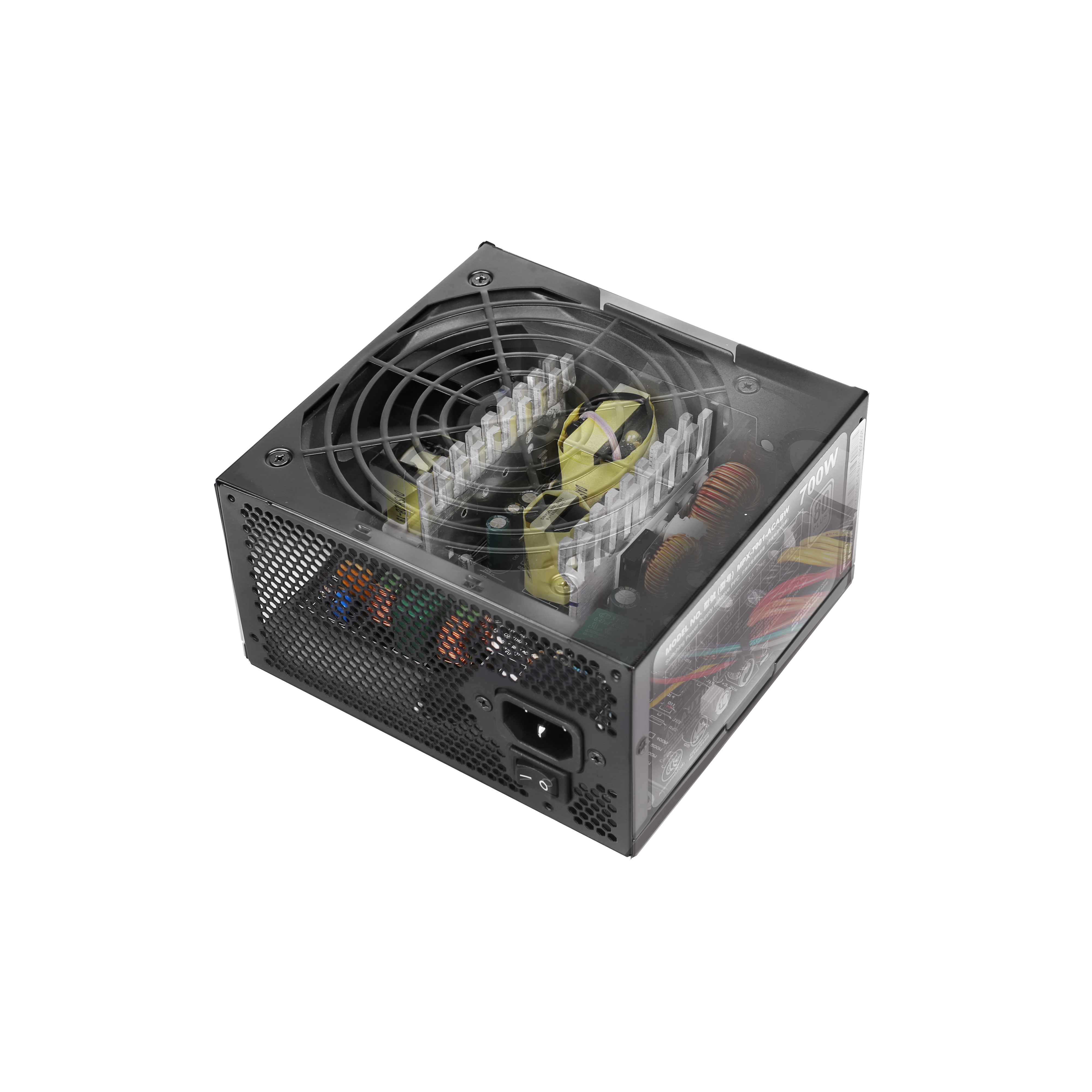

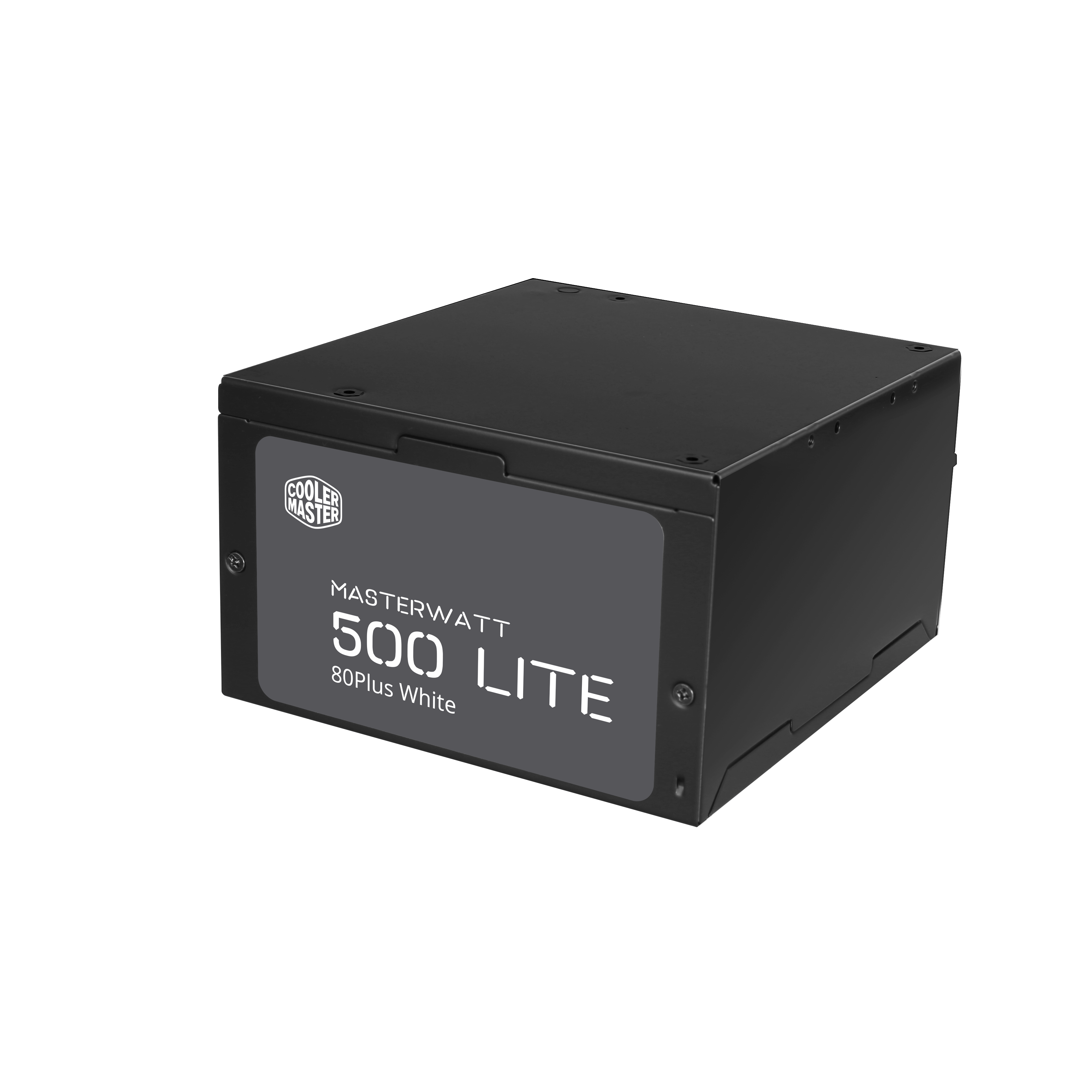

MasterWatt Lite 500W
• Advanced Circuit Design
• Silent and Durable Fan
• Green Power
• Safety Guardian
• 80 Plus Standard Certified
- ErP 2013 Lot 6 Yes
- MB 20+4 Pin Connectors 1
- FDD Cable 4 Pin Connectors 1
- Hold Up Time >10ms at 100% Full Load
- Input Frequency 50-60Hz
- Warranty 3 Years
- Power Good Signal 100 - 500 ms
- MTBF >100,000 Hours
- Efficiency 80% Typically Load
- CPU 12V 4+4 Pin Connectors 1
- Category 500 to 750W
- Modular Non Modular

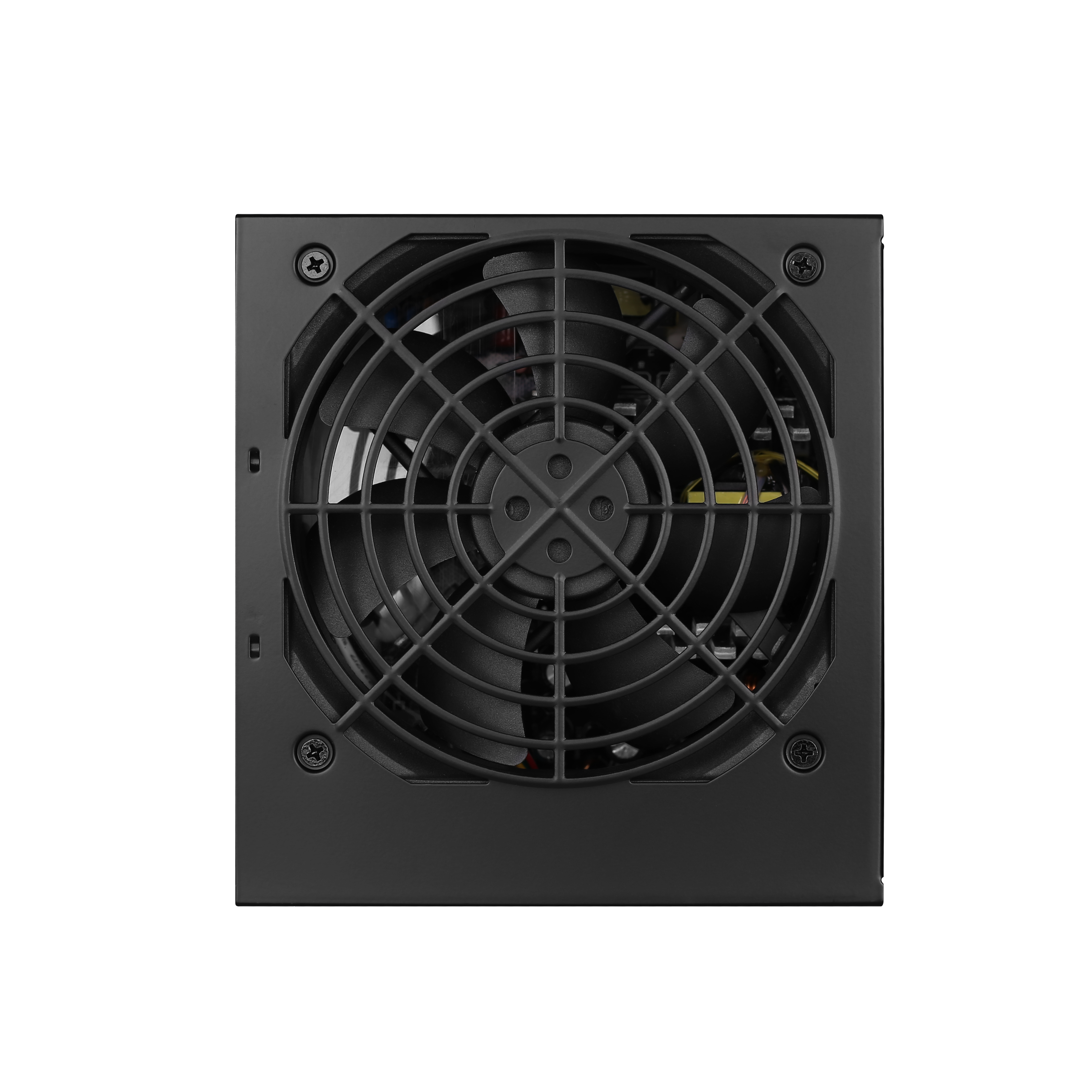

- Fan Size Silent 120mm HDB Fan
- PFC Active PFC (>0.9 Typical)
- Input Voltage 100-240V
- 80 Plus Efficiency White
- ATX Version Intel Form Factor ATX 12V V2.31
- Series MasterWatt Lite Series
- PCI-e 6+2 Pin Connectors 2
- SATA Connectors 6
- Peripheral 4 Pin Connectors 3
- Protections OVP
- Protections OPP
- Protections SCP
- Protections UVP
- Protections OTP
- Dimensions (L x W x H) 150 x 140 x 86 mm
- Protections OCP
- Input Current 8-4A
- Regulatory CCC
- Regulatory CE
- Noise Level @ 100% 33.2 dBA
- Noise Level @ 20% 19.9 dBA
- Regulatory EAC
- Noise Level @ 50% 21.9 dBA
- Regulatory FCC
- Regulatory BSMI
- Regulatory KC
- Model MPX-5001-ACAAW
- Regulatory TUV
- Product Name MasterWatt Lite 500W Full Range
- Regulatory cTUV-Rhus
- Regulatory RCMC
