ERP2013 230V

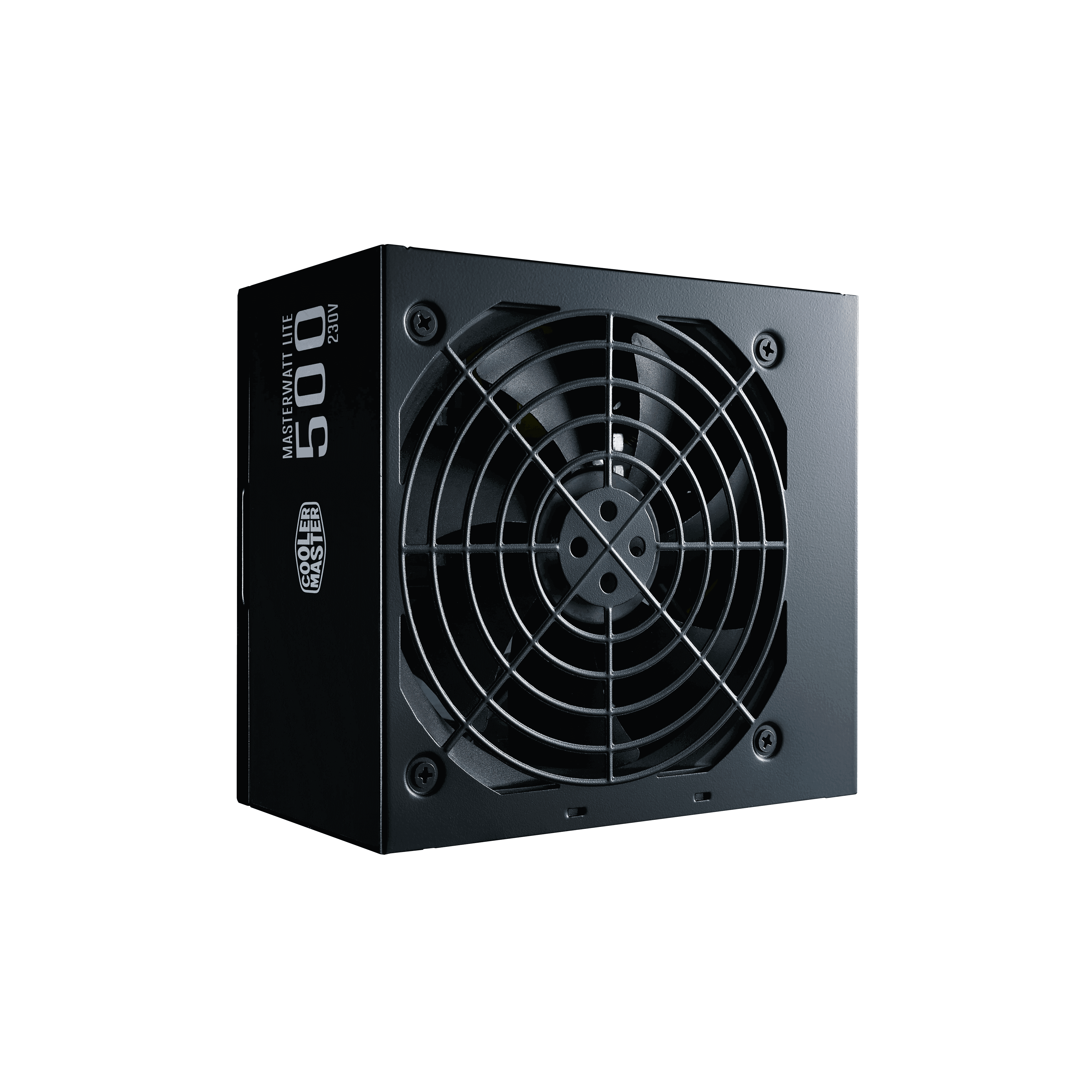

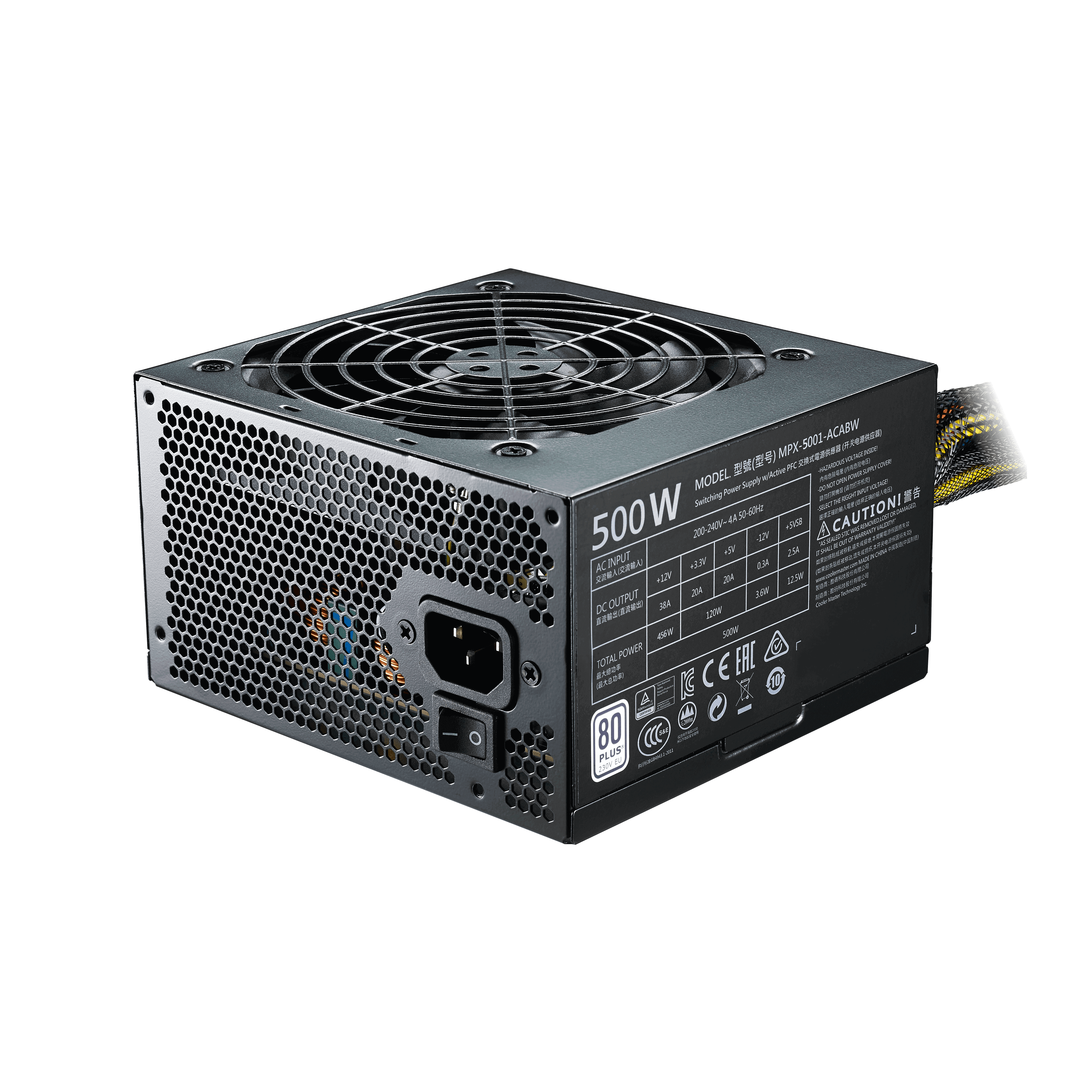

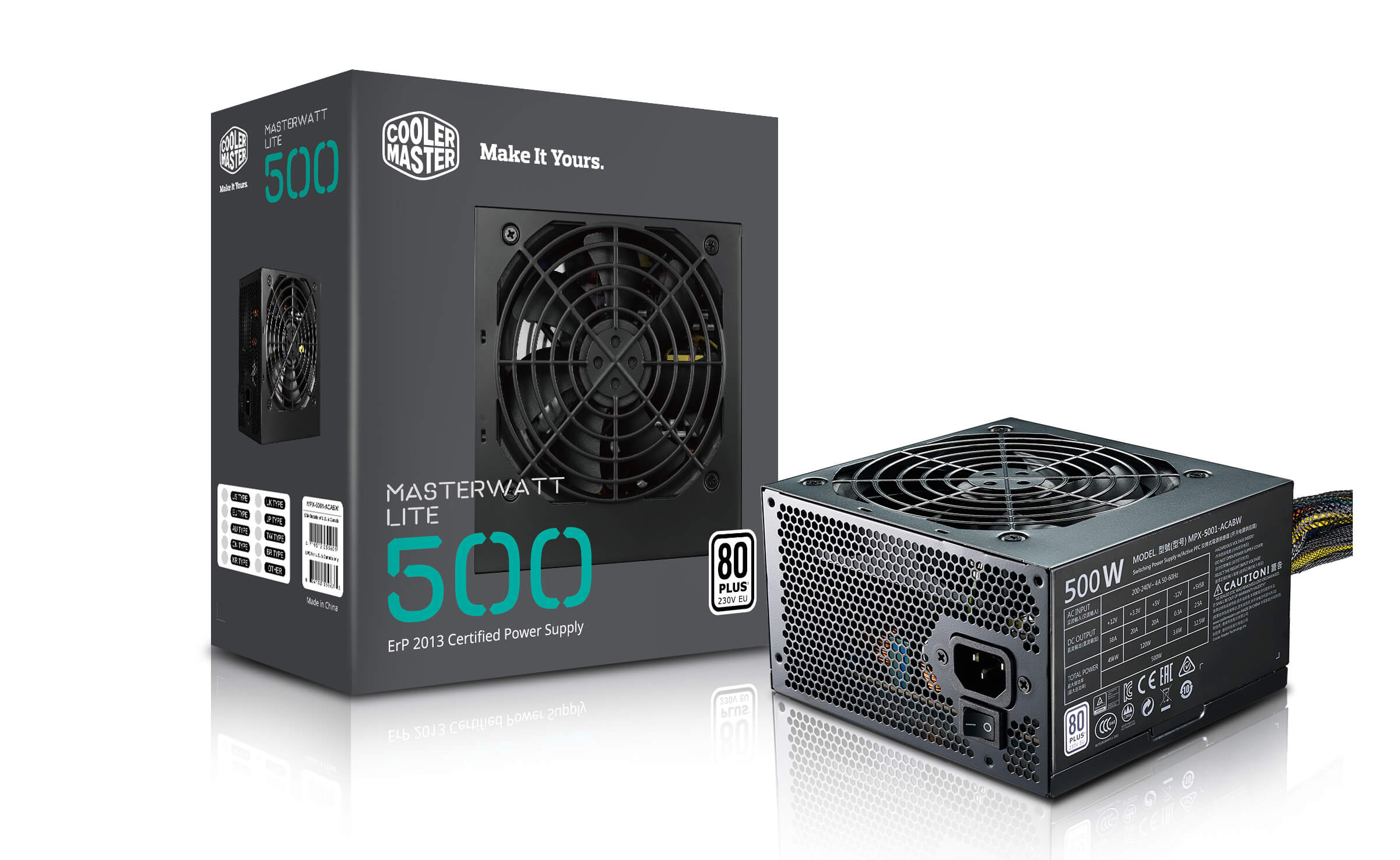

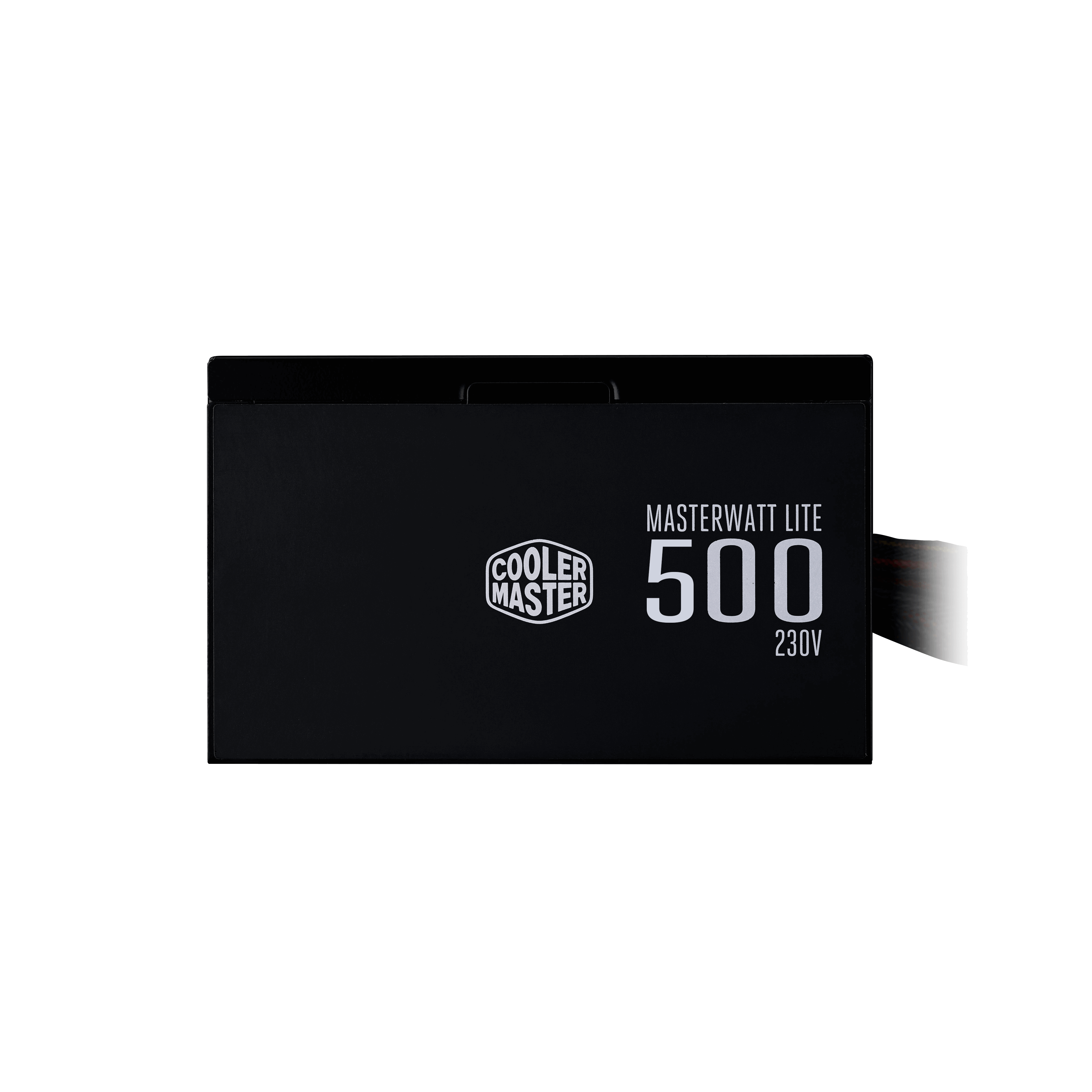

MasterWatt Lite 230V 500W
• 80 Plus EU (230V) certified 85% efficiency
• APFC + PWM combined with dual forward topology to increase stability and performance
• Green power design to meet ErP 2013 Lot6 & new CE energy saving regulation

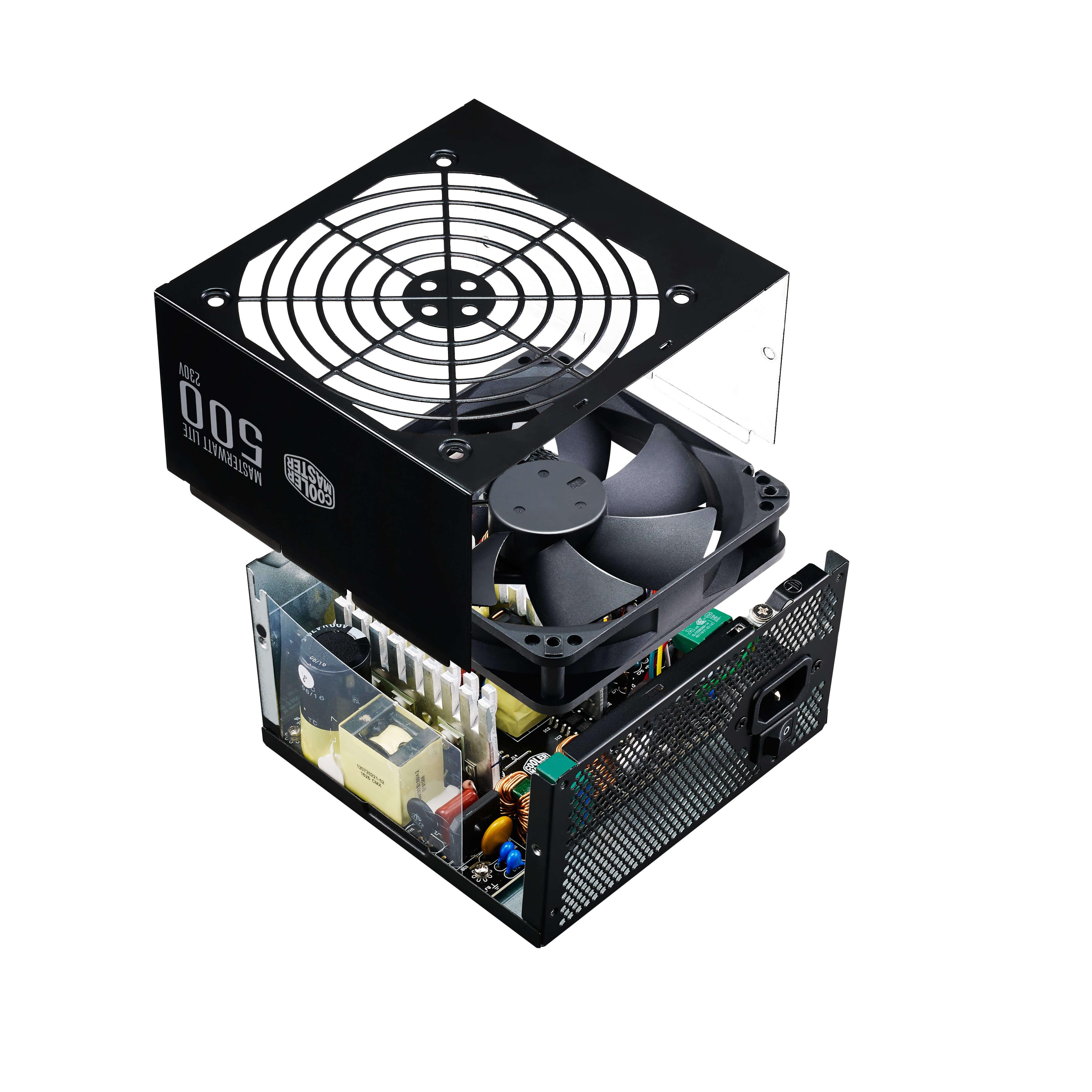

• Silent 120mm HDB fan with intelligent fan-speed control, to enhance longevity and help reduce noise in power unit.
• Fully protection (OCP/OVP/SCP/OPP) with build-in Over Temperature Protection (OTP)
Specifications
- PFC Active PFC
- Operating Temperature 0-40°C
- MB 20+4 Pin Connectors 1
- FDD Cable 4 Pin Connectors 1
- Category 500 to 750W
- Power Good Signal 100 - 500 ms
- MTBF >100,000 hours @ 25℃ ambient
- Input Frequency 47-63Hz
- CPU 12V 4+4 Pin Connectors 1

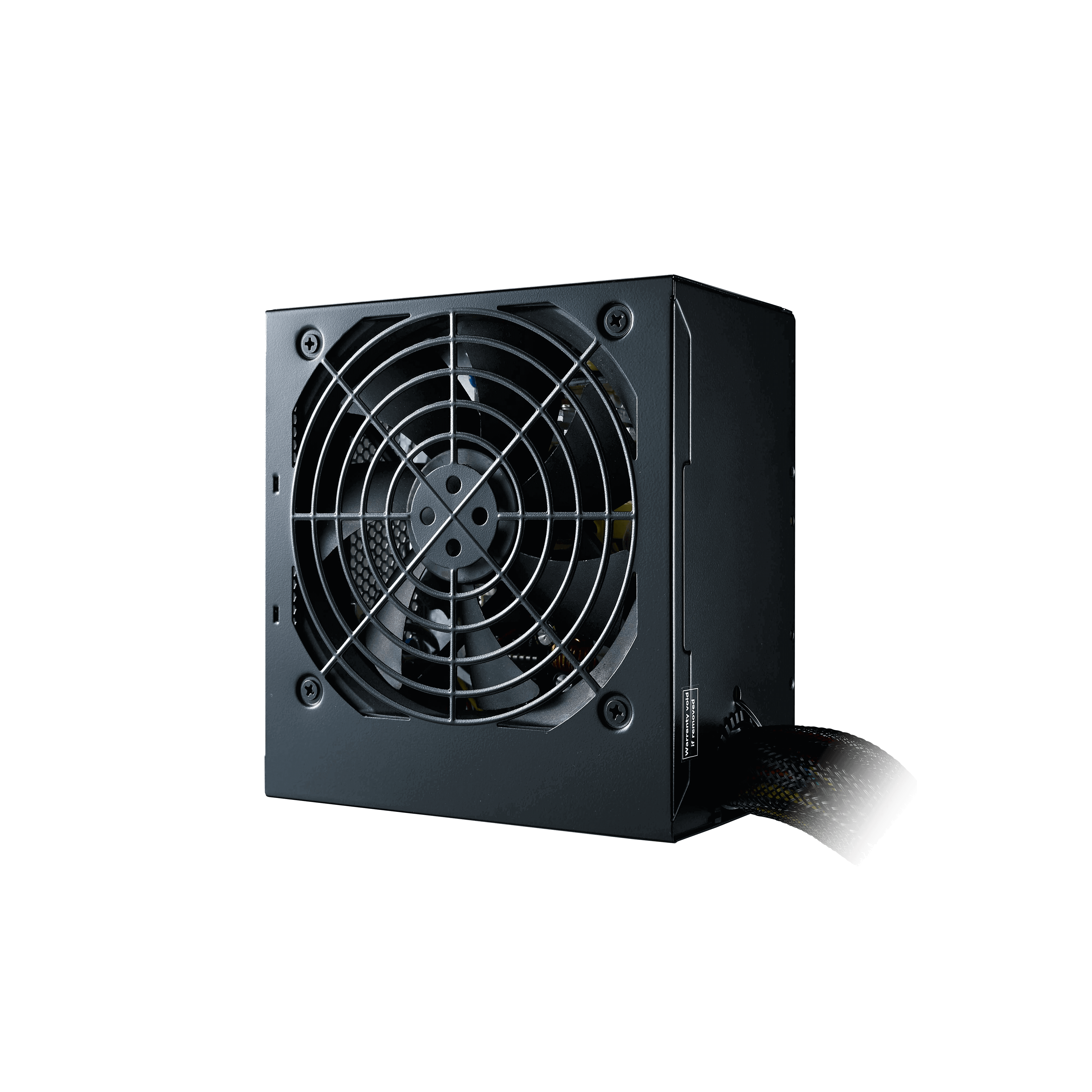

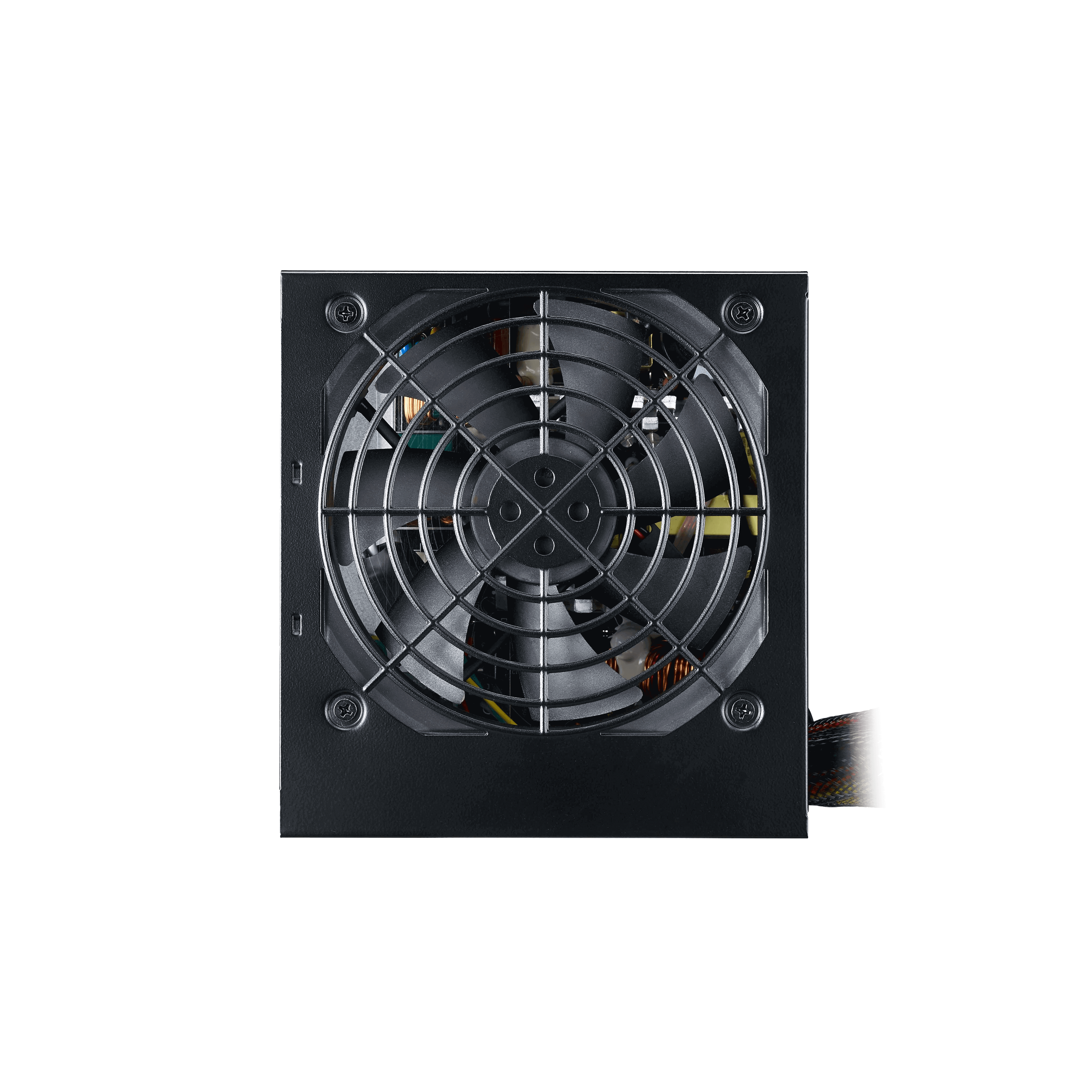

- Fan Size Silent 120mm HDB Fan
- Modular Non Modular
- Input Current 3.5-5A
- Hold Up Time >10ms at 100% Full Load@230Vac
- ATX Version ATX 12V V2.31
- Efficiency 85% Typically
- Series MasterWatt Lite Series
- PCI-e 6+2 Pin Connectors 2
- SATA Connectors 6
- Peripheral 4 Pin Connectors 3
- Protections OVP
- Protections OPP
- Protections SCP
- Protections UVP
- Protections OTP
- Dimensions (L x W x H) 150 x 140 x 86 mm
- Protections OCP
- Regulatory CCC
- Input Voltage 200-240Vac
- Regulatory CE
- Regulatory RCM
- Regulatory EAC
- Regulatory FCC
- Regulatory BSMI
- Regulatory KC
- Regulatory CB

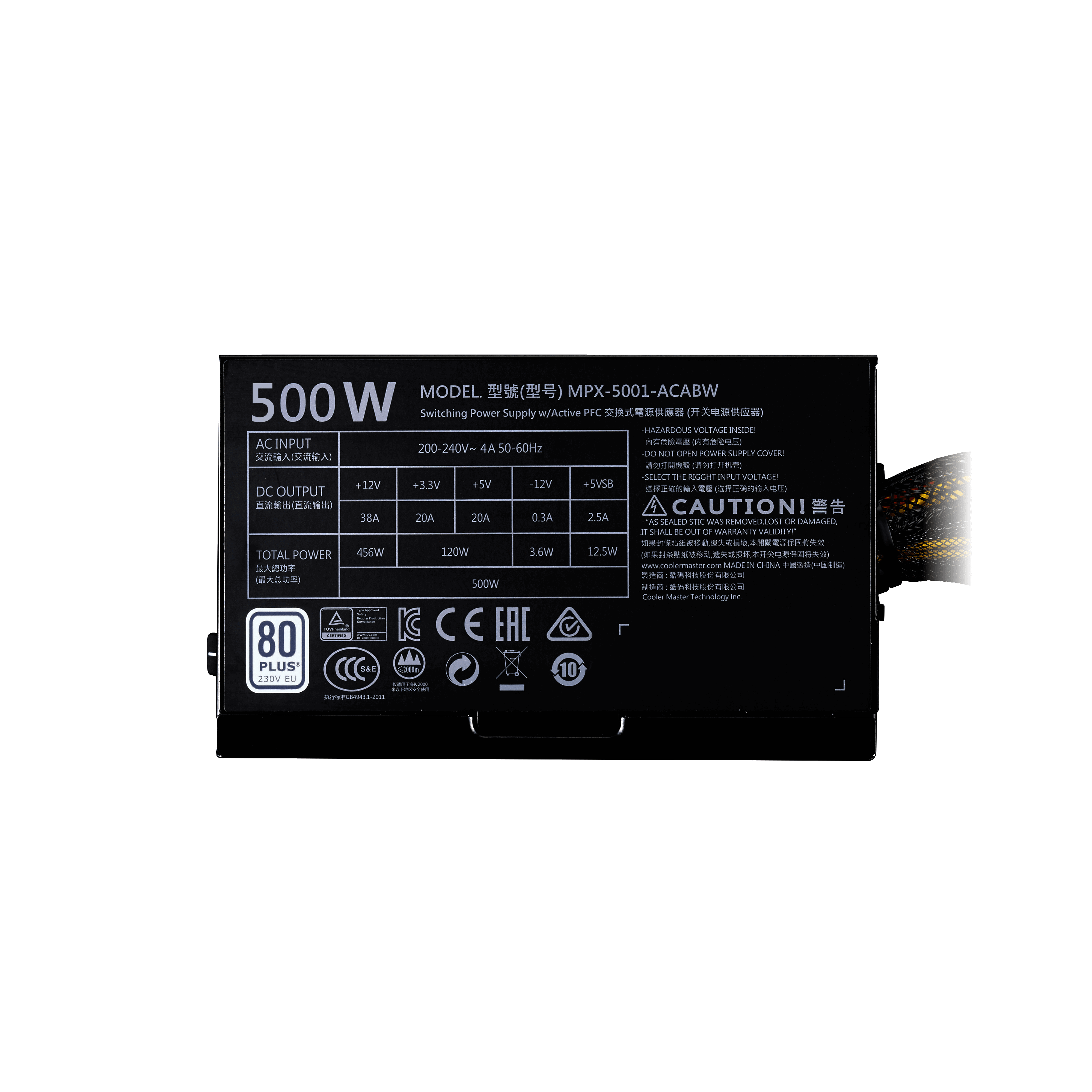

- Model MPX-5001-ACABW
- Regulatory TUV
- Series Standard
- Product Name MasterWatt Lite 230V (ErP 2013) 500W - Green power supply with ErP 2013 certified
- Regulatory cTUV-Rhus
