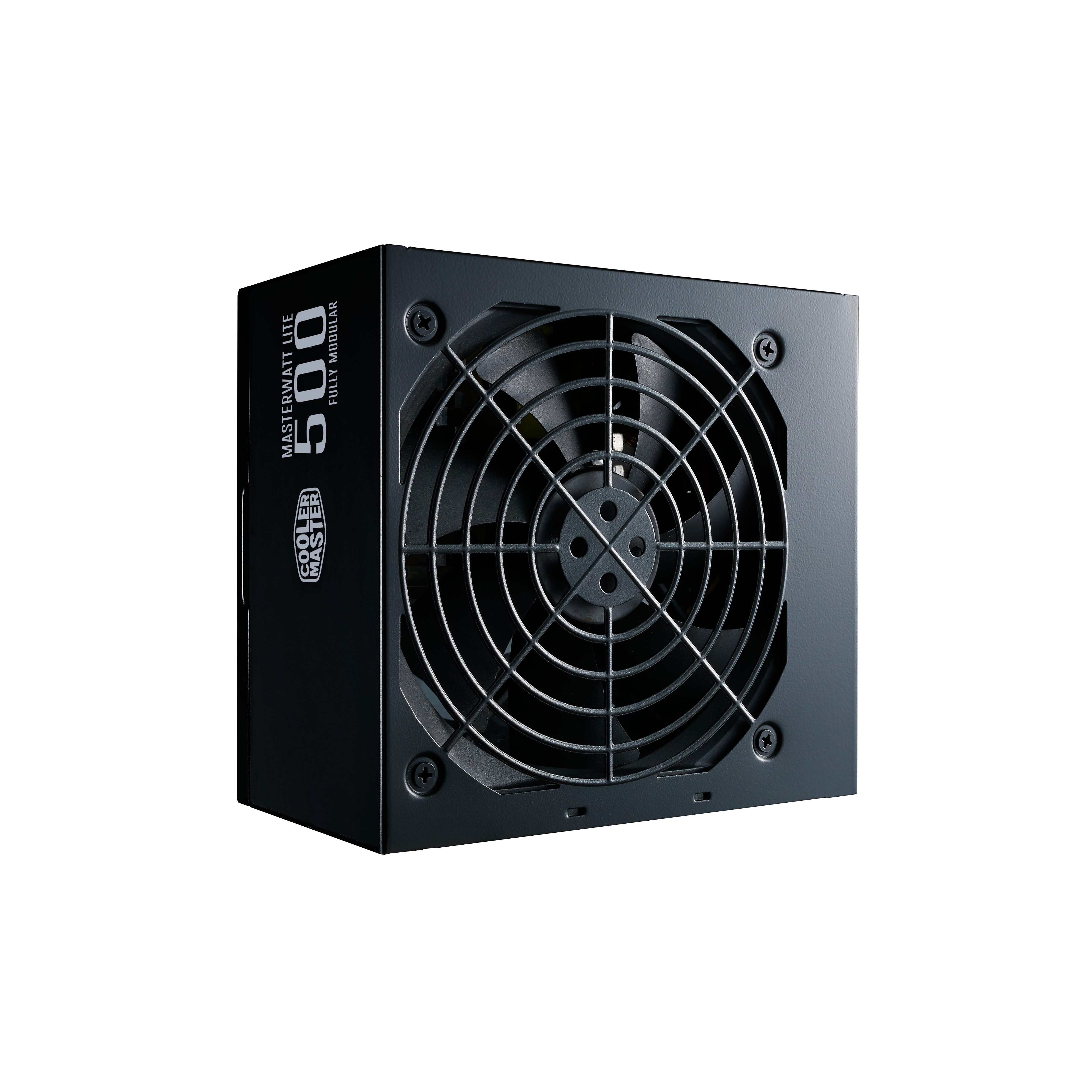

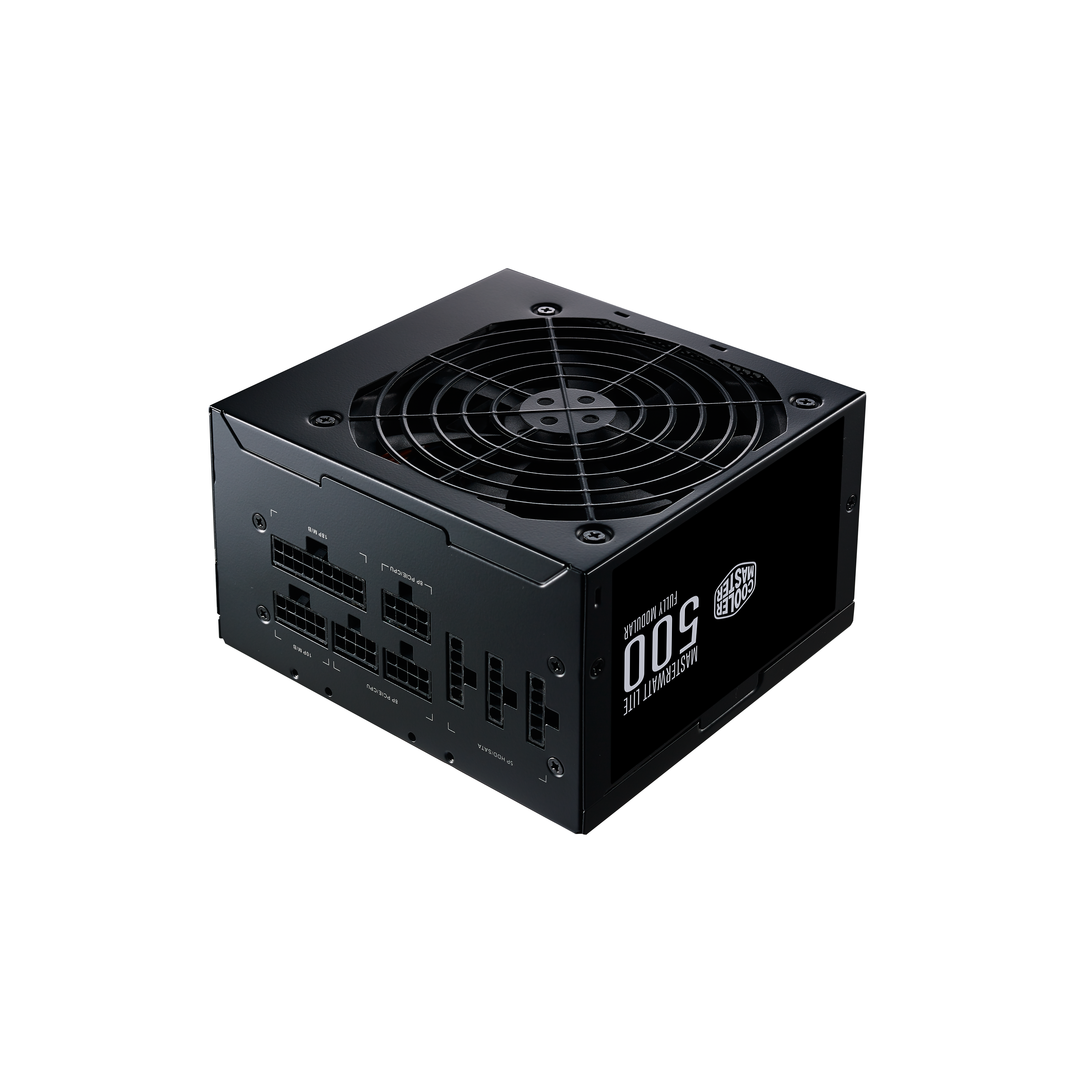

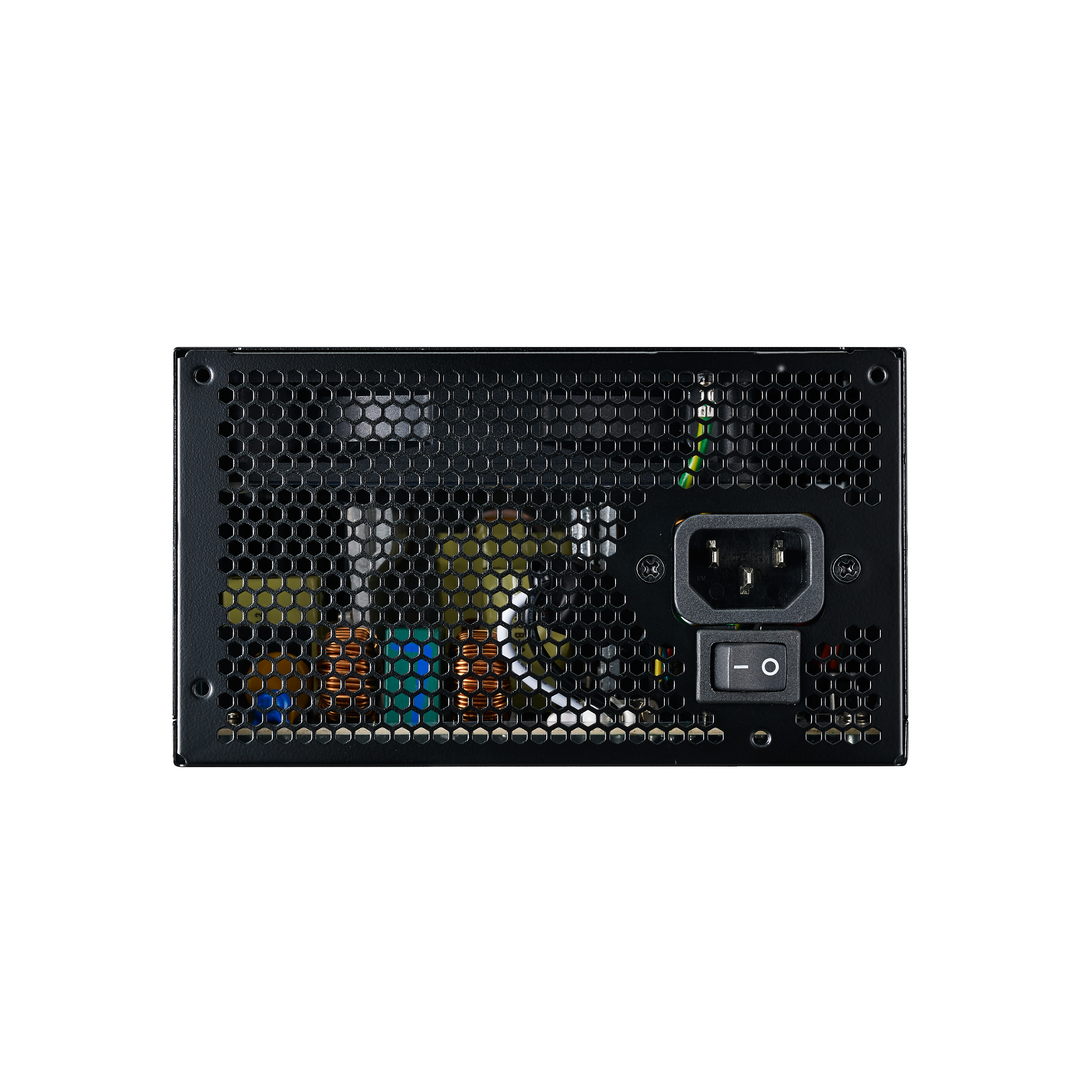

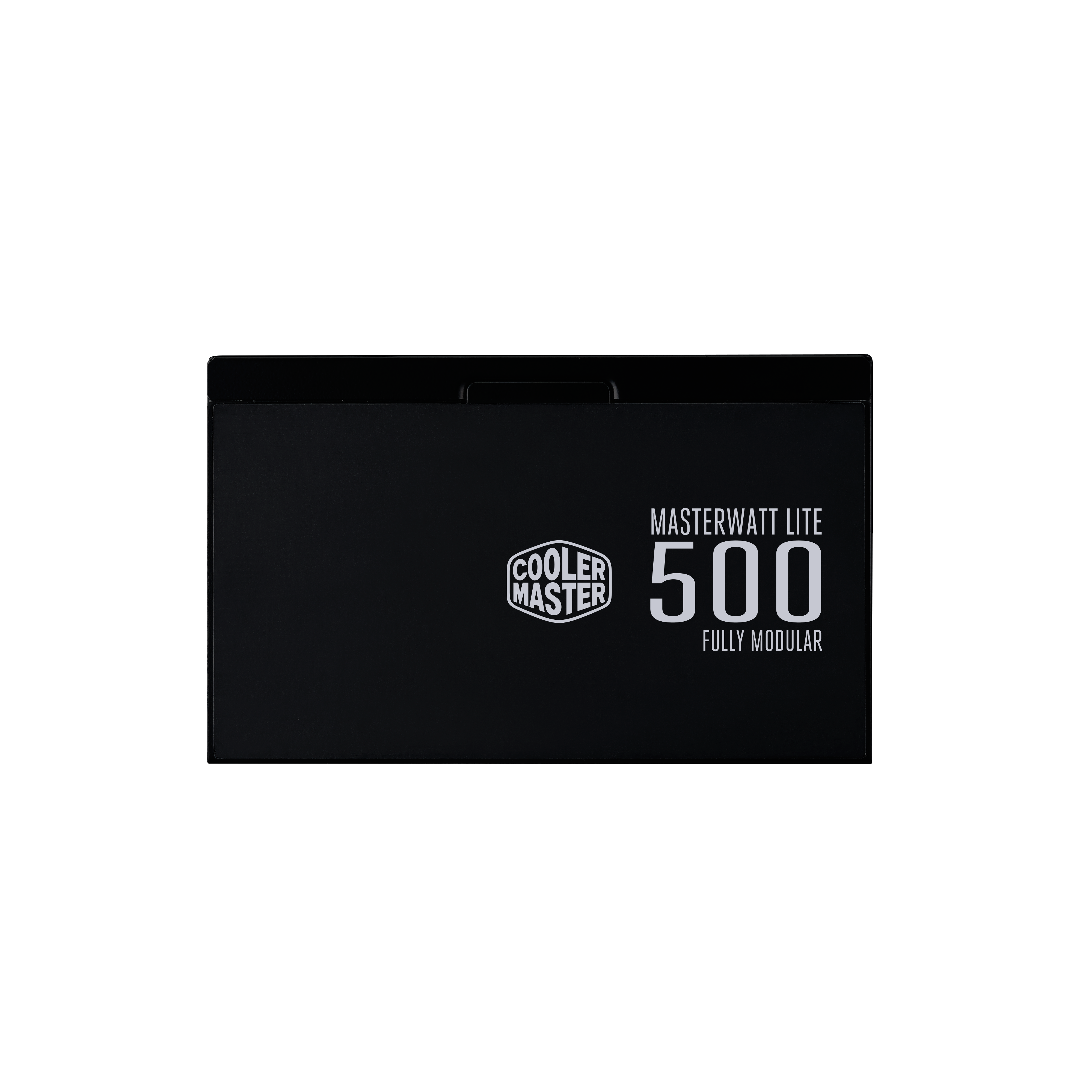

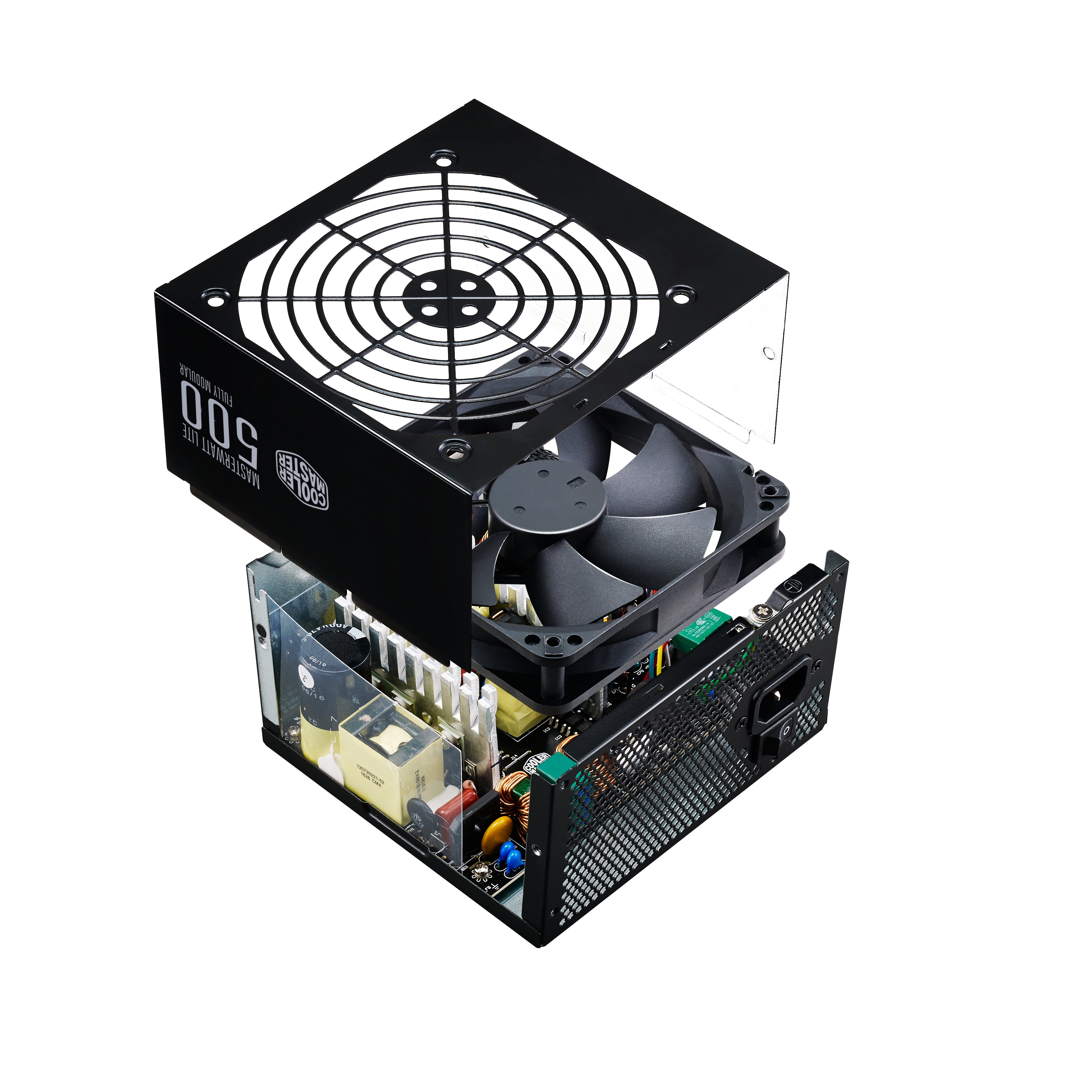

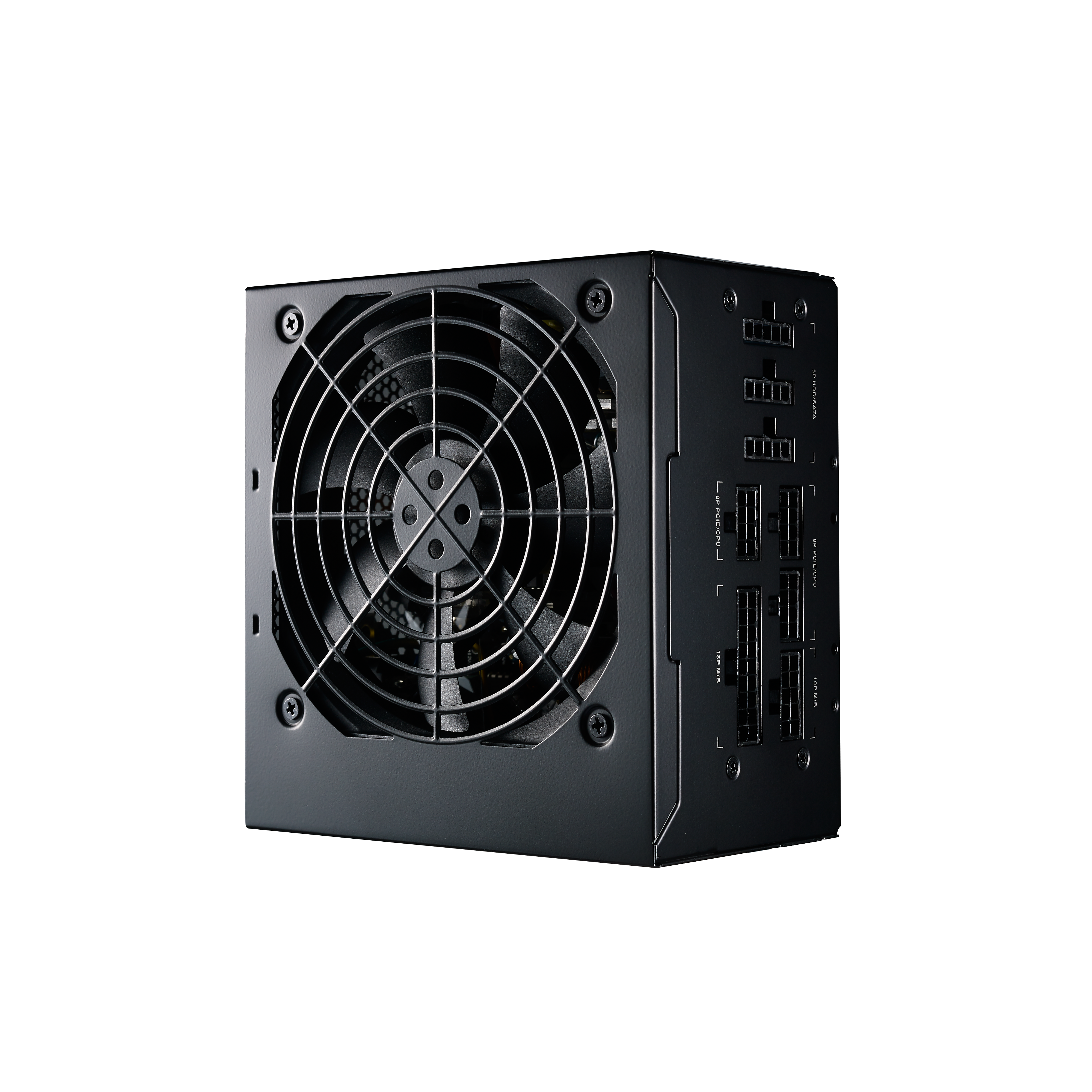

MasterWatt Lite 500 Full Modular

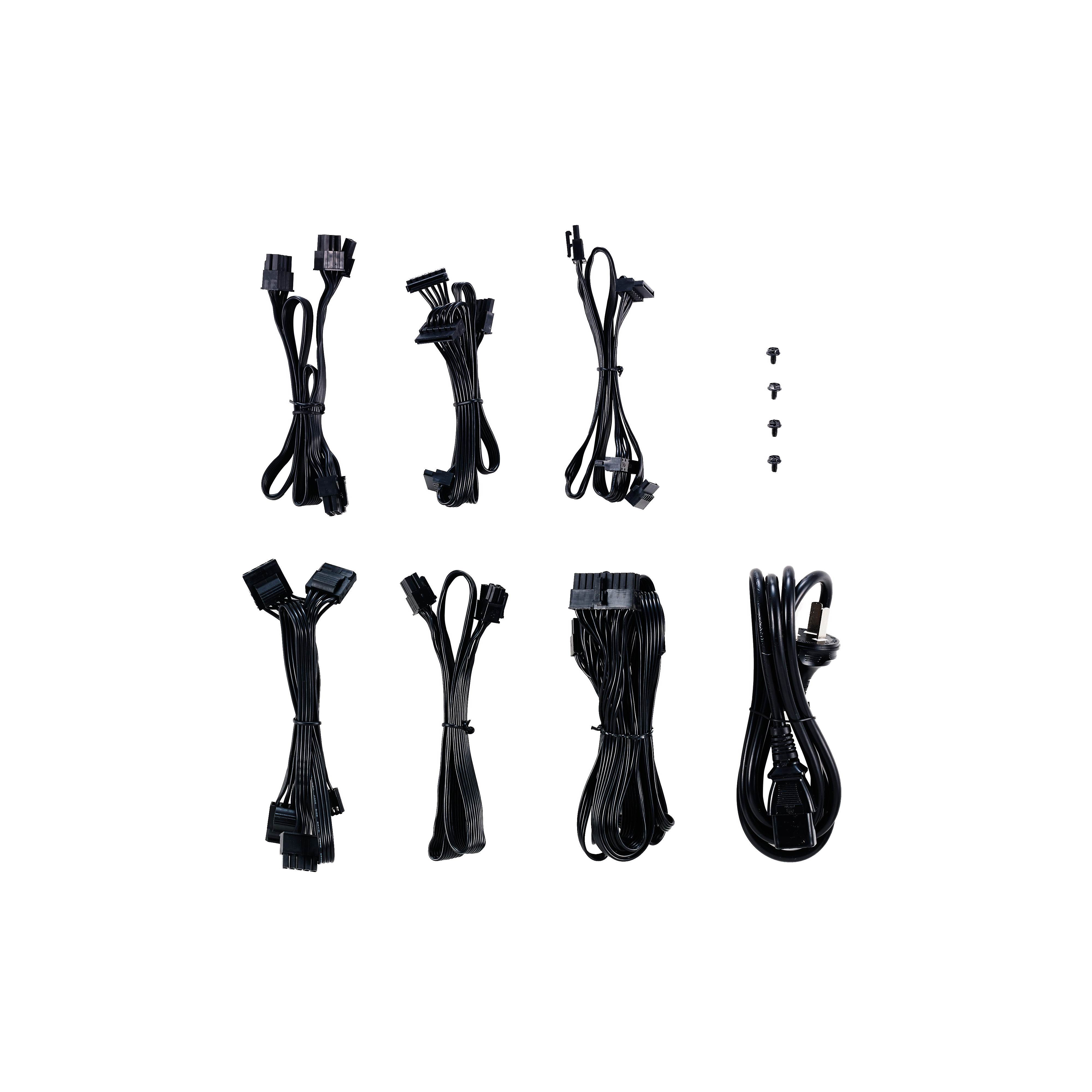

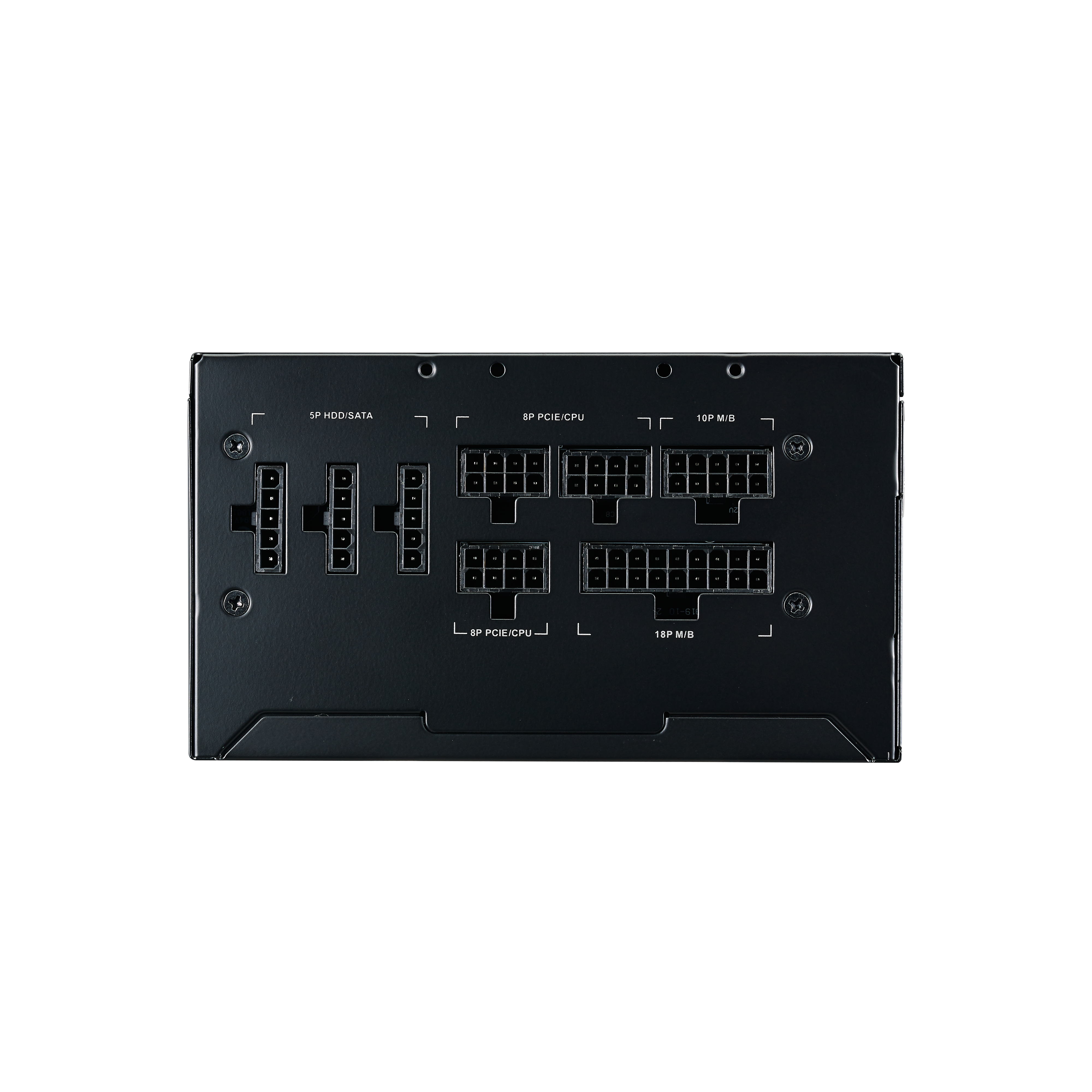

• Fully Modular Cable Design
• 80 Plus EU (230V) Certified
• Silent and Durable Fan
• Green Power
• Fully Protection
- Modular Fully Modular
- PFC Active PFC
- Input Frequency 50-60Hz
- Operating Temperature 0-40°C
- ErP 2013 Lot 6 Yes
- MB 20+4 Pin Connectors 1
- FDD Cable 4 Pin Connectors 1
- CPU 12V 4+4 Pin Connectors 1
- Power Good Signal 100 - 500 ms
- MTBF >100,000 Hours
- Category 500 to 750W

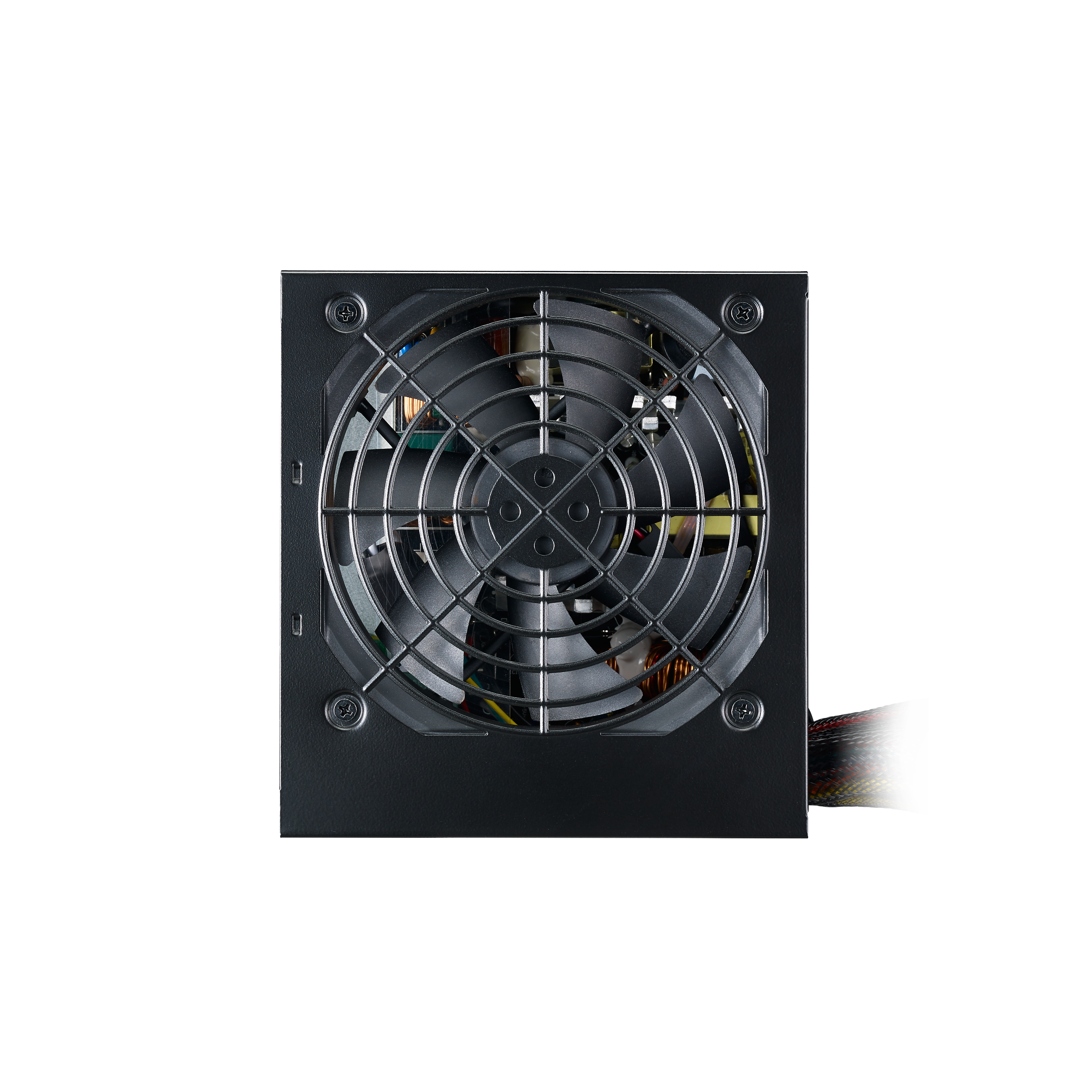

- Fan Size 120mm
- Input Current 3.5A
- Operation Voltage 230Vac
- Fan Bearing HDB
- Hold Up Time >10ms at 100% Full Load@230Vac
- Efficiency 85% Typically
- ATX Version ATX 12V V2.31
- 80 Plus Efficiency White
- Series MasterWatt Lite Series
- PCI-e 6+2 Pin Connectors 2
- SATA Connectors 6
- Peripheral 4 Pin Connectors 3
- Protections OVP
- Protections OPP
- Protections SCP
- Protections UVP
- Dimensions (L x W x H) 150 x 140 x 86 mm
- Protections OTP
- Protections OCP
- Regulatory CCC
- Input Voltage 200-240Vac
- Regulatory CE
- Regulatory RCM
- Regulatory EAC
- Regulatory FCC
- Regulatory BSMI
- Regulatory KC
- Regulatory CB
- Regulatory TUV
- Regulatory cTUV-Rhus

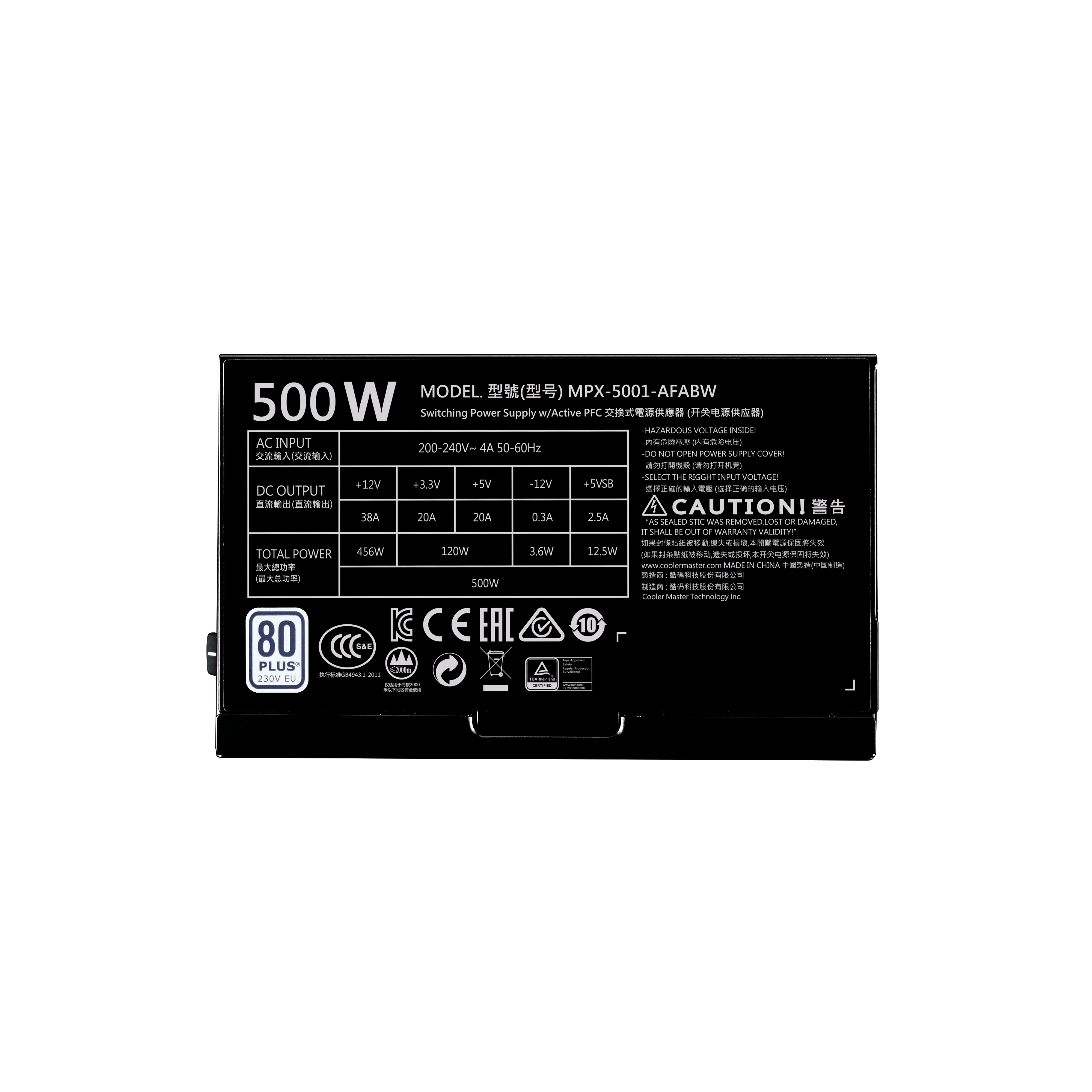

- Model MPX-5001-AFABW
- Product Name MasterWatt Lite 500 Full Modular
