Semi-fanless Modular 80 PLUS Bronze Certified Power Supply
MasterWatt 750
• Semi-Fanless up till 15% load
• Dual Forward and DC-to-DC circuit design
• 5 years warranty

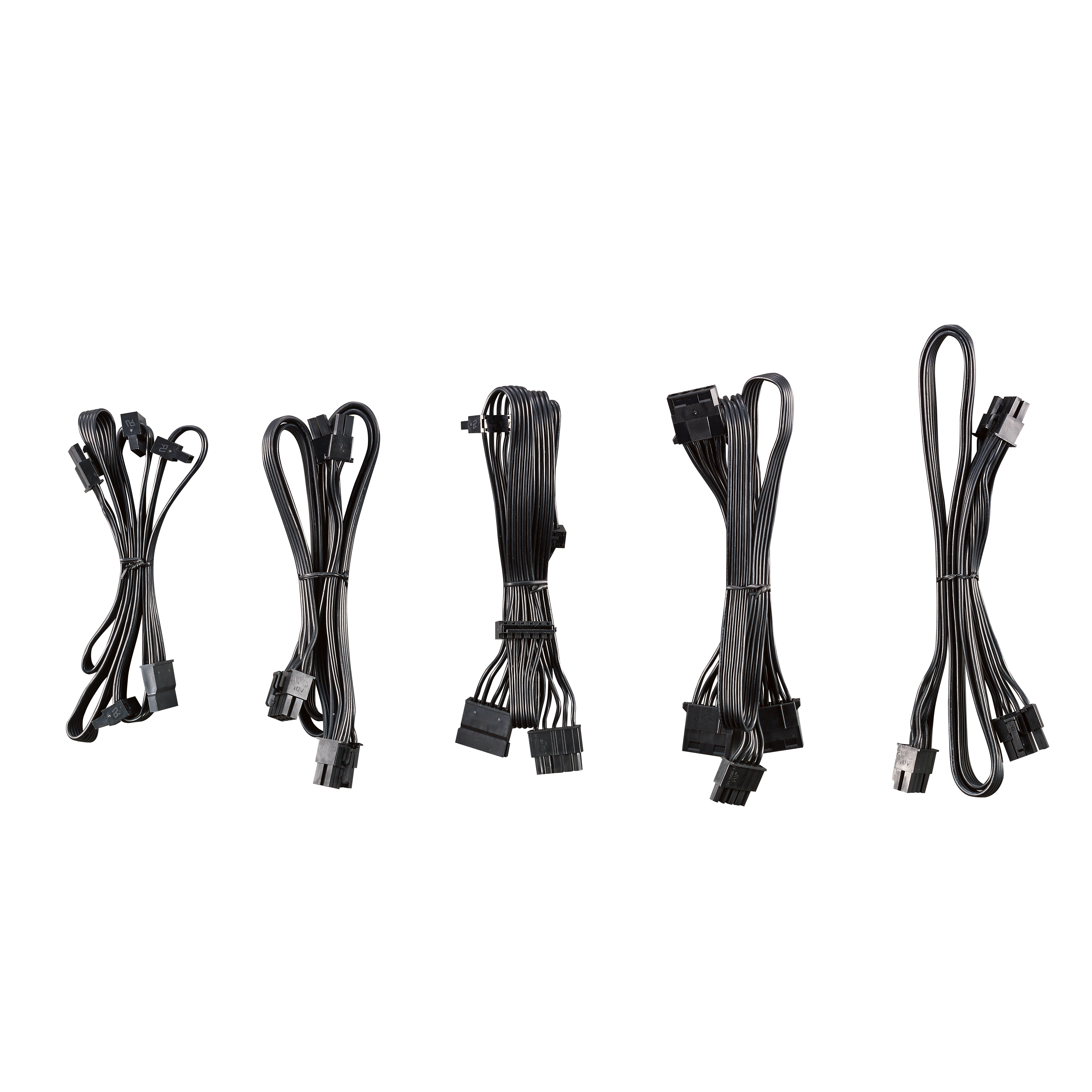

• More Conductive PCI-e Cables
• 80 PLUS Bronze Certified
• Durable LDB bearing
Specifications
- PFC Active PFC
- Input Frequency 50-60Hz
- Operation Voltage 100-240Vac
- ErP 2013 Lot 6 Yes
- MB 20+4 Pin Connectors 1
- FDD Cable 4 Pin Connectors 1
- Operating Temperature 0-40°C
- Power Good Signal 100 - 500 ms
- MTBF >100,000 hours @ 25℃ ambient
- ATX Version ATX 12V v2.4

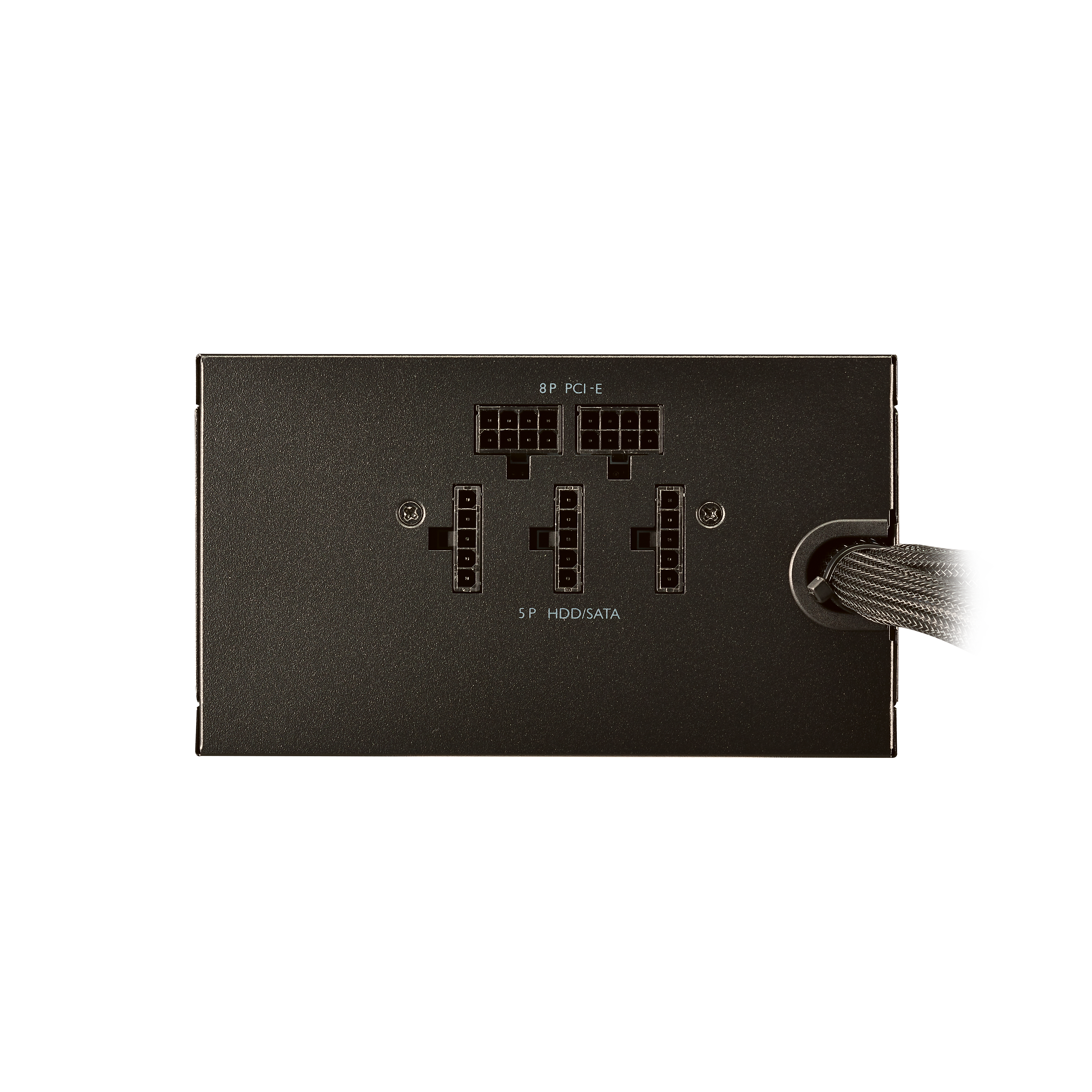

- Modular Semi Modular
- CPU 12V 4+4 Pin Connectors 1

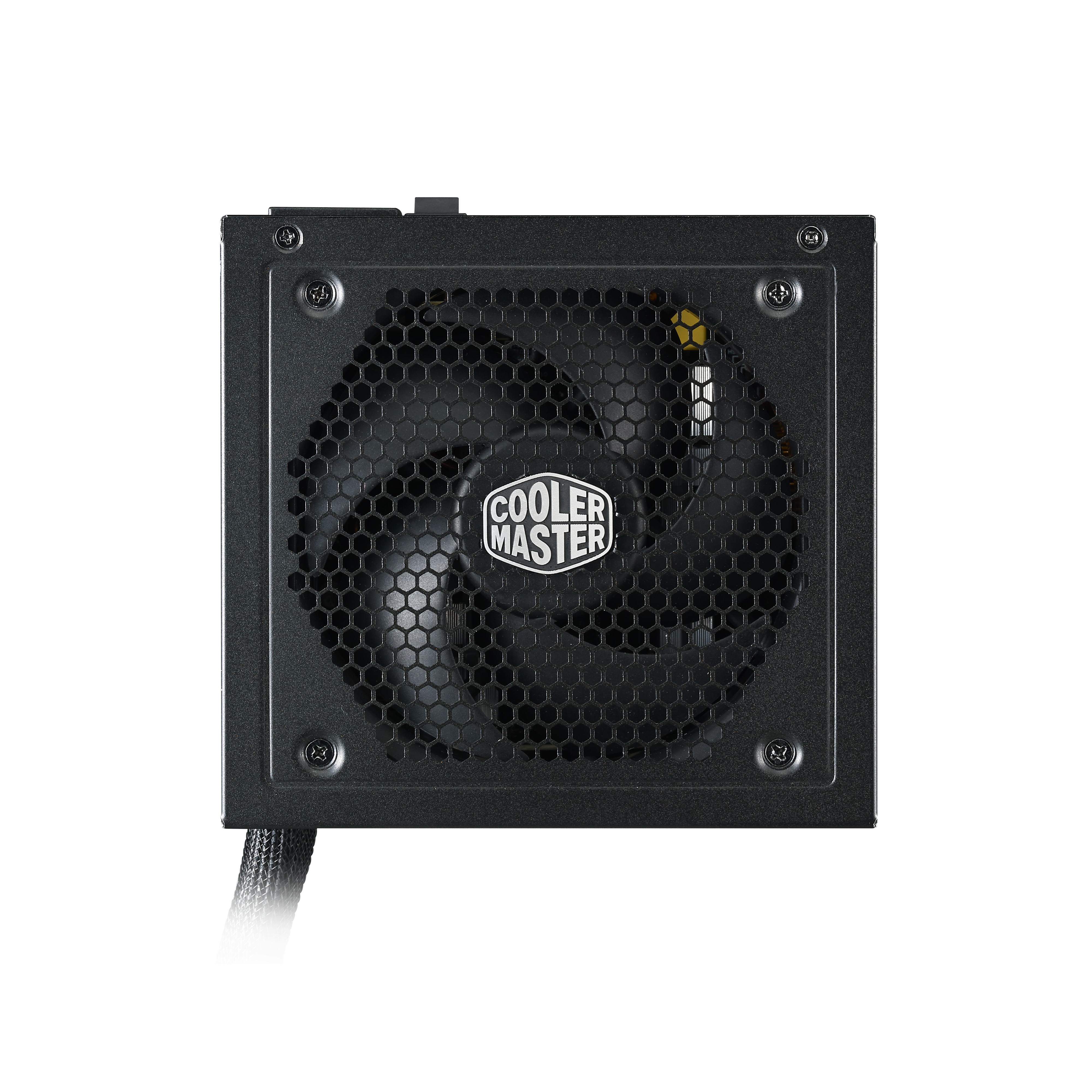

- Fan Size 120mm
- Fan Bearing LDB
- Category 500 to 750W
- 80 Plus Efficiency Bronze
- SATA Connectors 9
- Series MasterWatt Series
- Efficiency 85% @ Typical Load
- PCI-e 6+2 Pin Connectors 750W / 850W: x4 = 2x (600+120mm) 1000W: x3 = 3x (600mm)
- Input Voltage 100-240Vac
- Peripheral 4 Pin Connectors 3
- Protections OVP
- Protections OPP
- Dimensions (L x W x H) 140 x 150 x 86 mm
- Protections SCP
- Protections UVP
- Protections OTP
- Hold Up Time 16ms at 80% Load
- Protections OCP
- Regulatory CCC
- Input Current 750W / 850W: 10 – 6 A | 1000W: 15 – 8 A
- Regulatory CE
- Regulatory TUV-RH
- Regulatory RCM
- Regulatory EAC
- Regulatory cTUVus

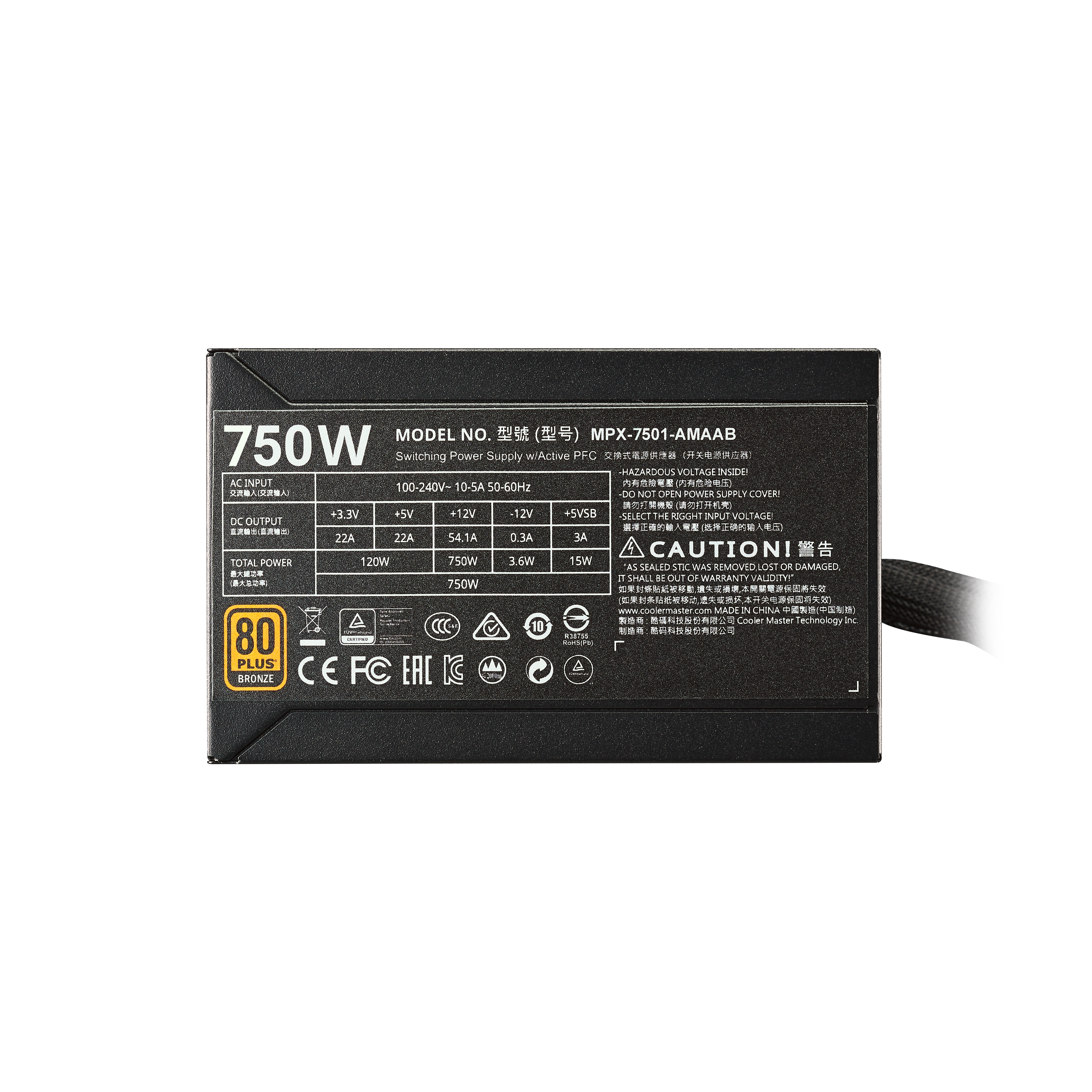

- Model MPX-7501-AMAAB
- Regulatory FCC
- Regulatory BSMI
- Regulatory KC
- Product Name MasterWatt 750
- Regulatory CB
