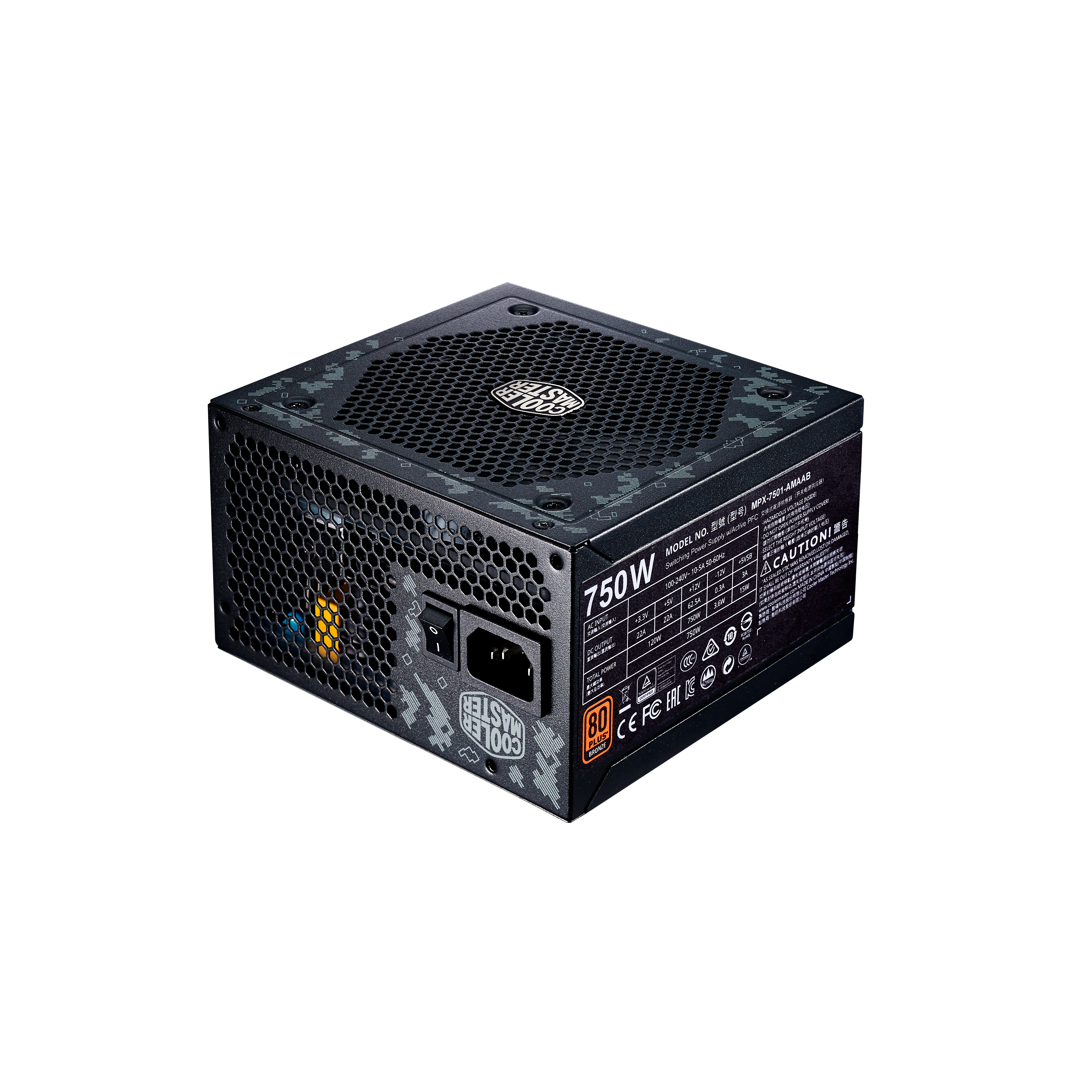

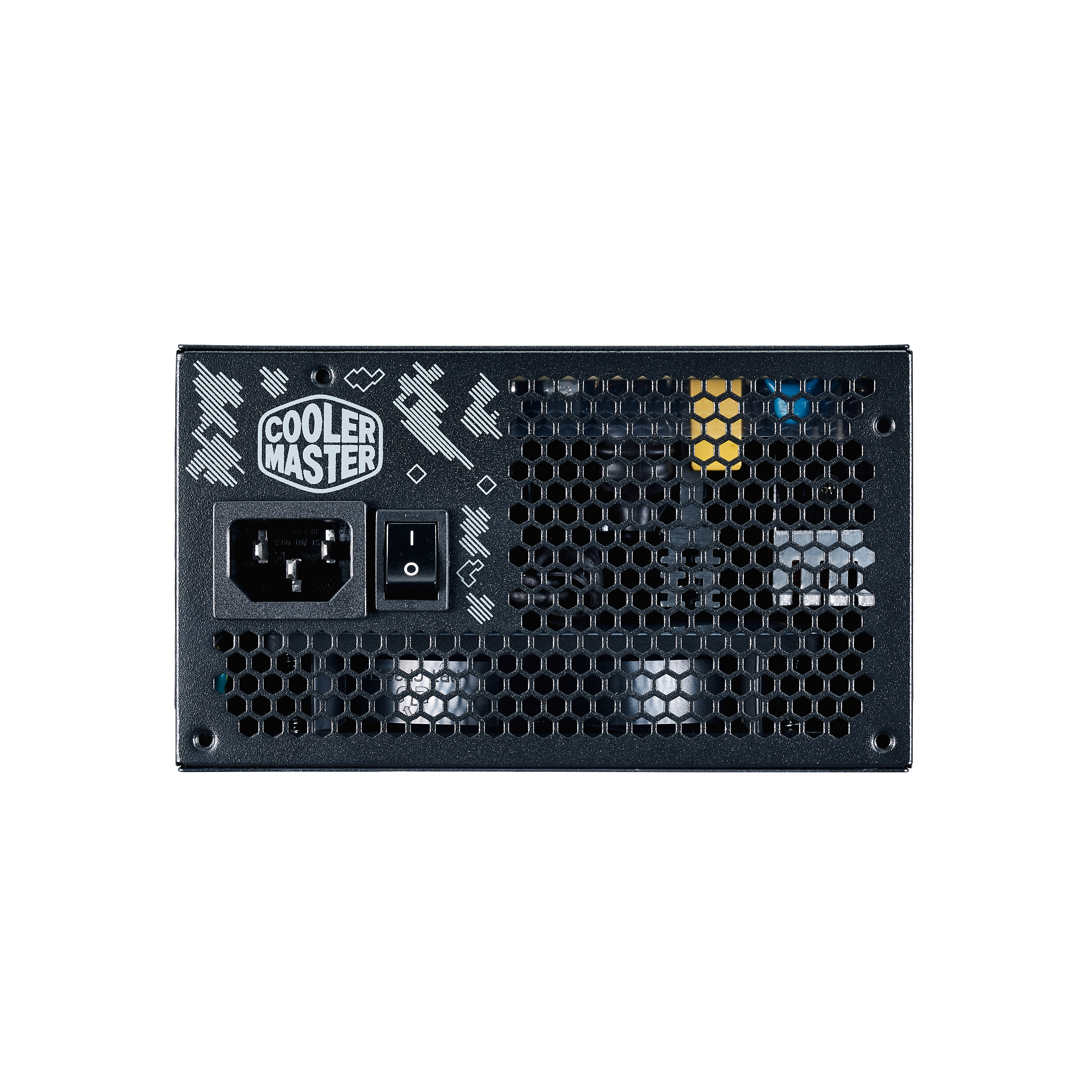

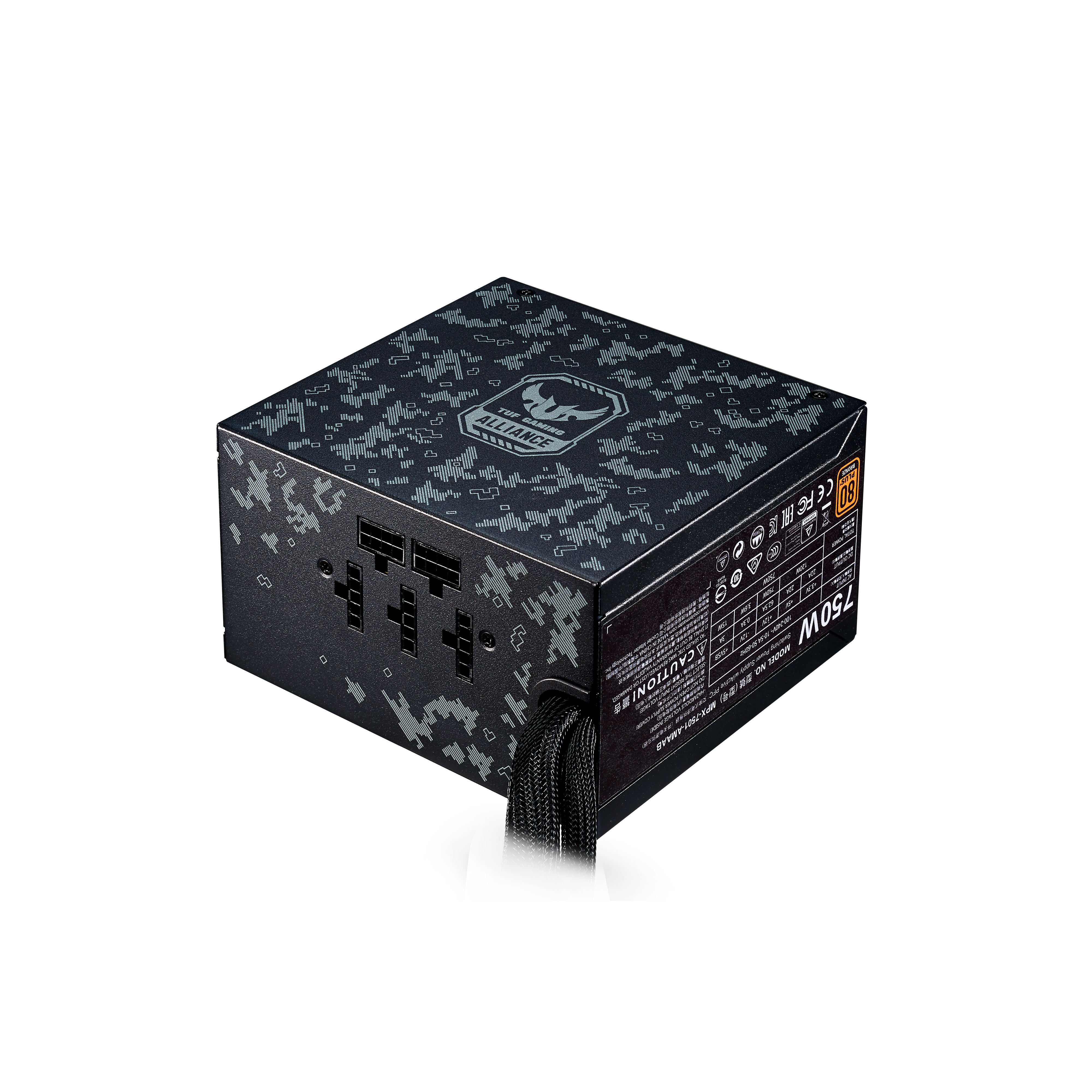

Semi-fanless Modular 80 Plus Bronze Power Supply

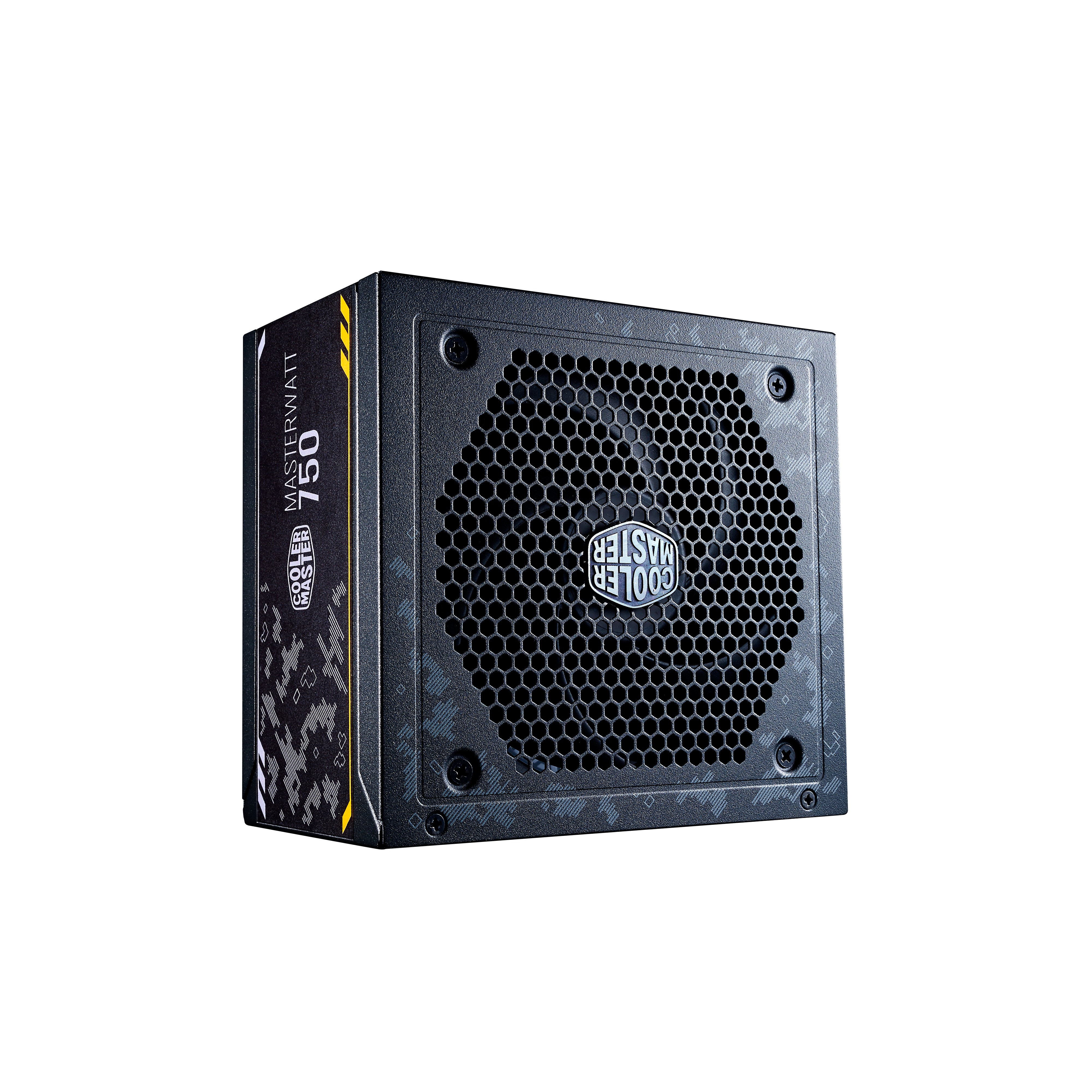

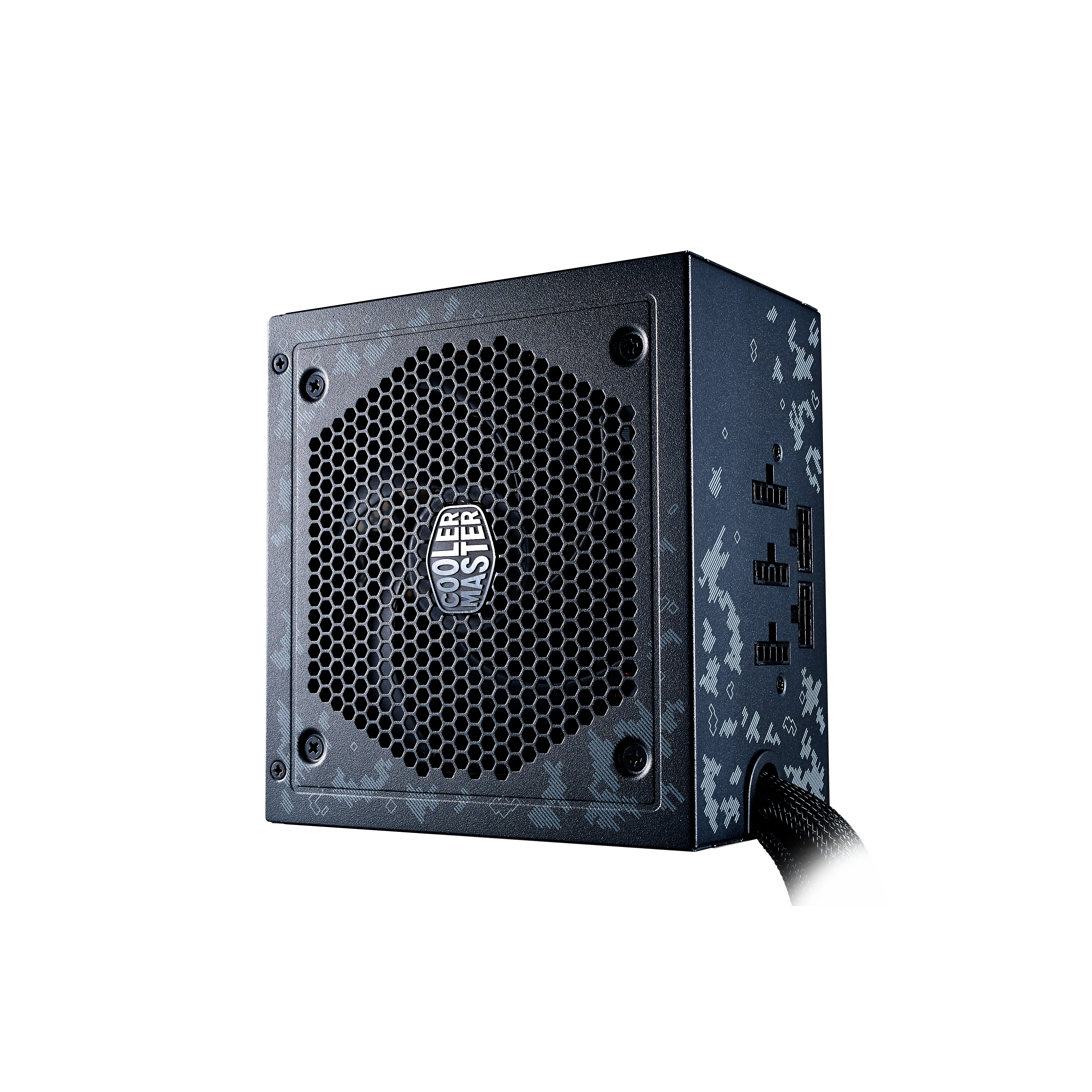

MasterWatt 750 TUF Gaming Edition
• 80 Plus Bronze Certified
• Sealed LDB Fan Bearings

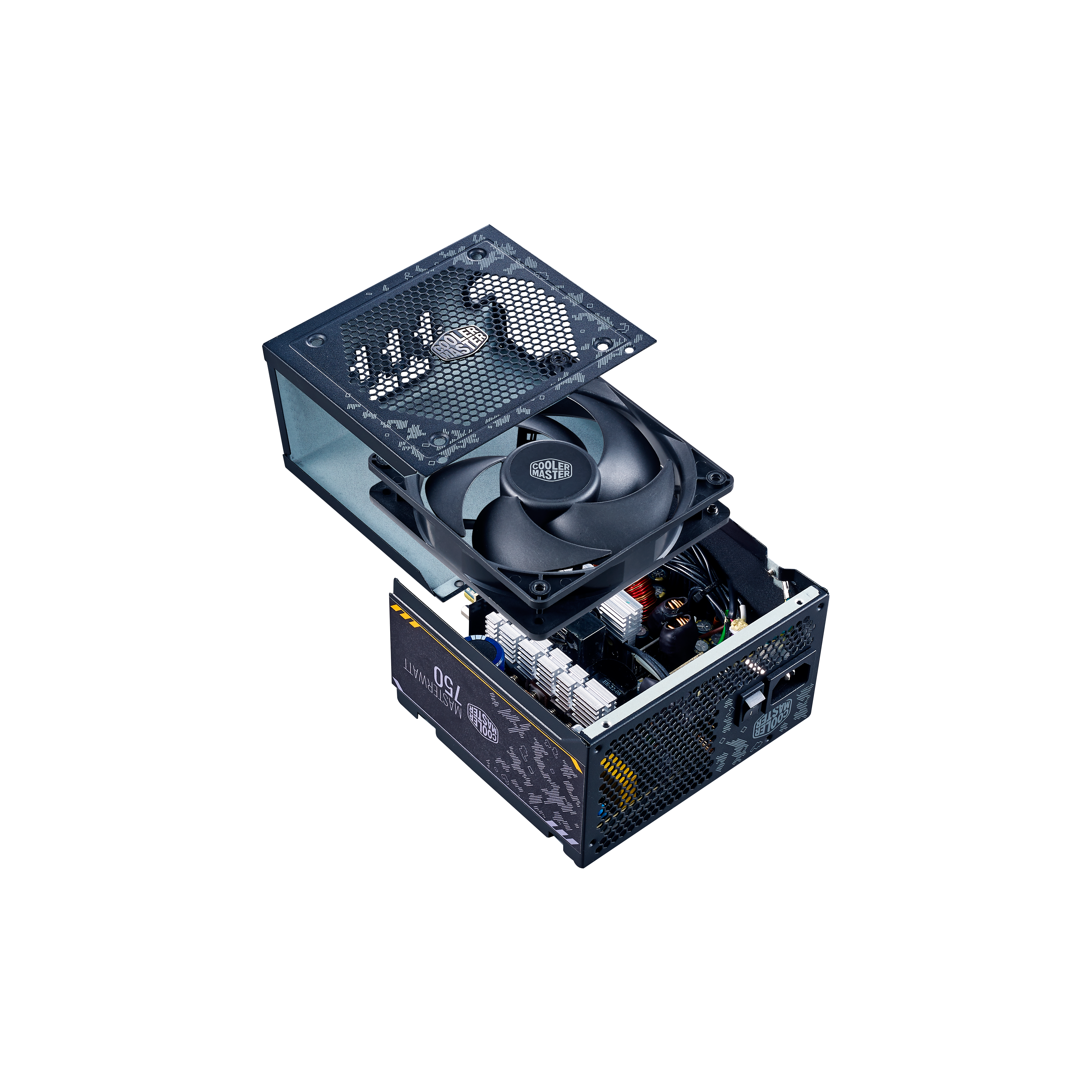

• Performance Driven Topology
• 5 Year Warranty
• 16 AWG PCI-E Cables
- ATX Version ATX 12V
- PFC Active PFC
- Input Frequency 50-60Hz
- ErP 2014 Lot 3 Yes
- Operating Temperature 0-40°C
- FDD Cable 4 Pin Connectors 1
- ATX 24 Pin Connectors 1
- EPS 4+4 Pin Connectors 1
- MTBF >100,000 Hours
- Noise Level @ 50% 13 dBA
- Power Good Signal 100 - 500 ms

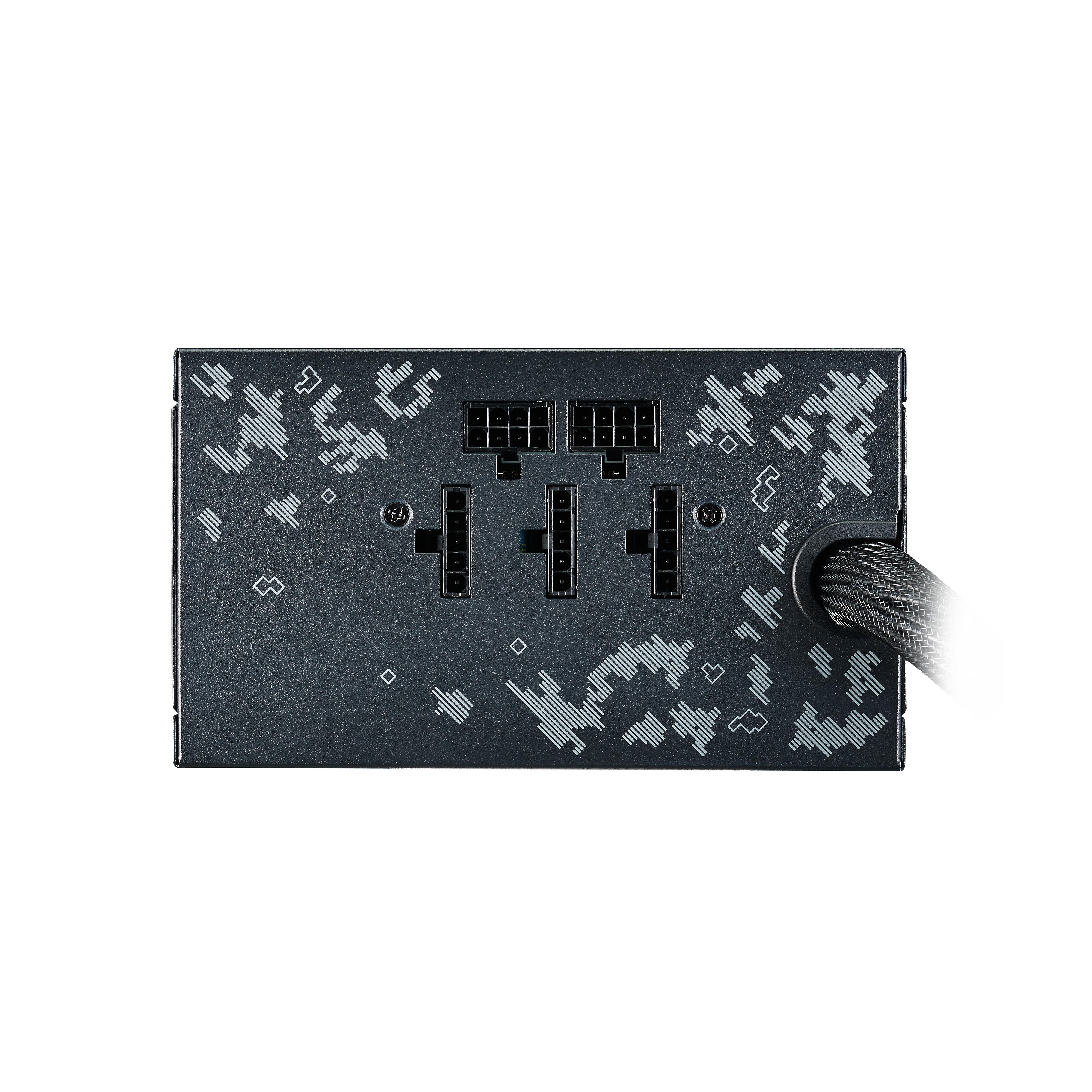

- Modular Semi Modular

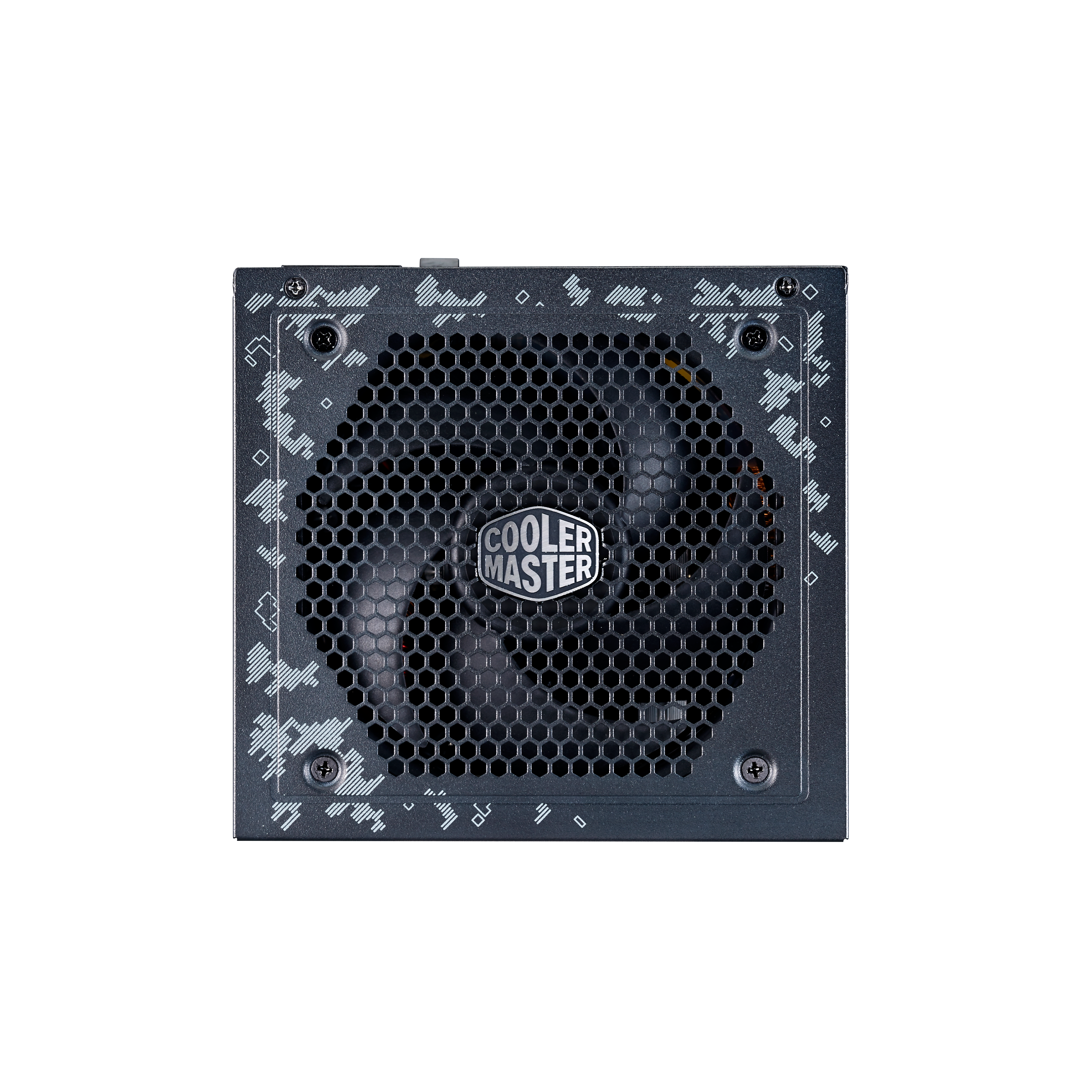

- Fan Size 120mm
- Fan Bearing LDB
- Category 500 to 750W
- 80 PLUS Rating 80 PLUS Bronze
- 80 Plus Efficiency Bronze
- SATA Connectors 9
- Series MasterWatt Series
- PCI-e 6+2 Pin Connectors 4
- Efficiency 85% @ Typical Load
- Input Voltage 100-240V
- Peripheral 4 Pin Connectors 3
- Protections OVP
- Protections OPP
- Protections SCP
- Noise Level @ 100% 29 dBA
- Dimensions (L x W x H) 140 x 150 x 86 mm
- Fan Speed 2100 RPM
- Protections UVP
- Protections OTP
- Hold Up Time 16ms at 80% Load
- Protections OCP
- Noise Level @ 20% 13 dBA
- Regulatory CCC
- Input Current 10-5A
- Regulatory CE
- Regulatory TUV-RH
- Regulatory RCM
- Regulatory EAC
- Regulatory cTUVus

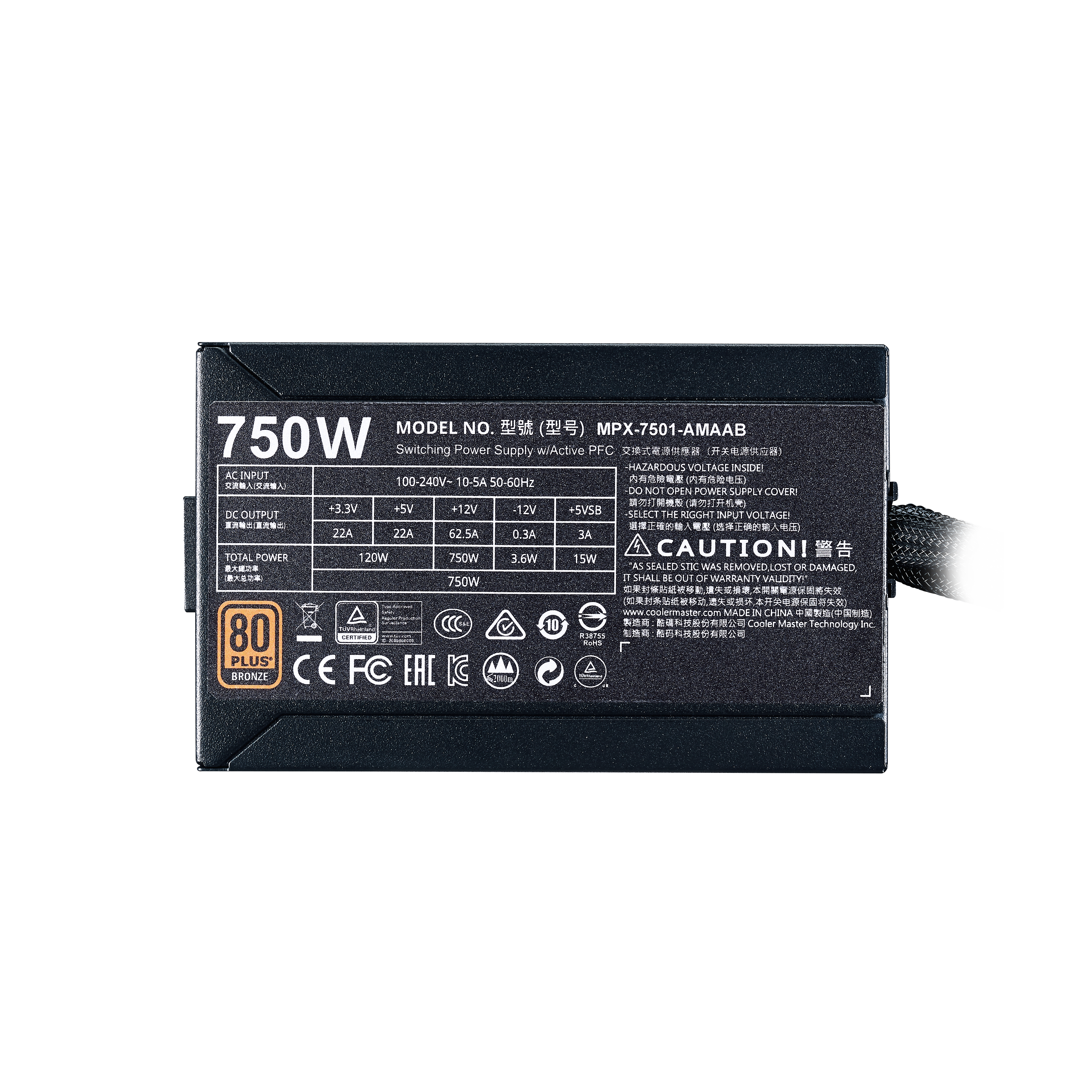

- Model MPX-7501-AMAAB
- Regulatory FCC
- Regulatory BSMI
- Regulatory KC
- Regulatory CB
- Product Name MasterWatt 750 TUF Gaming Edition
