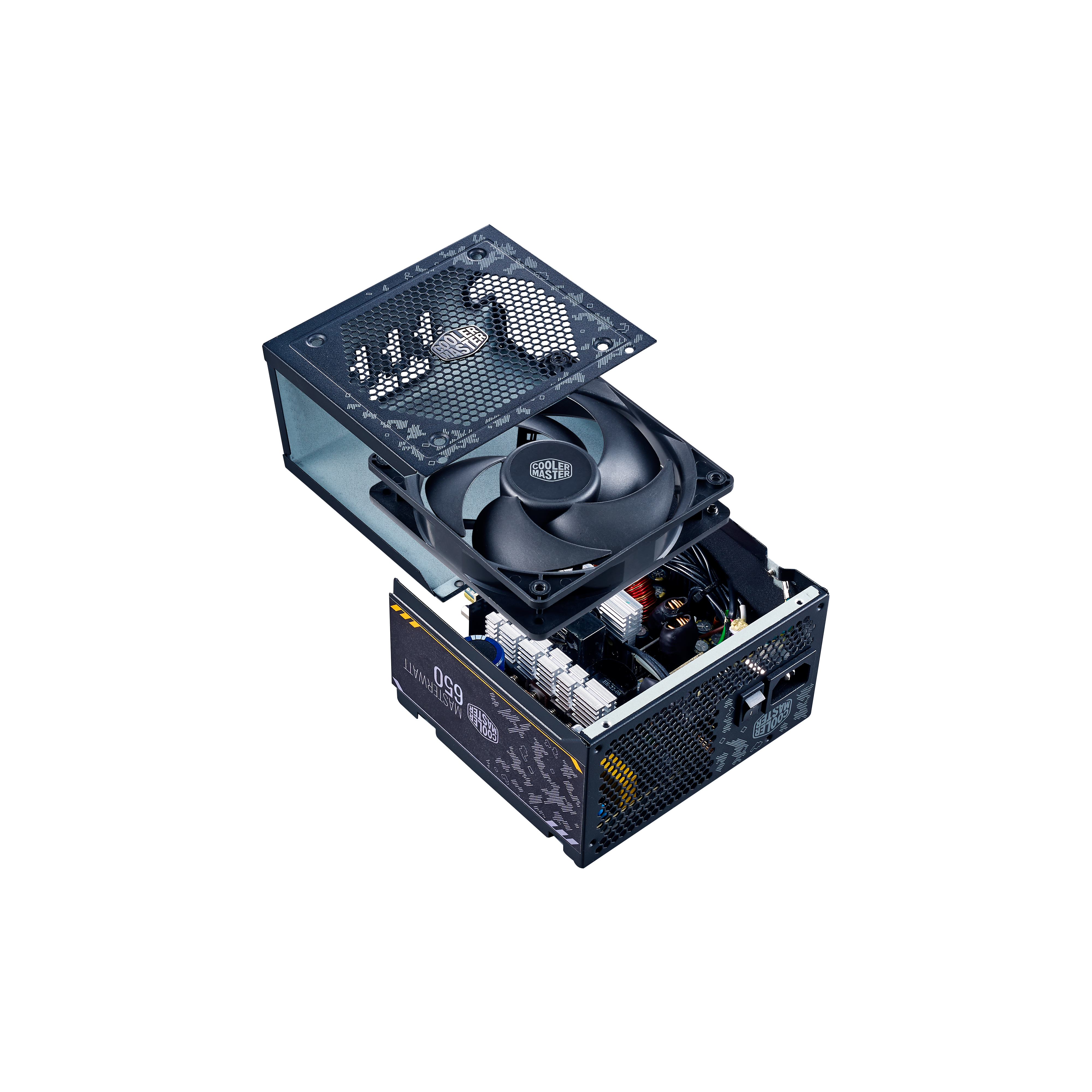

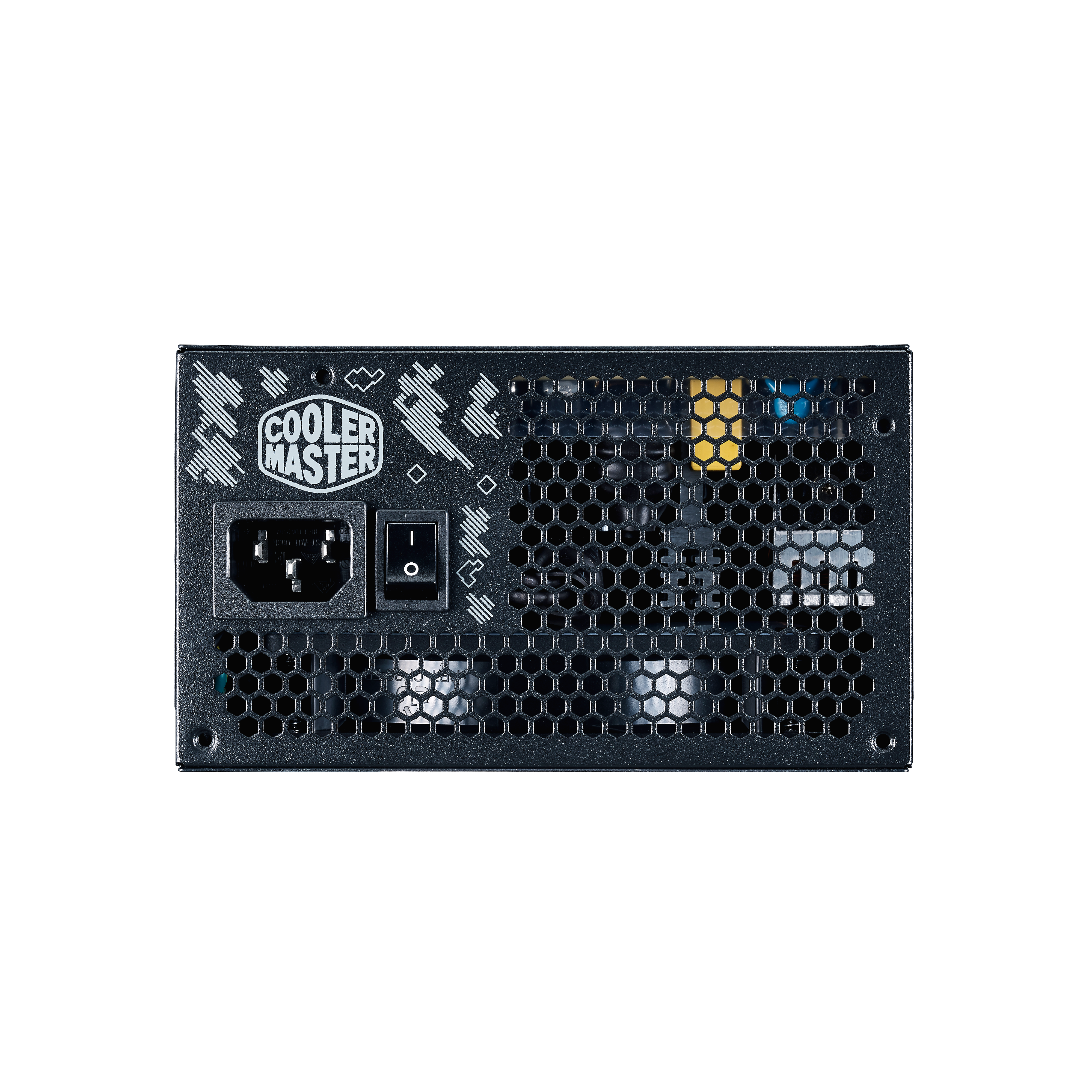

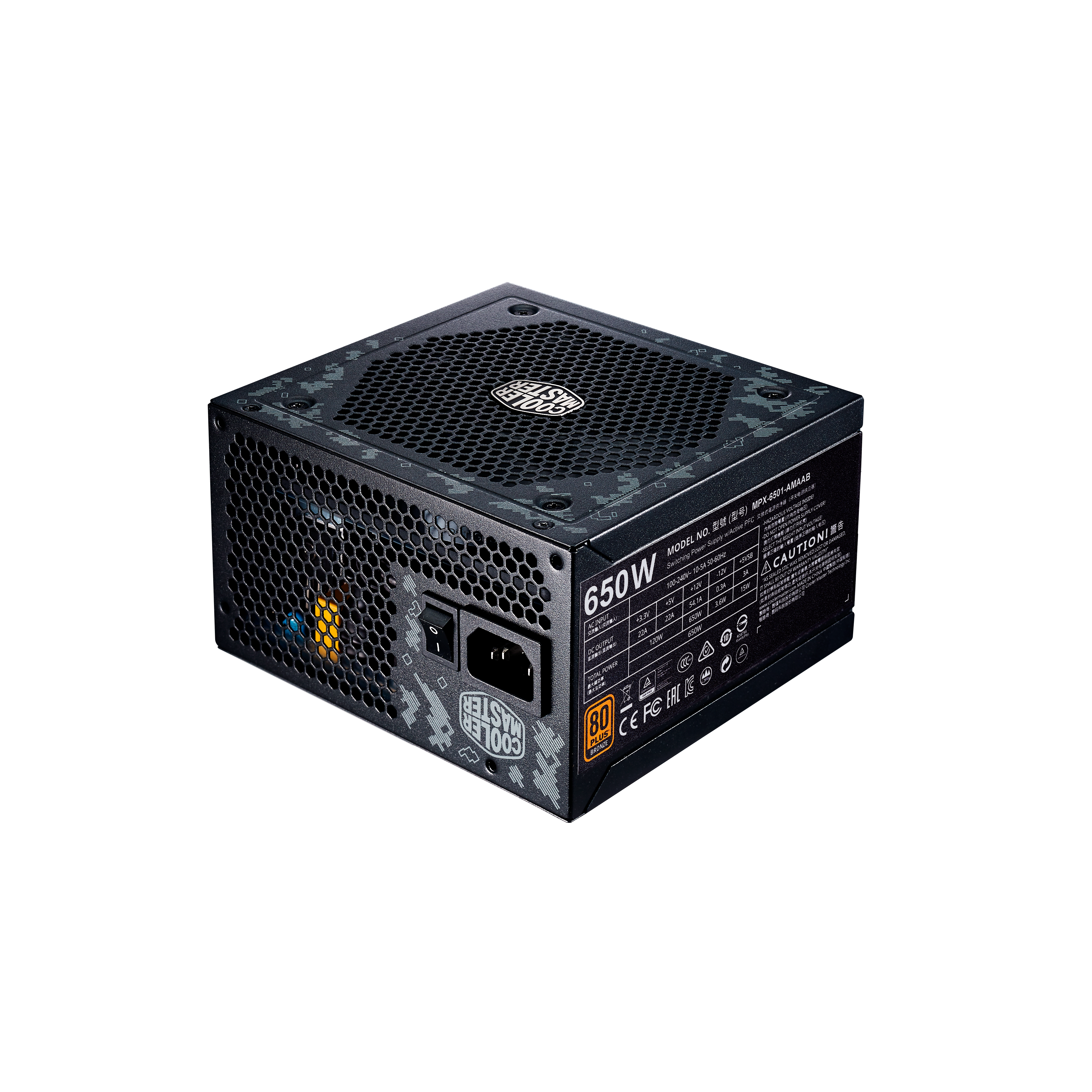

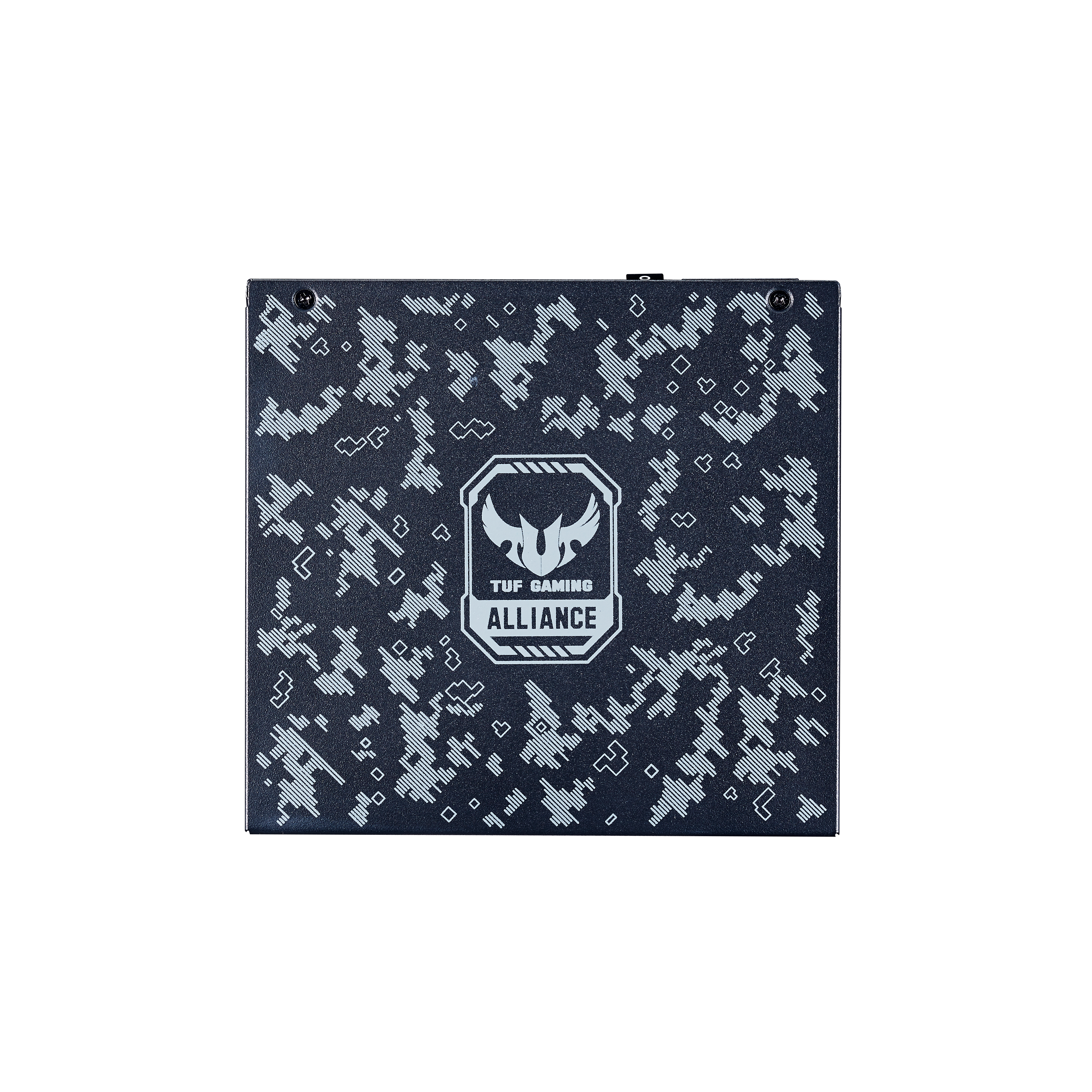

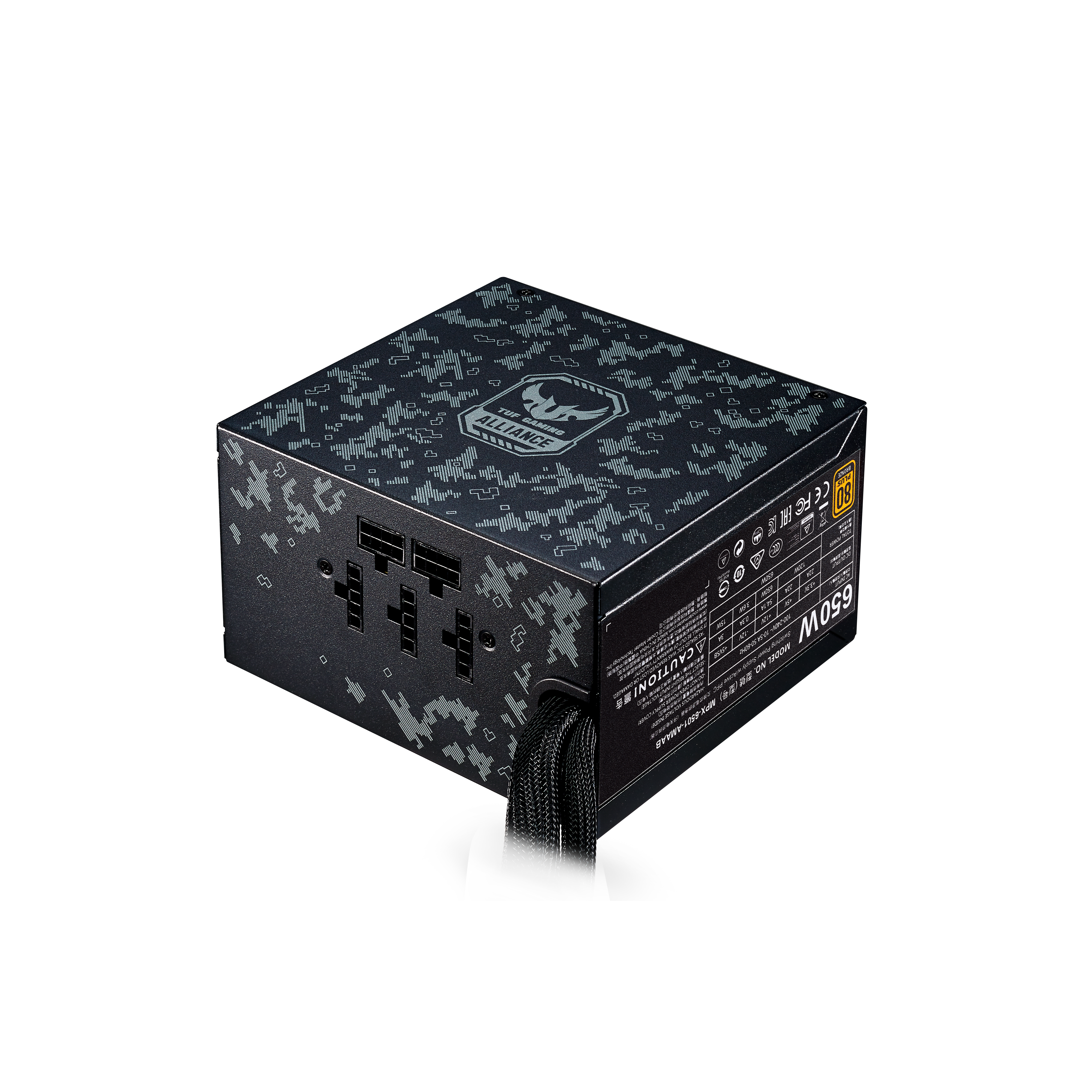

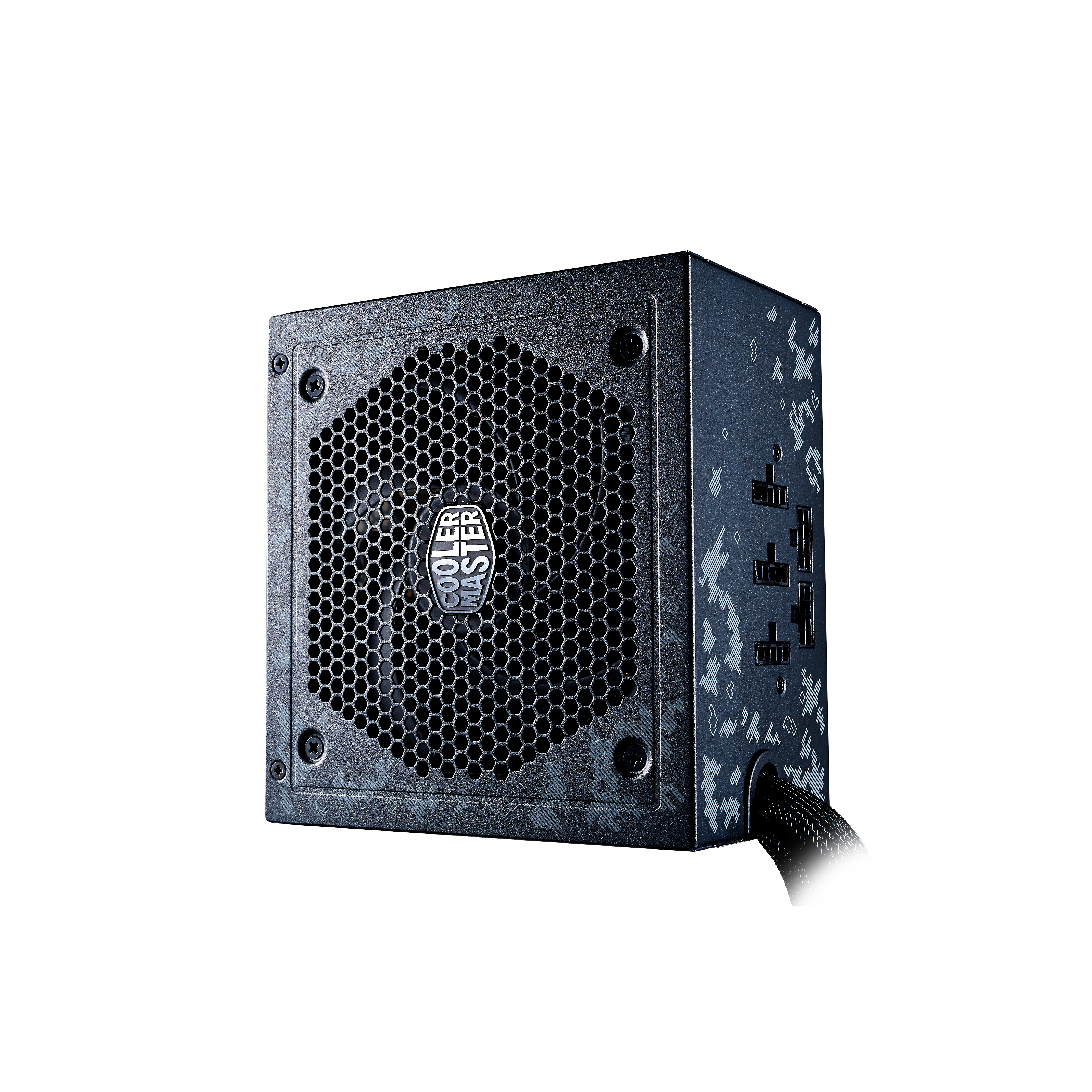

Semi-fanless Modular 80 Plus Bronze Power Supply

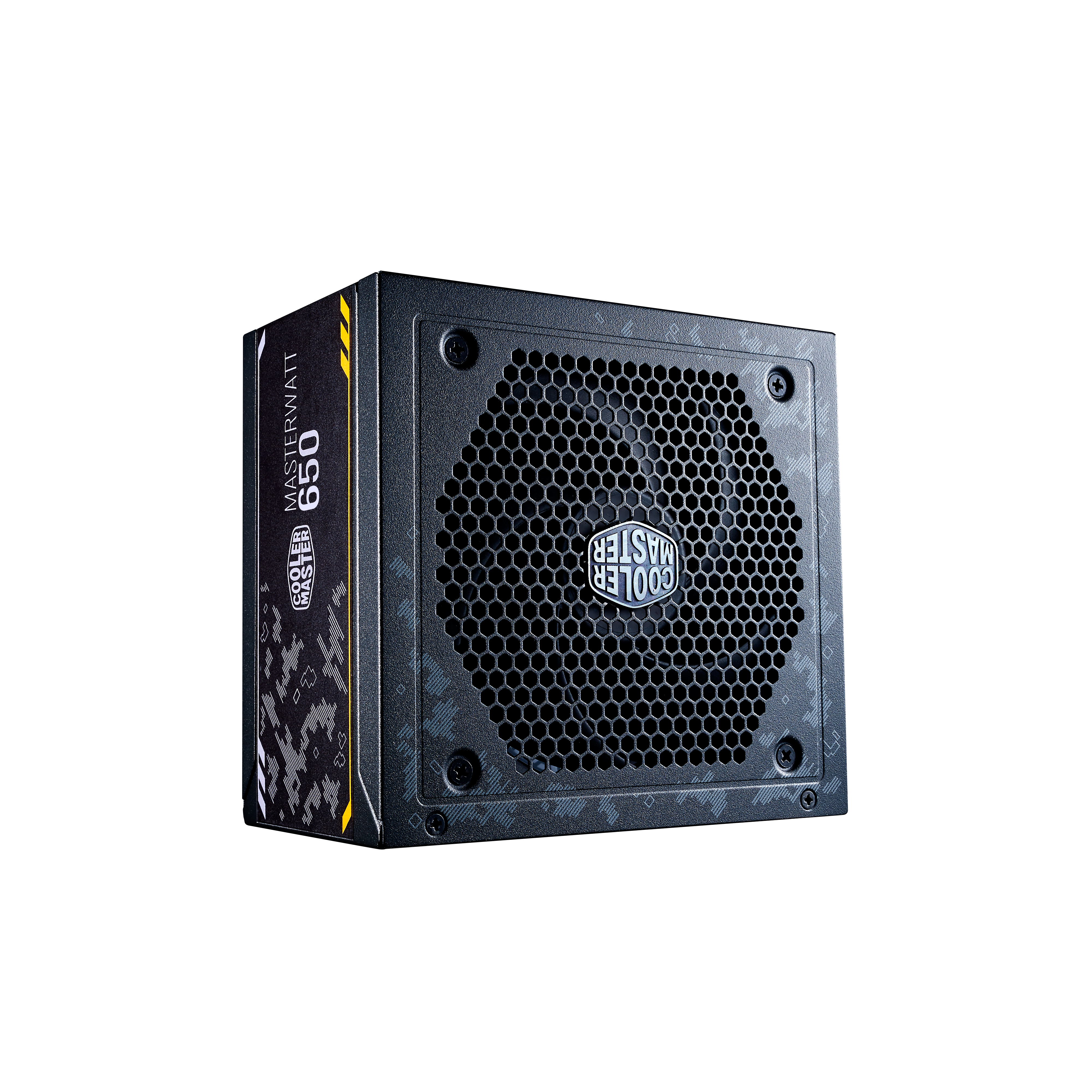

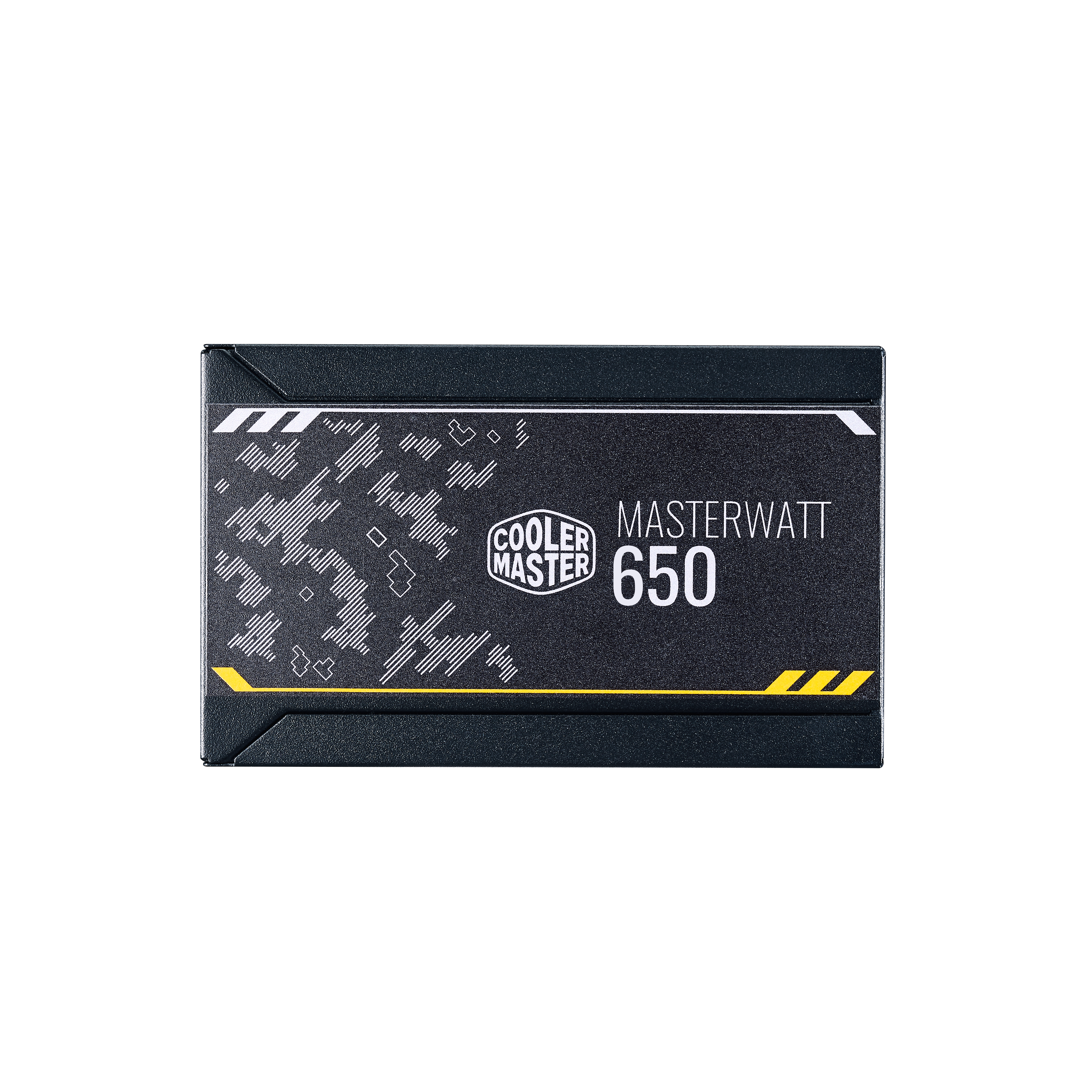

MasterWatt 650 TUF Gaming Edition
• 80 Plus Bronze Certified
• Sealed LDB Fan Bearings
• Performance Driven Topology
• 5 Year Warranty
• 16 AWG PCI-E Cables
Specifications
- ATX Version ATX 12V
- PFC Active PFC
- Input Frequency 50-60Hz
- ErP 2014 Lot 3 Yes
- Operating Temperature 0-40°C
- FDD Cable 4 Pin Connectors 1
- ATX 24 Pin Connectors 1
- EPS 4+4 Pin Connectors x1 = 1x (700mm)1
- MTBF >100,000 hours @ 25℃ ambient
- Power Good Signal 100 - 500 ms

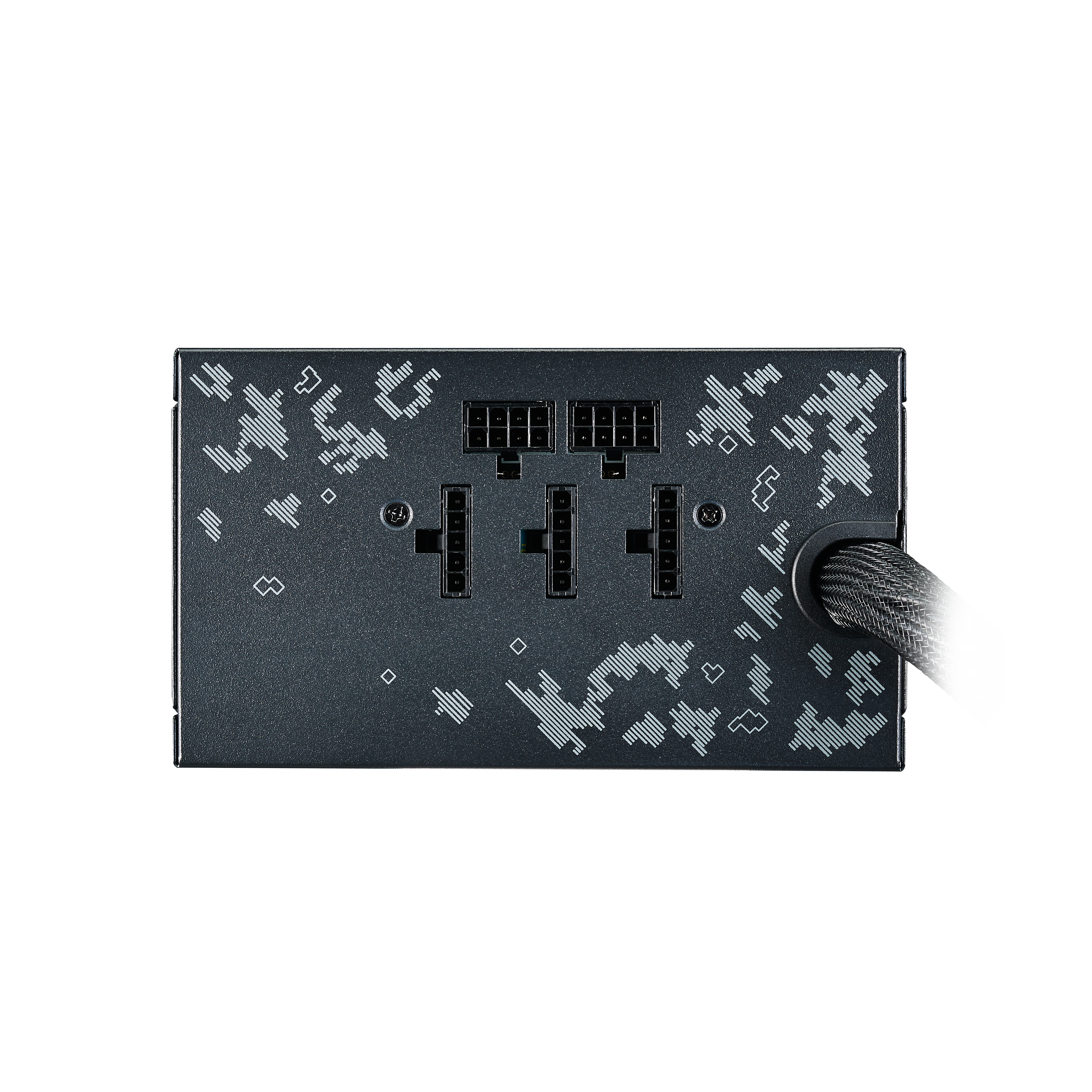

- Modular Semi Modular

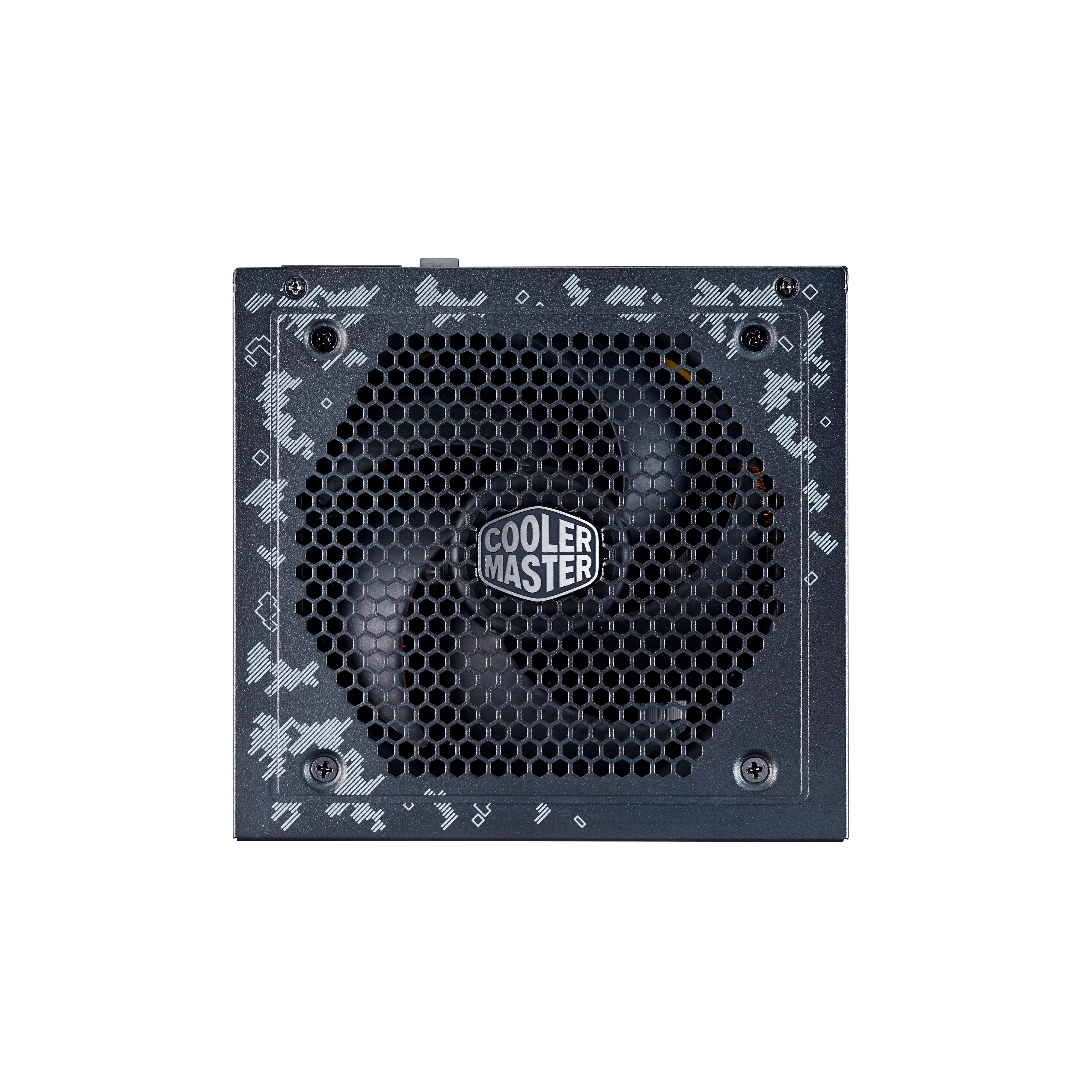

- Fan Size 120mm
- Fan Bearing LDB
- Category 500 to 750W
- 80 PLUS Rating 80 PLUS Bronze
- SATA Connectors 9
- 80 Plus Efficiency Bronze
- Noise Level @ 50% 14 dBA
- Series MasterWatt Series
- Efficiency 85% @ Typical Load
- Input Voltage 100-240V
- PCI-e 6+2 Pin Connectors 750W / 850W: x4 = 2x (600+120mm) 1000W: x3 = 3x (600mm)
- Peripheral 4 Pin Connectors 3
- Protections OVP
- Protections OPP
- Protections SCP
- Dimensions (L x W x H) 140 x 150 x 86 mm
- Fan Speed 2100 RPM
- Noise Level @ 100% 29.5 dBA
- Protections UVP
- Protections OTP
- Hold Up Time 16ms at 80% Load
- Protections OCP
- Noise Level @ 20% 13 dBA
- Regulatory CCC
- Input Current 750W / 850W: 10 – 6 A | 1000W: 15 – 8 A
- Regulatory CE
- Regulatory TUV-RH
- Regulatory RCM
- Regulatory EAC
- Regulatory cTUVus
- Regulatory FCC

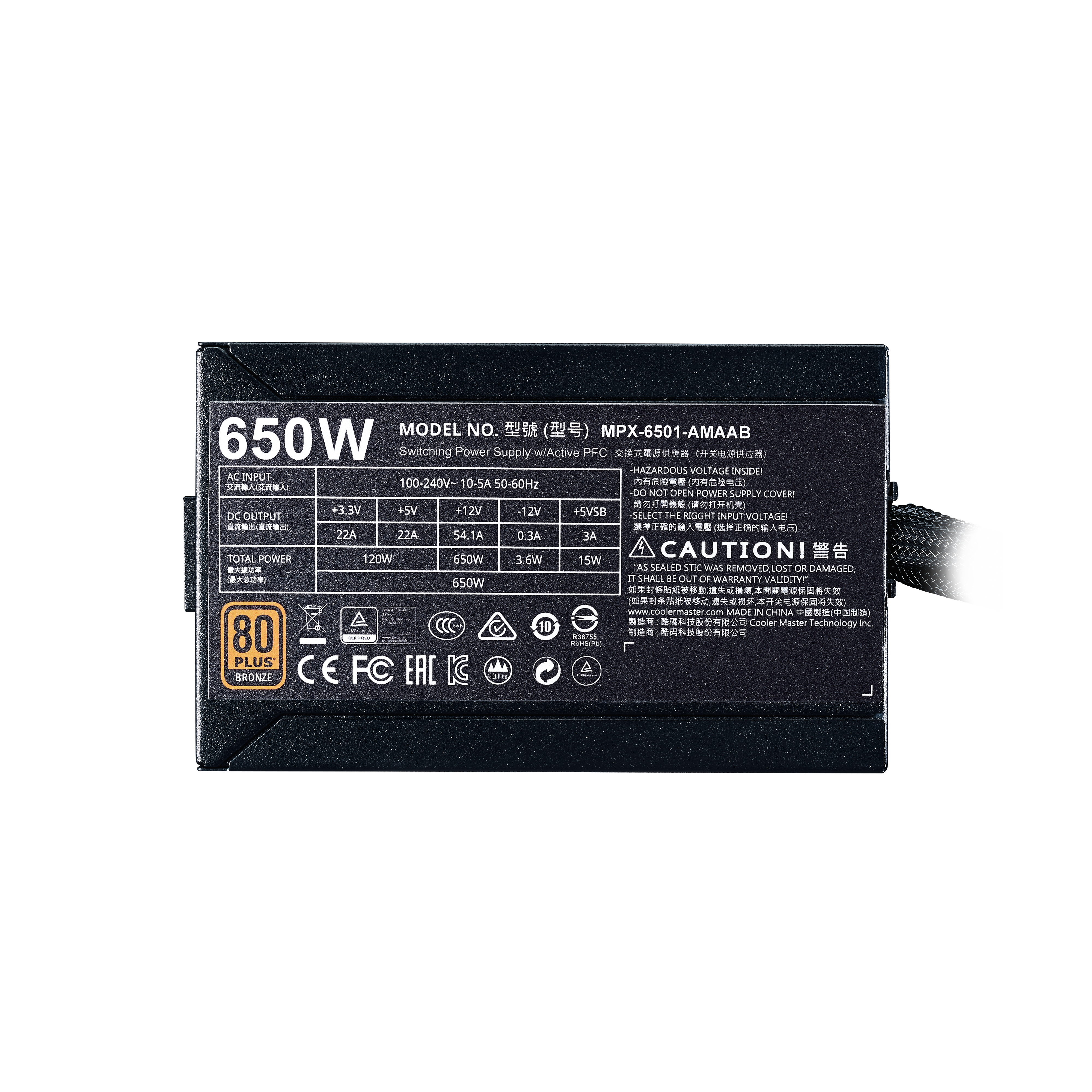

- Model MPX-6501-AMAAB
- Regulatory BSMI
- Regulatory KC
- Regulatory CB
- Product Name MasterWatt 650 TUF Gaming Edition
