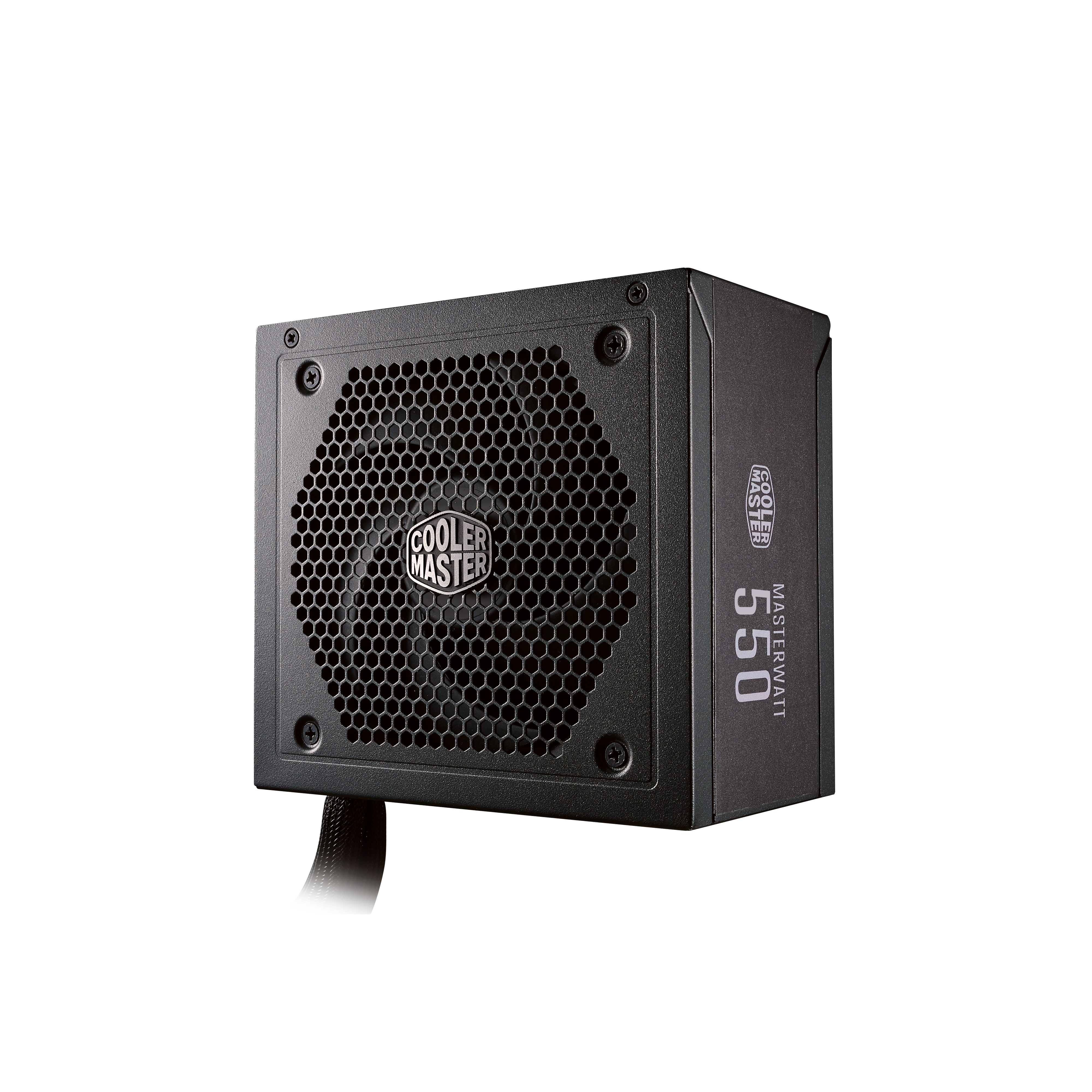

MasterWatt 550 image number 0

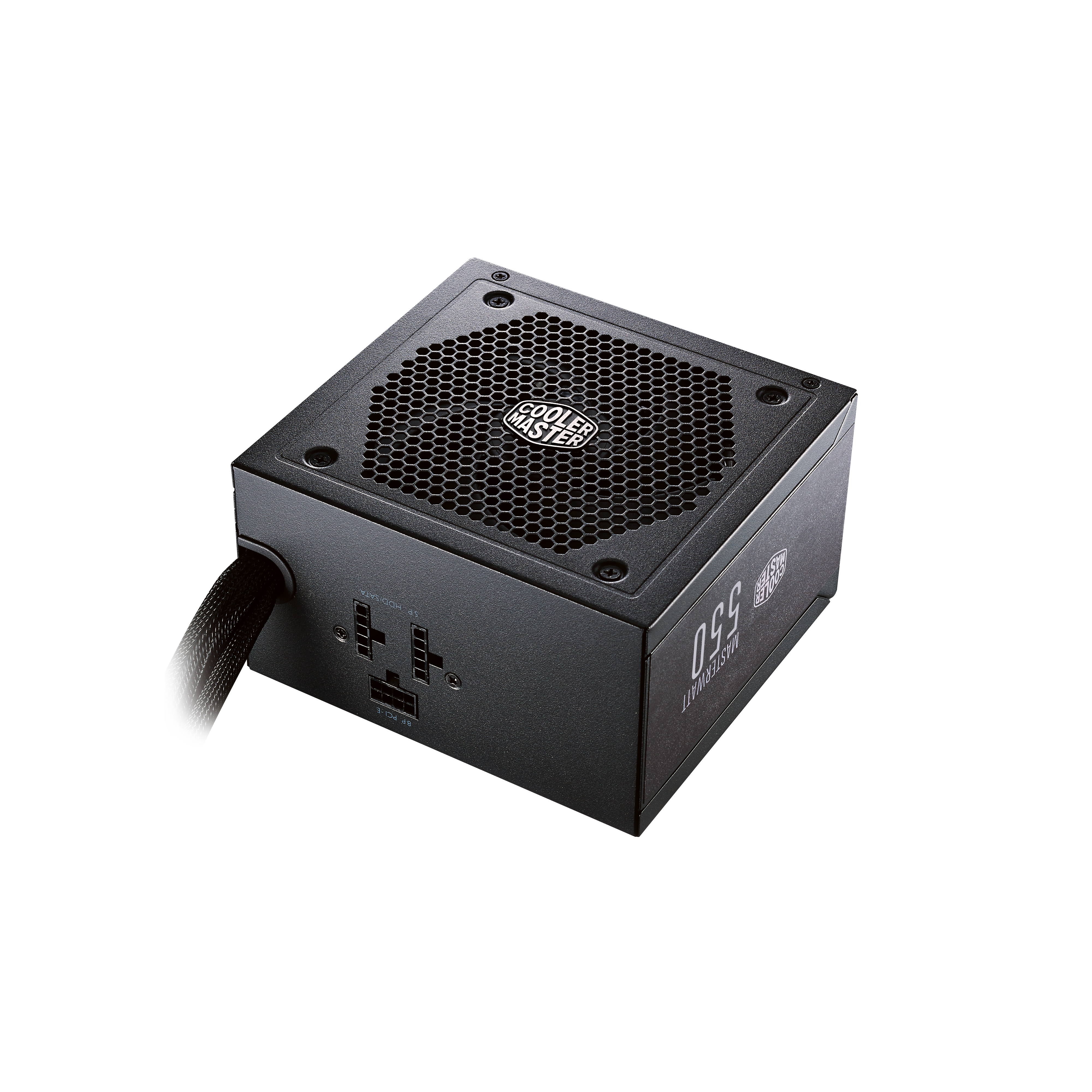

MasterWatt 550 image number 1

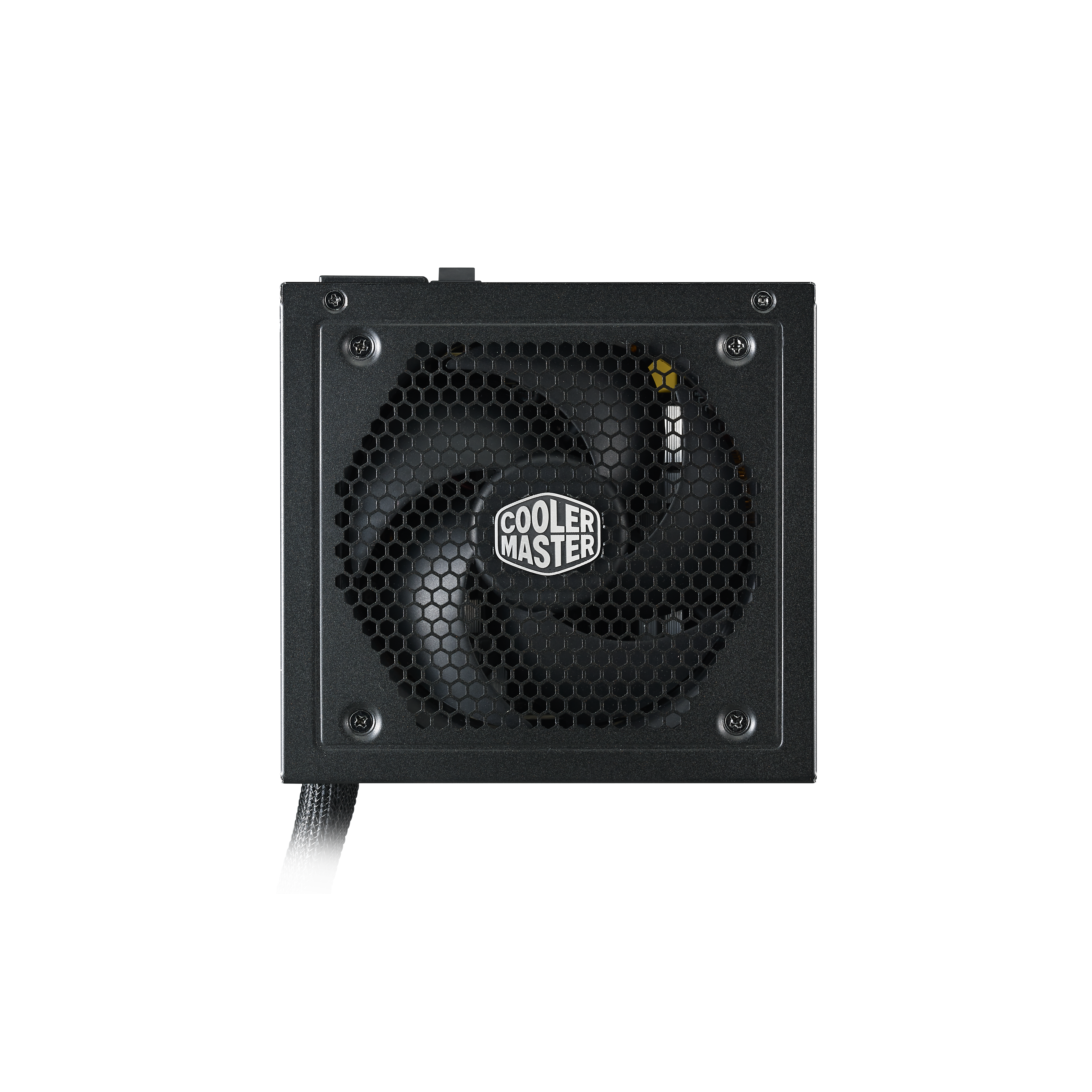

MasterWatt 550 image number 2

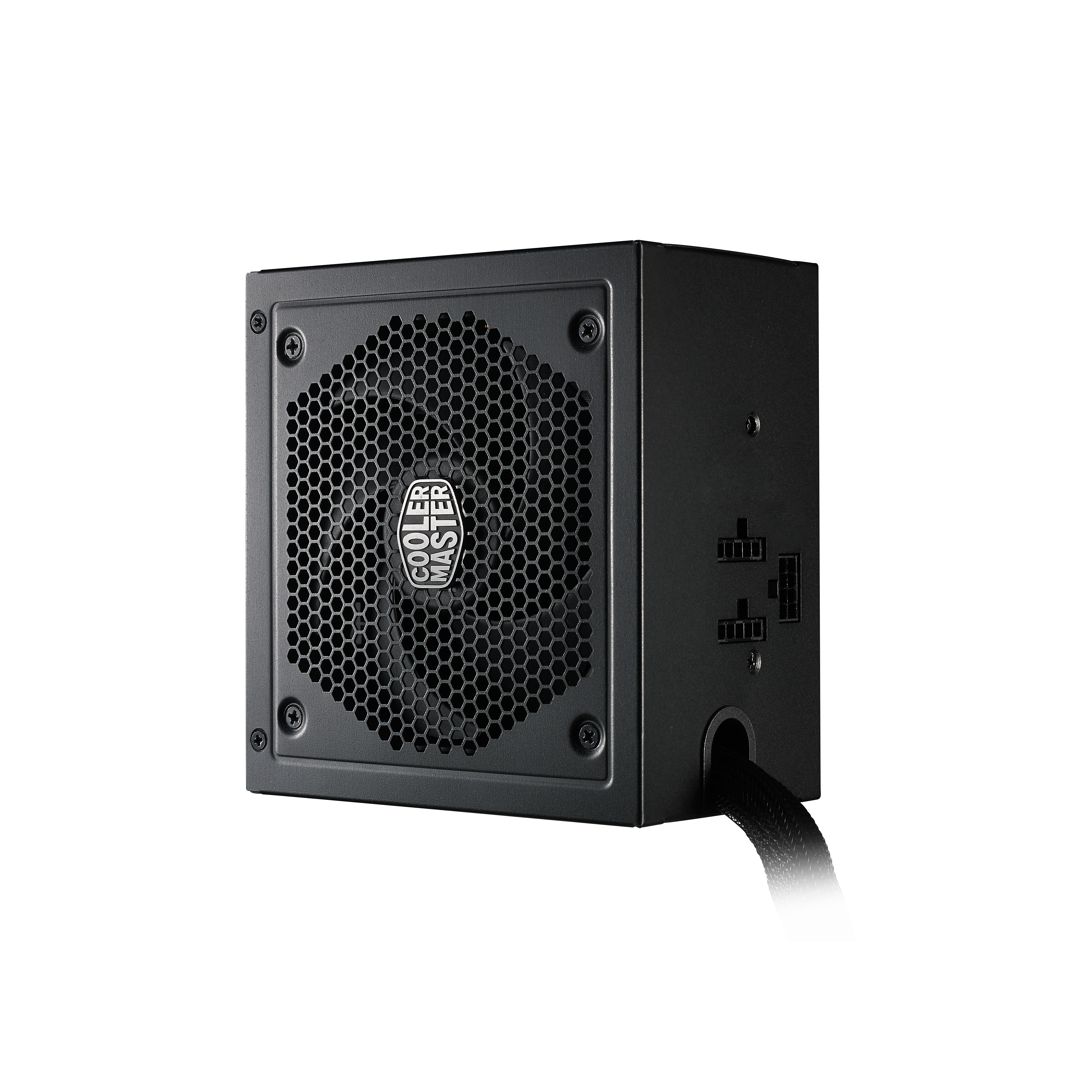

MasterWatt 550 image number 3

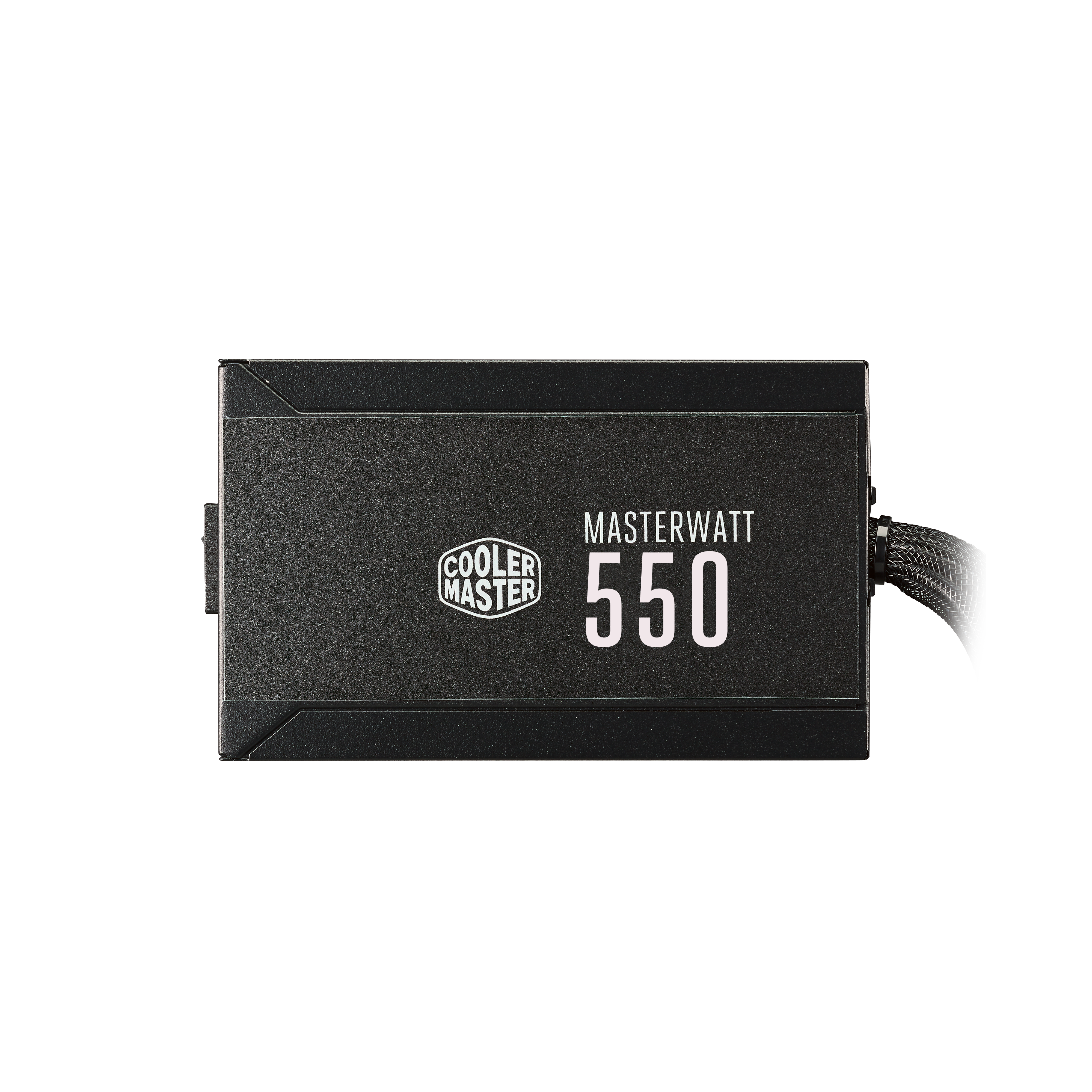

MasterWatt 550 image number 4

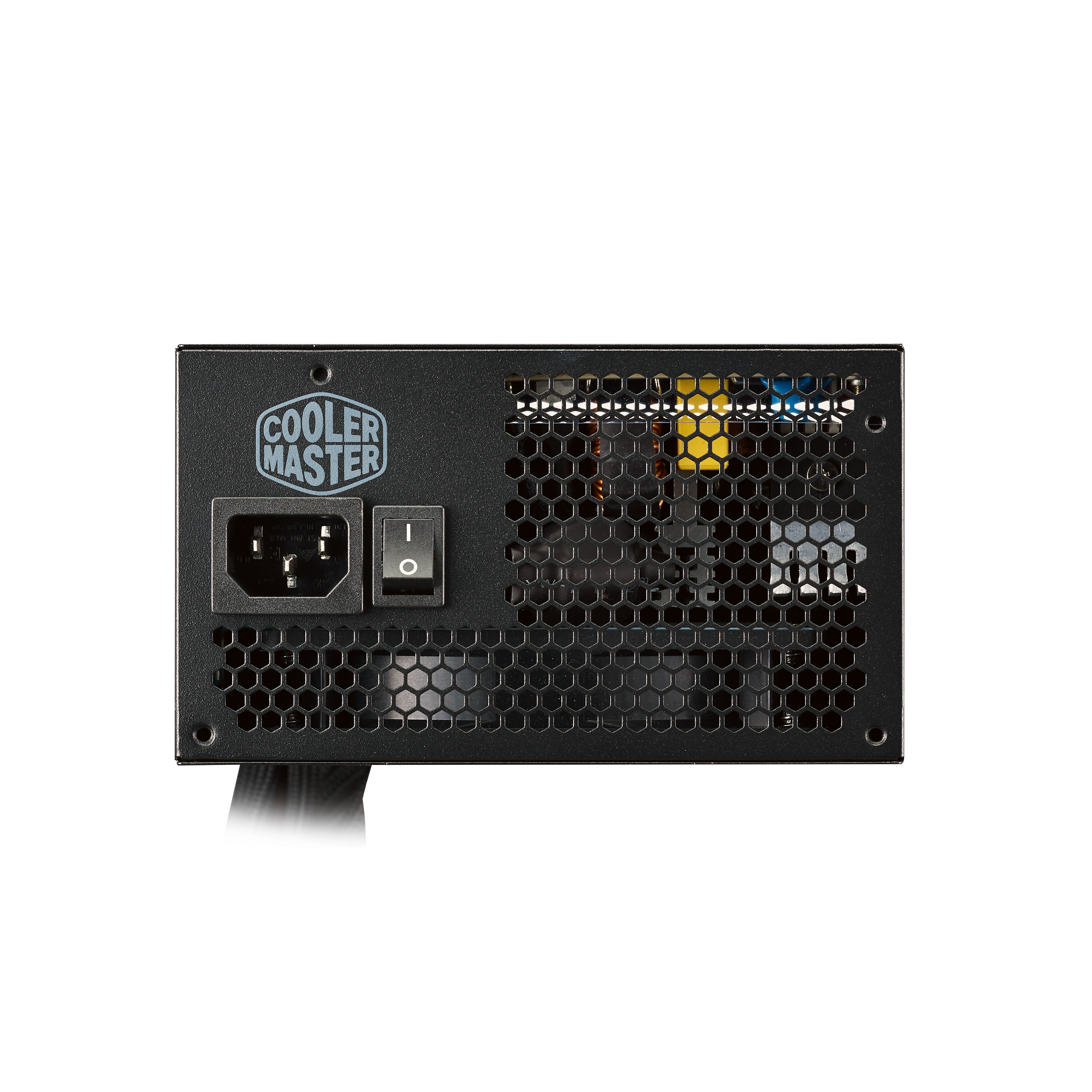

MasterWatt 550 image number 5

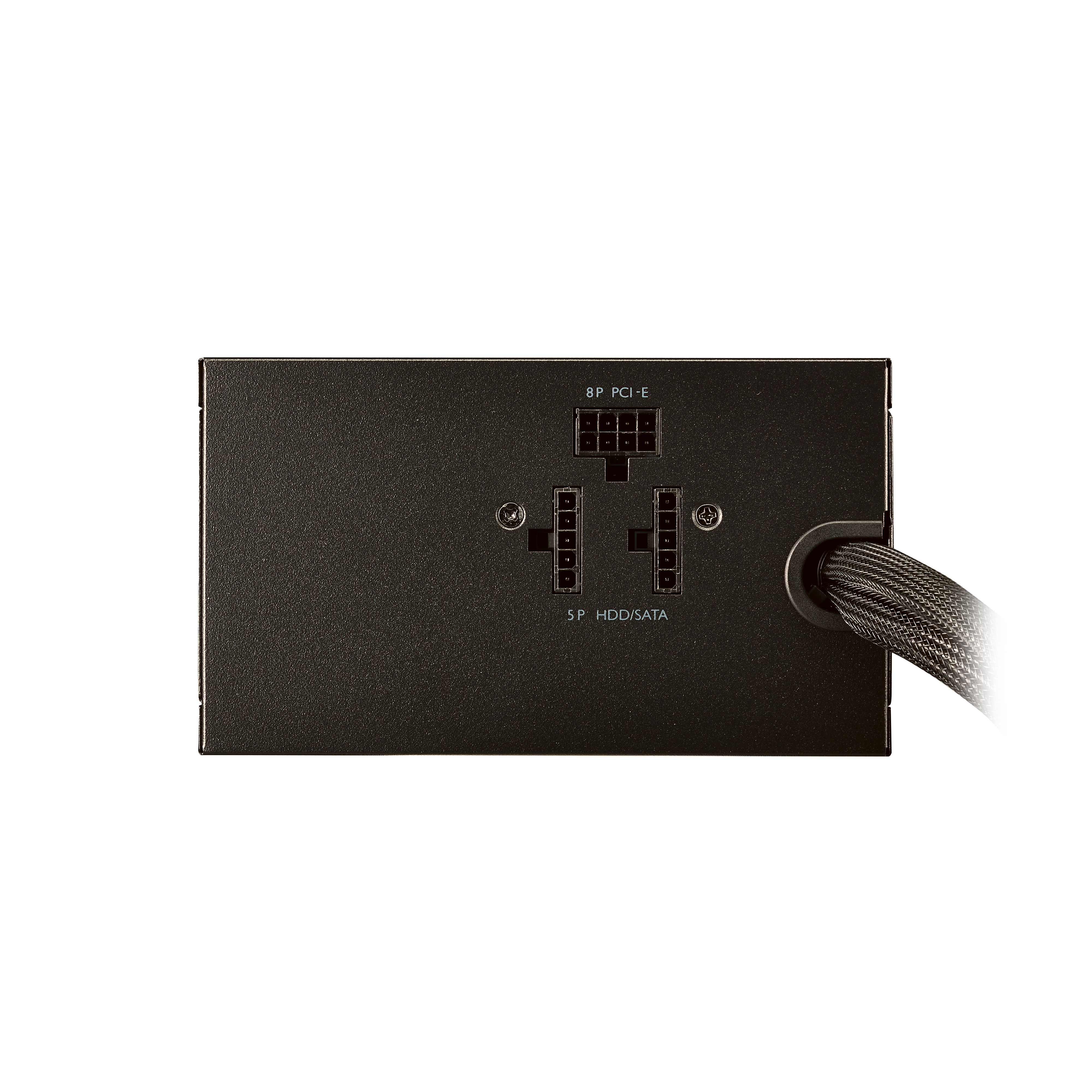

MasterWatt 550 image number 6

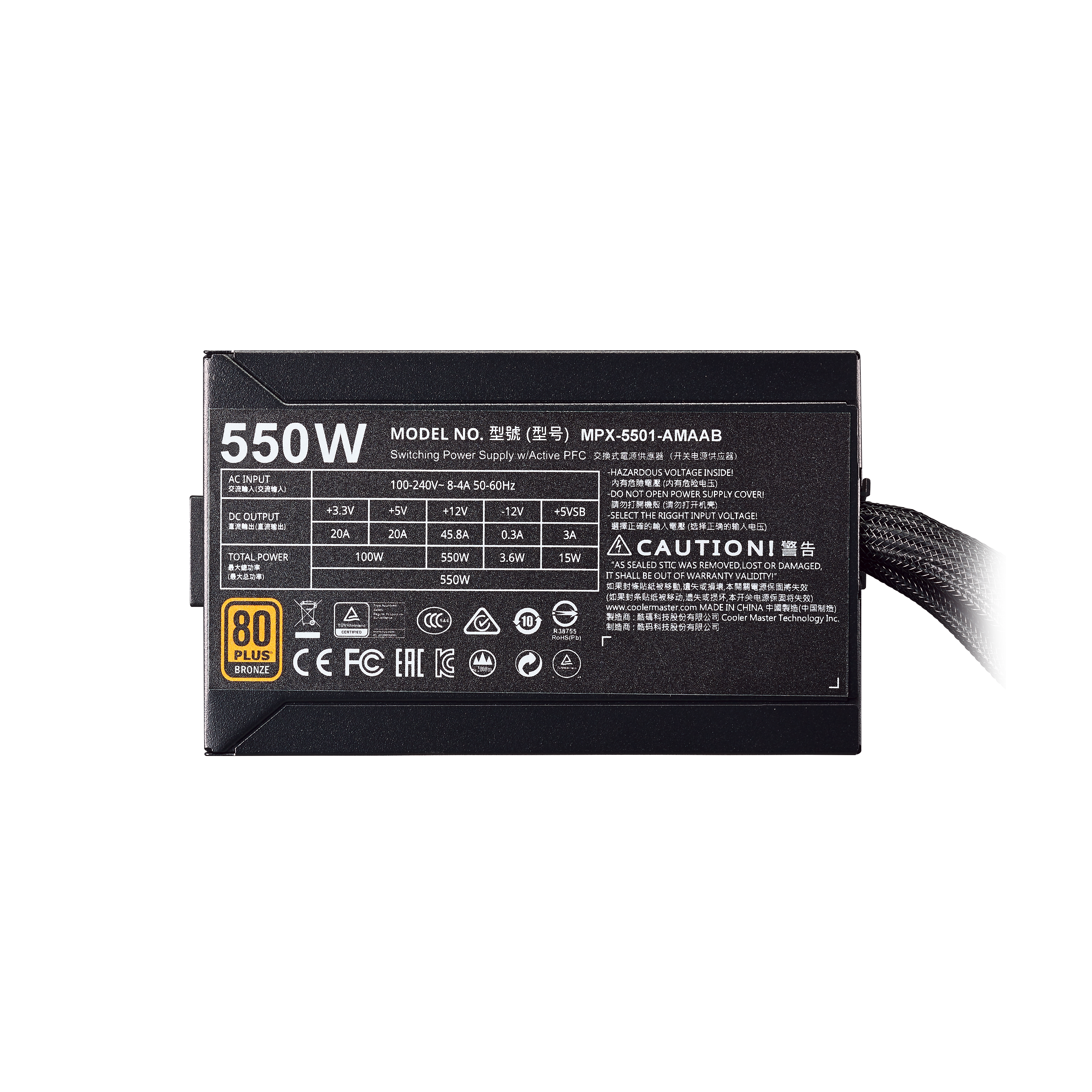

MasterWatt 550 image number 7

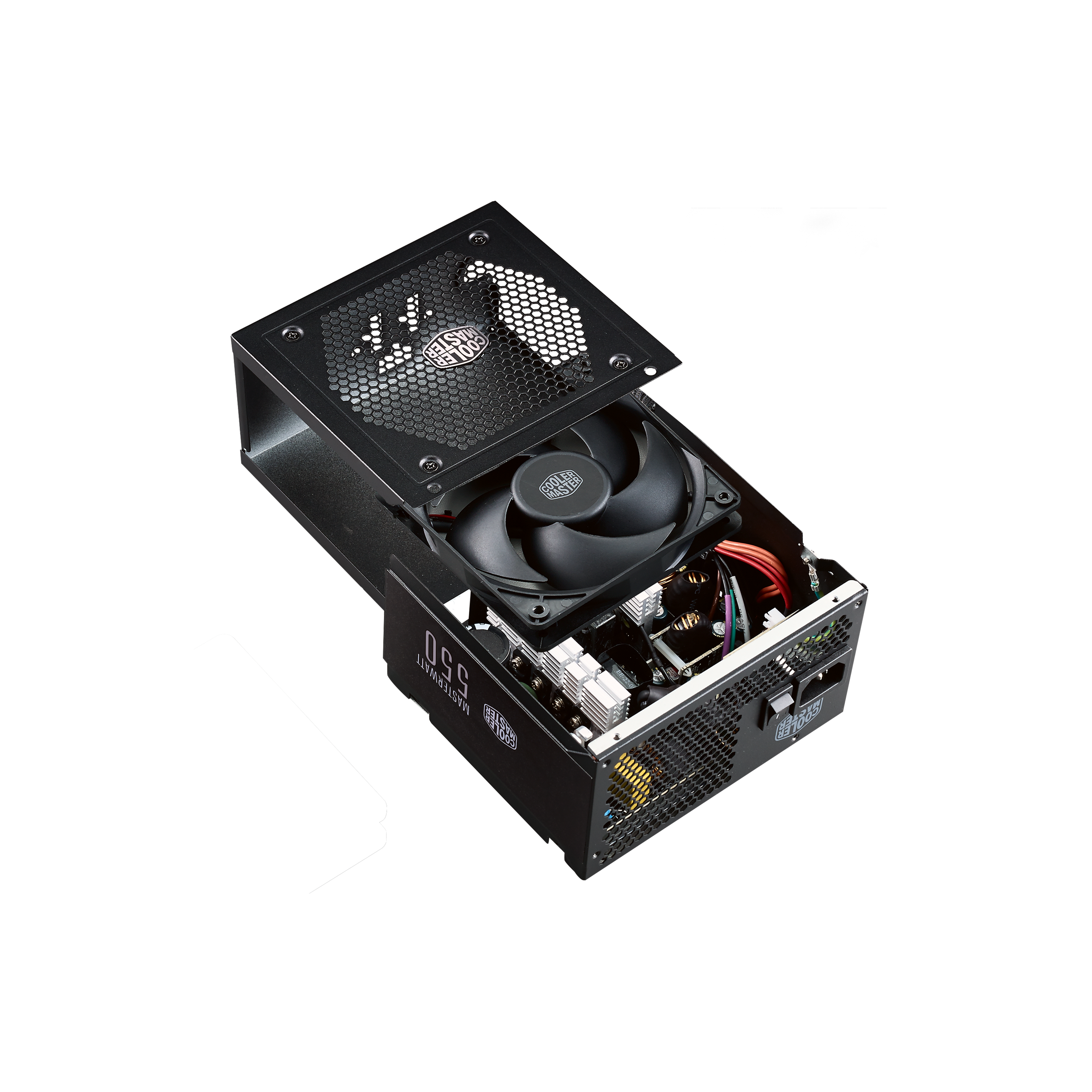

MasterWatt 550 image number 8

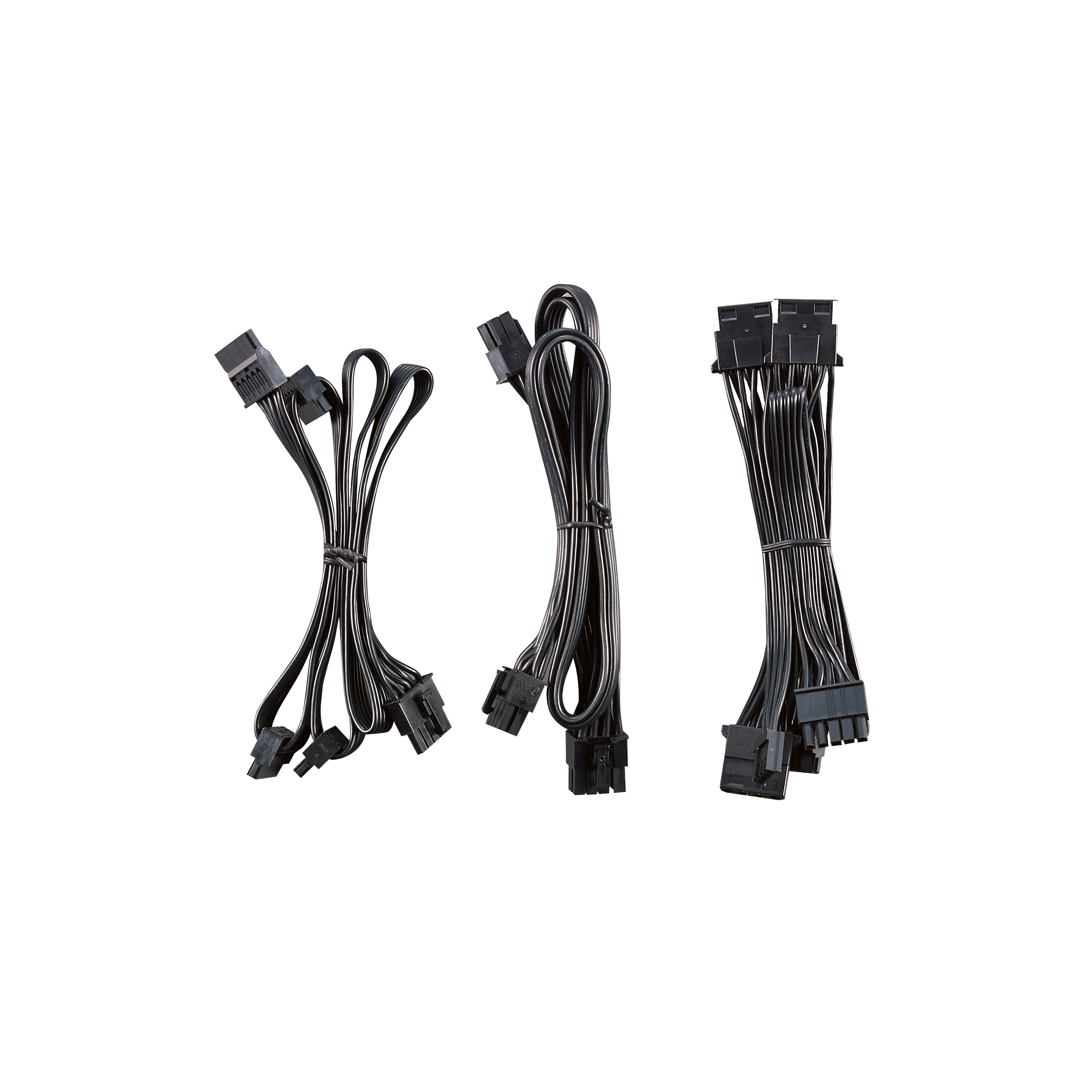

MasterWatt 550 image number 9
MasterWatt 550
MasterWatt 550
MasterWatt 550
MasterWatt 550
MasterWatt 550
MasterWatt 550
MasterWatt 550
MasterWatt 550
MasterWatt 550
MasterWatt 550

Semi-fanless Modular 80 PLUS Bronze Certified Power Supply

MasterWatt 550

• Semi-Fanless up till 15% load

• Dual Forward and DC-to-DC circuit design

• 5 years warranty

• More Conductive PCI-e Cables

• 80 PLUS Bronze Certified

• Durable LDB bearing

Specifications

  • PFC Active PFC
  • Input Frequency 50-60Hz
  • Operation Voltage 100-240Vac
  • ErP 2013 Lot 6 Yes
  • MB 20+4 Pin Connectors 1
  • FDD Cable 4 Pin Connectors 1
  • Operating Temperature 0-40°C
  • Power Good Signal 100 - 500 ms
  • MTBF >100,000 hours @ 25℃ ambient
  • ATX Version ATX 12V v2.4
  • Modular Semi Modular
  • CPU 12V 4+4 Pin Connectors 1
  • Fan Size 120mm
  • Fan Bearing LDB
  • Category 500 to 750W
  • 80 Plus Efficiency Bronze
  • Series MasterWatt Series
  • Efficiency 85% @ Typical Load
  • PCI-e 6+2 Pin Connectors 2
  • SATA Connectors 6
  • Input Voltage 100-240Vac
  • Protections OVP
  • Protections OPP
  • Peripheral 4 Pin Connectors 2
  • Dimensions (L x W x H) 140 x 150 x 86 mm
  • Protections SCP
  • Protections UVP
  • Protections OTP
  • Hold Up Time 16ms at 80% Load
  • Protections OCP
  • Input Current 8-4A
  • Regulatory CCC
  • Regulatory CE
  • Regulatory TUV-RH
  • Regulatory RCM
  • Regulatory EAC
  • Regulatory cTUVus
  • Regulatory FCC
  • Model MPX-5501-AMAAB
  • Regulatory BSMI
  • Regulatory KC
  • Regulatory CB
  • Product Name MasterWatt 550
