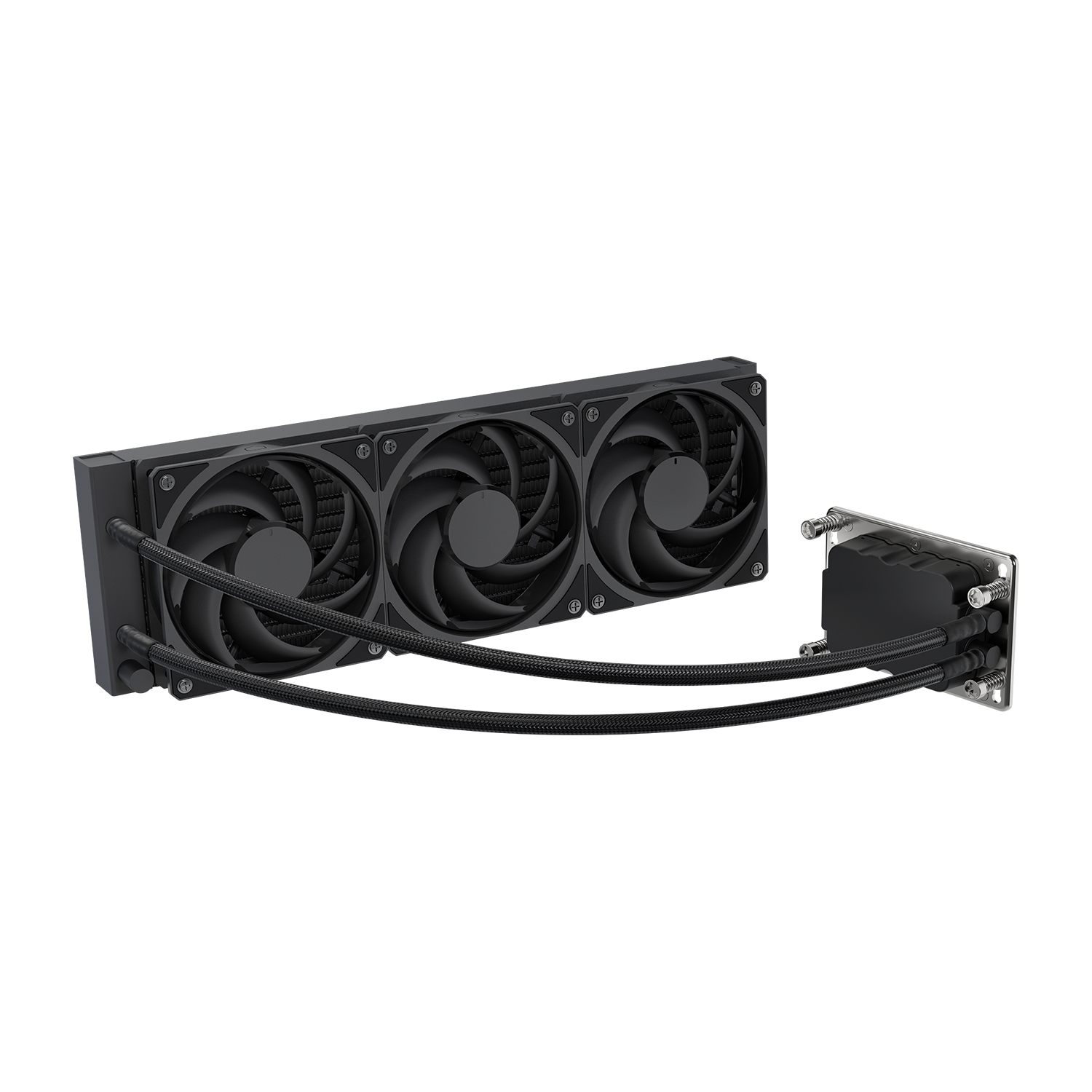

MasterLiquid PL360 TR5-SP6 image number 0

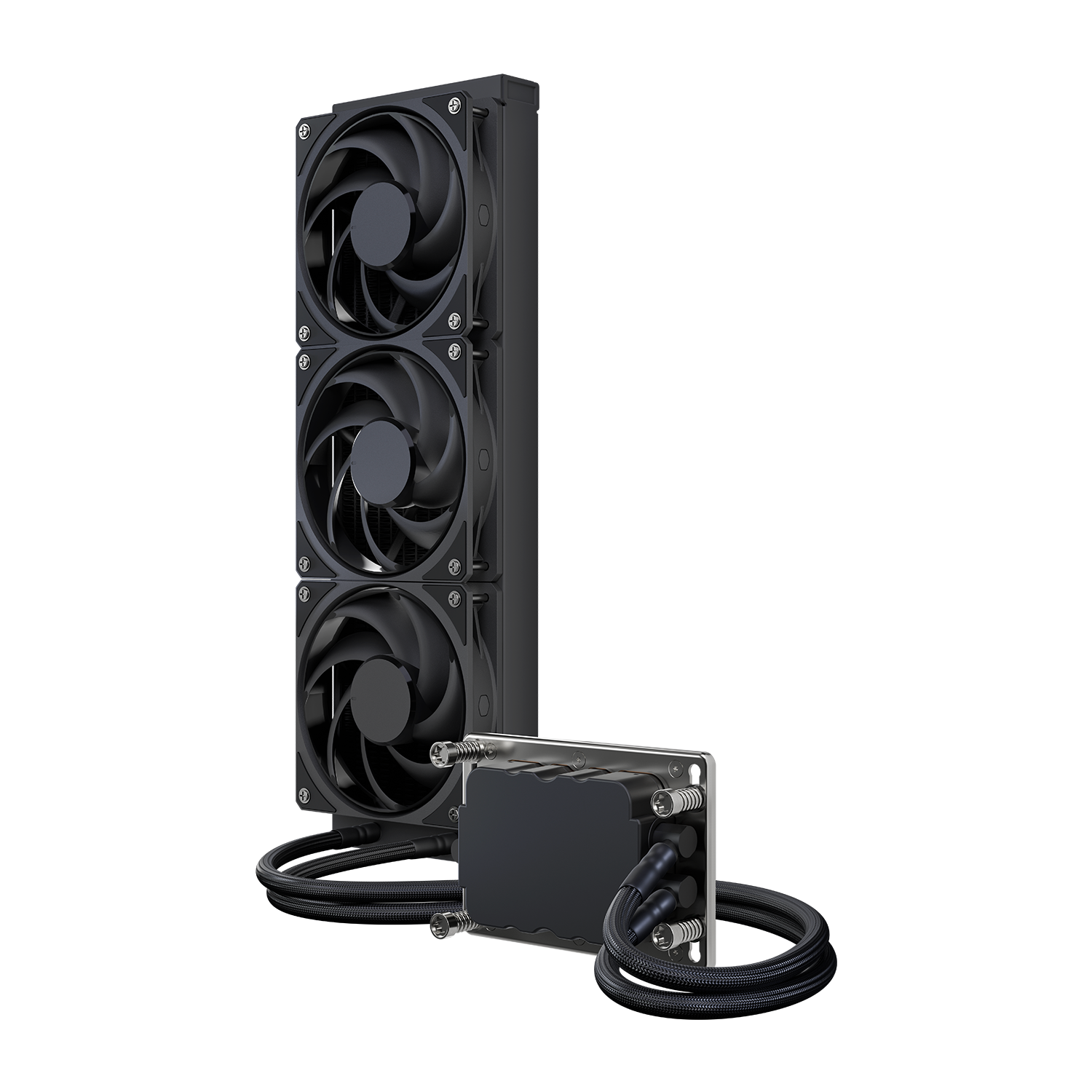

MasterLiquid PL360 TR5-SP6 image number 1
MasterLiquid PL360 TR5-SP6
MasterLiquid PL360 TR5-SP6

MasterLiquid PL360 TR5-SP6

Optimized for AMD Threadrippers

Large, full-coverage copper base

Mobius 120 fans

All-in-one thermal solution

Optimized for AMD Threadrippers

This edition of the MasterLiquid series has been specially designed for AMD TR5-SP6 CPUs only

Large, full-coverage copper base

The extensive copper base spreads heat more evenly across the cooling surface, allowing for quicker dissipation and maintaining lower CPU temperatures even under heavy loads.

Mobius 120 fans

Our critically acclaimed Mobius 120 fans provide both high-end thermal performance and unparalleled noise control

All-in-one thermal solution

Pre-applied thermal paste and easy snap-on brackets make installation and set-up a breeze

Specifications

  • Product Name MasterLiquid PL360 TR5-SP6
  • Product Number MLO-R36M-A24PK-RA
  • Exterior Color Black
  • CPU Socket AMD® TR5/SP6
  • Radiator Dimensions 394 x 119.2 x 27.2 mm(10.9 x 4.7 x 1.1 inch)
  • Radiator Material Aluminum
  • Pump Dimensions 117.9 x 78.9 x 24.5 mm(4.6 x 3.1 x 1 inch)
  • Pump MTTF > 70,000 hours
  • Pump Noise Level 30 dB(A)
  • Pump Speed 3000 RPM ± 10%
  • Pump Connector 4-Pin
  • Pump Rated Voltage 12 VDC
  • Pump Power Consumption 8.16 W
  • Fan Dimensions (L x W x H) 120 x 120 x 25 mm ​ (4.7 x 4.7 x 1 inch)
  • Fan Quantity 3 PCS
  • Fan LED Type Non-LED
  • Fan Speed 0~2400 ±10%
  • Fan Airflow 127.6m³/h (75.2 CFM)
  • Fan Noise Level 30 dBA (Max)
  • Fan Pressure 3.63 mmH₂O (Max)
  • Fan Bearing Type Loop Dynamic Bearing
  • Fan MTTF >200,000 Hours
  • Fan Power Connector 4-Pin (PWM)
  • Fan Rated Voltage 12 VDC
  • Fan Rated Current 0.18A
  • Fan Safety Current 0.35 A
  • Radiator Size 360
  • Cooler Type Liquid Cooler
  • Series MasterLiquid
