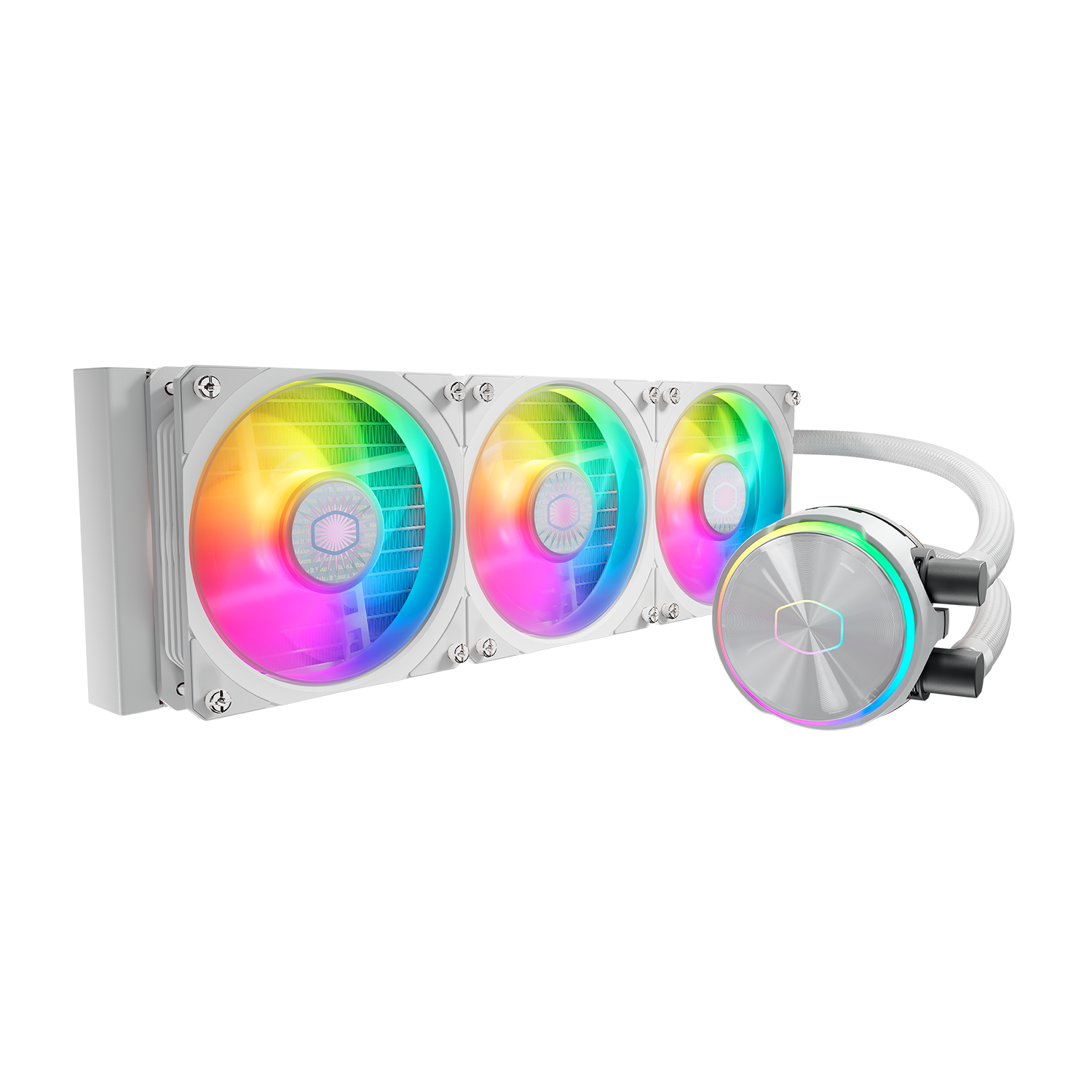

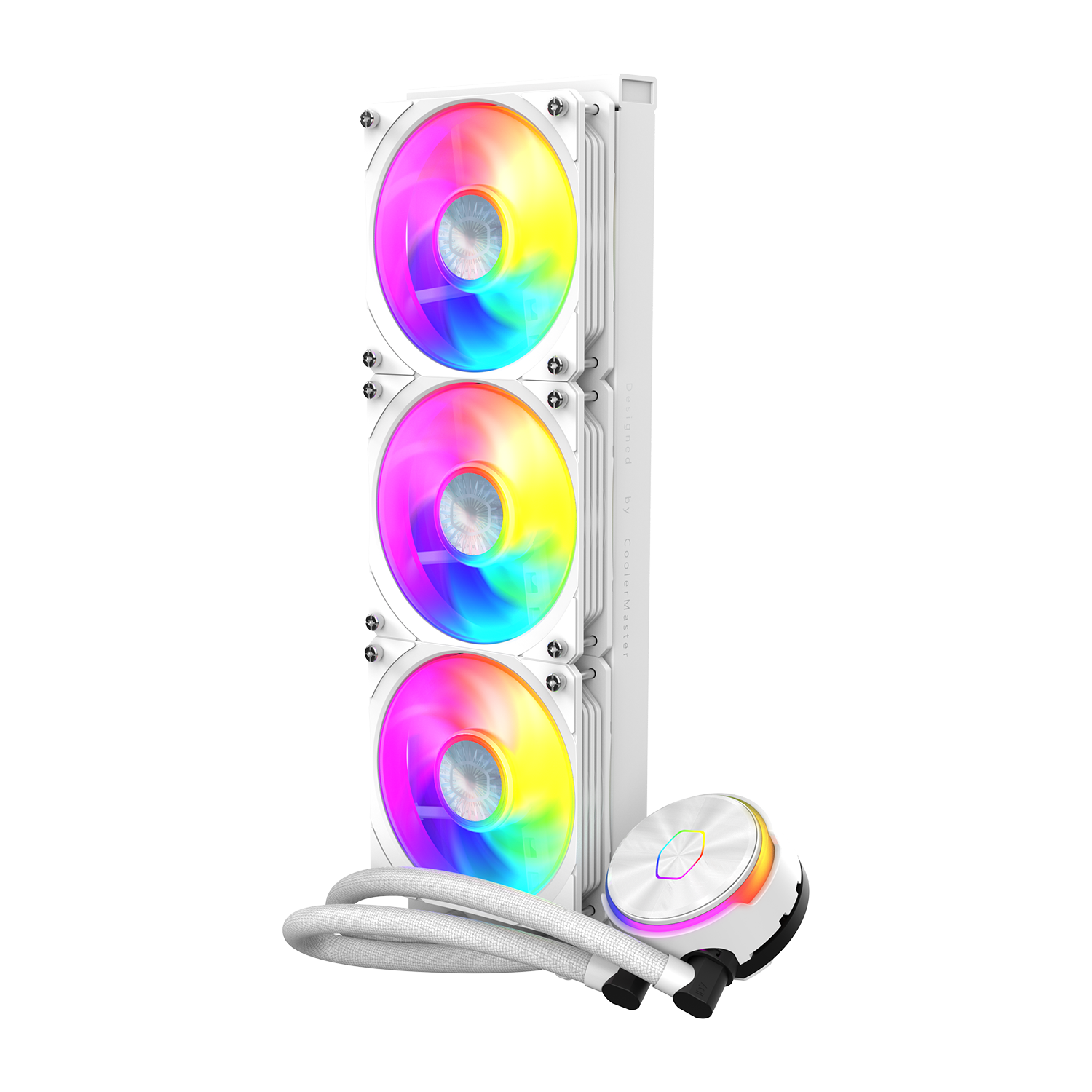

MasterLiquid PL360 Flux White Edition
Performance Dual Chamber
Superior Performance Ratio
Ultimate Heat Exchange
Slim & Sleek Radiator
PL-Flux specific fans
Dual Loop ARGB Pump Lighting
PREMIUM DUAL CHAMBER PUMP
Cooler Master’s Flux Series is the materialization of revolutionary cooling performance. With enhancements from the pump to the radiator and fans, the Flux Series delivers precisely tuned performance for superior heat dissipation and cooling capabilities.
Fine Tuned Performance Ratio
Precision engineered ultra-thin spaded fins maximize microchannels to accurately target heat spots. Enlarged copper base surface area with optimized base thickness further accelerates heat transfer.
SLIM & SLEEK RADIATOR
Low profile radiator with superior fin density coupled with performance fans dissipates heat rapidly.
REDESIGNED FLUX SERIES FAN
Unique air balance fan featuring interconnecting blades specifically designed for the Flux Series. Strengthened structure provides better stability for steady high speed operation. Angled inner fan frame rim boosts air intake, with frame gap generating increased air pressure for improved cooling.
Dual Loop ARGB Pump
Dual loop pump ARGB with independent lighting customization showcases your visual creativity without sacrificing cooling capability.
ULTIMATE HEAT EXCHANGE
High speed motor utilizing a ceramic bearing impeller forces balanced water flow to and from the radiator for ultimate efficiency of heat exchange.
ADDRESSABLE GEN 2 RGB
Included Addressable Gen 2 RGB controller works with Cooler Master’s MasterPlus+ software to customize individual LED colors, effects, brightness and more – all from an intuitive, convenient interface.
Specifications
- Product Number MLY-D36M-A23PZ-RW
- Exterior Color White
- CPU Socket Intel® LGA 1851 / 1700 / 1200 / 2066 / 2011-v3 / 2011 / 1151 / 1150 / 1155 / 1156 socket
- CPU Socket AMD® AM5 / AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FM1 / TR4 socket
- Radiator Material Aluminum
- Radiator Dimensions 394 x 119.6 x 27.2 mm / 15.5 x 4.7 x 1.07 inch
- Pump Dimensions 89 x 75 x 40 mm / 3.5 x 2.95 x 1.57 inch
- Pump MTTF >210,000 Hours
- Pump Noise Level 15 dBA (Max)
- Pump Connector 4-Pin
- Pump Rated Voltage 12 VDC
- Pump Power Consumption 6W
- Dimensions (L x W x H) 120 x 120 x 25 mm / 4.7 x 4.7 x 1.0 inch
- Fan Quantity 3 PCS
- Fan LED Type Addressable Gen 2 RGB
- Fan Speed 0-2300 RPM ± 10%
- Fan Airflow 72.37 CFM (Max)
- Fan Noise Level 32 dBA (Max)
- Fan Pressure 2.96 mmH₂O (Max)
- Fan Bearing Type Oil Reflow Bearing System
- Fan MTTF >160,000 Hours
- Fan Power Connector 4-Pin (PWM)
- Fan Rated Voltage 12 VDC
- Fan Rated Current 0.15A
- Fan Safety Current 0.3A
- RAM Clearance N/A
- Patent Number US11474574B2, US11061450B2, US10409341B2, US11320874B2, US11474574B2
- Warranty 5 years
- Series MasterLiquid Pro
- Cooler Type Liquid Cooler
- Radiator Size 360
