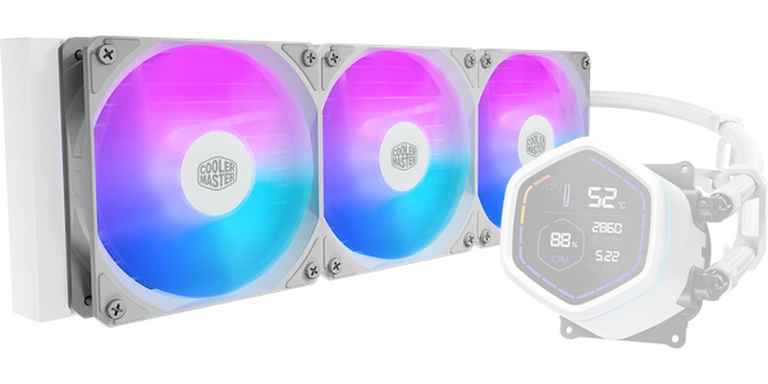

Easy Installation
With pre-installed fans, streamlined cabling, pre-applied thermal paste, and pre-mounted brackets, setup is quick, clean, and effortless
SMART COOLING, SIMPLE CONTROL

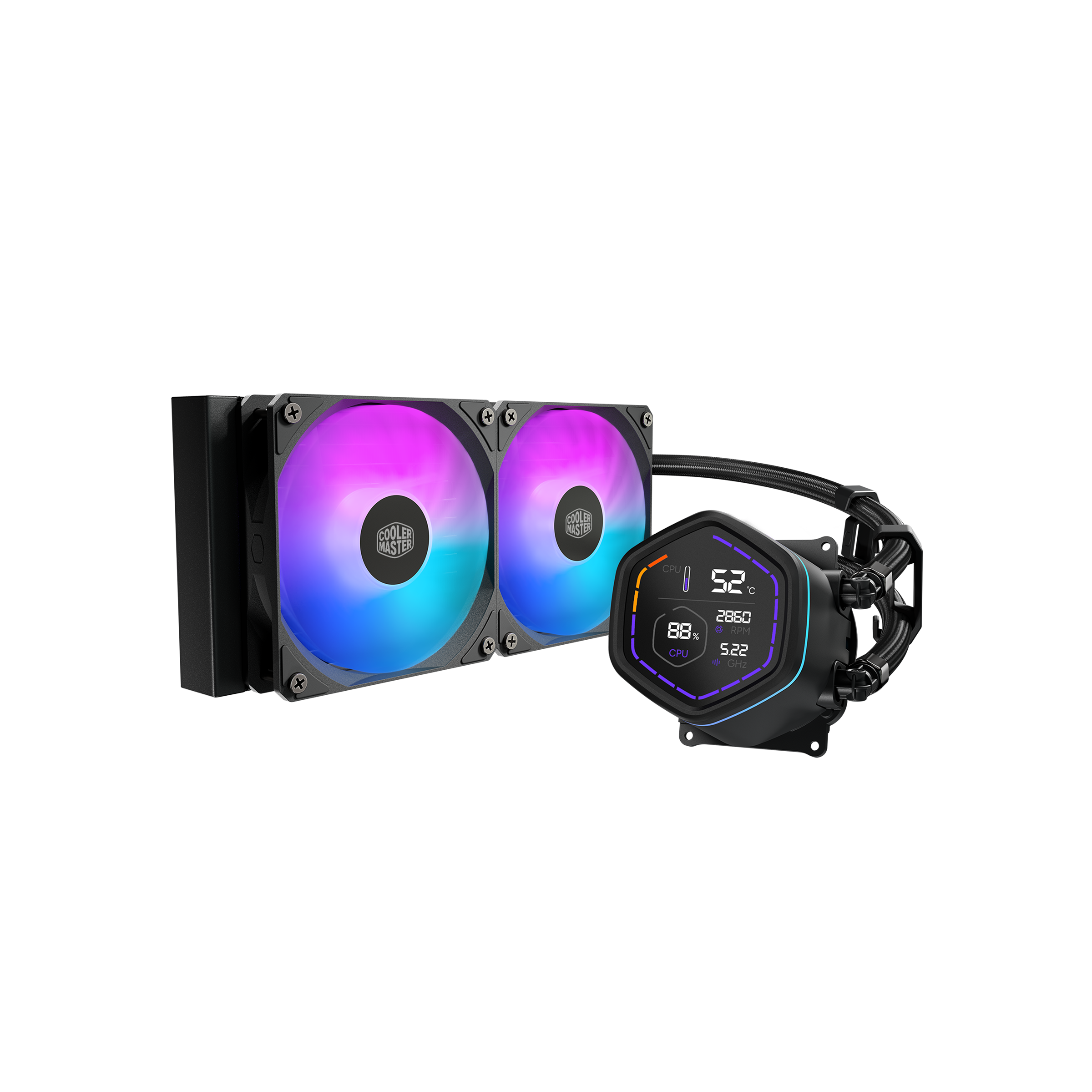

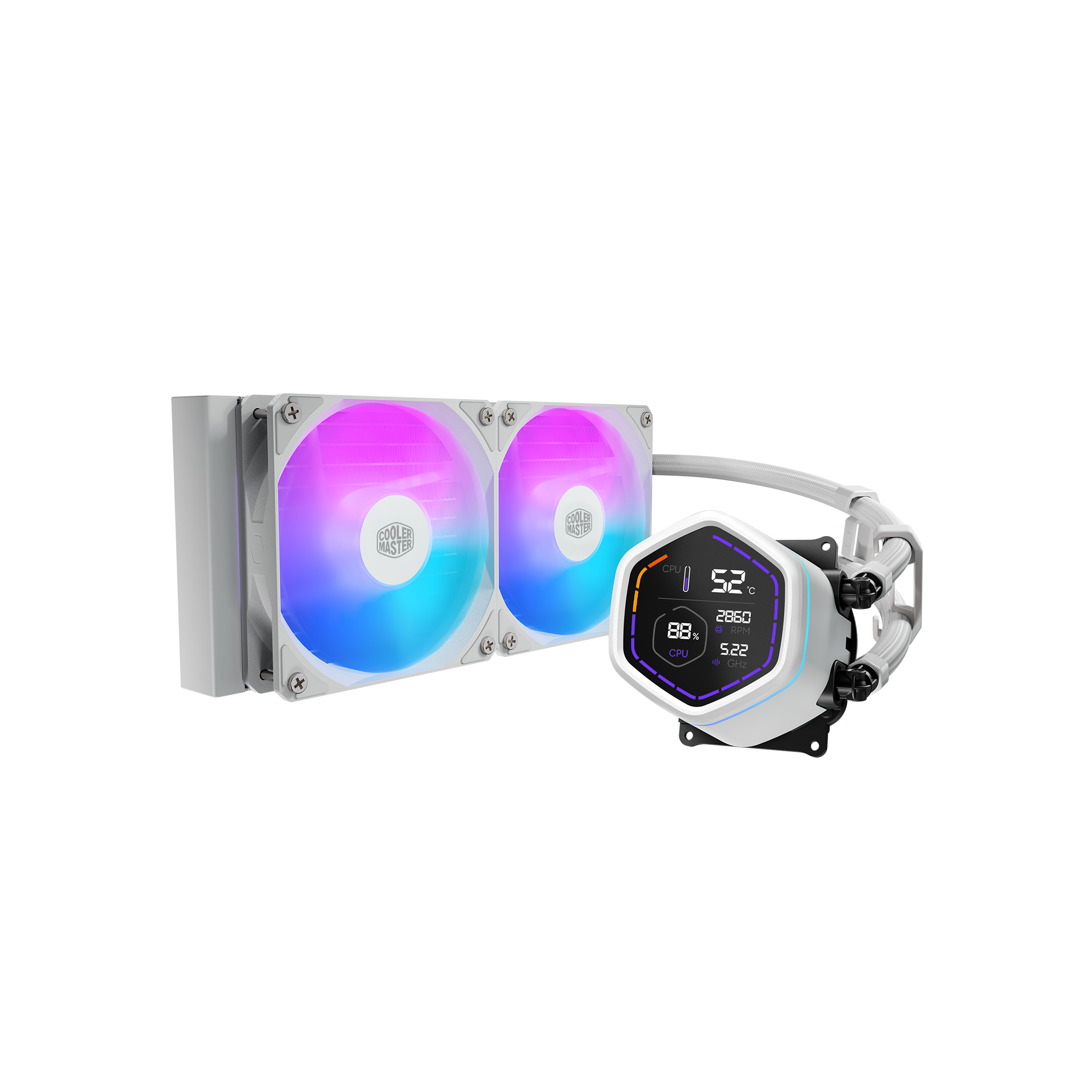

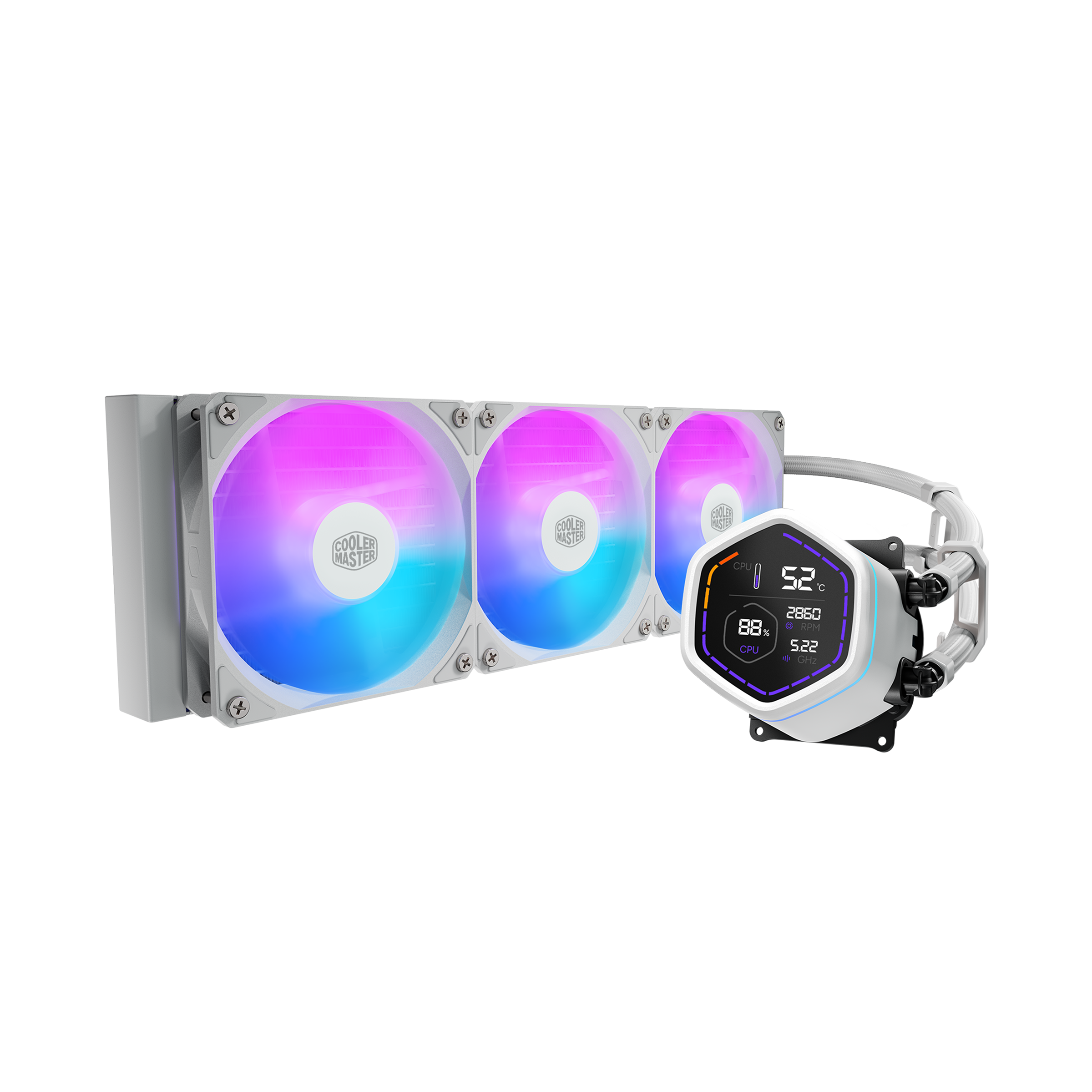

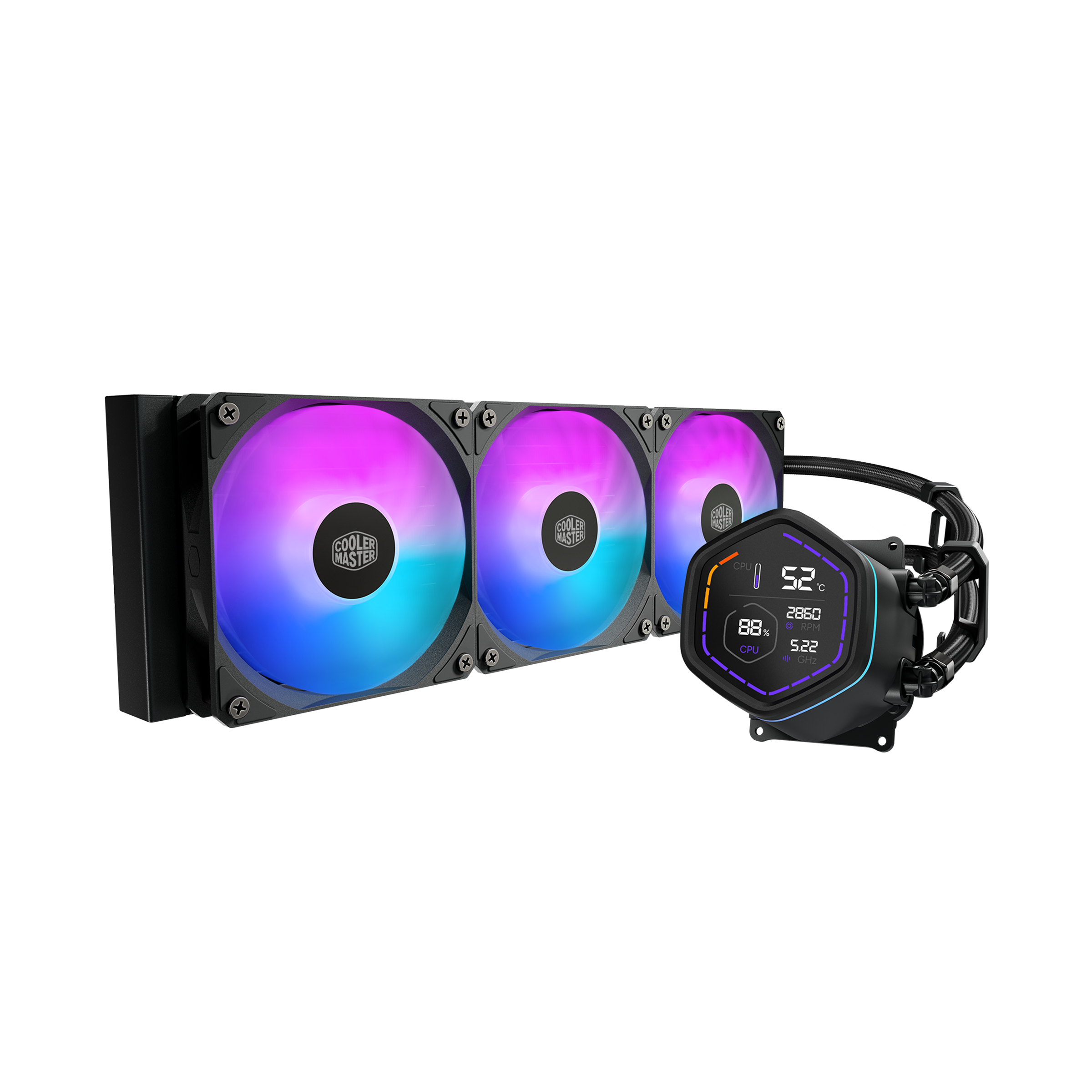

MASTERLIQUID CORE NEX DIGITAL SERIES
Dual Chamber Pump
Innovative, Smart Design
Easy Installation
Universal Socket Support
Optimum Tubing Length
INNOVATIVE, SMART DESIGN
Featuring a digital pump cover with real-time system stats and a bold hexagonal outer ring for instant CPU usage at a glance. Customize your display with our MasterCTRL software, which lets you easily adjust data sources. Whether it’s fans, pumps, CPU, or GPU, everything is under your control.
Dual chamber pump
Patented design
Our latest patented dual chamber design has been refined for enhanced cooling synergy. The new design increases water pressure and optimizes water flow directly to CPU hot spot.
Improved Quality
Fully automated production and assembly of the pump with fully recorded production history.
Dual Chamber Pump
Our patented dual chamber design delivers a compact cooler with efficient and reliable performance.
Optimum Tubing Length
400 mm tubing allows for effortless cooler installation in any orientation.
Universal Socket Support
Broad compatibility with both Intel and AMD CPU sockets
Pre-Applied CryoFuze Thermal Paste
Tube Clips Included
Specifications
- Product Number 240 Black: MLX-D24M-A18PA-RD
- Product Number 240 White: MLX-D24M-A18PW-RD
- Product Number 360 Black: MLX-D36M-A18PA-RD
- Product Number 360 White: MLX-D36M-A18PW-RD
- CPU Socket Intel® LGA 1851 / 1700 / 1200 / 1156 / 1155 / 1151 / 1150 Socket
- CPU Socket AMD® AM5 / AM4 Socket
- Radiator Material Aluminum
- Radiator Dimensions 240: 277 x 119.6 x 27.2 mm (10.9 x 4.71 x 1.1 inch)
- Radiator Dimensions 360: 394 x 119.6 x 27.2 mm (15.5 x 4.7 x 1.1 inch)
- Pump Dimensions 83.6 x 78.5 x 68.6 mm (3.3 x 3.1 x 2.7 inch)
- Pump Profiles Addressable RGB
- Pump Speed 3200 ±10% RPM
- Pump MTTF >35,000 Hours
- Pump Noise Level 25 dBA (Max)
- Pump Rated Voltage 12 VDC
- Fan Power Consumption 7.2 W
- Pump Connector 3-Pin ARGB + 4-Pin PWM
- Digital Panel Type LED Digital Display
- Digital Panel Display Area 50.1 x 54.4 mm (2 x 2.1 inch)
- Digital Panel Luminance 120 cd/m²
- Digital Panel Rated Voltage 5 VDC
- Digital Panel Rated Current 0.12 A±10%
- Digital Panel Safety Current 0.3 A±20%
- Digital Panel Power Consumption 0.6 W
- Digital Panel Connector USB 2.0 9PIN
- Fan Dimensions (L x W x H) 120 x 120 x 25 mm (4.7 x 4.7 x 1 inch)
- Fan LED Profiles Addressable RGB
- Fan Quantity 240: 2 PCS
- Fan Quantity 360: 3 PCS
- Fan Speed 650-1750 RPM ± 10%
- Fan Airflow 122.4 m³/h (71.9 CFM) (Max)
- Fan Air Pressure 1.86 mmH₂O (Max)
- Fan MTTF >40,000 Hours
- Fan Noise Level 27.2 dBA (Max)
- Fan Bearing Type Rifle Bearing
- Fan Connector 7-Pin PWM + ARGB
- Fan Rated Voltage 12 VDC
- Fan Rated Current 0.26 A
- Fan Safety Current 0.37 A
- Fan Power Consumption 3.12W
- Tube Length 400 mm
- Warranty 5 years
- Radiator Size 240
- Radiator Size 360
- Cooler Type Liquid Cooler
- Series MasterLiquid
