360 DEGREES OF COOL

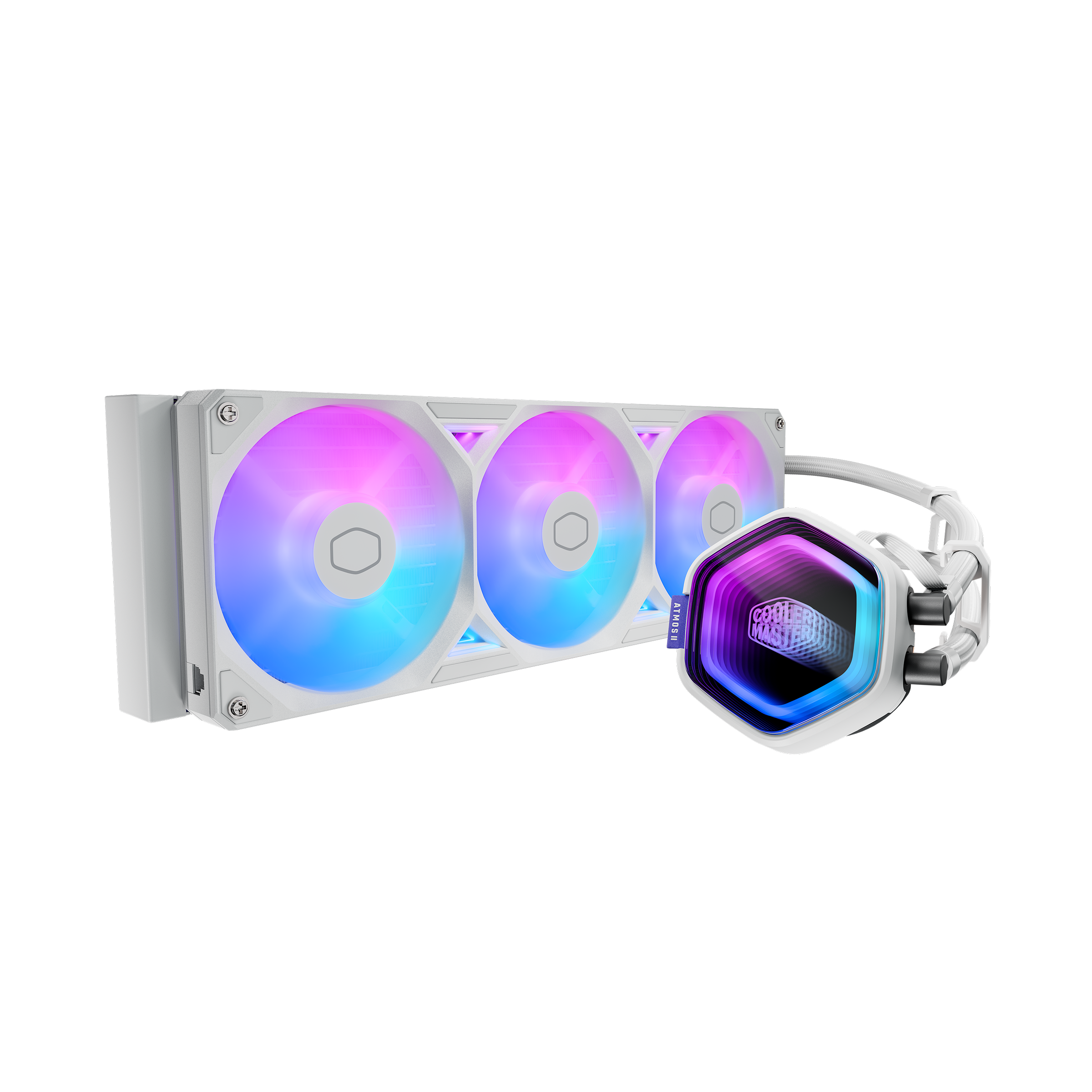

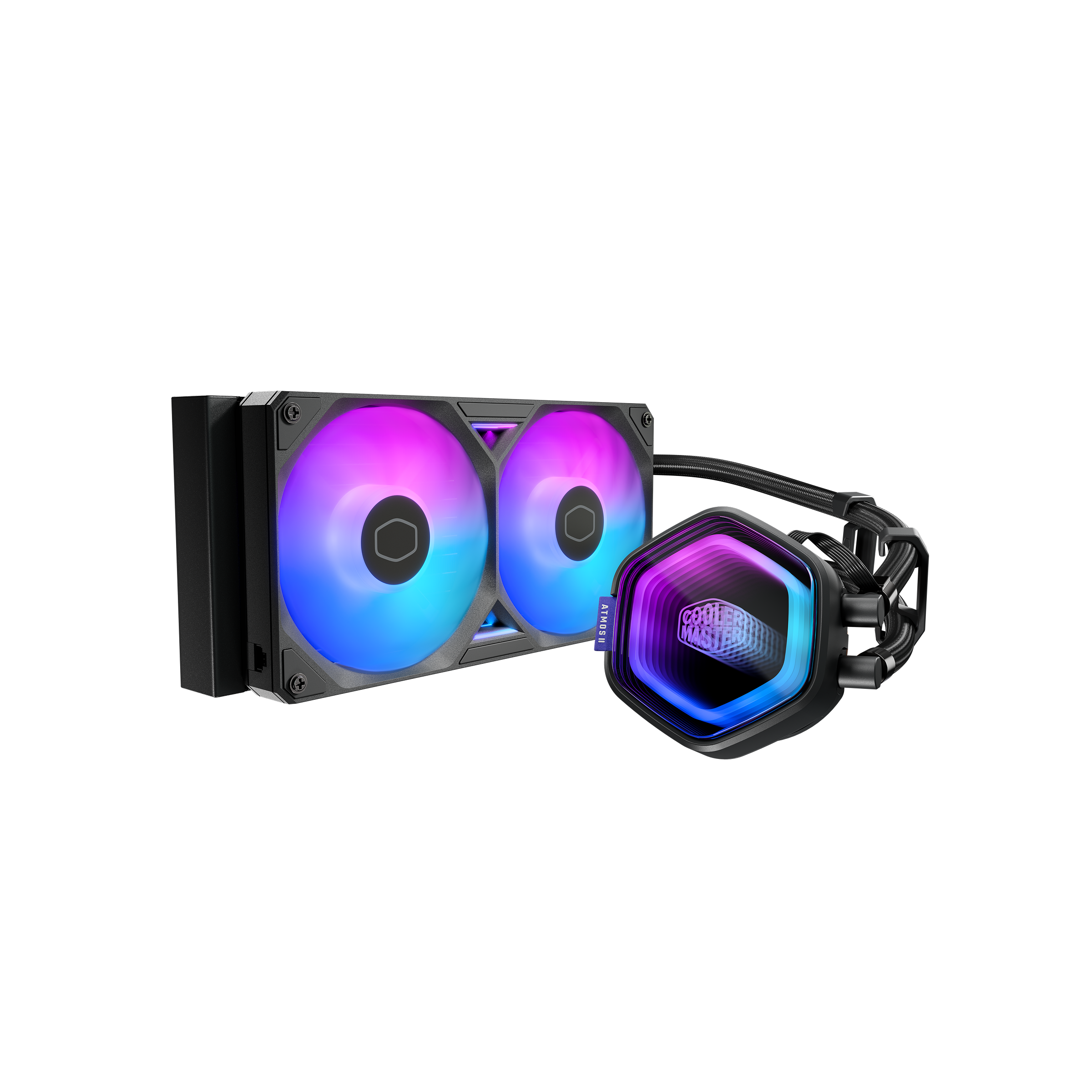

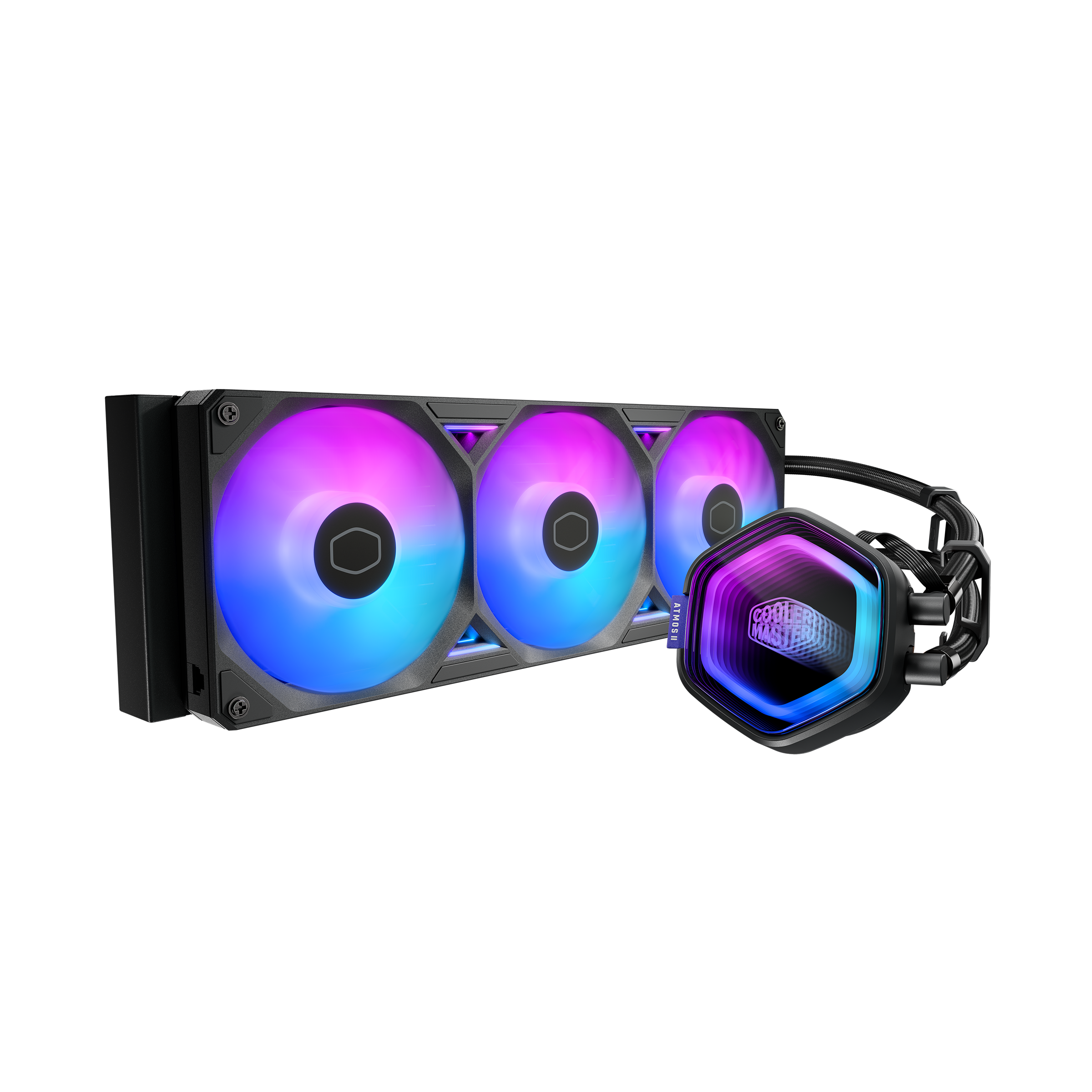

MasterLiquid ATMOS II Series

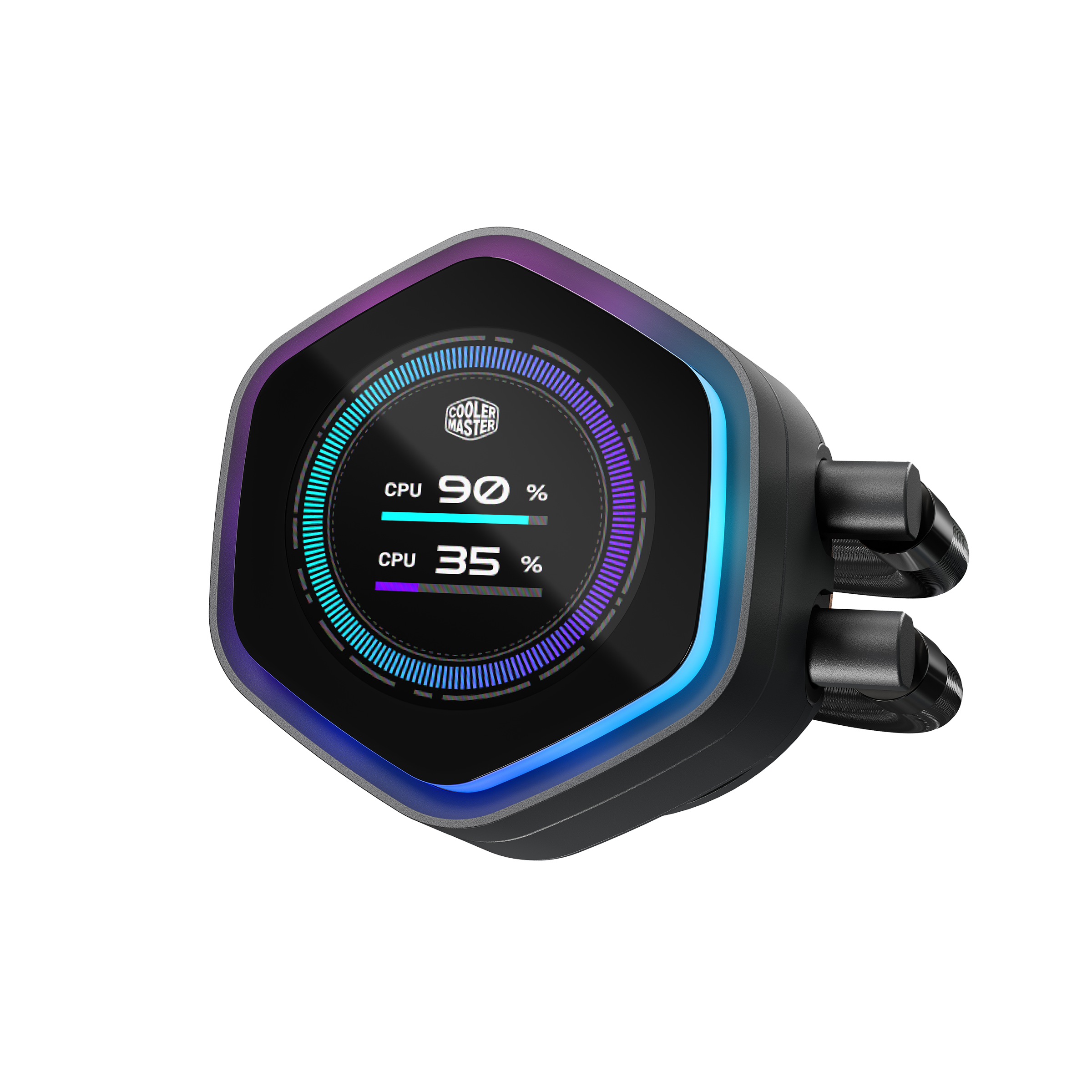

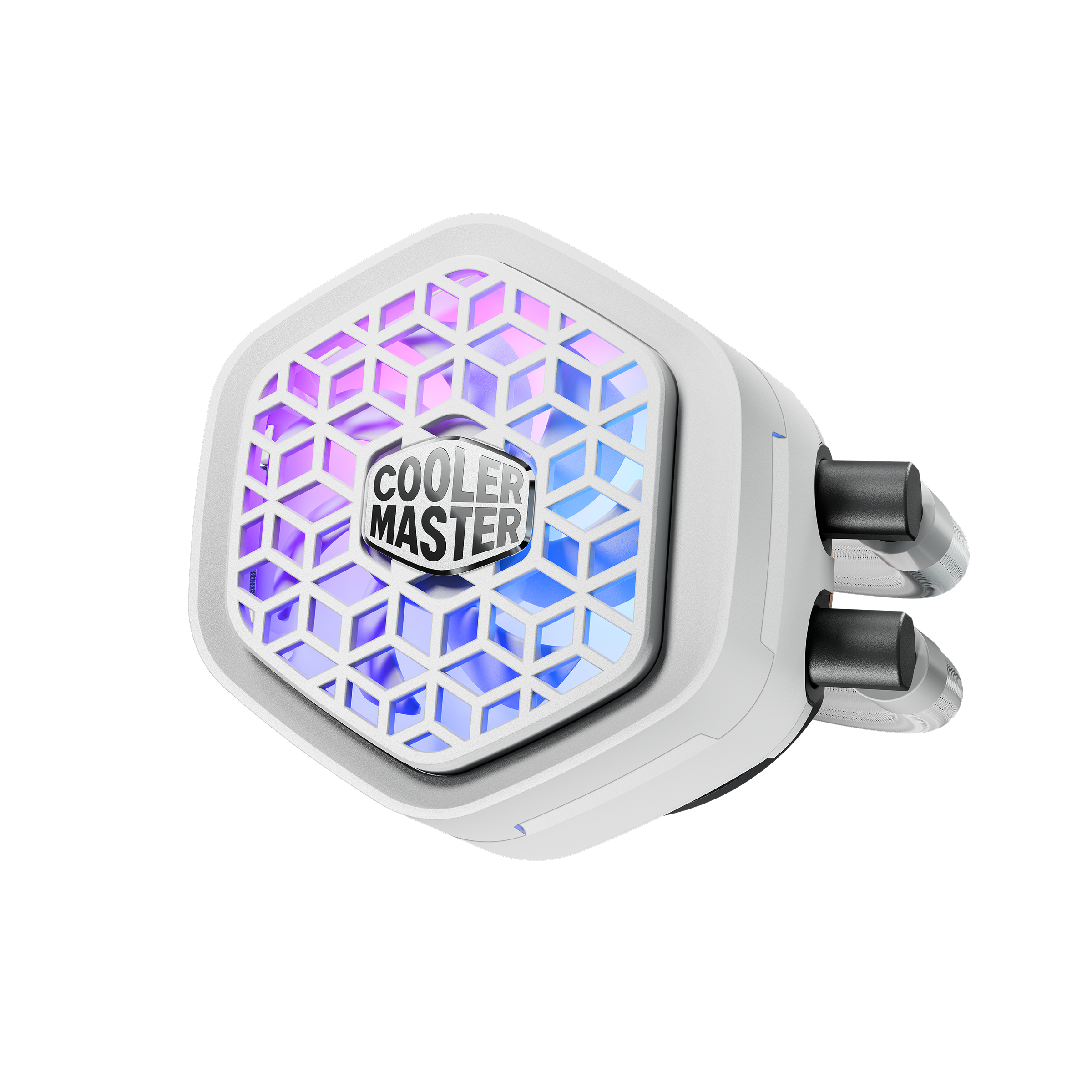

⬢ Dual style covers

⬢ Flex-Kit for modular upgrades

⬢ SickleFlow Edge ARGB fans

⬢ Ultra-low profile pump design

⬢ Quick and easy installation

DUAL COLORWAYS AND STYLE COVERS

Two decorative covers are included, they are held by magnets, and this makes them easy to change and allows you to make your personal preference.

Cooling System

DUAL CHAMBER DESIGN

Patented design

Our latest patented dual chamber design has been refined for enhanced cooling synergy. The new design increases water pressure and optimizes water flow directly to CPU hot spot.

DUAL CHAMBER DESIGN

Improved Quality

Fully automated production and assembly of the pump with fully recorded production history.

Tough. Reliable. Built to Endure.

Engineered with PPS and fiberglass, the MasterLiquid Atmos II pump housing delivers industrial-grade strength, exceptional heat resistance, and unmatched durability—designed for builders who demand long-lasting, high-performance cooling. It also passes extreme testing at 70°C for 3,000 hours and 120 °C for 12 hours*, ensuring reliable performance under the harshest conditions.

*Tested by Cooler Master Lab using only the liquid cooling module. Results may vary by system and conditions.

ULTRA-LOW PROFILE PUMP DESIGN

The flat design allows installation in cases of different sizes while maintaining strong performance.

QUICK AND EASY INSTALLATION

A quick-mount kit ensures compatibility with mainstream processor sockets and the pre-installed fans simplify setup.

Offset Mounting Brackets for LGA 1851

Due to the varying CPU hotspots across different platforms, there are corresponding mounting bracket solutions tailored for each. We recommend you use the included offset mounting brackets for LGA 1851*, which precisely dissipate 4°C of heat from the center of the CPU.**

*Please check whether your motherboard is compatible with this offset bracket.

**Tested by Cooler Master Lab.

*Content and package design vary by SKU and region

Smart, Sustainable, and Simple Packaging

Featuring eco-friendly materials, a 30% reduction in total packaging size, and intuitive, easy-to-navigate contents.

INCLUDED CRYOFUZE

THERMAL PASTE

TUBE CLIPS INCLUDED

Specifications

Product Number (240 Black) MLX-D24M-A25SZ-R1
Product Number (240 White) MLX-D24M-A25SZ-RW
Product Number (360 Black) MLX-D36M-A25SZ-R1
Product Number (360 White) MLX-D36M-A25SZ-RW
CPU Socket Intel® LGA 1851 / 1700 / 1200 / 1150 / 1151 / 1155 / 1156
CPU Socket AMD® AM5 / AM4
Radiator Material Aluminum
Radiator Dimensions (240) - 277 x 119.2 x 27 mm (10.9 x 4.7 x 1.1 inch)
Radiator Dimensions (360) 394 x 119.2 x 27 mm (15.5 x 4.7 x 1.1 inch)
Pump Dimensions 92.5 x 87 x 39 mm (3.6 x 3.4 x 1.5 inch)
Pump Profiles Addressable Gen2 RGB
Pump Speed 3400 ± 300 RPM
Pump MTTF >210,000 Hours
Pump Noise Level 25 dBA (Max)
Pump Rated Voltage 12 VDC
Pump Power Consumption 3.84 W
Pump Connector 3-Pin ARGB + 4-Pin PWM
Tube Length (240) 350 mm
Tube Length (360) 400 mm
Fan Dimensions (L x W x H) (240) 241 x 122 x 26.5 mm (9.5 x 4.8 x 1 inch)
Fan Dimensions (L x W x H) (360) 361 x 122 x 26.5 mm (14.2 x 4.8 x 1 inch)
Profile Addressable Gen 2 RGB
Fan Quantity 1 PC
Fan Speed 690 ~ 2500 RPM ± 15%
Fan Airflow (240) 240.35 m³/h (141.4 CFM)
Fan Airflow (360) 322.8 m³/h (190 CFM)
Fan Air Pressure 3.61 mmH2O
Fan MTTF >160,000 Hours
Fan Noise Level (240) 36 dB(A)
Fan Noise Level (360) 38.5 dB(A)
Fan Bearing Type Loop Dynamic Bearing
Fan Connector 7-Pin PWM + ARGB
Fan Rated Voltage 12 VDC
Fan Rated Current 0.5 A
Fan Safety Current 0.8 A
Fan Power Consumption 6 W
Warranty 6 years
Radiator Size 240
Radiator Size 360
Cooler Type Liquid Cooler
Series MasterLiquid
