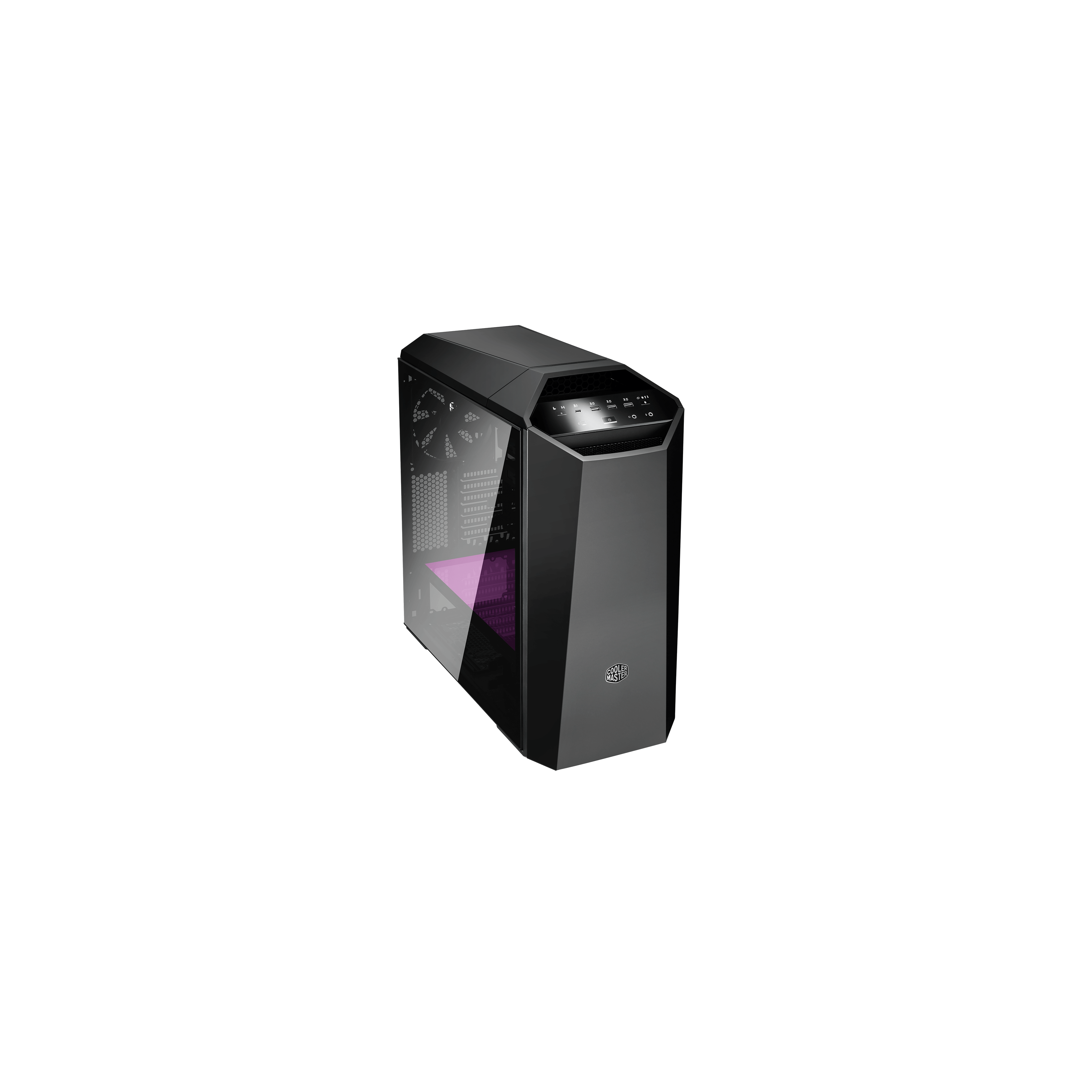

MasterCase MC500M
MasterCase MC500M
- Series MasterCase Series
- Materials Steel
- Radiator Support - Rear 120mm
- Power Supply Support Bottom Mount
- Dust Filters Top
- Pre-installed Fans - Rear 1x 140mm, 1200RPM
- Dust Filters Front
- Pre-installed Fans - Front 2x 140mm, 1200RPM
- Radiator Support - Rear 140mm
- Materials Plastic
- Size Mid Tower
- Radiator Support - Front 360mm
- Legacy Cases
- Materials Tempered Glass
- Dust Filters Bottom
- Power Supply Support ATX
- Radiator Support - Top 280mm
- 5.25" Drive Bays 2
- Radiator Support - Front 280mm
- Drive Bays - SSD 1

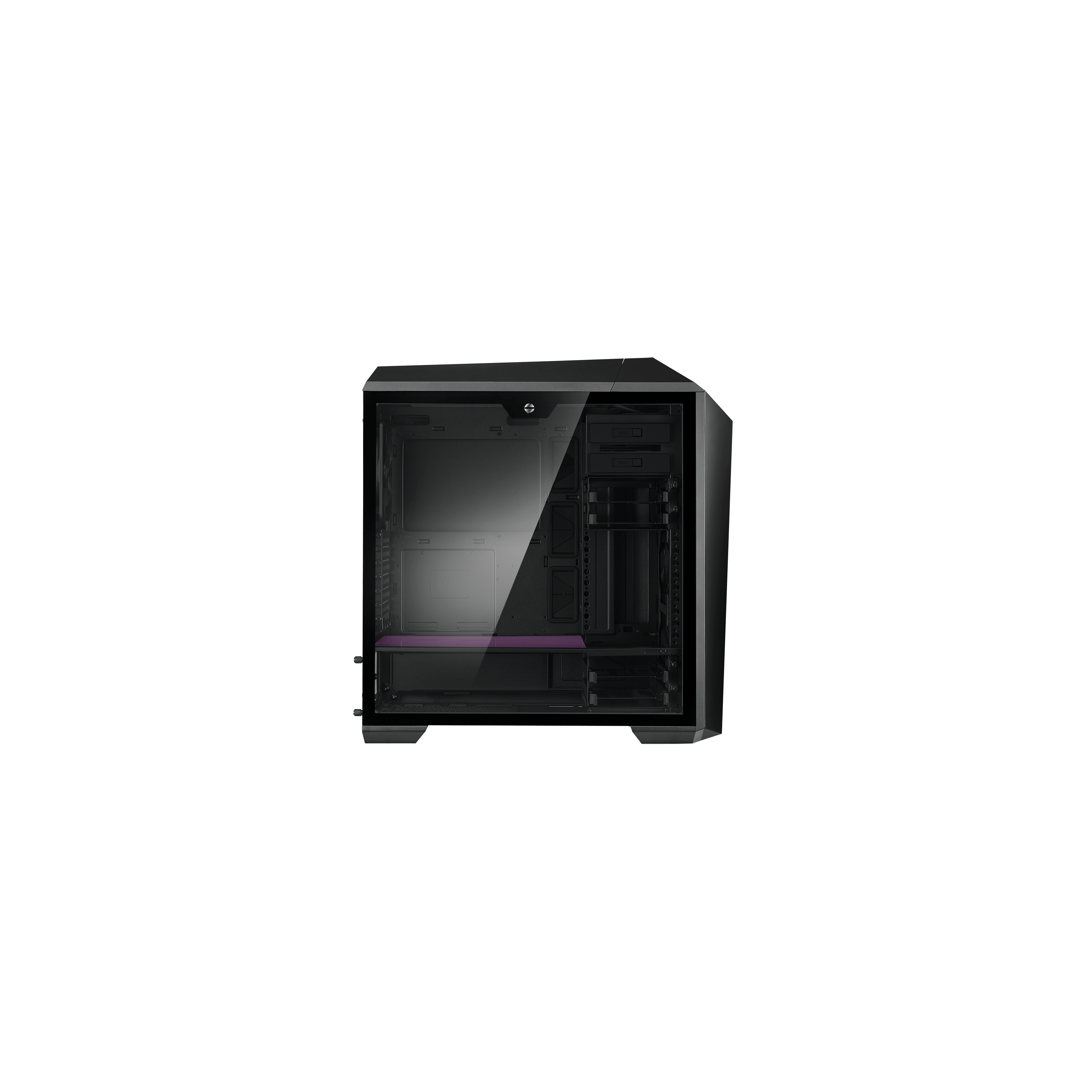

- Lighting Support 1x RGB Control Board (Cycle, Static, M/B Modes) to Pre-built LED Partition Plate Two Additional Connections Available
- Radiator Support - Front 240mm
- Radiator Support - Top 240mm
- Motherboard Support E-ATX
- Motherboard Support ATX
- Radiator Support - Front 140mm
- Radiator Support - Top 140mm
- Expansion Slots 7
- Clearance - GFX 296mm (w/ 3.5" HDD cage)
- Radiator Support - Front 120mm
- Radiator Support - Top 120mm
- Motherboard Support Micro ATX

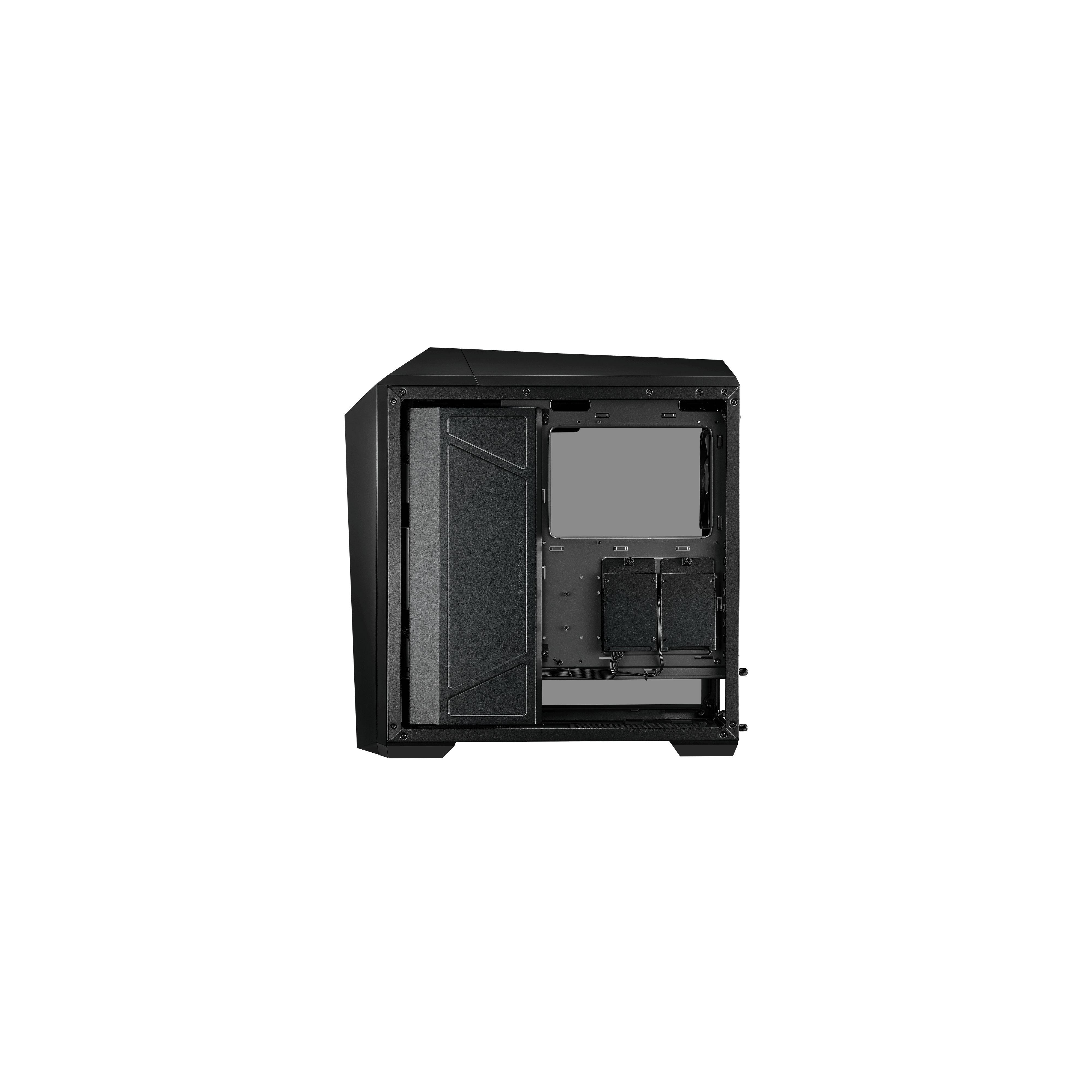

- Cable Routing - Behind Motherboard Tray 25-35mm
- I/O Panel 3x USB 3.0 Type-A
- Motherboard Support Mini ITX
- 2.5" / 3.5" Drive Bays (Combo) 4
- 2.5" / 3.5" Drive Bays (Combo) 8 or 10 (with ODD bay removed)
- I/O Panel 1x USB 3.1 Type-C
- Color(s) Dark metallic grey exterior with black interior
- Clearance - CPU Cooler 190mm
- Dimensions (L x W x H) 528.6 x 235 x 548mm
- 5.25" Drive Bays 2
- I/O Panel Audio In & Out (Supports HD Audio)
- Clearance - GFX 412mm (w/o 3.5" HDD cage)
- I/O Panel Fan Speed & RGB control buttons
- 2.5" Drive Bays 1
- Model Number MCM-M500M-KG5N-S00
