Exquisitely Ruthless

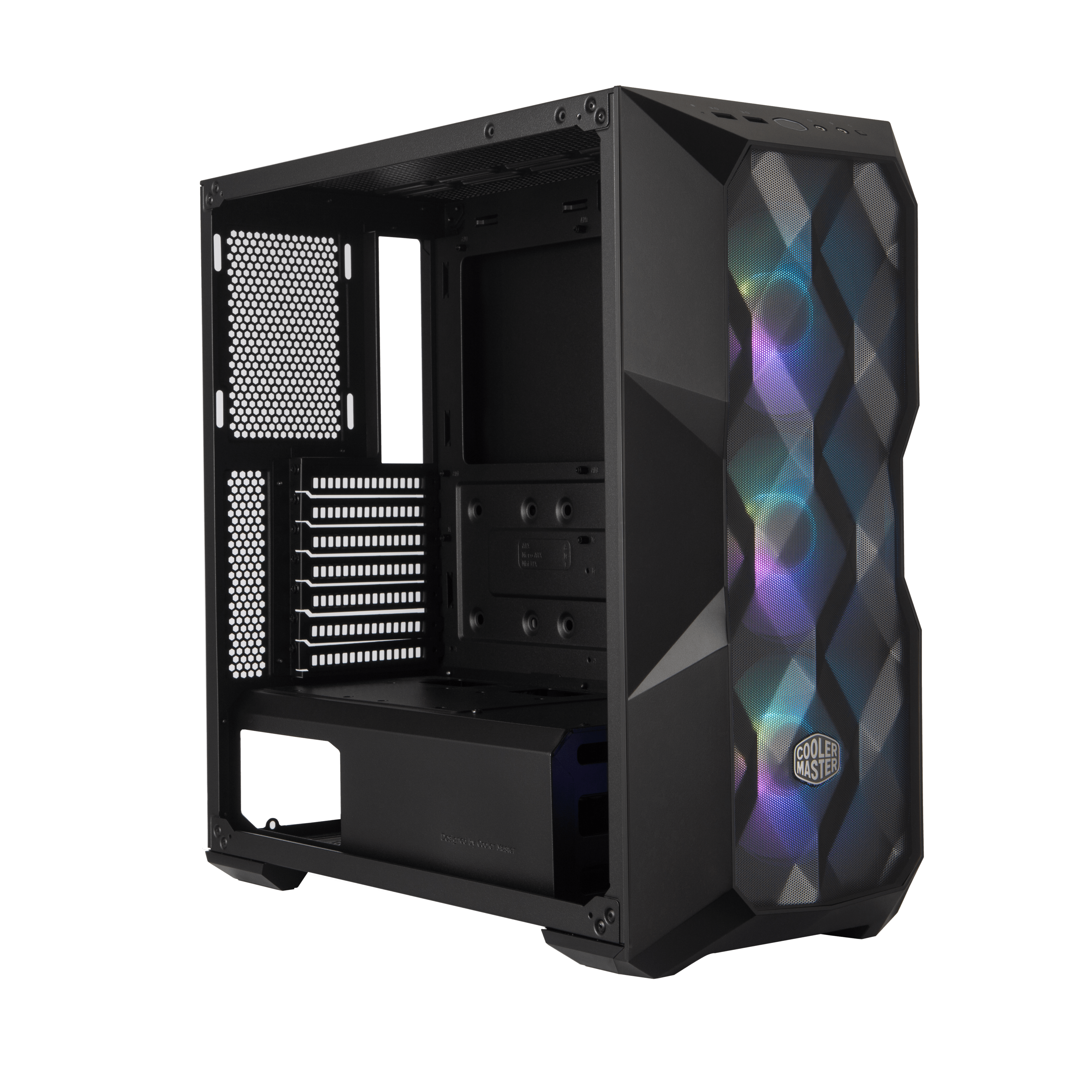

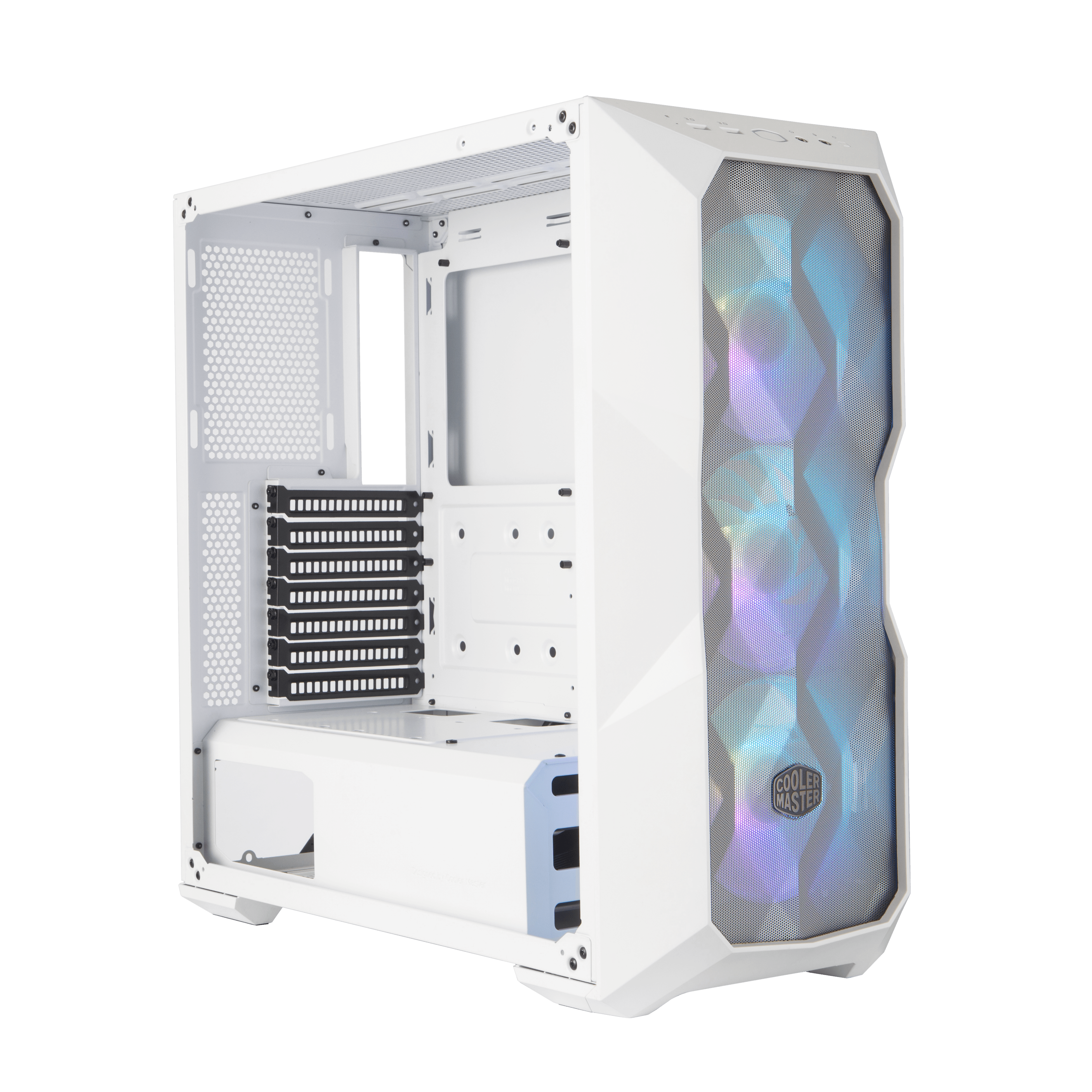

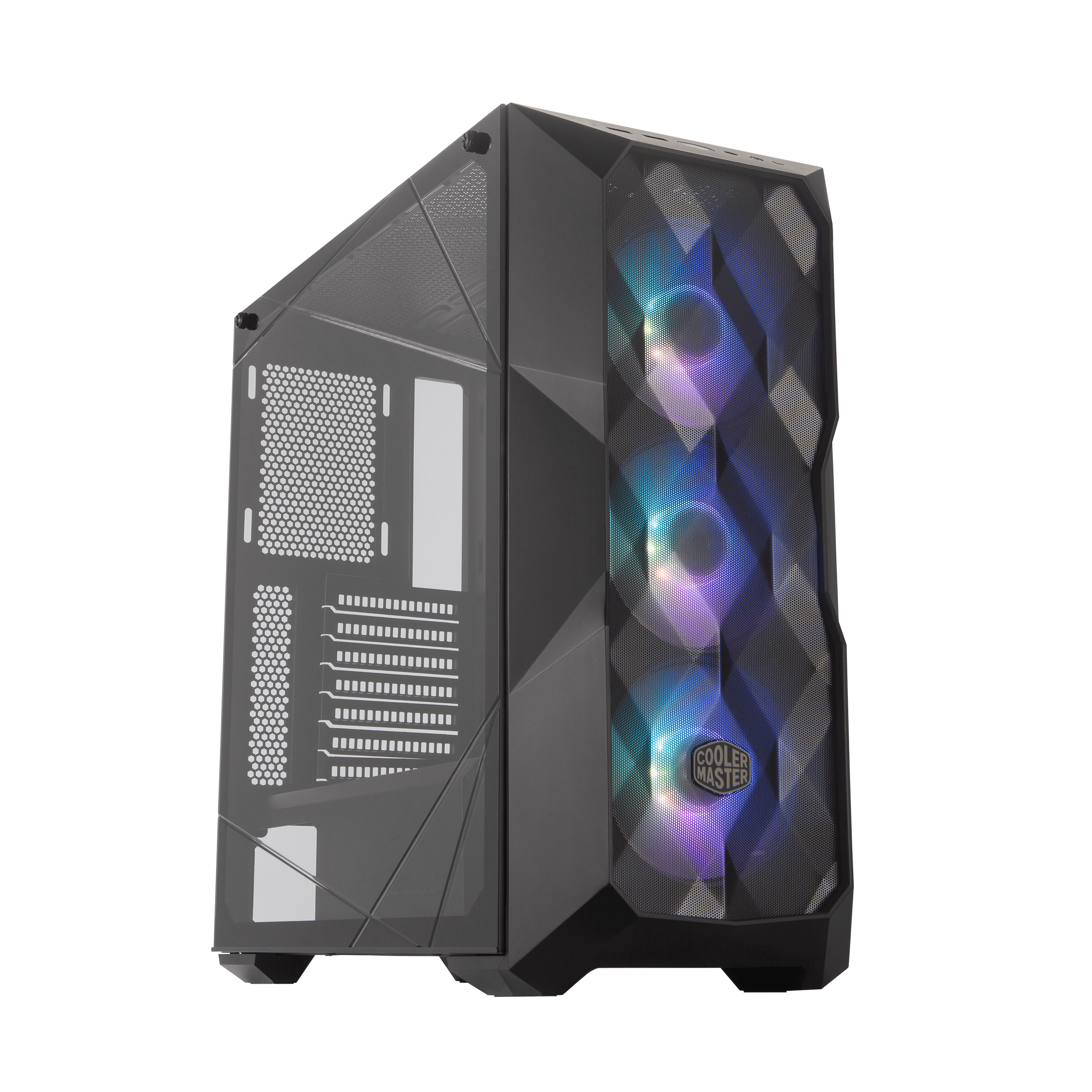

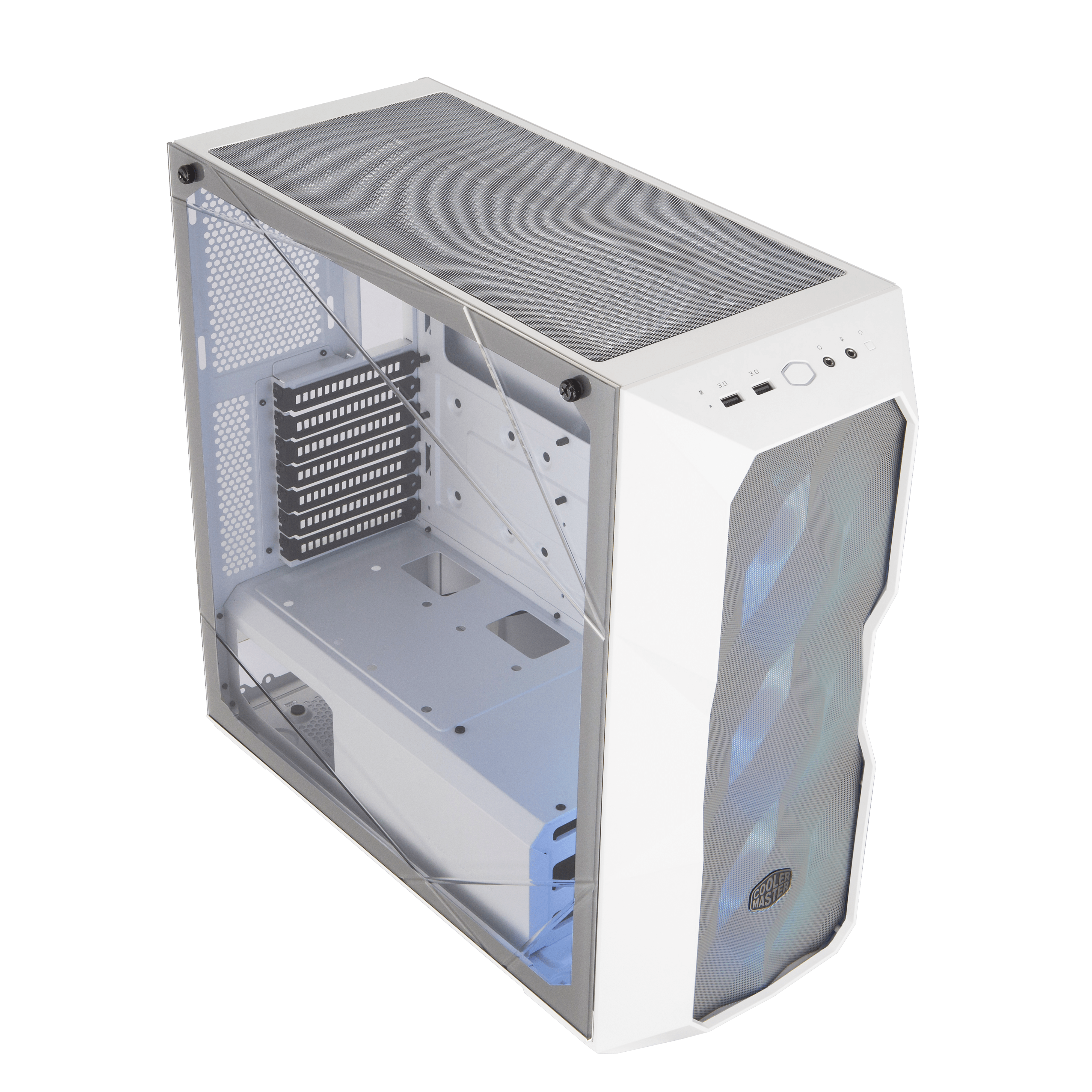

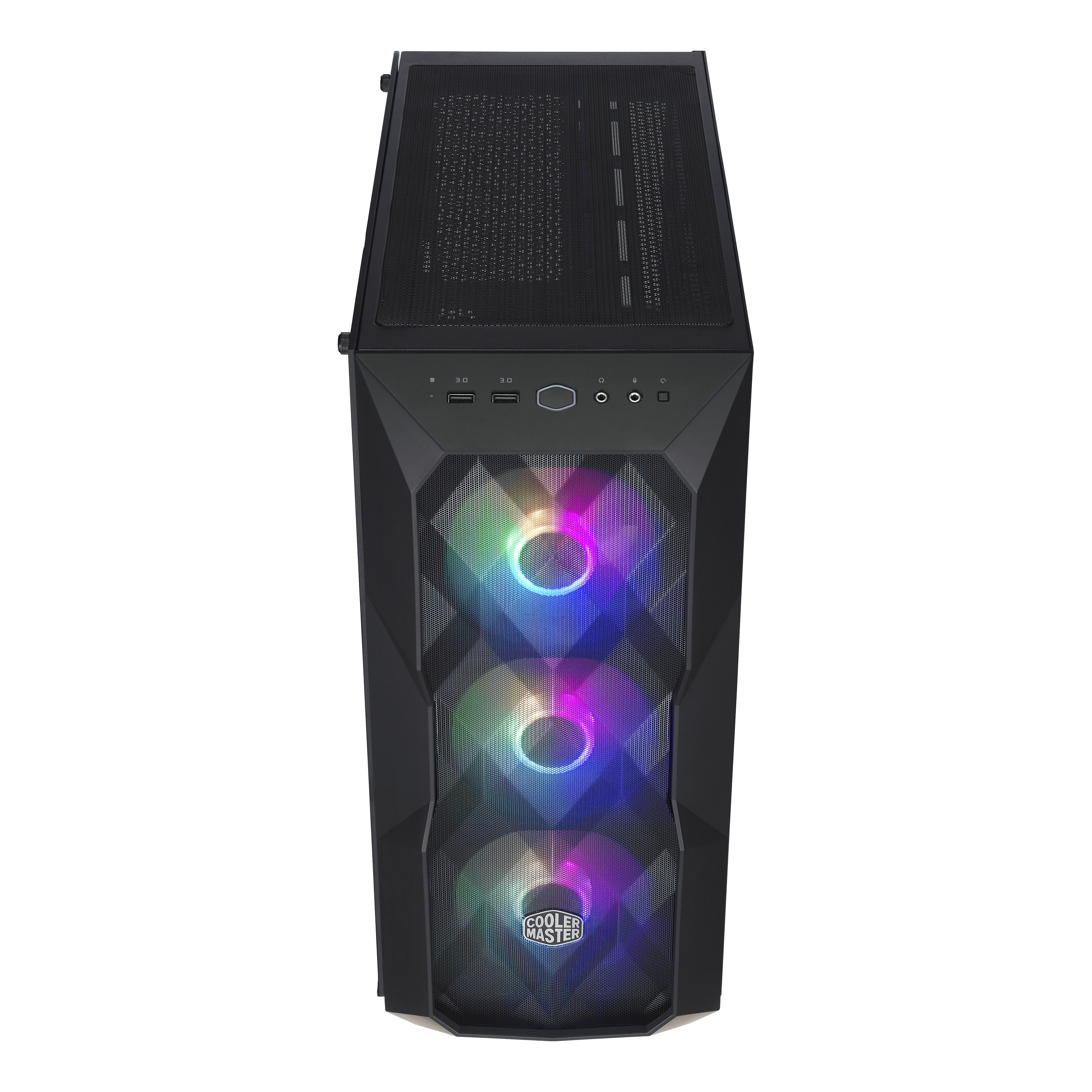

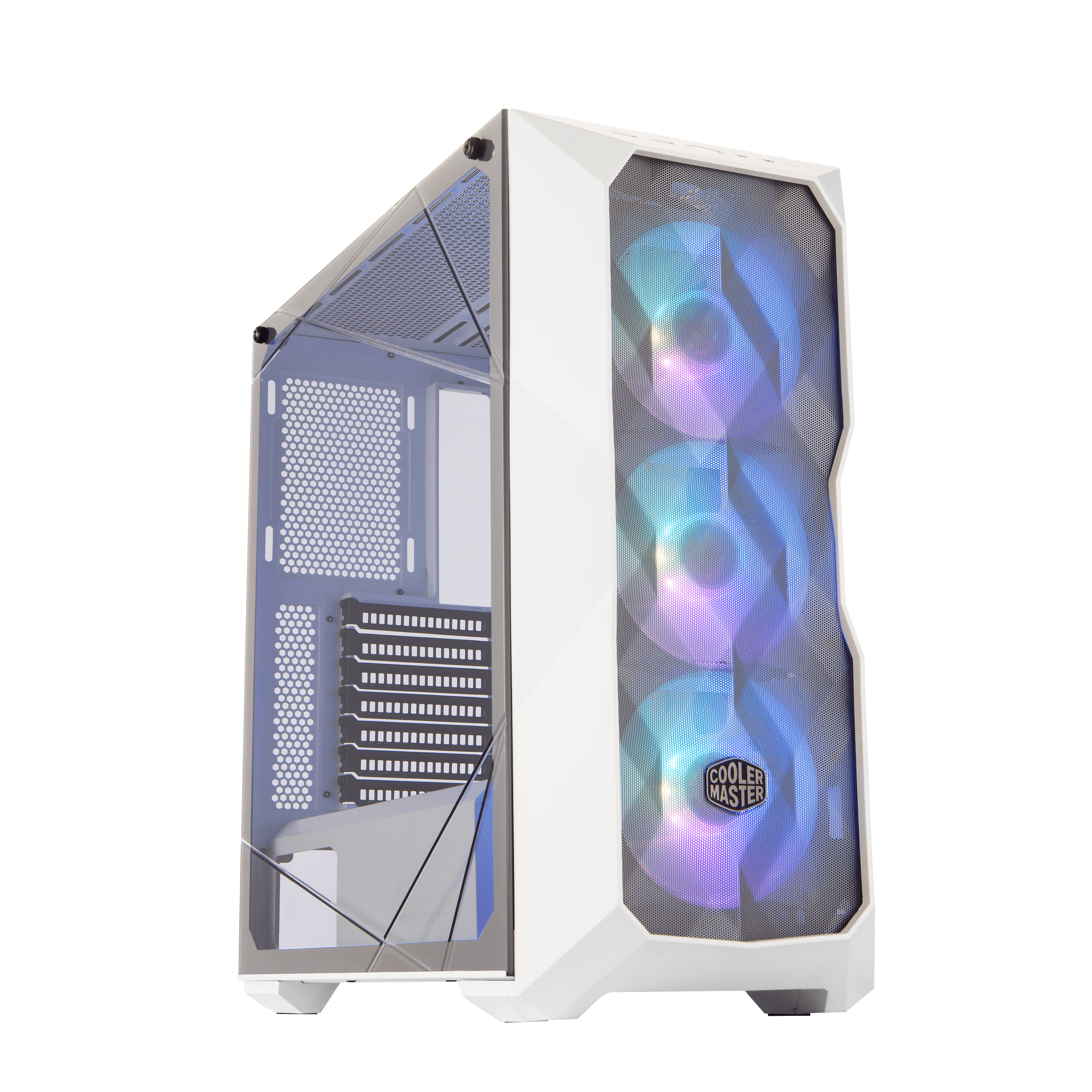

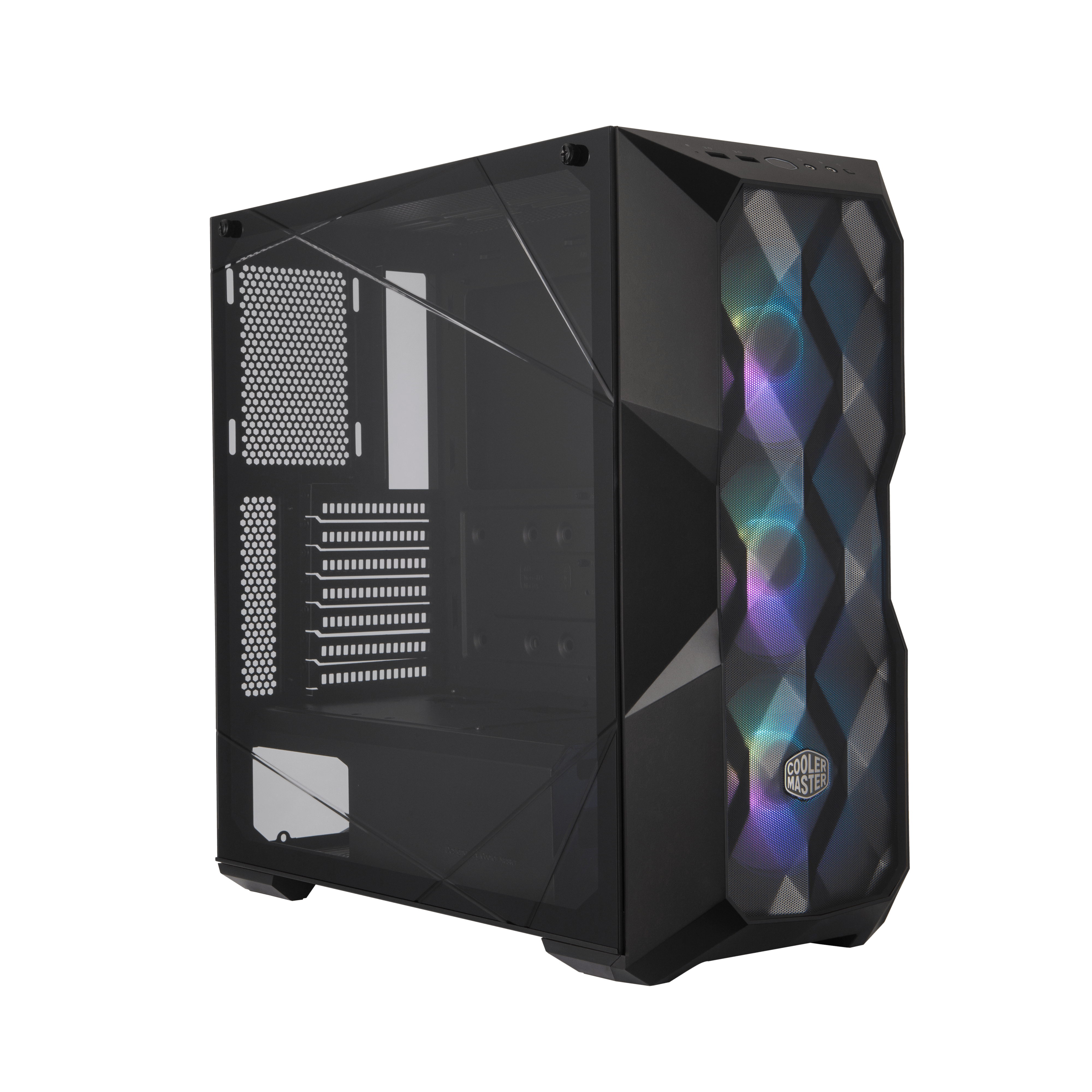

MasterBox TD500 Mesh / Mesh White
Polygonal Mesh
Crystalline Tempered Glass
Triple ARGB Fans
Dual 360mm Radiator Support
Versatile Cooling Options
Room For Upgrades
- Radiator Support - Rear 120mm
- Power Supply Support Bottom Mount
- Dust Filters Top
- 5.25" Drive Bays N/A
- Materials - Exterior Mesh

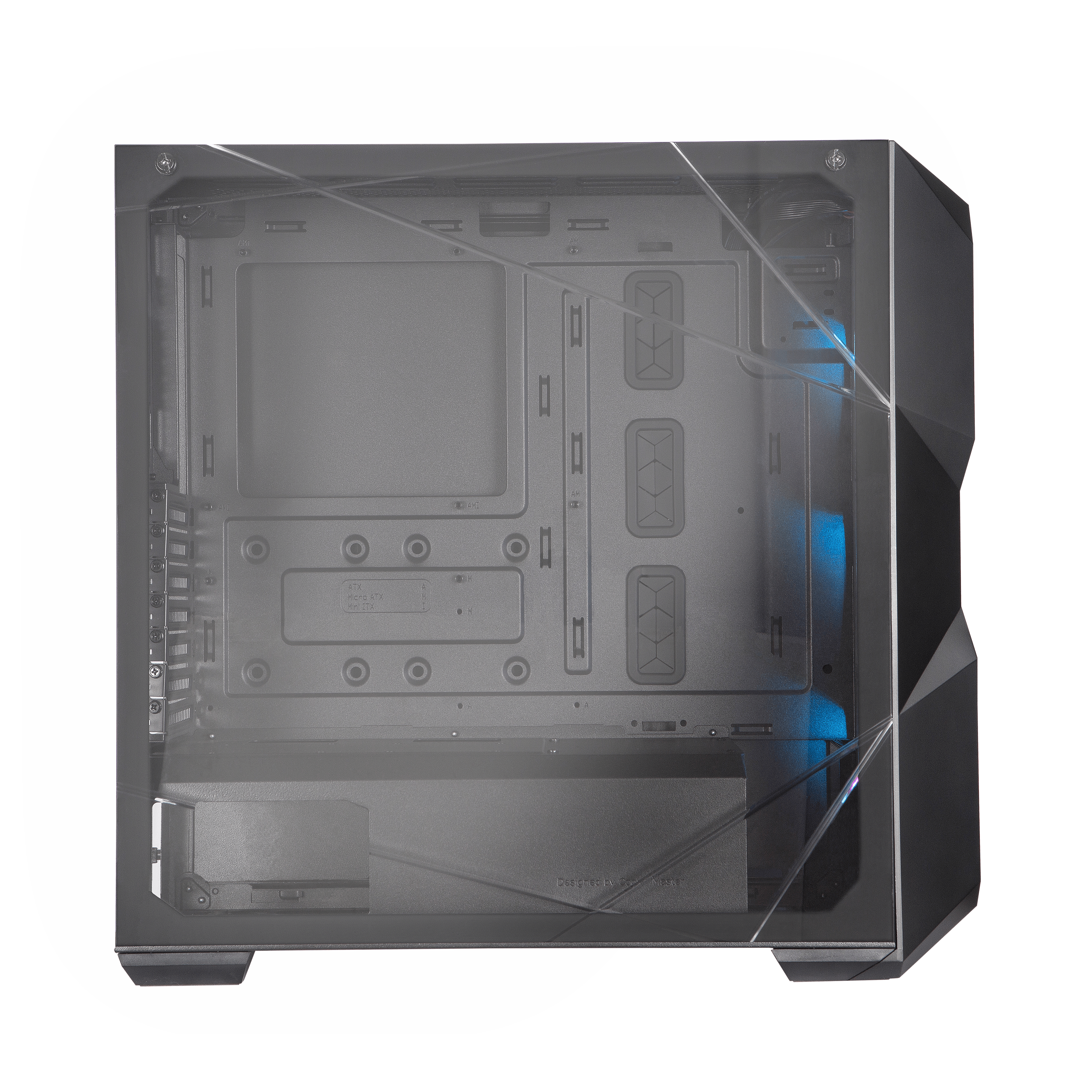

- Materials - Left Side Panel Tempered Glass
- Materials - Exterior Steel
- Pre-installed Fans - Top N/A
- Dust Filters Front
- Warranty 2 years
- 2.5" / 3.5" Drive Bays (Combo) 2
- Radiator Support - Front 360mm
- Color(s) Black
- Series MasterBox Series
- Size Mid Tower
- Color(s) White
- Radiator Support - Top 360mm
- Dust Filters Bottom
- Motherboard Support SSI CEB
- Power Supply Support ATX
- Clearance - PSU 180mm/7.08"
- Materials - Exterior Plastic
- Fan Support - Rear 1x 120mm
- Radiator Support - Front 280mm
- Radiator Support - Front 240mm
- Radiator Support - Top 240mm
- Motherboard Support E-ATX*
- Fan Support - Front 2x 140mm

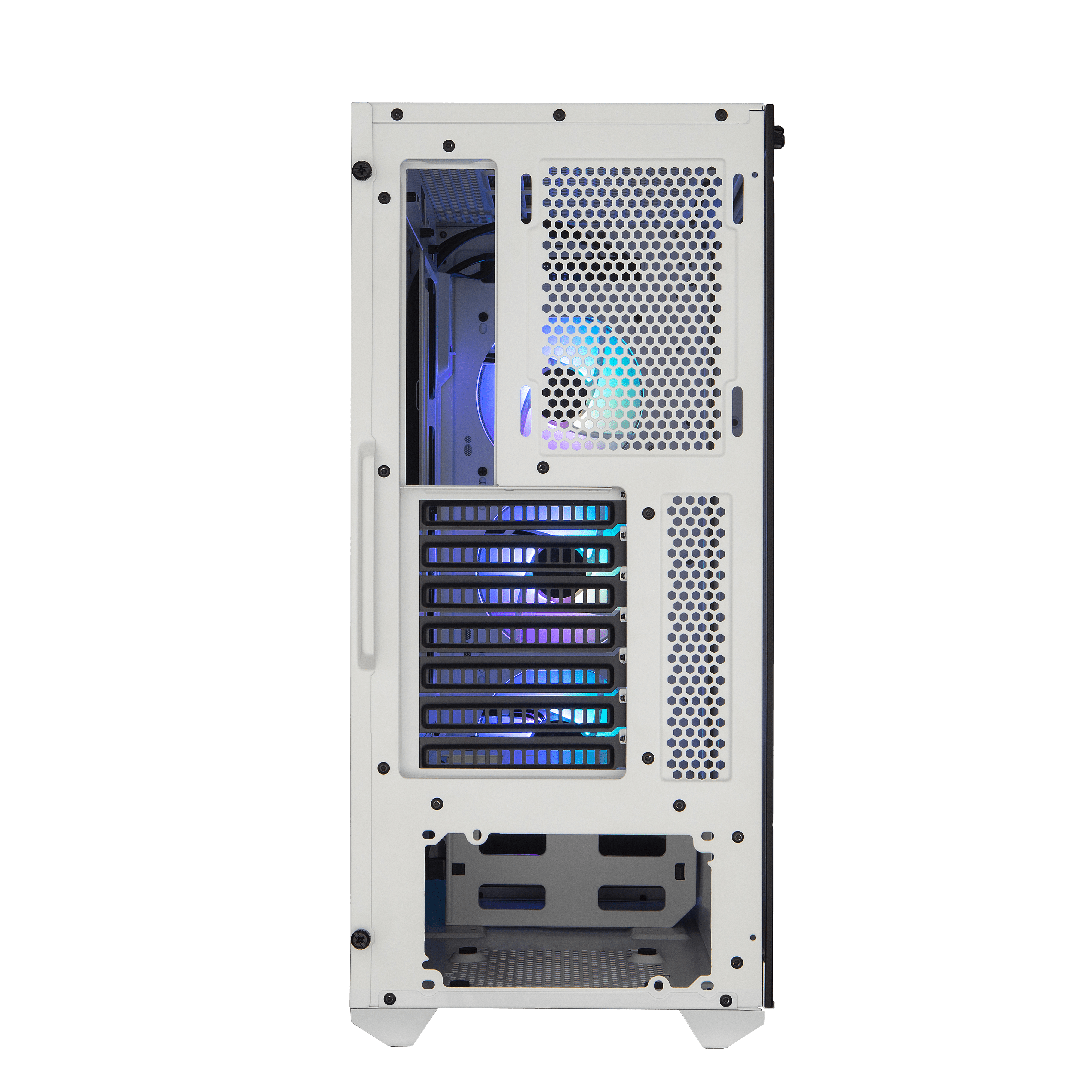

- Expansion Slots 7
- Radiator Support - Front 140mm
- Motherboard Support ATX
- Motherboard Support Micro ATX
- Radiator Support - Top 120mm
- Radiator Support - Front 120mm
- Cable Routing 19mm/0.74"
- Fan Support - Top 2x 140mm
- Fan Support - Front 3x 120mm
- Clearance - CPU Cooler 165mm/6.49"
- Pre-installed Fans - Rear N/A
- Fan Support - Top 3x 120mm
- Motherboard Support Mini ITX
- Radiator Support - Top (44mm max motherboard component height)
- Motherboard Support (*up to 12” x 10.7” motherboards)
- Clearance - PSU 295mm/11.61" (w/ HDD cage removed)
- Volume 40.14L (excl. Protrusions)
- Clearance - GFX 410mm/16.1"

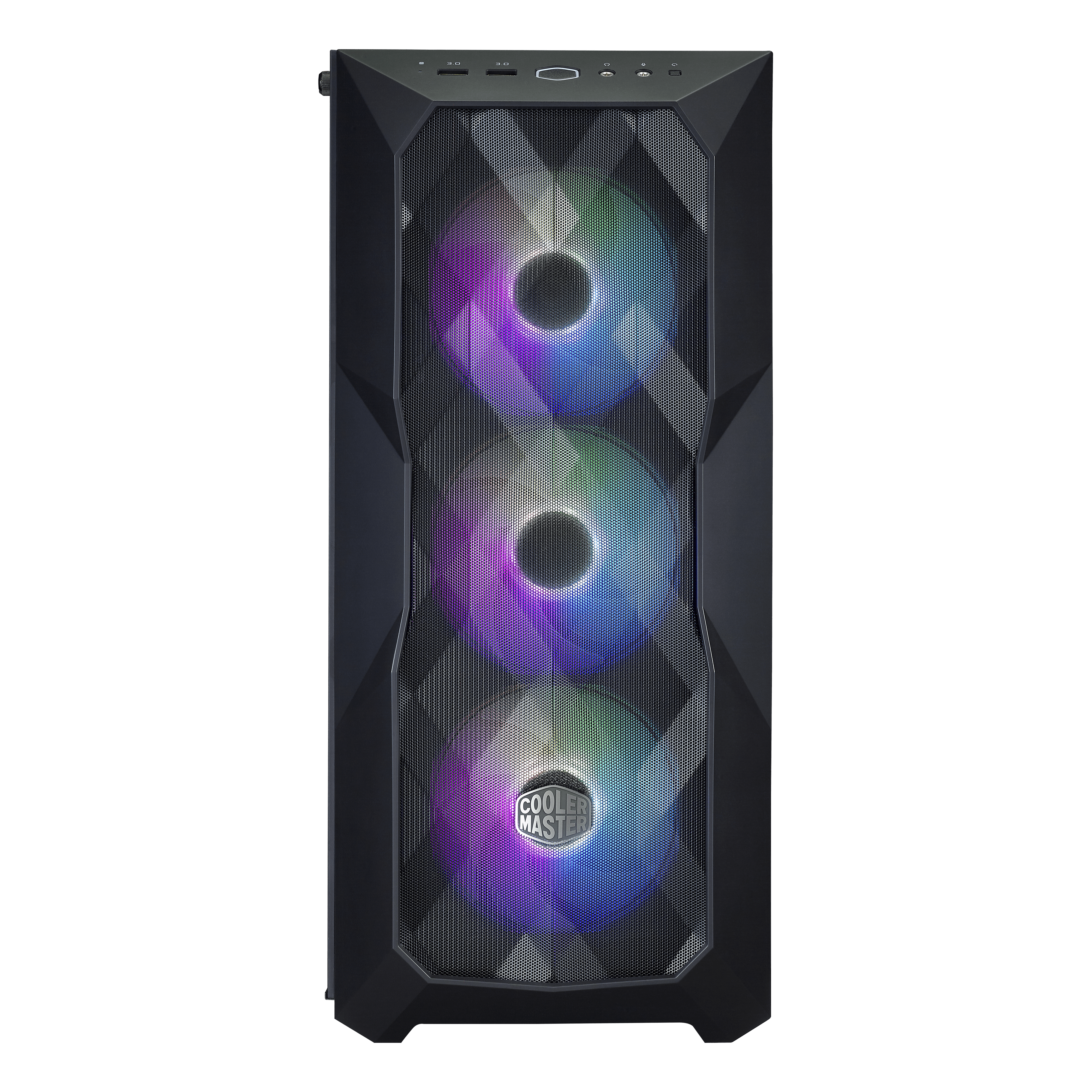

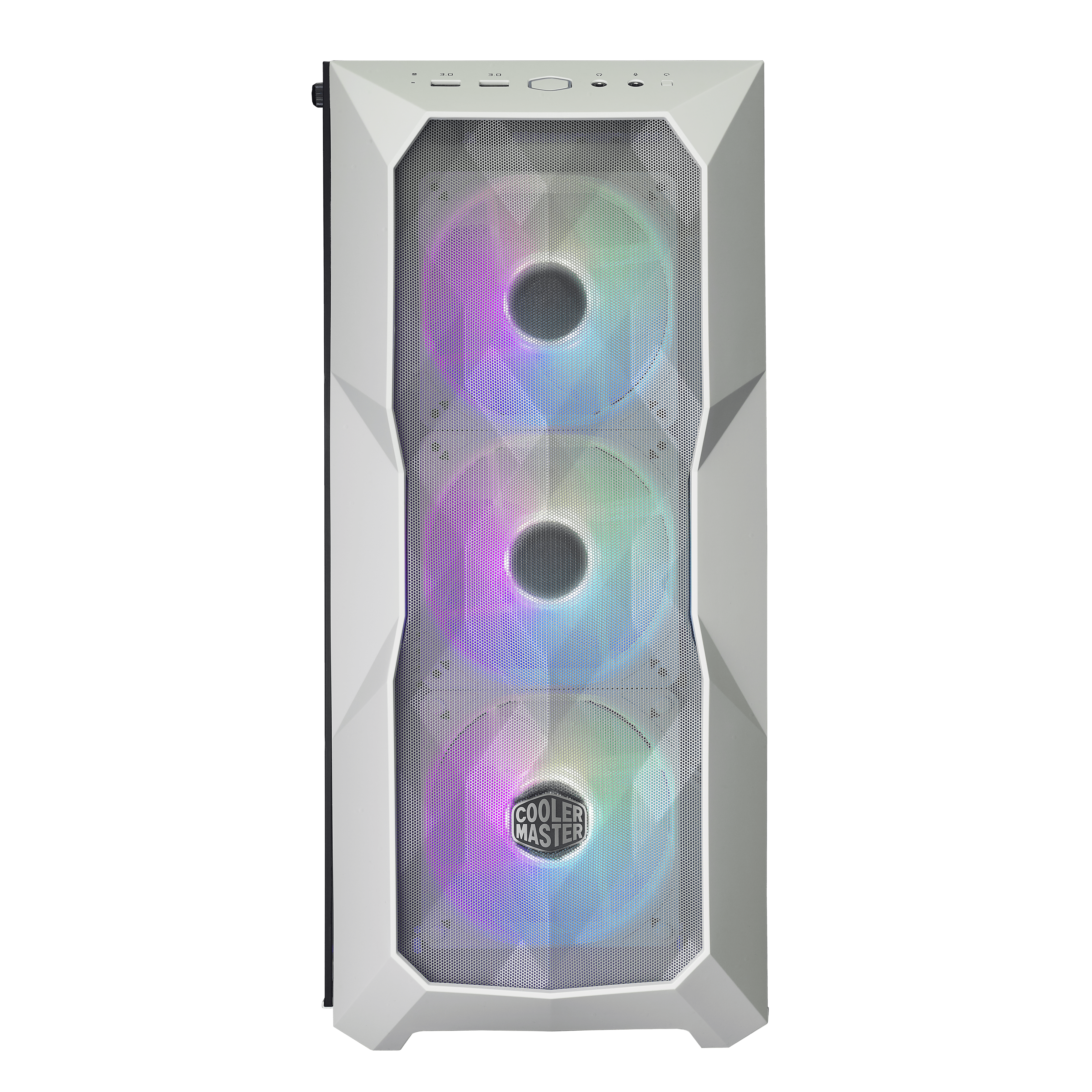

- Pre-installed Fans - Front 3x 120mm CF120 ARGB
- 2.5" Drive Bays 4 (2+2 combo)

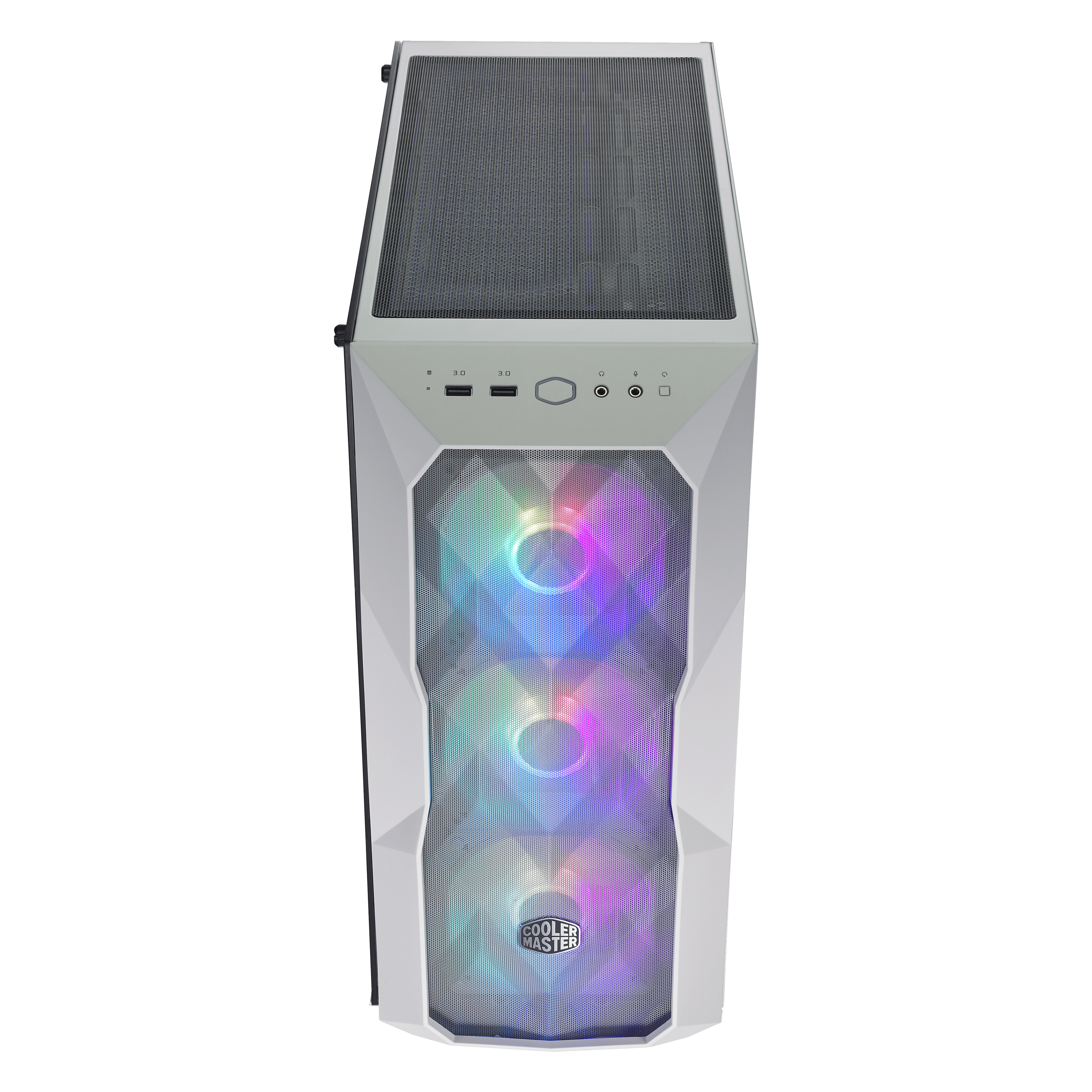

- I/O Panel 2 x USB 3.2 Gen 1 (USB 3.0), 1x 3.5mm Audio Jack, 1x 3.5mm Mic Jack, 1x ARGB Hub, 1x ARGB 1-to-3 Splitter
- Dimensions (L x W x H) 493 x 217 x 469mm (incl. Protrusions)
- Dimensions (L x W x H) 429.5 x 205x 447mm (excl. Protrusions)
- Model Number MCB-D500D-KGNN-S01 (Mesh w/ Hub)
- Model Number MCB-D500D-KGNN-S00 (Mesh w/o controller)
- Model Number MCB-D500D-WGNN-S01 (Mesh White w/ Hub)
- Model Number MCB-D500D-WGNN-S00 (Mesh White w/o controller)
