Ports & Slots

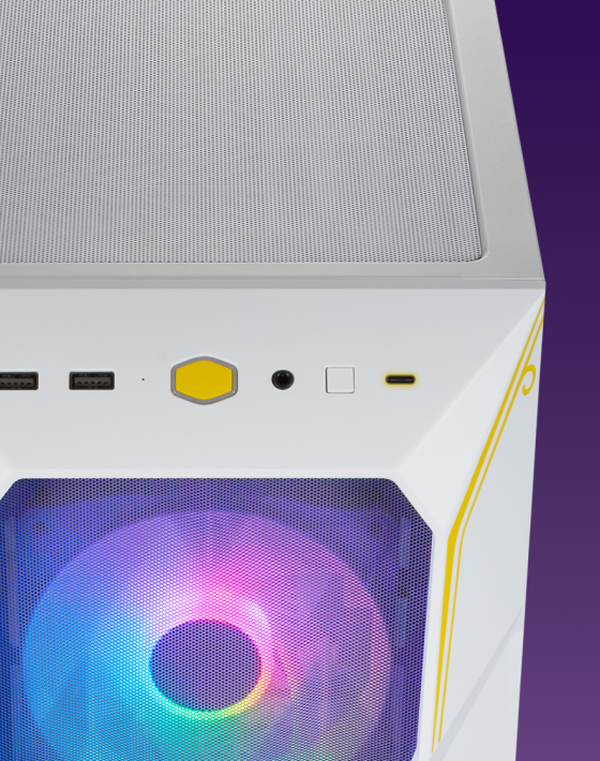

USB 3.2 Gen 2 Type C Support
USB 3.2 Gen 2 Type C port built into the I/0 panel allows multi-purpose, streamlined data transmission.

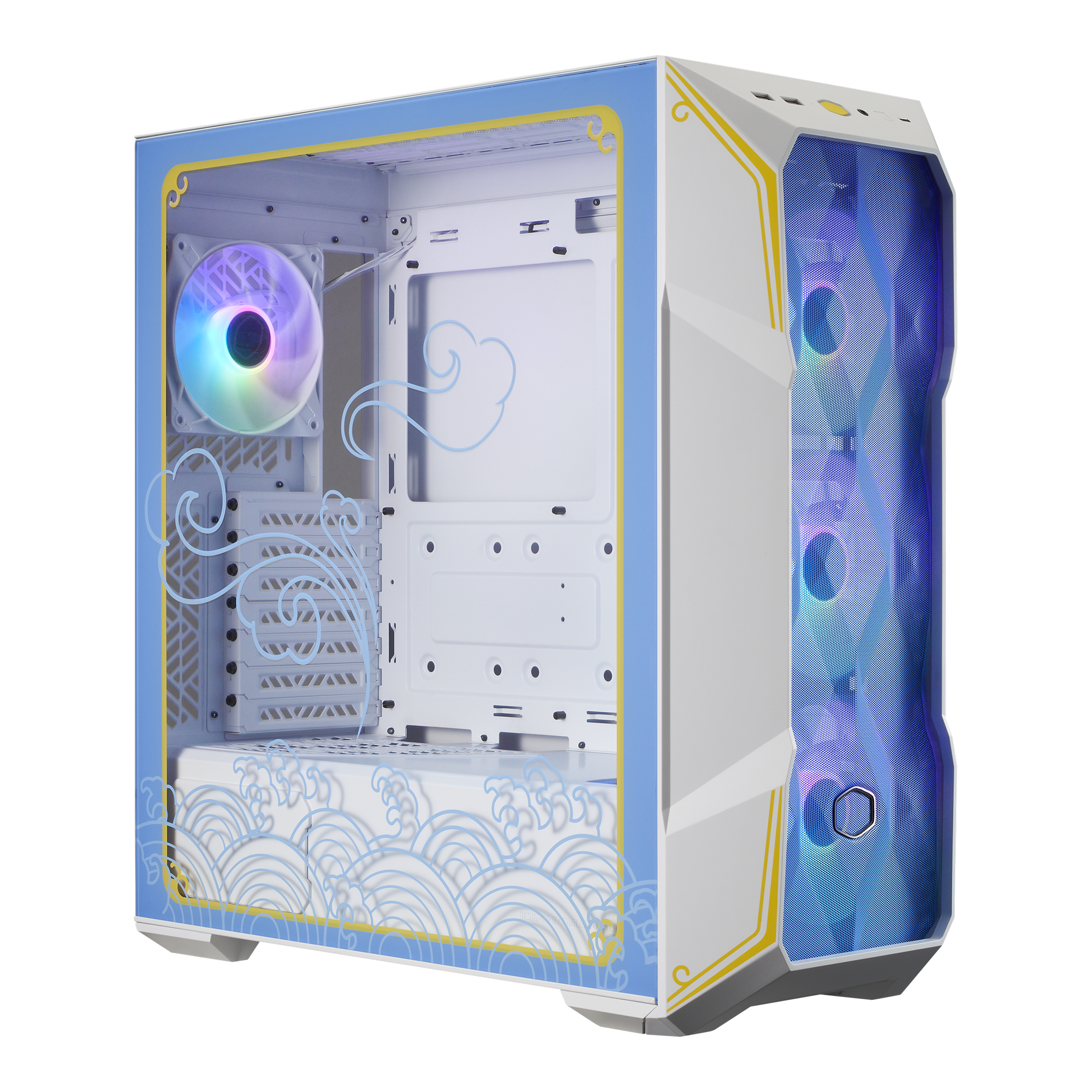

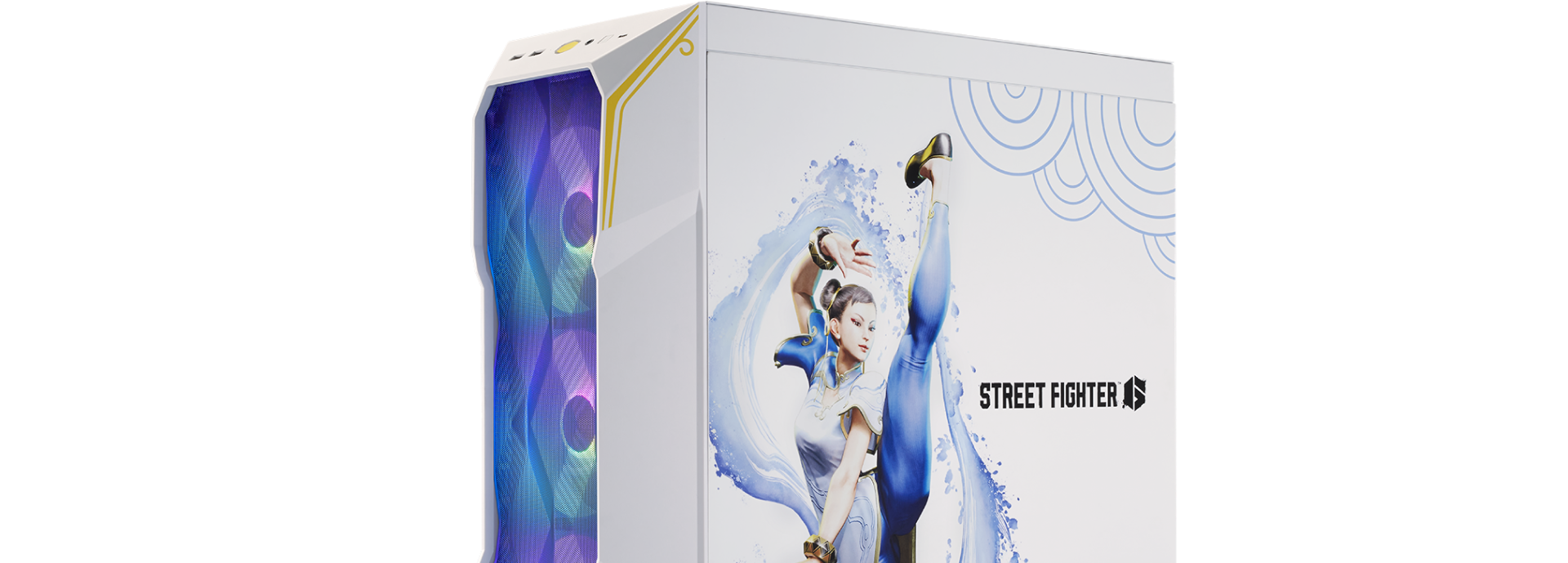

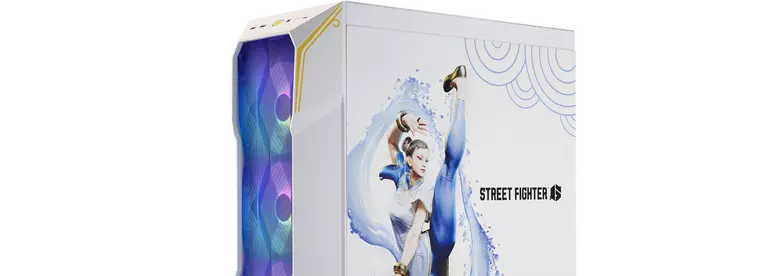

MasterBox TD500 Mesh V2 Chun-Li
Street Fighter 6 style, in collaboration with Capcom
Polygonal FineMesh Front Panel
4x CF120 ARGB Fans Included
USB 3.2 Gen 2 Type C Support
Tool-Free TG Side Panel
PSU Shroud With Removable Cover
ARGB Controller Included
©CAPCOM CO., LTD. ALL RIGHTS RESERVED.
Design

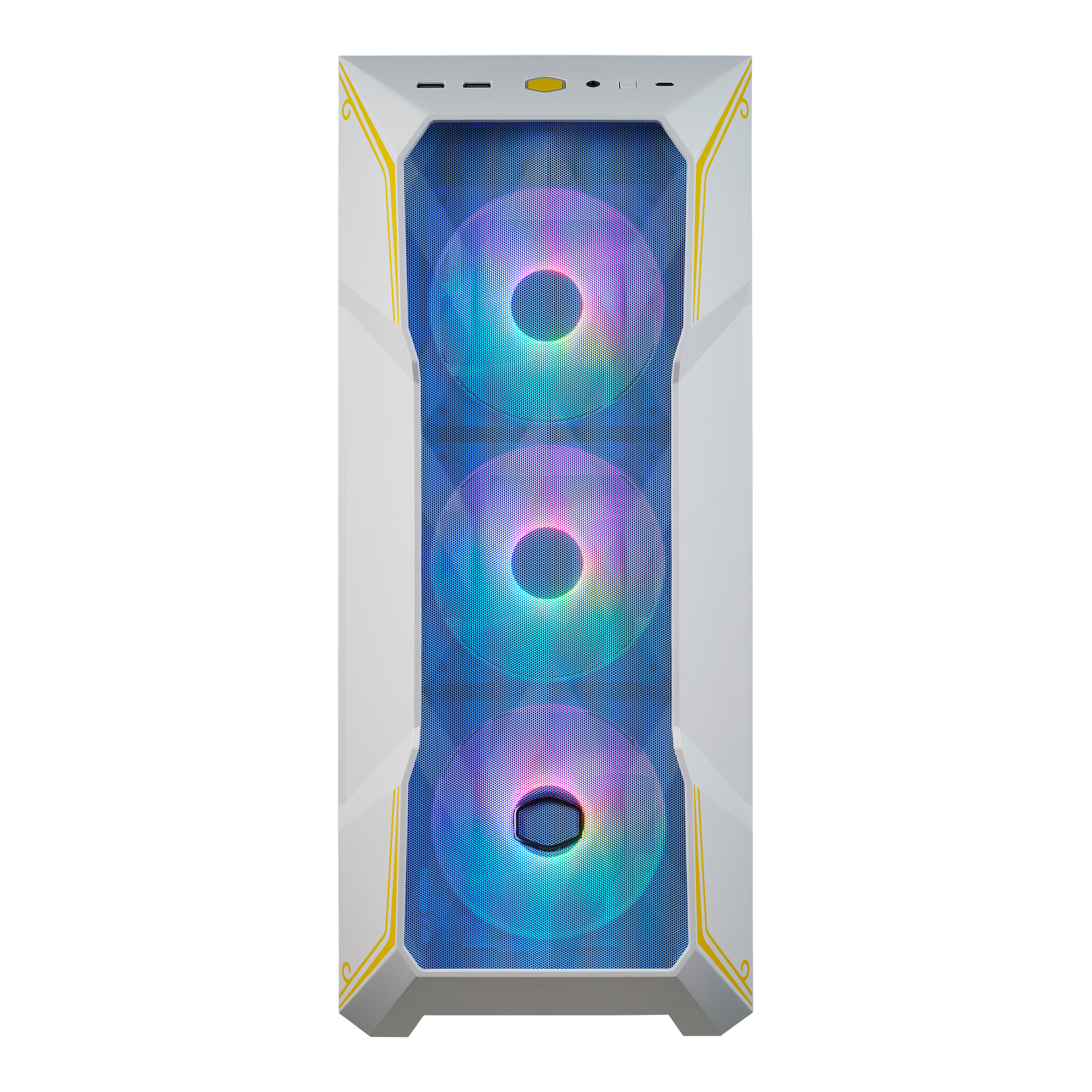

FINEMESH PERFORMANCE FRONT PANEL
Polygonal FineMesh Features a 3D contour and is also capable of simultaneously providing high airflow and dust filtration.
Fans
4x CF120 ARGB FANS INCLUDED
Pre-installed CF120 ARGB fans provide ample airflow, ensuring low temperatures, high performance, and eye-catching aesthetics during even the most intense gaming sessions.

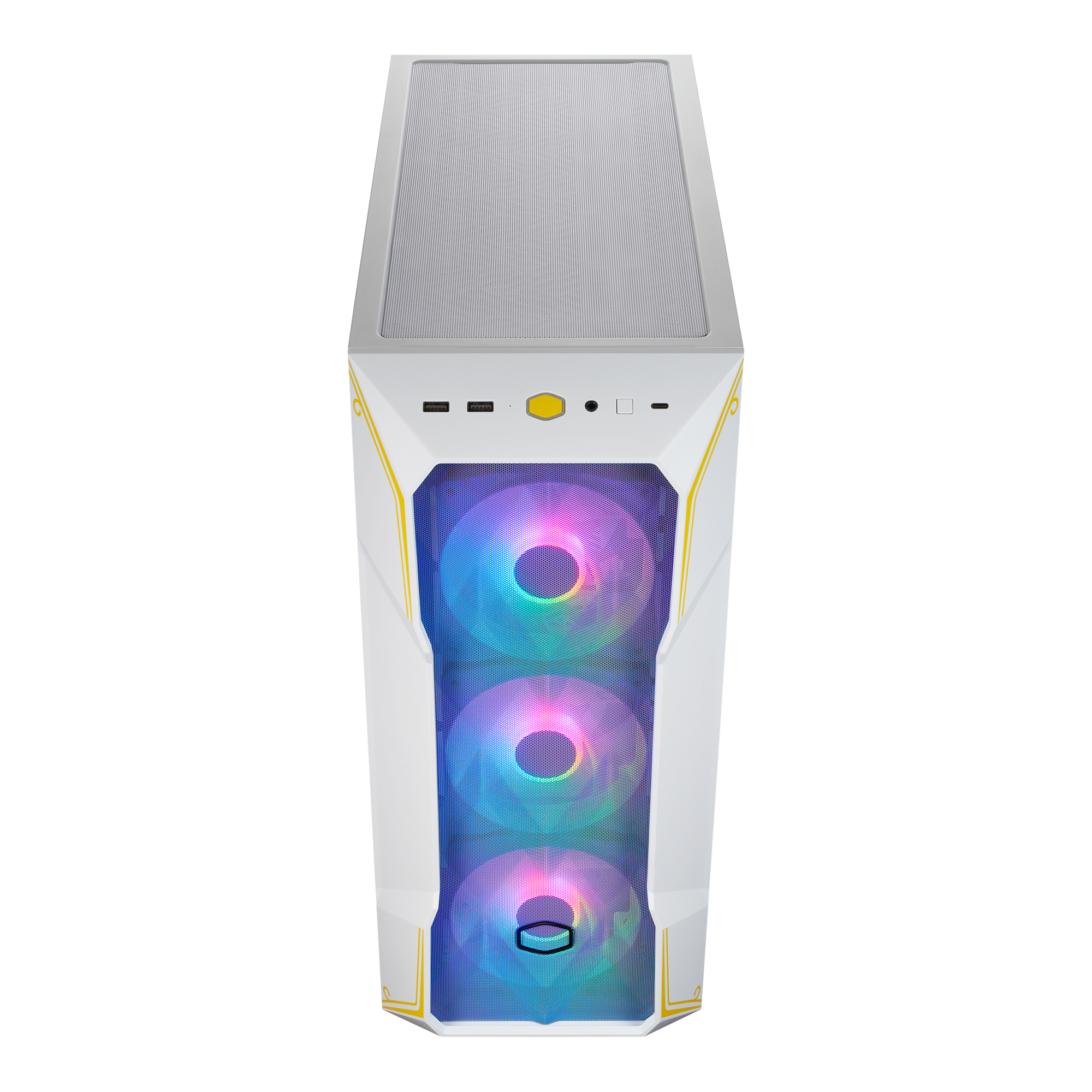

REMOVABLE TOP PANEL
The top panel is entirely removable for improved access during
assembly and ease of mounting of cooling solutions.
Motherboard
Hardware Compatibility

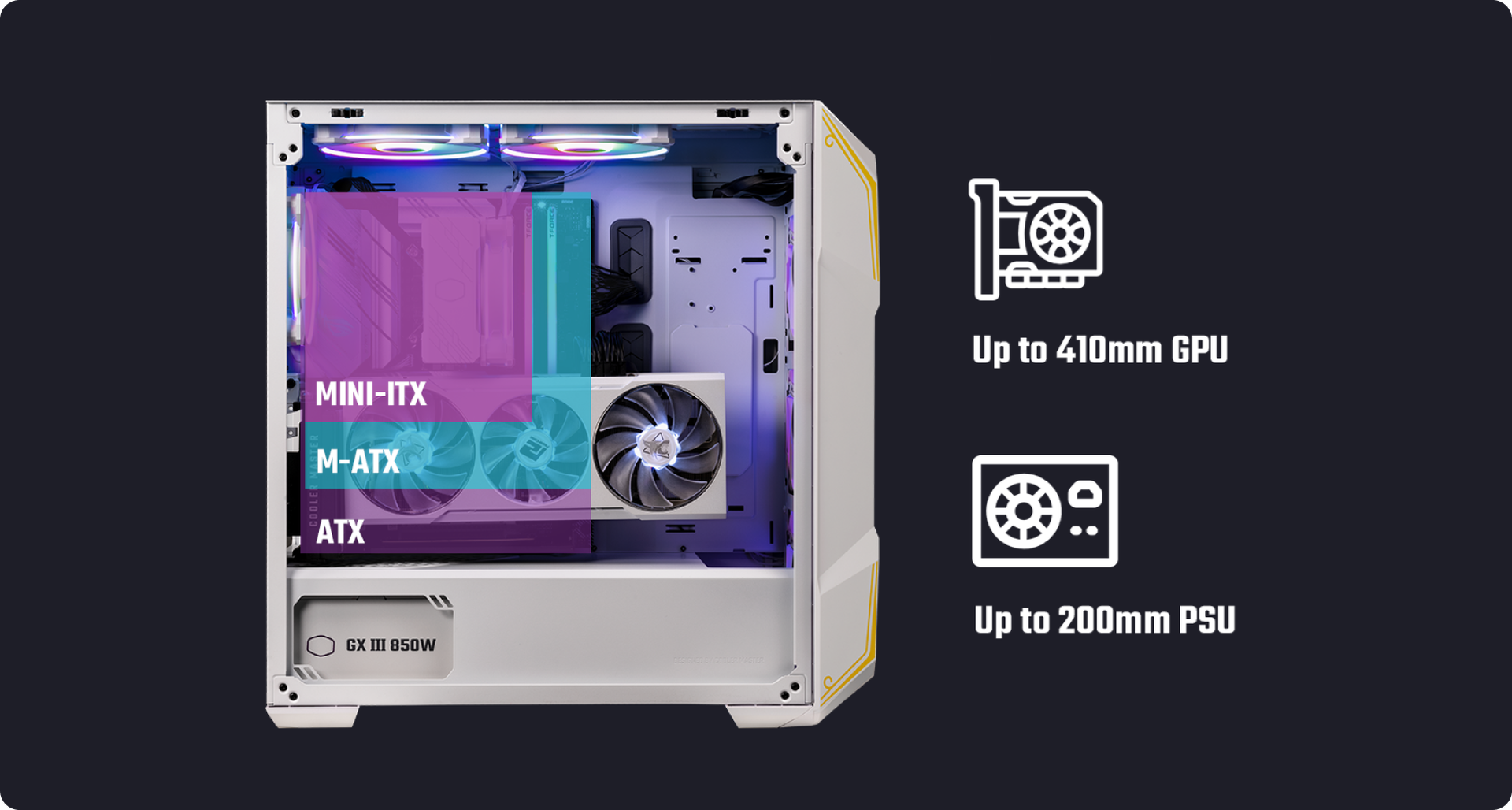

MasterBox TD500 Mesh V2 is natively compatible with ITX, M-ATX and ATX motherboards.
E-ATX motherboards such as SSI-CEB models, are compatible with dimensions up to 12" x 10.7".
Customization

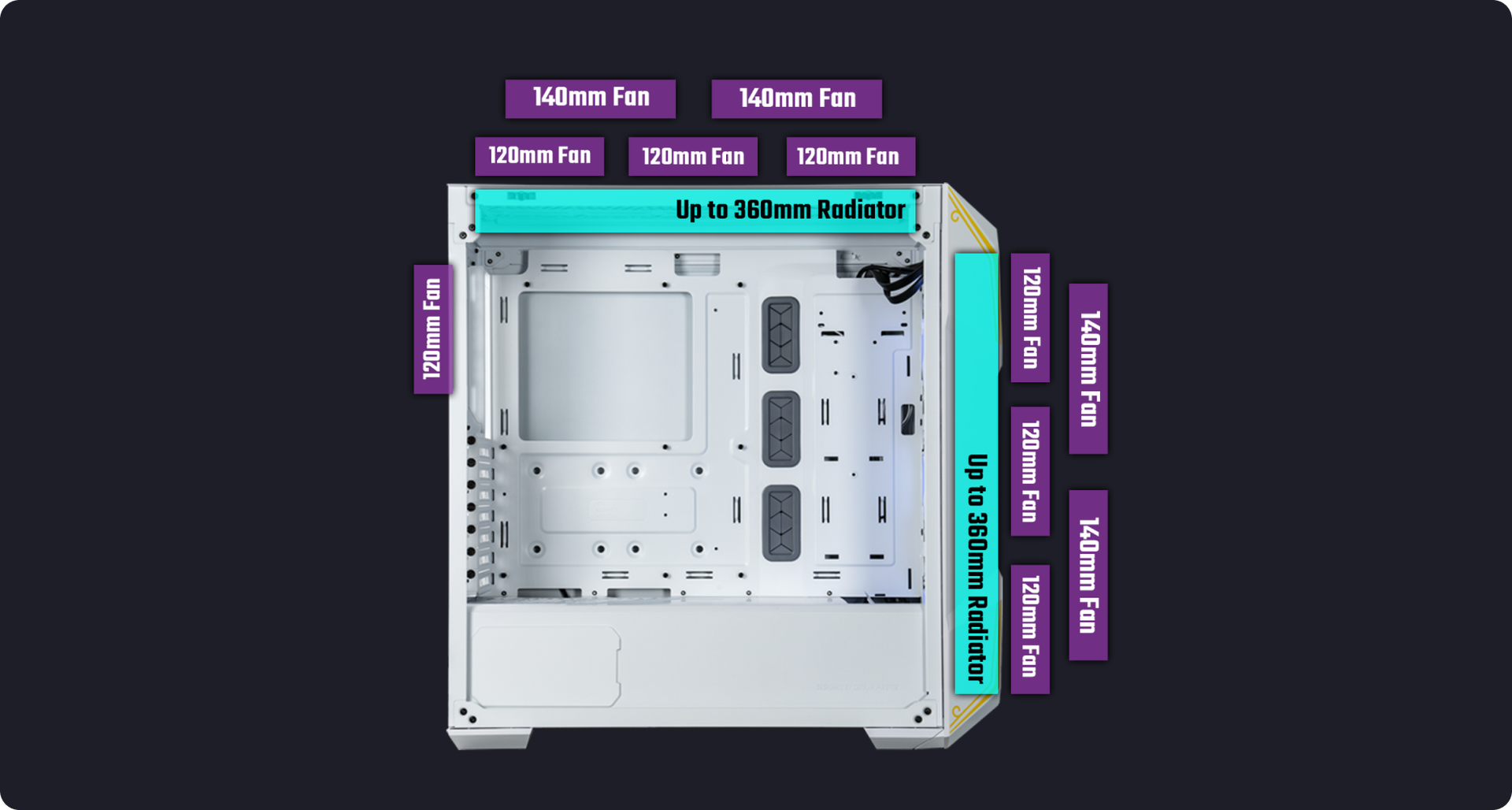

Versatile Cooling Support
Support for 7x 120mm fans and 360mm front and top radiator support ensure that performance is not compromised.
TOOL-FREE TG SIDE PANEL

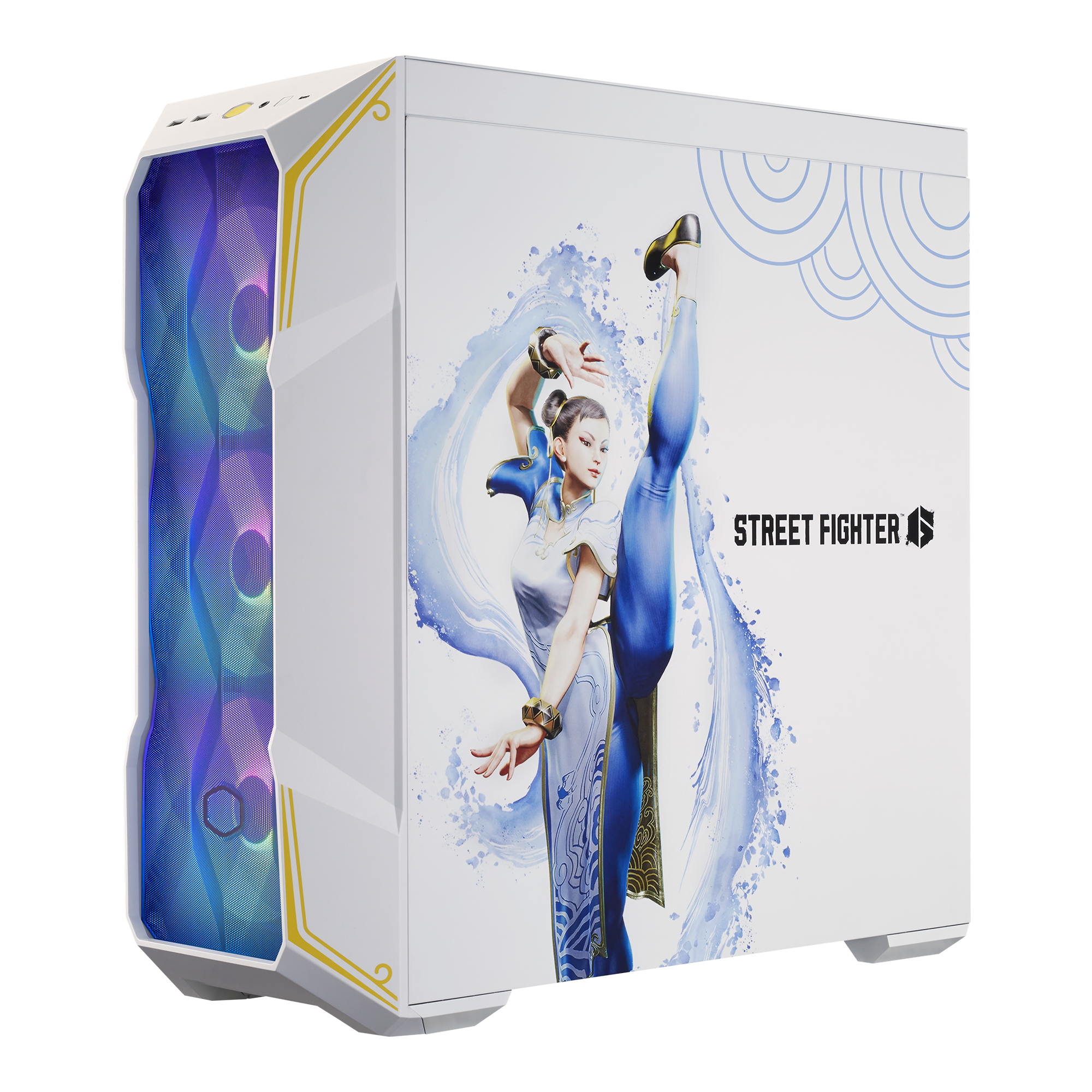

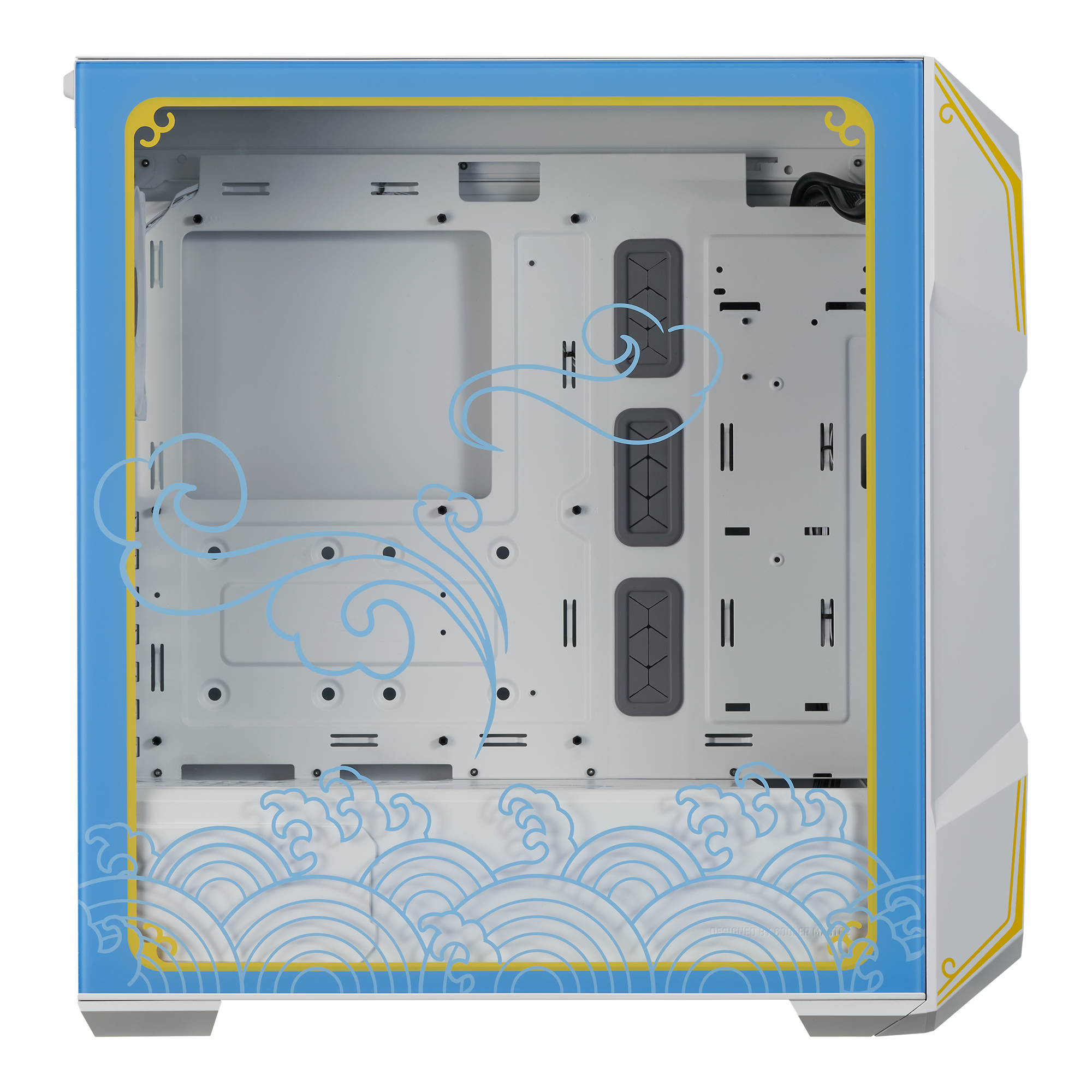

Featuring a tempered glass side panel with Street Fighter character elements, completely toolless for quick access to the internals.
PSU SHROUD WITH REMOVABLE COVER
MasterBox TD500 Mesh V2's removable PSU cover allows users to freely decide whether to showcase or keep their PSUs hidden.
Specifications
- Model Number TD500V2-WGNN-SCL
- Exterior Color White
- Materials - Exterior Steel, Mesh, Plastic
- Materials - Left Side Panel Tempered Glass
- Dimensions (L x W x H) 499 x 210 x 500mm (Incl. Protrusions), 430 x 210 x 477mm (Excl. Protrusions)
- Volume 50L
- Motherboard Support Mini-ITX, Micro-ATX, ATX, SSI-CEB, E-ATX* (*up to 12" x 10.7" motherboards, may impact cable management feature)

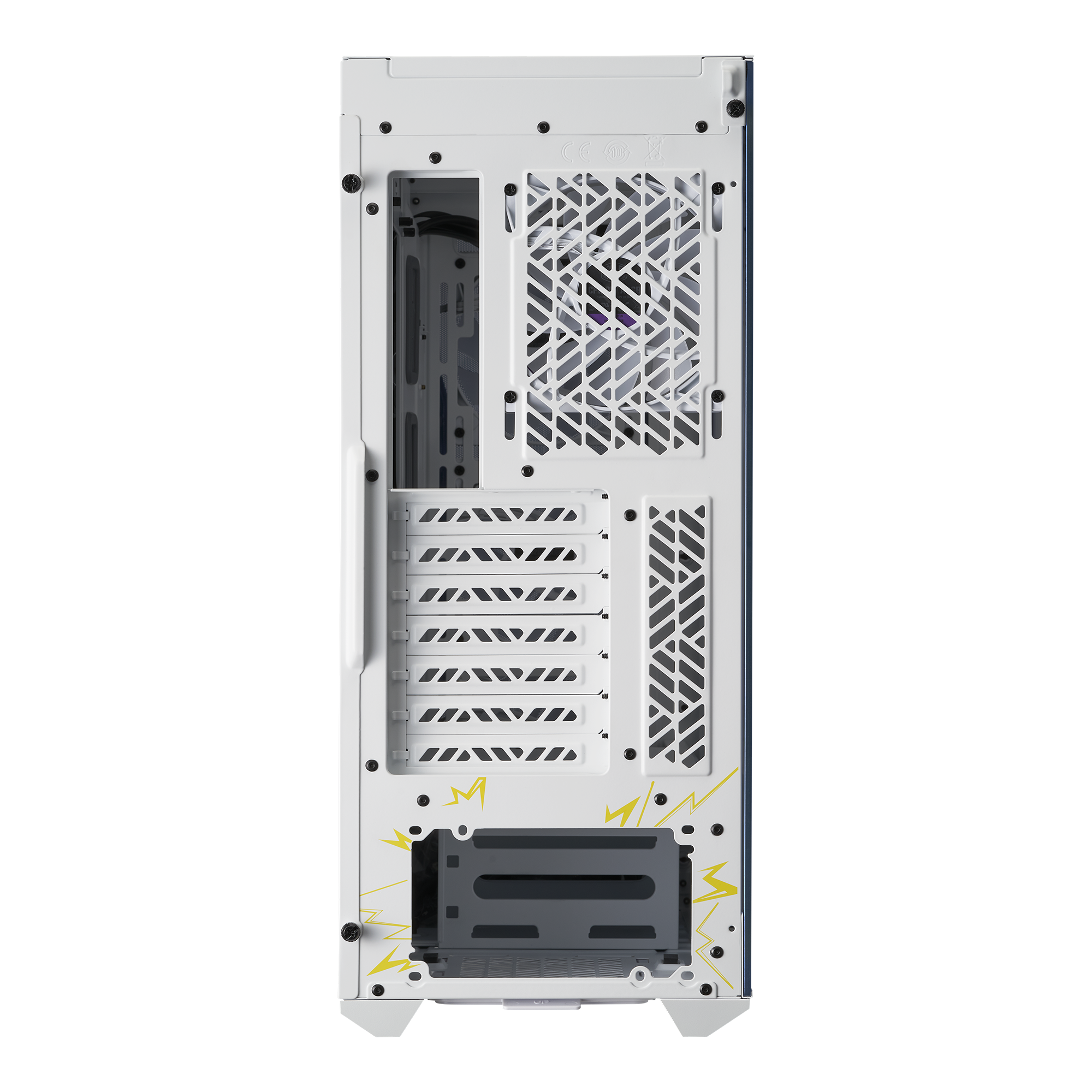

- Expansion Slots 7
- 3.5" Drive Bays 2
- 2.5" Drive Bays 3
- I/O Panel - USB Ports 2x USB 3.2 Gen 1, 1x USB 3.2 Gen 2 type C
- I/O Panel - Audio In / Out 1x Audio Jack
- I/O Panel - Other 1x ARGB Fan Hub
- Pre-installed Fans - Front 3x 120mm CF120 ARGB
- Pre-installed Fans - Rear 1x 120mm CF120 ARGB
- Fan Support - Top 3x 120mm, 2x 140mm
- Fan Support - Front 3x 120mm, 2x 140mm
- Fan Support - Rear 1x 120mm
- Radiator Support - Top 120 / 140 / 240 / 280 / 360mm (recommended maximum thickness - 55mm)
- Radiator Support - Front 120 / 140 / 240 / 280 / 360mm
- Radiator Support - Rear 120mm
- Clearances - CPU Cooler 165mm
- Clearance - PSU 200mm (Recommended up to 170mm)
- Clearance - GFX 410mm
- Cable Routing - Behind Motherboard Tray 19mm / 0.74"
- Dust Filters Front, Top, Bottom
- Power Supply Support Bottom Mount, ATX
- Warranty 2 years
- Size Mid Tower
- Series MasterBox Series
- Back Connector Motherboard Support No
