Crystal Clear Finesse

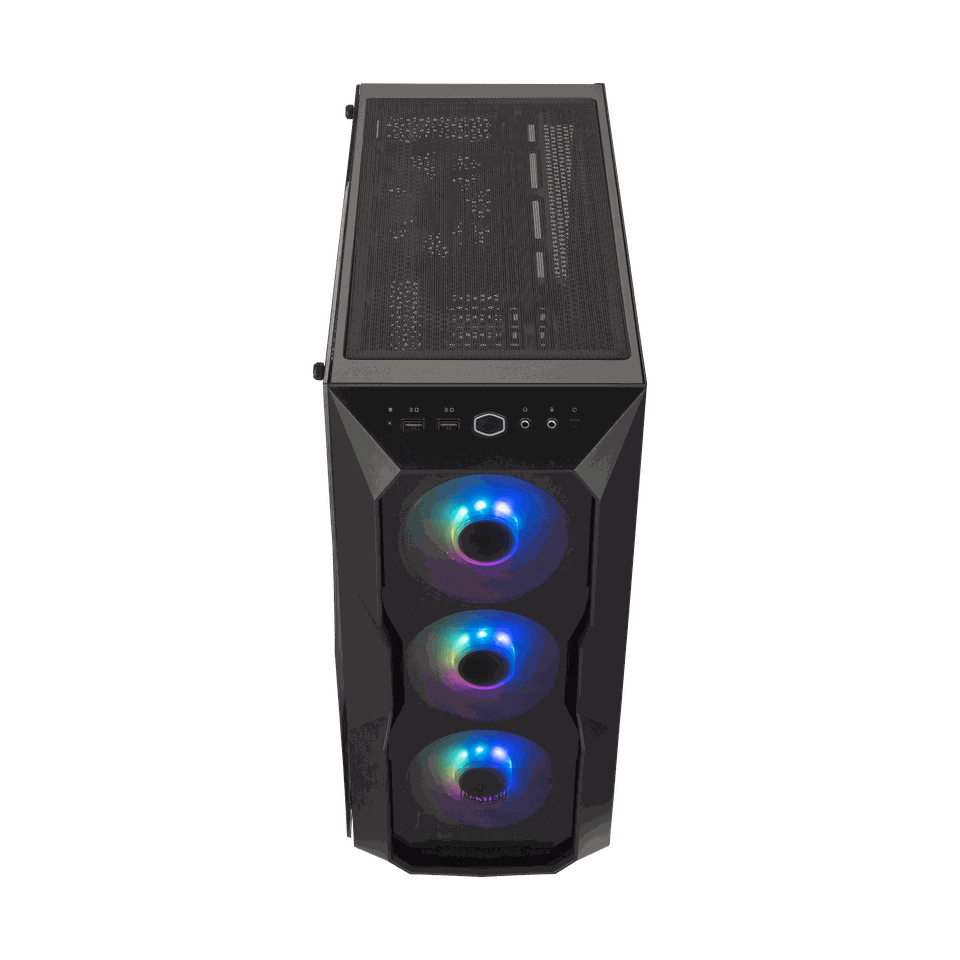

MasterBox TD500 Crystal Mid Tower Case
The MasterBox TD500 Crystal makes you stand out from the rest with a three-dimensional diamond-cut design
- Radiator Support - Rear 120mm
- Dust Filters Top
- Power Supply Support Bottom Mount
- 5.25" Drive Bays N/A
- Materials - Left Side Panel Tempered Glass
- Materials - Exterior Steel
- Warranty 2 years
- 2.5" / 3.5" Drive Bays (Combo) 2
- Dust Filters Front
- Color(s) Black
- Series MasterBox Series
- Size Mid Tower
- Radiator Support - Front 360mm
- Dust Filters Bottom
- Radiator Support - Top 360mm
- Power Supply Support ATX
- Clearance - PSU 180mm/7.08"
- Materials - Exterior Plastic
- Fan Support - Rear 1x 120mm
- Radiator Support - Front 280mm
- Radiator Support - Front 240mm
- Radiator Support - Top 240mm
- Motherboard Support E-ATX*
- Fan Support - Front 2x 140mm
- Expansion Slots 7
- Radiator Support - Front 140mm
- Motherboard Support ATX
- Motherboard Support Micro ATX
- Radiator Support - Top 120mm
- Radiator Support - Front 120mm
- Cable Routing 19mm/0.74"
- Fan Support - Top 2x 140mm
- Fan Support - Front 3x 120mm
- Clearance - CPU Cooler 165mm/6.49"
- Pre-installed Fans - Rear N/A
- Fan Support - Top 3x 120mm
- Motherboard Support Mini ITX
- Radiator Support - Top (44mm max motherboard component height)
- Motherboard Support (*up to 12" x 10.7" motherboards, may impact cable management feature)
- Clearance - GFX 410mm/16.1"
- Pre-installed Fans - Front 3x 120mm CF120 ARGB
- 2.5" Drive Bays 4 (2+2 combo)
- I/O Panel 2x USB 3.2 Gen 1 (USB 3.0), 1x 3.5mm Audio Jack, 1x 3.5mm Mic Jack, 1x ARGB Hub
- Dimensions (L x W x H) 493 x 217 x 469mm (incl. Protrusions), 429.5 x 205 x 447mm (excl. Protrusions)
- Model Number MCB-D500D-KGNN-SAU
