4 New Colorways
MasterBox NR200P Color

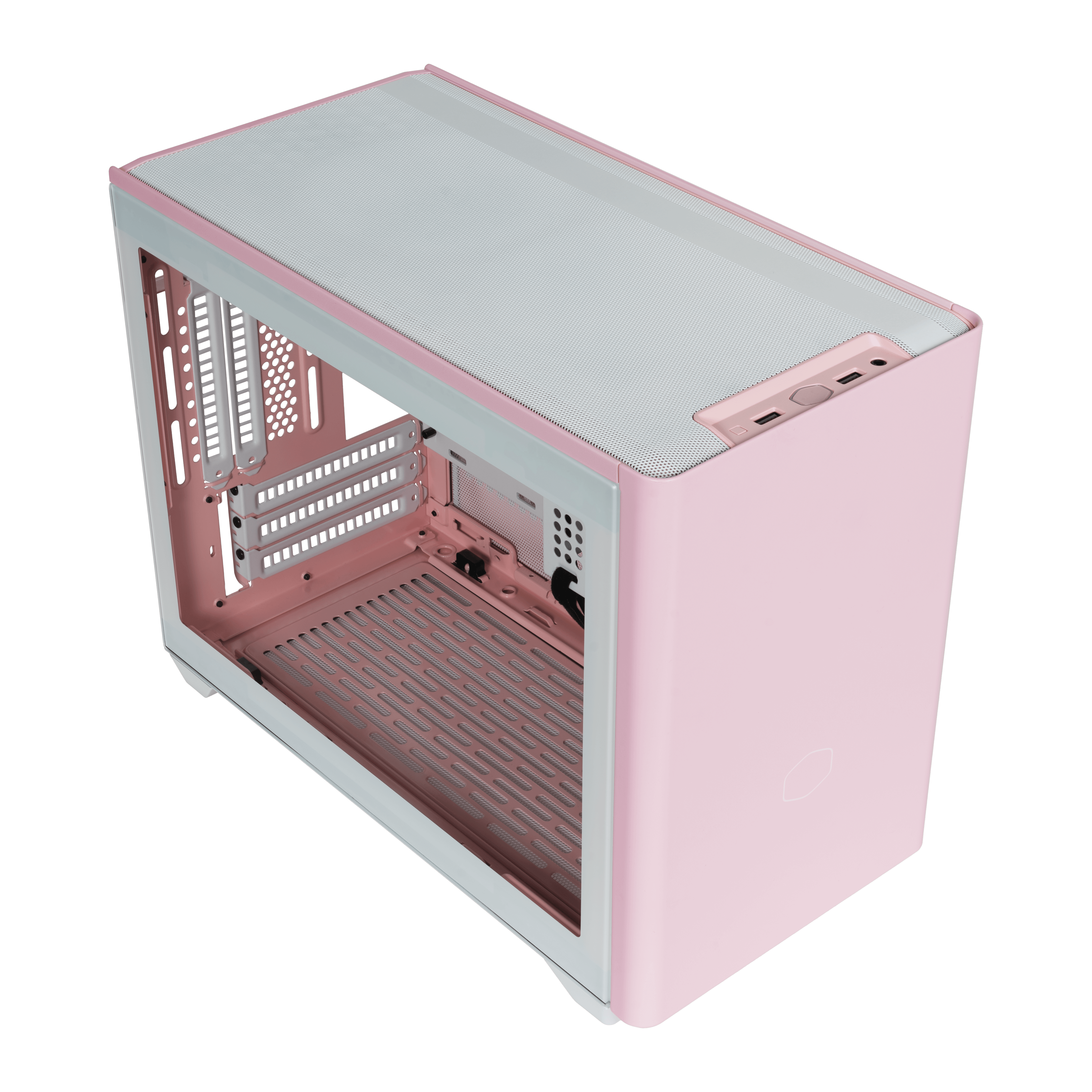

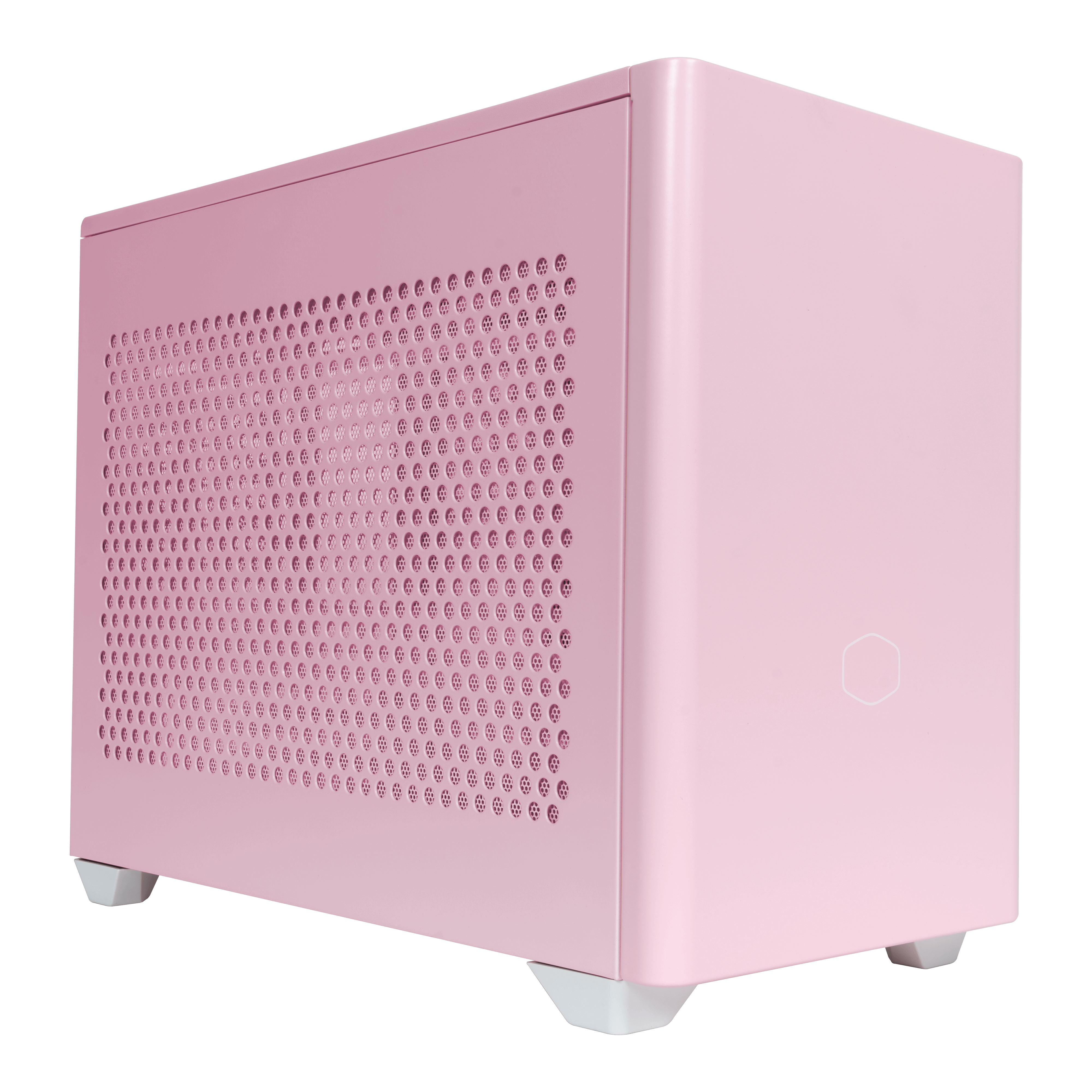

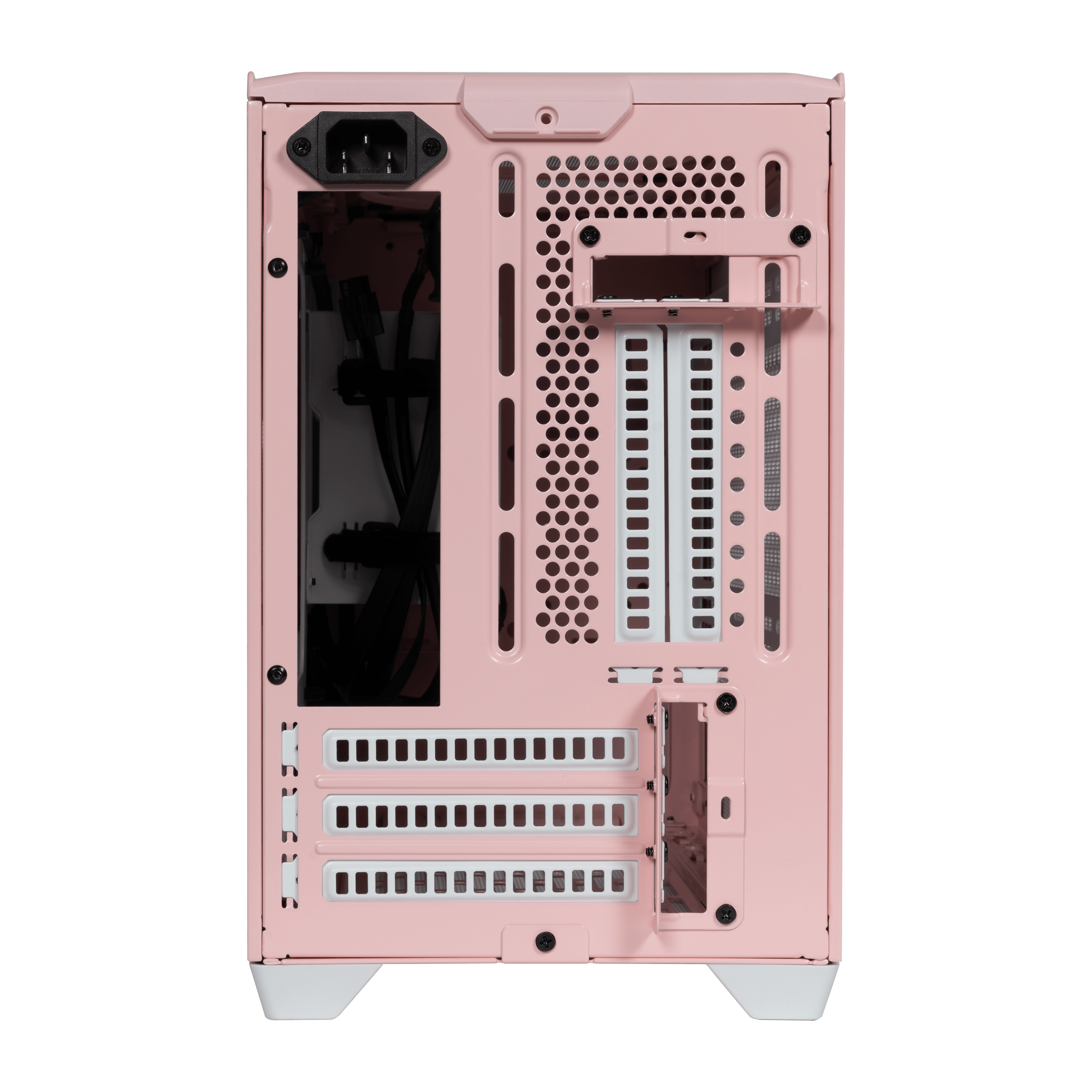

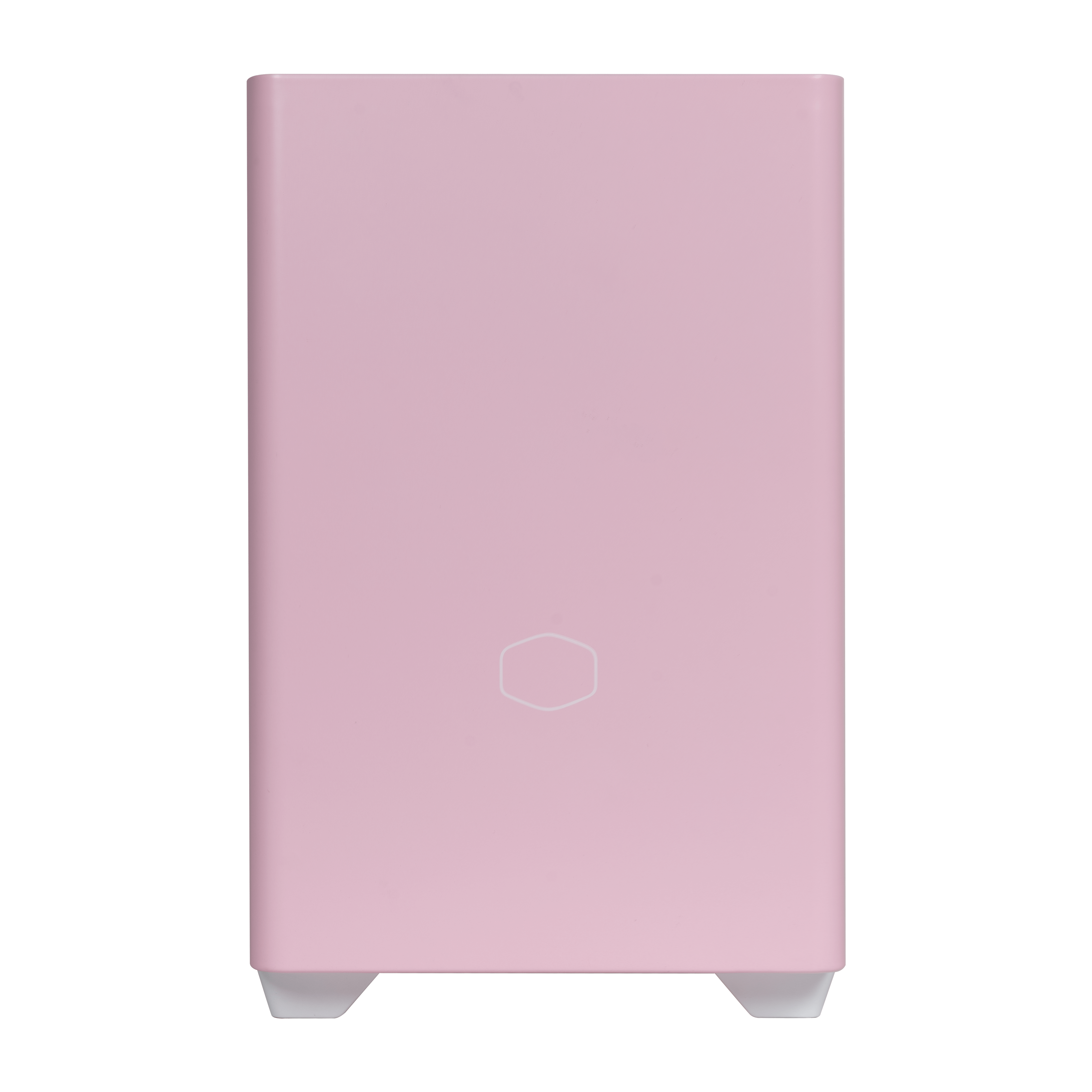

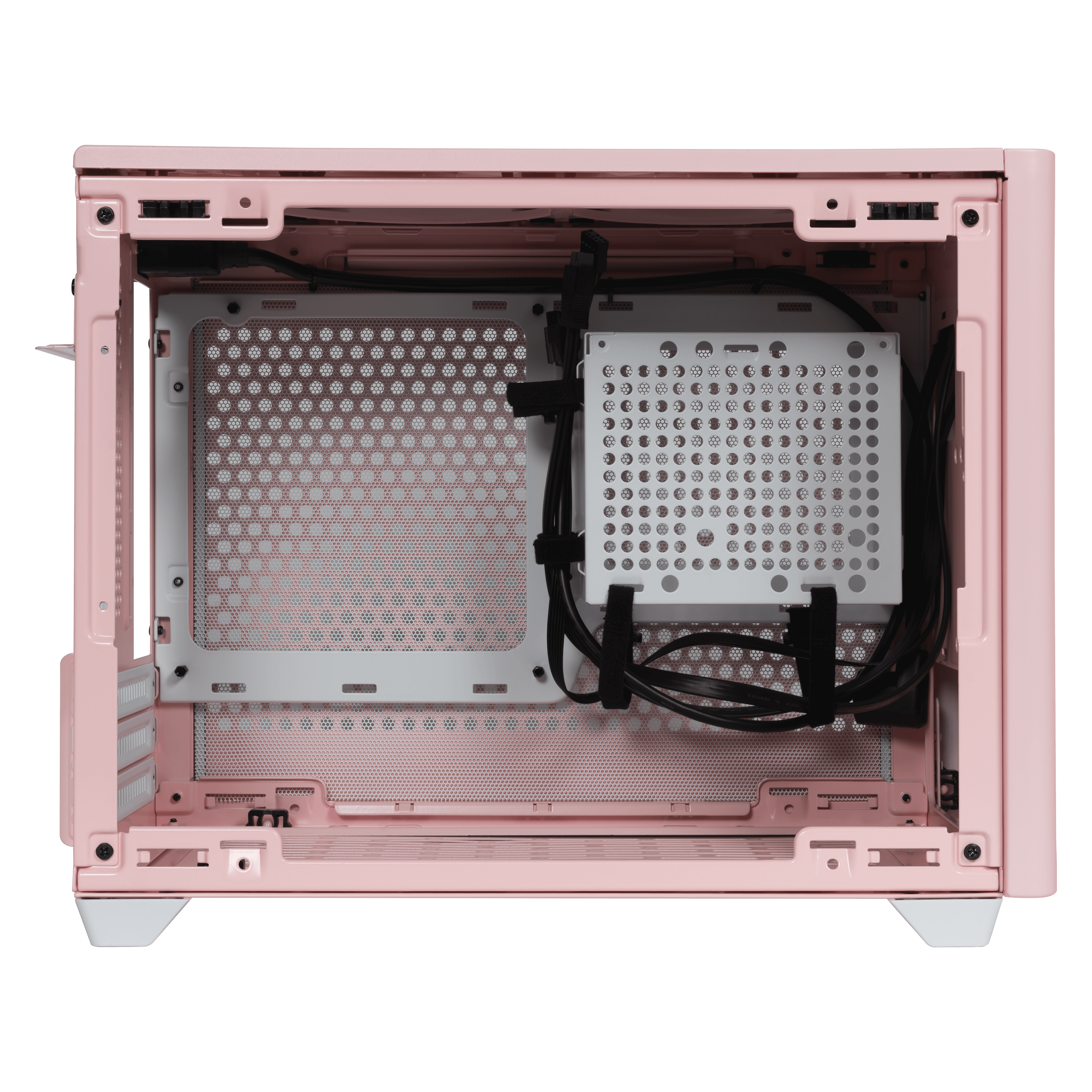

Flamingo Pink

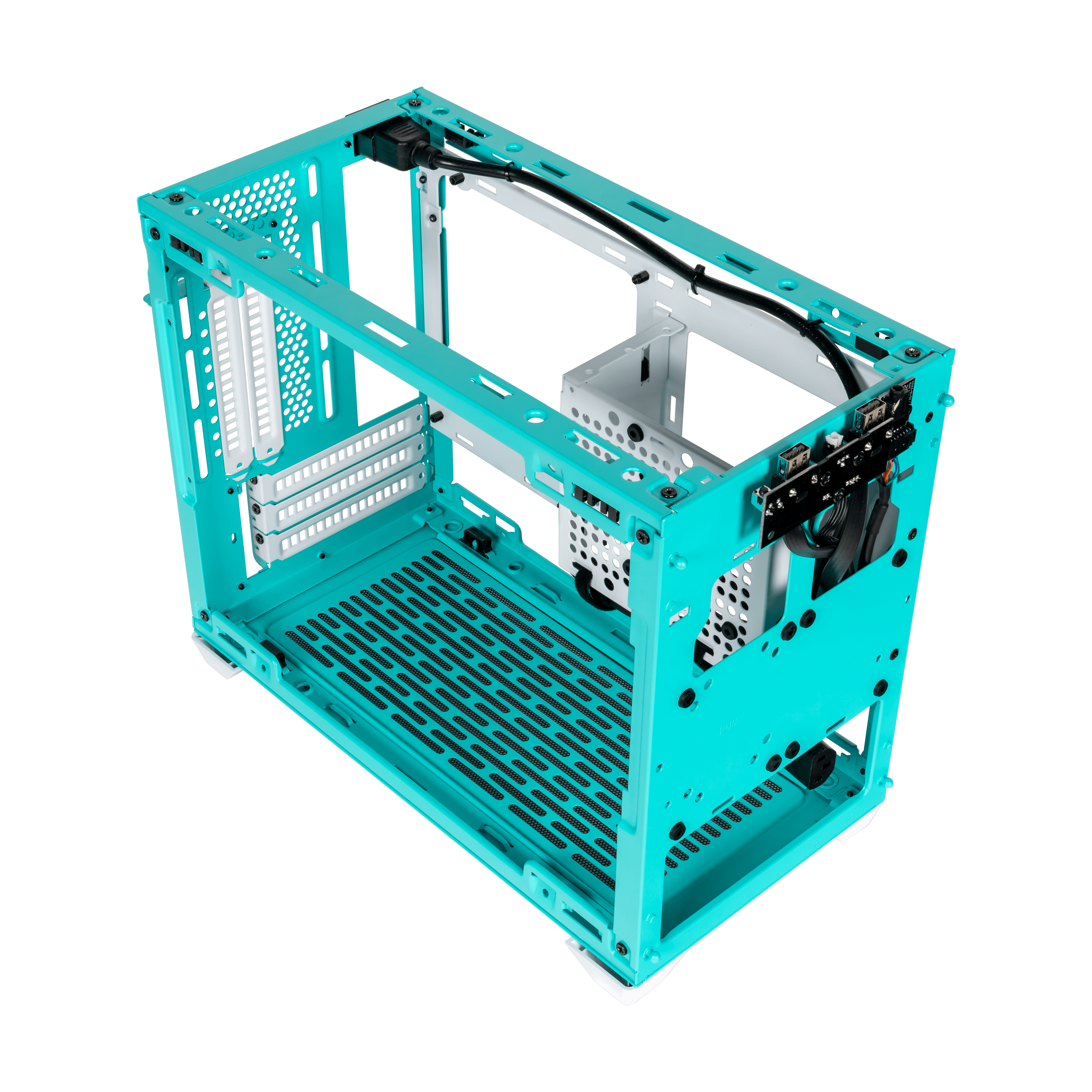

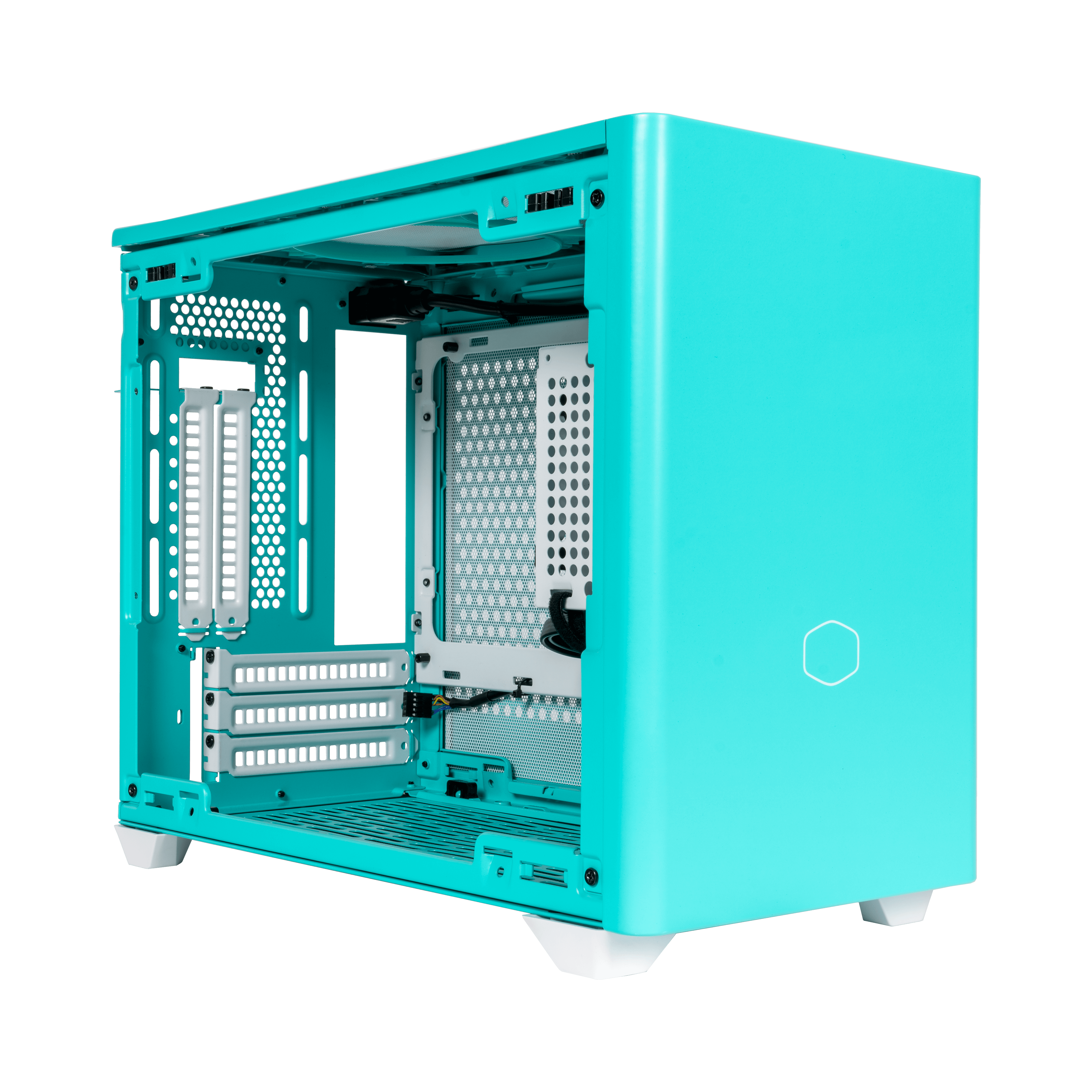

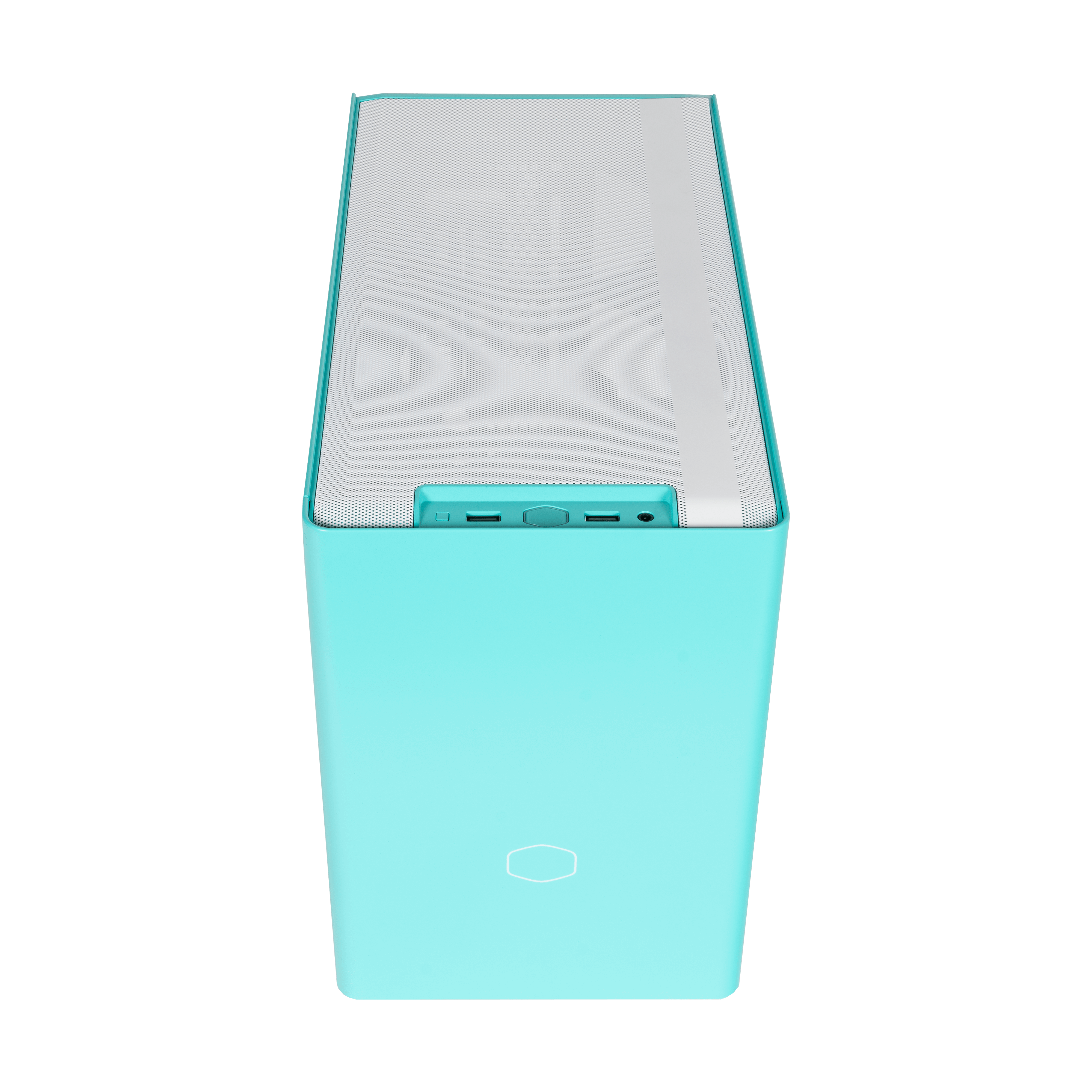

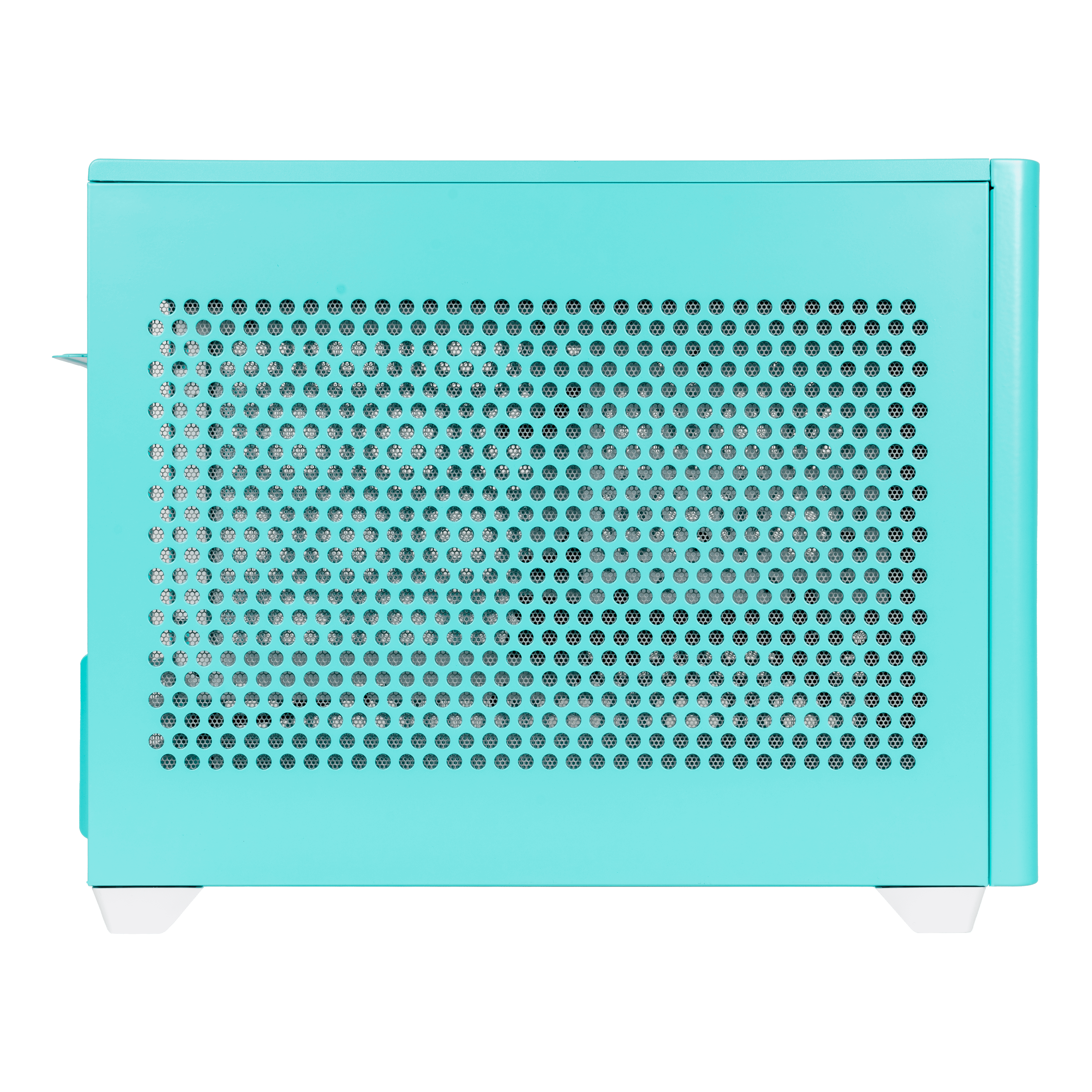

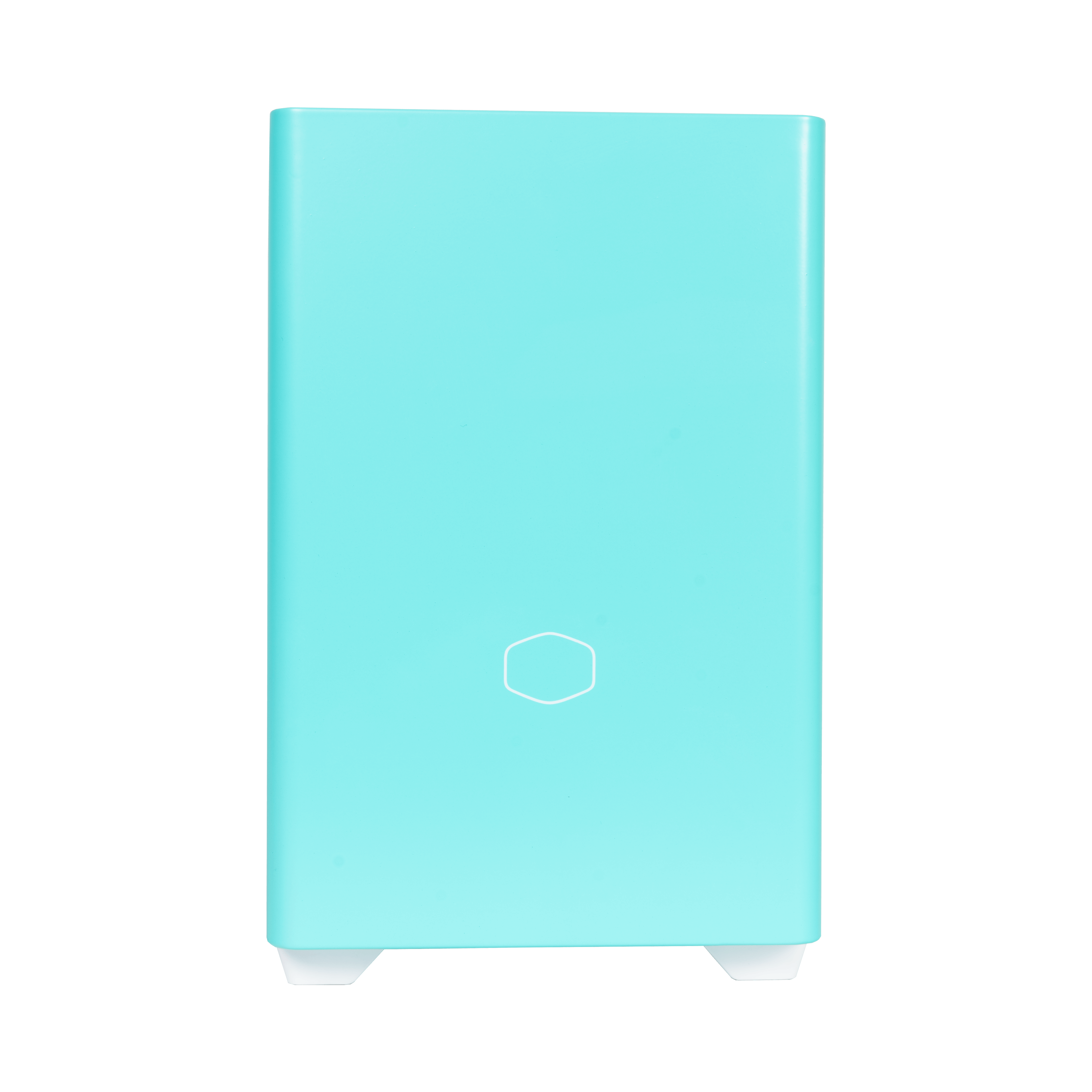

Caribbean Blue

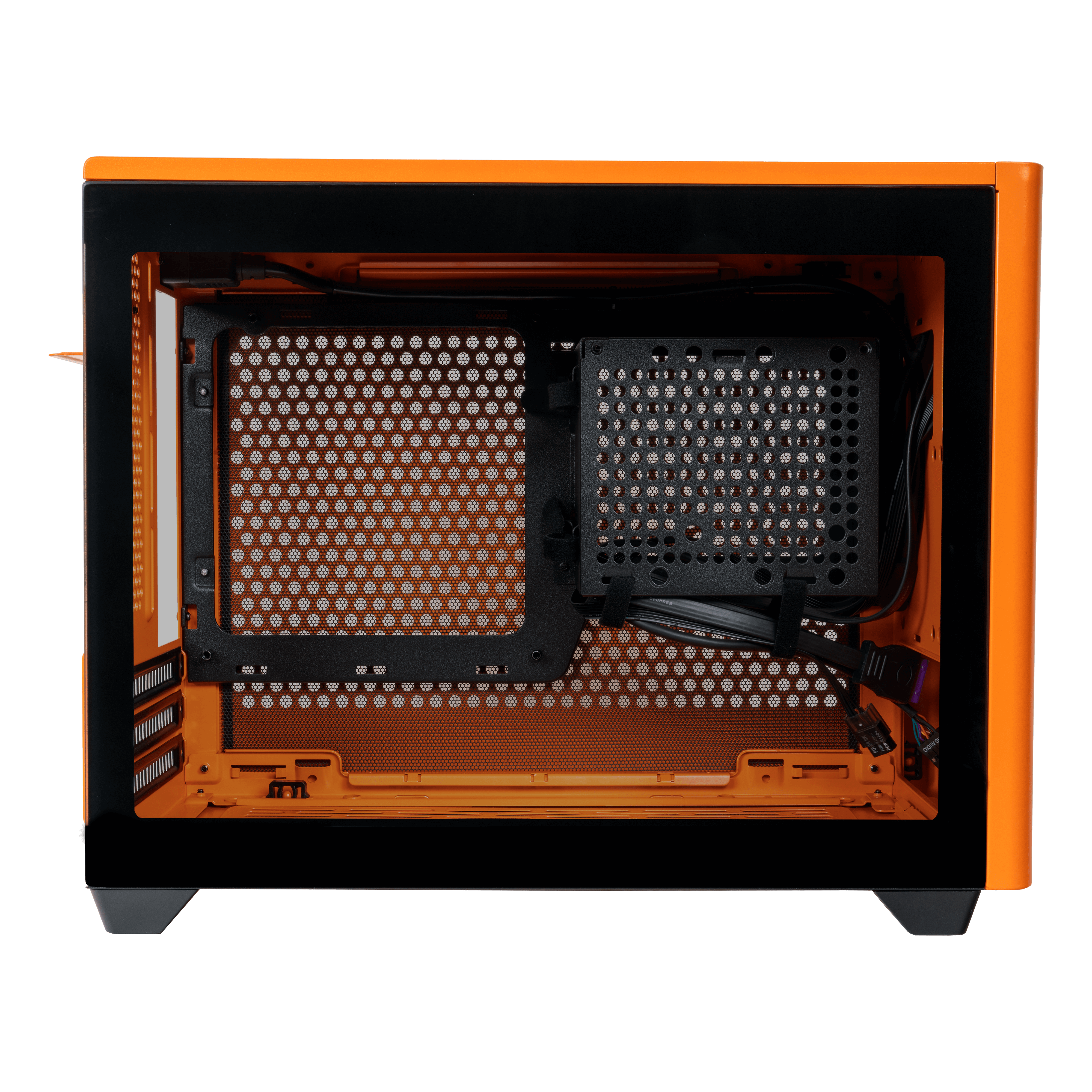

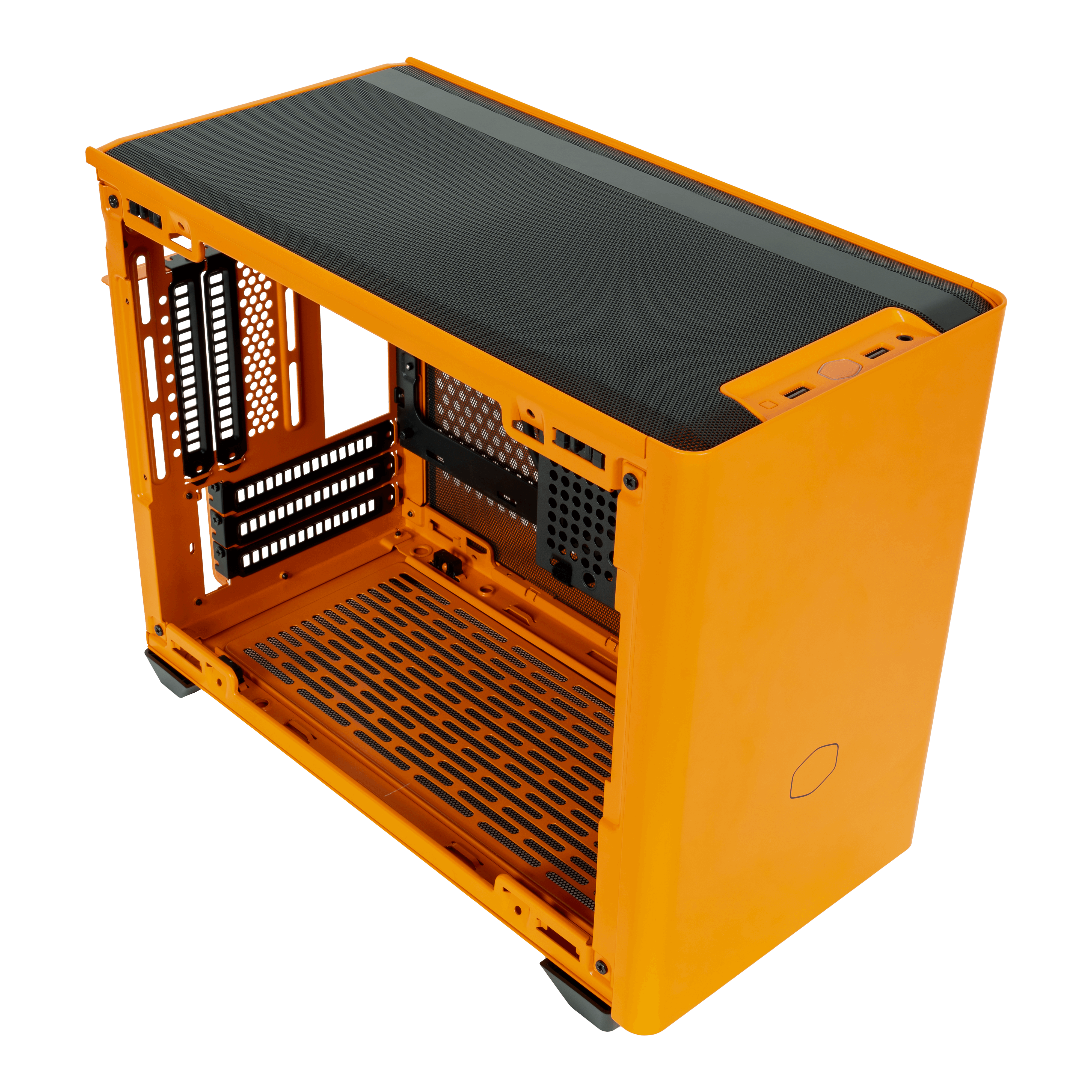

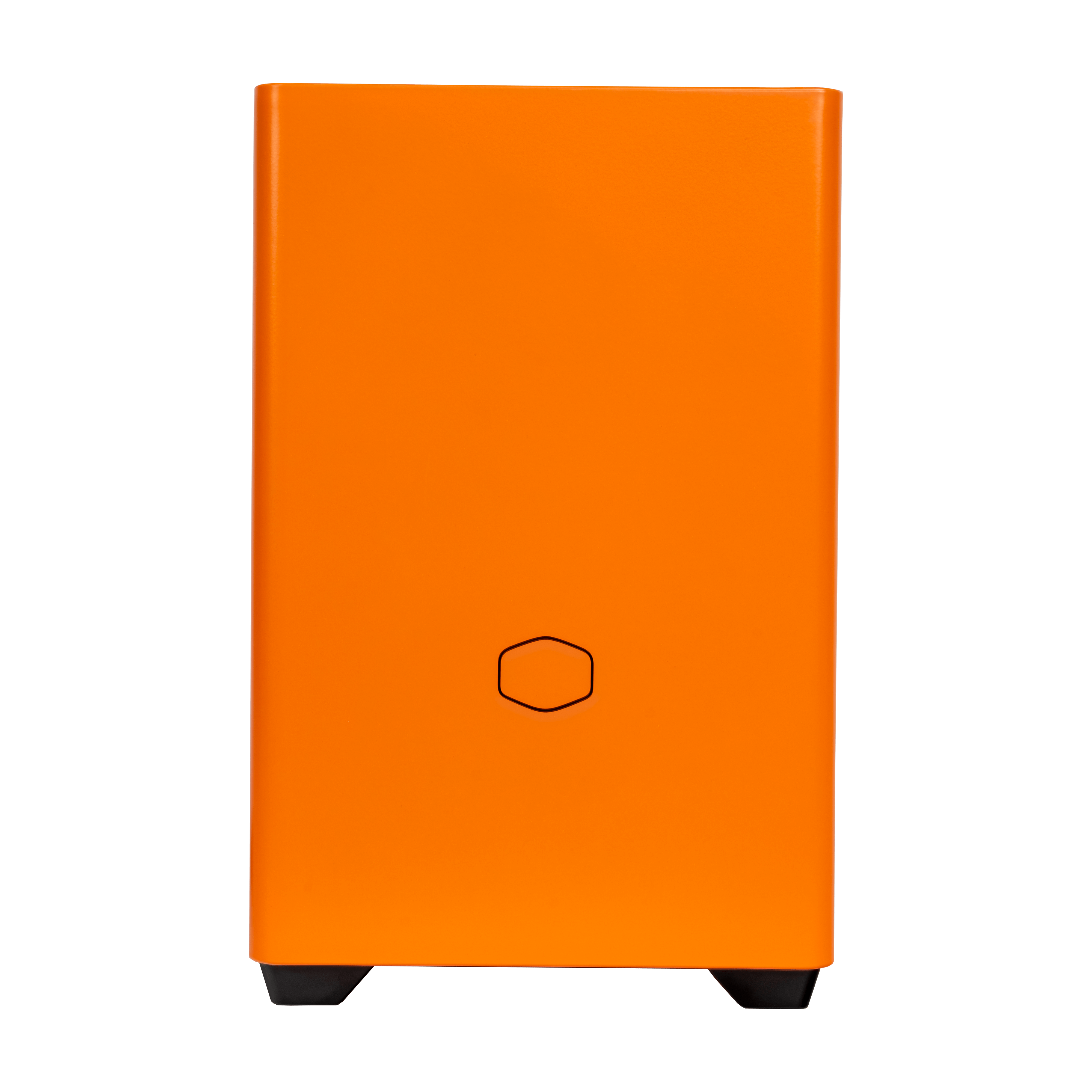

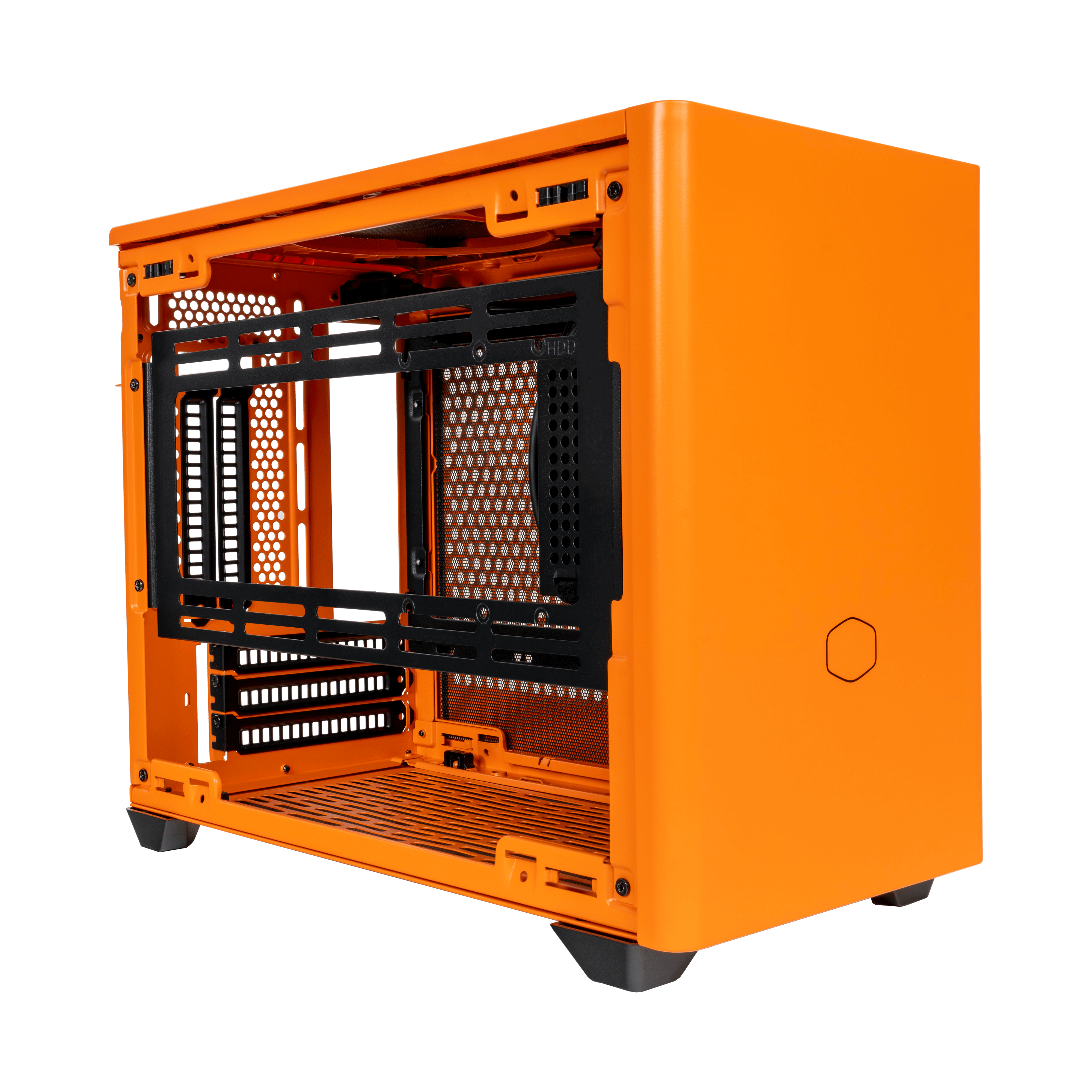

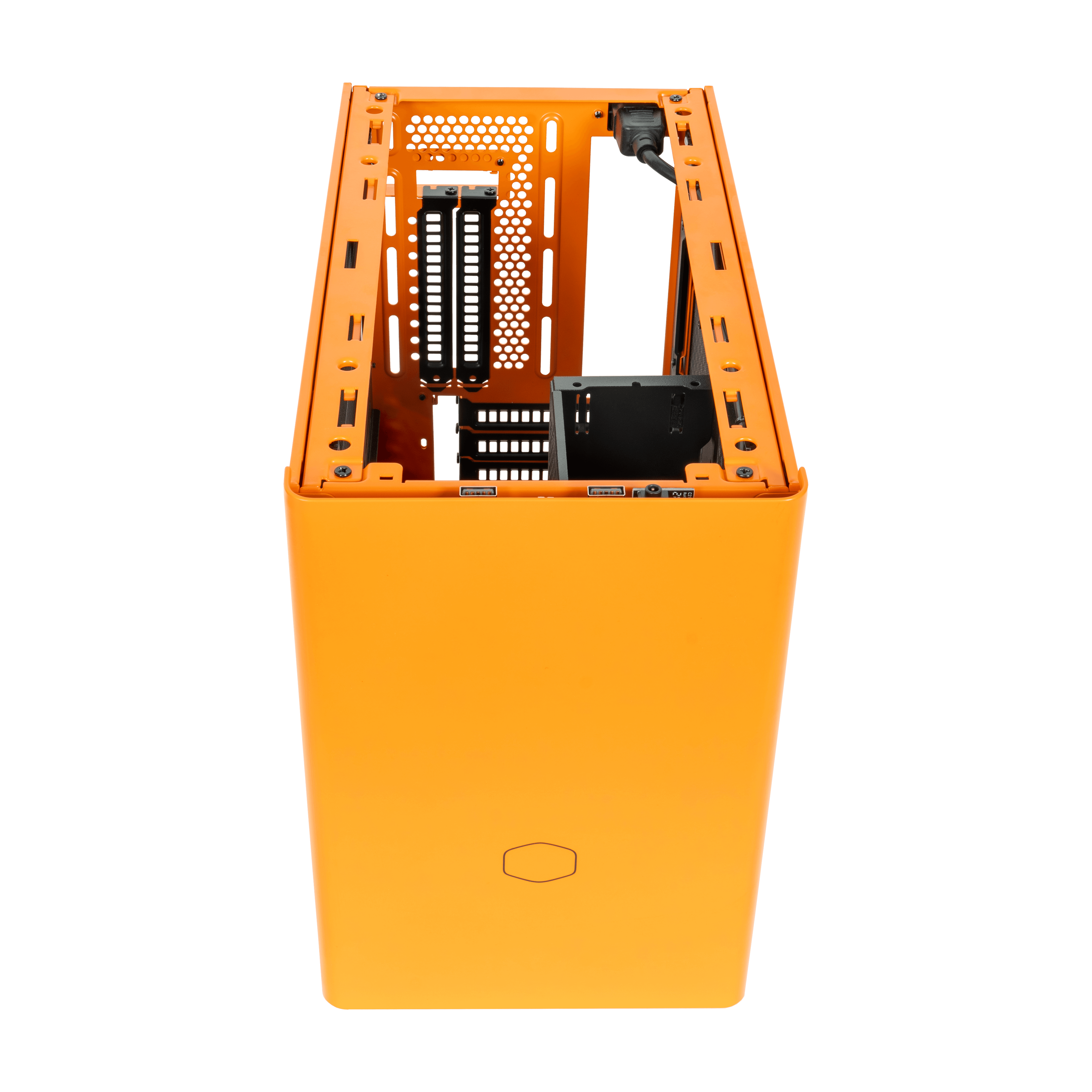

Sunset Orange

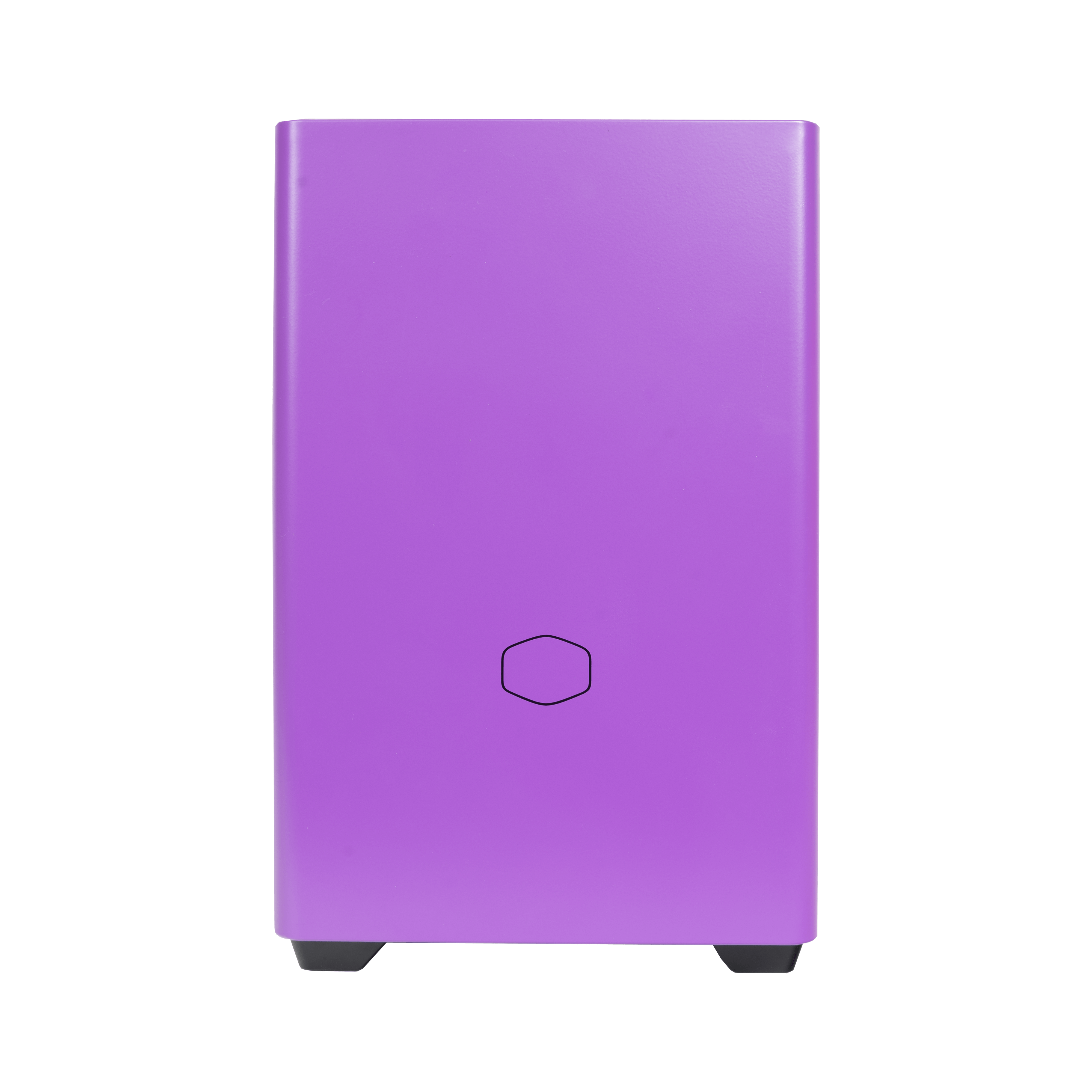

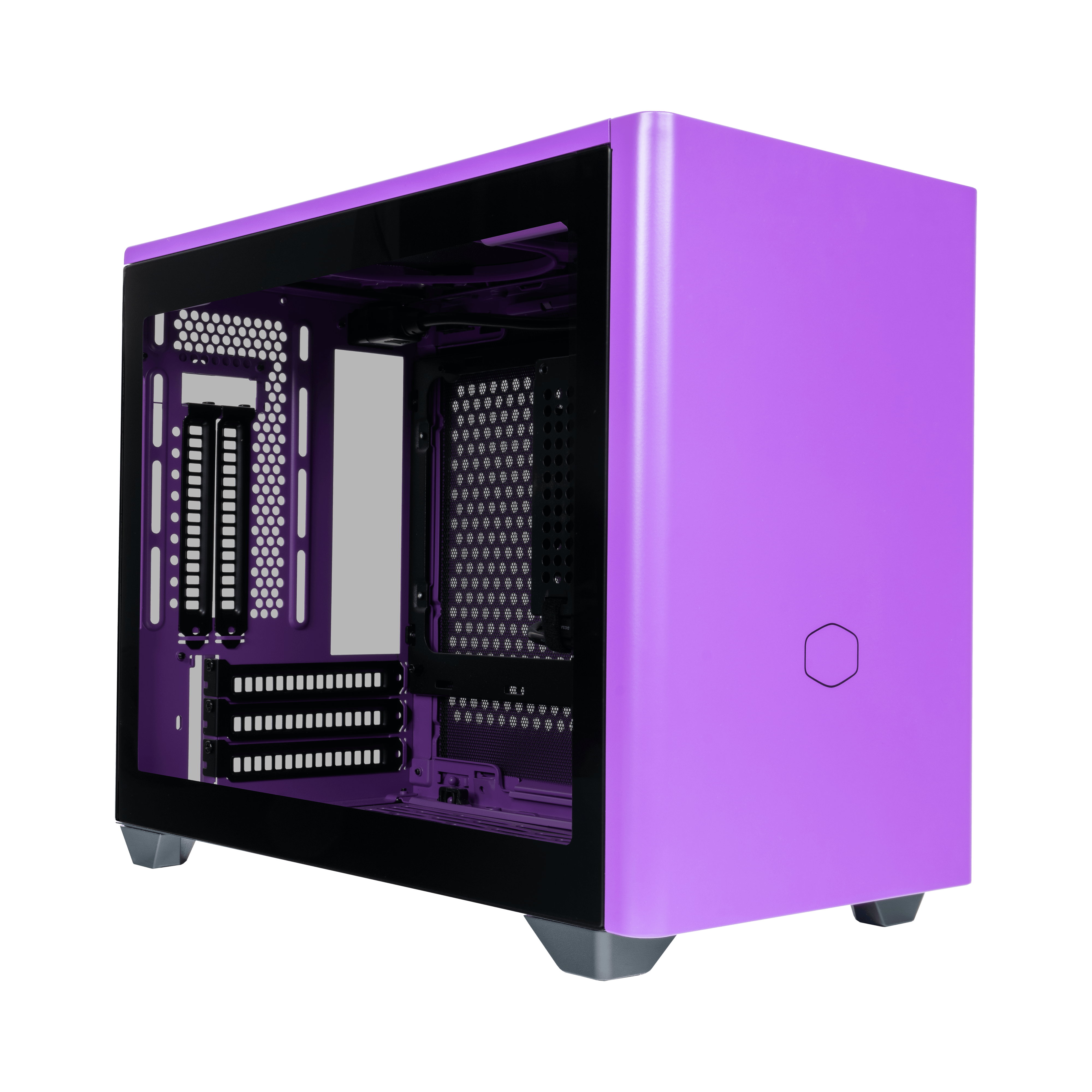

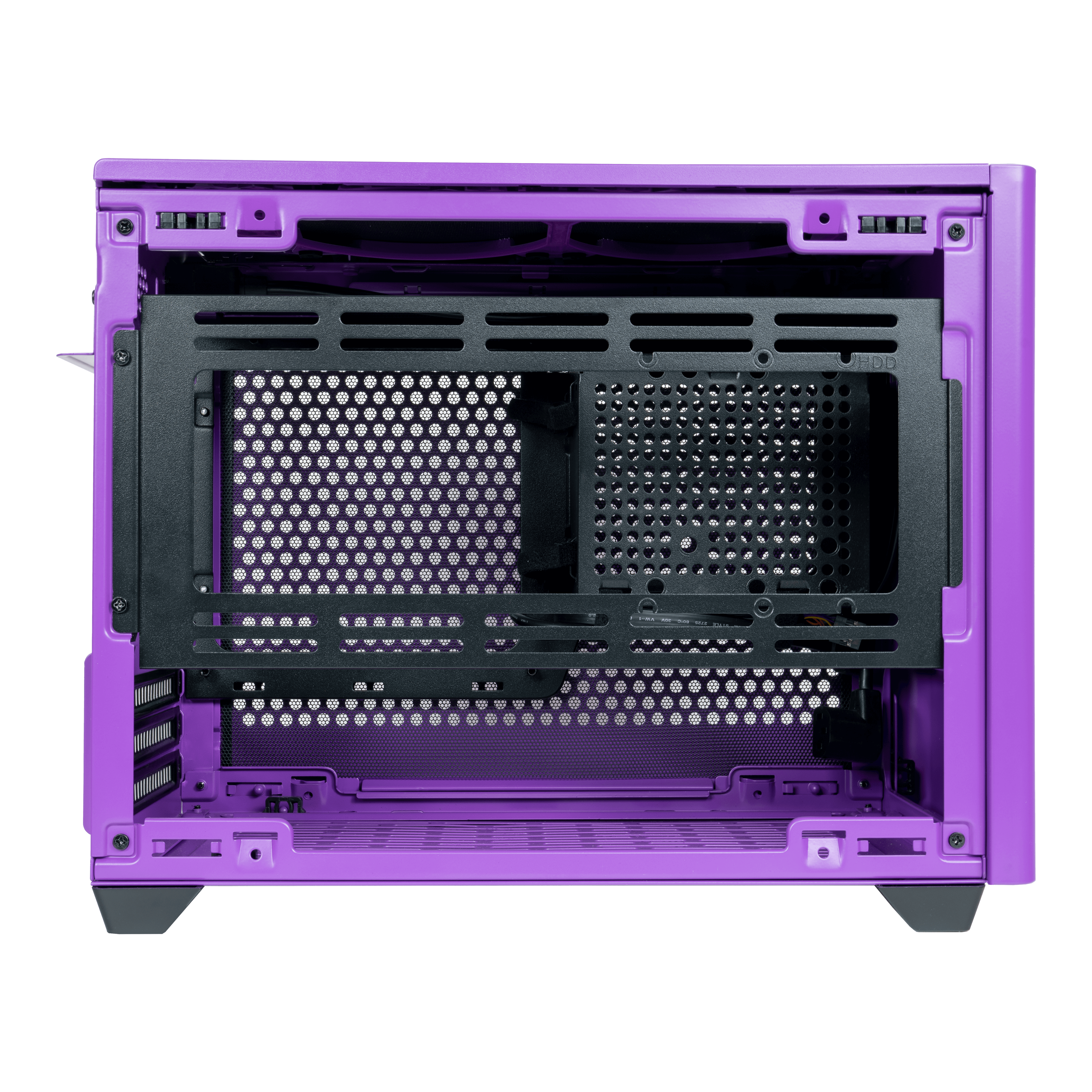

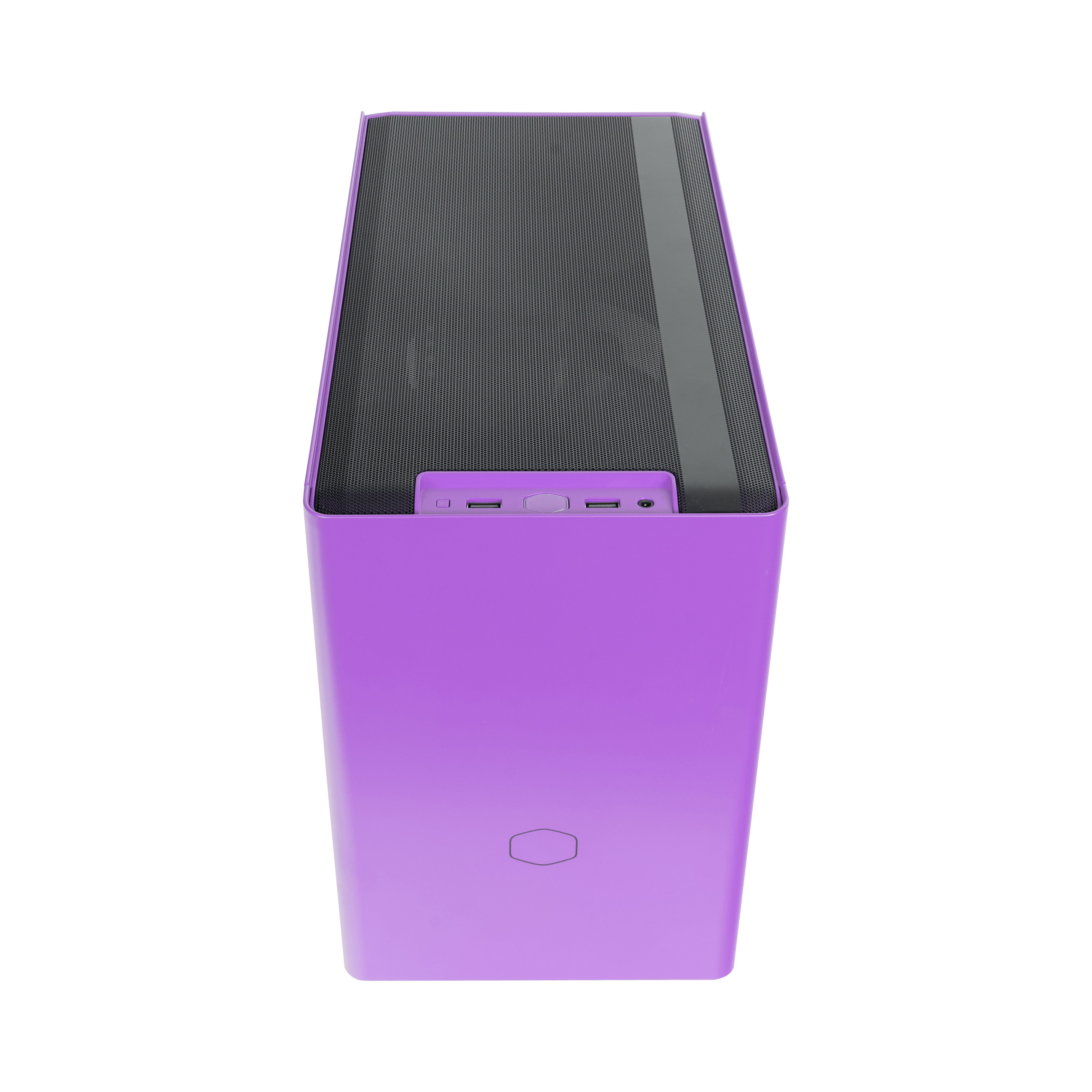

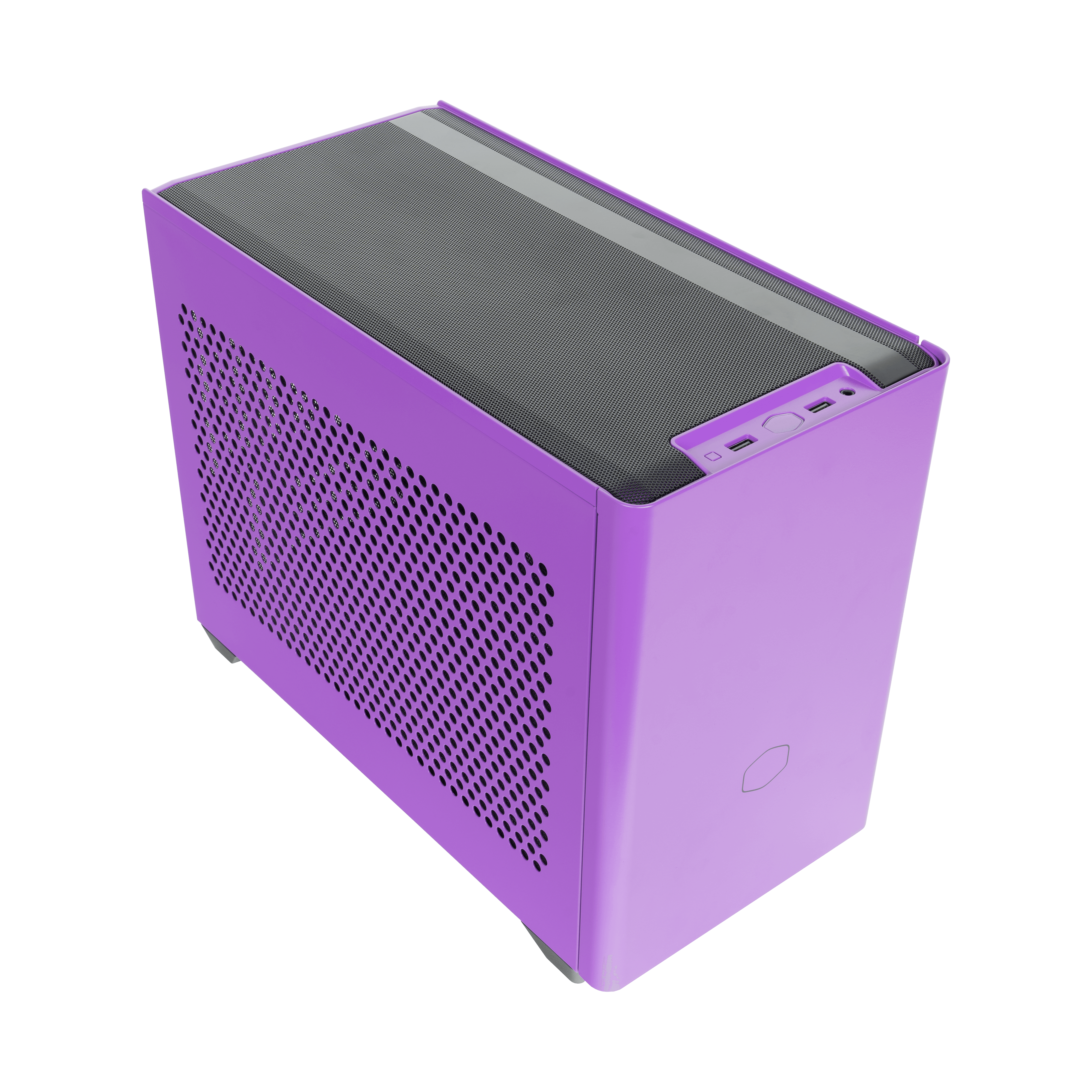

Nightshade Purple
- Materials Steel
- Radiator Support - Bottom 120mm
- Dust Filters Top
- 2.5" / 3.5" Drive Bays (Combo) 1
- Radiator Support - Side 120mm
- Radiator Support - Side 140mm
- Pre-installed Fans - Bottom N/A
- Warranty 2 years
- 5.25" Drive Bays 0
- Materials Plastic
- Series MasterBox Series
- Fan Support - Side 2x 120/140mm
- Materials Tempered Glass
- Radiator Support - Bottom 240mm
- Dust Filters Bottom
- Radiator Support - Side 240mm
- Radiator Support - Rear 92mm (Not Compatible with Vertical GPU Installation)
- Radiator Support - Side 280mm
- Size Mini ITX
- Dust Filters Left side
- Volume 18.25L (exlc. Protrusions)
- Dust Filters Right side
- Radiator Support - Side (not compatible with vertical GPU installation)
- Pre-installed Fans - Top 2x 120mm 650-1800RPM PWM (SickleFlow)
- Radiator Support - Bottom (recommended for custom loops only)
- Note Single slot water-cooler GPUs or vertically mounted GPUs are recommended when using bottom radiator position
- Fan Support - Rear 1x 92mm
- Fan Support - Bottom 2x 120mm (recommended slim fans for GPUs wider than 2.5 PCI slots)
- Motherboard Support Mini DTX
- Materials Mesh
- Accessories 1x PCIe 3.0 x16 riser cable
- Pre-installed Fans - Rear N/A
- Motherboard Support Mini ITX
- Expansion Slots 3
- Fan Support - Top 2x 120mm
- Motherboard Support Max MB size: 244 x 226mm (L x H)
- Radiator Support - Top N/A
- I/O Panel 2x USB 3.2 Gen 1 Type-A
- Pre-installed Fans - Front N/A
- Clearance - PSU 130mm
- Clearance - CPU Cooler 76mm (GPU in vertical position)
- Power Supply Support SFX
- Clearance - CPU Cooler 153mm (tempered glass side panel)
- Clearance - CPU Cooler 155mm (vented steel side panel)
- Power Supply Support SFX-L
- I/O Panel 1x 3.5mm Headset Jack (Audio+Mic)
- 3.5" Drive Bays 1 (Max. 2)
- Clearance - GFX L: 330mm (incl. power connector)
- Clearance - GFX H: 156mm (incl. power connector)
- Weight 5.93 kg
- Clearance - GFX W: 60mm (triple slot)
- Color(s) Purple/Black
- Color(s) Orange/Black
- Color(s) Cyan/White
- 2.5" Drive Bays 2 (Max. 3)
- Color(s) Pink/White
- Dimensions (L x W x H) 376 x 185 x 292mm incl. Protrusions
- Dimensions (L x W x H) 360 x 185 x 274mm excl. Protrusions
- Model Number MCB-NR200P-PCNN-S00 (Nightshade Purple)
- Model Number MCB-NR200P-OCNN-S00 (Sunset Orange)
- Model Number MCB-NR200P-ACNN-S00 (Caribbean Blue)
- Model Number MCB-NR200P-QCNN-S00 ( Flamingo Pink)
