Big Features, Small Size
MasterBox NR200
Unrestricted Cooling Potential
Triple-slot GPU support
Easy, Tool-free access
360 Degree Accessibility
Multiple motherboard support options
Out-of-the-box Custom Cooling Support
High quality materials
Color
- Materials Steel
- Radiator Support - Bottom 120mm
- Dust Filters Top

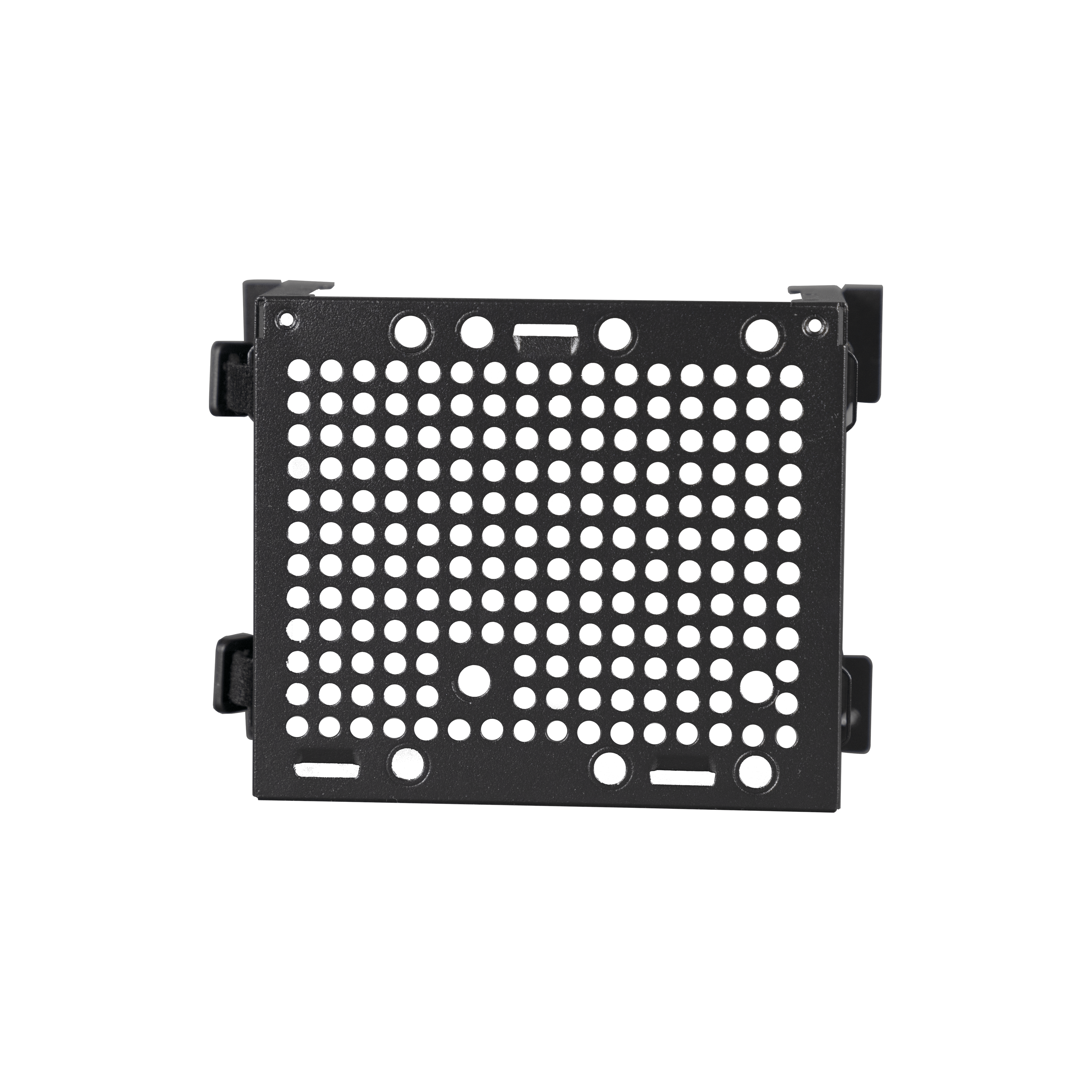

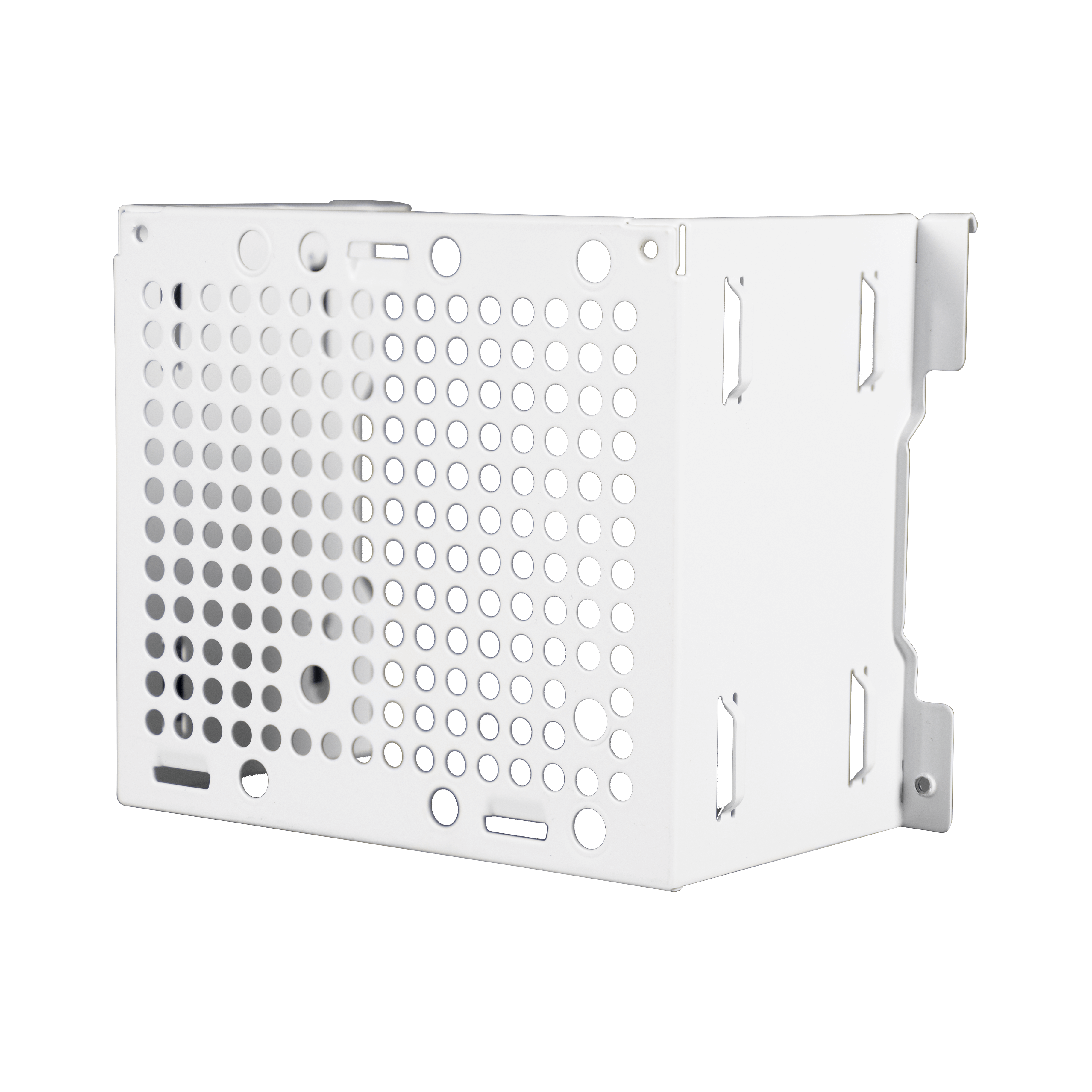

- 2.5" / 3.5" Drive Bays (Combo) 1
- Radiator Support - Side 120mm
- Radiator Support - Side 140mm
- Warranty 2 years
- 5.25" Drive Bays 0
- Materials Plastic
- Color(s) Black
- Series MasterBox Series
- Pre-installed Fans - Bottom N/A
- Fan Support - Side 2x 120/140mm
- Color(s) White
- Radiator Support - Bottom 240mm
- Dust Filters Bottom
- Radiator Support - Rear 92mm (Not Compatible with Vertical GPU Installation)
- Radiator Support - Side 240mm
- Radiator Support - Side 280mm
- Pre-installed Fans - Top 1x 120mm 650-1800RPM PWM (SickleFlow)
- Size Mini ITX
- Dust Filters Left side
- Volume 18.25L (exlc. Protrusions)
- Dust Filters Right side
- Radiator Support - Side (not compatible with vertical GPU installation)
- Radiator Support - Bottom (recommended for custom loops only)
- Note Single slot water-cooler GPUs or vertically mounted GPUs are recommended when using bottom radiator position
- Fan Support - Rear 1x 92mm
- Fan Support - Bottom 2x 120mm (recommended slim fans for GPUs wider than 2.5 PCI slots)
- Motherboard Support Mini DTX
- Materials Mesh
- Motherboard Support Mini ITX

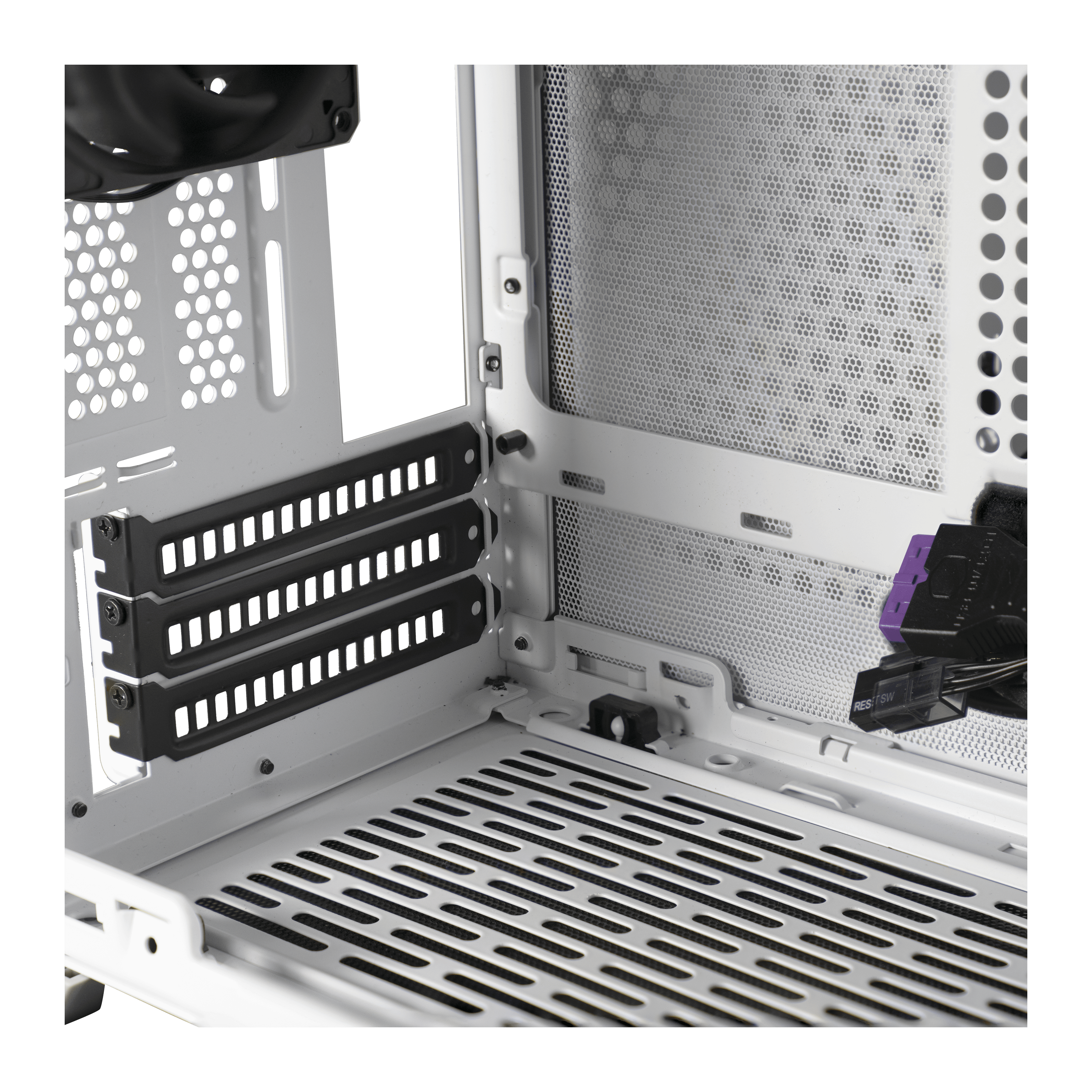

- Expansion Slots 3
- Pre-installed Fans - Rear 1x 92mm 650-2300RPM PWM (SickleFlow)
- Fan Support - Top 2x 120mm
- Motherboard Support Max MB size: 244 x 226mm (L x H)
- Radiator Support - Top N/A
- I/O Panel 2x USB 3.2 Gen 1 Type-A
- Pre-installed Fans - Front N/A
- Clearance - CPU Cooler 155mm
- Clearance - PSU 130mm
- Clearance - CPU Cooler 76mm (GPU in vertical position)
- Power Supply Support SFX
- Power Supply Support SFX-L
- I/O Panel 1x 3.5mm Headset Jack (Audio+Mic)
- 3.5" Drive Bays 1 (Max. 2)
- Clearance - GFX L: 330mm (incl. power connector)
- Clearance - GFX H: 156mm (incl. power connector)
- Clearance - GFX W: 60mm (triple slot)
- Weight 4.8 kg
- 2.5" Drive Bays 2 (Max. 3)
- Dimensions (L x W x H) 376 x 185 x 292mm incl. Protrusions
- Dimensions (L x W x H) 360 x 185 x 274mm excl. Protrusions
- Model Number MCB-NR200-WNNN-S00
- Model Number MCB-NR200-KNNN-S00
