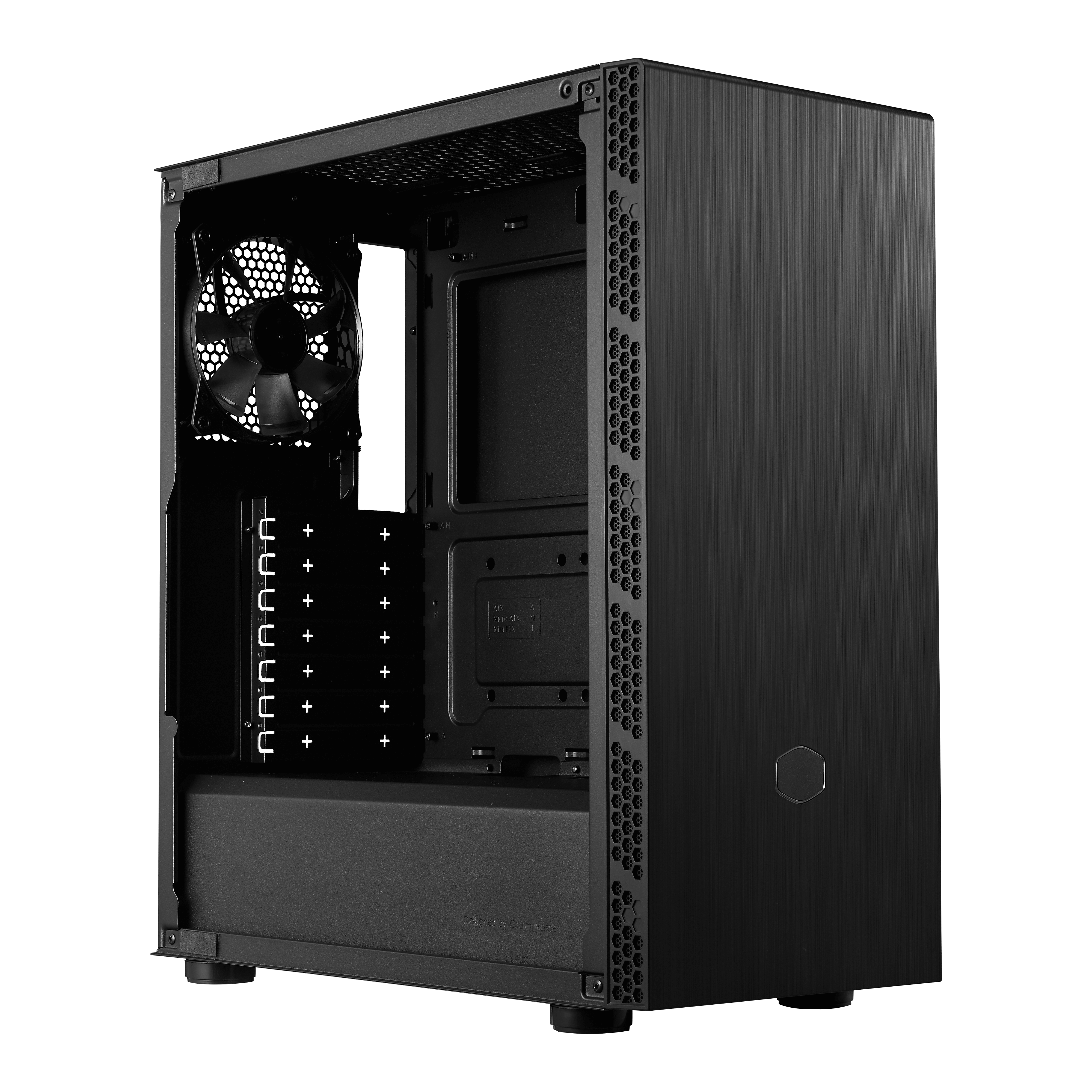

MasterBox MB600L V2

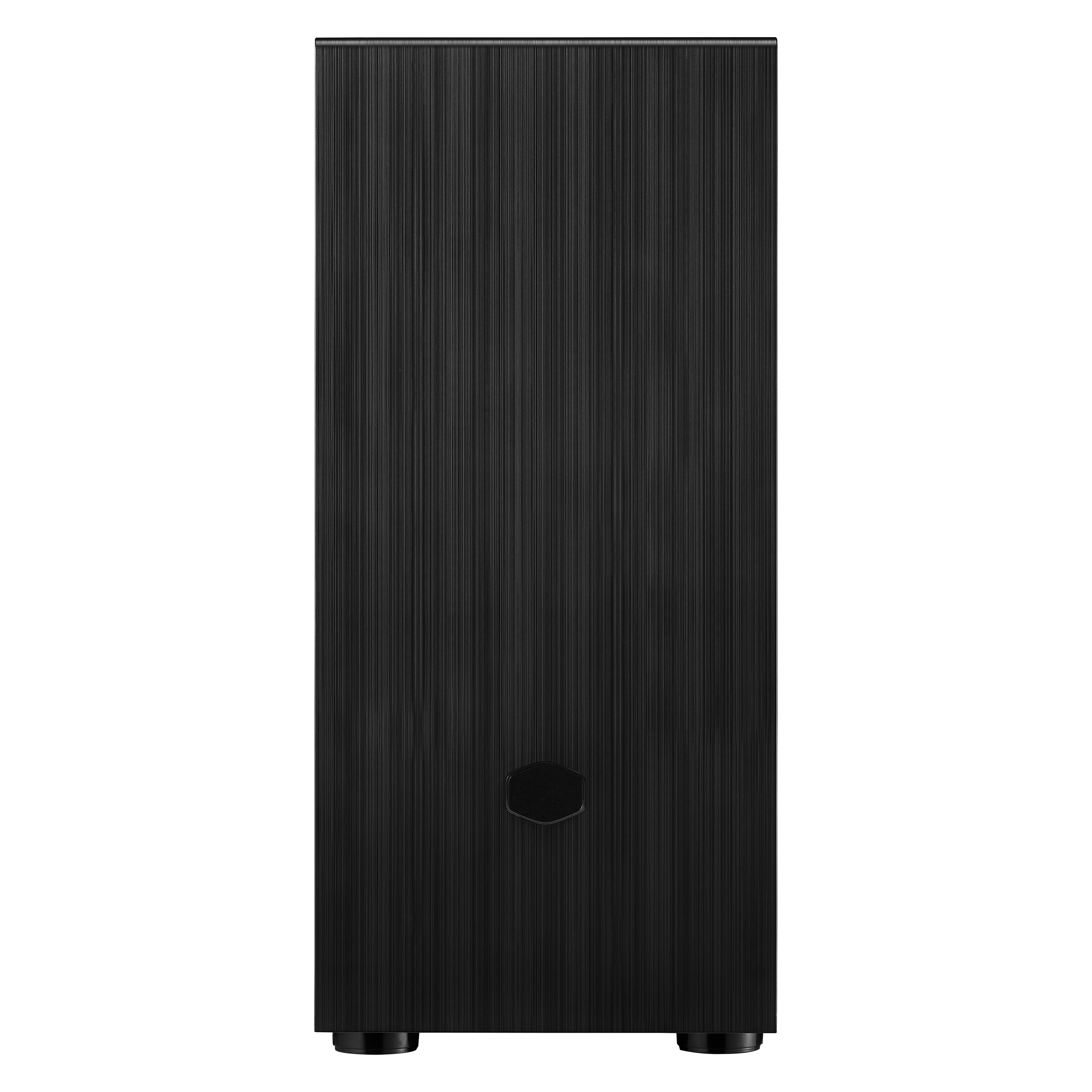

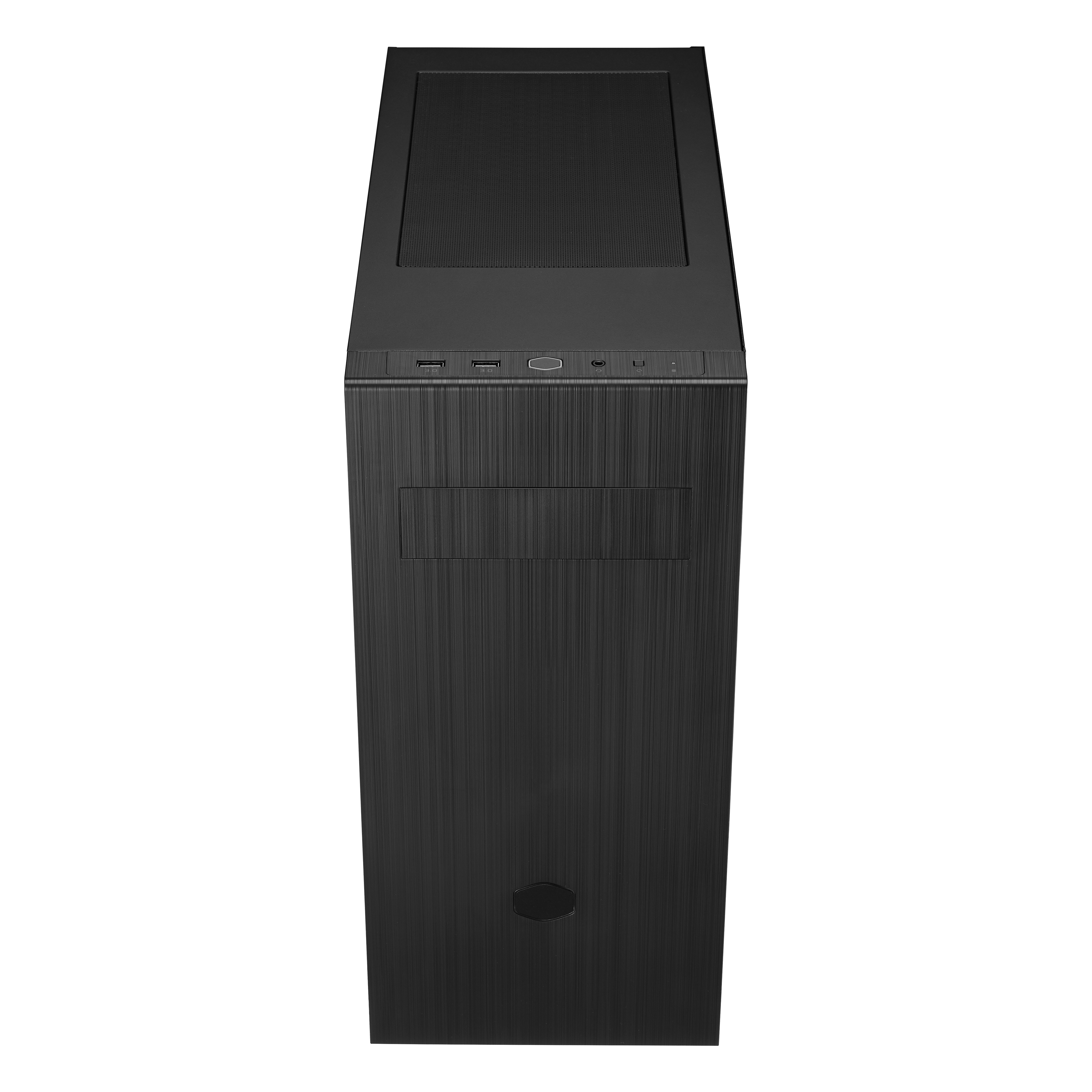

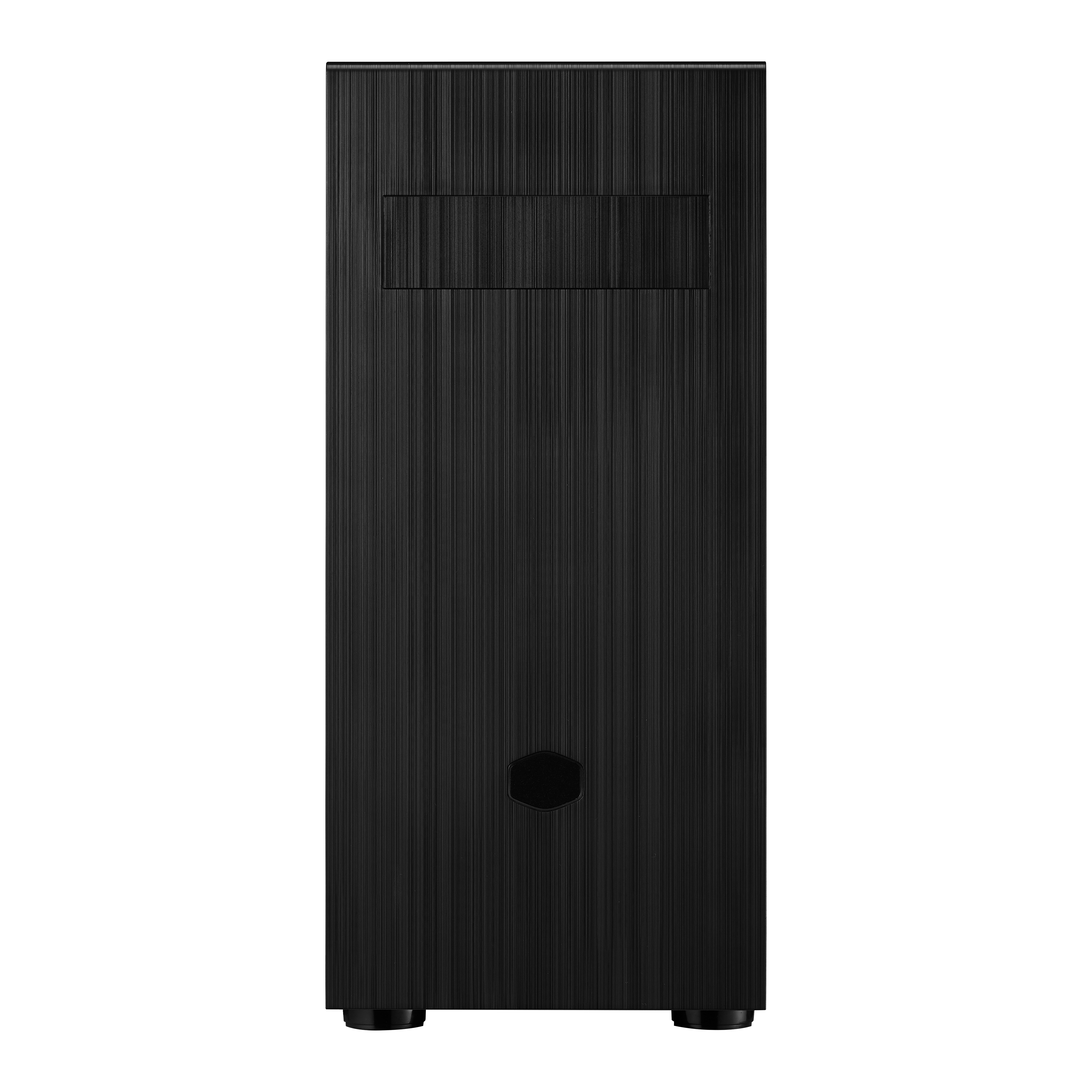

Brushed Front Panel
Hexagon Gleam
Mesh Intakes

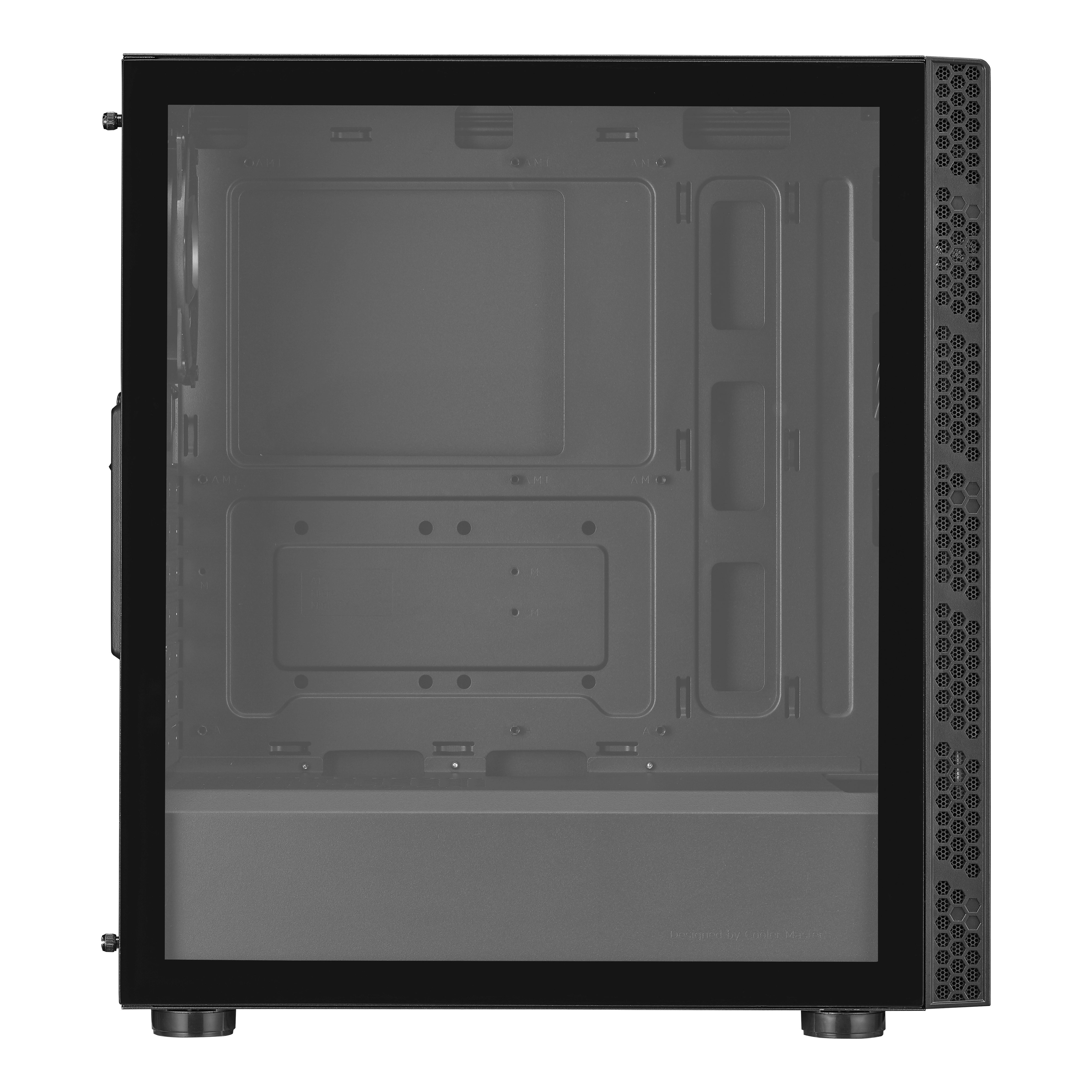

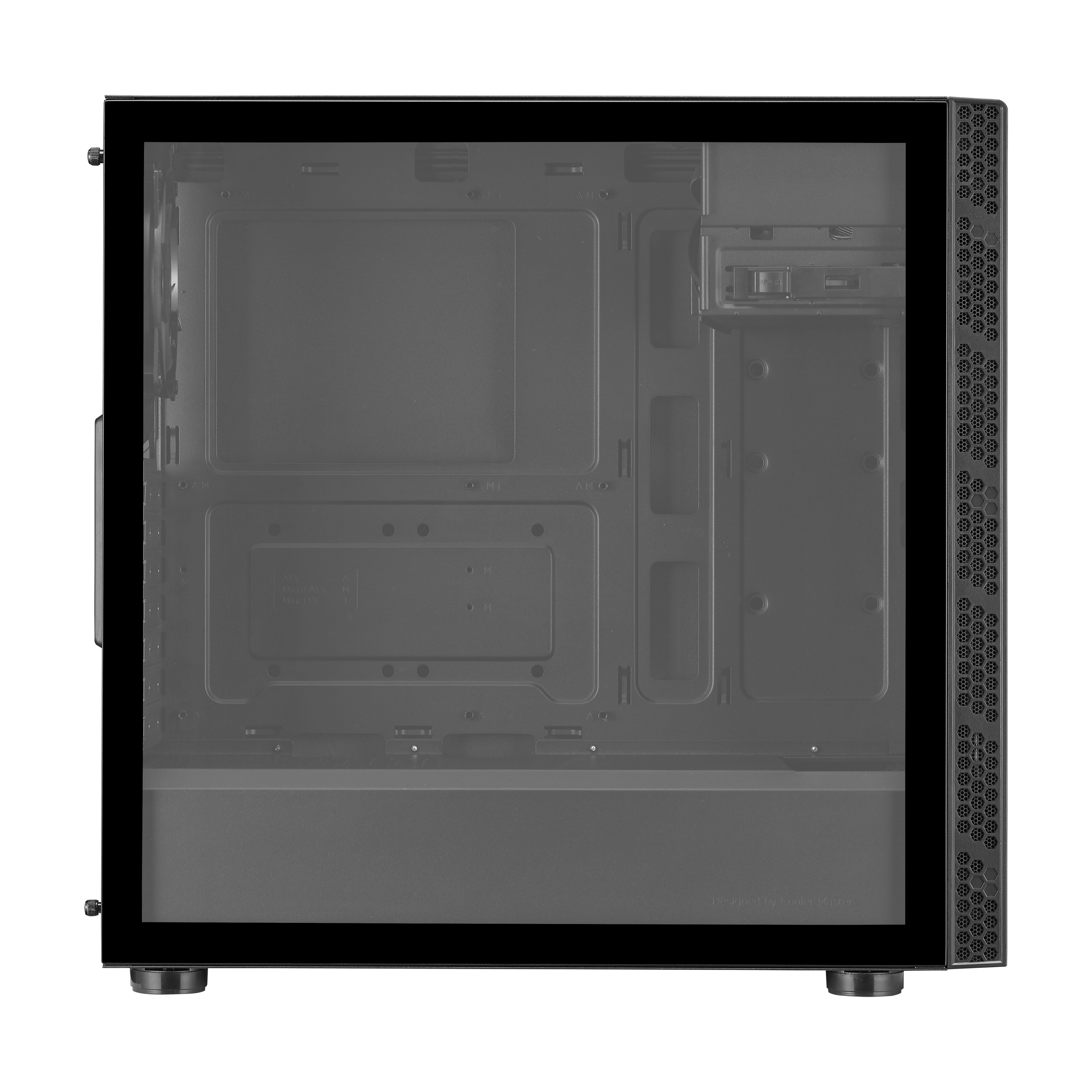

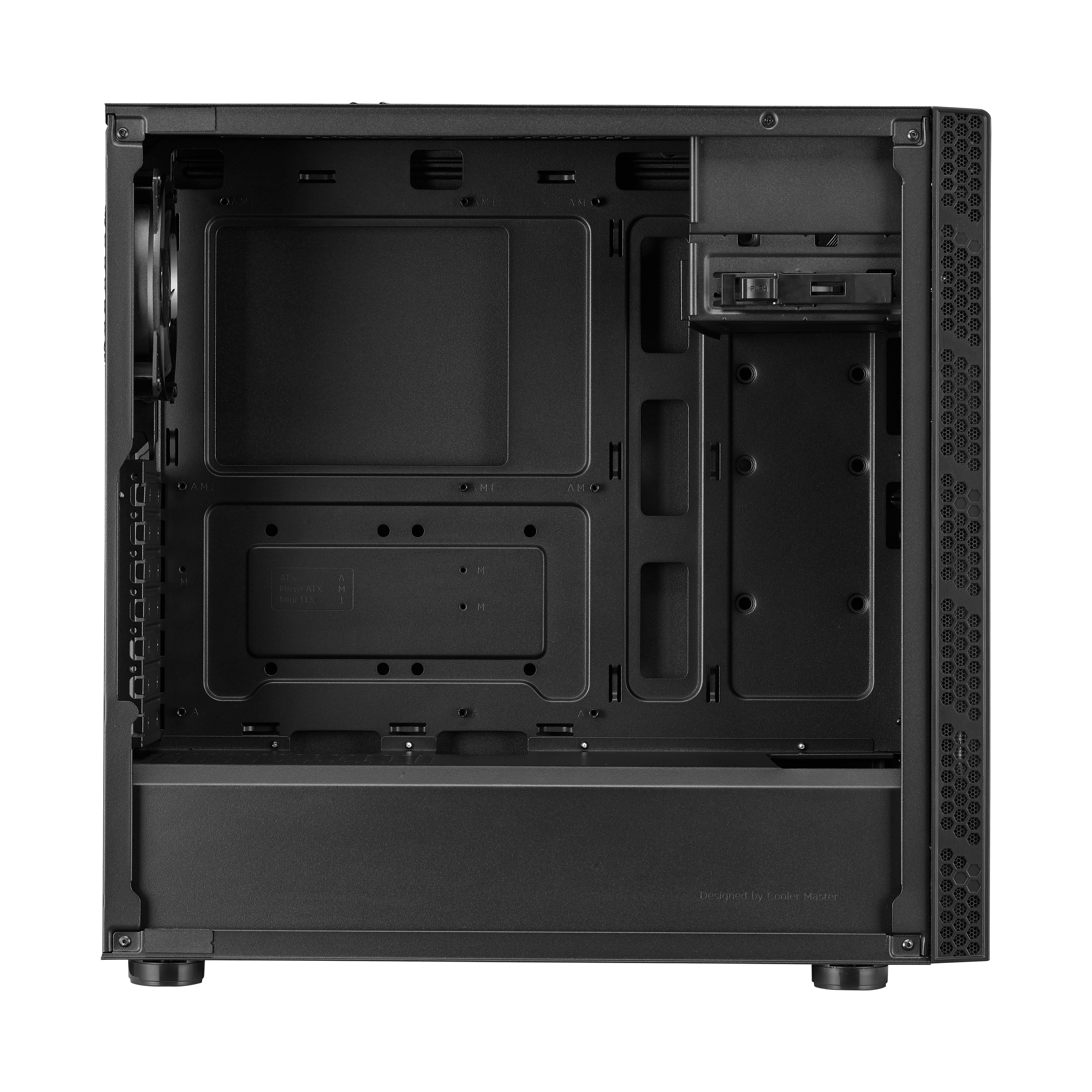

With/Without ODD Support
Versatile Cooling Options

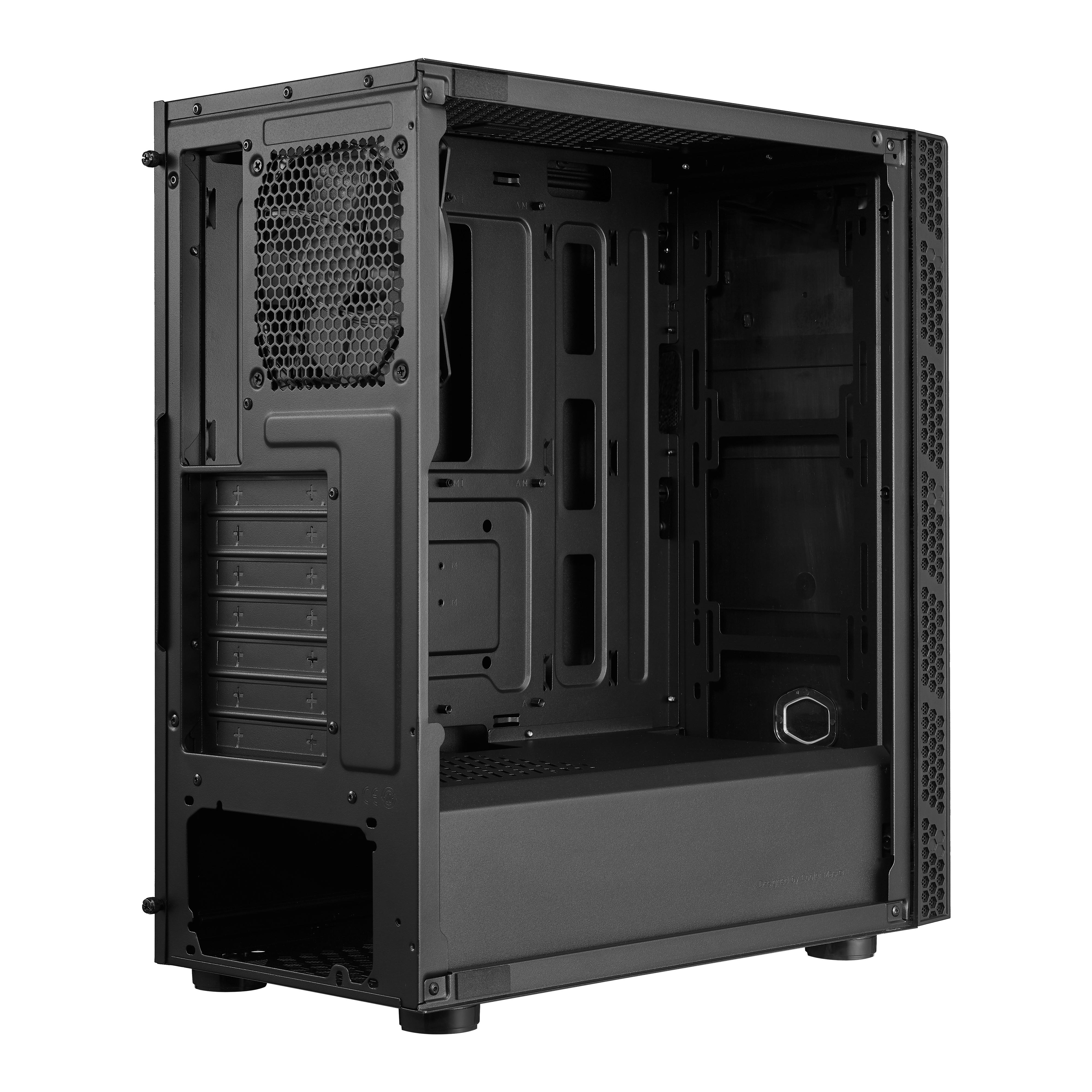

Breathable Power Supply Shroud
Room For Upgrades
Removable HDD Cage
Specifications
- Materials Steel
- Radiator Support - Rear 120mm
- Power Supply Support Bottom Mount
- Dust Filters Top
- Dust Filters Front
- Pre-installed Fans - Top N/A
- Warranty 2 years
- 2.5" / 3.5" Drive Bays (Combo) 2
- Materials Plastic
- Color(s) Black
- Series MasterBox Series
- Size Mid Tower
- 2.5" Drive Bays 2
- Materials Tempered Glass
- Power Supply Support ATX
- Dust Filters Bottom
- Fan Support - Rear 1x 120mm
- Radiator Support - Front 280mm
- Radiator Support - Front 240mm
- Radiator Support - Top 240mm
- Fan Support - Front 2x 140mm
- Fan Support - Top 2x 120/140mm
- Pre-installed Fans - Rear 1x 120mm

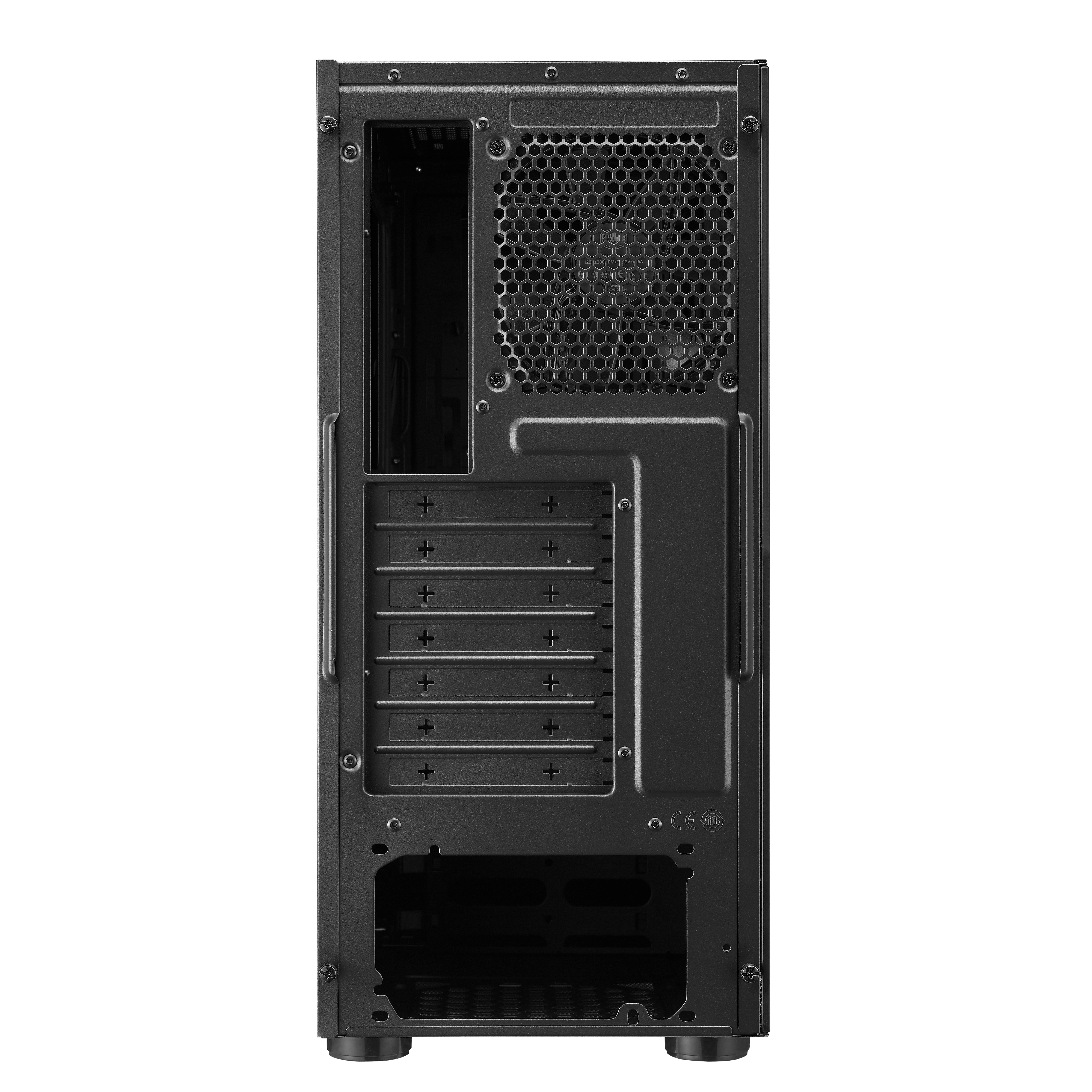

- Expansion Slots 7
- Radiator Support - Front 140mm
- Motherboard Support ATX
- Motherboard Support Micro ATX
- Radiator Support - Top 120mm
- Radiator Support - Front 120mm
- Fan Support - Front 3x 120mm
- Volume 37.15L (MB600L2-K*NN-S00) (exlc. Protrusions), 42.26L (MB600L2-K*5N-S00) (exlc. Protrusions)
- Cable Routing 18.5mm
- Motherboard Support Mini ITX
- I/O Panel 2x USB 3.2 Gen 1 Type-A
- Radiator Support - Front 360mm (remove & reinstall ODD bracket to mount 360mm radiator (MB600L2-K*5N-S00)
- Radiator Support - Top (RAM height limit 32mm; install RAM first, then install radiator)
- Pre-installed Fans - Front N/A
- Fan Support - Front 3x 120mm (remove ODD bracket) (MB600L2-K*5N-S00)
- Clearance - PSU 160mm (MB600L2-K*NN-S00), 180mm (MB600L2-K*5N-S00)
- I/O Panel 1x 3.5mm Headset Jack (Audio+Mic)
- Clearance - CPU Cooler 161mm
- 5.25" Drive Bays 0 (MB600L2-K*NN-S00), 1 (MB600L2-K*5N-S00)
- Clearance - GFX 350mm (w/o front fans & radiator) (MB600L2-K*NN-S00), 400mm (w/o front fans & radiator) (MB600L2-K*5N-S00)
- Dimensions (L x W x H) 405.5x204x455.3mm (incl. Protrusions) (MB600L2-K*NN-S00), 400x204x455.3mm (excl. Protrusions) (MB600L2-K*NN-S00), 460.5x204x455.3mm (incl. Protrusions) (MB600L2-K*5N-S00), 455x204x455.3mm (excl. Protrusions) (MB600L2-K*5N-S00)
- Model Number MB600L2-KGNN-S00 (w/o ODD TG), MB600L2-KNNN-S00 (w/o ODD Steel), MB600L2-KG5N-S00 (w/ ODD TG), MB600L2-KN5N-S00 (w/ ODD Steel)
