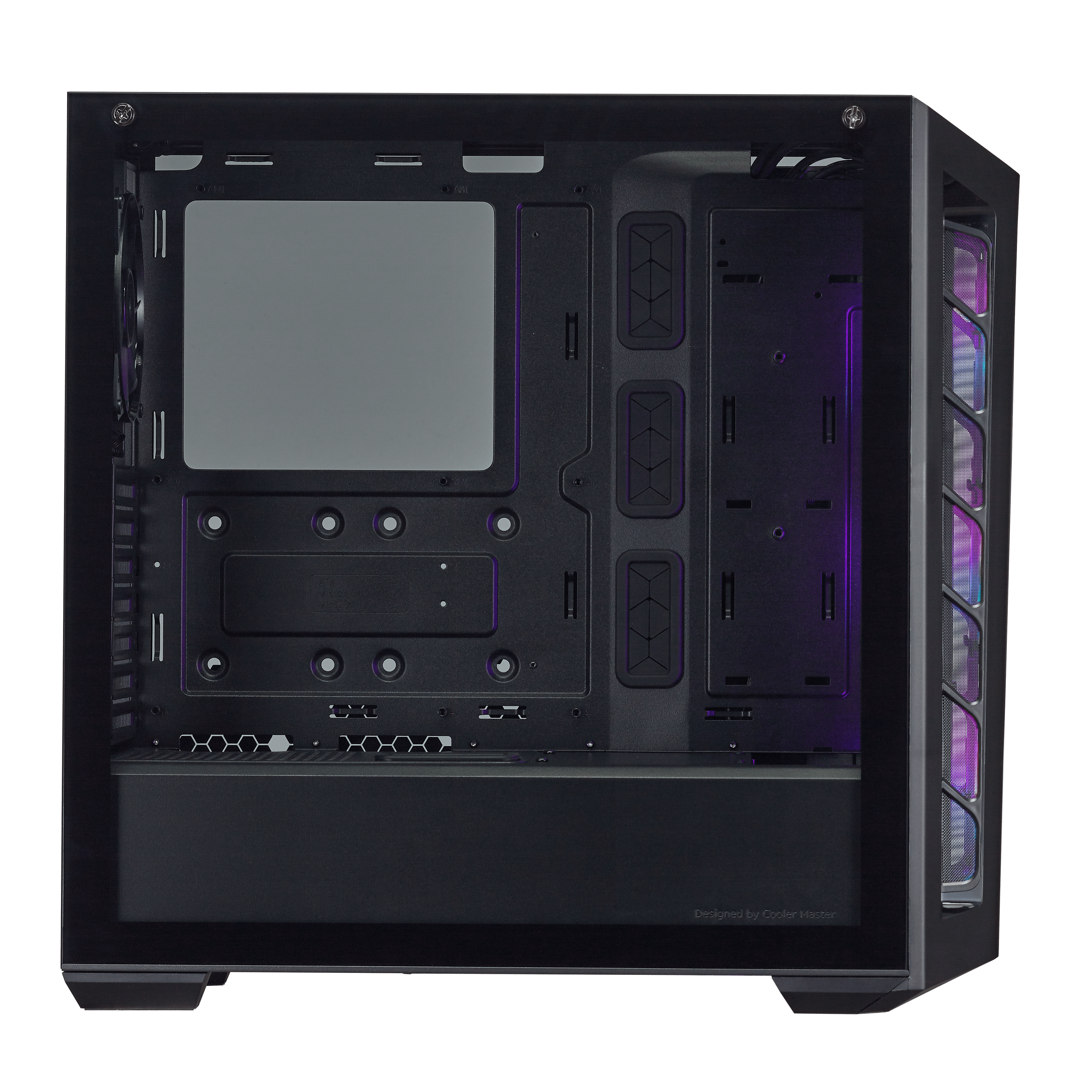

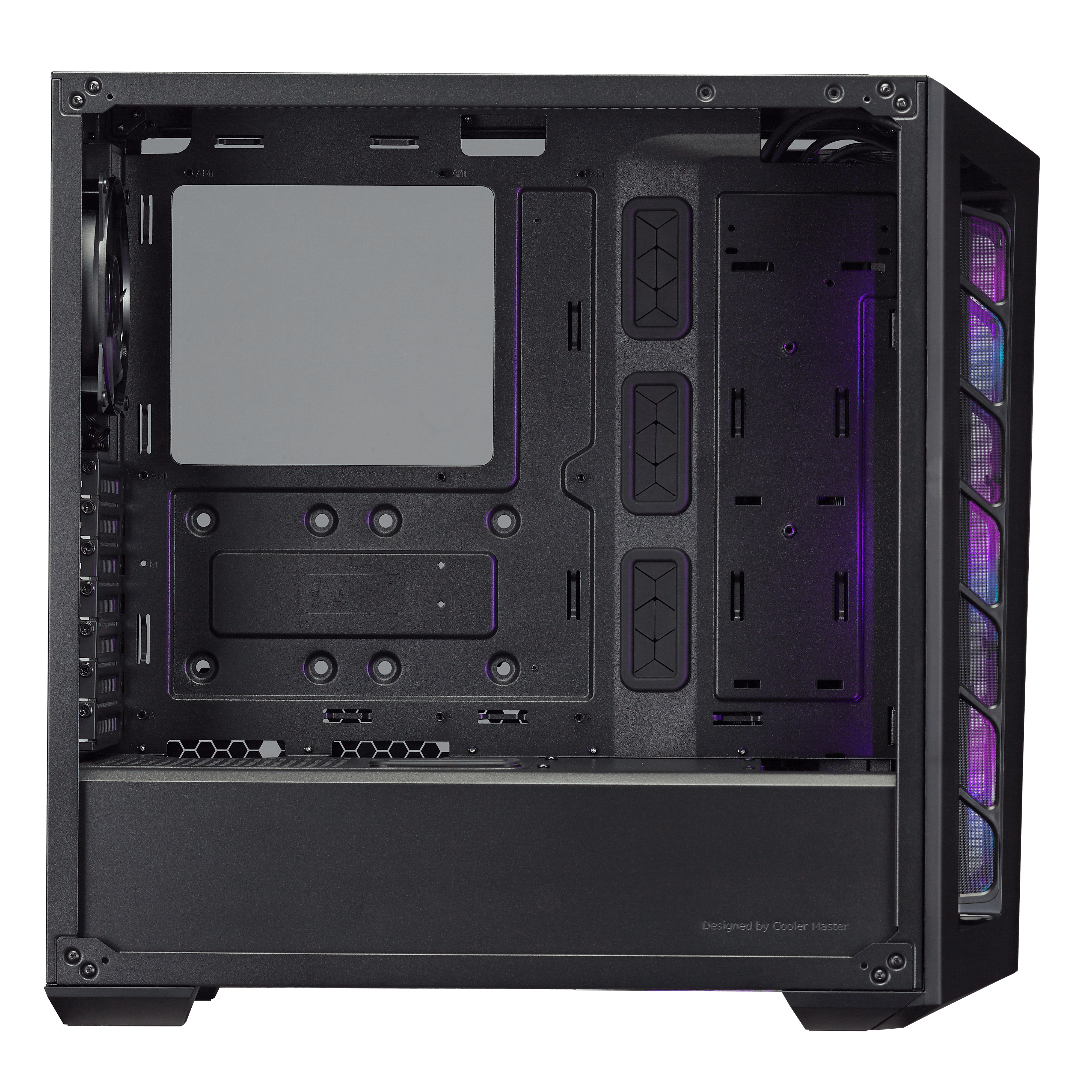

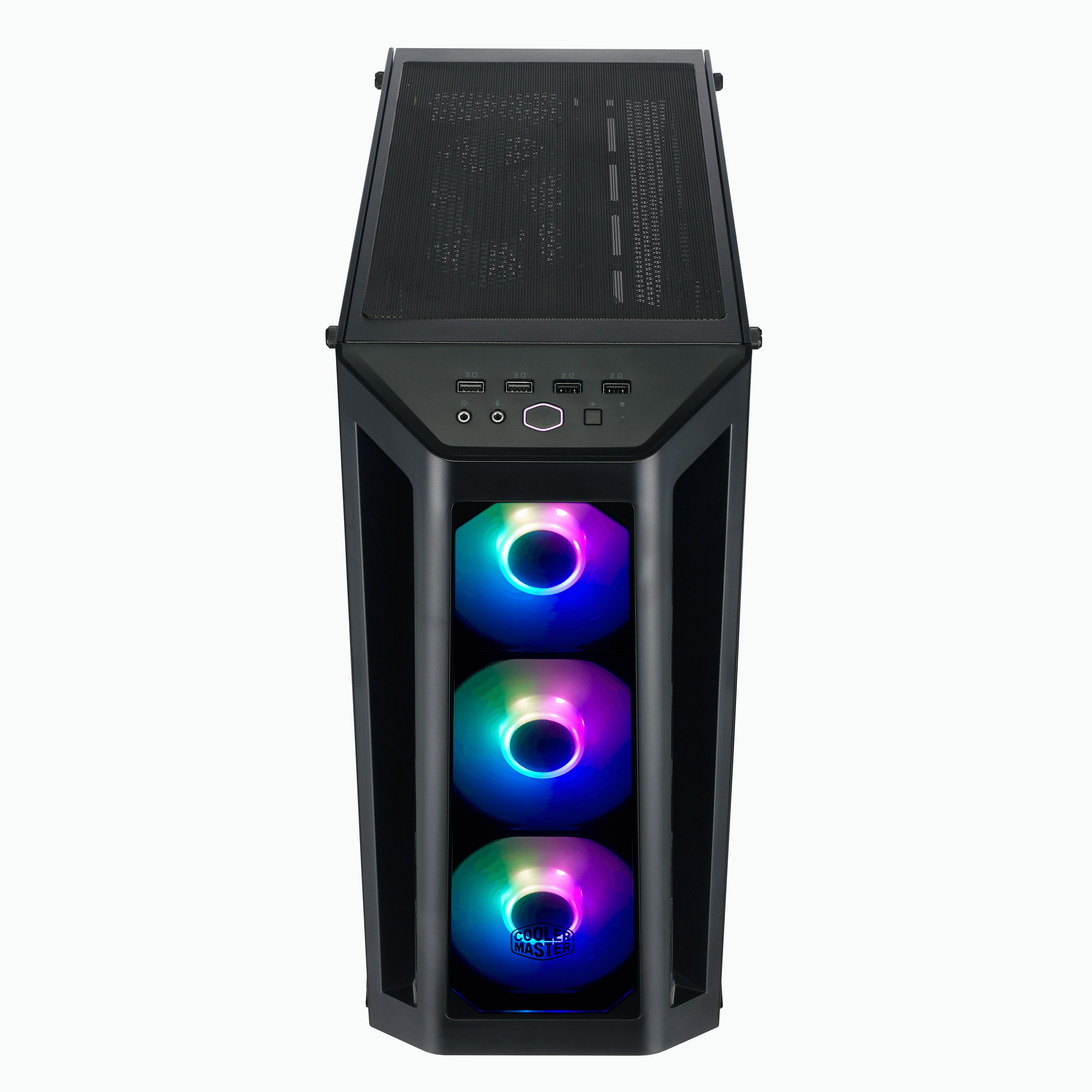

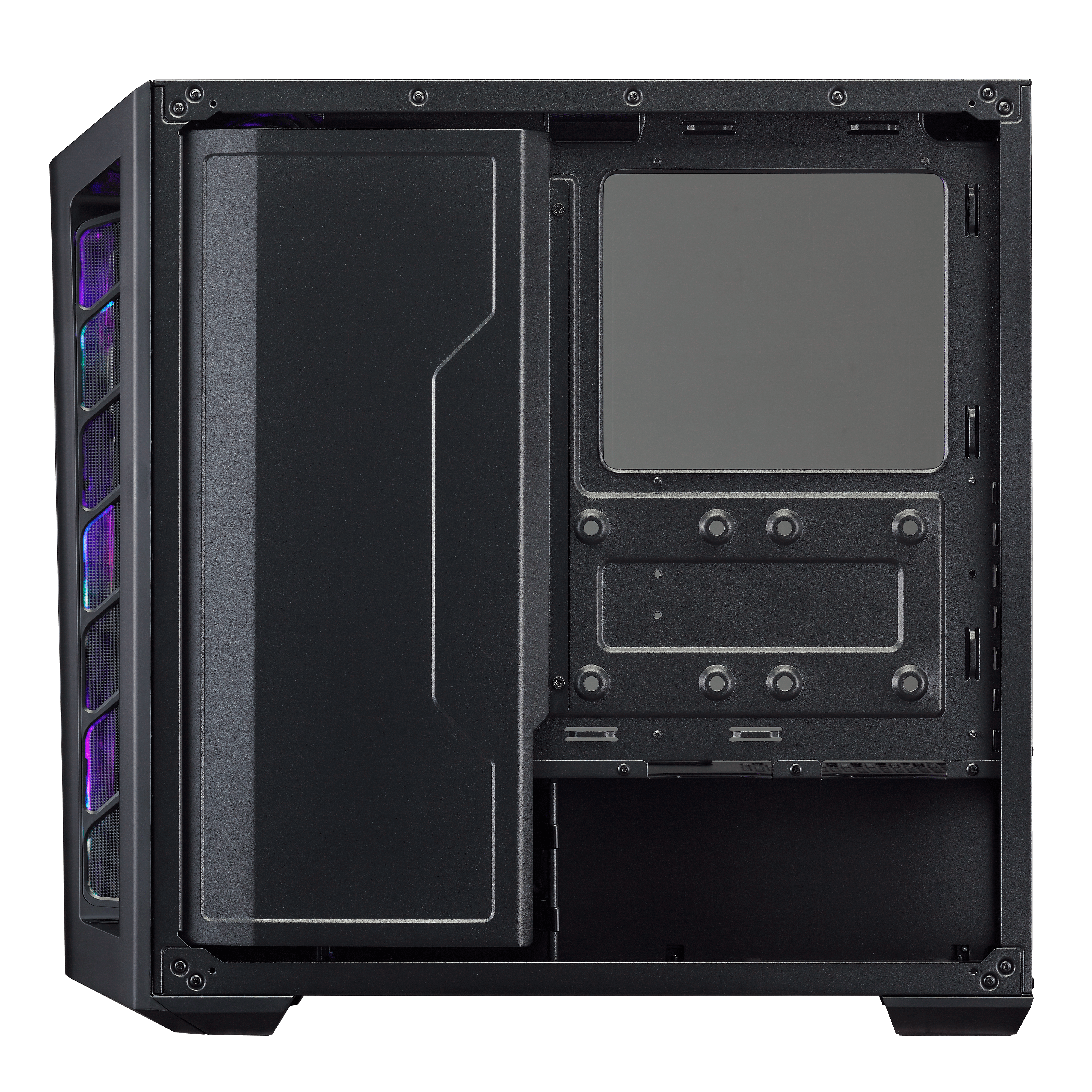

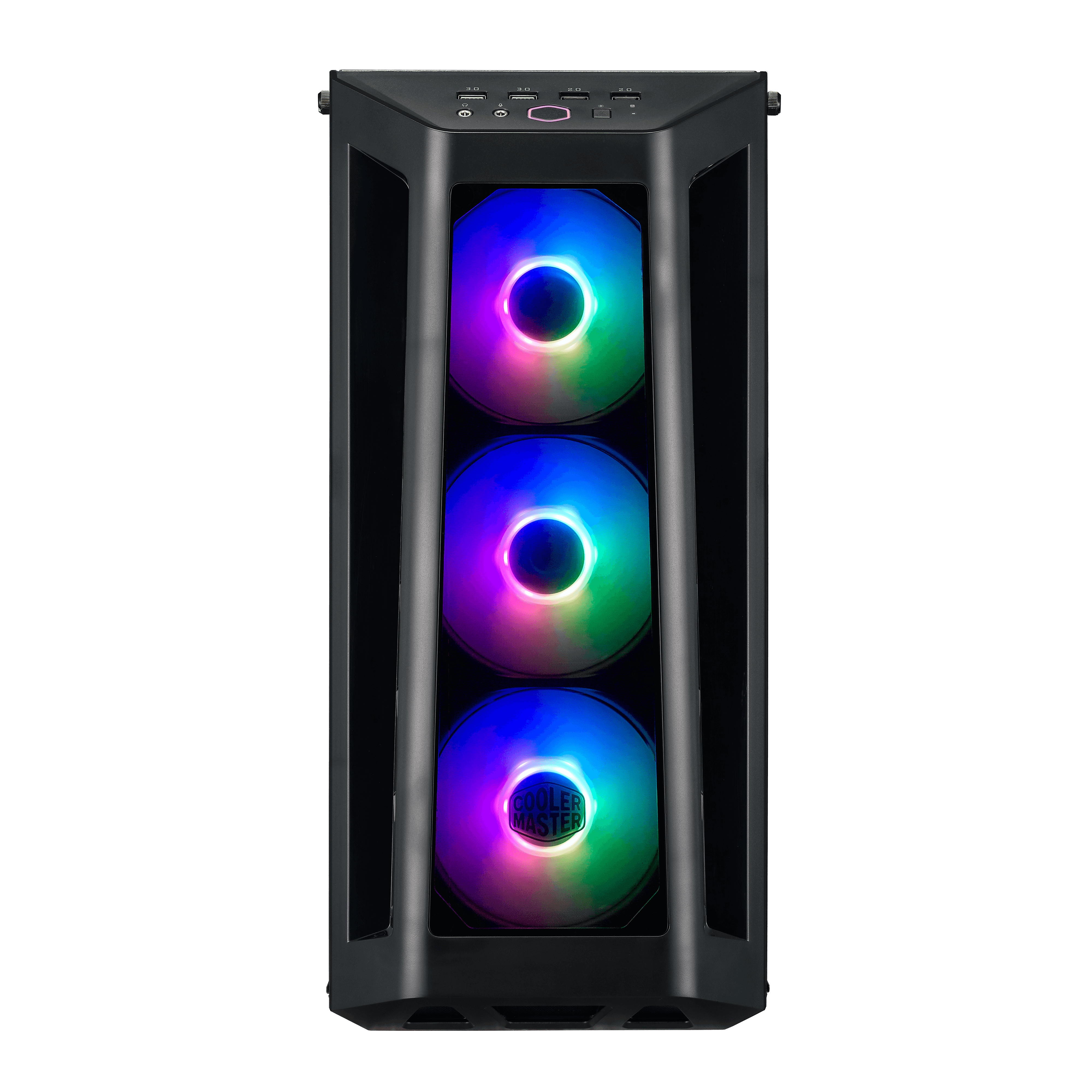

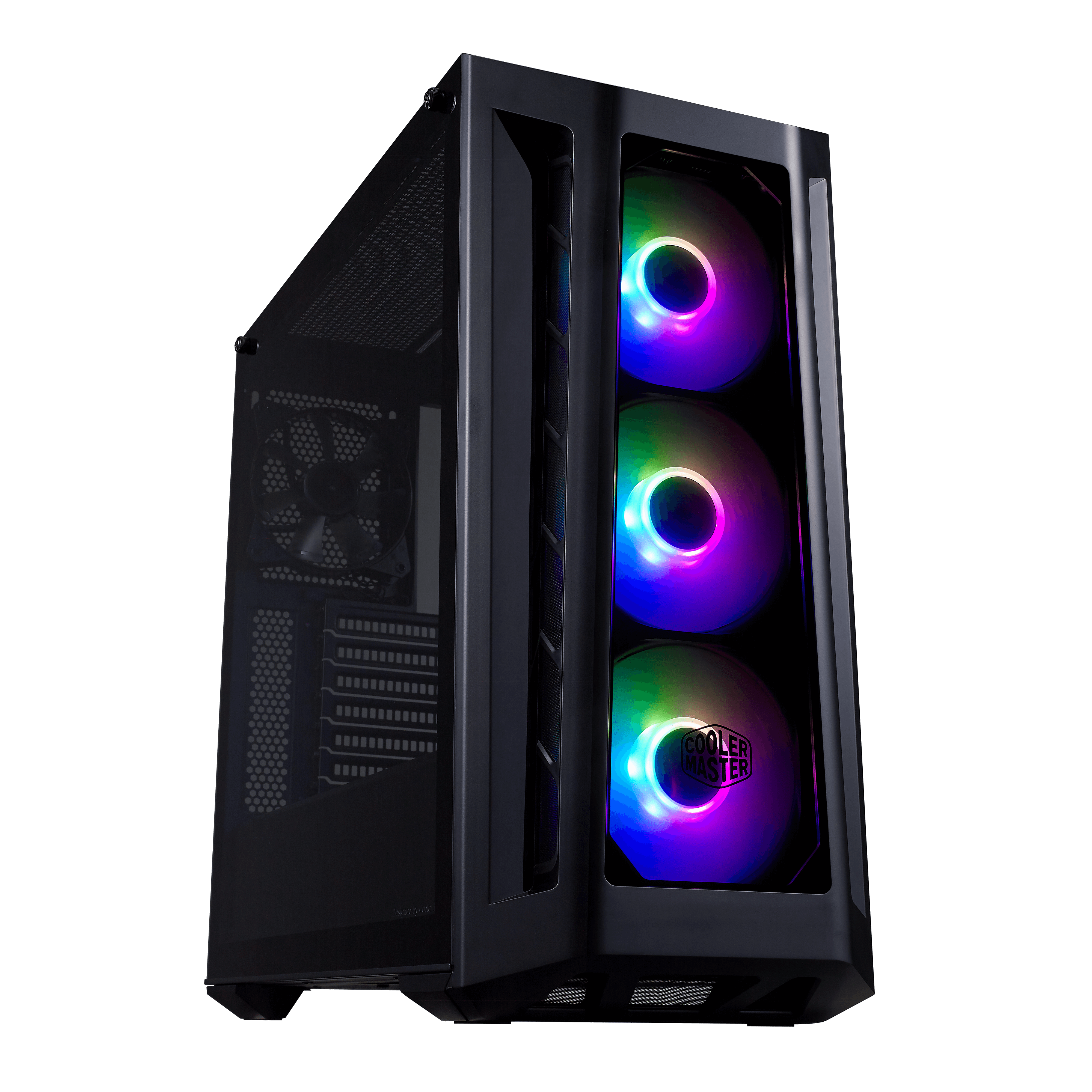

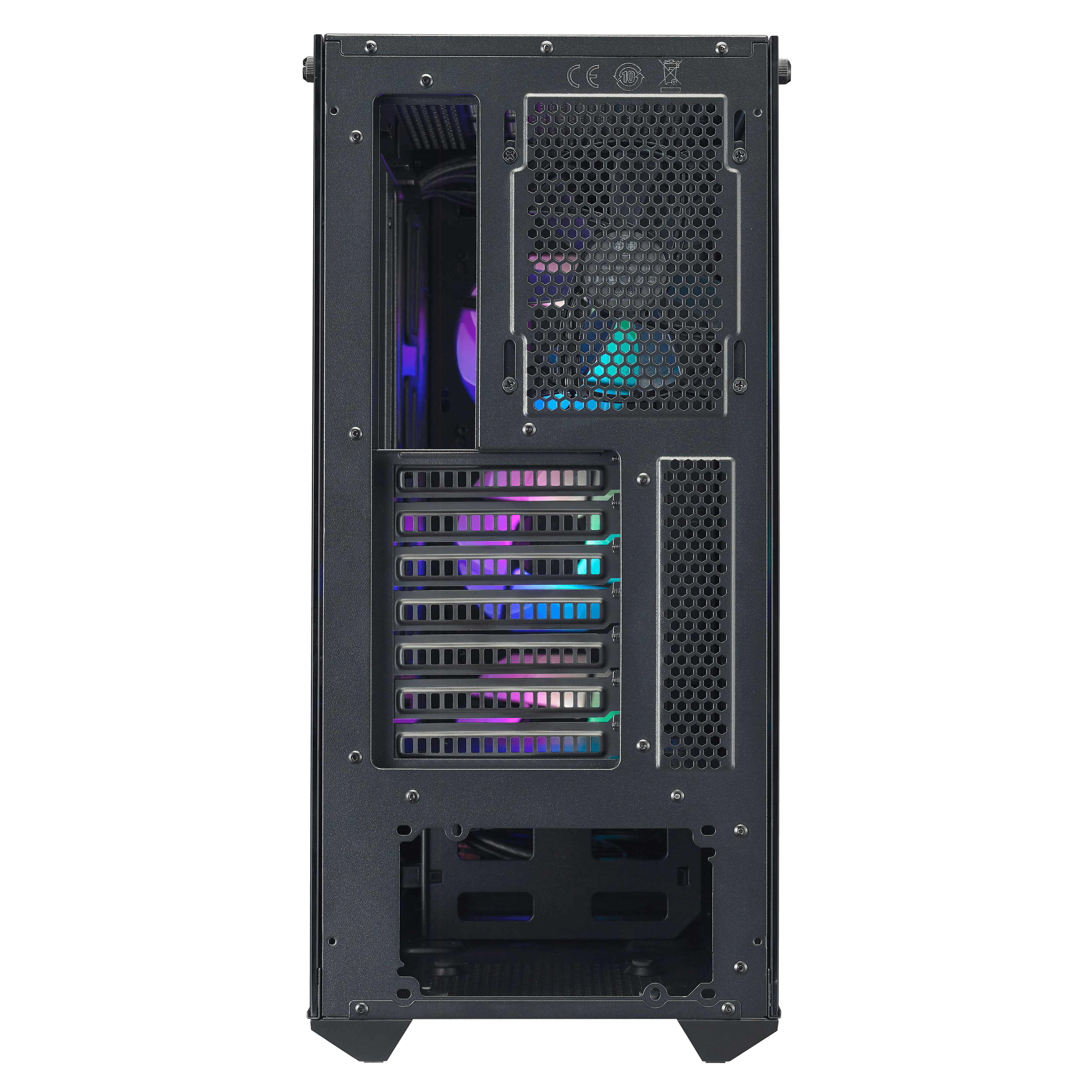

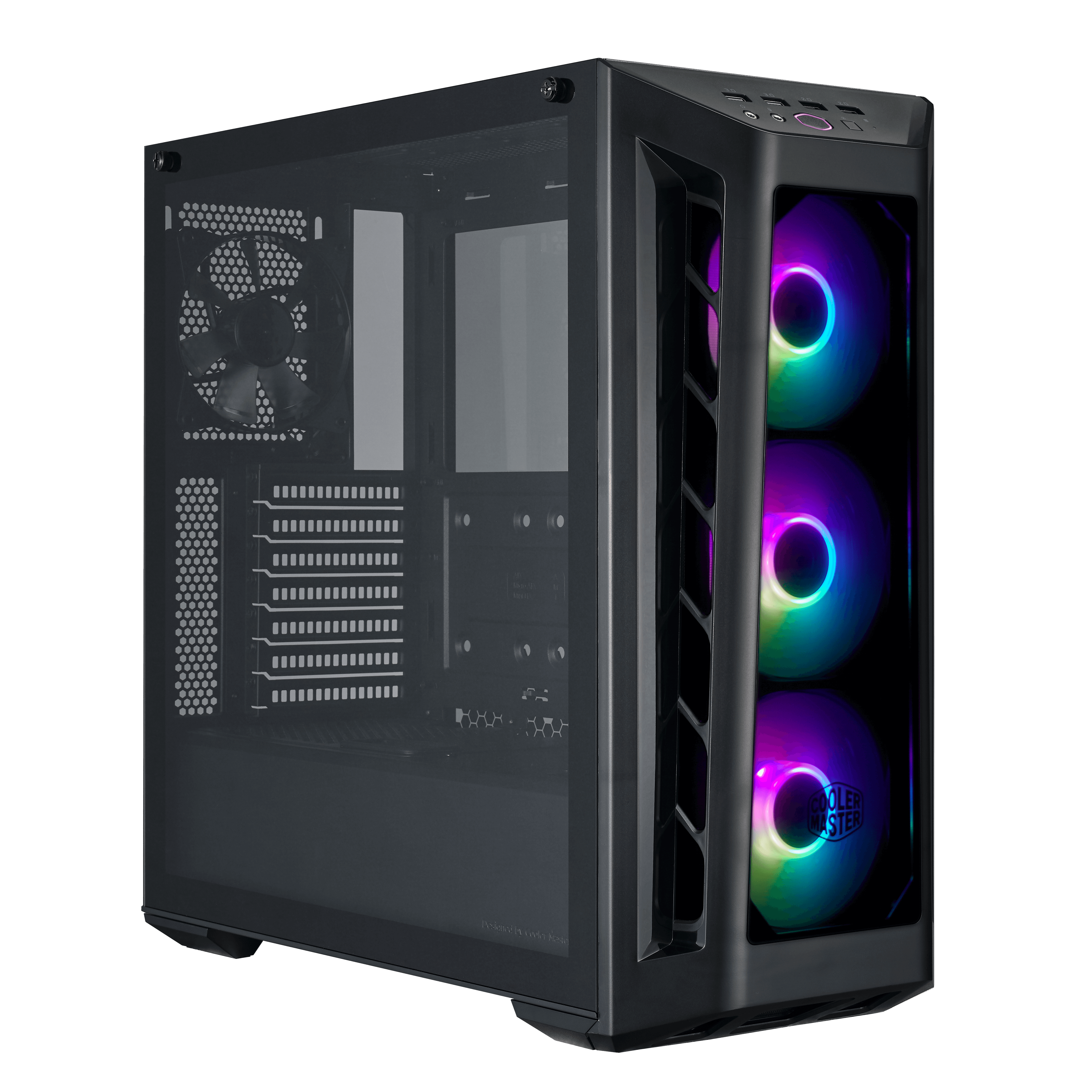

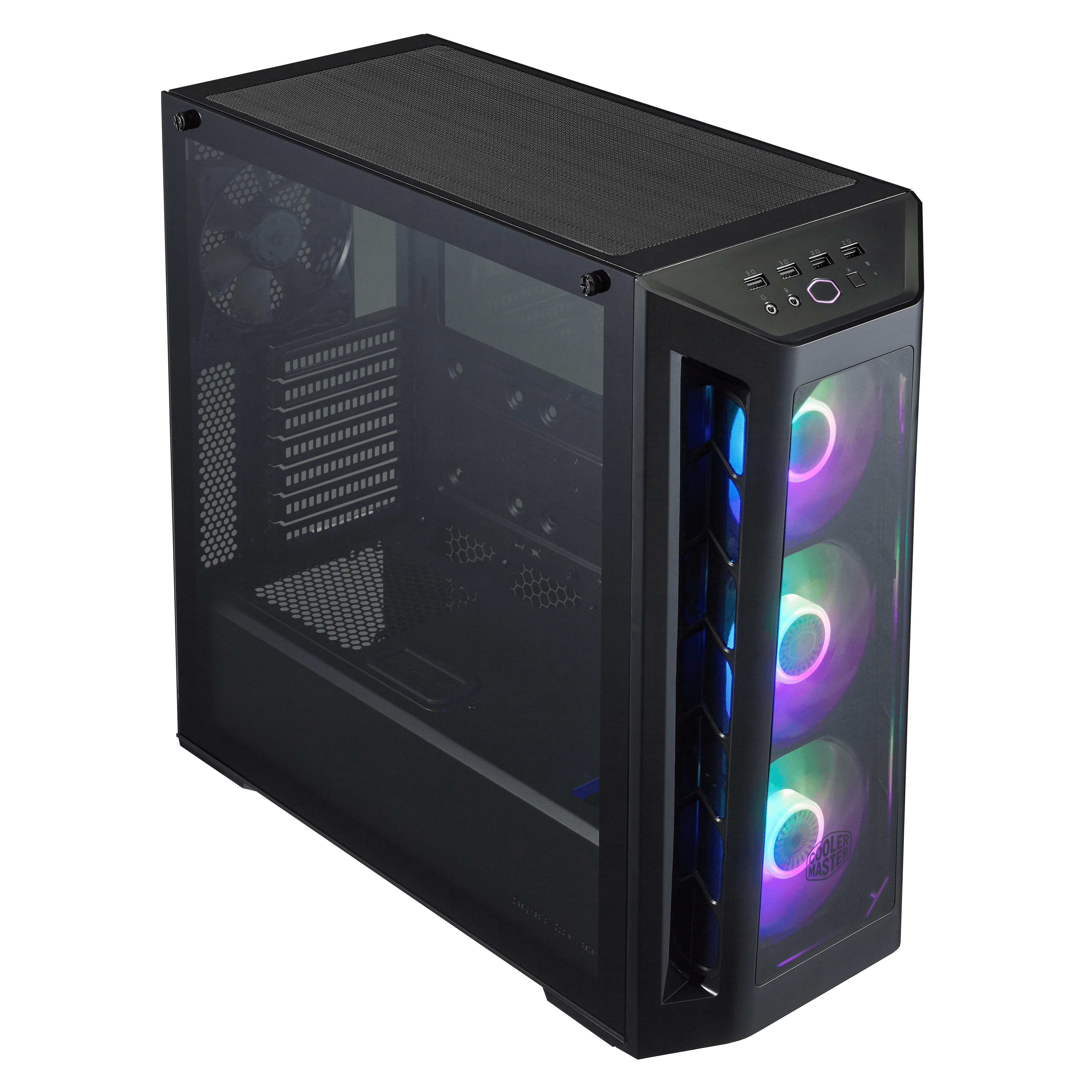

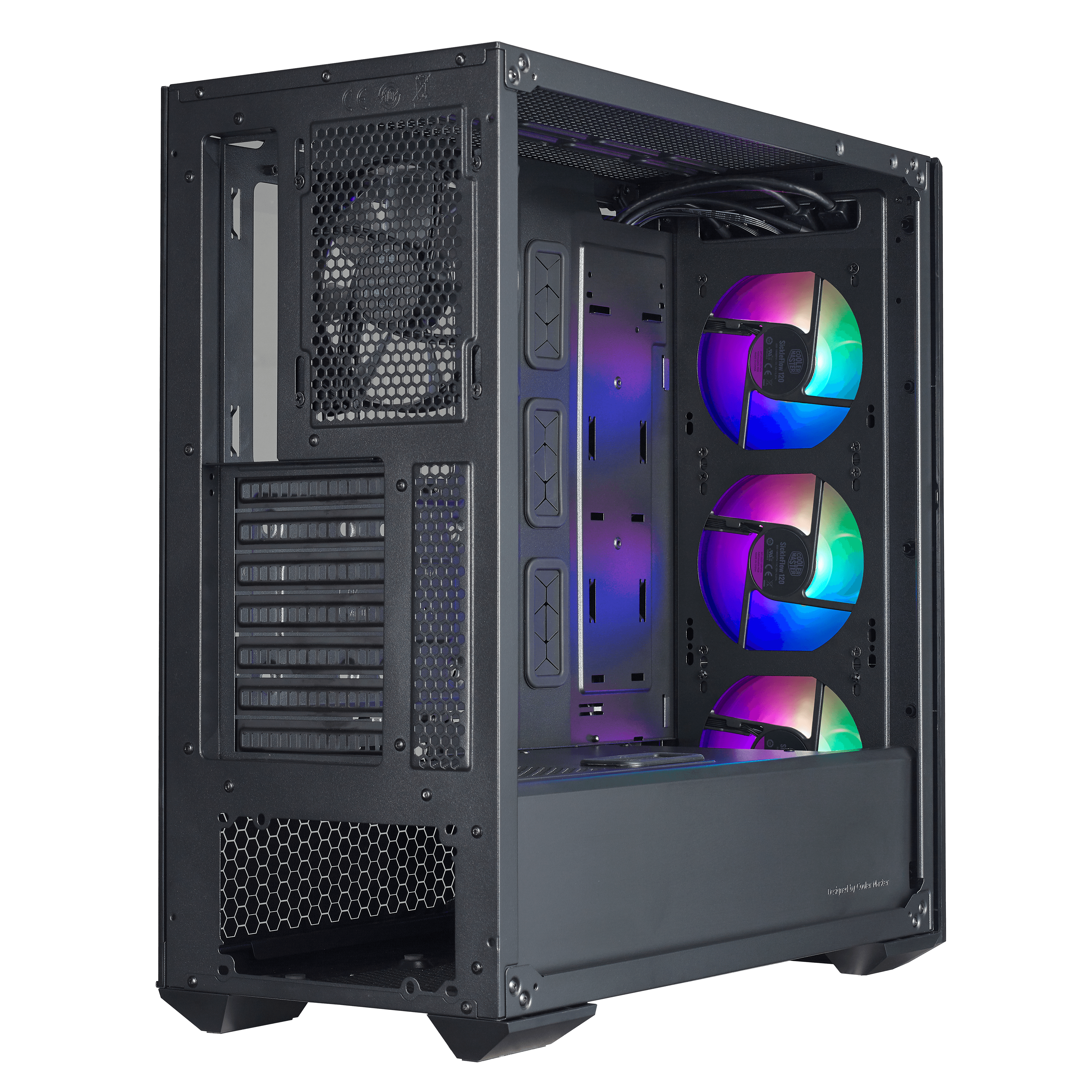

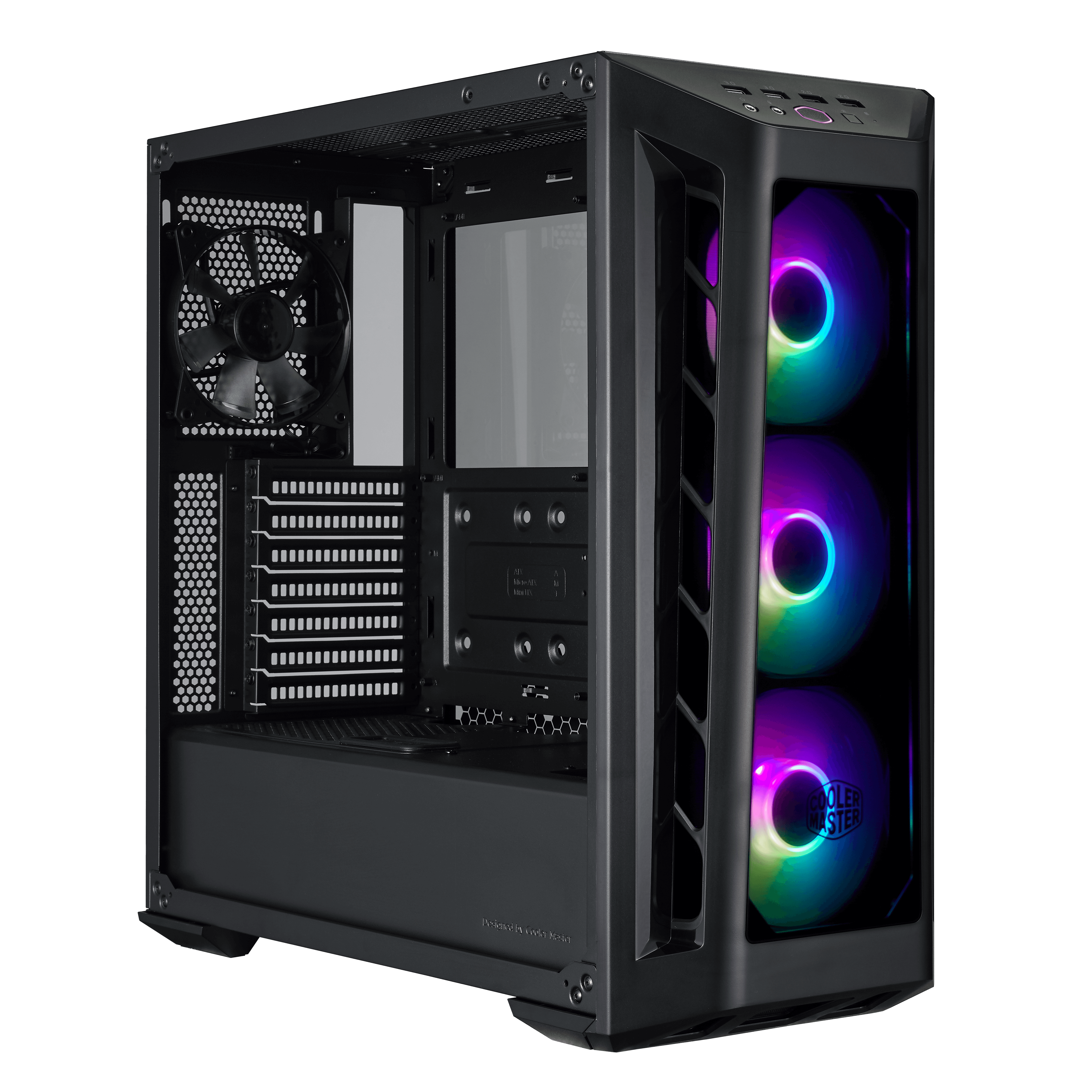

MasterBox MB530P Mid Tower Case
The MasterBoxMB530P utilizes the aggressive intakes seen on the MB510L, MB511, and MB520, but employs glass on both of the side and the front panel.
- Materials Steel
- Radiator Support - Rear 120mm
- Power Supply Support Bottom Mount
- Dust Filters Top
- Dust Filters Front
- ARGB Cable 1 to 3 ARGB Splitter cable included
- Materials Plastic
- 3.5" Drive Bays 2
- I/O Panel 2x USB 3.0
- Color(s) Black
- Series MasterBox Series
- Size Mid Tower
- Radiator Support - Front 360mm
- Materials Tempered Glass
- Dust Filters Bottom
- Power Supply Support ATX
- Clearance - PSU 180mm/7.1"
- Radiator Support - Front 280mm
- Radiator Support - Front 240mm
- Radiator Support - Top 240mm
- I/O Panel 2x USB 2.0
- Radiator Support - Front 140mm
- Motherboard Support ATX
- Expansion Slots 7
- Radiator Support - Front 120mm
- Motherboard Support Micro ATX
- Radiator Support - Top 120mm
- Fan Support - Top 2x 140mm
- Fan Support - Front 3x 120mm
- Clearance - CPU Cooler 165mm/6.49"
- Fan Support - Top 3x 120mm
- Motherboard Support Mini ITX
- Cable Routing - Behind Motherboard Tray 18-25mm
- Clearance - GFX 410mm/16.1"
- Pre-installed Fans - Rear 1x 120mm Non-Led fan
- 2.5" Drive Bays 4
- Radiator Support - Top 360mm (44mm max motherboard component height)
- I/O Panel Audio In & Out (Supports HD Audio)
- Fan Support - Front 2x 140mm (can only mount behind the front plate)
- Pre-installed Fans - Front 3x 120mm CF120 ARGB
- Dimensions (L x W x H) 489 x 229 x 469mm
- Model Number MCB-B530P-KHNN-S01
