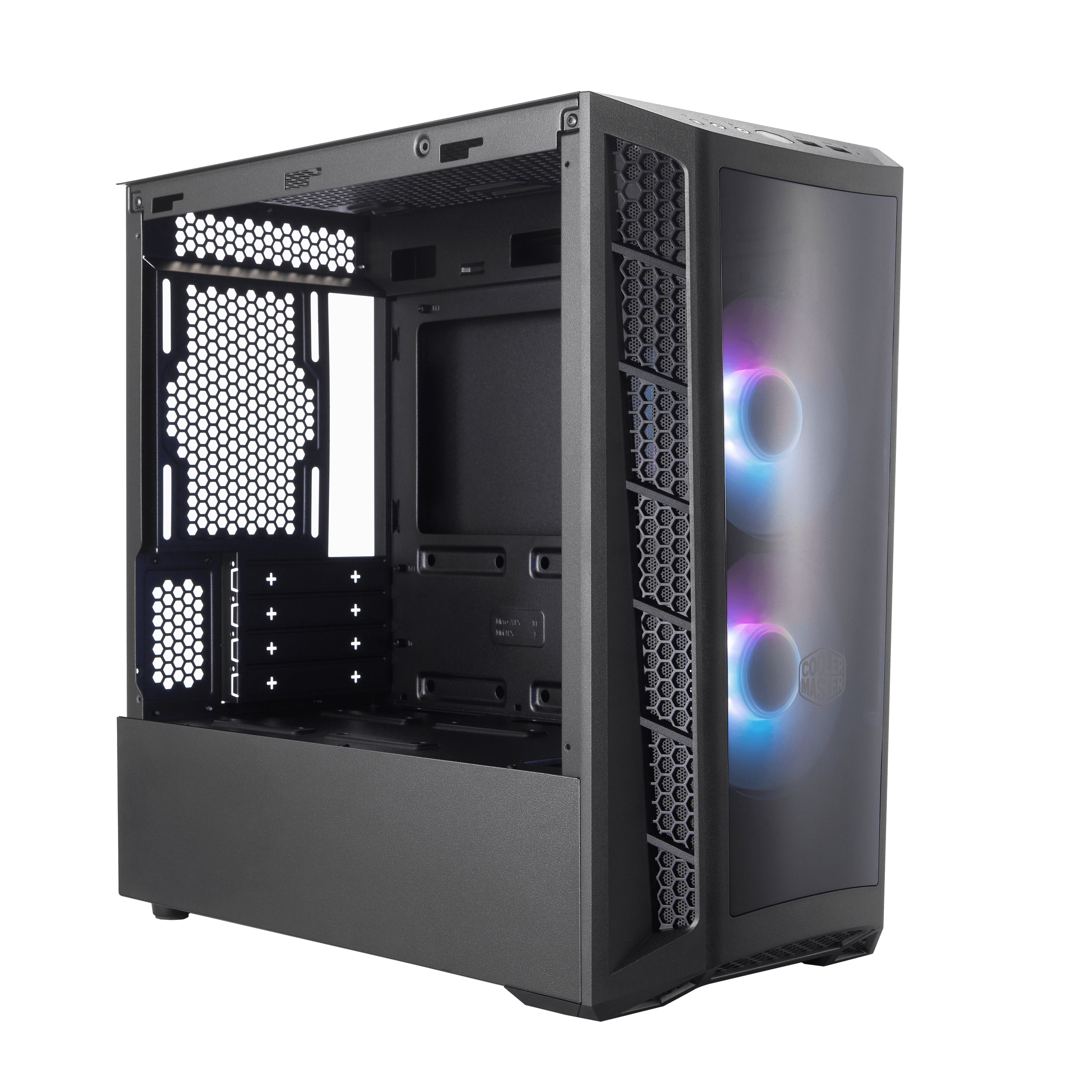

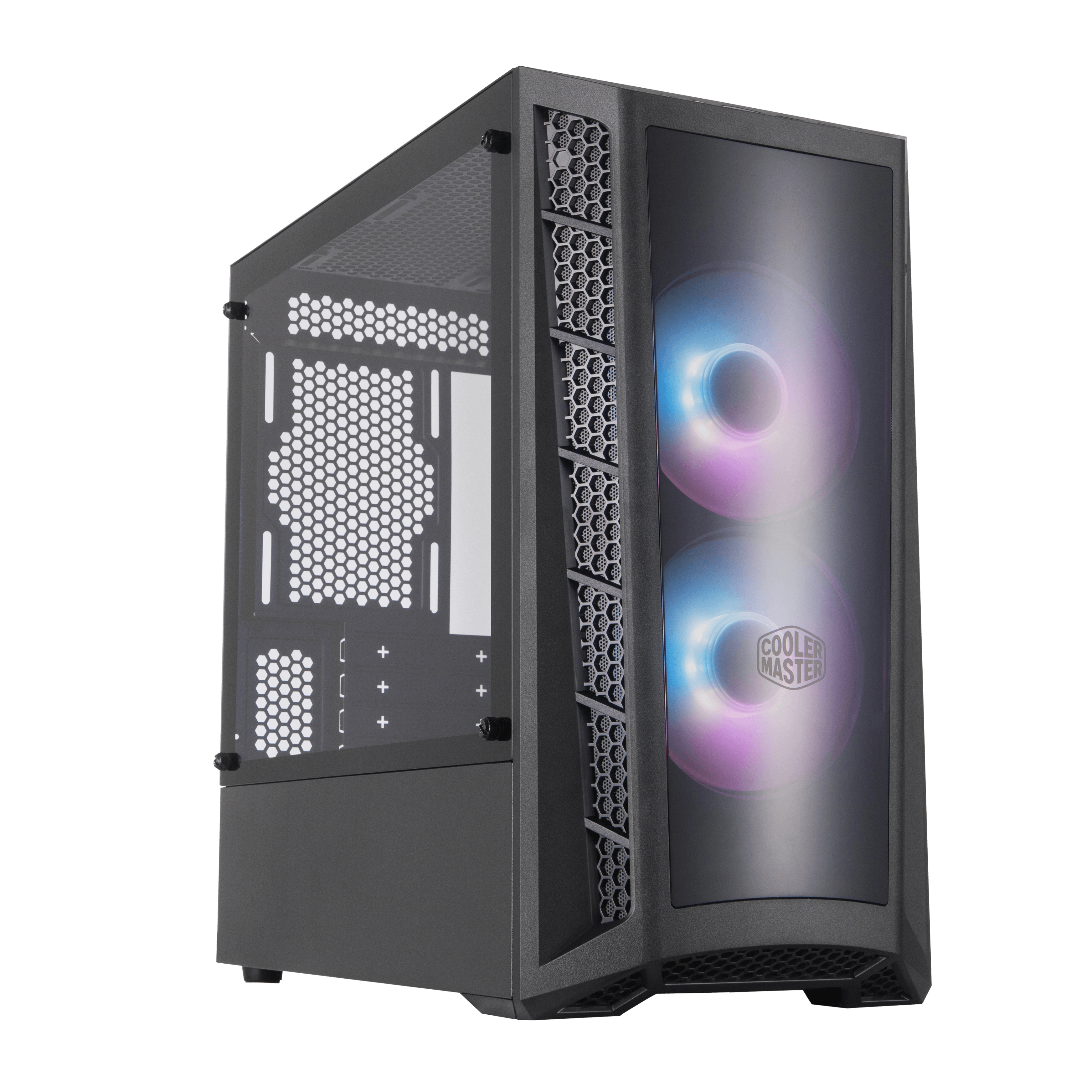

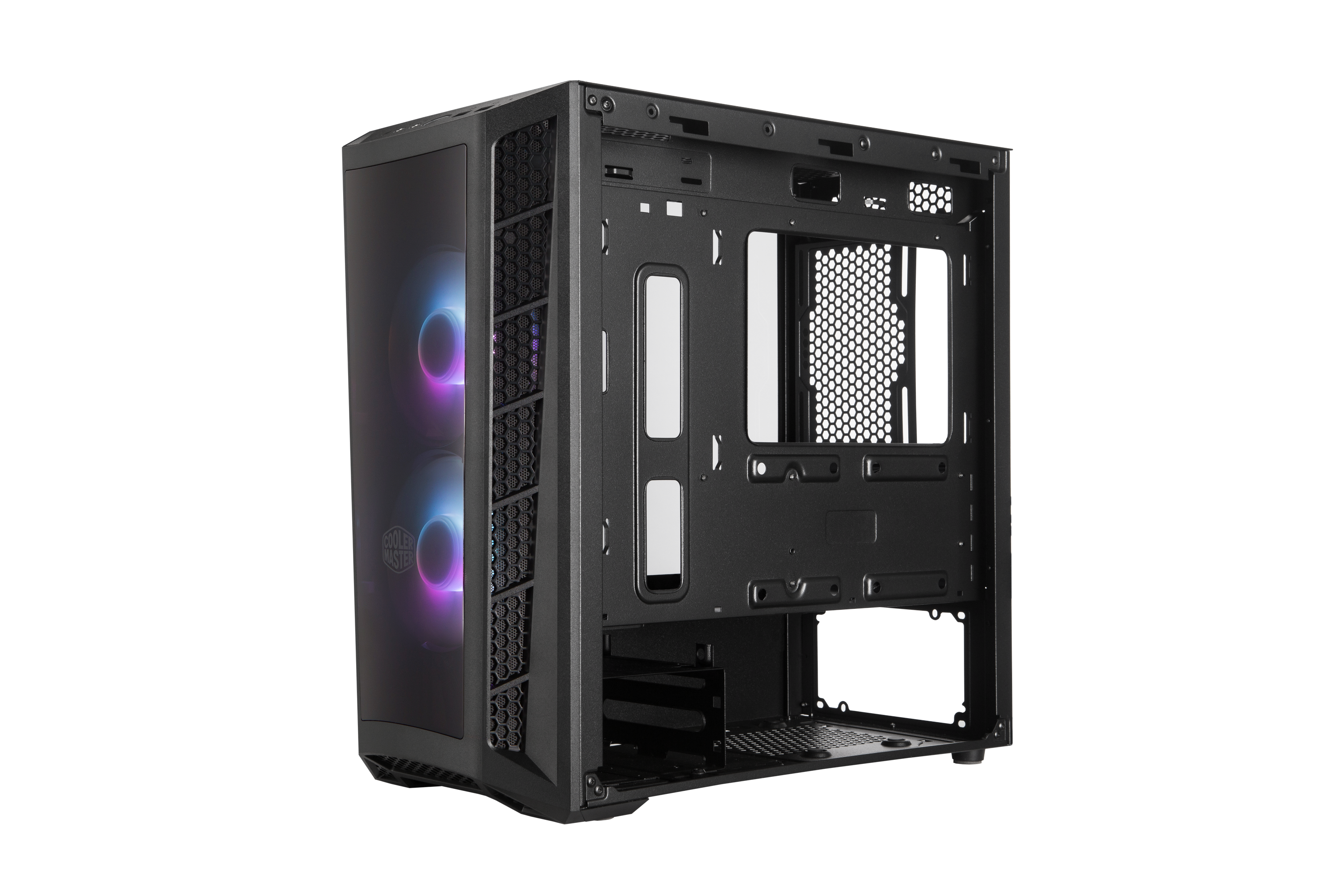

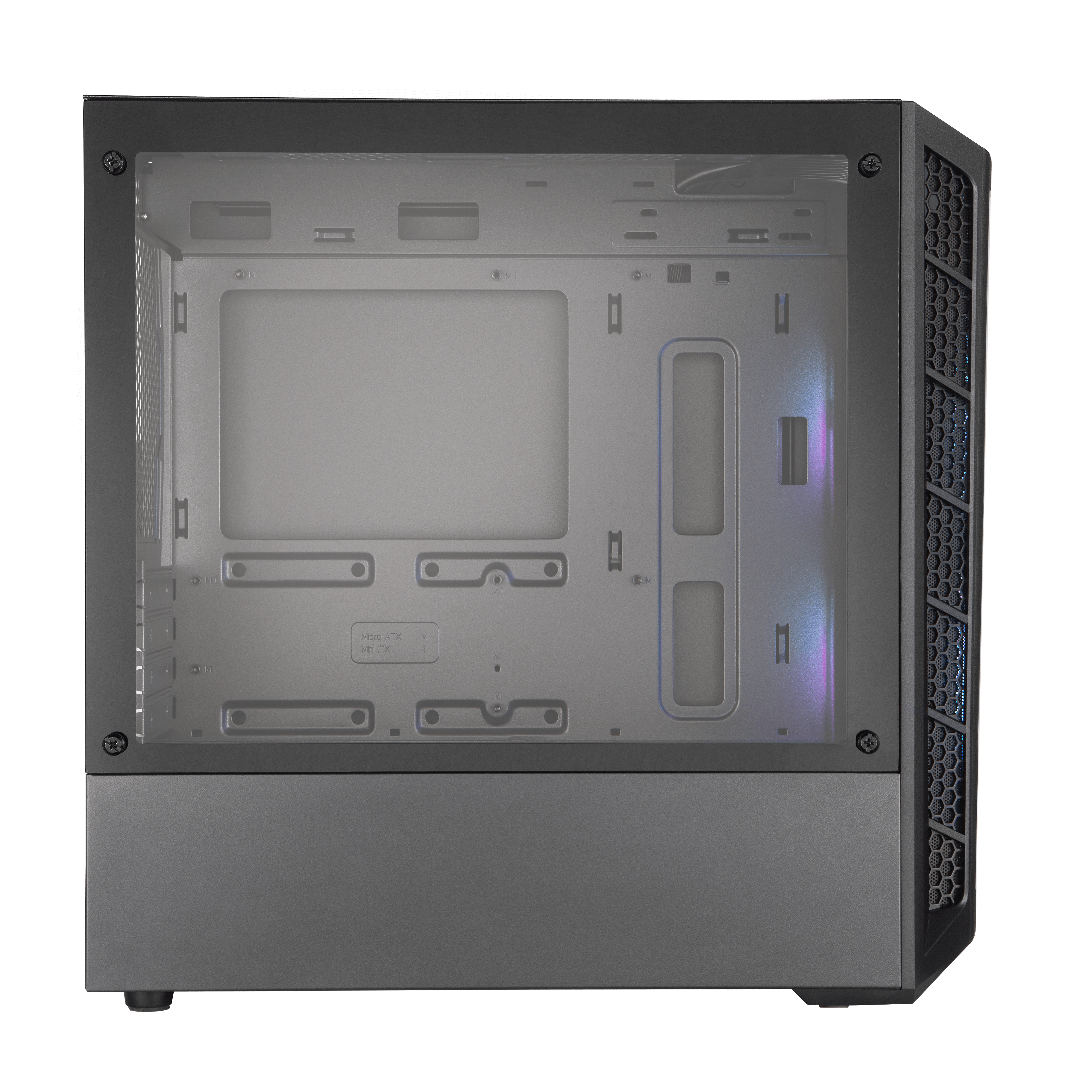

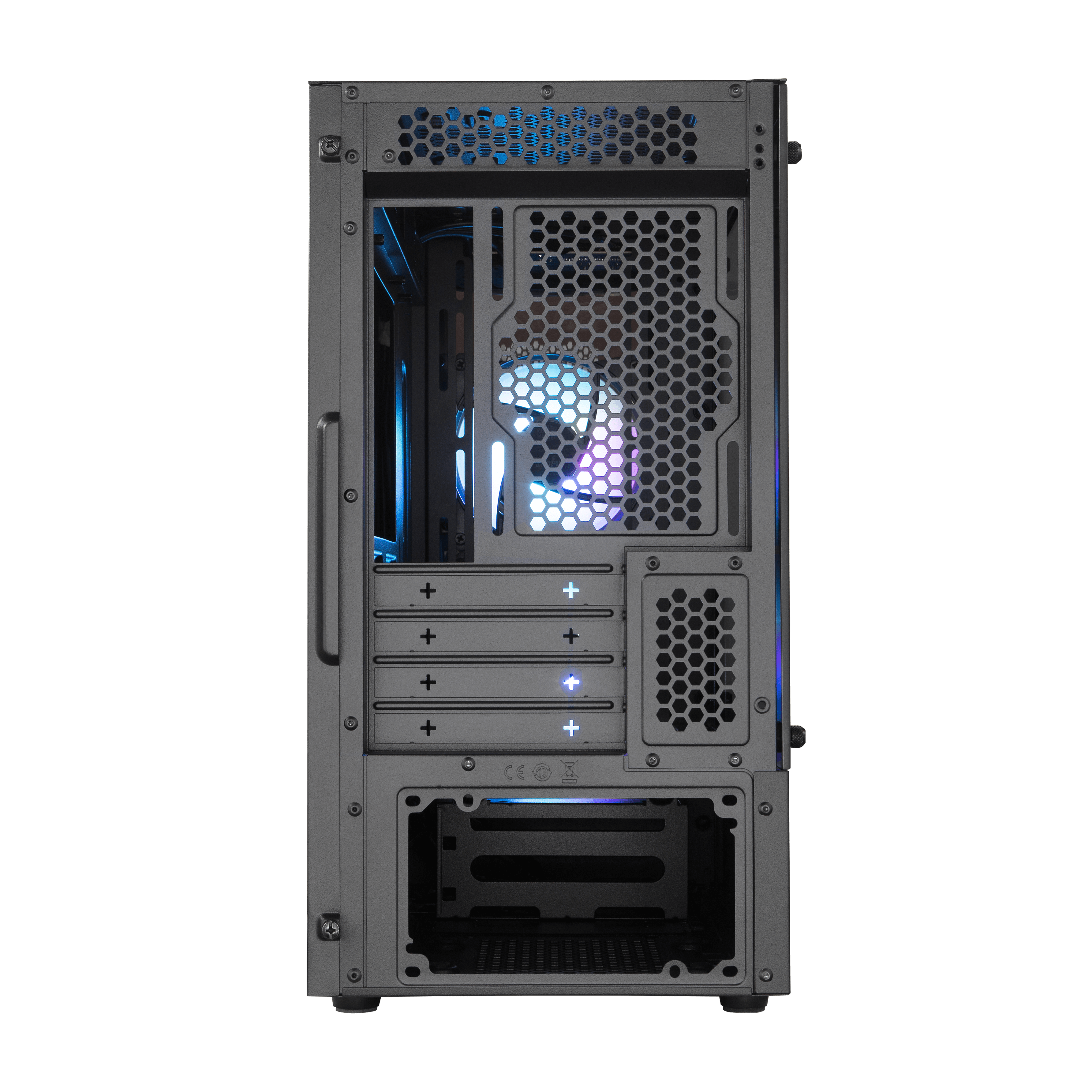

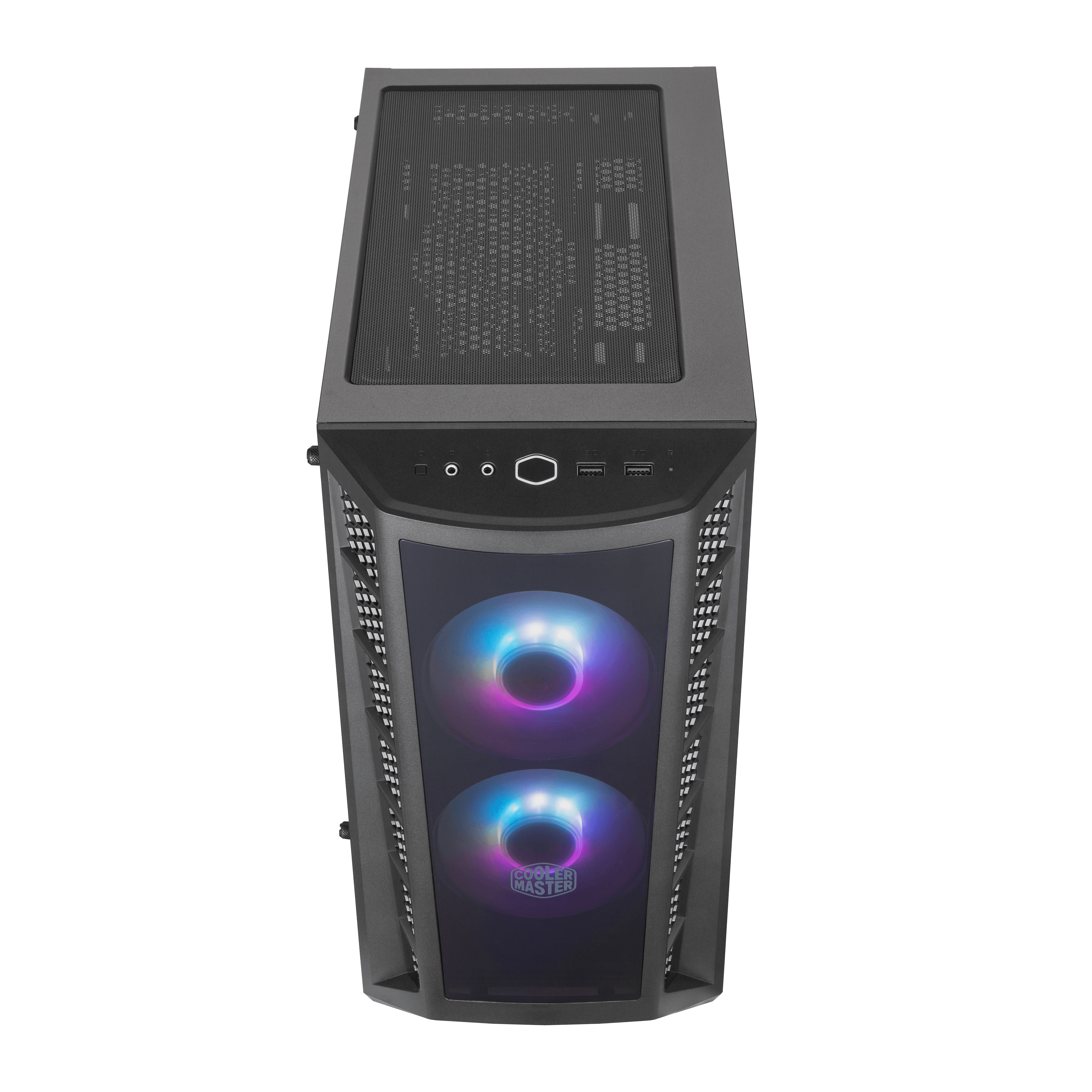

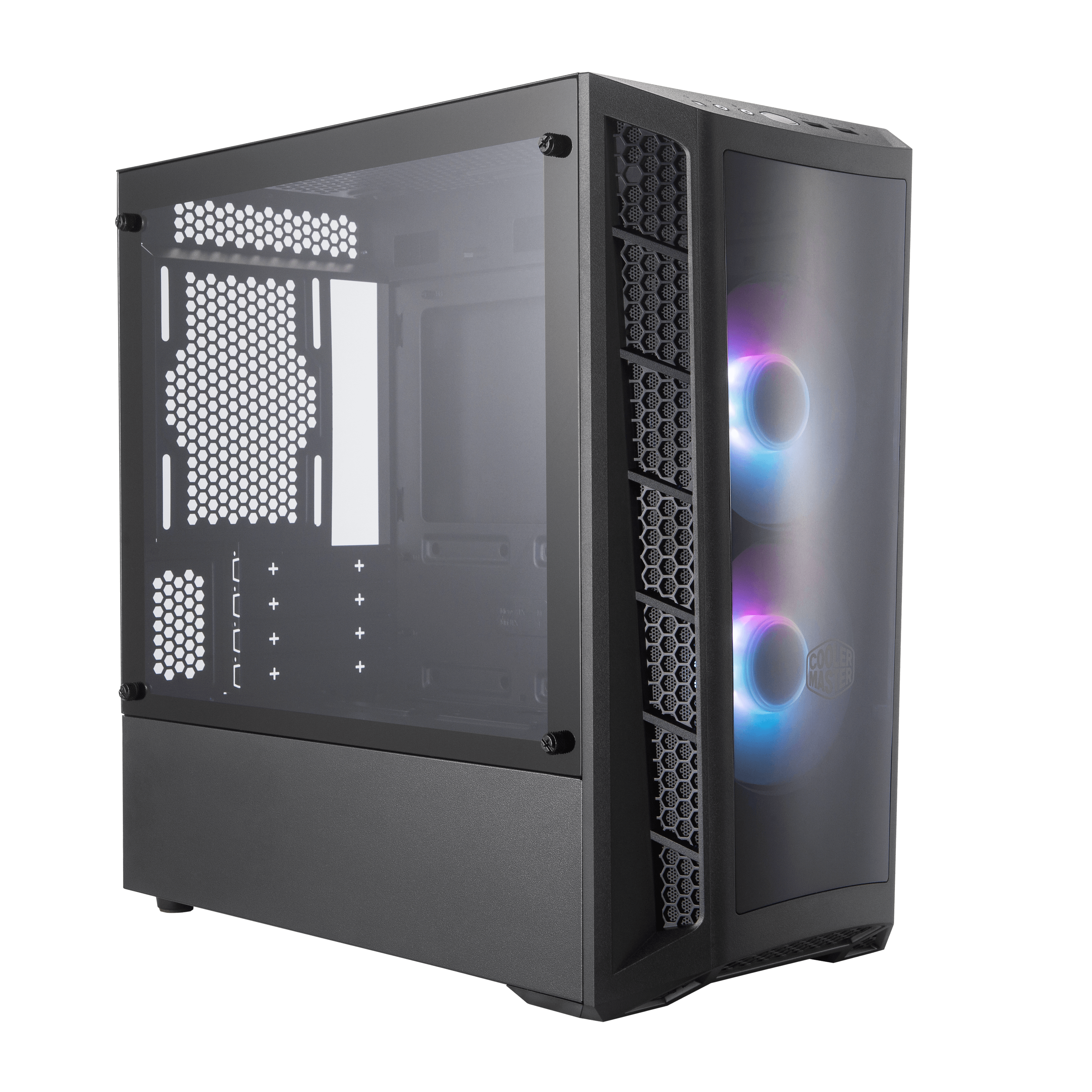

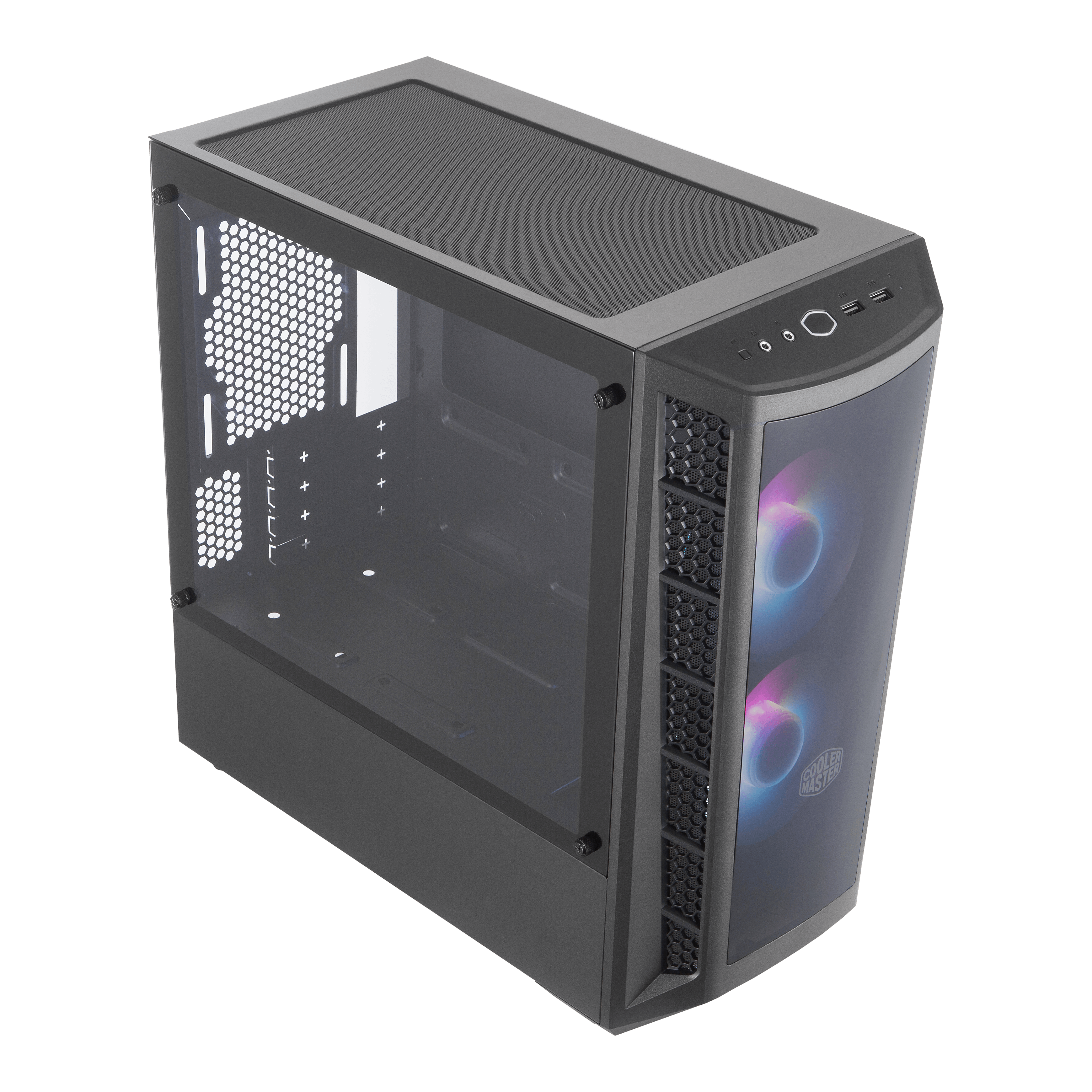

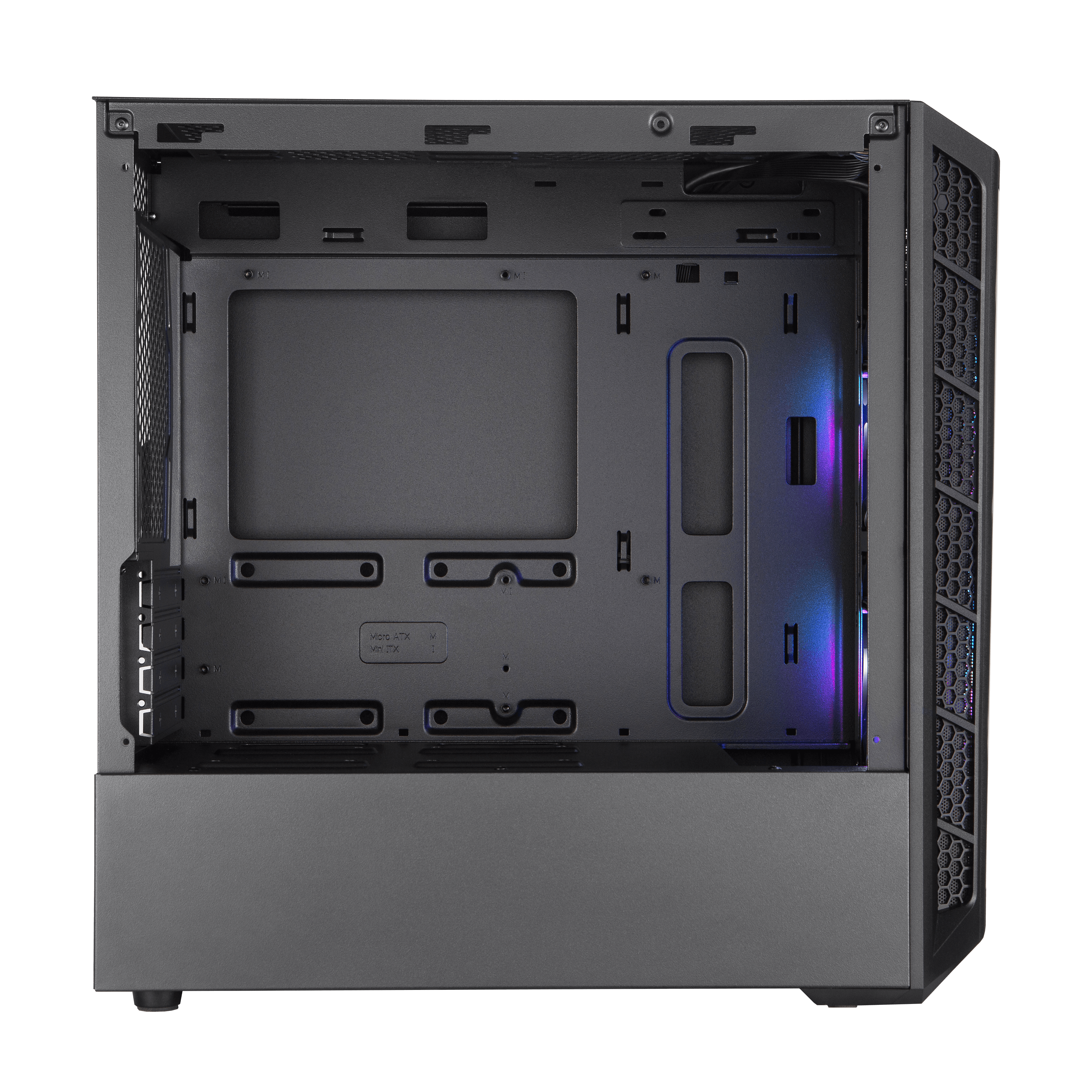

MasterBox MB320L ARGB

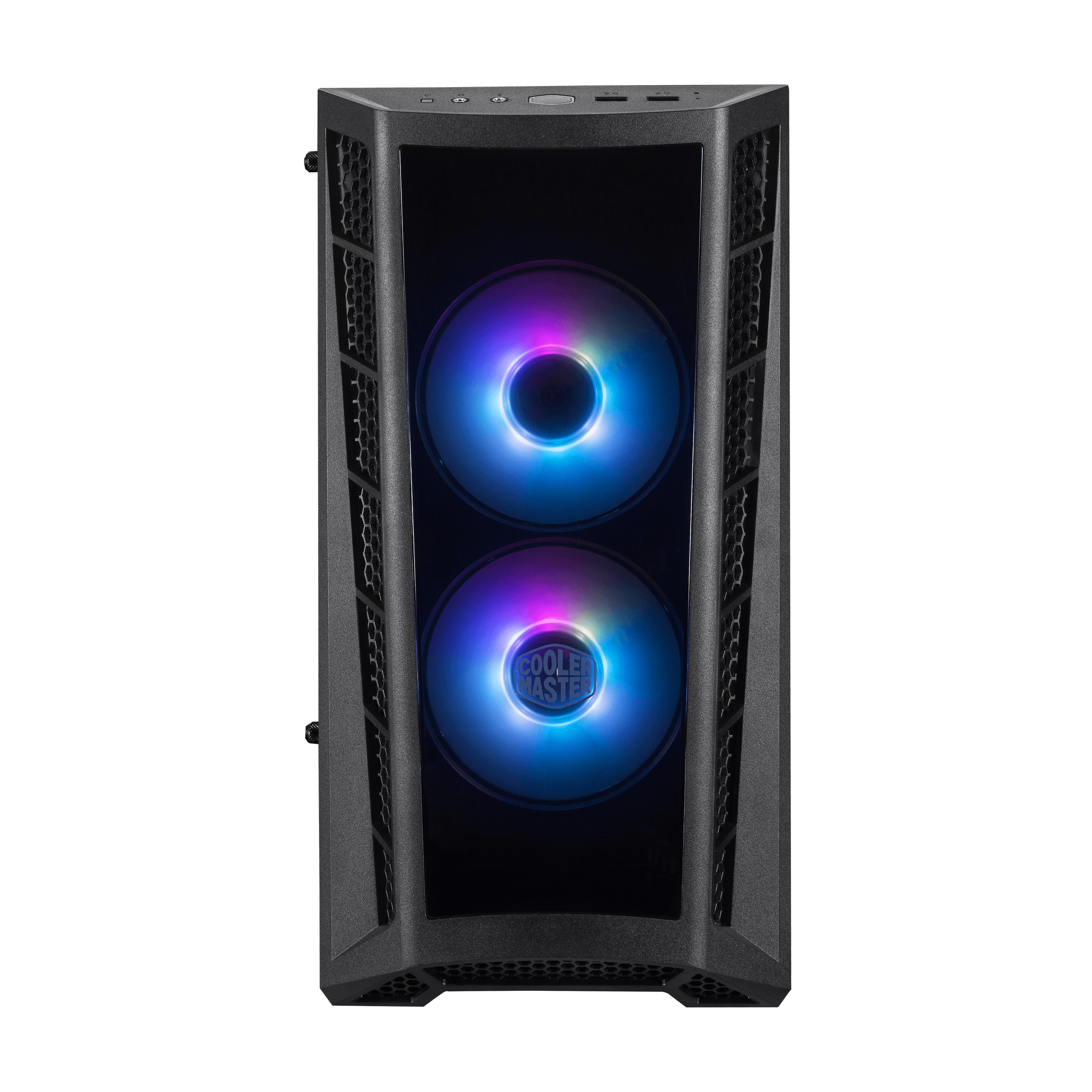

The MasterBox MB320L ARGB is a Micro-ATX PC case with two pre-installed ARGB fans and honeycomb mesh ventilation on either side of the DarkMirror front panel. The DarkMirror front panel is smoked a shade darker to sharpen the contrast of the ARGB fans pre-installed behind it, highlighting its best features.
model
- Materials Steel
- Radiator Support - Rear 120mm
- Power Supply Support Bottom Mount
- Dust Filters Top
- 5.25" Drive Bays N/A
- Clearance - PSU 140mm (HDD cage in backmost position)
- Dust Filters Front
- Warranty 2 years
- 3.5" Drive Bays 2
- Materials Plastic
- Color(s) Black
- Series MasterBox Series
- Size Mini Tower
- 2.5" Drive Bays 2
- Materials Tempered Glass
- Dust Filters Bottom
- Power Supply Support ATX
- Fan Support - Rear 1x 120mm
- Radiator Support - Front 280mm
- Radiator Support - Front 240mm
- Radiator Support - Top 240mm
- Fan Support - Top 2x 120/140mm
- Fan Support - Front 2x 140mm
- Radiator Support - Front 140mm
- Motherboard Support Micro ATX
- Radiator Support - Top 120mm
- Radiator Support - Front 120mm
- Materials Mesh
- Fan Support - Front 3x 120mm
- Cable Routing 18-22mm
- Clearance - PSU 325mm (w/o front radiator & HDD cage)
- Expansion Slots 4
- Clearance - CPU Cooler 166mm/6.54"
- Motherboard Support Mini ITX
- Weight 5.47kg

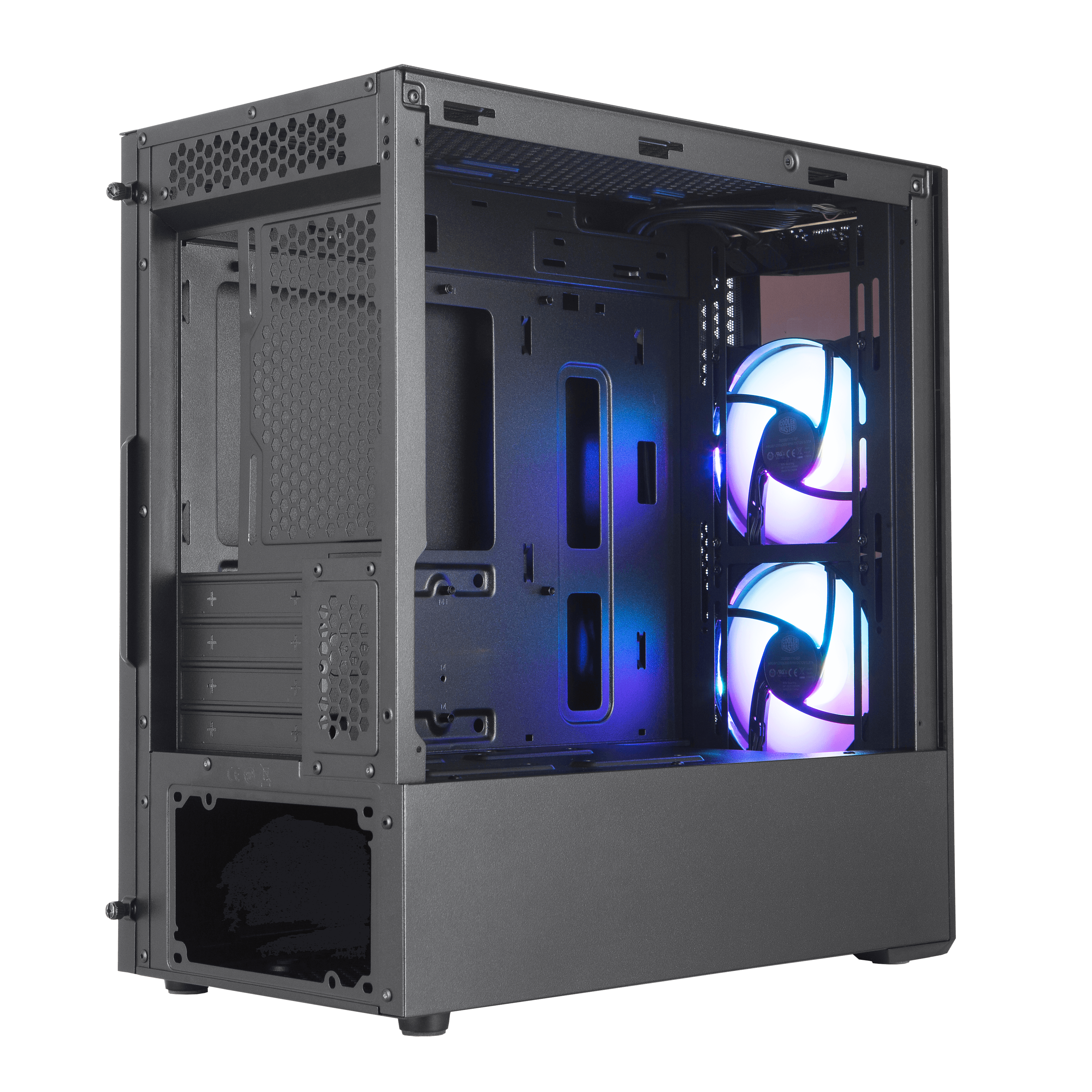

- Pre-installed Fans - Front 2x 120mm ARGB Fan
- I/O Panel 1x 3.5mm Audio Jack
- I/O Panel 1x 3.5mm Mic Jack
- Clearance - GFX 344mm
- I/O Panel 2x USB 3.2 Gen 1 (formerly USB 3.0)
- I/O Panel 1x ARGB 2-to-3 splitter
- I/O Panel 1x ARGB Controller (only for the S02 versions)
- Dimensions (L x W x H) 435.5 x 217.5 x 410mm
- Model Number MCB-B320L-KGNN-S02
- Model Number MCB-B320L-KGNN-S01
