MasterBox MB320L ARGB

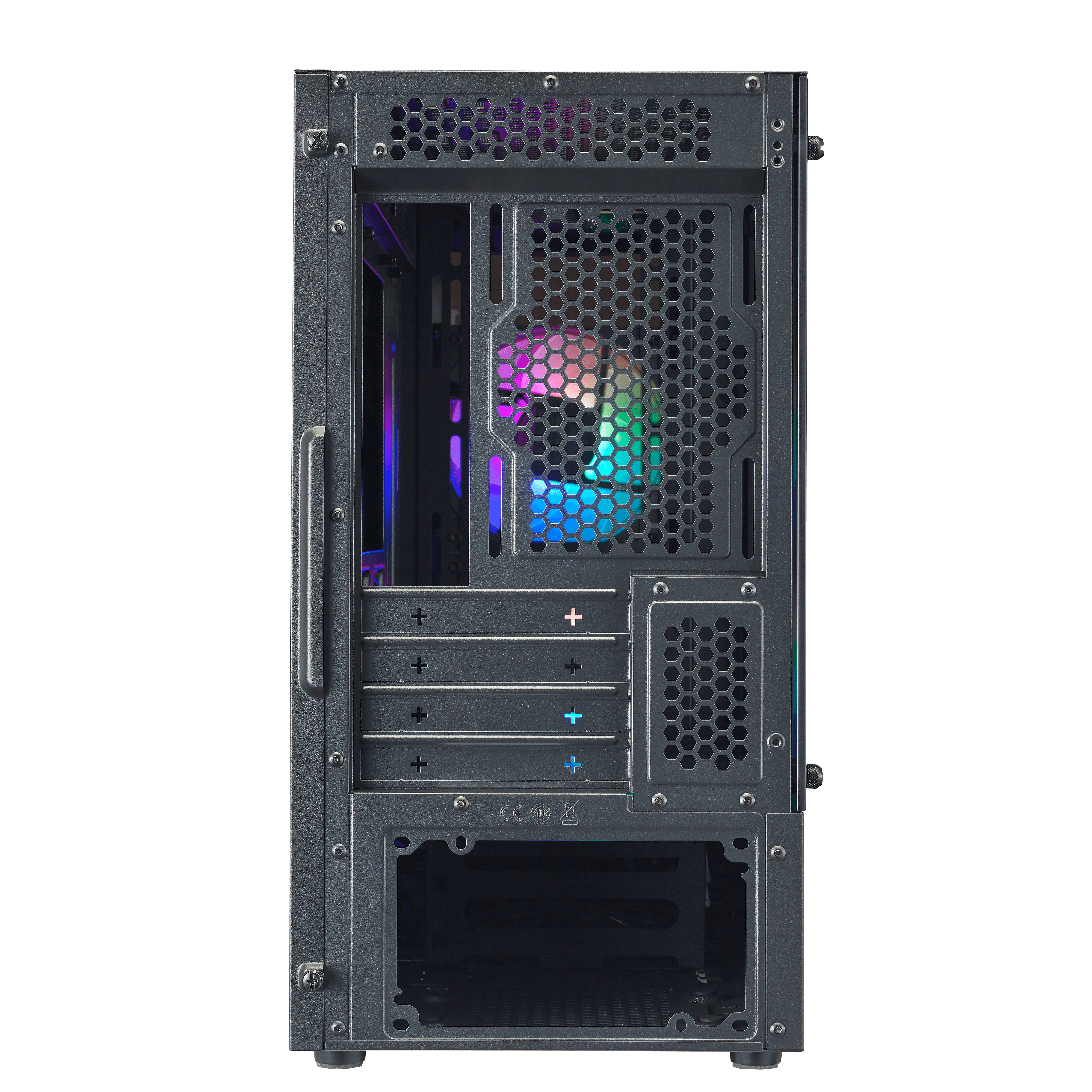

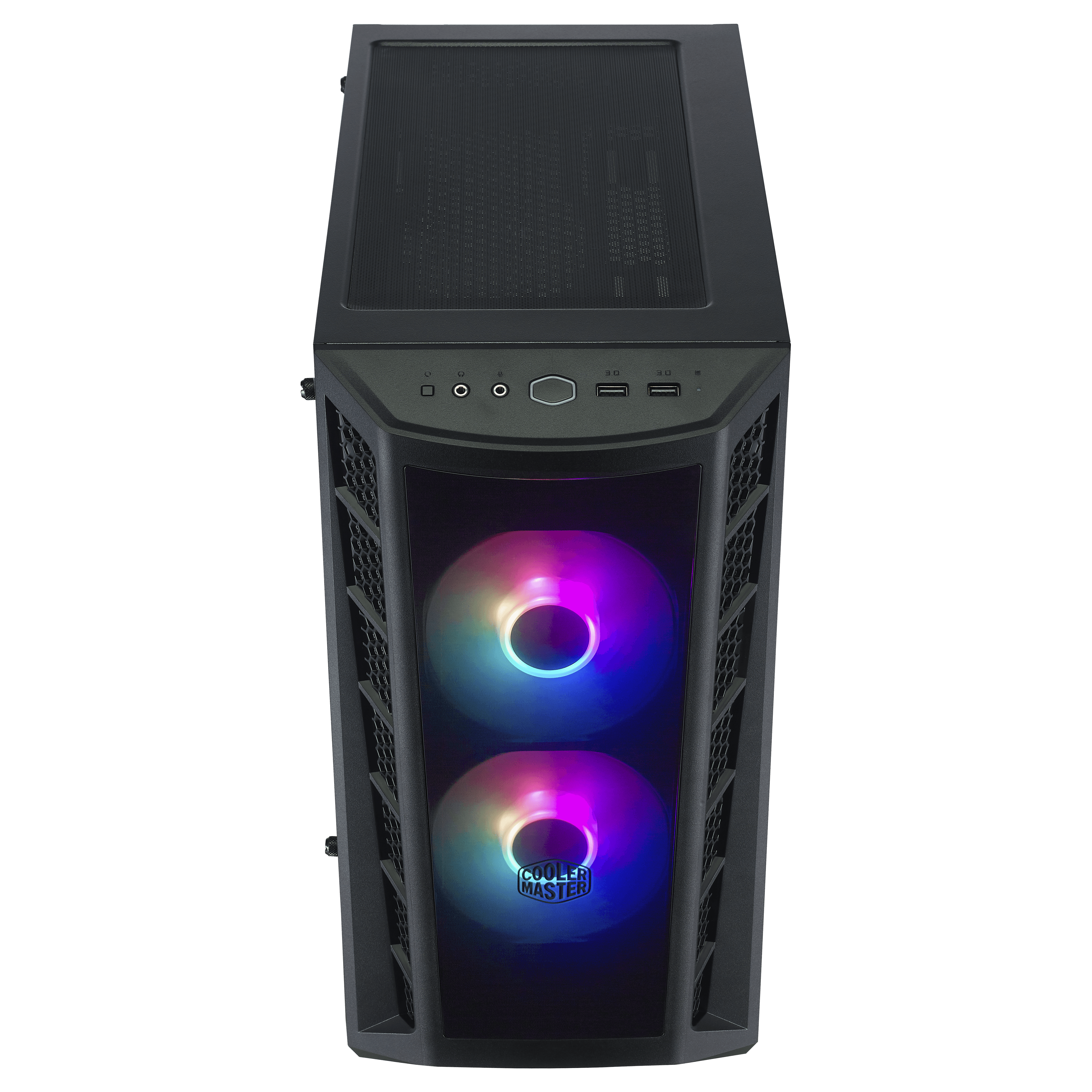

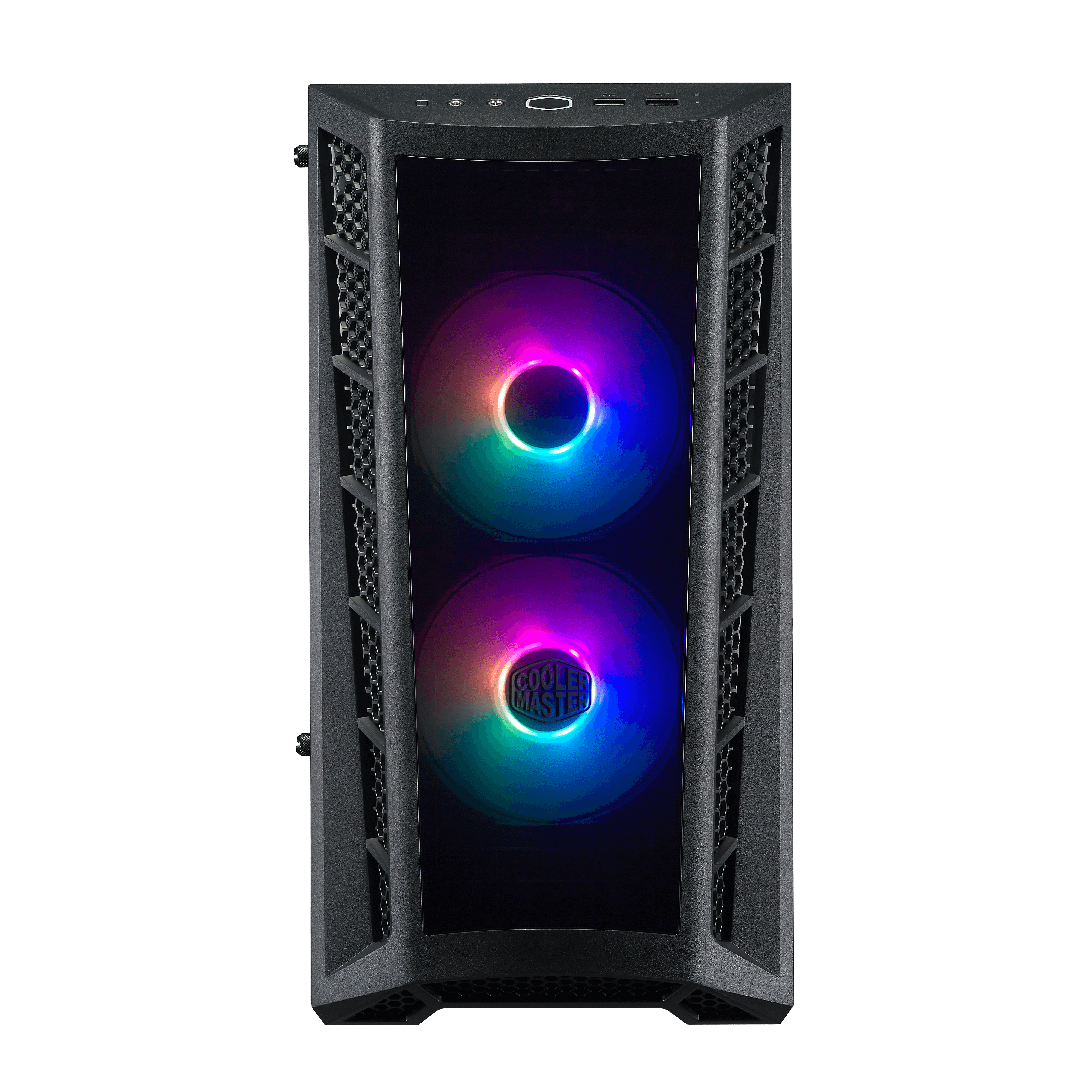

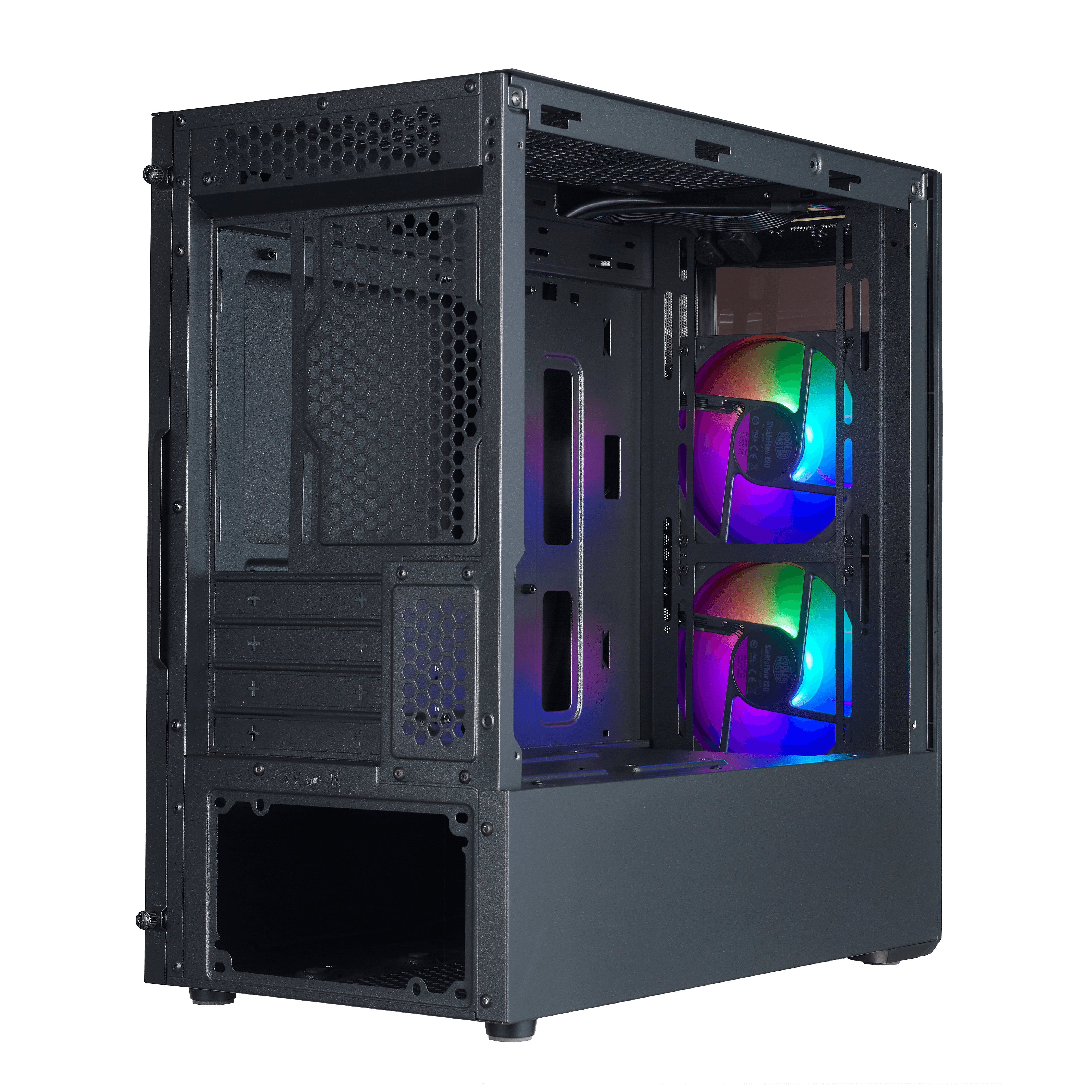

The MasterBox MB320L ARGB is a Micro-ATX PC case with two pre-installed ARGB fans and honeycomb mesh ventilation on either side of the front panel.
- Materials Steel
- Radiator Support - Rear 120mm
- Power Supply Support Bottom Mount
- Dust Filters Top
- 5.25" Drive Bays N/A
- Clearance - PSU 140mm (HDD cage in backmost position)
- Dust Filters Front
- Warranty 2 years
- 3.5" Drive Bays 2
- Materials Plastic
- Color(s) Black
- Series MasterBox Series
- Size Mini Tower
- 2.5" Drive Bays 2
- Materials Tempered Glass
- Dust Filters Bottom
- Power Supply Support ATX
- Fan Support - Rear 1x 120mm
- Radiator Support - Front 280mm
- Radiator Support - Front 240mm
- Radiator Support - Top 240mm
- Fan Support - Top 2x 120/140mm
- Radiator Support - Front 140mm
- Motherboard Support Micro ATX
- Radiator Support - Top 120mm
- Radiator Support - Front 120mm
- Cable Routing 18-22mm
- ARGB Controller MasterBox MB320L ARGB: 1x ARGB 1-to-3 Splitter, MasterBox MB320L ARGB with Hub: 1x ARGB Hub
- Clearance - PSU 325mm (w/o front radiator & HDD cage)
- Expansion Slots 4
- Clearance - CPU Cooler 166mm/6.54"
- Motherboard Support Mini ITX
- Weight 5.47kg
- Fan Support - Front 3 x 120mm* / 2 x 140mm
- Fan Support - Front *can only mount behind the front plate
- Clearance - GFX 344mm
- Pre-installed Fans - Front 2x 120mm CF120 ARGB Fan
- I/O Panel 2x USB 3.2 Gen 1 (USB 3.0), 1x 3.5mm Audio Jack, 1x 3.5mm Mic Jack
- Dimensions (L x W x H) 435.5 x 217.5 x 410mm
- Model Number MasterBox MB320L ARGB: MCB-B320L-KGNN-S01, MasterBox MB320L ARGB with Hub: MCB-B320L-KGNN-S02
